USER MANUAL BCOSZ5AC2201F Be Cool

Line drawing of a portable air conditioner unit with a circular vent and mesh grille (no text or symbols)

HERZLICHEN GLÜCKWUNSCH!

QR code image containing encoded data, no visible human-readable text

Warning symbols including a hand holding a prohibition, an exclamation mark, and a lightning bolt symbol

Illustration of a smartphone with a circular screen and a crosshair overlay, no text or symbols present.

WASSERTANK BEFÜLLEN

Simple line drawing of a bottle with a stopper (no text or symbols)

Line drawing of a portable air conditioner with a fan and ventilation grille (no text or symbols)

Abdeckgitter reinigen

Line drawing of a portable air conditioner unit with a circular vent and mesh grille (no text or symbols)

FÉLICITATIONS ! MERCI D'AVOIR CHOISI UN PRODUIT BE COOL.

BE COOL

QR code image containing encoded data, no visible human-readable text

VEUILLEZ LIRE ATTENTIVEMENT LE MODE D'EMPLOI AVANT DE COMMENCER L'INSTALLATION, L'UTILISATION OU L'ENTRETIEN. PROTÉGEZ-VOUS ET PROTÉGEZ LES AUTRES EN RESPECTANT LES CONSIGNES DE SÉCURITÉ. LE NON-RESPECT DES INSTRUCTIONS POURRAIT ENTRAÎNER DES DOMMAGES CORPORELS ET/OU MATÉRIELS ET/OU LA PERTE DU DROIT À LA GARANTIE !

INFORMATIONS IMPORTANTES SUR LA SÉCURITÉ, L'EMPLACEMENT ET LE RACCORDEMENT ÉLECTRIQUE.

Three black-and-white warning symbols: no hand, exclamation mark, and lightning bolt symbol

Utilisation prévue

BE COOL

Illustration of a device with a circular component and intersecting black lines, no text or symbols present.

REMLIR LE RÉSERVOIR D'EAU

Simple line drawing of a bottle with a stopper (no text or symbols)

CONSEILS POUR UNE UTILISATION CORRECTE

Illustration of a portable air conditioner with a circular vent and mesh grille (no text or symbols)

Line drawing of a portable air conditioner unit with a circular vent and mesh grille (no text or symbols)

CONGRATULAZIONI!

GRAZIE PER AVER SCELTO UN PRODOTTO BE COOL.

BE COOL

QR code image containing encoded data, no visible human-readable text

LEGGERE ATTENTAMENTE LE ISTRUZIONI PER L'USO PRIMA DI INIZIARE L'INSTALLAZIONE, IL FUNZIONAMENTO O LA MANUTENZIONE. PROTEGGERE SE STESSI E GLI ALTRI SEGUENDO LE ISTRUZIONI DI SICUREZZA. LA MANCATA OSSERVANZA DELLE ISTRUZIONI PUÒ CAUSARE LESIONI PERSONALI E/O DANNI MATERIALI E/O LA PERDITA DELLA COPERTURA DELLA GARANZIA!

IMPORTANTI INFORMAZIONI SULLA SICUREZZA, L'UBICAZIONE E IL COLLEGAMENTO ELETTRICO.

Three black-and-white warning symbols: no hand, exclamation mark, and lightning bolt symbol

Uso previsto

BE COOL

Illustration of a smartphone with a circular fan and a cross mark, no text or symbols present

RIEMPIRE IL SERBATOIO DELL'ACQUA

Simple line drawing of a bottle with a stopper (no text or symbols)

Illustration of a portable air conditioner with a fan and ventilation grille (no text or symbols)

Line drawing of a portable air conditioner unit with a circular vent and mesh grille (no text or symbols)

GEFELICITEERD! BEDANKT VOOR HET KIEZEN VAN EEN PRODUCT VAN BE COOL.

BE COOL

QR code image containing encoded data, no visible human-readable text

LEES DE BEDIENINGSINSTRUCTIES ZORGVULDIG DOOR VOORDAT U BEGINT MET DE INSTALLATIE, HET GEBRUIK OF HET ONDERHOUD. BESCHERM UZELF EN ANDEREN DOOR DE VEILIGHEIDSINSTRUCTIES OP TE VOLGEN. HET NIET OPVOLGEN VAN DE INSTRUCTIES KAN LEIDEN TOT PERSOONLIJK LETSEL EN/OF MATERIËLE SCHADE EN/OF VERLIES VAN DE GARANTIEDEKKING!

BELANGRIJKE INFORMATIE OVER VEILIGHEID, LOCATIE EN ELEKTRISCHE AANSLUITING.

Warning symbols including a hand holding a prohibition, an exclamation mark, and a lightning bolt symbol

Beoogd gebruik

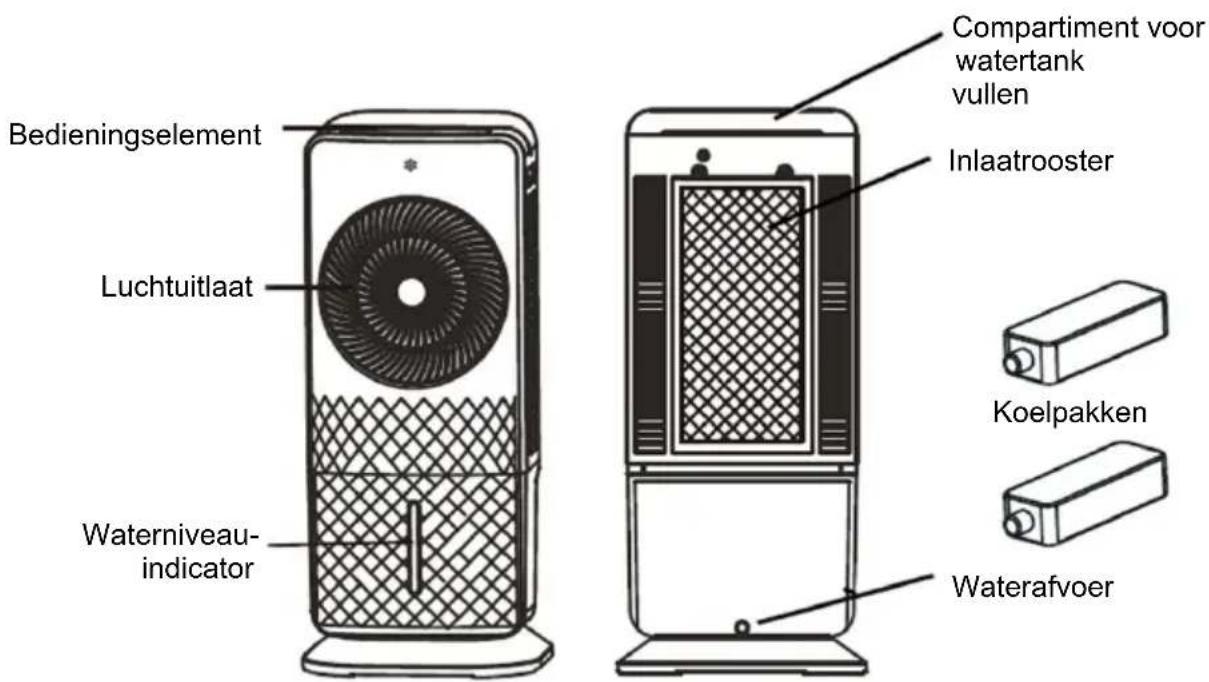

BESCHRIJVING VAN HET APPARAAT:

Illustration of a smartphone with a fan and a crosshair, no text or symbols present

DE WATERTANK VULLEN

Simple line drawing of a bottle with a stopper (no text or symbols)

TIPS VOOR EEN JUISTE TOEPASSING

Line drawing of a portable air conditioner with a fan and power plug (no text or symbols)

Afdekrooster reinigen

Line drawing of a portable air conditioner with a circular vent and mesh grille (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Warning symbols including a hand holding a prohibition sign, an exclamation mark, and a warning triangle with lightning symbol.

Uso previsto

Illustration of a smartphone with a circular screen and a crossed-out black bar, no text or symbols present

Simple line drawing of a bottle with a stopper (no text or symbols)

Line drawing of a portable electric fan with a mesh grille and power plug (no text or symbols)

Line drawing of a portable air conditioner with a circular vent and mesh grille (no text or symbols)

GRATULUJEME!

DĚKUJEME, ŽE JSTE SI VYBRALI PRODUKT OD SPOLEČNOSTI BE COOL.

BE COOL

QR code image containing encoded data, no visible human-readable text

PŘED ZAHÁJENÍM INSTALACE, PROVOZU NEBO ÚDRŽBY SI POZORNĚ PŘEČTĚTE NÁVOD K OBSLUZE. DODRŽOVÁNÍM BEZPEČNOSTNÍCH POKYNŮ CHRAŇTE SEBE I OSTATNÍ. NEDODRŽENÍ POKYNŮ MŮŽE MÍT ZA NÁSLEDEK ZRANĚNÍ OSOB A/NEBO POŠKOZENÍ MAJETKU A/NEBO ZTRÁTU ZÁRUČNÍHO KRYTÍ!

DŮLEŽITÉ INFORMACE O BEZPEČNOSTI, UMÍSTĚNÍ A ELEKTRICKÉM PŘIPOJENÍ.

Warning symbols including a hand holding a circle, an exclamation mark, and a warning triangle with lightning.

Zamýšlené použití

Illustration of a smartphone with a circular fan and a cross mark, no text or symbols present

Simple line drawing of a bottle with a stopper (no text or symbols)

TIPY PRO SPRÁVNOU APLIKACI

Illustration of a portable air conditioner with a fan and power plug (no text or symbols)

Čistá krycí mřížka

Line drawing of a portable air conditioner unit with a circular vent and mesh grille (no text or symbols)

GRATULUJEME!

ĎAKUJEME, ŽE STE SI VYBRALI PRODUKT OD SPOLOČNOSTI BE COOL.

BE COOL

QR code image containing encoded data, no visible human-readable text

PRED ZAČATÍM INŠTALÁCIE, PREVÁDZKY ALEBO ÚDRŽBY SI POZORNE PREČÍTAJTE NÁVOD NA OBSLUHU. DODRŽIAVANÍM BEZPEČNOSTNÝCH POKYNOV CHRÁŇTE SEBA AJ OSTATNÝCH. NEDODRŽANIE POKYNOV MÔŽE MAŤ ZA NÁSLEDOK ZRANENIE OSÔB A/ALEBO POŠKODENIE MAJETKU A/ALEBO STRATU ZÁRUČNÉHO KRYTIA!

DÔLEŽITÉ INFORMÁCIE O BEZPEČNOSTI, UMIESTNENÍ A ELEKTRICKOM PRIPOJENÍ.

Warning symbols including a hand holding a prohibition sign, an exclamation mark, and a warning triangle with lightning symbol.

Zamýšl'ané použitie

Illustration of a smartphone with a circular fan and a diagonal blade, no text or symbols present

PLNENIE NÁDRŽE NA VODU

Simple line drawing of a bottle with a stopper (no text or symbols)

TIPY PRE SPRÁVNU APLIKÁCIU

Illustration of a portable air conditioner with a fan and grille, accompanied by a small brush (no text or symbols)

Line drawing of a portable air conditioner with a circular vent and mesh grille (no text or symbols)

FELICITĂRI! VĂ MULȚUMIM CĂ AȚI ALES UN PRODUS BE COOL.

BE COOL

QR code image containing encoded data, no visible human-readable text

VĂ RUGĂM SĂ CITIȚI CU ATENȚIE INSTRUCTIUNILE DE UTILIZARE ÎNAINTE DE A ÎNCEPE INSTALAREA, FUNCTIONAREA SAU ÎNTRETINEREA. PROTEJAȚI-VĂ PE DUMNEAVOASTRĂ ȘI PE CEILALȚI RESPECTÂND INSTRUCTIUNILE DE SIGURANȚĂ. NERESPECTAREA INSTRUCTIUNILOR AR PUTEA DUCE LA VĂTĂMĂRI CORPORALE ȘI/SAU DAUNE MATERIALE ȘI/SAU PIERDEREA ACOPERIRII GARANȚIEI!

INFORMAȚII IMPORTANTE PRIVIND SIGURANȚA, AMPLASAREA ȘI CONECTAREA ELECTRICĂ.

Warning symbols including a hand holding a prohibition, an exclamation mark, and a lightning bolt symbol

BE COOL

Illustration of a device with a fan and a cross symbol, no text or symbols present

UMPLEREA REZERVORULUI DE APĂ

Simple line drawing of a bottle with a stopper (no text or symbols)

SFATURI PENTRU O APLICARE CORECTĂ

Illustration of a portable air conditioner with a circular vent and mesh grille (no text or symbols)

Line drawing of a portable air conditioner unit with a circular vent and mesh grille (no text or symbols)

GRATULACJE!

DZIĘKUJEMY ZA WYBRANIE PRODUKTU OD BE COOL.

BE COOL

QR code image containing encoded data, no visible human-readable text

PRZED ROZPOCZEĘCIEM INSTALACJI, OBSŁUGI LUB KONSERWACJI NALEŻY UWAŻNIE PRZECZYTAĆ INSTRUKCJĘ OBSŁUGI. NALEŻY CHRONIĆ SIEBIE I INNYCH POPRZEZ PRZESTRZEGANIE INSTRUKCJI BEZPIECZEŃSTWA. NIEPRZESTRZEGANIE INSTRUKCJI MOŻE SKUTKOWAĆ OBRAŻENIAMI CIAŁA I/LUB USZKODZENIEM MIENIA I/LUB UTRATĄ GWARANCJI!

WAŻNE INFORMACJE DOTYCZĄCE BEZPIECZEŃSTWA, LOKALIZACJI I PODŁĄCZENIA ELEKTRYCZNEGO.

Warning symbols including a hand holding a prohibition, an exclamation mark, and a lightning bolt symbol

Przeznaczenie

BE COOL

Illustration of a smartphone with a fan and a diagonal blade, no text or symbols present

NAPEŁNIANIE ZBIORNIKA WODY

Simple line drawing of a bottle with a stopper (no text or symbols)

WSKAZÓWKI DOTYCZĄCE PRAWIDŁOWEJ APLIKACJI

Illustration of a portable air conditioner with a mesh fan and power cord (no text or symbols)

Line drawing of a portable air conditioner unit with a circular vent and mesh grille (no text or symbols)

ČESTITAMO! HVALA, KER STE IZBRALI IZDELEK BE COOL.

BE COOL

Aktualna navodila za uporabo in drugi jeziki

QR code image containing encoded data, no visible human-readable text

PRED ZAČETKOM NAMESTITVE, DELOVANJA ALI VZDRŽEVANJA NATANČNO PREBERITE NAVODILA ZA UPORABO. Z UPOŠTEVANJEM VARNOSTNIH NAVODIL ZAŠČITITE SEBE IN DRUGE. NEUPOŠTEVANJE NAVODIL LAHKO POVZROČI TELESNE POŠKODBE IN/ALI MATERIALNO ŠKODO IN/ALI IZGUBO GARANCIJSKEGA KRITJA!

POMEMBNE INFORMACIJE O VARNOSTI, LOKACIJI IN ELEKTRIČNEM PRIKLJUČKU.

Warning symbols including a hand holding a prohibition, an exclamation mark, and a lightning bolt symbol

Predvidena uporaba

Illustration of a smartphone with a circular fan and a cross symbol, no text or symbols present

POLNJENJE REZERVOARJA ZA VODO

Simple line drawing of a bottle with a stopper (no text or symbols)

NASVETI ZA PRAVILNO UPORABO

Illustration of a portable air conditioner with a circular fan and mesh grille (no text or symbols)

Čisti pokrov rešetke

Line drawing of a portable air conditioner unit with a circular vent and mesh grille (no text or symbols)

ČESTITAMO! HVALA VAM ŠTO STE ODABRALI BE COOL PROIZVOD.

BE COOL

Aktualne upute za uporabu i drugi jezici

Preuzmite najnovije upute za uporabu na raznim jezicima putem poveznice www.schuss-home.at/downloads ili skenirajte prikazani QR kod. Slijedite upute na web stranici.

QR code image containing encoded data, no visible human-readable text

MOLIMO VAS, PAŽLJIVO PROČITAJTE UPUTE ZA KORISNIKE PRIJE UGRADNJE, RADA ILI ODRŽAVANJA. ZAŠTITITE SEBE I DRUGE PRIDRŽAVANJEM SIGURNOSNIH UPUTA. NEPRIDRŽAVANJE UPUTA MOŽE REZULTIRATI OSOBNIM I/ILI ŠTETAMA NA IMOVINI I/ILI PONIŠTENJEM JAMSTVA!

VAŽNE INFORMACIJE O SIGURNOSTI, LOKACIJI I ELEKTRIČNOM POVEZIVANJU.

Warning symbols including a hand holding a circle, an exclamation mark, and a warning triangle with lightning.

Namjena

Illustration of a smartphone with a circular fan and a diagonal blade, no text or symbols present

NAPUNI SPREMNIK VODOM

1. Prvo provjerite gumeni čep na stražnjoj strani uređaja je čvrsto umetnut u otvor za vodu i zatvara ga tako da spremnik za vodu ne može slučajno iscuriti.

2. Napunite spremnik za vodu na vrhu uređaja. Otvorite poklopac na vrhu uređaja i ulijte čistu vodu u njega, pazeći na razinu na prednjoj strani posude za vodu:

• Oznaka MIN

Simple line drawing of a bottle with a stopper (no text or symbols)

SAVJETI ZA ISPRAVNU UPOTREBU

Illustration of a portable air conditioner with a fan and power button (no text or symbols)

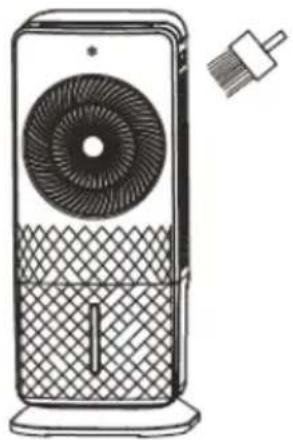

Očistite pokrovnu rešetku

Line drawing of a portable air conditioner unit with a circular vent and mesh grille (no text or symbols)

CONGRATULATIONS! THANK YOU FOR CHOOSING A PRODUCT FROM BE COOL.

BE COOL

Current operating instructions and other languages

Download the latest operating instructions in various languages via the link www.schuss-home.at/downloads or scan the QR code shown. Follow the instructions on the website.

QR code image containing encoded data, no visible human-readable text

PLEASE READ THE OPERATING INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION, OPERATION OR MAINTENANCE. PROTECT YOURSELF AND OTHERS BY FOLLOWING THE SAFETY INSTRUCTIONS. FAILURE TO FOLLOW INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE AND/OR LOSS OF WARRANTY COVERAGE!

IMPORTANT SAFETY, LOCATION AND ELECTRICAL CONNECTION INFORMATION.

Warning symbols including a hand holding a prohibition sign, an exclamation mark, and a warning triangle with lightning symbol.

Intended use

The air cooler is designed exclusively for the ventilation of dry

BE COOL

rooms.

It is intended for private use only and is not suitable for commercial use.

Only use the air cooler as described in these operating instructions.

1. Only use this appliance in accordance with the guidelines in the operating instructions. Any other use not recommended by the manufacturer could result in fire, electric shock or personal injury.

2. This appliance is intended solely for cooling domestic living spaces and must not be used for any other purpose.

3. The unit is not suitable for continuous or precision operation and should not be used for cooling electrical systems (e.g.: in server rooms).

4. Remove the packaging and make sure that the unit is not damaged. If in doubt, do not use the unit and contact the service centre or your dealer.

5. If the unit has a defect, switch it off and contact your dealer or the customer hotline.

6. If the power supply cable is damaged, it must be replaced by the manufacturer or an authorised service centre to avoid all possible risks.

7. Always and only contact customer service centres authorised by the manufacturer for any repairs. You can find the customer service centres online at www.becool.at.

BE COOL

1. Before connecting the to the mains, you must check that the type of current and mains voltage correspond to the information on the appliance type plate.

2. The electrical socket in which you connect the unit must not be defective or loose and must be suitable for the required current load and, above all, reliably earthed. If in doubt, have your electrical installation checked by a qualified electrician.

3. Avoid using an extension cord as it could overheat and cause a fire.

4. It is forbidden to adapt or modify the characteristics of this appliance in any way and use only spare parts and accessories recommended by the manufacturer (failure to do so will invalidate the guarantee and warranty).

5. Children must not play with the appliance.

6. Do not let children play with the packaging - THERE IS A DANGER OF CHICKENING IF SMALL PARTS ARE SPILLED!

7. Children under the age of 8 and persons with reduced physical, mental, sensory or spiritual capabilities or lack of experience and knowledge should not use this appliance unless they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

8. Do not operate the unit unattended. If you leave the room, always switch off the unit.

9. Do not twist or bend the mains cable.

10. Do not use the appliance with wet hands.

11. Do not use the unit outdoors.

12. Never cover the unit.

BE COOL

1. Never operate the unit in rooms where gas, oil or sulphur are present.
2. Do not use the unit near water or high humidity, e.g. in damp basements, next to swimming pools, bathtubs or showers. Make sure that no water enters the unit.
3. Do not place the unit near heat sources (e.g.: next to heating systems) and avoid direct sunlight.
4. Keep a minimum distance of at least 50 cm from flammable substances (e.g. alcohol) or pressurised containers (e.g. spray containers).
5. Do not place heavy or hot objects on the unit.
6. Place the unit on a stable and level surface.
7. Never insert fingers, pens or other objects into the unit and make sure that the air inlet and outlet are never blocked.
8. Change the water regularly.
9. Always fill the water tank above the minimum and never above the maximum.
10. Do not move the appliance quickly when there is water in the water tank to avoid water leakage or splashing.
11. Do not use the unit in "COOL" mode for a long time in an enclosed area without ventilation to avoid high humidity.
12. The cooling batteries are not toys - keep children and animals away from them.
13. Never try to open the cooling batteries. The liquid inside can be harmful to your health.
14. Unplug the appliance and empty the water tank when not in use.
15. Always switch off the appliance before unplugging it from the mains.

BE COOL

1. Do not pull on the mains cable to disconnect the appliance from the mains power. Always pull on the plug to unplug the mains cable.

2. Do not handle the plug with wet hands to avoid electric shock.

3. Store the appliance vertically in a safe, dry place out of reach of children when not in use and do not cover the appliance with plastic packaging.

4. Keep the unit in good condition by maintaining and cleaning the unit. If you have any questions about maintenance, you can contact the customer hotline/service centre authorised by the manufacturer.

BE COOL

Recycling, disposal, declaration of conformity

	RECYCLINGThe packaging materials can be recycled. Therefore, it is recommended to dispose of them in sorted waste.
	DISPOSALThe symbol "crossed-out dustbin" requires the separate disposal of waste electrical and electronic equipment (WEEE). Electrical and electronic equipment may contain hazardous and environmentally dangerous substances. Therefore, do not dispose of this in unsorted residual waste, but at a designated collection point for waste electrical and electronic equipment. By doing so, you will contribute to the protection of resources and the environment. For more information, please contact your dealer or the local authorities. Directive 2012/19/EU
	BATTERY DISPOSALIn accordance with Legislative Decree 188 of 20 November 2008 transposing Directive 2006/66/EC on batteries, accumulators and related waste, the crossed-out wheeled bin symbol on the battery indicates that it is prohibited to dispose of waste batteries in household waste.Batteries and accumulators contain highly polluting substances. The user is obliged to dispose of used batteries at the collection points in the municipality or in the appropriate containers. The service is free of charge. In this way, the legal requirements are met and the environment is protected.You will find these signs on batteries:Li = Battery contains lithiumAl = Battery contains alkaliMn = battery contains manganeseCR 2025 (Li); AA (Al, Mn); AAA (Al, Mn)
	DECLARATION OF CONFORMITYWe hereby confirm that this article complies with the basic requirements, regulations and directives of the EU. You can view the detailed declaration of conformity at any time under the following link:https://www.schuss-home.at/downloads

Errors and technical modifications excepted.

BE COOL

SCOPE OF DELIVERY

1x air cooler
2x cold packs
1x remote control
1x instruction manual

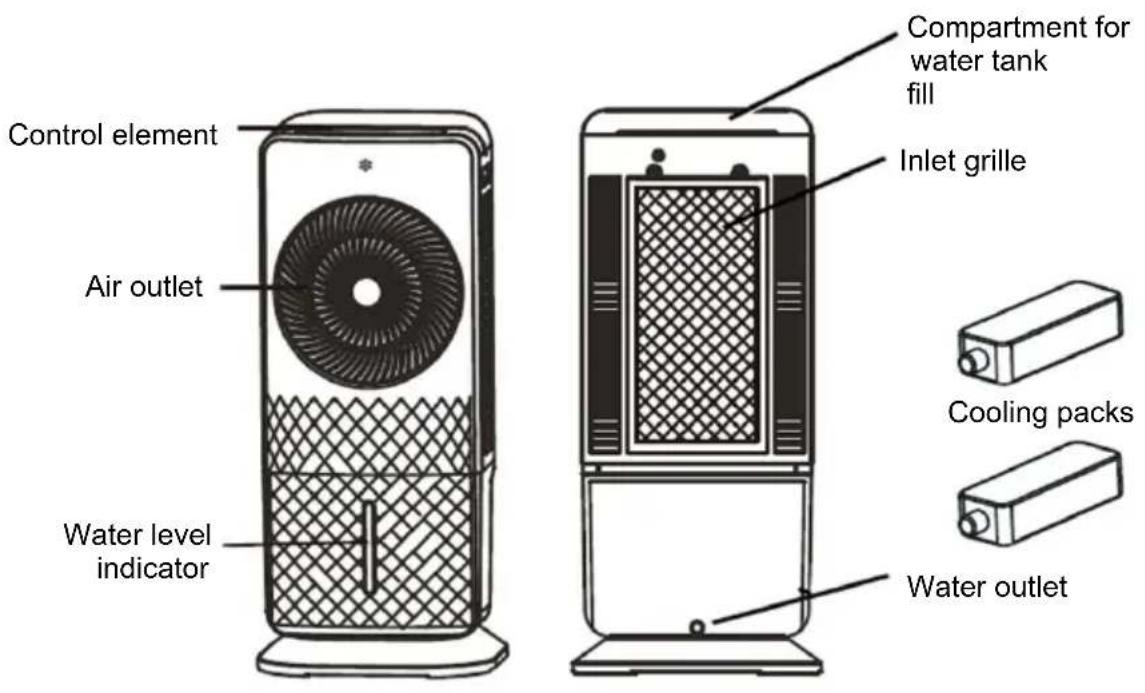

DESCRIPTION OF THE DEVICE:

Control element Air outlet Water level indicator Compartment for water tank fill Inlet grille Cooling packs Water outlet

BEFORE THE FIRST COMMISSIONING

Unpack the unit

• Open the box and remove the unit.
• Remove the packaging completely from the unit.
  • Unwind the mains cable completely, taking care not to damage it.

BE COOL

INSTALLATION

Please note the following points during installation:

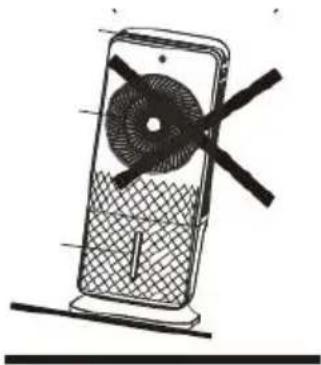

- Place the appliance on a level and firm surface so that the appliance has a firm footing.

• The distance to walls or other objects must be at least 50 cm.

• Before using the unit, make sure that both the air inlet and the air outlet are free of obstacles and not blocked.

- Connect the unit to an earthed socket.

Illustration of a smartphone with a circular fan and a crossed-out blade, no text or symbols present

FILLING THE WATER TANK

1. Please first check on the back of the unit whether the rubber stopper firmly in the water outlet and close it so that the water tank cannot leak unintentionally.

2. Fill the water tank on the top of the machine. Open the cover on the top of the appliance and pour clean water into it, paying attention to the level on the front of the water tank:

- MIN mark The water tank must be filled above the MIN mark for the pump to work properly.

• MAX marking The water tank must not be filled above the MAX mark, otherwise water could get inside the appliance and damage electronic parts.

1. Make sure that the outside of the air cooler is not damp or wet and wipe it down if necessary.

2. Close the cover again.

BE COOL

OPERATION

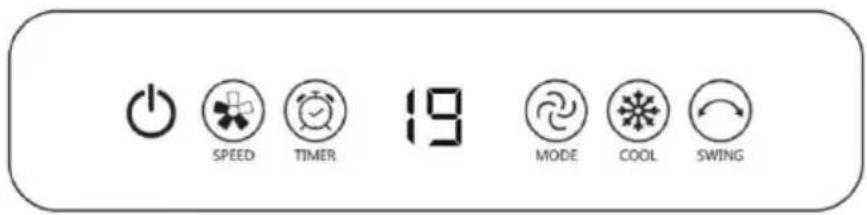

SPEED TIMER 19 MODE COOL SWING

1. On/Off button

Press the button to switch the unit on and off.

2. SPEED button:

Use the SPEED button to set the speed of the fan. The display appears as follows:

F1- Low speed

F2- Medium speed

F3- High speed

If the display stops flashing, the setting is accepted.

3. TIMER

Use the TIMER key to switch off the appliance according to a timer. Each time the timer button is pressed, the operating time is extended step by step by one hour from 1 hour to 12 hours.

To switch off the unit automatically, please proceed as follows:

While the air cooler is in operation, press the TIMER button repeatedly until the desired hour duration is displayed. The setting is accepted when the desired hour stops flashing.

4. MODE button:

Use the MODE button to select between the following modes:

Nature mode: Press the Mode button until the display shows "AL".

The setting is accepted when the display stops flashing.

Sleep mode: Press the Mode button until the display shows "SP".

The setting is accepted when the display stops flashing.

5. COOL button:

Use the COOL button to start the cooling function.

• Make sure that the water level indicator is above the MIN mark.
- As soon as you press the button, the unit starts pumping water against the water filter to create cold and humid air, which is then blown out of the unit.

BE COOL

6. OSCILLATION

• Use the SWING button to activate the oscillation of the unit. The SWING button lights up when the function is activated.
• Press the SWING button again to deactivate the function.
• NOTE: This function distributes the discharged air to the left and right. This way you achieve a horizontal air distribution in the room

REMOTE CONTROL

Preparing the remote control - Inserting or replacing the battery

Please follow the instructions below:

• To operate the remote control, please insert the AAA battery.
• Please always pay attention to the polarity markings (+/-) on the battery and the battery holder:

Then push the battery holder fully back into the remote control.

Please follow the instructions below:

• To operate the remote control, please insert the AAA battery.
• Please always pay attention to the polarity markings (+/-) on the battery and the battery holder:
• Then push the battery holder fully back into the remote control.

SPEED POWER TIMER COOL SWING MODE

Correct use of the remote control

Point the remote control directly at the front of the unit, making sure that there are no obstacles between the remote control and the unit.

NOTE: Please handle the remote control with care.

Do not expose the remote control to direct sunlight and keep it away from heat sources.

BE COOL

KÜHLAKKUS

water container on the top of the appliance to achieve a further cooling effect.

Please note the following when using the cooling batteries:

• Fill the gelled cold pack with water up to the MAX mark.
• Place the cooling batteries in a freezer compartment for at least 3-4 hours before use.
• Fill water into the air cooler.
• The MAX mark must not be exceeded under any circumstances.
• Place the cold packs in the compartment on the top of the appliance.

Simple line drawing of a bottle with a stopper (no text or symbols)

TIPS FOR CORRECT APPLICATION

Find here some hints to achieve the optimal performance of the air cooler:

Protect the room from direct sunlight with curtains, blinds or shutters. This will save you energy.
Do not place any objects on the appliance and do not cover the air outlet.
Keep the air outlet and air inlet grilles clear.
Make sure that no heat sources are operating in the room.
Never use the appliance in very humid rooms (e.g. laundry rooms).
Do not use the appliance outdoors.

BE COOL

MAINTENANCE AND CLEANING

Illustration of a portable air conditioner with a fan and ventilation grille (no text or symbols)

Clean cover grille

To ensure efficient operation of the air cooler, you should clean the cover grille after each week of operation.

1. Switch off the appliance before cleaning, then wait a few minutes and unplug the appliance to disconnect it from the mains.
2. Use a screwdriver to remove the 2 locking screws on the cover grille and remove the cover grille from the unit.
3. To remove the dust accumulated in the cover grille, use a hoover.
4. If the cover grille is very dirty, soak it in warm water and rinse it several times - the water temperature should not exceed 40^ C, however.
5. After washing, let the cover grille dry out well and only then put it back into the unit.
6. Replace the cover grille. And secure it with the locking screws.

Note: Never use the appliance without the cover grille.

Cleaning the housing

Switch off the appliance before cleaning, then wait a few minutes and unplug the appliance to disconnect it from the mains.

Clean the unit with a moderately damp cloth and then wipe it with a dry cloth.

BE COOL

• Never use petrol, alcohol or solvents to clean the appliance.
• Do not spray insecticides or similar agents on the air cooler.

EMPTY WATER TANK

It is recommended to empty and clean the water tank every 2-3 weeks during use. To do this, please follow the steps below:

• Pull the mains plug out of the socket. Place a collecting vessel under the water outlet on the back of the appliance.
• Remove the cover and then let the water drain into the collection vessel. At the end, you can tilt the air cooler slightly - but not more than 30^ .
• Once the tank is completely empty, replace the cover and make sure it is tight.
  • Plug in the mains plug and restart the unit.

ACTIVITIES AT THE BEGINNING/END OF THE SEASON

END OF SEASON ACTIVITIES

• Switch off the unit and disconnect the mains plug.
  • Empty and carefully clean the water tank.
• Clean the cover grille and replace it after it has dried (see section "Cleaning the cover grille").
  • Pack the unit and store it in a cool, dry place.

CONTROLS AT THE BEGINNING OF THE SEASON

• Check that the power supply cable is OK and that the earthing is functional.
• Follow the installation and safety instructions carefully.

BE COOL

TROUBLESHOOTING

Before contacting our customer hotline/service centre, please check whether the error can be rectified using the instructions below.

PROBLEM	POSSIBLE CAUSE	SOLUTION
The air cooler does not switch on.	Power failure	Restoration of the Wait for power supply.
	The unit is not connected to the power supply.	Connect/plug in the unit to the power supply Wait 30 minutes!!!
The air cooler only works for a short time.	The water tank is empty.	Fill the water tank.
	Air outlet is blocked by something.	Check and remove any obstacles blocking the airway.
Unpleasant odour appears in the room during operation.	Air filter or water tank dirty.	Clean the air filter and/or water tank according to the description.
The unit is very loud.	The ground on which the air cooler is not straight.	Place the Air Cooler in a different location.

BE COOL

Technical information
Rated voltage	220V~240V
Frequency	50Hz
Rated input power	65W
Water tank capacity	5 litres
Dimension	260 x 255 x 593 mm
Weight	2,8kg
Information requirements of Regulation (EU) No. 206/2012
Article	BCOSZ5AC2201F
Nominal	220 – 240 V
Protection	II
Power consumption when switched off (POFF)	-
Seasonal power consumption (Q)	15.24
Designation	Symbol	Value	Unit
Maximum volume flow	F	16.83	m3/min
Fan power consumption	P	46.5	W
Service ratio	SV	0.362	(m3/min)/W
Power consumption in standby mode	PSB	0.32	W
Fan sound power level	LWA	59.9	dB(A)
Maximum air velocity	c	2.3	m/s
Measurement standard for determining the service ratio	IEC 60879:2019
Contact addresses for further information:	Schuss Home Electronic GmbHScheringgasse 3, A-1140 ViennaTel: [phone] - 0www.becool.atFB-No: 236974 t / FB-Court: Vienna

BE COOL

GUARANTEE

With this quality product from BE COOL, you have made a decision for innovation, durability and reliability.

For this BE COOL appliance we grant a warranty period of 2 years from the date of purchase valid in Austria!

If, contrary to expectations, service work should nevertheless be necessary on your device during this period, we hereby guarantee to repair the device free of charge (spare parts and labour) or (at the discretion of Schuss) to exchange the product. Should neither repair nor exchange be possible for economic reasons, we reserve the right to issue a credit note for the current value.

In the case of air conditioners, please contact the customer hotline as a first step (see sticker on the unit or cover page of the operating instructions), in the case of fans, please contact your specialist dealer or us directly. We would like to point out that repair work that has not been carried out by the authorised contract workshop in Austria will immediately terminate the validity of this warranty.

This warranty does not cover:

• We do not accept any liability for consequential damage in the event of improper use.
• Repair or replacement of parts due to normal wear and tear
• Damage due to non-observance of the operating instructions
• Devices that are used - even only partially - for commercial purposes
- equipment mechanically damaged by external influence (fall, impact, breakage, improper use, etc.) as well as wear and tear of an aesthetic nature.
• Equipment that has been improperly handled
• Units that have not been opened by our authorised service workshop.
• Consumer expectations not met.
• Damage caused by force majeure, water, lightning, overvoltage.
- Units where the type designation and/or serial number on the unit has been changed, deleted, made illegible or removed.
• Services outside our authorised workshops, the transport costs to an authorised workshop or to us and back, and the associated risks.

We expressly point out that within the warranty period, a lump sum of € 60,- (indexed basis CPI 2010, June 2015) will be charged in case of operating errors or if no error was detected.

The provision of warranty service (repair or replacement of the appliance) does not extend the absolute warranty period of 2 years from the date of purchase.

The 2-year warranty is only valid on presentation of the purchase receipt (must contain the name and address of the dealer as well as the complete designation of the unit) and the corresponding warranty certificate, on which the type of unit as well as the serial number (visible on the box and on the back or bottom of the unit) must be noted! Without the guarantee certificate, only the legal guarantee applies!

We expressly point out that the statutory warranty rights are not affected by this guarantee and continue undiminished. Schuss Home Electronic GmbH and its vicarious agents shall only be liable for damages in the event of gross negligence or intent. Liability for loss of profit, expected but not realised savings, consequential damage and damage from third party claims is excluded in any case. Damages to or for recorded data are always excluded from the liability for damages.

Congratulations on your choice. We hope you enjoy your BE COOL appliance!

ADDRESS

Be Cool Distribution

Schuss Home Electronic GmbH

A-1140 Vienna, Scheringgasse 3

Tel.: [phone]

Type designation:

Serial number: ....

In the event of a warranty claim, this warranty certificate must be handed over together with the unit to the authorised service workshop or the dealer from whom you purchased the unit!
