BC45ST2002F - Fan Be Cool - Free user manual and instructions

Product Type	Fan
Brand	Be Cool
Model	BC45ST2002F
Speed Settings	3 (Low, Medium, High)
Modes	Normal, Natural (surging breeze), Sleep (gradual speed reduction)
Timer	1-7 hours (programmable via LED display)
Oscillation	Yes, horizontal oscillation
Remote Control	Yes, with 2 x 1.5V AAA batteries (included)
Tilt Adjustment	Yes, manual tilt for vertical airflow
Voltage	220-240V ~ 50Hz
Power Consumption	Approximately 45W (estimated)
Color	Black
Blade Material	Plastic
Guard Material	Metal (front and rear)
Stand Type	Adjustable height (two-piece tube)
Base Type	Round base with screws for stability
Indoor Use Only	Yes
Warranty	2 years (valid in Austria)
Cleaning	Soft cloth, mild soapy water; do not immerse
Battery Type for Remote	2 x R03 "AAA" 1.5V
Assembly Required	Yes (base, stand, fan head)

Frequently Asked Questions - BC45ST2002F Be Cool

How do I assemble the fan?

First, attach the lower stand tube to the base using four screws. Then, screw the upper stand tube into the lower tube by turning clockwise. Next, remove the spinner lock nut and guard lock nut from the motor shaft. Fit the rear guard onto the motor shaft, securing it with the guard lock nut. Push the fan blade onto the shaft, matching slots with the shaft pin, and tighten the spinner lock nut counterclockwise. Finally, attach the front guard by clipping it onto the rear guard and tightening the clip screw.

How do I clean the fan?

Turn off and unplug the fan. Use a soft cloth dampened with warm soapy water to wipe the surface. Do not use solvents, abrasive cleaners, or immerse the fan in water. Ensure all parts are dry before reassembling or storing.

How do I use the remote control?

Slide off the battery cover on the remote, insert two 1.5V AAA batteries (included) observing polarity, then replace the cover. Point the remote at the fan and press the desired button: ON/OFF, speed (I/II/III), mode (Normal/Natural/Sleep), timer, or oscillation.

What do the different modes do?

Normal runs at constant speed. Natural simulates a natural breeze by varying fan speed up and down. Sleep gradually reduces speed: after 30 minutes it drops one level, after another 30 minutes it drops again, then runs at the lowest speed until turned off or timer expires.

How does the timer work?

Press the timer button repeatedly to set the operating time from 1 to 7 hours. Each press adds one hour. The LED display shows the set time: 1H, 2H, combinations (e.g., 1H+2H=3H), up to 7H. The fan will automatically shut off after the set time.

How do I adjust the oscillation?

Press the oscillation button on the remote or control panel. The fan head will swing left and right to distribute air horizontally. Press again to stop oscillation.

Why is my fan not working?

Check that the power plug is fully inserted into a working outlet (220-240V). Ensure the fan is turned on. If the blades don’t turn, verify that the blade is properly mounted and not touching the guards. If unusual noises occur, inspect for blade damage or guard deformation.

Can I use the fan outdoors?

No, this fan is designed for indoor use only. Do not expose it to water, moisture, or outdoor conditions. Use in a dry, well-ventilated room on a stable surface.

How should I store the fan when not in use?

Clean and dry all parts thoroughly. Store in a cool, dry place away from children and pets. Disconnect the power cord and coil it loosely. Avoid placing objects on top of the fan.

Where can I find the full user manual and warranty information?

The manual is available for free download at www.becool.at. For warranty claims, you need the original invoice and warranty certificate. Warranty is 2 years from purchase date, valid in Austria. Contact service at [phone] – 502 or visit www.becool.at.

USER MANUAL BC45ST2002F Be Cool

Black outdoor fan with radial blades and a black stand, no visible text or symbols

HERZLICHEN GLÜCKWUNSCH!

VIELEN DANK, DASS SIE SICH FÜR EIN PRODUKT VON BE COOL

ENTSCHIEDEN HABEN.

IMPORTANT INFORMATION ON SAFETY, LOCATION AND ELETRICAL CONNECTION.

1. Use this device exclusively in accordance with the guidelines in the instruction manual. Any use other than that recommended by the manufacturer, may result in fire, electrical shock or injury to persons.
2. Remove the packaging and ensure the device is not damaged. In case of any doubt do not use the device and contact the service point or your dealer.
3. Keep packaging material out of the reach of children. There is a risk of choking if swallowed!
4. If the power cable is damaged it must be replaced by the manufacturer or an authorised service point, in order to avoid all potential risks.
5. Before connecting to the mains power supply, you must check if the type of mains current and voltage comply with the details given on the rating plate of the device.
6. The electrical plug socket, into which the device is connected, must not be defective or loose, must be suitable for the required current load and, above all, must be properly earthed.
7. Avoid the use of an extension cable, as this may overheat and cause a fire.
8. It is strictly forbidden to modify the properties of this device in any form or manner and you must only use replacement parts or accessories recommended by the manufacturer (failure to do so will invalidate the warranty and guarantee).
9. If the device has a defect, switch it off and contact your dealer or the customer hotline.
10. For any possible repairs to the device and the mains plug or power cable you must always refer exclusively to the customer service points recommended by the manufacturer. You can view our customer service points online at www.becool.at.
11. Children under the age of 8 and persons with limited physical, psychological, sensory or mental abilities and lack of experience and knowledge may only use this device under appropriate supervision and if comprehensively briefed on the safe use of the device and the associated hazards.
12. Do not use the device without supervision. Always switch the device off when leaving the room.
13. Children must not be allowed to play with the device.
14. Do not twist or kink the power cable.
15. Do not use the device with wet hands.
16. Do not use the device outdoors.
17. Never use the device in rooms in which gas, oil or sulphur are present.
18. Do not use the device in the proximity of water or strong moisture, e.g. in damp cellars, close to pools, bathtubs or showers. Make sure no water can enter the device.
19. Do not place any objects on the device.

BE COOL

1. Place the device on a stable and level subsurface.
2. Never cover the device.

3. Never put fingers, pens or other items into the device and make sure that air in- and outlets are never blocked.

4. Always switch the device off before pulling the power plug.

5. Do not pull on the power cable to unplug the device. Always pull on the plug to unplug the device.
6. Do not touch the plug with wet hands to avoid electrical shocks.
7. Pull the plug if you are not using the device, if you want to clean it, if it has to be serviced or if it is moved from one location to another.
8. Keep the device in good shape by cleaning and maintaining it. If you have any questions regarding maintenance you can contact the manufacturer's authorised customer hotline / service point.
9. Keep and store the device at a safe and dry place out of reach for children when you are not using it.

RECYCLING

The device's packaging materials can be recycled. It is therefore recommended to dispose of them through sorted waste collection.

DISPOSAL

The “crossed-out wheelie bin” symbol indicates that electrical and electronic devices (WEEE) must be disposed of separately. Electrical and electronic devices can contain hazardous substances and environmental pollutants. Therefore do not dispose of them in unsorted residual waste but at a designated collection point for electrical and electronic devices. You will thus contribute to resource and environmental protection. For more information please contact your dealer or the local authorities.

DECLARATION OF CONFORMITY

We hereby confirm that this item complies with the basic requirements, regulations and directives of the EU. You can view the detailed Declaration of Conformity by clicking on the following link: www.becool.at/downloads/doc/bc45st2002f.pdf

Subject to errors and technical changes.

www.becool.at

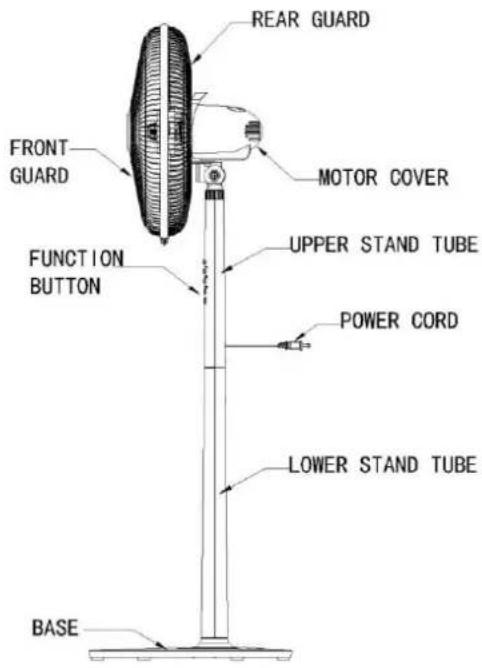

PART DESIGNATIONS

ASSEMBLY INSTRUCTIONS

Assembly of the base and lower stand tube

Insert the lower stand tube into the base hole, and keep the bulge of stand tube alignment with space of base hole, then use the four screws to tighten the tube to the base.

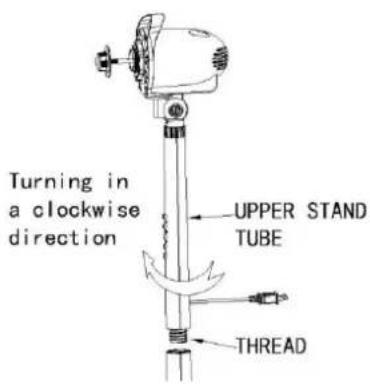

Assembly of the upper stand tube

Insert the upper stand tube into the lower stand tube and tight the thread by turning it clockwise.

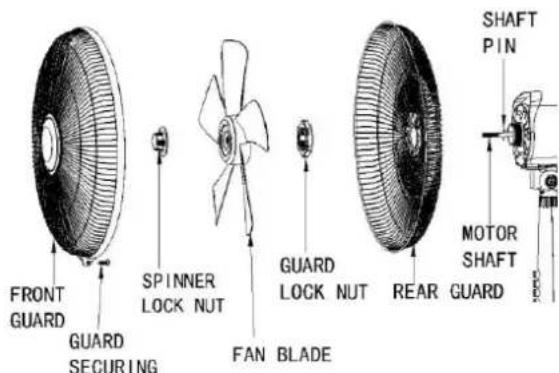

Assembly of the fanhead

1. Remove the spinner lock nut and guard lock nut from the motor shaft.
2. Fit the rear guard, by the positioning on the location shaft pins. Secure the guard to the motor body with the guard lock nut.
3. Push the fan blade onto the motor shaft by matching the slots on the base of the blade with the shaft pin. Secure the blade with the spinner lock nut. The spinner lock nut must be tightened by turning it in a counter-clockwise direction. Check that the fan blade rotates freely by turning with your hand.
4. Open the securing clip at the bottom of the front guard and loosen the clip screw. Position the top clip on the uppermost part of the rear guard. Push the top clip down and press the rim of the front guard onto the rear guard. Close the bottom clip and tighten the screw.

START UP

1. Place the device on a flat and dry surface (no use in wet rooms).
2. Plug the plug into a standard 220 \~ 240V outlet.
3. The functions of the fan can be adjusted both by means of the remote control and directly on the device with the buttons of the control panel.

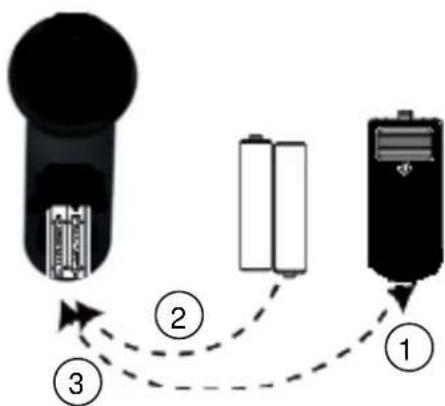

Commissioning the remote control

Please note the following instructions:

1. Push the cover off the back of the remote control to remove it.
2. Now insert the two supplied 1.5 V batteries of type R03 "AAA" (To insert the batteries correctly, observe the instructions on the inside of the battery compartment).
3. Put the cover back onto the remote control.

Commissioning of the fan

FUNCTION	REMOTECONTROL	CONTROL PANEL
The functions of the fan can be set both with the remote control and directly on the device via the control panel.
ON/OFFTurn the fan on and off.
SPEED SETTINGYou can choose between three differend wind speed:I → Push 1x → Low speedII → Push 2x → Medium speedIII → Push 3x → High speed		I II III
MODEYou can choose between three different modes:NormalNatural: increasing and decreasing operationSleep: the speed reduces after half an hour and again after another half hour and runs in the lowest speed until you turn the device off or the timer shuts it down
TIMERYou can switch off the device timed with the timer. With each push, the operating time is gradually increased by one hour - pay attention to the LED display:PUSH 1x → 1 hour → 1H lights upPUSH 2x → 2 hours → 2H lights upPUSH 3x → 3 hours → 1H+2H lights upPUSH 4x → 4 hours → 4H lights upPUSH 5x → 5 hours → 1H+4H lights upPUSH 6x → 6 hours → 2H+4H lights upPUSH 7x → 7 hours → 1H+2H+4H lights upOSCILLATIONBy pressing this button the fan head moves from right to left and back again.This achieves a horizontal air distribution in the room.

ADDITIONAL FUNCTION

TILT ADJUSTMENTIf you want to change the air flow in a vertical direction, you can adjust this by tilting the fan head backwards or forwards.

CLEANING INSTRUCTIONS

• Caution! Let the device come to a full stop before disconnect it from the outlet.
• Use a soft cloth to clean the device.
• If dirt and contamination should not come off easily, you may use warm soapy water.
• Do not use solvents and scrubbing agents (thinners), metal cutlery or stiff brushes since these may damage the plastic housing.
• Do not immerse the fan in water or other liquids. Water must not drop onto or into the fan's motor housing.
• Dry all components thoroughly before storing them.
• Store the device in a cool, dry and clean environment.
• Store the device out of reach for children and animals.

TROUBLESHOOTING AND GUIDELINES

Trouble	Possible Cause	Possible remedy
The device shows no function.	No power.	Check if the power plug is properly inserted.
The fan blades do not turn.	Incorrect mounting.	Check if the fan blades come into contact with the guards.
The device makes strange noises when switching on.	Incorrect mounting.	Check if the blades are damaged.Check if the guards are deformed and touch the blades.

Technical information
Rated voltage
Frequency
Rated input power
Name	Symbol	Value	Unit
Maximum volume flow	F		m^3/min
Fan power consumption	P		W
Service value	SV		(m^3/min)W
Fan sound power level	LWA		dB(A)
Contact address for further information and service line:	Schuss Home Electronic GmbHScheringgasse 3, A-1140 ViennaTel: [phone] – 0Service line: [phone] – 502www.becool.atCommercial register no.: 236974 t /Commercial register court: Vienna

WARRANTY

By purchasing a BECOOL quality product you have acquired an innovative, long lasting and reliable item.

For this BECOOL device we grant a warranty of 2 years from the date of purchase, valid in Austria only.

In the unlikely event that service work is required on your device in this period we warrant free repair (spare parts and labour) or (subject to Schuss's decision) to replace the product. In the event that neither repair nor exchange make sense from an economical perspective we reserve the right to issue a credit based on current value.

When dealing with air conditioning devices you should always contact the customer hotline first (see label on the device or the title page of the instruction manual), in case of fans contact your dealer or us directly. Please note that repair not performed by the authorised workshop in Austria immediately renders this warranty void.

This warranty does not include:

• Repair of replacement of parts due to normal wear
- Damage due to non-compliance with the instruction manual
• Devices that are used commercially – even in part
• Devices damaged by external forces (falling, impact, cracking, improper use etc.) as well as aesthetic wear
• Devices that have been used improperly
• Devices that were not opened by our authorised workshop.
- Damages caused by improperly closed condensation drains on air conditioning devices or improperly inserted water container.
- Unfulfilled customer expectations.
- Damage caused by force majeure, water, lightning and overvoltage.
- Devices on which type denomination and/or serial number on the device have been erased, rendered illegible or removed.
- Service work not performed by our authorised workshops, transport costs to an authorised workshop or us and back as well as associated risks.

Please note that within the warranty period we charge a flat rate of 60 € (indexed as per consumer price index 2010, June 2015) in case of operating errors or if no fault can be found.

The total warranty period of 2 years is not extended if warranty service is performed (repair or device replacement).

The 2 year warranty is only valid if the original invoice (must contain name and address of the dealer as well as full device name) and the respective warranty certificate are produced, on which the device type and serial number (can be found on the box and the device's rear or bottom) are to be noted! Only the statutory warranty coverage applies if the warranty certificate cannot be produced!

Please note that the statutory warranty coverage is not altered by this warranty and that it applies in full regardless.

Schuss Home Electronic GmbH and its vicarious agents are only liable for damages in case of gross negligence or intent. Liability for loss of profit, expected but not incurred savings, consequential damages and damages from third party claims is excluded in any case. Damages to or for recorded data are always excluded from the liability for damages.

Congratulations on your choice. We hope you will enjoy using your BECOOL device!

ADDRESS

SHE Sales

Schuss Home Electronic GmbH

A-1140 Vienna, Scheringgasse 3

Type designation:

Serial number:

Together with the device, this warranty certificate must be handed to the authorised workshop or dealer you bought the device from in the event of a warranty claim!
