BC31ST2005SSF - Fan Be Cool - Free user manual and instructions

Product Type	Fan
Brand	Be Cool
Model	BC31ST2005SSF
Height	100.7 cm
Net Weight	3.02 kg
Gross Weight	4.5 kg
Rated Input Voltage	100-240V ~ 50/60Hz
Rated Power Consumption	20 W
Standby Power Consumption	≤ 0.5 W
Maximum Airflow	19.7 m³/min
Service Value	1.15 (m³/min)/W
Sound Power Level	≤ 60 dB(A)
Speed Levels	3 (Low, Medium, High)
Modes	Constant Wind, Natural Wind (Sleeping, Forest Low, Forest High)
Horizontal Oscillation	30°, 60°, 360° (automatic rotation)
Vertical Adjustment	Manual, -5° to 90°
Timer	1 to 7 hours (1-hour increments)
Remote Control	Yes (coin battery CR2032 included)
Control Panel	On-device buttons and display
Assembly Required	Base, pole, fan head, screw, wrench
Cleaning	Disassemble, dry cloth, mild soap; no immersion
Safety	Indoor use only; keep away from water; no covering
Warranty	2 years (valid in Austria)

Frequently Asked Questions - BC31ST2005SSF Be Cool

How do I assemble the BC31ST2005SSF fan?

Insert the support pole into the base, aligning the groove and bulge, then secure with the M8 screw. Push the fan head onto the pole until you hear a click. Connect the adapter to the base.

How do I use the remote control?

Remove the battery holder from the remote control, insert the coin battery (CR2032) with correct polarity (+/-), and aim the remote directly at the fan. The remote controls all functions: power, speed, mode, oscillation, and timer.

What are the different wind modes?

The fan offers Constant Wind (3 speeds) and Natural Wind modes: Sleeping Wind (low speed, low noise), Forest Wind Low (gradually varying speed), and Forest Wind High (stronger variations).

How do I set the oscillation?

Press the Swing Angle button repeatedly: once for 30° horizontal, twice for 60°, three times for 360° continuous rotation, and a fourth time to stop. Vertical adjustment is manual, with a range of -5° to 90°.

How do I set the timer?

Press the Timing button repeatedly to set the auto-off time from 1 to 7 hours, in 1-hour increments. The display shows the selected time.

How do I clean the fan?

Unplug the fan and wait for it to stop. Disassemble the front cover (loosen screw, rotate clockwise), remove fan blade, rear cover and plate. Clean each part with a dry soft cloth or mild soapy water. Do not use solvents or let water into the motor. Dry thoroughly before reassembling.

What should I do if the fan does not start?

Check the power supply (adapter plugged in). Ensure the remote control battery is inserted correctly (polarity) and not empty. If still not functioning, contact customer service.

Can I use the fan outdoors?

No, the fan is designed for indoor use only. Do not use in wet rooms, near pools, bathtubs, or showers. Avoid exposure to water or strong moisture.

What safety precautions should I follow?

Do not cover the fan. Keep fingers and objects away from the grille. Place on a stable, level surface. Unplug before cleaning or moving. Do not use with wet hands or damaged cord. Children under 8 should be supervised.

How do I dispose of the fan?

Do not dispose of the fan with household waste. Take it to a designated collection point for electrical and electronic equipment (WEEE) to ensure proper recycling and environmental protection.

USER MANUAL BC31ST2005SSF Be Cool

Line drawing of a standard outdoor fan with radial blades and a 'BE COOL' logo on the top (no text or symbols on the fan itself)

HERZLICHEN GLÜCKWUNSCH!

Technical line drawing of a circular component with internal components and an arrow indicating direction (no text or symbols)

FERNBEDIENUNG

BEDIENFELD & DISPLAY

BE COOL

IMPORTANT INFORMATION ON SAFETY, LOCATION AND ELETRICAL CONNECTION.

1. Use this device exclusively in accordance with the guidelines in the instruction manual. Any use other than that recommended by the manufacturer, may result in fire, electrical shock or injury to persons.

•

1. Remove the packaging and ensure the device is not damaged. In case of any doubt do not use the device and contact the service point or your dealer.

2. Keep children away from packaging materials. There is a risk of choking if swallowed!

3. If the power cable is damaged it must be replaced by the manufacturer or an authorized service point, in order to avoid all potential risks.

●

1. Check whether current type and grid voltage match the specifications on the device's type plate before plugging the device in.

2. The electrical plug socket, into which the device is connected, must not be defective or loose, must be suitable for the required current load and, above all, must be properly earthed.

3. Avoid the use of an extension cable, as this may overheat and cause a fire.

4. It is strictly forbidden to modify the properties of this device in any form or manner and you must only use replacement parts or accessories recommended by the manufacturer (failure to do so will invalidate the warranty and guarantee).

5. If the device has a defect, switch it off and contact your dealer or the customer hotline.

6. For any possible repairs to the device and the mains plug or power cable you must always refer exclusively to the customer service points recommended by the manufacturer. You can view our customer service points online at www.becool.at.

•

1. Children under the age of 8 and persons with limited physical, psychological, sensory or mental abilities and lack of experience and knowledge may only use this device under appropriate supervision and if comprehensively briefed on the safe use of the device and the associated hazards.

2. Do not use the device without supervision. Always switch the device off when leaving the room.

3. Children must not be allowed to play with the device.

•

1. Do not twist or kink the power cable.

2. Do not use the device with wet hands.

3. Do not use the device outdoors.

4. Never use the device in rooms in which gas, oil or sulphur are present.

●

1. Do not use the device in the proximity of water or strong moisture, e.g. in damp cellars, close to pools, bathtubs or showers. Make sure no water can enter the device.

2. Do not place any objects on the device.

BE COOL

1. Place the device on a stable and level subsurface.
2. Never cover the device.

3. Never put fingers, pens or other items into the device and make sure that air in- and outlets are never blocked.

4. Always switch the device off before pulling the power plug.

5. Do not pull on the power cable to unplug the device. Always pull on the plug to unplug the device.
6. Do not touch the plug with wet hands to avoid electrical shocks.
7. Pull the plug if you are not using the device, if you want to clean it, if it has to be serviced or if it is moved from one location to another.
8. Keep the device in good shape by cleaning and maintaining it. If you have any questions regarding maintenance you can contact the manufacturer's authorized customer hotline / service point.
9. Keep and store the device at a safe and dry place out of reach for children when you are not using it.

RECYCLING

The device's packaging materials can be recycled. It is therefore recommended to dispose of them through sorted waste collection.

DISPOSAL

The “crossed-out bin” symbol indicates that electrical and electronic devices (WEEE) must be disposed of separately. Electrical and electronic devices can contain hazardous substances and environmental pollutants. Therefore do not dispose of them in unsorted residual waste but at a designated collection point for electrical and electronic devices. You will thus contribute to resource and environmental protection.

For more information please contact your dealer or the local authorities.

DECLARATION OF CONFORMITY

CE

We hereby confirm that this item complies with the basic requirements, regulations and directives of the EU.

You can view the detailed Declaration of Conformity by clicking on the following link:

www.becool.at/downloads/doc/bc31st2005ssf.pdf

Subject to errors and technical changes.

www.becool.at

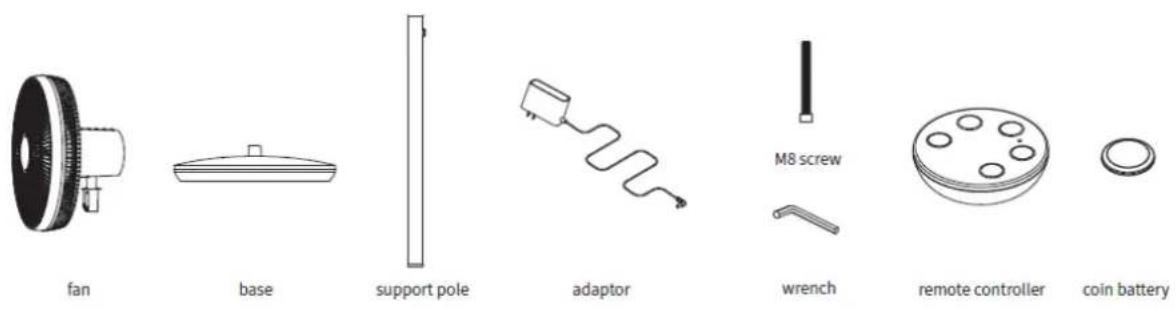

DELIVERY CONTENT

MONTAGE

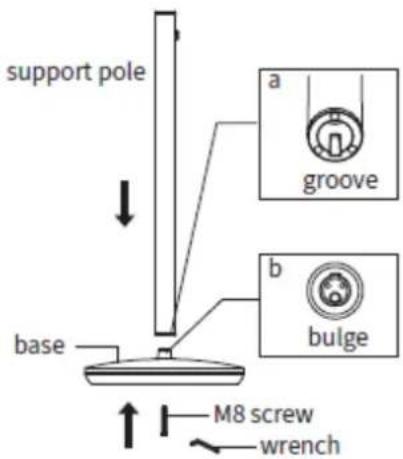

Assembly of the base and poleInsert the support pole into the base vertically and make sure the groove oft he support pole (a) and the bulge of (b) of the base fit perfectly.Then screw up the base and pole with the M8 screw.

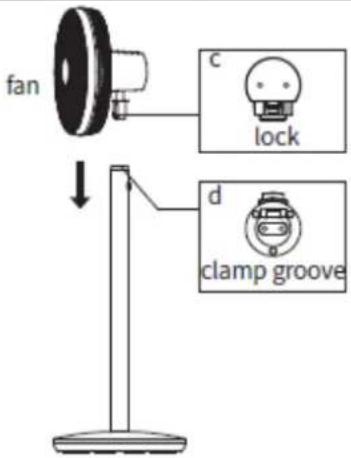

Assembly of the fanPush the fan into the support pole. When installing please aim the lock (c) at the clamp groove (d). The installation is finished once you hear a click

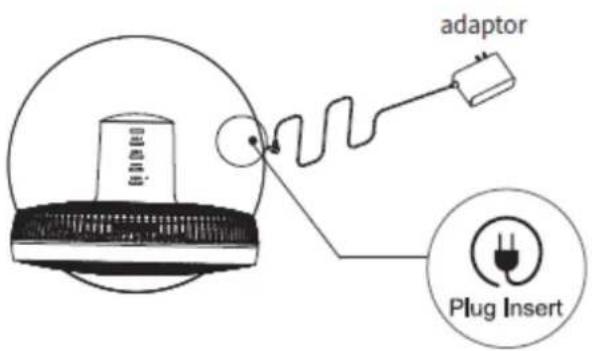

Connect the adaptorConnect the adaptor with the bottom interface oft he base.

START UP

1. Place the device on a flat and dry surface (no use in wet rooms).

2. Plug the power adapter into a standard 220 \~ 240V outlet.

3. After you plug the fan, it will make a sound and all the indicator lights will flash once. This signalizes that the device is ready to be used.

4. The functions of the fan can be adjusted both with the remote control and directly on the device with the buttons of the control panel.

5. To operate the remote control, pull out the battery holder from the remote control and insert the battery.

6. Please always pay attention on the polarity markings (+/-) on the battery and the battery compartment.

7. While operating with the remote control, always aim it directly at the device to ensure proper operation.

Technical line drawing of a circular component with internal components and an arrow indicating direction (no text or symbols)

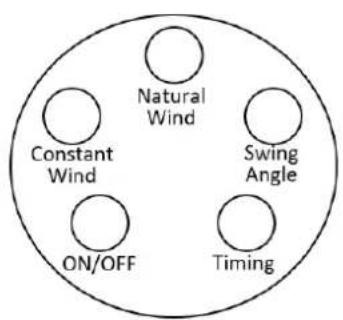

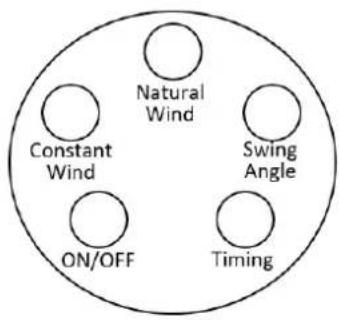

REMOTE CONTROL

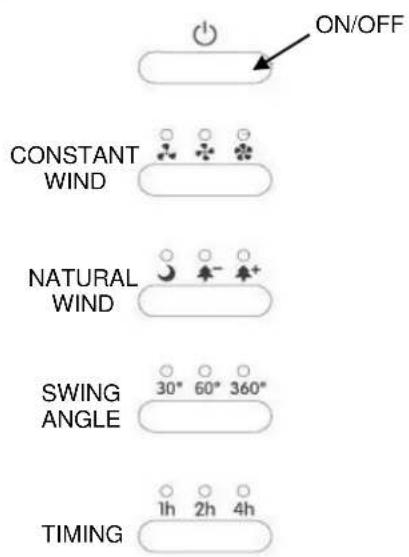

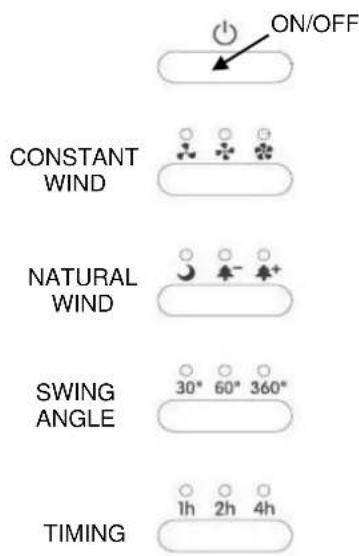

CONTROL PANEL & DISPLAY

ON/OFF →

- To turn the fan on and off, please use the -buttons.

BE COOL

CONSTANT WIND → Set the speed:

The fan has three different speed levels. To set the desired level, please proceed as follows:

- Push the „CONSTANT WIND“ – buttons, until the desired icon lights up on the display:

→ Low speed level

→ Medium speed level

→ High speed level

NATURAL WIND → Set the mode:

The fan has three different modes you can choose from:

- Use the „NATURAL WIND“- buttons, until the desired icon lights up on the display:

	Sleeping WindThe fan works in low speed and low noise, which is good for sleeping.
	Forest Wind (Low)The wind the fan delivers is gradually varied, from lower speed to higher speed, then from higher speed to lower speed.
	Forest Wind (High)The wind the fan delivers is also gradually varied, from lower speed to higher speed, then from higher speed to lower speed.

SWING ANGLE → Set the oscillation:

The fan has both vertical and horizontal oscillation:

- HORIZONTAL OSCILLATION: Please use the „SWING ANGLE“- buttons to set the following angles:

30°	Push the „SWING ANGLE“- buttonONE TIMEto swing the fan head from side to side for 30°.
60°	Push the „SWING ANGLE“- buttonTWO TIMESto swing the fan head from side to side for 60°.
360°	Push the „SWING ANGLE“- buttonTHREE TIMESto rotate the fan head for 360° indefinitely.

• Push a FORTH TIME to stop the oscillation.
• VERTICAL OSCILLATION: You can adjust the fan manually at any angle from the bottom to the top between -5° and 90°.

TIMING → Set the timer:

This function allows you to turn off the device on a scheduled basis. You can choose between 1 to 7 hours.

• Push the „TIMING“- buttons repeatedly until the desired time appears on the display.
• With every push the operating time is gradually increased by one hour – please pay attention to the display while you set it:

1h	2h	3h	4h	5h	6h	7h
● 1h	○ 1h	● 1h	○ 1h	● 1h	○ 1h	● 1h
○ 2h	● 2h	● 2h	○ 2h	○ 2h	● 2h	● 2h
○ 4h	○ 4h	○ 4h	● 4h	● 4h	● 4h	● 4h

CLEANING INSTRUCTIONS

Caution! Allow the unit to come to a complete stop before cleaning and disconnect it from the socket.

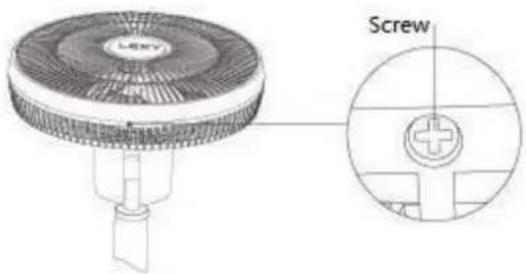

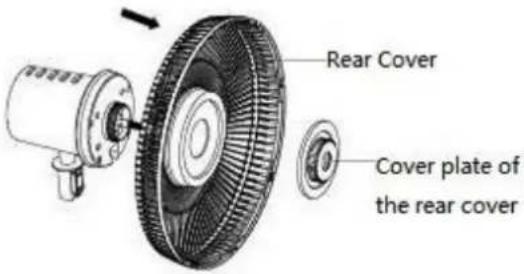

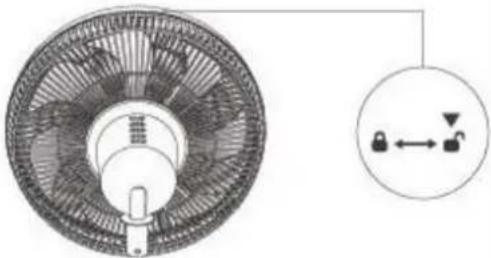

1. Loose the screw of the fan with a screwdriver:	2. Rotate the front coverclockwise and remove it:

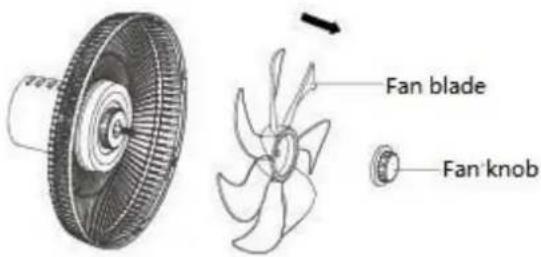

3. Take off the the fan knob by rotating it and pull down the fan blade of the motor shaft:	4. Now remove the cover plate of the rear cover and take off the rear cover as well.
5. Clean each part with a dry soft cloth.
6. Should be dirt or not easily removable dirt, use arm soapy water.
7. Do not use solvents or abrasives (thinner), metal utensils or hard brushes for cleaning, as they may damage the plastic housing.

BE COOL

8. Do not immerse the fan in water or other liquids. Do not allow water to drip onto or into the motor housing of the fan.

9. Dry all components thoroughly before you assemble the fan back.

10. When assembling, be sure to assemble the fan as you have disassembled it.

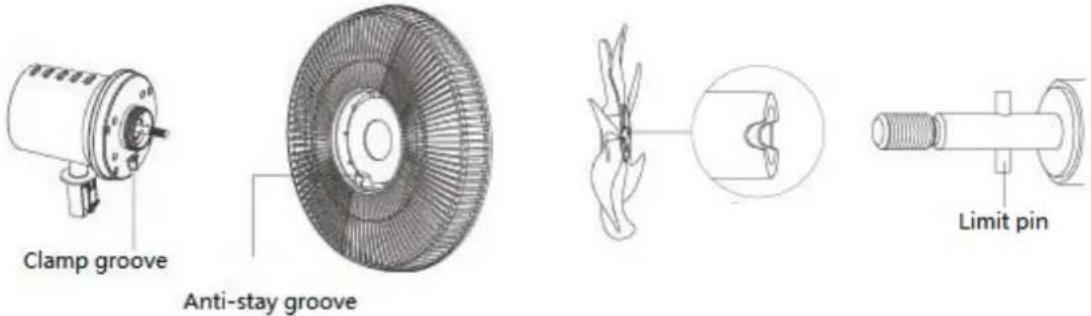

11. Pay special attention to the fact that you have to aligne the anti-stay groove of the rear cover the the clamp groove of the motor. When installing, please note that the groove behind the fan blade shall be stuck on the limit pin of the motor shaft.

12. Put on the front gear by rotating it onto the rear cover and secure the fan head with the screw.

COMMON FAULT AND ELIMINATION

Faul	Reason	Solution
The device shows no function.	No power supply.Remote control battery is empty or inserted incorrectly.	Check whether the plug-in power supply is correctly inserted.Please change o check the battery of the remote control.
The fan blades do not turn.	Wrong mounting.	Check if the fan blades come into contact with the mesh enclosures.
The device makes stron noises when switching on.	Wrong mounting.	Check if the fan blades are pushed correctly over the motor shaft.Check if the fan blades are damagedCheck if the mesh enclosures are deformed and thus come in contact with the blades.
The device turns off.	The timer has expired.	Switch the device on again and reset the timer.

Technical information
Rated voltage	24V
Input Voltage/Frequency	100-240V / 50~60Hz
Rated input power	20W
Height	100.7cm(product)
Weight	3.02kg(NW) / 4.5kg(GW)
Name	Symbol	Value	Unit
Maximum volume flow	F	19.7	m3/min
Fan power consumption	P	20W	W
Service value	SV	1.15	(m3/min)/W
Fan sound power level	LWA	≤60	dB(A)
Consumption in standby mode	PSB	≤0.5	W
Contact address for further information and service line:	Schuss Home Electronic GmbHScheringgasse 3, A-1140 ViennaTel: [phone] - 0Service line: [phone] - 502www.becool.atCommercial register no.: 236974 t /Commercial register court: Vienna

By purchasing a BECOOL quality product you have acquired an innovative, long lasting and reliable item.

For this BECOOL device we grant a warranty of 2 years from the date of purchase, valid in Austria only.

In the unlikely event that service work is required on your device in this period we warrant free repair (spare parts and labour) or (subject to Schuss's decision) to replace the product. In the event that neither repair nor exchange make sense from an economical perspective we reserve the right to issue a credit based on current value.

When dealing with air conditioning devices you should always contact the customer hotline first (see label on the device or the title page of the instruction manual), in case of fans contact your dealer or us directly. Please note that repair not performed by the authorised workshop in Austria immediately renders this warranty void.

This warranty does not include:

• Repair of replacement of parts due to normal wear
- Damage due to non-compliance with the instruction manual
• Devices that are used commercially – even in part
- Devices damaged by external forces (falling, impact, cracking, improper use etc.) as well as aesthetic wear
• Devices that have been used improperly
• Devices that were not opened by our authorised workshop.
- Unfulfilled customer expectations.
- Damage caused by force majeure, water, lightning and overvoltage.
- Devices on which type denomination and/or serial number on the device have been erased, rendered illegible or removed.
- Service work not performed by our authorised workshops, transport costs to an authorised workshop or us and back as well as associated risks.

Please note that within the warranty period we charge a flat rate of 60 € (indexed as per consumer price index 2010, June 2015) in case of operating errors or if no fault can be found.

The total warranty period of 2 years is not extended if warranty service is performed (repair or device replacement).

The 2 year warranty is only valid if the original invoice (must contain name and address of the dealer as well as full device name) and the respective warranty certificate are produced, on which the device type and serial number (can be found on the box and the device's rear or bottom) are to be noted! Only the statutory warranty coverage applies if the warranty certificate cannot be produced!

Please note that the statutory warranty coverage is not altered by this warranty and that it applies in full regardless.

Schuss Home Electronic GmbH and its vicarious agents are only liable for damages in case of gross negligence or intent. Liability for loss of profit, expected but not incurred savings, consequential damages and damages from third party claims is excluded in any case. Damages to or for recorded data are always excluded from the liability for damages.

Congratulations on your choice. We hope you will enjoy using your BECOOL device!

ADDRESS

SHE Sales

Schuss Home Electronic GmbH

A-1140 Vienna, Scheringgasse 3

Tel.: [phone]

Type designation:

Serial number:

Together with the device, this warranty certificate must be handed to the authorised workshop or dealer you bought the device from in the event of a warranty claim!
