Product Type	Air Cooler (evaporative)
Brand	Be Cool
Model	BCP5AC2201F
Power Supply	220-240 V ~ 50 Hz
Rated Power Input	45 W
Water Tank Capacity	5 L
Maximum Air Velocity	5.6 m/s
Fan Sound Power Level	59 dB(A)
Standby Power Consumption	< 1 W
Dimensions (W x D x H)	300 x 300 x 1080 mm
Weight	4.5 kg
Speed Settings	3 (Low, Medium, High)
Cooling Function	Yes (water evaporation)
Timer	Up to 7 hours
Remote Control	Included (battery CR2032)
Casters	4 included
Dust Filter	Washable, clean weekly
Water Tank Cleaning	Every 2-3 weeks
Protection Class	I (earthing required)
Suitable For	Indoor use only
Warranty	2 years (valid in Austria)

Frequently Asked Questions - BCP5AC2201F Be Cool

How do I set the timer on the Be Cool BCP5AC2201F?

Press the Timer button on the remote control or control panel repeatedly. Each press increases the time by 1 hour, up to a maximum of 7 hours. The display shows the selected hours (e.g., 1H, 2H, etc.).

How should I clean the water tank?

Switch off and unplug the appliance. Drain the water by pulling out the water tank plug on the bottom. Remove the cover grille and water filter. Clean the tank with a soft cloth dipped in soapy water, rinse with warm water, and dry. Reinsert the plug firmly before refilling.

How do I clean the dust filter?

Switch off and unplug the unit. Unscrew the safety screw, press the tabs to remove the grille with the dust filter. Vacuum the filter or wash it in warm water (max 40°C) if very dirty. Let it dry completely before reinstalling. Never operate the appliance without the filter.

Can I use the air cooler without water?

Yes, you can use it as a fan without water. The cooling function requires water in the tank above the MIN level. If you don’t press the COOL button, the fan operates normally without water.

Why is my air cooler making loud noises?

Loud noises may occur if the appliance is not on a level surface. Ensure the floor is even and the casters are properly inserted. Also check that the air grille is not loose. If noise persists, inspect for foreign objects in the fan.

How do I replace the remote control battery?

Pull out the battery holder on the back of the remote control. Insert a new CR2032 button cell with the correct polarity (+/-). Slide the holder back into place. Dispose of old batteries properly.

What is the maximum operating time on timer?

The timer can be set for up to 7 hours. After the set time, the appliance will automatically switch off. The timer cannot be used to switch the unit on.

Can I use the Be Cool BCP5AC2201F outdoors?

No, this appliance is designed for indoor use only. It should not be used outdoors, in damp basements, near water, or in direct sunlight. Doing so may cause electric shock or damage.

How should I store the air cooler at the end of the season?

Switch off and unplug the unit. Empty and clean the water tank. Clean the dust filter and let it dry. Store the appliance vertically in a cool, dry place, out of reach of children. Do not cover with plastic packaging.

What does the warranty cover?

The warranty covers free repair or replacement of the appliance within 2 years from purchase date, valid in Austria. It does not cover normal wear, misuse, improper cleaning, or damage from external causes. A fixed fee of €60 may apply for operating errors.

USER MANUAL BCP5AC2201F Be Cool

White air conditioner fan with black fan blades and 'BE COOL' branding (no additional text or symbols visible)

HERZLICHEN GLÜCKWUNSCH!

VIELEN DANK, DASS SIE SICH FÜR EIN PRODUKT VON BE COOL

ENTSCHIEDEN HABEN.

www.becool.at/downloads

ACHTUNG

HINWEIS

Important Information about Safety, Site Location and Electrical Connections	14 – 15
Recycling, Waste Management, Declaration of Conformity	15 – 16
Scope of Delivery	16
Description of Appliance	16 – 17
Commissioning	17 – 18
Remote control	18 – 19
Setting the functions	19 – 20
Tips for correct application	20
Maintenance and cleaning	21 – 22
Activities at the beginning/end of the season	22
Tracking and fixing problems	23
Technical informations	23
Warranty	24

PLEASE READ THE OPERATING MANUAL CAREFULLY BEFORE BEGINNING INSTALLATION, MONITORING, OPERATING, OR MAINTENANCE. PROTECT YOURSELF AND OTHERS BY FOLLOWING THE SAFETY INSTRUCTIONS. FAILURE TO COMPLY WITH INSTRUCTIONS MAY RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE AND/OR LOSS OF WARRANTY CLAIMS!

IMPORTANT INFORMATION ABOUT SAFETY, SITE LOCATION AND ELECTRICAL CONNECTIONS.

Use this appliance exclusively under the guidelines of this operating manual. Any other use not recommended by the manufacturer may cause fire, electrical shock, or personal injury.

1. This appliance is intended exclusively for the cooling of living spaces in households and may not be used for any other purpose.
2. The appliance is not suitable for continuous and precision operation and should not be used for cooling electrical systems (e.g. in server rooms).
3. Remove the packing and make sure that the appliance is not damaged. In case of doubt, do not use the appliance, and contact the service centre or your dealer.
4. If the appliance has a defect, switch it off and contact either your dealer or the customer hotline
5. If the power supply cable is damaged, it must be replaced by the manufacturer or an authorised service centre to avoid all possible risks.
6. For any repairs, always contact the customer service offices authorised by the manufacturer. You can access the customer service centres online at www.becool.at.
7. Before connecting it to the mains power supply, check that the mains voltage and the type of electrical current matches the information provided on the type plate on the appliance.
8. The electrical outlet that the appliance must be connected to, must not be defective or loose and must be suitable for the current load required, and, above all, must be reliably earthed. In case of doubt, have your electrical installation checked by a qualified electrician.

BE COOL

1. Avoid using an extension cable, because this could overheat and cause a fire.

2. It is forbidden to adapt or modify the characteristics of this appliance in any way. Use only replacement parts and accessories recommended by the manufacturer (failure to comply will result in the loss of the guarantee and warranty).

3. Children must not be allowed to play with the appliance.

4. Do not let small children play with the packaging – THERE IS A DANGER OF SUFFOCATION ON SMALL PARTS!

5. Children under 8 years of age and persons with limited physical, psychological, sensory or mental abilities, as well as a lack of experience and knowledge, may only use this appliance under appropriate supervision and if this appliance is used for detailed instructions on both using this appliance in a safe manner and describing any existing hazards.

6. Do not operate the appliance unattended. Whenever you leave the room, always switch off the appliance.

7. Do not twist, buckle or snap off the power supply cable.

8. Do not use the appliance with wet hands.

9. Do not use the appliance outdoors.

10. Never cover the appliance.

11. Do not operate the appliance in rooms where gas, oil or sulphur are present.

12. Do not use the appliance near water or high humidity, e.g. in damp cellars, or next to swimming pools, bathtubs or showers. Make sure that water does not get into the appliance.

13. Do not place the appliance near heat sources (e.g. next to heating systems) and avoid direct sunlight.

14. Keep a minimum distance of at least 50 cm from combustible substances (e.g. alcohol) or pressurised vessels (e.g. spray containers).

15. Do not place any heavy or hot objects on top of the appliance.

16. Place the appliance on a solid and even support surface.

17. Never insert fingers, pins or other objects into the appliance and make sure that the air entry and outlet are never blocked.

18. Change the water regularly.

19. Always fill the water tank above the minimum level, but never above the maximum level.

20. Always make sure, that the water tank plug is firmly pushed into the watertank opening on the bottom side of the device, so no water leaks.

21. If there is water in the water tank, do not move the appliance quickly to avoid any leakage(s) or splashing any water.

22. To avoid high humidity, do not use the appliance in "COOL" mode for long periods of time in a closed area without ventilation.

23. Remove the plug and empty the water tank, when the appliance is not in use.

24. Always switch the appliance off, before unplugging it.

25. Do not pull the mains cable to disconnect the appliance from the mains supply. Always pull the plug to pull out the mains cable.

26. To avoid electric shocks, do not handle the plug with wet or damp hands.

27. When not in use, keep the appliance vertical in a safe, dry place that is inaccessible for children, and do not cover the appliance with plastic packaging.

28. Maintain the appliance in good condition by maintaining and cleaning it. If you have any questions about maintenance, contact the customer hotline/service centre authorised by the manufacturer.

RECYCLING

The packaging materials can be recycled. Therefore, it is recommended to dispose of them in sorted waste.

WASTE MANAGEMENT

The pictogram with the crossed out dustbin points to the requirement for separate disposal of electrical and electronic appliances (WEEE). Electrical and electronic appliances can contain hazardous and environmentally hazardous materials. Therefore, do not dispose of these in the unsorted residual waste, but at a registered collection centre for waste electrical and electronic equipment. By doing so, you will help to conserve resources and protect the environment.

For further details, please consult your dealer or your local authorities.

DECLARATION OF CONFORMITY

We hereby confirm that this article complies with the essential requirements, regulations and guidelines of the EU.

The detailed declaration of conformity can be viewed at any time via following link: www.becool.at/downloads

Specifications are subject to change without prior notice.

SCOPE OF DELIVERY

The BECOOL cooler comes with:

• 1x air cooler
• 1x remote control
• 1x operating manual
• 4x casters

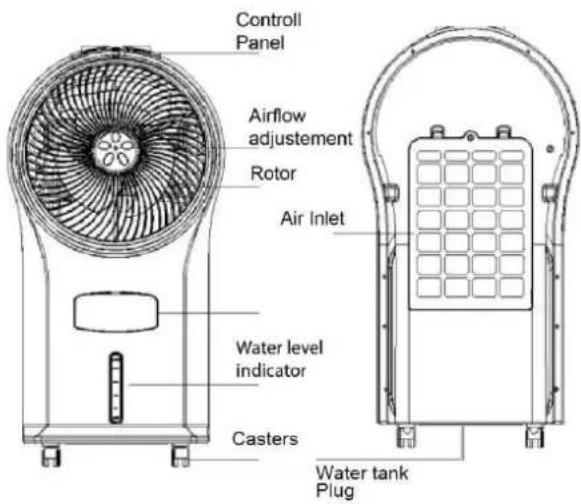

DESCRIPTION OF THE APPLIANCE

Description of the individual components

Seite 16 von 24

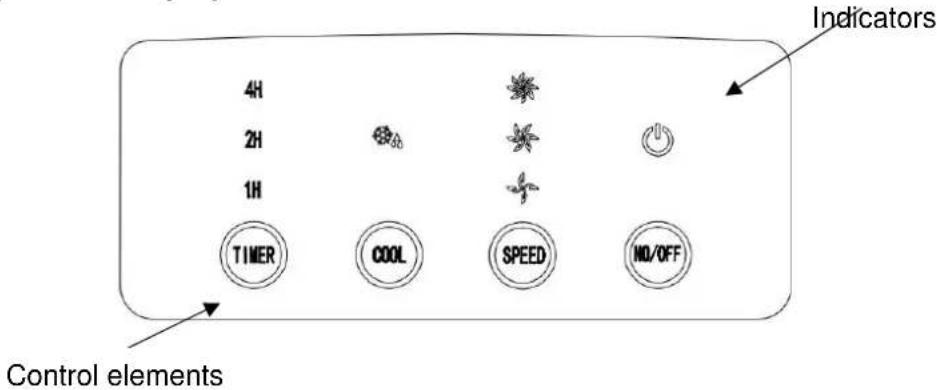

Controlpanel & Display details

COMMISSIONING

BEFORE USING THE APPLIANCE FOR THE FIRST TIME

Unpacking the Appliance

1. Open the carton and take out the appliance.
2. Remove all packaging from the appliance.
3. Unwind the mains cable completely and make sure not to damage it.

Transport wheels

For easier transport, the appliance is equipped with transport wheels.

1. After the appliance has been carefully unpacked, insert the transport rollers into the designated notches on the bottom of the appliance.

INSTALLATION

Please note the following points for installation.

1. Place the appliance on a level and solid surface.
2. There must be at least a 50 cm gap to walls or other objects.
3. Before using the appliance, make sure that both the air inlet and the air outlet are free of obstacles and are not blocked.
4. Connect the appliance to an earthed outlet.

FILLING THE WATER TANK

ATTENTION

Before you fill the water tank, make sure that the water tank plug on the bottom side of the AirCooler is firmly pushed into the water tank opening so no water leaks.

Furthermore, please note the following:

1. Open the water inlet on the front of the air cooler.
2. Carefully fill the water tank with clean water, using a watering can or similar container. Pay attention to the fill level on the front of the water tank:
   MIN mark → The water tank must be filled via the MIN mark for the pump to work properly
   MAX mark → The water tank must not be filled via the MAX mark, otherwise water could get inside the appliance and damage electronic parts.
3. Make sure that the appliance is not damp or wet from the outside and wipe it down if necessary.
4. Close the water inlet flap.

REMOTE CONTROL

PREPARING REMOTE CONTROL – INSERTING OR REPLACING BATTERIES

Please follow the steps below to make it operate correctly:

Initial Operation:

1. To use the remote control for the first time, remove the plastic cover from the battery compartment on the back of the remote control.

Battery replacement:

1. To operate the remote control, please insert the button cell provided.
2. To do so, pull out the battery holder on the back of the remote control and insert the battery:

1. Please always pay attention to the polarity markings (+/-) on the battery and the battery holder:

2. Then insert the battery holder back into the remote control.

NOTE

The buttons of the remote control are labelled as shown in the illustration below. All functions of the remote control work identically with the manual operation on the appliance.

BE COOL

HOW TO CORRECTLY USE THE REMOTE CONTROL

Point the remote directly at the front of the appliance and make sure there are no obstacles between the remote control and the appliance.

NOTE

Please handle the remote control carefully.

Do not expose the remote control to direct sunlight and keep it away from heat sources.

DESCRIPTION OF REMOTE CONTROL

ON/OFF

Cooling-Function

SPEED +

Timer

SPEED -

SETTING THE FUNCTIONS

The control panel of the appliance has the same buttons as on the remote control, so all functions can be set directly on the appliance as well as by using the remote control.

SWITCHING ON THE APPLIANCE

• Press the ON/OFF key to switch on the machine.
• As soon as you switch on the unit, it will run at "Low Speed".
• If you want to put the machine in standby mode - press the ON/OFF button again.

NOTE

Never switch off the air cooler by pulling the plug directly from the mains. Always press the ON/OFF button to switch it off, and wait a few minutes before disconnecting the appliance from the mains. This allows the appliance to go through a cycle of checks to verify its functionality.

SETTING THE SPEED

• Use the SPEED-button to set and adjust the speed of the blower.
• The respective indication lights up on the display:

1 x press → Medium speed →

2 x press → High speed →

3 x press → Low speed →

BE COOL

AIR CIRCULATION

• Use the nut on the air outlet to tighten or loosen the air distribution grille.
• Turn the nut clockwise to tighten the grille to reduce the speed.
• Turn the nut counter-clockwise to loosen the grille to increase the speed.

NOTE

The air distribution grille improves the air distribution in the room. The looser the nut is, the faster the distribution grille rotates and the better the air flow is distributed.

COOL AIR

• Use the COOL-button to start the COOLING AIR function.
• When the function is activated, the -indicator lights up.
• The appliance now starts pumping water out of the water tank to create cold air, that is then blown out of the appliance. The colder the water, the colder the air flowing out of the appliance.

NOTE

Make sure that the water level indicator is above the MIN level.

TIMER

• Use the Ⓐ - button to switch off the appliance in a time-controlled way.
• With each press on the ⏻ - button, the operating time is gradually extended by one hour each time – pay attention to the indication of the hour in the middle of the display:

○ 1x press → 1 hour → 1H appears on the display
○ 2x press → 2 hours → 2H appears on the display
- 3x press → 3 hours → 1H & 2H appears on the display
○ ....
- 7x press → 7 hours → 4, 2H & 1H appears on the display

TIPS FOR CORRECT APPLICATION

Here are some tips to get the very best out of the air cooler:

Protect the room from direct sunlight with curtains, blinds or shutters. This saves you energy.
Do not place any objects on to the appliance, and do not obscure the air outlet.
Make sure that no heat sources are operating in the room.
Never use the appliance in very humid rooms (e.g. laundry rooms).
Do not use the appliance outdoors.
Make sure that the appliance is on level flooring.

MAINTENANCE AND CLEANING

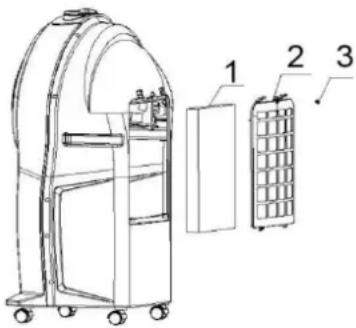

CLEANING THE WATER TANK

It is recommended to clean the water tank every 2-3 weeks during use.

1. Before cleaning, switch off the machine, wait a few minutes and then unplug the machine from the socket to disconnect it from the power supply.

2. First drain the water from the water tank by holding the device over a container and pull out the water tank plug from the bottom of the device.

3. Now unscrew the safety screw (3) and press the tabs to release and remove the cover grille (2).

4. Then take out the water filter underneath (1).

5. Clean the tank inside with a soft cloth that you have previously dipped in soapy water.

6. Rinse the tank with warm, clean water and wipe it again with a dry cloth.

7. Now insert the water tank plug firmly back into the openin on the bottom of the device.

8. Allow the tank to dry completely and insert the removed parts in the opposite direction before refilling it.

ATTENTION

Before you fill the water tank, make sure that the water tank plug on the bottom side of the AirCooler is firmly pushed in the water tank opening so no water leaks.

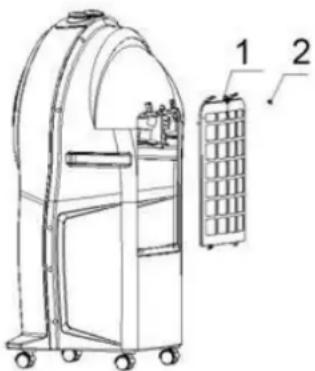

CLEANING DUST FILTERS

To ensure that the air cooler operates efficiently, you should clean the dust filter after each week of operation.

1. Before cleaning, switch off the machine, wait a few minutes and then unplug the machine from the socket to disconnect it from the power supply.

2. Unscrew the safety screw (2) and press the tabs to loosen the grille with the integrated dust filter (1).

3. Use a hoover to remove the dust collected in the filter.

4. If the filter is very dirty, dip it in warm water and rinse it several times - the water temperature should not exceed 40^ C.

5. Allow the dust filter to dry out well after washing and only then put it back in the machine.

6. Put the cover grille on the device and screw the safety screw in the cover.

NOTE

Never use the appliance without a filter.

BE COOL

CLEANING THE HOUSING

Before cleaning the appliance, switch it off, then wait a few minutes, and then unplug it to disconnect the appliance from the mains power supply.

• Clean the appliance with a moderately damp cloth, and then wipe it with a dry cloth.
• Never use benzene, alcohol or solvents to clean the appliance – this could be dangerous.
• Do not spray insecticides or similar agents on to the air cooler.

ACTIVITIES AT THE BEGINNING/END OF THE SEASON

ACTIVITIES AT THE END OF THE SEASON

• Switch off the appliance and disconnect the mains plug.
• Carefully empty and clean the water tank.
• Clean the filter and reinsert it after drying (see section “Cleaning Dust Filters”).
• Pack away the appliance and store it in a cool, dry place.

INSPECTIONS AT THE BEGINNING OF THE SEASON

• Verify that the power supply cable is in order and that the earthing is functioning.
• Follow the installation and safety instructions carefully.

TRACKING AND FIXING PROBLEMS

Before contacting our customer hotline/service centre, please check whether the error can be rectified using the instructions below.

PROBLEM	POSSIBLE CAUSE	SOLUTION
The air cooler does not switch on.	You are using the wrong button.	You can switch on the appliance with the ON/OFF button either on the remote control or directly on the appliance.
	Power failure	Wait for the power supply to be restored.
	The appliance is not connected to the power supply.	Connect/plug the appliance to the power supply and wait for a minimum of 30 mins!
	The remote control battery is flat.	Please replace the battery.
The air cooler works only for a short amount of time.	The water tank is empty.	Fill the water tank.
	Something is blocking the air outlet.	Check and remove all obstacles that are blocking the air supply.
During operation, an unpleasant odour is emerging from the room.	The air filter or water tank is dirty.	Clean the air filter(s) and/or water tank in accordance with the description.
The appliance is very loud.	The floor that the air cooler is located on is not level.	Place the air cooler in a different location.

Technical information
Nominal voltage	220 V ~ 240 V
Frequency	50 Hz
Rated power input	45 W
Water tank capacity	5 L
Description	Symbol	Value	Unit
Maximum air velocity	V	5,6	m/s
Fan power input	P	45	W
Fan sound power level	LWA	59	dB(A)
Consumption in standby mode	PSB	< 1	W
Dimensions
Product dimensions:	300 x 300 x 1080 mm
Weight:	4.5 kg
Contact addresses for more information and Serviceline:	Schuss Home Electronic GmbHScheringgasse 3, A-1140 Vienna, AustriaTel: [phone] – 0Serviceline: [phone] – 544www.becool.atFB no.: 236974 t / FB court: Vienna

WARRANTY

By purchasing this BE COOL quality product means that you have decided to place trust in durability, reliability and innovation.

For this BE COOL appliance, we grant a warranty period of 2 years from the date of purchase valid in Austria!

If, contrary to expectations, service work on your appliance is still necessary during this period, we hereby guarantee either free repairs (spare parts and working time) or (at the discretion of Schuss) that we will replace the product. If it is not possible to either repair or exchange the product for economic reasons, we reserve the right to create a time value credit.

For air conditioners, please contact the customer hotline as a first step (see the labels on the appliance or title page of the operating manual), for fans, contact your specialist dealer or directly contact us. We would like to point out that repair work that has not been performed by the authorised contract workshop in Austria will immediately terminate the validity of this warranty.

This warranty does not cover:

• In case of improper use, we do not assume any consequential damage
  • Repair or replacement of parts due to normal wear and tear
• Damage resulting from failure to follow the operating manual
• Appliances that are used commercially, even in part
• Appliances mechanically damaged due to external influence (any fall(s), impact(s), breakage(s), improper use, etc.) as well as signs of wear and tear of an aesthetic nature
• Appliances that have been improperly treated
• Appliances that have not been opened by our authorised service workshop
  • Unfulfilled consumer expectations
• Damage caused by force majeure, water, lightning and overvoltage
• Appliances that have had their type designation and/or serial number on the appliance changed, deleted, made illegible or removed.
• Services outside our contract workshops, the transport costs to either an authorised workshop or to us and back, and the associated risks

We would like to expressly point out that a fixed amount of € 60 (indexed basis CPI 2015, June 2020) will be charged within the warranty period in the event of operating errors or if no error has been detected.

The provision of a warranty service (repairs or replacement of the appliance) does not extend the absolute warranty period of 2 years from the date of purchase.

The 2-year warranty is only valid upon presentation of the proof of purchase (must include the name and address of the dealer as well as the complete appliance designation) and the corresponding warranty certificate, on which the appliance type and the serial number (on the box and on both the back and underside of the appliance) are to be noted! Without presenting the warranty certificate, only the legal warranty applies!

We would like to expressly point out that the statutory warranty rights are unaffected by this warranty and continue unabated.

A liability for damage on the part of Schuss Home Electronic GmbH and its vicarious agents only exists in the event of gross negligence or intent. In any event, liability for lost profits, expected but not occurred savings, consequential damage and damage arising from claims of third parties is excluded. Damage to or for recorded data are always excluded from the liability for damage.

Congratulations on making your choice. We wish you a lot of pleasure with your BE COOL appliance!

ADDRESS

BE COOL Vertrieb

Schuss Home Electronic GmbH

Scheringgasse 3

A-1140 Vienna (Austria)

Tel.: [phone]

Type designation:

Serial number:

In the event of a warranty claim, this warranty certificate must be handed over with the appliance to the authorised service workshop or the dealer which you purchased the appliance from!
