USER MANUAL BC40SNST2202F Be Cool

Exterior view of a black outdoor air conditioner unit with a circular fan and cooling tower (no visible text or symbols)

HERZLICHEN GLÜCKWUNSCH!

QR code image containing encoded data, no visible human-readable text

Exploded diagram of a portable air conditioner with numbered parts for identification and assembly reference.

BE COOL

Gebrauchsanweisung

CLOSED OPEN

ACHTUNG!

Exterior view of a black outdoor air conditioner unit with a circular fan and control panel (no visible text or symbols)

FÉLICITATIONS !

MERCI D'AVOIR CHOISI UN PRODUIT BE COOL.

QR code image containing encoded data, no visible human-readable text

VEUILLEZ LIRE ATTENTIVEMENT CE MANUEL D'INSTRUCTIONS AVANT DE COMMENCER L'INSTALLATION, L'UTILISATION OU L'ENTRETIEN. PROTÉGEZ-VOUS ET PROTÉGEZ LES AUTRES EN RESPECTANT LES CONSIGNES DE SÉCURITÉ. LE NON-RESPECT DES INSTRUCTIONS PEUT ENTRAÎNER DES BLESSURES OU DES DOMMAGES AUX PERSONNES ET/OU AUX BIENS ET/OU INVALIDER LA GARANTIE !

INFORMATIONS IMPORTANTES SUR LA SÉCURITÉ, L'EMPLACEMENT ET LA CONNEXION ÉLECTRIQUE.

BE COOL

CLOSED OPEN

Exterior view of a black outdoor water spray fan with a digital display stand (no visible text or symbols)

CONGRATULAZIONI!

GRAZIE PER AVER SCELTO UN PRODOTTO BE COOL.

BE COOL

QR code image containing encoded data, no visible human-readable text

LEGGERE ATTENTAMENTE IL PRESENTE MANUALE DI ISTRUZIONI PRIMA DI INIZIARE L'INSTALLAZIONE, IL FUNZIONAMENTO O LA MANUTENZIONE.

PROTEGGERE SE STESSI E GLI ALTRI SEGUENDO LE ISTRUZIONI DI SICUREZZA. LA MANCATA OSSERVANZA DELLE ISTRUZIONI PUÒ CAUSARE LESIONI O DANNI A PERSONE E/O COSE E/O INVALIDARE LA GARANZIA!

INFORMAZIONI IMPORTANTI SULLA SICUREZZA,

L'UBICAZIONE E IL COLLEGAMENTO ELETTRICO.

BE COOL

Exploded diagram of a washing machine with numbered parts for identification and assembly reference.

BE COOL

CLOSED OPEN

Exterior view of a modern office building (no signage)

GEFELICITEERD!

EDANKT VOOR HET KIEZEN VAN EEN PRODUCT VAN BE COOL.

QR code image containing encoded data, no visible human-readable text

LEES DEZE GEBRUIKSAANWIJZING ZORGVULDIG DOOR VOORDAT U BEGINT MET DE INSTALLATIE, HET GEBRUIK OF HET ONDERHOUD. BESCHERM UZELF EN ANDEREN DOOR DE VEILIGHEIDSINSTRUCTIES OP TE VOLGEN. HET NIET OPVOLGEN VAN DE INSTRUCTIES KAN LEIDEN TOT LETSEL OF SCHADE AAN PERSONEN EN/OF EIGENDOMMEN EN/OF HET VERVALLEN VAN DE GARANTIE!

BELANGRIJKE INFORMATIE OVER VEILIGHEID, LOCATIE EN ELEKTRISCHE AANSLUITING.

BE COOL

Exploded diagram of a washing machine with numbered parts for identification and assembly reference.

BE COOL

Gebruiksaanwijzing

CLOSED OPEN

Exterior view of a black outdoor air conditioner with a circular fan and coiled tube (no text or symbols visible)

FELICIDADES.

GRACIAS POR ELEGIR UN PRODUCTO DE BE COOL.

QR code image containing encoded data, no visible human-readable text

Exploded diagram of a washing machine with numbered parts for identification and assembly reference.

BE COOL

CLOSED OPEN

Exterior view of a black outdoor air conditioner with a circular fan and coiled tube (no text or symbols visible)

GRATULUJEME!

DĚKUJEME, ŽE JSTE SI VYBRALI PRODUKT OD SPOLEČNOSTI BE COOL.

BE COOL

QR code image containing encoded data, no visible human-readable text

PŘED ZAHÁJENÍM INSTALACE, PROVOZU NEBO ÚDRŽBY SI POZORNĚ PŘEČTĚTE TENTO NÁVOD K POUŽITÍ. DODRŽOVÁNÍM BEZPEČNOSTNÍCH POKYNŮ CHRAŇTE SEBE I OSTATNÍ. NEDODRŽENÍ POKYNŮ MŮŽE VÉST KE ZRANĚNÍ NEBO POŠKOZENÍ OSOB A/NEBO MAJETKU A/NEBO KE ZTRÁTĚ ZÁRUKY!

DŮLEŽITÉ INFORMACE O BEZPEČNOSTI, UMÍSTĚNÍ A ELEKTRICKÉM PŘIPOJENÍ.

Exploded diagram of a washing machine with numbered parts for identification and assembly reference.

BE COOL

Návod k použití

CLOSED OPEN

Exterior view of a black outdoor air conditioner unit with a circular fan and digital display (no visible text or symbols)

GRATULUJEME!

ĎAKUJEME, ŽE STE SI VYBRALI PRODUKT OD SPOLOČNOSTI BE COOL.

BE COOL

QR code image containing encoded data, no visible human-readable text

PRED ZAČATÍM INŠTALÁCIE, PREVÁDZKY ALEBO ÚDRŽBY SI POZORNE PREČÍTAJTE TENTO NÁVOD NA OBSLUHU. DODRŽIAVANÍM BEZPEČNOSTNÝCH POKYNOV CHRÁŇTE SEBA AJ OSTATNÝCH. NEDODRŽANIE POKYNOV MÔŽE VIESŤ K ZRANENIU ALEBO POŠKODENIU OSÔB A/ALEBO MAJETKU A/ALEBO K STRATE PLATNOSTI ZÁRUKY!

DÔLEŽITÉ INFORMÁCIE O BEZPEČNOSTI, UMIESTNENÍ A ELEKTRICKOM PRIPOJENÍ.

Three black-and-white warning symbols: triangular warning triangle, triangular hazard symbol, and hand holding a circle.

BE COOL

Exploded diagram of a washing machine with numbered parts for identification and assembly reference.

BE COOL

Návod na použitie

CLOSED OPEN

Exterior view of a black outdoor air conditioner unit with a circular fan and digital display (no visible text or symbols)

FELICITĂRI!

VĂ MULȚUMIM CĂ AȚI ALES UN PRODUS DE LA BE COOL.

QR code image containing encoded data, no visible human-readable text

VĂ RUGĂM SĂ CITIȚI CU ATENȚIE ACEST MANUAL DE INSTRUCȚIUNI ÎNAINTE DE A ÎNCEPE INSTALAREA, FUNCTIONAREA SAU ÎNTREȚINEREA. PROTEJAȚI-VĂ PE DUMNEAVOASTRĂ ȘI PE CEILALȚI RESPECTÂND INSTRUCȚIUNILE DE SIGURANȚĂ. NERESPECTAREA INSTRUCȚIUNILOR POATE DUCE LA RĂNIREA SAU LA DETERIORAREA PERSOANELOR ȘI/SAU A BUNURILOR ȘI/SAU LA INVALIDAREA GARANȚIEI!

INFORMATII IMPORTANTE PRIVIND SIGURANTA, AMPLASAREA ŞI CONECTAREA ELECTRICĂ.

Warning symbols including warning triangle, lightning bolt, and hand symbol with corresponding black-and-white pictograms

BE COOL

CLOSED OPEN

Exterior view of a modern office building (no signage)

CONGRATULATIONS!

THANK YOU FOR CHOOSING A PRODUCT FROM BE COOL.

BE COOL

WARRANTY

By purchasing a BE COOL quality product you have acquired an innovative, long lasting and reliable item.

For this BE COOL device we grant a warranty of 2 years from the date of purchase, valid in Austria only.

In the unlikely event that service work is required on your device in this period we warrant free repair (spare parts and labour) or (subject to Schuss's decision) to replace the product. In the event that neither repair nor exchange make sense from an economical perspective we reserve the right to issue a credit based on current value. When dealing with air conditioning devices you should always contact the customer hotline first (see label on the device or the title page of the instruction manual), in case of fans contact your dealer or us directly. Please note that repair not performed by the authorised workshop in Austria immediately renders this warranty void.

This warranty does not include:

• Repair of replacement of parts due to normal wear
• Damage due to non-compliance with the instruction manual
• Devices that are used commercially – even in part
• Devices damaged by external forces (falling, impact, cracking, improper use etc.) as well as aesthetic wear
• Devices that have been used improperly
• Devices that were not opened by our authorised workshop.
• Unfulfilled customer expectations.
• Damage caused by force majeure, water, lightning and overvoltage.
• Devices on which type denomination and/or serial number on the device have been erased, rendered illegible or removed.
• Service work not performed by our authorised workshops, transport costs to an authorised workshop or us and back as well as associated risks.

Please note that within the warranty period we charge a flat rate of 60 € (indexed as per consumer price index 2010, June 2015) in case of operating errors or if no fault can be found.

The total warranty period of 2 years is not extended if warranty service is performed (repair or device replacement).

The 2 year warranty is only valid if the original invoice (must contain name and address of the dealer as well as full device name) and the respective warranty certificate are produced, on which the device type and serial number (can be found on the box and the device's rear or bottom) are to be noted! Only the statutory warranty coverage applies if the warranty certificate cannot be produced!

Please note that the statutory warranty coverage is not altered by this warranty and that it applies in full regardless.

Schuss Home Electronic GmbH and its vicarious agents are only liable for damages in case of gross negligence or intent. Liability for loss of profit, expected but not incurred savings, consequential damages and damages from third party claims is excluded in any case. Damages to or for recorded data are always excluded from the liability for damages.

Congratulations on your choice. We hope you will enjoy using your BE COOL device!

ADDRESS

Schuss Home Electronic GmbH

A-1140 Vienna, Scheringgasse 3

Tel.: [phone]

Type designation:

Serial number:

Together with the device, this warranty certificate must be handed to the authorised workshop or dealer you bought the device from in the event of a warranty claim!

BE COOL

INSTRUKCJE OBSŁUGI BC40SNST2202F

Exterior view of a modern office building (no signage)

GRATULACJE!

DZIEKUJEMY ZA WYBRANIE PRODUKTU OD BE COOL.

QR code image containing encoded data, no visible human-readable text

PRZED ROZPOCZĘCIEM INSTALACJI, OBSŁUGI LUB KONSERWACJI NALEŻY UWAŻNIE PRZECZYTAĆ NINIEJSZĄ INSTRUKCJĘ OBSŁUGI. NALEŻY CHRONIĆ SIEBIE I INNYCH, PRZESTRZEGAJĄC INSTRUKCJI BEZPIECZEŃSTWA. NIEPRZESTRZEGANIE INSTRUKCJI MOŻE PROWADZIĆ DO OBRAŻEŃ CIAŁA LUB USZKODZENIA OSÓB I/LUB MIENIA I/LUB UNIEWAŻNIENIA GWARANCJI!

WAŻNE INFORMACJE DOTYCZĄCE

Exploded diagram of a washing machine with numbered parts for identification and assembly reference.

BE COOL

CLOSED OPEN

Exterior view of a modern office building (no signage)

ČESTITAMO!

HVALA, KER STE IZBRALI IZDELEK BE COOL.

Aktualna navodila za uporabo in drugi jeziki

QR code image containing encoded data, no visible human-readable text

PRED ZAČETKOM NAMESTITVE, DELOVANJA ALI VZDRŽEVANJA NATANČNO PREBERITE TA NAVODILA. Z UPOŠTEVANJEM VARNOSTNIH NAVODIL ZAŠČITITE SEBE IN DRUGE. NEUPOŠTEVANJE NAVODIL LAHKO POVZROČI TELESNE POŠKODBE IN/ALI MATERIALNO ŠKODO IN/ALI IZGUBO GARANCIJSKEGA KRITJA!

POMEMBNE INFORMACIJE O VARNOSTI, LOKACIJI IN ELEKTRIČNEM PRIKLJUČKU.

Exploded diagram of a washing machine with numbered parts for identification and assembly reference.

BE COOL

Navodila za uporabo

CLOSED OPEN

POZOR!


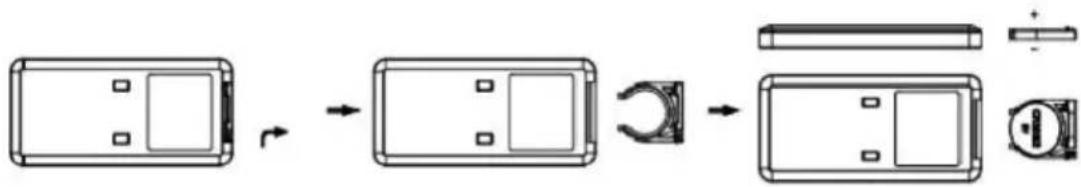

Zdaj vstavite novo baterijo CR2025 in pri tem upoštevajte oznake polarnosti (+/-) na bateriji in nosilcu baterije.

Nato držalo baterije potisnite nazaj v daljinski upravljalnik.

BE COOL

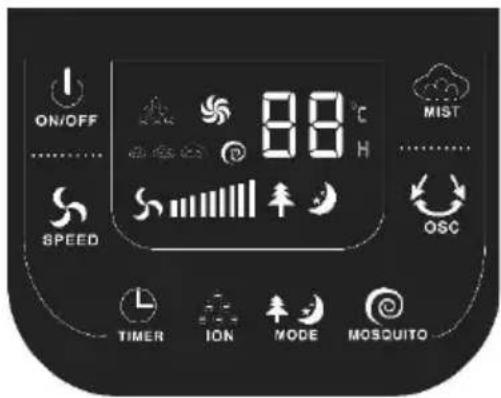

Podrobnosti:

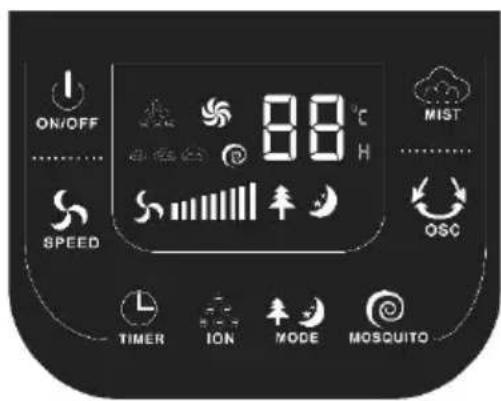

Nadzorna plošča

ON/OFF 88°C MIST SPEED OSC TIMER ION MODE MOSQUITO

Daljinski upravljalnik

8 1 O/DOFF SPEED 7 2 MUST I/O NOCK 6 3 TIMER MOSQUUTO OSC 5 4

1. VKLOP/IZKLOP	5. OSC ( oscilacija )
2. NEBEL (moč: 1 / 2 / 3 )	REŽIM 6 ( Narava / spanje )
3. ČASOVNIK (1 ura - 12 ur)	7. HITROST
4 MOSQUITO	8. ION (ionizator)

Gumb za vklop/izklop (1):

• Pritisnite gumb ON/OFF (1), da vklopite ali izklopite napravo.
• Indikatorska lučka zasveti, ko je enota vklopljena, in preneha svetiti, ko je izklopljena.

Gumb NEBEL (2):

• Pritisnite gumb ON/OFF (1), da vklopite napravo.
• Pritisnite gumb FOG (2), da izberete hitrost megle. Na voljo so 3 hitrosti (nizka - srednja - visoka).

Exterior view of a black outdoor air conditioner unit with a circular fan and control panel (no visible text or symbols)

ČESTITAMO!

HVALA VAM ŠTO STE ODABRALI BE COOL PROIZVOD.

BE COOL

Aktualne upute za uporabu i drugi jezici

Preuzmite najnovije upute za uporabu na raznim jezicima putem poveznice www.becool.at/downloads ili skenirajte prikazani QR kod. Slijedite upute na web stranici.

QR code image containing encoded data, no visible human-readable text

MOLIMO VAS PROČITAJTE OVE UPUTE PAŽLJIVO PRIJE UGRADNJE, RADA ILI ODRŽAVANJA. ZAŠTITITE SEBE I DRUGE PRIDRŽAVANJEM SIGURNOSNIH UPUTA. NEPRIDRŽAVANJE UPUTA MOŽE REZULTIRATI OSOBNIM I/ILI ŠTETAMA NA IMOVINI I/ILI PONIŠTENJEM JAMSTVA!

VAŽNE INFORMACIJE O SIGURNOSTI, LOKACIJI I ELEKTRIČNOM POVEZIVANJU.

CLOSED OPEN

PAŽNJA!

Exterior view of a black outdoor air conditioner unit with a circular fan and control panel (no visible text or symbols)

CONGRATULATIONS!

THANK YOU FOR CHOOSING BE COOL PRODUCT.

Current operating instructions and other languages

Download the latest operating instructions in various languages via the link www.becool.at/downloads or scan the QR code shown. Follow the instructions on the website.

QR code image containing encoded data, no visible human-readable text

PLEASE READ THIS INSTRUCTION MANUAL CAREFULLY BEFORE STARTING INSTALLATION, OPERATION OR MAINTENANCE. PROTECT YOURSELF AND OTHERS BY FOLLOWING THE SAFETY INSTRUCTIONS. FAILURE TO FOLLOW THE INSTRUCTIONS MAY LEAD TO INJURY OR DAMAGE TO PERSONS AND/OR PROPERTY AND/OR INVALIDATE THE WARRANTY!

IMPORTANT INFORMATION ON SAFETY, LOCATION AND ELETRICAL CONNECTION.

BE COOL

1. Use this device exclusively in accordance with the guidelines in the instruction manual. Any use other than that recommended by the manufacturer, may result in fire, electrical shock or injury to persons.
2. Remove the packaging and ensure the device is not damaged. In case of any doubt do not use the device and contact the service point or your dealer.
3. Keep children away from packaging materials. There is a risk of choking if swallowed!
4. If the power cable is damaged it must be replaced by the manufacturer or an authorised service point, in order to avoid all potential risks.
5. Check whether current type and grid voltage match the specifications on the device's type plate before plugging the device in.
6. The electrical plug socket, into which the device is connected, must not be defective or loose, must be suitable for the required current load and, above all, must be properly earthed.
7. Avoid the use of an extension cable, as this may overheat and cause a fire.
8. It is strictly forbidden to modify the properties of this device in any form or manner and you must only use replacement parts or accessories recommended by the manufacturer (failure to do so will invalidate the warranty and guarantee).

BE COOL

1. If the device has a defect, switch it off and contact your dealer or the customer hotline.
2. For any possible repairs to the device and the mains plug or power cable you must always refer exclusively to the customer service points recommended by the manufacturer. You can view our customer service points online at www.becool.at.
3. Children under the age of 8 and persons with limited physical, psychological, sensory or mental abilities and lack of experience and knowledge may only use this device under appropriate supervision and if comprehensively briefed on the safe use of the device and the associated hazards.
4. Do not use the device without supervision. Always switch the device off when leaving the room.
5. Children must not be allowed to play with the device.
6. Do not twist or kink the power cable.
7. Do not use the device with wet hands.
8. Do not use the device outdoors.
9. Never use the device in rooms in which gas, oil or sulphur are present.
10. Do not use the device in the proximity of water or strong moisture, e.g. in damp cellars, close to pools, bathtubs or showers. Make sure no water can enter the device.

BE COOL

1. Do not place any objects on the device.
2. Place the device on a stable and level subsurface.
3. Never cover the device.
4. Never put fingers, pens or other items into the device and make sure that air in- and outlets are never blocked.
5. Always switch the device off before pulling the power plug.
6. Do not pull on the power cable to unplug the device. Always pull on the plug to unplug the device.
7. Do not touch the plug with wet hands to avoid electrical shocks.
8. Pull the plug if you are not using the device, if you want to clean it, if it has to be serviced or if it is moved from one location to another.
9. Keep the device in good shape by cleaning and maintaining it. If you have any questions regarding maintenance you can contact the manufacturer's authorised customer hotline / service point.
10. Keep and store the device at a safe and dry place out of reach for children when you are not using it.

BE COOL

Recycling, disposal, declaration of conformity

	RECYCLINGThe packaging materials can be recycled. Therefore, it is recommended to dispose of them in sorted waste.
	DISPOSALThe symbol "crossed-out dustbin" requires the separate disposal of waste electrical and electronic equipment (WEEE). Electrical and electronic equipment may contain hazardous and environmentally dangerous substances. Therefore, do not dispose of this in unsorted residual waste, but at a designated collection point for waste electrical and electronic equipment. By doing so, you will contribute to the protection of resources and the environment. For more information, please contact your dealer or local authorities. Directive 2012/19/EU
	DISPOSAL OF BATTERIESIn accordance with Legislative Decree no. 188 of 20 November 2008 implementing Directive 2006/66/EC on batteries, accumulators and their associated waste, the symbol of the crossed-out dustbin shown on the battery indicates that it is prohibited to dispose of batteries in household waste. Batteries and accumulators contain environmentally hazardous substances. Users are obliged to dispose of used batteries at municipal collection centres or in collectors set up for the purpose. This service is free of charge. This ensures that the legal requirements are complied with and the environment is preserved.You may find the following symbols on batteries:Li = battery contains lithiumAl = battery contains alkaliMn = battery contains manganeseCR 2025 (Li); AA (Al, Mn); AAA (Al, Mn)
	DECLARATION OF CONFORMITYWe hereby confirm that this article complies with the basic requirements, regulations and directives of the EU. You can view the detailed declaration of conformity at any time under the following link:https://www.schuss-home.at/downloads

Errors and technical modifications excepted.

BE COOL

Technical information

If the fan will be stored for a long period and is not used regularly, place the fan in its original packaging in a dry place. When you use it for the first time after a long period of inactivity, make sure the fan is clean and the motor blades turn freely (with the device not powered) without any restraint.

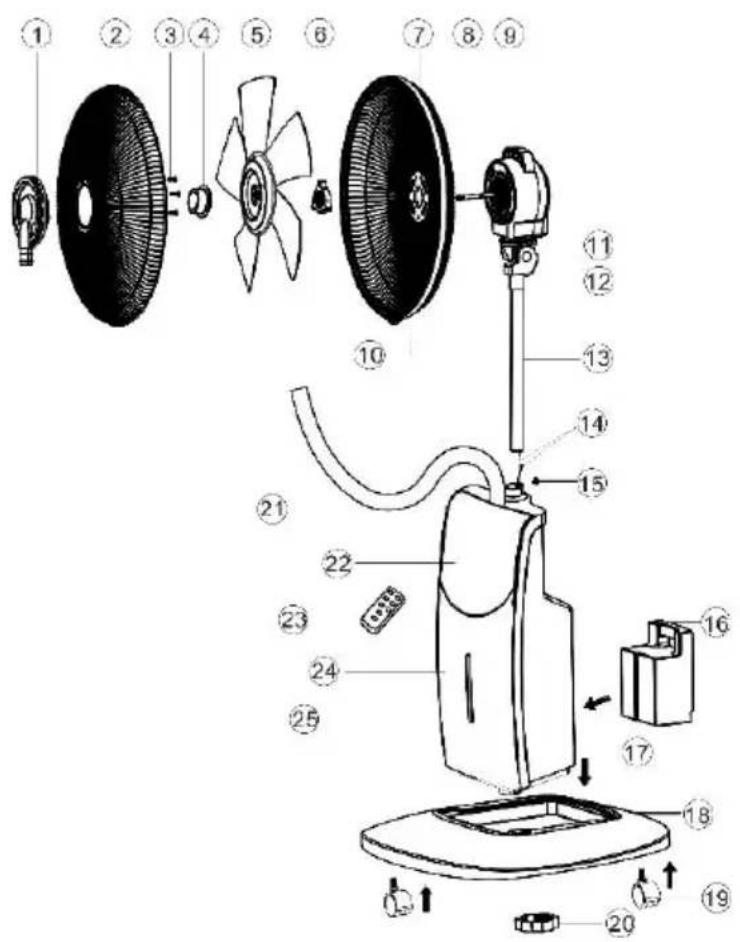

1. Misting Board
2. Front Grill
3. Misting Board Screws
4. Blades Lock Net
5. Blades
6. Grill Lock Net
7. Rear Grill
8. Motor Shaft
9. Motor Cover
10. Grill Ring
11. Motor Holder
12. Connection Holder
13. Main Holder
14. Power Connection line
15. Fixed Screw
16. Water Tank
17. Main Body
18. Base
19. Wheels
20. Base Lock Nut
21. Misting Tube
22. Control Panel
23. Remote Controller
24. Decorate Panel
25. Water Indicator

Exploded diagram of a washing machine with numbered parts for identification and assembly reference.

BE COOL

Instructions for use

1. Insert the main holder (13) into the main body (17), and tight up by the holder fixed screw (15).
2. Insert the 5pcs wheels (19) into the base (18), and tighten up by the base lock nut (20).
3. Put the rear grill (7) on the motor shaft (8), and tighten up by the grill lock nut (6) to the motor cover (9) Insert the blades (5) on the motor shaft (8), and tighten up by the blade lock nut (4).
4. Fixed the misting board (1) on the front grill (2), and tight up by misting board lock screws (3).
5. Connection the front grill (2) and back grill (7) by grill ring (10), and tighten up by grill lock nut and tight up.
6. Insert the misting tube (21), connection to the misting board (1)

Fill the water tank:

Unscrew the valve-cover to open the tank turning it anticlockwise, fill the tank with cold and clean water, making sure not to overfill it. To close the tank, screw the valve cover back on securely turning it clockwise. Turn the tank over and place it back into its designated space at the back of the fan main body.

CLOSED OPEN

- Make sure the product is unplugged from the power outlet before filling or refelling the water tank.

BE COOL

• Only use water in the water tank. Do not add any chemicals, oils or other additives.
• Only use cold or lukewarm water in the water tank. The water must not be warmer than 40^ C.

Place the fan on a dry and stable surface and insert the plug on the socket; the unit will emit a short “PEEP” sound indicating that power is supplied. For your convenience the unit can be operated by using control panel in the main body or by using remote control included.

Preparing the remote control - Inserting or replacing the battery

Please observe the following instructions:

Initial operation:

For initial operation of the remote control, please pull out the plastic protector from the battery compartment on the back of the remote control.

Changing the battery:

Pull out the battery holder on the back of the remote control and remove the old battery from the holder:

Now insert a new CR2025 battery, always paying attention to the polarity markings (+/-) on the battery and the battery holder.

Then push the battery holder fully back into the remote control.

BE COOL

Details:

Control panel

ON/OFF 88°C MIST SPEED OSC TIMER ION MODE MOSQUITO

Remote Control

Symbol of a hand crossed out of a circle, representing no protection or prohibition (no text present)

1. ON/OFF ( Power )	5. OSC ( Oscillation )
2. MIST ( Strength: 1 / 2 / 3 )	6. MODE ( Nature / Sleep )
3. TIMER ( 1Hour - 12 Hour )	7. SPEED ( Low - Mid - High )
4. MOSQUITO	8. INO ( Ionizer )

ON/OFF Button (1):

• Press the button (1), to select the power on or power off.
• Indicator light will be light up when it power on, and light off when itmis power off.

MIST Button (2):

• Press the button (1), to select the power on.
• Press the button (2), to select the speed of misting. There's 3 speeds (Low - Mid -High)

Noted: This program can be worked independence or work with other programs together.

BE COOL

TIMER Button (3):

• When the unit is operating, you can set the timer to switch the fan off automatically.
• Timer can be setting from 1 Hour - 12 Hours, indicator light up in the control panel
  • The units will be power off automatically, after the setting time over.

MOSQUITO Button (4):

• Put the mosquito tablet into the tablet box.
• Press the button, indicator light up on the control panel.
• Press again, the indicator light off, and function stop.

OSCILLATION Button (5):

• Press the oscillation button to activate the automatic oscillation from right to left. The related indicator light will light up in the control panel.
• Press again the oscillation button to deactivate the automatic oscillation; the indicator light will off on the control panel

MODE Button (6):

• When the unit is operating in fan function, it can be selected the working mode.
• Mode: Sleep or Nature, indicator light up by different pattern.
  • Mode indicator light off, the fan working mode will turn into normal.
• Noted: The fan speed is setting by fixed program when the unit is selected in Sleep or Nature.

SPEED Button (7):

• When the unit is operating in fan function (Not in Mode: Sleep or Nature), it can be selected the fan speed.
• There's 3 speeds for select (LOW - MID -HIGH), indicator light up by strip lights.

BE COOL

Noted: The speeds can not be selected if the fan working the MODE (Sleep or Nature)

IONIZER Button (8):

• Press the button (1), to select the power on.
• Press the button (8), to select the ionizer, indicator light up in the control panel.
• This program can be worked independence or work with other programs together

CLEANING AND MAINTENANCE

NOTED:

Before cleaning the appliance always disconnect the power plug from the receptacle.

1. DO NOT dip the device in water, or splash it with any other liquids.
2. DO NOT use solvents or any other chemical products for cleaning it. When you do not use it, after cleaning it, store the fan in a dry place.
3. When you have finished using the fan at the end of the season, wipe off any dust to maintain it in good working order for the next season; if necessary disassemble the grille and remove the fan; clean them with a soft damp cloth.
4. Remove the water tank and clean it with lukewarm water; before replace the water tank in the unit make sure it is completely dry. Draining the water out of the unit placing a container underneath the water drain (indicated with an arrow in below picture) and let any water remaining in the water reservoir drain out.

BE COOL

Technical Information
Rated voltage	220 – 240 V
Frequency	50Hz
Rated input power	90 Watt
Noise Level	66,14 dB(A)
Dimensions	400 x 400 x 1360 mm
Weight	6,5 kg
Information requirements of Regulation (EU) No. 206/2012
Article	BC40SNST2202F
Rated	220 – 240 V
Protection	II
Power consumption when switched off (POFF)	0.23 W
Seasonal power consumption (Q)	17.07 kWh/a
Designation	Symbol	Value	Unit
Maximum volume flow	F	51.48	m3/min
Fan power consumption	P	52.5	W
Service ratio	SV	0.98	(m3/min)/W
Power consumption in standby mode	PSB	0.2	W
Fan sound power level	LWA	66.14	dB(A)
Maximum air velocity	c	3.70	m/s
service ratio measurement standard	IEC 60879:1986 (corr. 1992)
Contact address for further information and service line:	Schuss Home Electronic GmbHScheringgasse 3, A-1140 ViennaTel: [phone] – 0www.becool.atCommercial register no.: 236974 t /Commercial register court: Vienna

BE COOL

WARRANTY

With this quality product from BE COOL, you have made a decision for innovation, durability and reliability.

For this BECOOL appliance we grant a warranty period of 2 years from the date of purchase valid in Austria!

If, contrary to expectations, service work on your device should nevertheless be necessary during this period, we hereby guarantee you a free repair (spare parts and labor) or (at Schuss's discretion) replacement of the product. If neither repair nor replacement is possible for economic reasons, we reserve the right to issue a time value credit note.

In the case of air conditioners, please always contact the customer hotline as a first step (see sticker on the appliance or the front page of the operating instructions); in the case of fans, please contact your specialist dealer or us directly. Please note that repair work not carried out by an authorized workshop in Austria will immediately invalidate this warranty.

This guarantee does not cover

• We do not accept any liability for consequential damage in the event of improper use
• Repair or replacement of parts due to normal wear and tear
• Damage due to non-compliance with the operating instructions
• Devices that are used - even partially - for commercial purposes
• devices mechanically damaged by external influences (fall, impact, breakage, improper use, etc.) as well as signs of wear and tear of an aesthetic nature.
• Devices that have been handled improperly
• Devices that have not been opened by our authorized service workshop.
- Damage caused by improperly closed condensation drain valves on air conditioning units or incorrectly inserted water tanks.
• Unfulfilled consumer expectations.
• Damage caused by force majeure, water, lightning, overvoltage.
• Devices where the type designation and/or serial number on the device has been changed, deleted, made illegible or removed.
• services outside our authorized workshops, the transport costs to an authorized workshop or to us and back, as well as the associated risks.

We would like to emphasize that within the warranty period, a lump sum of € 60,- (indexed based on CPI 2010, June 2015) will be charged for operating errors or if no error is detected.

The provision of a warranty service (repair or replacement of the device) does not extend the absolute warranty period of 2 years from the date of purchase.

The 2-year guarantee is only valid on presentation of the proof of purchase (must include the name and address of the dealer and the full name of the appliance) and the corresponding guarantee certificate, on which the appliance type and the serial number (visible on the box and on the back or bottom of the appliance) must be noted! Without the warranty certificate, only the statutory warranty applies!

We expressly point out that the statutory warranty rights are not affected by this guarantee and remain unaffected.

Schuss Home Electronic GmbH and its vicarious agents shall only be liable for damages in the event of gross negligence or intent. Liability for loss of profit, expected but unrealized savings, consequential damages and damages from third party claims is excluded. Damage to or for recorded data is always excluded from the liability for damages.

Congratulations on your choice. We hope you enjoy using your BE COOL appliance!

ADDRESS

Schuss Home Electronic GmbH

Scheringgasse 3

1140 Vienna, Austria

Tel.: [phone]

Type designation: ....

Serial number: ....

This warranty certificate must be handed over to the authorized service workshop together with the appliance in the event of a warranty claim.
