USER MANUAL EG Pen RAPID

Operating instructions

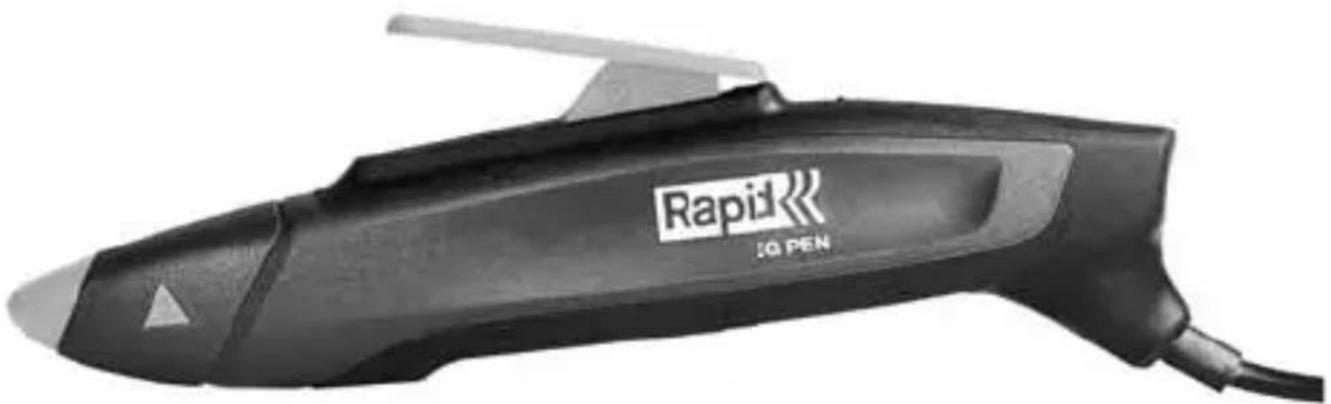

Black Rapid 3Q pen electric tool with visible branding and handle (no text-heavy elements)

CE UK CA -

GB ELECTRIC HOT MELT APPLICATOR

DE ELEKTRISCHE KLEBEPISTOLE

FR PISTOLET À COLLE ÉLECTRIQUE

NL ELEKTRISCH LIJMPISTOOL

IT INCOLLATRICE ELETTRICA

ES APLICADOR HOT MELT ELÉCTRICO CON CABLE

Read all safety warnings and all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious personal injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) WORK AREA SAFETY

a) Keep your work area clean and well lit.
Cluttered benches and dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of fl ammable liquids, gases, or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep bystanders, children, and visitors

away while operating a power tool. Dis- tractions can cause you to lose control.

2) ELECTRICAL SAFETY

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts.

Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) PERSONAL SAFETY

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench be-

fore turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts.

Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4) POWER TOOL USE AND CARE

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and

safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean.

Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed.

Use of the power tool for operations different from those intended could result in a hazardous situation.

h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slip-pery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) SERVICE

a) Have your power tool serviced by a qual-ifi ed repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

GLUE PEN SAFETY WARNINGS AND INSTRUCTIONS

WARNING: This tool must be placed on its stand when not in use.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

2. Never insert objects other than ∅7mm Rapid glue sticks into the machine.

3. Never remove a glue stick that has already been inserted.

4. It is normal for this tool to become quite warm during use. This is normal and does not indicate a problem.

5. Hot Surfaces: the nozzle of the appliance and the glue can reach a temperature of approx. 170°C. Do not touch the heated nozzle or the hot adhesive. A any contact with the skin. If you burn you put the burn in cold water immediately, try to remove a large quantity of glue with medical help.

1. Some materials are heat-sensitive and can

be damaged by the hot nozzle or even the hot glue. Whenever possible, test a piece of scrap material or a hidden portion of the object being repaired.

1. When you have finished using the machine, unplug it and wait until it has cooled. Never immerse glue gun in water or other liquids to speed cooling process. Allow it to air cool only. The glue gun should be stored in a closed dry and secure place (tool box, drawer, cupboard, etc.).

Technical Characteristics (stand excluded)

Dimensions (H x L x W) 63 x 197 x 29 mm
Weight : 0,18 kg
Working voltage : 220V-240V~, 50Hz
Power rating : 80 Watts at start-up, 15 Watts in use
Temperature : Self-regulated
Glue sticks: Rapid ∅ 7mm

Instructions for use

Plug the glue pen cable into a suitable socket, red light on the tool means that the power is on and it is or will get hot.

1. Always try to hold the glue pen on the indicated grip areas.
2. Allow the tool to heat for approximately 1 minute before use. Insert a glue stick in the back of the tool.
3. When the glue pen is fully heated, squeeze the trigger slowly, until the melted material begins to flow from the nozzle. Release the trigger to stop the glue flow.
4. Work with the glue pen trigger to adjust the output and speed of the

melted glue.

1. To prevent clogging of this glue pen, keep feeding mechanism and melt chamber free from dirt and other foreign debris.
2. Make sure the stand is placed in safe position on the work area, not close to temperature sensitive materials or close to the edge of the work area to avoid incidents. (Figure 2)
3. Store unused glue sticks in a clean environment.
4. Do not pull glue stick from the back of the glue gun. The feed mechanism may be damaged or impaired. If you need to change glue type, cut off the protruding end and feed the remainder through with the new glue stick.
5. Do not place the heated glue pen on its side on any heat sensitive material, place the glue pen in a designated stand or on a workbench.
6. If melted glue has escaped from the melt chamber entrance and is interfering with the feed mechanism; allow gun to cool, and gently remove the obstructing glue.
7. Do not use glues other than those recommended by Rapid.
8. Leaving the tool on for too long without use can lead to risks. Unnecessary overheating over a long period of inactivity, without use, depending on the length of time and type of glue used, can have adverse effects.
9. Once fi nished, disconnect the cord from the socket.

In any case, you should never:

1. Force the trigger before the tool has heated up to its working temperature
2. Push hard on the glue stick, never attempt to remove it from the back.
3. Repair the glue pen, any repair work on the glue pen should be carried out by manufacturer or other by Rapid appointed staff.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Maintenance

1. Unplug the tool before any maintenance.
2. Keep the tool, especially the glue outlet free from dust and dirt.
3. Clean the tool by a dry or damp cloth. NEVER use any solvent.
4. DO NOT oil or grease any parts.
5. Be sure the tool is not damaged.

WARNING!

DO NOT alter any parts on this tool or attach special fixtures, it can lead to personal injury.

TECHNICAL FEATURES

A : Nozzle
B : Grip area
©: Trigger
D : LED (Red)
E: Glue Pen
F : Stand
G : Drip tray

ENVIRONMENT

Separate Collection. Do not dispose power tools into household waste! According to the European Directive 2012/19/EC on waste of electrical and electronic equipment. When the tool needs to be replaced, or if it is of no further use it should be brought to a separate collection center for recycling.

WARRANTY

Warranty and repairs under warranty

Warranty period: This product is guaranteed for 2 years from the date of purchase (original sales receipt acting as proof).

Warranty conditions: All points mentioned in this document must have been fully adhered to. Warranty repairs: The Rapid After-Sales Service is the only approved service to carry out warranty repairs on this tool. In the event of a claim under the warranty:

1 Return the product in its original packaging to the shop or outlet that supplied you with this product,
2 Accompany the returned product with the original dated receipt.

Any breach of one of these points would prevent consideration by RAPID under the manufacturer's warranty.

LIJMPEN VEILIGHEIDSWAARSCHUWIN- GEN EN INSTRUCTIES

1) SIKKERHET PÅ ARBEIDSOMRÅDET

a) Arbeidsområdet må holdes rent og godt belyst. Det kan lett oppstå ulykker på rotete eller mørke arbeidsområder.

UK Importer and authorised representative:

ACCO UK Limited

Oxford House Oxford Road

Aylesbury HP21 8SZ

United Kingdom

Rapid®

Isaberg Rapid AB

335 71 Hestra, Sweden

www.rapid.com
