JBL CRISTALPROFI® i60, i80, i100, i200 greenline

https://www.jbl.de/productregistration

We thank you for buying the new JBL Cristal Profi Internal Filter and congratulate you on your choice of this innovative filter. Highly efficient filtering and the simplest possible operation are key factors in the design of this filter

Safety advice

Only for use with aquariums and only to be used indoors.

If a multi-socket extension is used, it should be positioned above the filter power connection.

In the case of these appliances, magnetic fields can cause damage or disturbances in electrical equipment. This also applies to cardiac pacemakers. Please consult the manual of the medical appliance in question for recommended safe distances.

Caution: Basic safety precautions should be observed to protect against injuries and electric shock. These include the following:

1. All safety advice should be read before operation and complied with.

1. Caution: As these internal filters are in contact with water, particular care must be taken to avoid electric shocks. Should one of the following situations arise, the appliance must be repaired by an authorised specialist or disposed of. Do not attempt to repair the appliance by yourself:

a) If another appliance falls into the water, do not try to grab it!! Pull the power plug first and then remove the device.
b) Do not use the appliance if the supply cord or mains plug are damaged. Please scrap or dispose of the appliance.
c) The aquarium and the internal filters should be positioned next to the wall socket in such a way that no

water can splash onto the plug or socket. The mains supply cord of the appliance should form a "drip loop" to prevent water trickling along the cord to the socket.

Never pull out the plug if the socket or plug becomes wet. First switch off the circuit to which the appliance is connected (safety switch) and then disconnect the plug. Check the socket and plug for water.

1. The appliance may be used by children over the age of 8 and by persons with a physical, sensory or mental impairment, as well as by inexperienced persons, if they are under supervision. They should have received an introduction to how to use the appliance for this purpose and be aware of the risks of use. The appliance is not a toy. Children should not clean the appliance or do maintenance or repair work on it unless they are over the age of 8 and are being supervised.
2. Always disconnect the appliance from the power supply when the appliance is not in use, before dismantling or installing parts or before cleaning the appliance. Do not pull on the supply cord to disconnect the plug from the socket, always hold the plug when disconnecting.
3. The appliance may not be used for any other purposes than it is intended to be used by the manufacturer. The use of accessories is not recommended by the manufacturer and that may lead to danger.
4. Do not store or operate the appliance where there is a risk of frost.
5. The supply cord of this appliance cannot be replaced. If the appliance is damaged, the appliance should not be used and should be scrapped or disposed of.
6. Before starting up the appliance, check that it has been correctly installed.
7. Do not let the appliance run dry.
8. The appliance is for indoor use only. It is only intended to be used in aquatic purposes.
9. All electrical appliances in the aquarium must be disconnected from the power supply before any work is carried out on the appliance or other appliances in the aquarium, or the aquarium.
10. Do not use the appliance in liquids having a temperature exceeding 35^ C.
11. The maximum operation depth is 1.0m.
12. Please keep these instructions in a safe place.

CE 1m IPX8

DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

Contents:

Operating principle Page 16

Special features Page 16

Parts and description Page 17

Technical data Page 18

Installation Page 18

Maintenance Page 20

What to do if.... Page 22

Filter materials for problem cases Page 23

Operating principle

The JBL CristalProfi Internal Filters are submerged completely in water to clean the aquarium water. A maintenance-free pump built into the filter head ensures permanent water circulation. Before being pumped back into the aquarium, the aquarium water flows into one or more filter material containers where it is channelled through the filter material and is cleaned.

Special features

Unobtrusive

With its elegantly designed corner shape, the CristalProfi Internal filters fit unobtrusively in any aquariums. They are almost silent when running.

- Safe

The filter cartridges fit perfectly into the casing and have an extremely large surface, ensuring a high filter volume and reliable water cleaning. TÜV/GS tested, completely submersible IPX8

- Easy to use

Simple to install thanks to a novel suction pad system consisting of two large suction cups which secure the filter on the aquarium glass almost without a gap. The suction cups can be released effortlessly by pressing the two

buttons on the front of the pump.

- An innovative valve system, patent applied for (EP 1736049), empties the filter when it is removed from the aquarium, without the dirty water flowing back into the aquarium.

Thanks to the modular construction, small appliances can "grow" when a larger aquarium is purchased.

A wide range of filter materials suitable for use with the CristalProfi Internal Filter provides solutions for individual problems.

- Fully fitted and ready to be installed

All models are complete with filter materials for mechanical and biological water cleaning and ready to be installed. Swivel water outlet can be turned 90°. Water flow can be individually selected by means of the flow regulator, wide jet pipe and spray bar.

Suitable for use in any aqua-terrarium (turtle tank), freshwater or marine aquarium.

Parts and description

1 Pump head
2 Swivel water outlet
3 Flow regulator
4 Impeller
5 Impeller cover
6 Filter module
7 Suction pad
7 a Buttons for releasing the suction pads
8 Bottom plate with valve and spacers
9 Foam cartridge 20 ppi
10 Central collecting pipe
11 Wide jet pipe
12 Spray bar (2 parts)

Technical Data CP i60 CP i80 CP i100 CP i200
Max. pump capacity [l/h] 420 420 720 720
For aquariums [l] 40-80 60-100 90-160 130-200
L x B x H ( mm)* 85x85x155 85x85x225 85x85x295 85x85x365
Filter module [pc.] 1 2 3 4
Filter material [l]	0.25	0.5	0.75	1
Voltage [V]/Frequency [Hz]	AC230, 50	AC230, 50	AC230, 50	AC230, 50
Power input [W]	4 4 8 8
Energy savings compared to the previous model
W	7 7 3 3
kWh per year	61	61	26.25	26.25
€ per year**	12.2	12.2	5.25	5.25
€ in guarantee period** 48.8	48.8	21	21

*including flow regulator
** at 0.20 € / kWh

Installation

1 Unpacking and preparation

Carefully remove the filter and the separate accessories from the packaging and check that nothing is missing. In the event that anything is missing or damaged, please contact your specialist retailer.

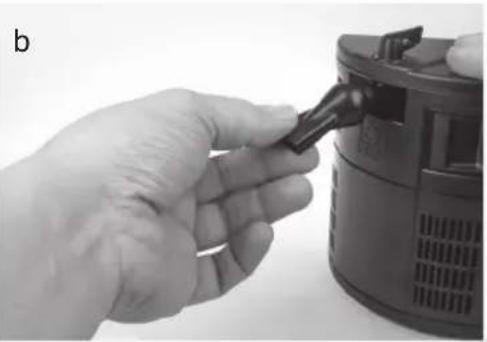

Insert the enclosed large suction cups into the side openings of the pump head by turning and pressing lightly. Make sure the central pin fits into the suction cup before locking in place. Pull the pump head off the filter module for model i60 and separate the filter modules for models i80, i100 and i200 in the same manner. Remove the foam cartridges without the central collection pipe from the modules. Rinse the cartridges under lukewarm tap water. Push the foam cartridge(s) back onto the collecting pipe in the respective module.

Before you fit the pump head, biologically activate the filter material of the filter with JBL FilterStart Cleansing Bacteria (available at your specialist pet shop), as follows:

Drip 50 drops of JBL Filterstart per foam cartridge directly onto the cartridge.

Re-connect the module(s) and the pump head. Check that all connections have fastened correctly.

Note: The filter modules can be fitted in any order in models i80, i100 and i200. Care should be taken that the bottom plate with valve must always be attached to the bottom module.

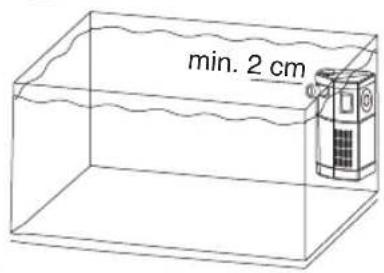

2 Putting the filter in position

Clean the places on the aquarium glass where the two large suction cups of the filter will be placed thoroughly. Remove other foreign bodies e.g. small snails etc. from the rest of the aquarium glass where the filter will be placed. Now press the filter with the two large suction cups onto the glass in the designated corner of the tank. Make sure that the discharge pipe is approx. 2 cm below the water level. To remove the filter, simply press the two buttons (PUSH) on the front side of the pump head simultaneously with your thumbs and pointers and remove the filter from the aquarium glass. Two small spacers on the bottom plate of the filter maintain a small distance from the glass panes of the aquarium to prevent noise transmission by resonance.

Note: In aqua-terrariums with low water levels, the filter can be simply be placed on one of the flat sides on the bottom and secured laterally with a suction cup as described in the above.

3 Starting up the filter

Turn the swivel water outlet in the direction required and install the wide jet pipe, diffuser or spray bar as wished. Now plug the filter to the mains power supply.

Tip: We advise against using the spray bar in aquariums containing plants that are supplied with additional carbon dioxide (e.g. JBL ProFlora), as too much CO_2 , the vital plant nutrient, is expelled from the water. The best results are achieved using the wide jet pipe with the opening just below the surface of the water to produce a moderate surface water flow.

Note: Should you replace an existing aquarium filter with JBL CristalProfi Internal Filter, we recommend running both filters, the new and the old, parallel in the same aquarium for the first 2 weeks before dismantling the "old" filter. This ensures that the new filter has a sufficiently large colony of cleansing bacteria and avoids harmful nitrites occurring in the transitional phase.

4 Regulating the water flow

The water flow can be regulated as required using the water flow regulator. To do this, hold the swivel water outlet and turn the flow regulator to the right or left until the required flow rate is produced. The flow regulator is designed so that a minimum flow rate of approx. 150 or 300 l/h (depending on the model) is maintained. In order to avoid damage to the pump, this rate cannot be reduced.

Maintenance and care

All JBL CristalProfi internal filters are fully equipped with foam cartridges to provide clean and healthy aquarium water for "normal" operation. The filters provide ideal conditions for the development of colonies of cleansing bacteria which play an essential role in the breakdown of pollutants. The selection of pore size ensures that these bacteria can efficiently carry out their task undisturbed for as long as possible.

Note: To solve problems (undesirable algae growth etc.), we offer a range of special filter materials designed for use with the JBL CristalProfi Internal Filters in a specially constructed filter basket. (Section D.)

Caution: Regular maintenance and cleaning of the filters is vital to prevent a reduction in the pump capacity.

⑤ Cleaning or replacement of the filter material

Unplug the filter before any work is carried out on it!

To remove the filter, simply press the two buttons (PUSH) on the front side of the pump head simultaneously with your thumbs and pointers and remove the filter from the aquarium glass. Lift the complete filter vertically out of the aquarium and wait until all the water has drained from the bottom valve.

Remove the foam cartridge(s) as described in part (1) and wash thoroughly under running water. Rule of thumb: Stop washing the cartridge(s) when the water that comes out when the cartridge is squeezed is only slightly brownish. When using several foam cartridges to filter, it is advisable to stagger the times when the cartridges are washed so that there is always one unwashed cartridge.

6 Function and replacement intervals of the foam cartridges

Foam cartridge (JBL UniBloc):

Medium-pored foam cartridge for effective biological filtering with ideal conditions for colonisation by cleansing bacteria. The grooved shape (T profile) allows for long use with little reduction in flow. Careful cleaning is required approximately every 1 - 2 months. Replace the old foam cartridge after cleaning 3 to 5 times depending on the condition. For filters with several cartridges, only clean or replace the foam cartridges at alternate intervals.

⑦ Cleaning the impeller and casing

Remove the cover from the impeller casing by pulling gently vertically upwards.

Remove the impeller with the axle and bearing sleeves from the casing.

NOTE: the impeller is held in the casing by magnetic force. Take appropriate care when removing the impeller, particularly to avoid any injury to fingers.

Clean the impeller casing, impeller and cover with a suitable cleaning brush, then rinse in clean water. Limescale can be easily removed by soaking in JBL BioClean A (available at your specialist pet shop).

Place the impeller with axle and bearing sleeves back in the casing, making sure the bearing sleeves that hold the axle fit properly and are complete. Push the impeller cover back on all the way.

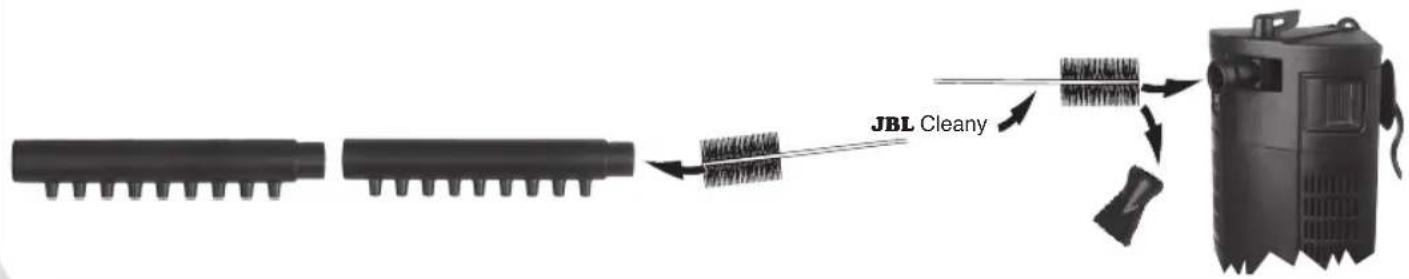

Clean the water outlet pipe and any accessories that were attached, such as the spray bar and wide jet pipe, with an appropriate cleaning brush.

8 Re-starting the filter

Place the foam cartridges back in the filter module and fit the filter module and pump head back together until the

connections clip properly into place (1). Return the filter to its original place in the aquarium and install any accessories as previously.

Plug the filter to the power supply.

Regulate the flow to the desired rate.

What to do if...?

The pump head or module cannot be correctly fitted

Cause Solution
Dirt (sand) in snap fastenings Clean snap fastenings.

Filter does not run or no water flows out

Cause Solution
No power supplied Plug in the mains plug, making sure to check the socket for the right voltage
Impeller missing or blocked by gravel, wormgear casing or rotor faulty	Clean impeller casing, fit intact impeller

Filter capacity greatly reduced

Cause Solution
Flow regulator set incorrectly Check position of regulator and	correct
Suction slit blocked Clean suction slit
Filter material heavily soiled Clean filter material

Filter material filled into net bag Do not fill long-term biological filter material e.g. JBL MicroMec, JBL Sintomec etc. in finely meshed net bags.

Pump dirty Clean impeller casing, impeller and cover with cleaning brush 7

Impeller faulty or blades broken Dismantle, check, replace faulty parts and re-assemble

Air in filter

Cause Solution
High flow resistance due to dirty filter material or filter material in net bag	Clean filter material and only use biological filter material (JBL MicroMec mini) in special filter baskets (accessory).

Flow regulator on pump head stiff

Cause Solution
Limescale deposits Hold water outlet firmly and gently pull flow	w regulatorupwards. Clean with JBL BioClean A (specialist pet shop).Rinse in water and reassemble.

Filter material for problem cases (available at your specialist pet shop)

JBL BioNitratEx

Eliminates nitrate in fresh water by organic means.

Foam cartridges which have been enriched with bacteria nutrient in a special process to promote colonisation by nitrate-eliminating bacteria. The bacteria eliminate nitrate by natural means without producing any harmful residue.

Suitable for use in any JBL CristalProfi Internal Filter with at least two filter modules.

JBL PhosEx ultra

Removes phosphate effectively and reliably from fresh water and salt water.

Algae can already grow at only 0.035 mg phosphate per litre of water and more.

JBL PhosEx ultra is ready to use, in a basket specially designed for use with the CristalProfi Internal Filter.

Suitable for use in any JBL CristalProfi Internal Filter with at least two filter modules.

JBL CarboMec

High-capacity active carbon eliminates medication residue, water discolouration and high molecular pollution from fresh water and saltwater. Does not raise phosphate levels in the water and is pH neutral. The carbon is ready to use and in a basket specially designed for the CristalProfi Internal Filter.

Suitable for use in any JBL CristalProfi Internal Filter with at least two filter modules

JBL ClearMec

For crystal-clear water.

A mixture of clay pellets and special resins gently eliminates the pollutants, phosphate, nitrate and nitrite from fresh water. The clay pellets promote colonisation by beneficial bacteria and support the biological breakdown of pollutants.

ClearMec is ready to use and in a basket specially designed for the CristalProfi Internal Filter.

Suitable for use in any JBL CristalProfi Internal Filter.

JBL MicroMec mini

High-capacity biological filter pellets

A highly porous biological filter material made from sintered glass. The special surface and pore structure provides beneficial cleansing micro-organisms with the best possible conditions for colonisation, allowing the efficient biological breakdown of pollutants. It is therefore particularly good for intensive biological long-term filtering in freshwater and marine aquariums.

The small pellets with varying diameter allow dense colonisation with cleansing bacteria as well as a good flow of water.

Ammonium and nitrite are efficiently broken down in the outer layers, whilst the optimum conditions for the bacterial breakdown of nitrate are created in the inner section. MicroMec mini is ready to use, in a basket specially developed for the JBL

CristalProfi Internal Filter.

Suitable for use in any JBL CristalProfi Internal Filter.

JBL TorMec mini

Active peat granulate for natural tropical water.

High quality black peat granulate containing vital humic substances, plant hormones and trace elements. The small-grained granulate was specially selected for optimum effectiveness in the JBL Cristal Profi Internal Filters. JBL TorMec mini reduces the carbonate hardness and the pH level in the aquarium. The pH level and CH should be checked regularly when used in soft water. TorMec mini granulate is ready to use in a basket specially developed for the JBL CristalProfi Internal Filter. Suitable for use in any JBL CristalProfi Internal Filter with at least two filter modules.

Manufacturer Guarantee

in addition to the legal claims of the customer against the seller the guarantee comprises delivery of goods which are free of defects and doesn't restrict the statutory claims for defects in accordance with § 437 BGB.

We, JBL GmbH & Co. KG Dieselstr. 3, 67141 Neuhofen, Germany offer the end customer a guarantee of 2 years from the date of purchase for functionality and absence of defects for the products listed below.

Furthermore we offer the end user, after a successful product registration for the device within the statutory warrantee period, under

https://www.jbl.de/productregistration

an extended 4 years guarantee from the date of purchase.

JBL CristalProfi i60 greenline, JBL CristalProfi i80 greenline, JBL CristalProfi i100 greenline, JBL CristalProfi i200 greenline

The guarantee does not cover parts subject to wear and tear, such as the installed seal rings, impellers or shafts.

The guarantee includes the repair at our discretion by replacement (free delivery of a comparable product) or its overhaul in accordance with the technical requirements.

The remaining period of the original warranty period applies for the part to be overhauled or replaced under this guarantee.

The guarantee does not include the compensation of direct or indirect consequential damages.

The guarantee only applies for sales to customers within the European Union.

The guarantee is void, if the product was not correctly installed, maintained or cleaned, intentionally damaged or modified in any way not according to the intended purpose by the customer or third parties.

Please contact your specialist retailer during the warranty period by presenting a valid purchase receipt or contact us under

http://www.jbl.de/en/help-desk

JBL CRISTALPROFI® i60, i80, i100, i200 greenline

Cher cliente, cher client,

https://www.jbl.de/productregistration.

JBL CristalProfi i60 greenline, JBL CristalProfi i80 greenline,

JBL CristalProfi i100 greenline, JBL CristalProfi i200 greenline

https://www.jbl.de/productregistration

https://www.jbl.de/productregistration

CE 1m IPX8

https://www.jbl.de/productregistration

https://www.jbl.de/productregistration

https://www.jbl.de/productregistration

JBL CristalProfi i60 greenline, JBL CristalProfi i80 greenline,

JBL CristalProfi i100 greenline, JBL CristalProfi i200 greenline

https://www.jbl.de/productregistration

https://www.jbl.de/productregistration

https://www.jbl.de/productregistration

https://www.jbl.de/productregistration

https://www.jbl.de/productregistration

CE 1m IPX8

https://www.jbl.de/productregistration

CE 1m IPX8

https://www.jbl.de/productregistration

3D rendering of a corrugated metal grate with grid pattern (no text or symbols)
