Vibe Beam - Earphones JBL - Free user manual and instructions

Product Type	True Wireless Earbuds
Driver Size	8 mm Dynamic
Frequency Response	20 Hz – 20 kHz
Impedance	16 ohms
Sensitivity	95 dB SPL@1 kHz
Battery Life (Earbuds)	8 hours
Battery Life (with Case)	Up to 32 hours
Charging Time (Earbuds)	2 hours
Charging Time (Case)	2 hours via USB-C
Bluetooth Version	5.2
Bluetooth Profiles	A2DP 1.3, AVRCP 1.6, HFP 1.7
Audio Codecs	SBC, AAC
Water Resistance	IP54 (splash and dust resistant)
Weight (Earbuds)	3.5 g each
Weight (Charging Case)	30 g
Dimensions (Earbuds)	21.4 x 16.3 x 24.6 mm each
Dimensions (Case)	56.3 x 41.5 x 30.5 mm
Control Type	Touch controls (play/pause, calls, volume, voice assistant)
Microphone	Built-in with noise cancellation for calls
Included Accessories	USB-C charging cable, 3 sizes of eartips
Color Options	Black, White, Blue, Sand, Rose
Warranty	1 year (varies by region)

Frequently Asked Questions - Vibe Beam JBL

How do I pair the JBL Vibe Beam with my phone?

Remove the earbuds from the charging case. They will automatically enter pairing mode. On your phone, enable Bluetooth and select "JBL Vibe Beam" from the available devices. If prompted, confirm the pairing.

How long does the battery last?

The earbuds provide up to 8 hours of playback on a single charge, and the charging case adds an additional 24 hours, for a total of up to 32 hours.

Are the JBL Vibe Beam water resistant?

Yes, they have an IP54 rating, meaning they are protected against splashing water and dust. They can withstand sweat and light rain, but should not be submerged.

Can I use just one earbud?

Yes, you can use either the left or right earbud independently. Simply take the desired earbud out of the case; the other can remain in the case. It will function as a mono headset.

How do I reset the JBL Vibe Beam?

Place both earbuds in the charging case. Press and hold the touch controls on both earbuds for 5 seconds until the LED flashes red and white. The earbuds will reset and enter pairing mode.

What are the touch controls?

By default: single tap to play/pause or answer/end a call; double tap to skip forward or reject a call; triple tap to go back; long press to activate voice assistant or cycle between volume (left down, right up). You can customize in the JBL Headphones app.

How do I charge the case?

Connect the included USB-C cable to the charging case and a power source (e.g., computer, wall adapter). The LED on the case indicates charging status. A full charge takes about 2 hours.

Can I connect to two devices at once?

No, the JBL Vibe Beam does not support multipoint connection. They can only be connected to one device at a time.

What should I do if the sound is low?

Ensure the earbuds and your device are at maximum volume. Clean the eartips and mesh with a soft, dry cloth to remove debris. Also, try a different set of eartips for a better seal, which improves bass and volume.

How do I update the firmware?

Download the JBL Headphones app from your app store. Connect your earbuds and follow the on-screen instructions to check for and install firmware updates.

USER MANUAL Vibe Beam JBL

S/M/L

SCAN ME

APP

JBL HEADPHONES

GET EVEN MORE CONTROL AND PERSONALIZATION OF YOUR LISTENING EXPERIENCE WITH THIS FREE APP.

HOW TO WEAR

1 TRY DIFFERENT SIZES FOR A PERFECT FIT AND AUDIO PERFORMANCE.

2

FIRST TIME USE

POWER ON & CONNECT

DUAL CONNECT

RLL/R STEREO MODE

MONO MODE

CONTROLS

TAP × 1 TAP × 2 TAP × 3 HOLD (2)

* ENABLE ADVANCED CONTROLS BY CONNECTING YOUR JBL VIBE BEAM TO THE JBL HEADPHONES APP

VOICEAWARE

POWER OFF

MANUAL SETUP

CONNECT TO A NEW BLUETOOTH DEVICE

DO MORE WITH THE APP

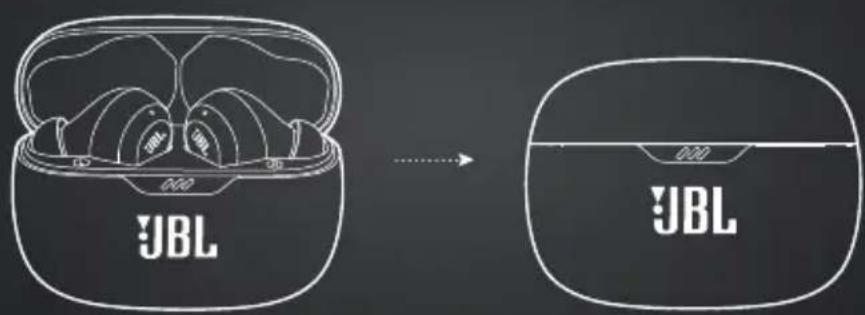

CHARGING

LED BEHAVIORS

[WHITE]

CHARGING

(WHITE)

FULLY CHARGED

(BLUE)

BT CONNECTING

(BLUE)

BT CONNECTED

(BLUE)

BT NOT CONNECTED

LOW (RED)

(ORANGE)

MID

(GREEN)

HIGH

CHARGING

→ORANGE →GREEN)

FULLY CHARGED

TECH SPEC

Model: VIBE BEAM

Driver size: 8 mm/0.315" Dynamic Driver

Power supply: 5 V --- 1 A

Earbud: 4.4 g per pc (8.8 g combined)

0.0097 lbs per pc (0.0194 lbs combined)

Charging case: 39.5 g / 0.0871 lbs

Earbud battery type: Lithium-ion polymer (48 mAh / 3.85 V)

Charging case

battery type: Lithium-ion polymer (530 mAh / 3.7 V)

Charging time: <2 hrs from empty

Music playtime with

BT on: 8 hrs

Talk time: 4.5 hrs

Frequency response: 20 Hz – 20 kHz

Impedance: 16 ohm

Sensitivity: 100 dB SPL@1 kHz

Maximum SPL: 95 dB

Microphone sensitivity: -38 dBV/Pa@1 kHz

Bluetooth version: 5.2

Bluetooth profile

version: A2DP V1.3, AVRCP V1.6, HFP V1.7

Bluetooth transmitter

frequency range: 2.4 GHz - 2.4835 GHz

Bluetooth transmitter

power: <15 dBm

Bluetooth transmitter

modulation: GFSK, π/4-DQPSK, 8DPSK

Maximum operation

temperature: 45 °C

FRD

CONTENU DE LA BOÎTE APPLICATION

HVAD ER DER I ÅESKEN

APP

Strømforsyning:

5 V --- 1 A

∅retelefon:

4,4 g pr. stk (8,8 g kombineret)

Lade-etui:

39,5 g

Batteritype til øretelefoner:

Lithium-ion polymer (48 mAh/ 3,85 V)

Batteritype til lade-etui:

Lithium-ion polymer (530 mAh/ 3,7 V)

Bluetooth profile version: A2DP V1.3, AVRCP V1.6, HFP V1.7

LED INDICATOR FUNCTIONS

(White) Charging

Bluetooth profile version: A2DP V1.3, AVRCP V1.6, HFP V1.7

Bluetooth transmitter frequency range: 2.4 GHz - 2.4835 GHz

A2DP V1.3, AVRCP V1.6, HFP V1.7

(BLUE) BT is connected

MANUAL CONFIGURATION

Connect a new Bluetooth device Reset to factory settings

DO MORE WITH THE APP

CHARGING

LED BEHAVIOR

(White) Charging

(White) Fully charged

(Blue) BT connecting

(Blue) BT connected

(Blue) BT not connected

(Red) Low

(Orange) Medium

(Green) High

THIS IS IN THE LADAN APP

Bluetooth profile version: A2DP V1.3, AVRCP V1.6, HFP V1.7

Bluetooth transmitter

frequency range: 2.4 GHz – 2.4835 GHz

Ambient Aware (Ambient Awareness)*

Talkthru*

Each 0.0097 lbs (both 0.0194 lbs)

Charging case: 39.5 g/0.0871 lbs

OTHER USES OF THE APP

CHARGING

LED PATTERN

One side 0.0097 lbs (both sides 0.0194 lbs)

Charging case: 39.5 g / 0.0871 lbs

The SAR limit of Canada (C) is 1.6 W/kg averaged over one gram of tissue. Device types: (IC: 6132A-JBLVBEAM) has also been tested against this SAR limit. According to this standard, the highest SAR value reported during product certification for head use is 1.16 W/kg.

The device was tested for typical bodily operations where the product was kept 0 mm from the head. To maintain compliance with IC RF exposure requirements, use accessories that maintain a separation distance of 0 mm between the user's head and the back of the headset. The use of belt clips, holsters, and similar accessories shall not contain metal parts in their assembly. Use of accessories that do not meet these requirements may not comply with IC RF exposure requirements and should be avoided.

Head operation

The device was subjected to a typical head manipulation test. In order to comply with RF exposure requirements, a minimum separation distance of 0 cm must be maintained between the user's ear and the product (including the antenna). Head exposure that does not meet these requirements may not meet RF exposure requirements and should be avoided. Use only the supplied or approved antenna.

IC: 6132A-JBLVBEAM

This equipment complies with Directive 2014/53/EU radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

The portable device is designed to meet the requirements for exposure to radio waves established by the European Union market (France). These requirements set a SAR limit of 2 W/kg averaged over ten grams of tissue. The highest SAR value reported under this standard during product certification for use when properly worn on the head is 0.221 W/kg.

WARNING

DO NOT ATTEMPT TO OPEN, SERVICE, OR DISASSEMBLE THE BATTERY | DO NOT SHORT CIRCUIT | MAY EXPLODE IF DISPOSED OF IN FIRE | RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE | DISPOSE OR RECYCLE USED BATTERIES ACCORDING TO THE INSTRUCTIONS
