USER MANUAL BodyEnergy Fit 3417 CASO

The following warning notices are used in the Operating Manual concerned here.

WARNING

A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to serious injuries.

Observe the instructions in this warning notice in order to avoid the personal injuries.

ATTENTION

A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to slight or moderate injuries.

Observe the instructions in this warning notice in order to avoid the personal injuries.

PLEASE NOTE

A notice of this kind indicates additional information, which will simplify the handling of the machine.

Intended use

This device is only intended for use to measure personal weight and to record personal fitness data. It is only intended for domestic use and not for medical or commercial purposes. Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use.

WARNING

Danger due to unintended use! Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use.

Use the device exclusively for its intended use.
Observe the procedural methods described in this Operating Manual.

Claims of all kinds due to damages resulting from unintended uses are excluded. The User bears the sole risk.

General Safety information

PLEASE NOTE

Please observe the following general safety notices with regard to the safe handling of the device.

• Examine the device for any visible external damages prior to using it. Never put a damaged device into operation.
  This device can be used by children aged 8 and above, and by persons with reduced physical, sensory or mental capabilities or a lack of experience and / or knowledge if they have been given supervision or instruction concerning use of the device in a safe way and understand the hazards involved.
• Cleaning and user maintenance shall not be made by children.
  Children are not allowed to play with the device.
  The device and its connecting cable must be kept away from children who are less than 8 years old.
  Only customer service departments authorized by the manufacturer may carry out repairs on the device, as otherwise the guarantee entitlements will be null and void in the event of any subsequent damages. Improperly performed repairs can cause considerable dangers for the user.

PLEASE NOTE

Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled.
- Do not use the device if you have a cardiac pacemaker or any other implanted medical device. The electrical current through your body may impair the functioning of your implant.
Do not use the device if you are pregnant.
- Protect the scales against knocks, moisture and dust and do not drop them.
Tipping hazard! Never stand on an outer edge of the scales.
Danger of slipping! Do not step on the device with wet feet. Do not step on the scales if their surface is damp. Do not step on the device in socks.
Overloading will damage the sensor.
Do not put heavy objects on the scales when not in use.
- Please do not jump on the scales or drop them, as they are a precision device.

Transport inspection

WARNING

Do not allow children to play with packaging materials due to risk of suffocation.

PLEASE NOTE

Examine the shipment to ensure the unit and manual are included and inspect the unit for any visible damage.
Immediately notify the carrier and/or the supplier about an incomplete shipment or any damage as a result of inadequate packaging or mishandling.

Setup location requirements

In order to ensure the safe and trouble-free operation of the device, the setup location must fulfil I the following prerequisites:

• To avoid measurement deviations due to variations in the surface underneath the scales, always place them on a flat, hard, stable surface and in the same location.
• Do not set up the device in a hot, wet or extremely damp environment or near flammable material.

ybn ybn by bn ny nynn

Tynnn

ywnynnnn nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

y

n nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

y

nnn nn nnnn nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

Tynnnn nnwn

nynnnnnnnnnnnnnnnnnnnnnnn

y

nnnnnnn

#

n nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

M

wnnnn nn nnnn pnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

nnnnn nn nnnn, nnnnnn nn nnnn 8 nn

nnn nn n nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn

ynnnynnn nn

8nnnnn nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

wnynnnynnn nn

n nn nnnn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

nnnnn nn nny

nppnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

NNN NININN INIINN ININN ININN ININN

wn npn by ywn nnn nn

nnnnnnnnnnnnn nn

nnn nn nnnn nn npnnn

pwn np by Tn nnn nn noannnn

bwn by nnnn nn nn nn nn nn nn nn nn nn

ywn ynnyn nn nnnn

y"n prnn nn nyn

wnnnn

nnn nn nny npn n, pnn nn nnn np

pnnnnnnp. pwnnnnnnnnnnnnn

#

n nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

nappnn npnv n

n nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

Pn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

DE

EN
NL
ES
SV
FR
IT
PT
TR
HE

Table of contents - Operation

1 General 37
1.1 Information on this manual 38
1.2 Limitation of liability 38
1.3 Copyright protection 38
1.4 Delivery scope 38
1.5 Unpacking 38
2 Design and Function 39
2.1 Overview 39
2.2 Rating plate 39
3 Operation and Handling 40
3.1 General tips and information 40
3.1.1 Measuring your body fat percentage 40
3.2 Operation of the device 40
3.2.1 Installation site 40
3.2.2 Turning on the device 41
3.2.3 How to save user data 41
3.2.4 Weighing and measuring 41
3.2.5 Assessment tables 42
4 Cleaning and Maintenance 43
4.1 Safety information 43
4.2 Cleaning 43
5 Troubleshooting 43
5.1 Safety notices 44
5.2 Troubleshooting table 44
6 Disposal of the Old Device 44
6.1 Disposal of the packaging 45
7 Guarantee 45

1General

Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions. Your appliance will serve you for many years if you handle it and care for it properly. We wish you a lot of pleasure in using it!

1.1 Information on this manual

These operating instructions are a component of the Bathroom weighing scales CASO BodyEnergy Fit (referred to hereafter as the Device) and provide you with important information for the initial commissioning, safety, intended use and care of the device. The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the device:

Commissioning, Operation
- Troubleshooting and/or - Cleaning

Keep the Operating Manual in a safe place and pass it on to the subsequent owner along with the device.

1.2 Limitation of liability

All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration. No claims can be derived from the information provided, the illustrations or descriptions in this manual. The manufacturer does not assume any liability for damages arising as a result of the following:

Non-observation of the manual
Uses for non-intended purposes
- Improper repairs
- Technical alterations, modifi cations of the device
- Use of unauthorized spare parts

Modifications of the device are not recommended and are not covered by the guarantee. All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.

1.3Copyrightprotection

This document is copyright protected. CASO GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially. Subject to content and technical changes.

1.4Deliveryscope

As a rule, the articles are delivered with the following components:

• CASO BodyEnergy Fit - Operation Manual

1.5Unpacking

To unpack the device, proceed as follows: Remove the device out of the carton and remove the packaging material.

PLEASE NOTE

If possible, keep the original packaging for the duration of the guarantee period in the event a return is necessary.

2 Design and Function

This chapter provides you with important information of the design and function of the device.

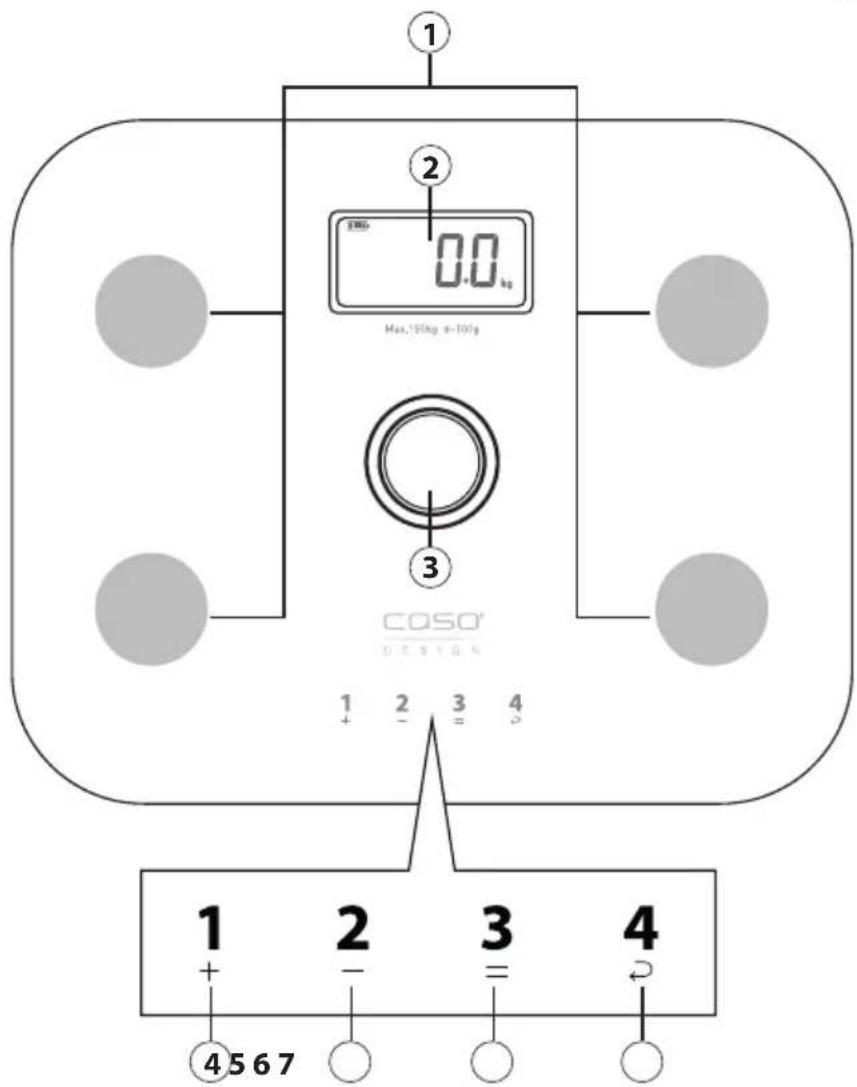

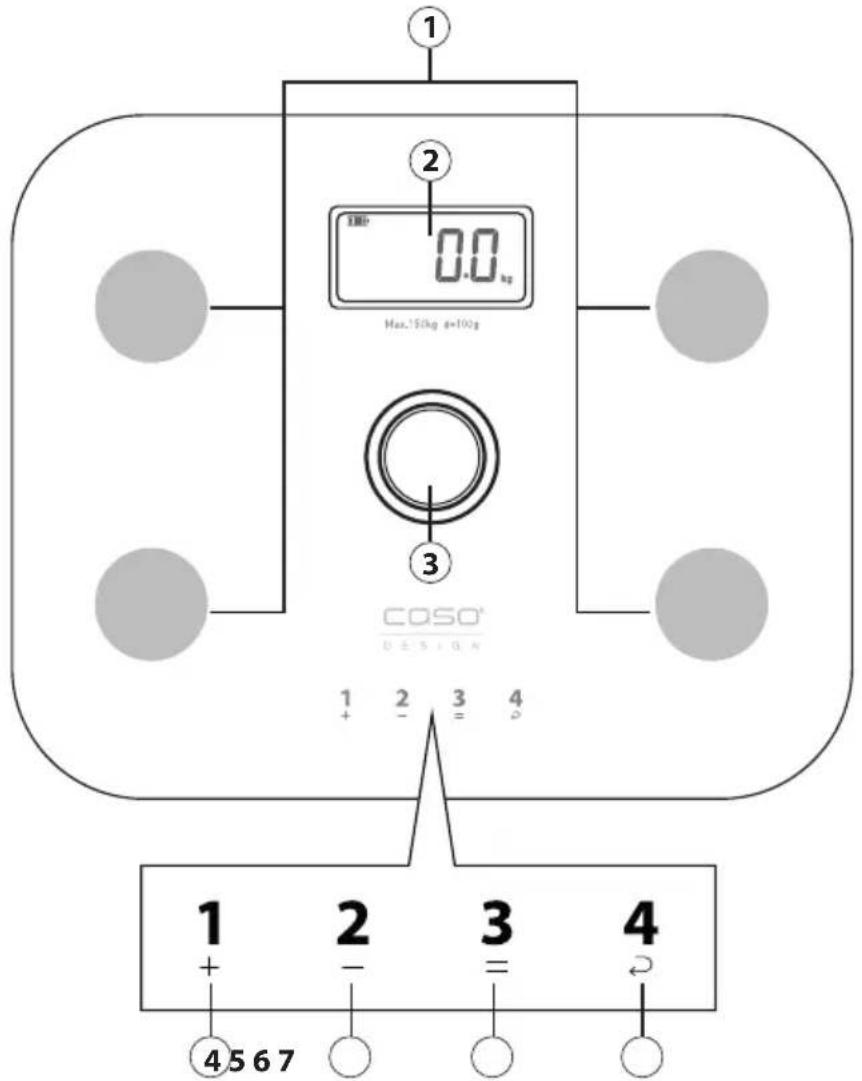

2.1Overview

1 Electrodes
② Display
3 "Power" button
4 Personal user memory 1/ Change gender and weighing unit, increase height and age

5 Personal user memory 2/ Change gender and weighing unit, reduce height and age
6 Personal user memory 3 / Confrm settings
7 Personal user memory 4/ Go back to previous step

2.2Ratingplate

The rating plate with the connection and performance data can be founded beneath the device.

3 Operation and Handling

This chapter provides you with important information and notes on the operation and basic settings of the appliance.

3.1 General tips and information

• Wherever possible, weigh yourself at the same time every day (preferably in the morning), after going to the toilet, before you eat and without clothes. This will allow you to compare readings.
• After getting up, wait for approx. 15 minutes before you weigh yourself so that the water in your body can distribute itself evenly.
• Stand up straight and keep still during the weighing process. Exert even pressure on the surface of the scales.
• Important when measuring weight: Your weight can only be measured if you are barefoot. If necessary, you can slightly moisten the soles of your feet. If the soles of your feet are completely dry or the skin is very hard, then this can result in unsatisfactory results because conductivity will be impaired.
• Your long-term weight development is most important. Short-term deviations within the space of a few days are usually caused by loss of fluids.
• Please note that these scales are not certified for professional, medical use and that measurements may vary (tolerance) for technical reasons.

3.1.1 Measuring your body fat percentage

• These scales use the B.I.A. method, bioelectrical impedance analysis. A weak, safe electrical current is passed through your body and the level of resistance to the current is measured. Fatty tissue will be more resistant, while the signal passes through lean body mass more easily. In combination with your height, weight, age and gender, the resistance measurement can be used to calculate body fat and body water percentages. Please note that the body measurements obtained by the device are only an approximation of actual analytical medical data. Exact calculation of body fat, body water, muscle mass and other body parameters can only be carried out by a specialist doctor using medical methods.
• Any diet or treatment for over- or underweight must be accompanied by competent advice from corresponding specialists (e.g. a doctor).
• Body fat calculations for children, competitive athletes or people with medical/ physical impairments (e.g. oedema symptoms; osteoporosis; on cardiovascular or vascular-changing medication; signifi cant anatomic deviations in the leg area) may result in imprecise or improbable results.
• If you have insufficient blood flow in your legs; venous stasis which is too high; vascular constriction or extensive oedemas of the leg, then calculation of your heart frequency may result in imprecise or improbable results.

3.2 Operation of the device

3.2.1 Installation site

To avoid measurement deviations due to variations in the surface underneath the scales, always place them on a flat, hard, stable surface and in the same location.

3.2.2 Turning on the device

1. Press the "Power" button (3) several times with your foot or hand until the dynamo mechanism is fully charged.
2. The battery symbol on the control panel display shows charging progress.
3. When the control panel shows "0.0 kg", you can weigh yourself.
4. The device will switch off automatically after approx. 2.5 minutes.

3.2.3 How to save user data

To measure your body fat percentage and other data, you must save your personal user data. The device has 4 user memories which can, for example, be used to save and access your family members' personal settings.

1. Press the "Power" button (3) several times to turn on the device.
2. Select the user identi fication number 3 or and press the number for a few seconds.
3. Use the 2 button to select the desired gender (Male/Female).
4. Confirm your selection by pressing the button.
5. Use the 2 button to select the desired weighing unit (kg or lb).
6. Confirm your selection by pressing the button.
7. Use the 1+ or 2- button to set the desired height (100-220cm/3ft-3in-7ft-3in).
8. Confirm your selection by pressing the 3 button again.
9. Use the 1 or 2 button to set the desired age (10-80).
10. Press the 32 button again to save the user data.

PLEASE NOTE

If you need to make a correction, use the button to go back to the previous step.

3.2.4 Weighing and measuring

1. Selected the desired user identifi cation number.
2. Step onto the weighing platform electrodes with bare feet.
3. Stand still and distribute your weight evenly.
4. You will see "0..." move from left to right across the control panel display while the measurement analysis is being carried out.
5. Remain on the scales until the display shows your weight.

6. The following data will be shown in sequence:

7. Body weight in kg or lb (8 kg - 150kg / 17.6 lb - 330lbs)
   BMI (0.1)
   -FAT-body fat in % 5-50%)
   WATER body water in % (35-75%)
   MUSCLE-muscle mass in % 13.0-100.0%)

8. Bone mass in kg (0-15kg)

3.2.5 Assessment tables

These tables are intended only as a guide. They cannot provide any precise analysis.

BMI (Body Mass Index) = Weight (kg) / (Height)² (m²) %

Body Underweight Normal Weight		Slightly over-weight	Overweight
BMI < 16.5	16.5-25 25-30 > 30

Body fat in %

Age	Female Male
	Under-weight	Normal-weight	Slightly-over-weight	Over-weight	Under-weight	Normal-weight	Slightly-over-weight	Over-weight
10-20 ≤ 1	9,5 19,6 -	33,5	33,6 - 38,5	≥ 38,6 ≤	9,5 9,6 -	20,5	20,6 - 25,5	≥ 25,6
21-30 ≤ 2	20,0 20,1 -	34,0	34,1 - 39,0	≥ 39,1 ≤	10,0 10,1 -	21	21,1 - 26,0	≥ 26,1
31-40 ≤ 2	20,5 20,6 -	34,5	34,6 - 39,5	≥ 39,6 ≤	10,5 10,6 -	21,5	21,6 - 26,5	≥ 26,6
41-50 ≤ 2	21,0 21,1 -	35,0	35,1 - 40,0	≥ 40,1 ≤	11,0 11,1 -	22,0	22,1 - 27,0	≥ 27,1
51-60 ≤ 2	21,5 21,6 -	35,5	35,6 - 40,5	≥ 40,6 ≤	12,0 12,1 -	23,0	23,1 - 28,0	≥ 28,1
61-70 ≤ 2	22,0 22,1 -	36,0	36,1 - 41,0	≥ 41,1 ≤	13,0 13,1 -	24,0	24,1 - 29,0	≥ 29,1
71-80 ≤ 2	22,5 22,6 -	36,5	36,6 - 41,5	≥ 41,6 ≤	14,0 14,1 -	25,0	25,1 - 30,0	≥ 30,1

Body water in %

Body water in % is usually in the following ranges:

Age	Female Male
	Under-weight	Normal-weight	Slightly-over-weight	Over-weight	Under-weight	Normal-weight	Slightly-over-weight	Over-weight
10-20 ≤ 5	6,0 56,1 –	62,0	62,1 –68,0	≥ 68,1 ≤ 8,0		58,1–65,0	65,1 –72,0	≥ 72,1
21-30 ≤ 5	4,0 54,1 –	60,0	60,1 –66,0	≥ 66,1 ≤6,0		56,1 –63,0	63,1 –70,0	≥ 70,1
31-40 ≤ 5	1,0 51,1 –	57,0	57,1 –63,0	≥ 63,1 ≤ $4,0		54,1 –61,0	61,1 –68,0	≥ 68,1

41-50 ≤ 4	8,0 48,1 -	54,0	54,1 - 60,0	≥ 60,1 ≤ 51,0 51,1 -	58,0	58,1 - 65,0	≥ 65,1
51-60 ≤ 4	5,0 45,1 -	51,0	51,1 - 57,0	≥ 57,1 ≤ 48,0	48,1 - 55,0	55,1 - 62,0	≥ 62,1
61-70 ≤ 4	2,0 42,1 -	48,0	48,1 - 54,0	≥ 54,1 ≤ 45,0	45,1 - 52,0	52,1 - 59,0	≥ 59,1
71-80 ≤ 3	8,0 38,1 -	44,0	44,1 - 50,0	≥ 50,1 ≤ 42,0 42,1 -	49,0	49,1 - 56,0	≥ 56,1

Muscle mass in %

Muscle mass in % is usually in the following range:

Female Male Muscle mass >30%>35%

Bone mass (kg):

Bone mass in kg is usually in the following range:

	Female Male
Weight <45 kg 45-60 kg	>60 kg <60 kg	kg 60-75 kg	>75 kg
Bone mass >1,8 kg >2,2 kg	>2,5 kg >2,5 kg	5 kg >2,9 kg	>3,2 kg

4 Cleaning and Maintenance

This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.

4.1 Safety information

ATTENTION

Please observe the safety instructions, before cleaning your device:

Never immerse the scale into water or other liquid. Do not put it in the dishwasher.
If moisture penetrates the unit's housing, it can damage the electronic components. Please ensure that no moisture enters the device.
Do not use any hard or abrasive cleaning agents.
Do not attempt to scrape off stubborn grime with hard or abrasive tools.

4.2Cleaning

Clean the weighing platform with a soft damp cloth. Make sure that you also clean the adjustable feet on the bottom of the device.

5 Troubleshooting

This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:

5.1 Safetynotices

ATTENTION

Repairs of electrical appliances must be carried out by qualified person who are trained by the manufacturer.
Repairs performed by untrained persons may result in considerable hazards for the user and damage the machine.

5.2Troubleshootingtable

If an error occurs, then an error code will appear on the control panel display. It describes the reason for the error.

Display Description

Low batteries. The device will switch off automatically after a few seconds. Press the "Power" button several times to re-start the device.
Err	The scales are overloaded.
Err2	There is no skin contact with the electrodes. Step onto the electrodes with bare feet. Stand still and distribute your weight evenly.
----	User data could not be found. Enter your user data.
The control panel display shows all the characters.	There is too much weight on the scales when they are turned on. Get off the scales and wait until the control panel shows "0.0 kg".

PLEASE NOTE

If you cannot solve the problem by carrying out the steps described above, our Customer Service will help you free of charge.
Clean the device before you send it to customer service.

6 Disposal of the Old Device

Old electric and electronic devices frequently still contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety. If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the environment. Therefore, do not put your old device into the non-recyclable waste under any circumstances.

PLEASE NOTE

Utilise the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information.
Ensure that your old device is stored safely away from children until it is taken away.

6.1 Disposal of the packaging

The packaging protects the device against damages during transit. The packaging materials are selected in accordance with environmentally compatible and recycling-related points of view and can therefore be recycled. Returning the packaging back to the material loop saves raw materials and reduces the

quantities of accumulated waste. Take any packaging materials that are no longer required to "Green Dot" recycling collection points for disposal.

7Guarantee

We provide a 24-month guarantee for defects caused by production or material faults, beginning on the date of purchase. Our guarantee is valid for Germany, Austria and the Netherlands. For all other countries, please contact us.

Your legal guarantee claims as per Art. 437 ff. German Civil Code (BGB) will remain unaffected by this. You may exercise your statutory guarantee rights free of charge. The guarantee does not cover damage caused by improper handling or use of the product or defects which have only a minor impact on the product's functionality or value. In addition to this, the guarantee also excludes parts which are subject to wear and tear; transport damages insofar as we are not responsible for them and damages caused by repairs which were not carried out by us.

This product has been constructed for non-commercial use (domestic use) and its performance is designed to meet the corresponding needs. The guarantee only covers commercial use insofar as it is comparable to domestic use. The product is not intended for any other type of commercial use.

In the case of legitimate complaints we may either repair the defective product or replace it with a defect-free product at our discretion. Obvious defects must be notified to us within 14 days of the product's delivery. Any further claims are excluded.

When making a guarantee claim please contact us before you return the product (always with the purchase receipt!). Our contact details ("Guarantor") are provided at the beginning of this instruction manual.

Edad	Mujeres Hombres
	Peso bajo	Peso normal	Ligero so-brepeso	Sobrepeso	Peso bajo	Peso normal	Ligero so-brepeso	Sobrepeso
10-20 ≤ 5	6,0 56,1 -	62,0	62,1 - 68,0	≥ 68,1 ≤ 5	8,0	58,1- 65,0	65,1 -72,0	≥ 72,1
21-30 ≤ 5	4,0 54,1 -	60,0	60,1 - 66,0	≥ 66,1 ≤ 5	6,0	56,1- 63,0	63,1 - 70,0	≥ 70,1
31-40 ≤ 5	1,0 51,1 -	57,0	57,1 - 63,0	≥ 63,1 ≤ 5	4,0	54,1- 61,0	61,1 - 68,0	≥ 68,1
41-50 ≤ 4	8,0 48,1 -	54,0	54,1 - 60,0	≥ 60,1 ≤ 5	1,0 51,1-	58,0	58,1 - 65,0	≥ 65,1
51-60 ≤ 4	5,0 45,1 -	51,0	51,1 - 57,0	≥ 57,1 ≤ 4	8,0	48,1- 55,0	55,1 - 62,0	≥ 62,1
61-70 ≤ 4	2,0 42,1 -	48,0	48,1 - 54,0	≥ 54,1 ≤ 4	5,0	45,1- 52,0	52,1 - 59,0	≥ 59,1
71-80 ≤ 3	8,0 38,1 -	44,0	44,1 - 50,0	≥ 50,1 ≤ 4	2,0 42,1-	49,0	49,1 - 56,0	≥ 56,1

2.2Plaquesignalétique

Âge	Femme				Homme
	Poidsinsuffisant	Poidsnormal	Légersurpoids	Surpoids	Poidsinsuffisant	Poidsnormal	Légersurpoids	Surpoids
10-20	≤ 56,0	56,1 –62,0	62,1 –68,0	≥ 68,1	≤ 58,0	58,1–65,0	65,1-72,0	≥ 72,1
21-30 ≤ 5	4,0 54,1 -	60,0	60,1 - 66,0	≥ 66,1 ≤ 5	6,0	56,1- 63,0	63,1 - 70,0	≥ 70,1
31-40 ≤ 5	1,0 51,1 -	57,0	57,1 - 63,0	≥ 63,1 ≤ 5	4,0	54,1- 61,0	61,1 - 68,0	≥ 68,1
41-50 ≤ 4	8,0 48,1 -	54,0	54,1 - 60,0	≥ 60,1 ≤ 5	1,0 51,1-	58,0	58,1 - 65,0	≥ 65,1
51-60 ≤ 4	5,0 45,1 -	51,0	51,1 - 57,0	≥ 57,1 ≤ 4	8,0	48,1- 55,0	55,1 - 62,0	≥ 62,1
61-70 ≤ 4	2,0 42,1 -	48,0	48,1 - 54,0	≥ 54,1 ≤ 4	5,0	45,1- 52,0	52,1 - 59,0	≥ 59,1
71-80 ≤ 3	8,0 38,1 -	44,0	44,1 - 50,0	≥ 50,1 ≤ 4	2,0 42,1-	49,0	49,1 - 56,0	≥ 56,1

Età	Femminile Maschile
	Sottopeso	Peso normale	Leggero sovrap- peso	Sovrap- peso	Sottopeso	Peso normale	Leggero sovrap- peso	Sovrap- peso
10-20 ≤ 5	6,0 56,1 -	62,0	62,1 - 68,0	≥ 68,1 ≤ 5	8,0 58,1-	65,0	65,1 -72,0	≥ 72,1
21-30 ≤ 5	4,0 54,1 -	60,0	60,1 - 66,0	≥ 66,1 ≤ 5	6,0 56,1	-63,0	63,1 - 70,0	≥ 70,1
31-40 ≤ 5	1,0 51,1 -	57,0	57,1 - 63,0	≥ 63,1 ≤ 5	4,0 54,1	-61,0	61,1 - 68,0	≥ 68,1
41-50 ≤ 4	8,0 48,1 -	54,0	54,1 - 60,0	≥ 60,1 ≤ 5	1,0 51,1 -	58,0	58,1 - 65,0	≥ 65,1
51-60 ≤ 4	5,0 45,1 -	51,0	51,1 - 57,0	≥ 57,1 ≤ 4	8,0 48,1	-55,0	55,1 -62,0	≥ 62,1
61-70 ≤ 4	2,0 42,1 -	48,0	48,1 - 54,0	≥ 54,1 ≤ 4	5,0 45,1	-52,0	52,1 59,0	≥ 59,1
71-80 ≤ 3	8,0 38,1 -	44,0	44,1 - 50,0	≥ 50,1 ≤ 4	2,0 42,1 -	49,0	49,1 - 56,0	≥ 56,1

Yaş	Kadin Erkek
	Düşük ağırlik	Normal ağırlik	Hafı fazla ağırlik	Fazla ağırlik	Düşük ağırlik	Normal ağırlik	Hafı fazla ağırlik	Fazla ağırlik
10-20 ≤ 5	6,0	56,1	62,0	62,1	≥ 68,1	≤ 58,0	58,1-65,0	≥ 72,1
21-30 ≤ 5	4,0	54,1	60,0	60,1	≥ 66,1	≤ 56,0	56,1-63,0	≥ 70,1
31-40 ≤ 5	1,0 51,1 -	57,0	57,1 - 63,0	≥ 63,1 ≤ 5	4,0	54,1- 61,0	61,1 - 68,0	≥ 68,1
41-50 ≤ 4	8,0 48,1 -	54,0	54,1 - 60,0	≥ 60,1 ≤ 5	1,0 51,1-	58,0	58,1 - 65,0	≥ 65,1
51-60 ≤ 4	5,0 45,1 -	51,0	51,1 - 57,0	≥ 57,1 ≤ 4	8,0	48,1- 55,0	55,1 - 62,0	≥ 62,1
61-70 ≤ 4	2,0 42,1 -	48,0	48,1 - 54,0	≥ 54,1 ≤ 4	5,0	45,1- 52,0	52,1 - 59,0	≥ 59,1
71-80 ≤ 3	8,0 38,1 -	44,0	44,1 - 50,0	≥ 50,1 ≤ 4	2,0 42,1-	49,0	49,1 - 56,0	≥ 56,1

Kas yüzdesi (%):

N NNNN NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN

1.3 0

NNN NNNN NNNNNNNNNNNNNNNNNNNNN

nytn

n nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

2 npnn

wnn nn nnnn nn nn nn nn nn

2.1 n#n#

mnp

①

7Dn

2

yoyon

3

/1wnnnn

4

nwn,wnny

yannan

/2wnnnn

(5)

nnp, np nnn

y

/3wnnnn

6

N

7

/4wnnnn

nnnnn

2.2 nnn

yannnnn nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

3 bnyam nbyan

pnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn

3.1 yTn

ywnn, (n) nnnn nn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnne

3.1.1 7

B.I.A., nN ynnn nn nnnn. nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nee

3.2 wonn yon

3.2.1 npnnn np

n nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

3.2.2 7ywnnyon

n nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

3.2.3 wannnnn

n nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

4 3 21

1 2 (n/0) nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

3

1 2

3

（3-7-3/100-220）

3

1 2 (10-80)

3

#

4

n nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

3.2.4 nnnn

n nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

BMI (0.1)

FAT (5-50%)

WATER (35-75%)

MUSCLE (13.0-100.0%)

(0-15) pDy nn

3.2.5 TnN

nnoynnnn noon.

BMI (n nn n nn) = (n"n)² (n nn) / (n"p) %

n nn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn

4.1 mnnn

ynnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn

4.2

wnnnn nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

5 mbpnpn

n nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn

5.1 mnnn

yynn yynnn nn nynnnn nnynnnn nnynnnn nnynnnn nnynnnn nnynnnn nnynnnn nnynnnn nnynnnn nnynnnn nnynnnn nnynnnn nnynnnn nnynnnn nnynnnn nnynnnn nnynnnn nnynnnn nnynnnn nnynnnn nnynnnn nnynnnn nnynnnn nnynnnn nnynnnn nnynnnn

5.2 mbpnnn

nnpnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

###	###
###	###
###	###
###	###
###	###
###	###
###	###
###	###

mnpn nyn nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

6 777777777

n nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

y

6.1 nnnn

y ynnn nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

n nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

7

y,ynnnn nn,yn 24 ynnn npnn nyn

437 111111111111111111111111111111111111

n nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn

N NNNN NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN

DE Weitere Sprachen dieser Bedienungsanleitung fi nden Sie unter www.caso-design.de oder wenn Sie den QR-Code scannen.
EN To see these operating instructions in more languages, visit www.caso-design.de or scan the QR code.
NL Je vindt deze gebruiksaanwijzing met vertaling in verschilende talen op de volgende link op de website www.caso-design.de. U=kunt ook de QR-code scannen om toegang te krijgen tot de vertalingen.
ES Este manual de instrucciones está disponible en outros idiomas en www.caso-design.de o escaneando el número QR.
SV Det fi nns tillgang till fl era sprek ienna bruksanvisining på www.caso-design.de ell er om du scannar QR-koden.
FR Vous trouverez ce mode d'emploi en plusieurs langues sur www.caso-design.de ou en scannant le code QR.
IT Ulteriori lingue di queste istruzioni per l'uso sono disponibili al seguente link www.caso-design.de o scansionando il codice QR.
PT Pode encontrar este manual de instruções noutras linguas em www.caso-design.de ou através da leitura do número QR.
TR Bu klavuzun diger dallere cevirileri iciin su baglantiya bakiniz: www.caso-design.de. Bu amaça, geçerli QR kodunu da tarayabilirsiniz.
HE www.caso-design.de http://www.caso-design.de http://www.caso-design.de http://www.caso-design.de http://www.caso-design.de http://www.caso-design.de http://www.caso-design.de http://www.caso-design.de http://www.caso-design.de http://www.caso-design.de http://www.caso-design.de http://www.caso-design.de http://www.caso-design.de http://www.caso-design.de http://www.caso-design.de http://www.cazo-design.de http://www.caso-design.de http://www.caso-design.de http://www.caso-design.de http://www.caso-design.de http://www.caso-design.de http://www.caso-design.de http://www.caso-design.de http://www.caso-design.de http://www.caso-design.de http://www.caso-design.de http://www.caso-design.de http://www.caso-design.de http://www.caso-design.de http://www.caso-design-de http://www.caso-design.de http://www.caso-design.de http://www.caso-design.de http://www.caso-design.de http://www.caso-design.de http://www.caso-design.de http://www.caso-design.de http://www.caso-design.de http://www.caso-design.de http://www.caso-design.de http://www.caso-design.de http://www.caso-design.de http://www.caso-design.de http://www.caso-design.de http:/www.caso-design.de http://www.caso-design.de http://www.caso-design.de http://www.caso-design.de http://www.caso-design.de http://www.caso-design.de http://www.caso-design.de http://www.caso-design.de http://www.caso-design.de http://www.caso-design.de http://www.caso-design.de http://www.caso-design.de http://www.caso-design.de http://www.caso-design.de http://www;caso-design.de http://www.caso-design.de http://www.caso-design.de http://www.caso-design.de http://www.caso-design.de http://www.caso-design.de http://www.caso-design.de http://www.caso-design.de http://www.caso-design.de http://www.caso-design.de http://www.caso-design.de http://www.caso-design.de http://www.caso-design.de http://www.caso-design.de http://www.caso design.de http://www.caso design.de http://www.caso design.de http://www.caso design.de http://www.caso design.de http://www.caso design.de http://www.caso design.de http://www.caso design.de http://www.caso design.de http://www.caso design.de http://www.caso design.de http://www.caso design.de http://www.caso design.de http://www.caso design.de http://www.caso design.dehttp://www.caso design.de http://www.caso design.de http://www.caso design.de http://www.caso design.de http://www.caso design.de http://www.caso design.de http://www.caso design.de http://www.caso design.de http://www.caso design.de http://www.caso design.de http://www.caso design.de http://www.caso design.de http://www.caso design.de http://www.caso design.de http:// www.caso design.de http://www.caso design.de http://www.caso design.de http://www.caso design.de http://www.caso design.de http://www.caso design.de http://www.caso design.de http://www.caso design.de http://www.caso design.de http://www.caso design.de http://www.caso design.de http://www.caso design.de http://www.caso design.de http://www.caso design.de http://www.cazo design.de http://www.cazo design.de http://www.cazo design.de http://www.cazo design.de http://www.cazo design.de http://www.cazo design.de http://www.cazo design.de http://www.cazo design.de http://www.cazo design.de http://www.cazo design.de http://www.cazo design.de http://www.cazo design.de http://www.cazo design.de http://www.cazo design.de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http:/www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www:cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo Design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/dehttp://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http:// www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cozo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/de http://www.cazo design/

CASO GmbH
