USER MANUAL APS M+ Mafell

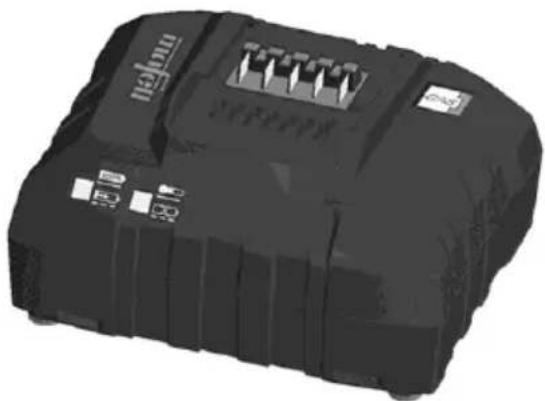

3D rendering of a black battery pack with visible terminal labels (no readable text or symbols beyond branding)

3D rendered image of a black cylindrical electronic device with buttons and ports (no visible text or symbols)

MAF02146/b

MAF02147/b

WARNUNG

Please read all safety instructions and directions. Failure to comply with the safety instructions and directions can cause electric shock, fire and/or serious injuries. Please retain all safety instructions and directions for future reference.

AVERTISSEMENT

GB - EC Declaration of Conformity

We herewith confirm that the charger APS M+ / APS M complies with the EU directives quoted. The standards listed were used for design and construction. Empowered person for the configuration of the technical documents: Mafell AG

1	Signs and symbols	10
2	Product information	10
2.1	Manufacturer's data	10
2.2	Device identification	11
2.3	Technical data	11
2.4	Scope of supply	11
2.5	Use according to intended purpose	12
3	Safety information	12
4	Components	12
5	Initial operation	12
5.1	Self-test	13
6	Operation	13
6.1	Charging the rechargeable battery	13
6.2	Trickle charge	13
7	Service and maintenance	13
8	Troubleshooting	13

1 Signs and symbols

This symbol is found in all places where you will find information for your safety.

Non-compliance with these instructions may result in very serious injuries.

This symbol indicates a potentially hazardous situation.

If this situation is not avoided, the product or objects in its vicinity may get damaged.

This symbol indicates tips for the user and other useful information.

2 Product information

for machines with Art.-No. 094492, 094493, 094509 or 094511

2.1 Manufacturer's data

MAFELL AG, Beffendorfer Straße 4, D-78727 Oberndorf / Neckar, Phone [phone], Fax [phone]

2.2 Device identification

All details required to identify the appliance are available on the rating plate attached to the bottom.

Protection class II

CE symbol to document compliance with the basic safety and health requirements according to Appendix I of the Machinery Directive.

For EU countries only

Do not dispose of electrical tools together with domestic waste!

In accordance with the European directive 2002/96/EC on waste electrical and electronic equipment and transposition into national law, obsolete electrical tools must be collected separately and recycled in an environmentally-compatible manner.

To reduce the risk of injury, please read the operating instructions.

CAS CORDLESS ALLIANCE SYSTEM

Cordless Allicance System (=CAS) is a cross-manufacturer battery pack system.

Further information is available at www.cordless-alliance-system.com

2.3 Technical data

	APS M	APS M	APS M	APS M+	APS M+	APS M+
Connected load	230 V~,50 Hz	230 V~,50 Hz	230 V~,50 Hz	230 V~,50 Hz	230 V~,50 Hz	230 V~,50 Hz
Voltage	12 V	18 V	18 V	12 V	18 V	18 V
Capacity of rechargeable battery	4.0 Ah	4,0 Ah	5.5 Ah	4.0 Ah	4,0 Ah	5.5 Ah
Charging current	4,0 A	3.0 A	3.0 A	8.0 A	8.0 A	8.0 A
Charging time ^1)	60 min	80 min	110 min	30 min	30 min	40 min
Air cooling	yes	yes	yes	yes	yes	yes

^1) Depending on the residual capacity and the temperature of the rechargeable battery pack, actual charging times may deviate from the specifications.

2.4 Scope of supply

Rechargeable power station APS M and APS M+ complete with:

1 charger
1 operating manual

2.5 Use according to intended purpose

Chargers are only suitable for charging Metabo and CAS (Cordless Alliance System) battery packs.

Any other use than described above is not permissible. The manufacturer cannot be held liable for any damage arising from such other use.

In order to use the appliance as intended, you must comply with the operating, maintenance and repair instructions specified by MAFELL.

This appliance is also not suitable for use outdoors, in rain and wet conditions or in explosive rooms.

Corrective maintenance work must be carried out by MAFELL authorised dealers or MAFELL customer service stations.

The safety instructions applicable in the respective country of use as well as other generally recognised rules pertaining to safety and occupational health must be observed.

Unauthorized changes to the appliance shall rule out any manufacturer liability for damages resulting thereof.

3 Safety information

Danger

Electrical appliances may be dangerous if used incorrectly. Therefore, always observe the safety instructions summarised in this chapter and the safety regulations applicable in the respective country of use!

• Prior to every use, check the device, the cable and the plug. If you detect any damage, you may not continue to use the device. Have repairs only carried out by a professional. Never open the device yourself.
• The device may not be damp and may not be operated in a damp environment. Store the device in a dry and frost-proof place.

• If any battery liquid is leaking and comes in contact with the skin, immediately rinse with a copious amount of water. If any battery liquid gets into your eyes, rinse with clean water and immediately consult a doctor for medical treatment.

• Do not throw spent rechargeable battery packs into a fire and do not dispose of with normal household waste. MAFELL offers an environmentally sound disposal of spent rechargeable battery packs; please ask your specialist dealer.

• Never store rechargeable battery packs together with metal objects. There is a risk of short-circuits.
• Do not charge any third-party rechargeable batteries. The device is only intended for charging MAFELL lithium-ion rechargeable batteries with voltages of 10,8 - 36 V.
• Do not reach inside the device with conductive objects, as mains voltage is applied to certain areas.
• Do not charge any damaged rechargeable battery pack, but replace it immediately.
• Never carry the device by its cable and do not suspend it from the cable.
• Children and adolescents may not operate this appliance. Exempted from this are adolescents using the appliance under the supervision of an expert for the purpose of their training.
• Only use original MAFELL spare parts, accessories or special accessories. Otherwise, the manufacturer will not accept any warranty claims and cannot be held liable.

4 Components

(1) Rechargeable battery (is not part of the charger)
(2) Sliding seat
(3) Operating mode display
(4) Warning display

5 Initial operation

The APS M+ / APS M rechargeable power station is totally insulated according to class II.

Prior to commissioning make sure that the mains voltage agrees with the operating voltage stated on the machine's rating plate.

Devices generating direct current such as the one on hand could influence simple earth leakage circuit breakers. Therefore, use one of type F or better with a tripping current of max. 30 mA.

Before starting up the charger, make sure that the ventilation slots are unobstructed. The minimum distance to other objects is min. 5 cm.

5.1 Self-test

• Plug in the mains plug.
• The warning display (4) and the operating mode display (3) will light up in succession for approx. 1 second; the built-in fan will run for approx. 5 seconds.

6 Operation

6.1 Charging the rechargeable battery

Push the rechargeable battery pack completely onto the sliding seat up to the limit stop (2).

The operating mode display (3) is blinking.

6.2 Trickle charge

Once charging is complete, the charger switches automatically to trickle charge. The rechargeable battery pack can remain inside the charger and is thus always ready for operation. The operating mode display (3) lights up constantly.

7 Service and maintenance

Danger

Pull the power plug during all service work.

Always keep the device in a clean condition.

Should the device fail despite thorough manufacturing and testing procedures, the repair must be carried out by an authorised customer service station for MAFELL electrical tools.

If the supply cable is damaged, it must be replaced by a MAFELL customer service station because special tools are required to do so.

Danger

Only use MAFELL accessories and spare parts. Have components, the replacement of which has not been described, replaced at a MAFELL customer service station.

8 Troubleshooting

Danger

Determining the causes for existing defects and eliminating these always requires increased attention and caution. Pull the mains plug beforehand!

Some of the most frequent defects and their causes are listed in the following chart. In case of other defects, contact your dealer or the MAFELL customer service.

Defect	Cause	Elimination
The warning display (4) lights up constantly	The rechargeable battery pack is not charged, temperature too high/too low	If the rechargeable battery pack temperature ranges between 0 °C and 50 °C, the charging operation starts automatically.
The warning display (4) is blinking	Rechargeable battery defective	Immediately remove the rechargeable battery pack from the charger.
	The rechargeable battery pack has not been pushed correctly onto the sliding seat (2).	Push rechargeable battery pack on correctly.
