USER MANUAL SlimPAR T6 USB Chauvet
The SlimPAR™ T6 USB Quick Reference Guide (QRG) has basic product information such as mounting, menu options, and DMX values. Download the User Manual from www.chauvetlighting.com for more details.
Disclaimer
The information and specifications contained in this QRG are subject to change without notice.
Safety Notes
These Safety Notes include important information about installation, use, and maintenance.
• This product is not intended for permanent installation.
• ONLY connect this product to a grounded and protected circuit.
• Always disconnect from power before cleaning or replacing the fuse.
• DO NOT look at the light source when the product is on.
• Make sure the power cord is not crimped or damaged.
• Never disconnect this product from power by pulling on the cord.
- When mounting this product overhead, use a safety cable.
• DO NOT allow flammable materials close to the unit while operating.
• DO NOT touch this product when it is operating because it may be hot.
- The voltage of the outlet to which you are connecting this product must be within the range stated on the decal or rear panel of the product.
- This product is for indoor use only! (IP20) To prevent risk of fire or shock, do not expose this product to rain or moisture.
• Always mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces. - Be sure that no ventilation slots on the unit's housing are blocked.
• Never connect this product to a dimmer or rheostat. - Replace the fuse with the same type and rating.
- ONLY use the hanging/mounting bracket or the handles to carry this product.
- The maximum ambient temperature is 104 °F ( 40 °C ). Do not operate this product at higher temperatures.
• In the event of a serious operating problem, stop using immediately.
• DO NOT open this product. It contains no user-serviceable parts. - To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via the breaker or by unplugging it.
Contact
Outside the U.S., United Kingdom, Ireland, Mexico, or Benelux contact you distributor to request support or return a product. Visi www.chauvetlighting.com for contact information.
What Is Included To Begin
- SlimPAR™ T6 USB
- Power Cord
- Warranty Card
- Quick Reference Guide
Unpack your SlimPAR™ T6 USB and make sure you have received all parts in good condition. If the box or contents appear damaged, notify the carrie immediately, not Chauvet.
Product Description
The SlimPAR™ T6 USB is a low profile, tri-color LED Par with built-in infrared technology that offers easily controllable static colors and automated programs with the optional IRC-6 remote. DMX control wirelessly with the convenient built in D-Fi™ USB port. Six high-power, tri-color LEDs nearly eliminate multicolored shadows and the smooth and even output makes it perfect for frontlight applications.


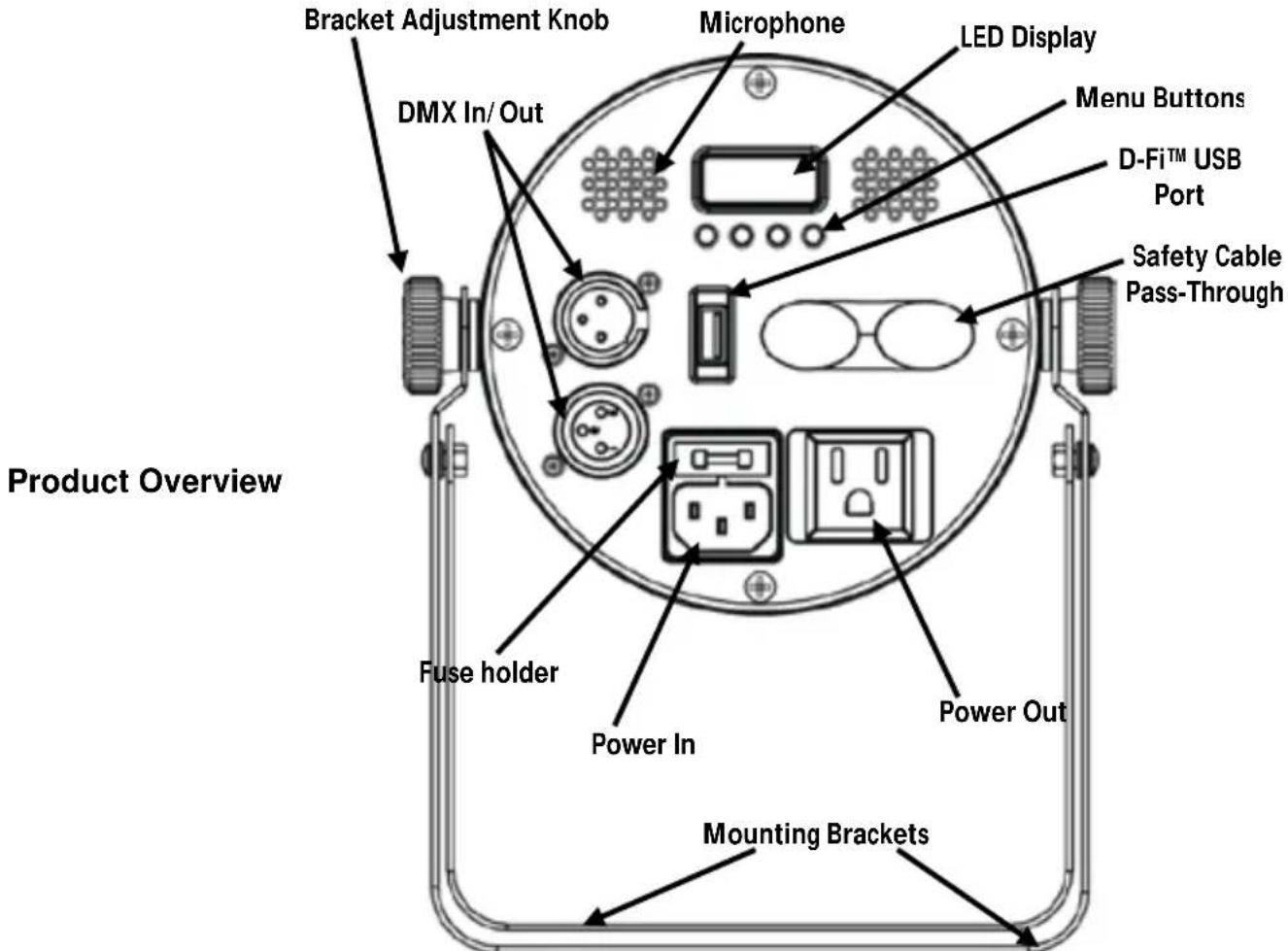

Bracket Adjustment Knob DMX In/ Out Microphone LED Display Menu Buttons D-Fi™ USB Port Safety Cable Pass-Through Product Overview Fuse holder Power In Power Out Mounting Brackets
WARNING! DO NOT plug anything other than a D-Fi™ USB into the USB port. Doing so may cause damage to the product.
AC Power
This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz.
To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product via breaker or by unplugging it.
Power Linking
For the maximum number of SlimPAR™ T6 USB products that you can power link at each voltage, see the User Manual or the sticker on the product.
- Disconnect the product from power.
- Wedge the tip of a flat-head screwdriver into the slot of the fuse holder.
- Pry the safety cap out of the housing.
- Remove the blown fuse from the clip on the front of the safety cap and replace with a fuse of the exact same type and rating.
- Re-insert the fuse holder and reconnect power.
Fuse Replacement
Mounting
Before mounting this product, read the Safety Notes. Make sure the mounting clamp is capable of supporting the weight of the product. For our Chauvet line of mounting clamps, go to www.chauvetlighting.com/cables-clamps-main.html.
Mounting Diagram


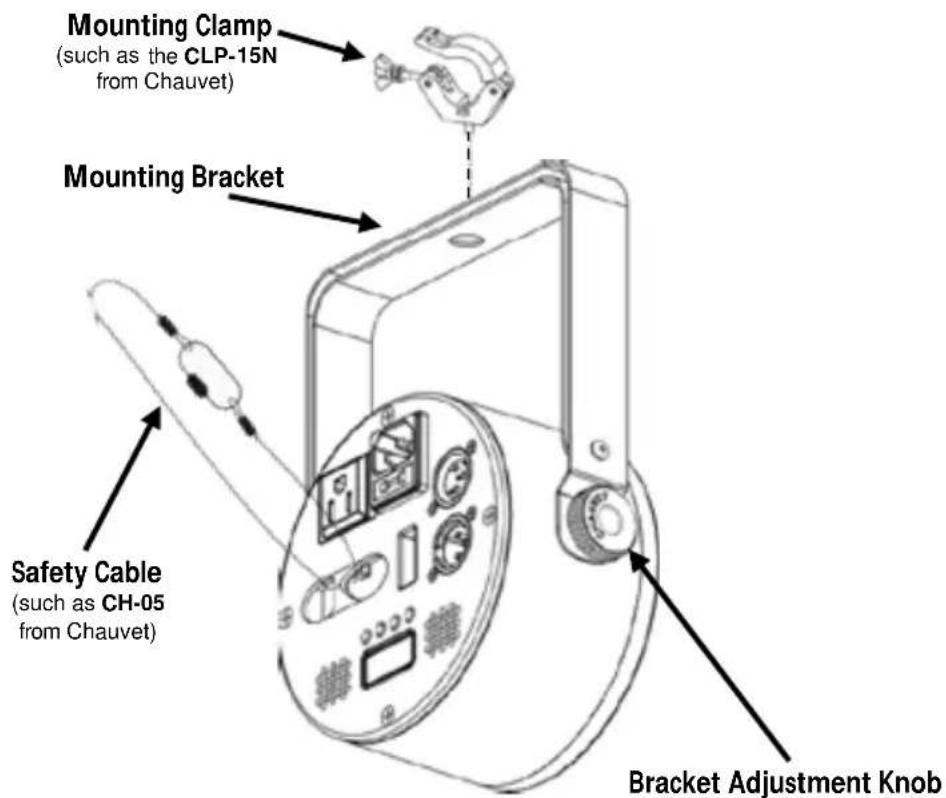

Mounting Clamp (such as the CLP-15N from Chauvet) Mounting Bracket Safety Cable (such as CH-05 from Chauvet) Bracket Adjustment Knob| Control Panel Description | Button | Function |
| Exits from the current menu or function | ||
| Navigates upwards through the menu list and increases the numeric value when in a function | ||
| Navigates downwards through the menu list and decreases the numeric value when in a function | ||
| Enables the currently displayed menu or sets the currently selected value into the selected function |
D-Fi™ USB Connectivity
The SlimPAR™ T6 USB is able to become a D-Fi™ wireless receiver/transmitter with the use of the D-Fi™ USB from CHAUVET® DJ. Simply set the DIP switch D-Fi™ receiving/transmitting channel, plug it into the USB port, then set the product's DMX personality and starting DMX address. Further instructions for connecting and configuring this product for D-Fi™ USB operation are in the User Manual.
WARNING! DO NOT plug anything other than a D- Fi™ USB into the USB port. Doing so may cause damage to the product.
Once plugged in, the D-Fi™ USB will take over the product. Wired DMX, manual display control/menu buttons and IRC-6 will be unavailable until you unplug the D-Fi™ USB. The priority levels are:
- D-Fi™ USB
- Wired DMX
- IRC-6 Remote Control
- Manual Digital Display/Menu Buttons
DMX Linking
The SlimPAR™ T6 USB can work with a DMX controller when linked by DMX serial connections. Instructions for connecting and configuring this product for DMX operation are in the User Manual. If you are not familiar with DMX, download the DMX Primer from www.chauvetlighting.com.
Starting Address
To ensure full access to all channels in each DMX mode, the highest recommended DMX address is 505.
Master/Slave Connection
The SlimPAR ^TM T6 USB uses the DMX data connection for its Master/Slave mode. Instructions for connecting and configuring this product for Master/Slave operation are in the User Manual.
IRC-6 Infrared Remote Control
The SlimPAR™ T6 USB is compatible with the IRC-6 infrared remote control from CHAUVET® DJ. For more information on the IRC-6 or to download instructions, go to www.chauvetlighting.com.
Menu Options
| Main Level | Programming Levels | Description | |
| 3-CH | d001–512 | 3-channel DMX mode | |
| 8-CH | d001–512 | 8-channel DMX mode | |
| C-- | C1 | (red) | Static color |
| C2 | (green) | ||
| C3 | (blue) | ||
| C4 | (cyan) | ||
| C5 | (magenta) | ||
| C6 | (yellow) | ||
| C7 | (white) | ||
| P-- (automatic) | P1 | 3-color program (snap) | |
| P2 | 3-color program (pulse) | ||
| P3 | 7-color program (snap) | ||
| P4 | 7-color program (fading) | ||
| S-- | S--1–100 | Program speed for P1–P4 | |
| Snd (sound-active) | Snd1 | 3-color program (sound-active) | |
| Snd2 | 7-color program (sound-active) | ||
| SenS | u--0–100 | Sound sensitivity | |
| U-- | r000–255 | (red) | Custom static colorsCombine red, green, and blue |
| g000–255 | (green) | ||
| b000–255 | (blue) | ||
| dIM | OFF | Dimmer speed settings | |
| dIM1 | |||
| dIM2 | |||
| dIM3 | |||
| SEr | On | Turns infrared on or off | |
| OFF | |||
DMX Values
| 8-CH Channel | Function | Value | Percent/Setting | |
| 1 | Red | 000 Ü 255 | 0–100% | |
| 2 | Green | 000 Ü 255 | 0–100% | |
| 3 | Blue | 000 Ü 255 | 0–100% | |
| 4 | Color Macros (overrides Ch. 1–3) | 000 Ü 015 | No function | |
| 016 Ü 255 | Color macros | |||
| 5 | Strobe (when Ch. 6 is 000–031) | 000 Ü 015 | No function | |
| 016 Ü 255 | Slow to fast strobe | |||
| Program Speed (when Ch. 6 is 032–223) | 000 Ü 255 | Slow to fast speed | ||
| Sound Sensitivity (when Ch. 6 is 224–255) | 000 Ü 010 | No function | ||
| 011 Ü 255 | Low to high sensitivity | |||
| 6 Mode | 000 Ü 031 | No function | ||
| 032 Ü 063 | Pulse effect 0–100% | When Ch. 1–3 are active | ||
| 064 Ü 095 | Pulse effect 100%-0 | |||
| 096 Ü 127 | Pulse effect 100%-0–100% | |||
| 128 Ü 159 | Auto fade transition | |||
| 160 Ü 191 | Auto snap transition (3 colors) | |||
| 192 Ü 223 | Auto snap transition (7 colors) | |||
| 224 Ü 255 | Sound triggering mode | |||
| 7 | Dimmer | 000 Ü 255 | 0–100% | |
| 8 Dimmer Speed | 000 Ü 051 | Dimmer Speed set from display | ||
| 052 Ü 101 | Dimmer speed mode off | |||
| 102 Ü 152 | Dimmer speed mode 1 fast | |||
| 153 Ü 203 | Dimmer speed mode 2 medium | |||
| 204 Ü 255 | Dimmer speed mode 3 slow | |||
| 3-CH | Channel | Function | Value | Percent/Setting |
| 1 | Red | 000 Ü 255 | 0–100% | |
| 2 | Green | 000 Ü 255 | 0–100% | |
| 3 | Blue | 000 Ü 255 | 0–100% |
Acerca de esta guía
Address:5200 NW 108th Avenue
Sunrise, FL 33351
Voice: (954) 577-4455
Fax: (954) 929-5560
Toll free:(800) 762-1084
Technical Support
Voice: (954) 577-4455 (Press 4)
Fax: (954) 756-8015
Email: tech@chauvetlighting.com
World Wide Web
www.chauvetlighting.com
UNITED KINGDOM AND IRELAND - Chauvet Europe Ltd.
General Information
Address:Unit 1C
Brookhill Road Industrial Estate
Pinxton, Nottingham, UK
NG16 6NT
Voice: +44 (0)1773 511115
Fax: +44 (0)1773 511110
MEXICO - Chauvet Mexico
General Information
Address: Av. Santa Ana 30
Parque Industrial Lerma
Lerma, Mexico C.P. 52000
Voice: +52 (728) 285-5000
Technical Support
Email: uktech@chauvetlighting.com
World Wide Web
www.chauvetlighting.co.uk
Technical Support
Email: servicio@chauvet.com.mx
World Wide Web www.chauvet.com.mx
CHAUVET EUROPE - Chauvet Europe BVBA
General Information
Outside the U.S., United Kingdom, Ireland, Mexico, or Benelux, contact the dealer of record. Follow their instructions to request support or to return a product. Visit our website for contact details.
SlimPAR™ T6 USB QRG Rev. 2 ML9
© Copyright 2015 Chauvet
All rights reserved
Printed in the P. R. C.
