1 Safety instructions

The user manual is part of the product and contains important information for correct use.

• Read the user manual completely and carefully before use.

The user manual must be available for uncertainties and passing the product.

• Keep this user manual.

Risk of electric shock

When the product comes into contact with water, this may cause an electric shock.

• Do not use the product with wet hands.
• Do not use the product in the immediate vicinity of water, such as bathtubs, washbasins or pools.

Rain splashing on the product may cause an electric shock.

• Do not place the product near an open window.

Voltage-free only with pulled plug.

• In case of emergency, after use and during a thunderstorm, pull the mains plug out of the socket directly at the plug housing.

• Do not open the housing.

• Do not modify product and accessories.
• Do not short-circuit connectors and circuits.
• Check regularly that the appliance cable is still intact.
• Do not use the product if the cable is damaged.

A defective device may not be put into operation, but must be disconnected from mains and protected against further use.

• Use product, product parts and accessories only in perfect condition.
• In case of questions, defects, mechanical damage, trouble and other problems, non-recoverable by the documentation, contact your dealer or producer.
• Do not repair defective products yourself, but contact the dealer or the manufacturer.

Risk of entry

Rotating parts can pull loose clothing and hair. This may result in injuries or damage to the device.

• Keep hair and loose clothing away from rotating parts.
• Make sure that the fan is not near curtains or other objects that could be pulled into the fan.

Risk of injury by moving product parts

There are moving parts behind the blade guard of the fan.
- Do not insert your finger or other objects through the blade guard.
This may result in injuries or damage to the device
- Only operate the device if the blade guard is closed and in good order.
- Do not use the device if the blade guard is damaged.
- Switch the device off and unplug the power cord before removing the blade guard.
- Always pull the product by the plug, not the cable.

Tripping hazard

• Mind placing cables in a way that nobody will be disabled and the cable not be damaged.

Operation and storage conditions

• NEVER leave the product unattended while in operation.
• Do not cover the product.
• Keep fan slots and vents free.
• Do not operate the product in dusty environments or in areas with inadequate ventilation.
• Do not operate the fan in the vicinity of explosive and/or flammable gases.
• Do not place or operate the product near open flames, cooking appliances or devices that generate heat such as radiators or stoves.
• Place the product on a stable, level, dry and dust-free surface so that it cannot tip over during operation and the surface cannot be damaged by vibrations.

• Make sure that the product stands securely.

The fan must not stand on the mains cable so that it does not tip over during operation.

• Avoid stresses such as heat and cold, moisture and direct sunlight, microwaves, vibrations and mechanical pressure.
• Switch off the device and disconnect it from the mains when not in use, for cleaning or in the event of a malfunction.

Not recommended for children and people with physical and/or mentally limited capabilities.

• Secure the product against accidental use.
• Secure packaging, small parts and insulation against accidental use.

Battery hazards

The remote control is equipped with a lithium button cell. It can be replaced.

• Keep batteries out of the reach of children.

If swallowed, there is a risk of severe internal burns or even death. Seek immediate medical attention if you believe someone may have swallowed or otherwise ingested the battery.

• Never use batteries when they are dented, leaked or damaged.
• Remove leaked, deformed or corroded batteries from the product and dispose them by appropriate protectives.

If a battery has leaked, avoid contact with skin, eyes and mucous membranes. If necessary, rinse affected areas with water and soak medical attention immediately.

• Do not deform, burn or disassemble batteries and never puncture them with a sharp object. Extreme heat can lead to explosion and/or leakage of corrosive liquid. Mechanical damage can cause gaseous substances to escape, which can be highly irritating, flammable or toxic.
• Do not short-circuit batteries or immerse them in liquids.

There is a risk of explosion, fire, heat, smoke and/or gas development.

• If the battery is accidentally dropped into water, remove it immediately. Place the battery in a safe, open area and stay away until it is completely dry. Do not reuse the dried battery, but dispose of it as indicated in chapter 9.2.

2 Description and Function

2.1 Product

This product is a powerful floor fan that generates ventilation in 4 different levels and different modes.

3D oscillation provides unique ventilation
4 power levels: light, medium, strong, turbo

2.2 Scope of Delivery

9 inch 3D Floor Fan, Remote control, 1x Lithium button cell (CR2025), User Manual

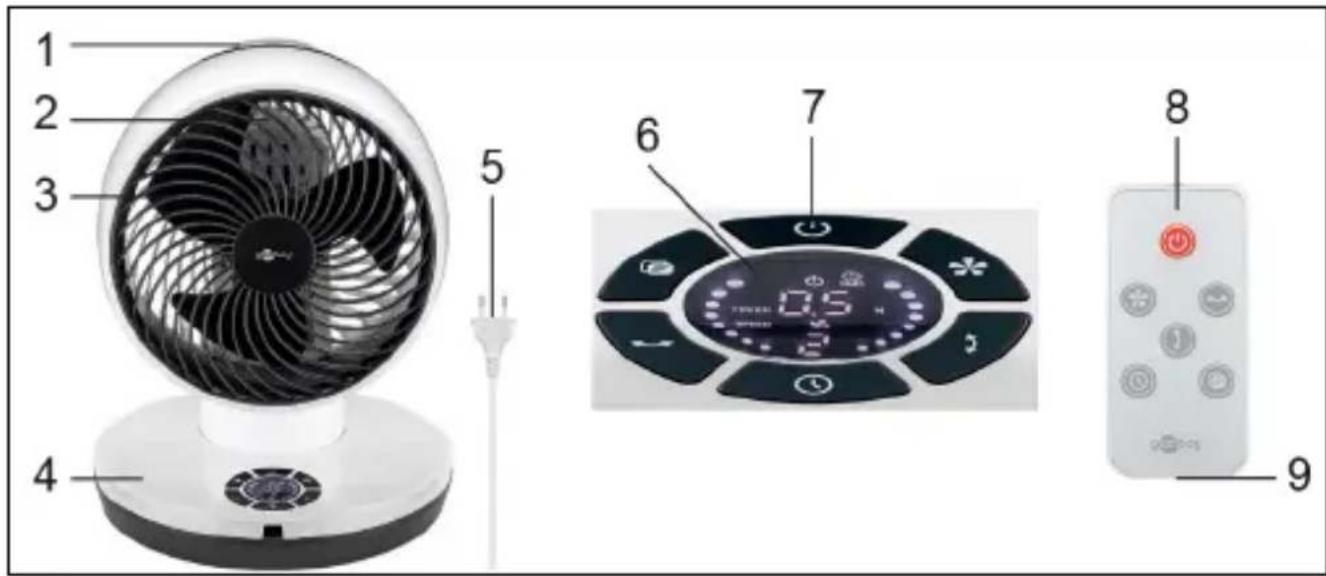

2.3 Operating Elements

1 Carrying handle
2 Blade guard
3 Rotor

4 Base
5 Mains cable
6 Status display

7 Function keys
8 Remote control
9 Battery compartment

2.4 Specifications

Article number 59515
Input 220-240 V	~, 50/60 Hz
Rated power 70 W
Fan power input (P) 54.70 W
Standby power consumption (PSB)	-
Off-mode power consumption (POFF) 0.10 W
Max. fan flow rate (F) 26.98 m³/min
Service value (SV) 0.49 (m³/min)/W
Measurement standard for service value IEC 60879:1986 (corr. 1992)
Max. air velocity (c) 4.6 m/s
Fan sound power level (LWA) 67 dB(A)
Protection level / Protection class	IPX0 / II ☐
Device connection Euro plug (Type C. CEE 7/16)
Cable length (incl. plug) 1,6 m
Dimensions W x H x D Ø	28 x 36.5 x 28 cm 24 cm
Colour black and white
Weight 3170 g
Remote control
Type Infrared
Input voltage	3.0 V ---

Dimensions | Weight 40 x 86.3 x 7 | 15 g
Battery
Typ Lithium button cell (CR2025)
Nominal voltage, Capacity 3,0 V	— —, 150-165 mAh
Weight 3 g

3 Intended Use

This product is intended exclusively for private use and its intended purpose. This product is not intended for commercial use. We do not permit using the device in other ways like described in chapter „Description and Function" or in the „Safety Instructions". Use the product only in dry interior rooms. Not attending to these regula

ons and safety instructions might cause fatal accidents, injuries, and damages to persons and property.

IPX0: This product is not protected against water.

4 Preparation

1. Check the scope of delivery for completeness and integrity.
2. Compare the specifications of product and power supply.

These must be identical.

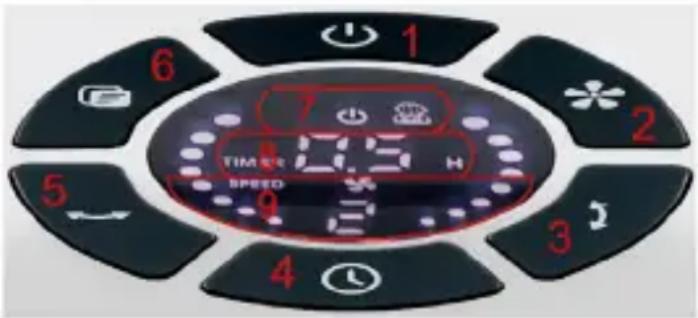

5 Function keys and status display

The fan has 6 function keys and 1 status display.

In the following table, the function keys and the status display are explained.

Function keys
No.	Designation Description
1	ON/OFF Press the key to switch the fan on or off.
2	SPEED Press the key to select the power level.
3	UP/DOWN Press the key to switch the oscillation from top to bottom on or off.
4	TIMER	Press the key to activate the timer function. Press the key again to extend the duration of the timer function. You can set the timer function at half-hour intervals (0.5h, 1h, 1.5h, 2h, 2.5h, 3h, 3.5h, 4h, 4.5h, 5h, 5.5h, 6h, 6.5h, 7h, 7.5h, 8h). After the set time has elapsed, the fan switches itself off. To end the timer function, press the key until the status display for the timer goes out.
5	LEFT/RIGHT	Press the key to switch the oscillation from left to right on or off.
6	Mode	Press the key to set the desired mode. You can choose between the modes NATURAL and SLEEP. In the modes, the fan runs a programme with different fan speeds. When you switch on the fan, no mode is preset.
Status display
7 MODE	The set mode is displayed in this area. If a tree symbol appears in the display, NATURAL mode is active. If a baby symbol appears in the display, SLEEP mode is active.
8 TIMER	The duration for the set timer is displayed in this area. If no timer is set, the room temperature is displayed in this area.
9 SPEED	The set power level is displayed in this area. Firstly by the number (1-4) and secondly by different fan symbols. The circles on the edges of the status display flash one after the other while the fan is switched on.

6 Remote control

6.1 Activating the remote control

• Pull the contact protector out of the battery compartment (9).

The remote control is now activated.

6.2 Explanation of the keys

You can also control the fan via the remote control.

The following table describes the function of the keys on the remote control.

No.	Designation Description
1	ON/OFF Press the key to switch the fan on or off.
2	SPEED Press the key to select the power level.
3	LEFT/RIGHT Press the key to switch the oscillation from left to right on or off.
4	UP/DOWN Press the key to switch the oscillation from top to bottom on or off.
5	TIMER Press the key to activate the timer function. Press the key again to extend the duration of the timer function.
6	MODE Press the key to set the desired mode.

6.3 Changing the battery

If necessary, replace the empty battery with a new one of the same type. See chapter 2.4.

1. Open the battery compartment (9) by pushing the small lever to the side and then pulling out the battery compartment.
2. Remove the empty battery.
3. Place the new battery in the battery compartment with the positive pole facing upwards.
4. Close the battery compartment again.
5. Dispose of the empty battery properly. See also chapter 9.2.

7 Connection and operation

1. Select a suitable location for the fan.
   Pay particular attention to the requirements mentioned in chapter 1 „Safety instructions".
2. Connect the fan's mains cable to a free and easily accessible socket.
3. Turn the front of the fan in the direction you want to ventilate. The fan is now ready for operation.
4. Set the power level, mode and timer function using the function keys (7) or the remote control (8).
5. Switch off the fan after use.

8 Maintenance, Care, Storage and Transport

The product is maintenance-free.

NOTICE! Material damage

• Always disconnect the mains plug before cleaning.
• Only use a dry and soft cloth for cleaning.
• Do not use detergents or chemicals.
• Store the product out the reach of children and in a dry and dust-protected ambience when not in use.
• Remove batteries / rechargeable batteries when not in use.
• Store cool and dry.
• Keep and use the original packaging for transport.
• Have maintenance and repair work carried out by qualified personnel only.

9 Disposal instructions

9.1 Product

According to the European WEEE directive, electrical and electronic equipment must not be disposed with consumers waste. Its components must be recycled or disposed apart from each other. Otherwise contaminative and hazardous substances can damage the health and pollute the environment.

As a consumer, you are committed by law to dispose electrical and electronic devices to the producer, the dealer, or public collecting points at the end of the devices lifetime for free. Particulars are regulated in national right. The symbol on the product, in the user manual, or at the packaging alludes to these terms. With this kind of waste separation, application, and waste disposal of used devices you achieve an important share to environmental protection.
WEEE No: 82898622

9.2 Batteries

(Rechargeable) batteries must not be disposed of with household waste. Their components have to be supplied separately to the recycling or disposal, because toxic and dangerous ingredients can harm the environment if not disposed of sustainably. As a consumer, you are obliged to return them at the end of their service lives to the

manufacturer, the sales outlet or established for this purpose, public collection points for free. Details regulates the respective country's law. The symbol on the product, the instruction manual and / or the packaging draws attention to those provisions. With this kind of material separation, recovery and disposal of waste (rechargeable) batteries you make an important contribution to protecting our environment.

D-34000-1998-0099

9.3 Packaging

Packaging can be disposed of free of charge at the suitable collection points - paper belongs in paper bins, plastics belong in yellow sacks and glass belongs in used glass bins.

DE4535302615620

10 EU Declaration of conformity

With the CE sign Goobay®, a registered trademark of the Wentronic GmbH ensures, that the product is conformed to the basic European standards and directives.

11 Symbols used

For indoor use only IEC 60417- 5957
Alternating current IEC 60417- 5032		~
Direct current IEC 60417- 5031		=
Recycling ISO 7001 - PI PF 066
Class II equipment IEC 60417- 5172
