Picasso - Projector Prixton - Free user manual and instructions

Brand	Prixton
Model	Picasso
Category	Projector
Product type	Portable multimedia projector
Power supply	AC power adapter (AC IN)
Input sources	HDMI (x2), AV, USB, Micro SD
Wireless connectivity	Wi-Fi (Miracast), Bluetooth audio
Native resolution	Not specified (estimated: 800x480 pixels)
Brightness	Not specified (estimated: 2000 lumens)
Projection distance	Optimal: 3.5 m for 106 inches
Keystone correction	Manual (wheel)
Focus	Manual (wheel)
Remote control functions	On/Off, navigation, volume, source, zoom, flip
Bluetooth	Only for audio output (speaker, headset)
Warranty	2 years
Box contents	Projector, remote control (batteries not included), AC adapter, lens cap, manual
Maintenance	Clean the lens with a soft cloth; do not use solvents
Safety	Do not look directly at the beam; avoid blocking ventilation
Spare parts	Remote control, AC adapter, lens cap

Frequently Asked Questions - Picasso Prixton

How to turn the Prixton Picasso projector on and off?

Press the On/Off button on the remote control or the POWER button on the projector. Hold to turn off.

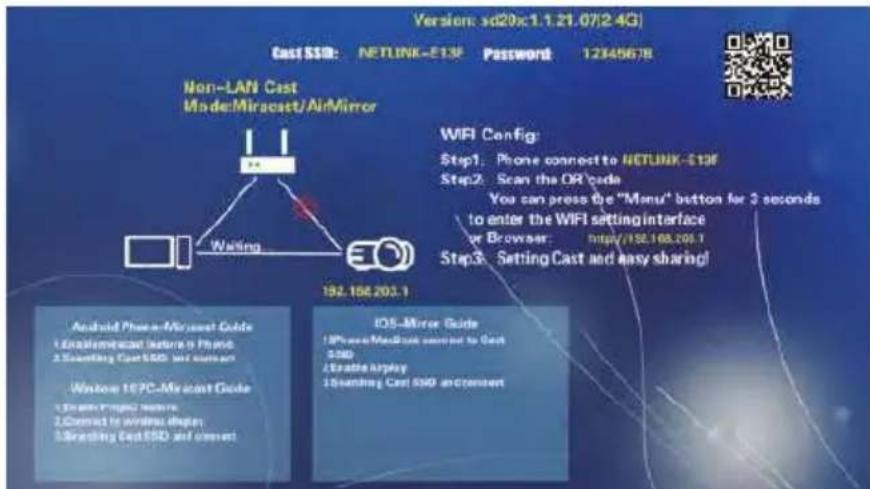

How to connect a smartphone to the projector?

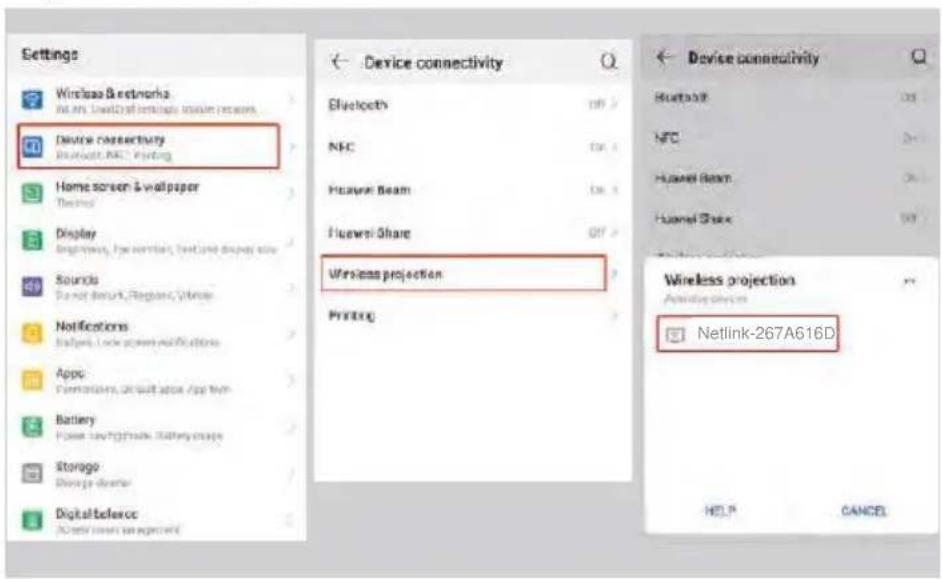

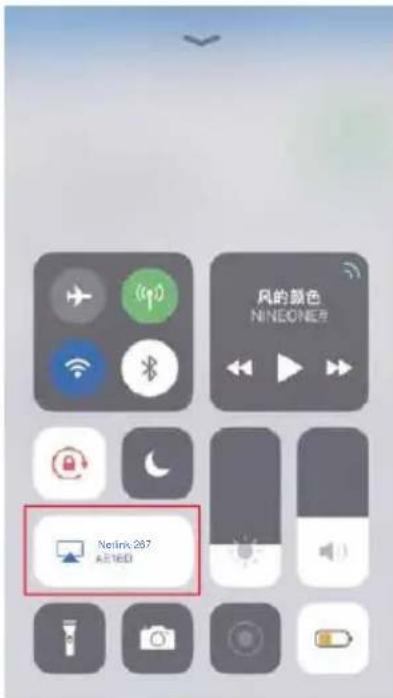

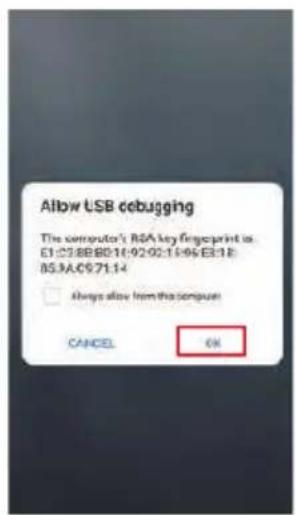

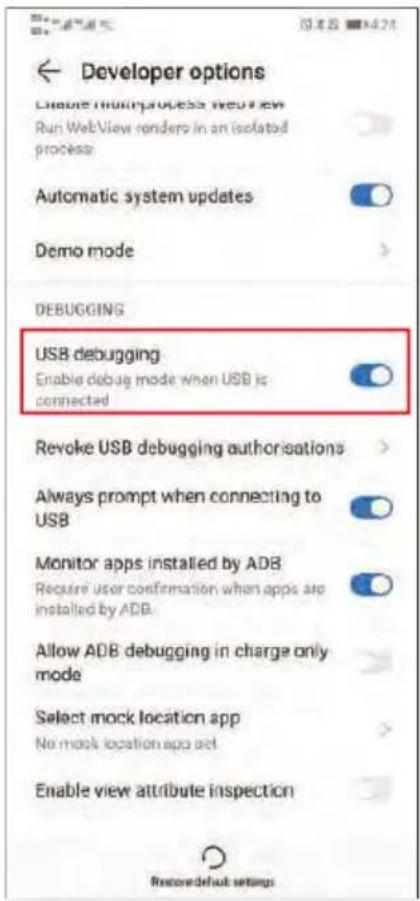

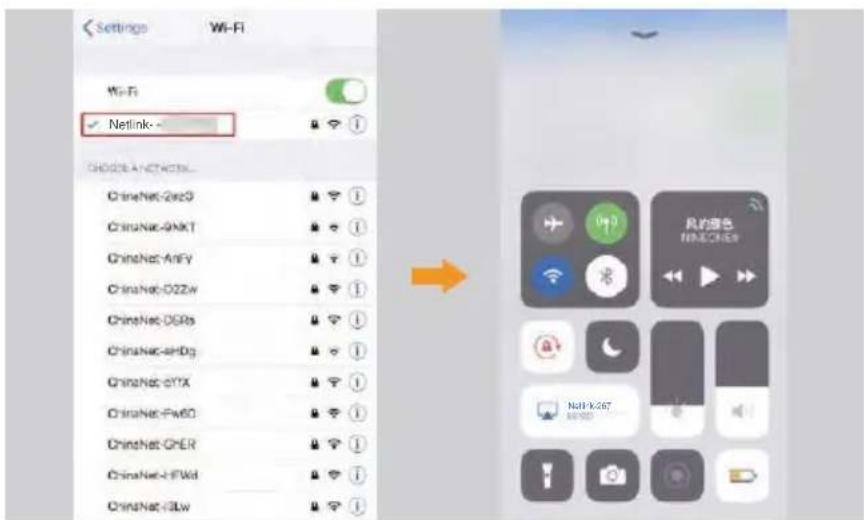

For a wireless connection, press SOURCE, select Screen Mirroring, then enable screen sharing on your phone. For iOS, use AirPlay; for Android, use Miracast or Smart View. A USB cable connection is also possible.

How to adjust focus and keystone distortion?

Turn the focus wheel (FOCUS ADJ.) to get a sharp image. Use the keystone correction wheel (TRAPEZOIDAL ADJ.) to straighten the image if it is distorted.

The projector does not turn on, what to do?

Check that the AC adapter is properly plugged in and the outlet works. Make sure the lens cap is removed. If the problem persists, contact Prixton customer service.

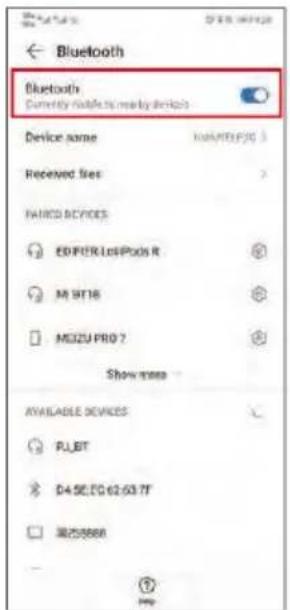

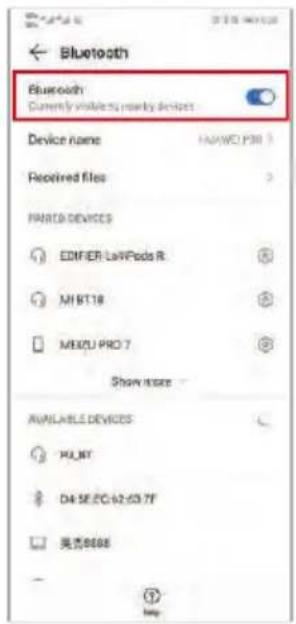

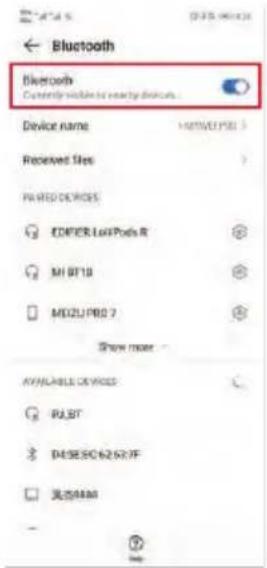

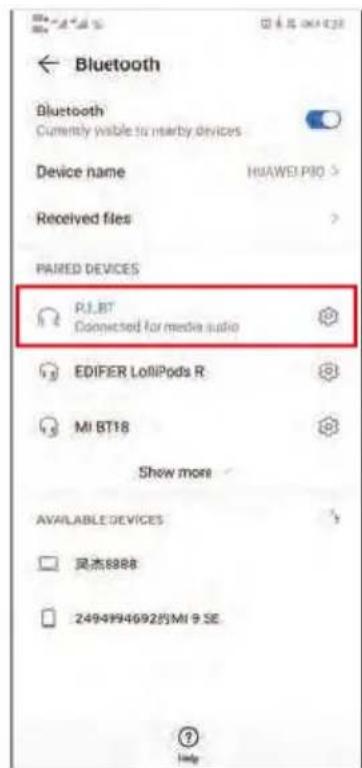

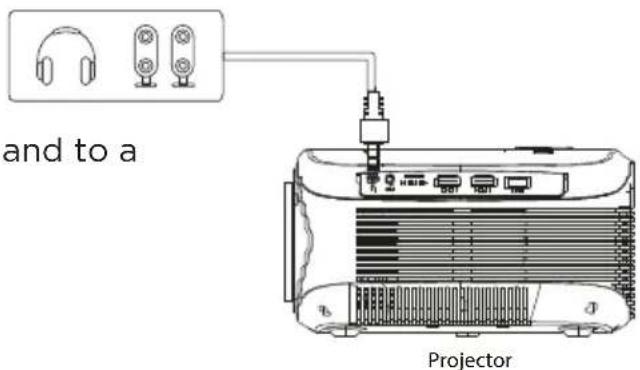

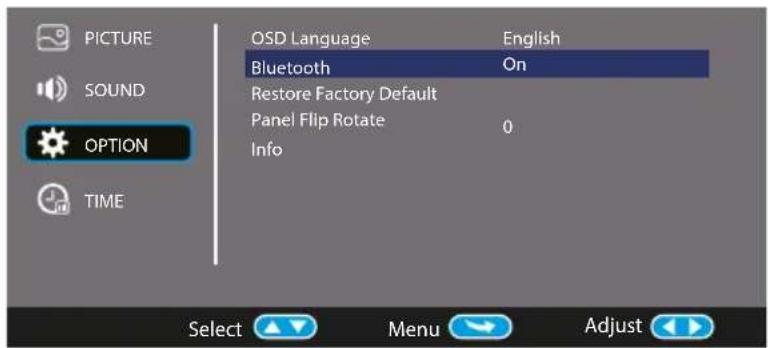

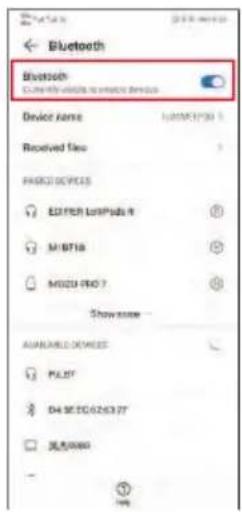

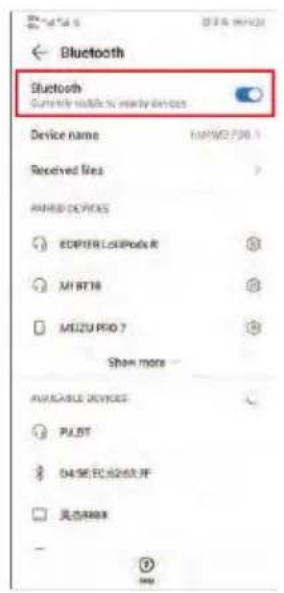

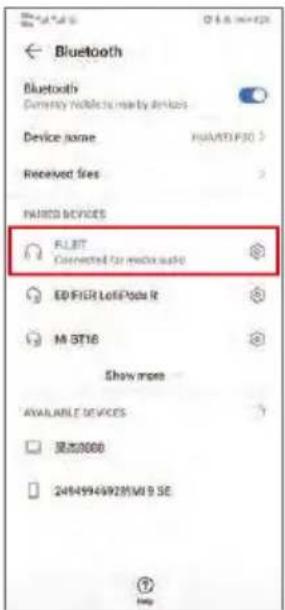

How to use the Bluetooth function?

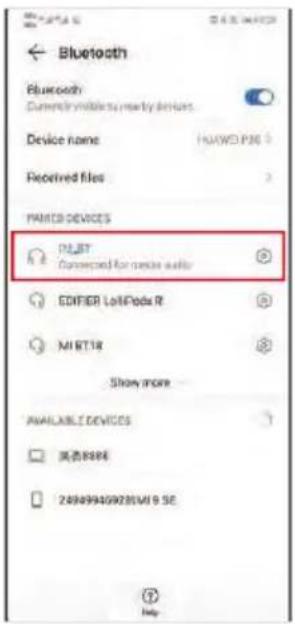

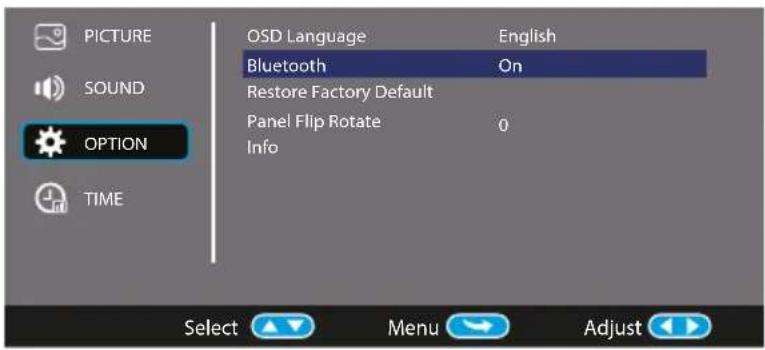

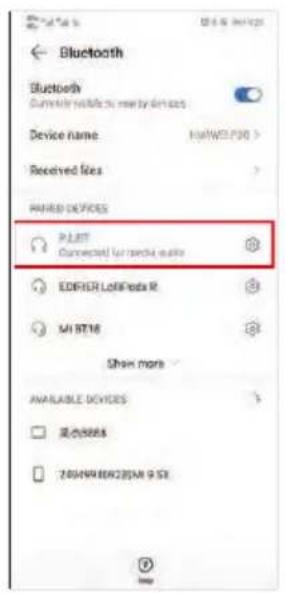

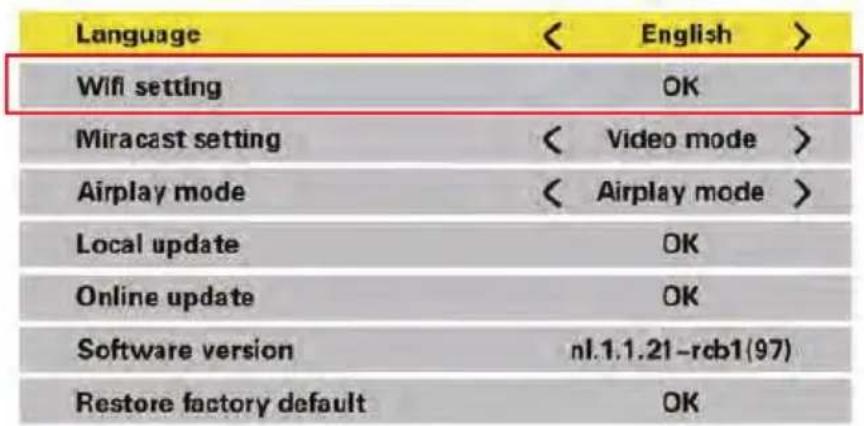

Activate Bluetooth in the projector settings (menu). The projector will search for nearby audio devices. Select your Bluetooth speaker or headset. Note: this function is only for audio output, not for mirroring.

What image adjustments are available?

In the menu, you can adjust Picture Mode (Standard, etc.), Contrast, Brightness, Sharpness, Tint, Temperature, and Aspect Ratio.

How to clean the projector lens?

Use a soft, dry cloth specifically designed for optics. Never use chemicals or liquids. Avoid touching the lens with your fingers.

Can I use a USB drive or SD card?

Yes, insert a USB drive into the USB port or a Micro SD card into the designated slot. Then, select Media Player as the source to play photos, music, or videos.

How to install the projector on the ceiling?

You need to purchase a compatible projector mount (not included). Attach the mount to the ceiling, then screw the projector onto the mounting holes (screws not included). Follow the mount's instructions.

What is the recommended projection distance?

The optimal distance is about 3.5 meters to get a 106-inch diagonal image. You can adjust according to the desired screen size.

USER MANUAL Picasso Prixton

Line drawing of a projector device with control panel and lens (no text or symbols)

PROYECTOR

PROJECTOR

INDEX

ES 3

EN 21

FR 38

IT 51

DE 64

PT 74

NL 86

Precaución:

Illustration of a remote control with a coiled cable, a monitor, and a battery (no text or symbols)

Two identical line drawings of a device front panel with buttons and indicators, no text or symbols present.

Line drawing of a meeting with a speaker at the front and a projection screen in the background (no text or symbols)

Illustration of a meeting room with a projection screen and audience (no text or symbols)

Illustration of a meeting scene with a group of people seated at a table facing a large screen (no text or symbols visible)

Illustration of a meeting scene with a speaker at the front and a projection screen on the right (no text or symbols)

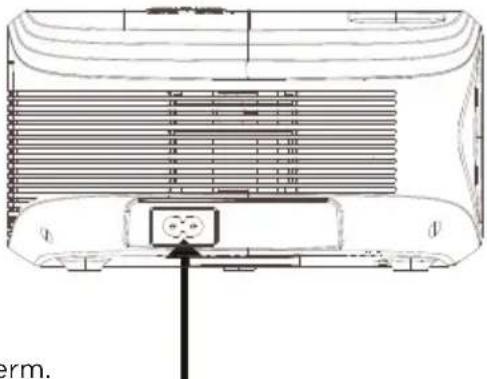

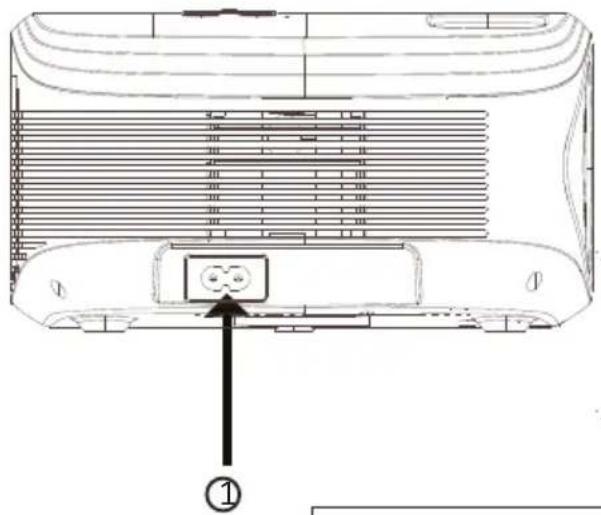

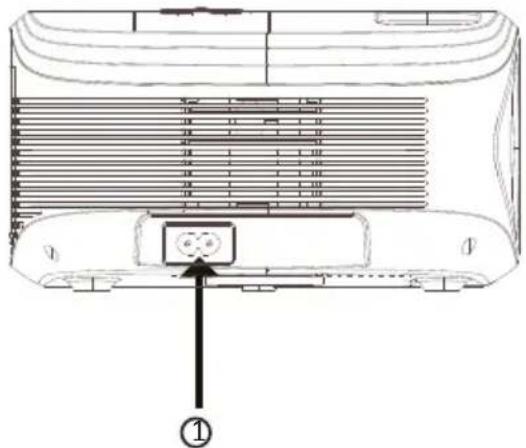

Install Power Adapter

As shown in Picture ①, connect the projector and the power source with the includde AC Power cable.

Conexión de multimedia

Usage of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

This unit should not be adjusted or repaired by anyone except qualified service personnel.

Precautions before use:

KEEP THESE INSTRUCTIONS IN MIND:

1. Do not use this device near water.

2.Clean only with a slightly damp cloth.

3.Do not cover or block any ventilation openings. When placing the device on a shelf, leave 5 cm (2") free space around the whole device.

1. Install in accordance with the supplied user manual.

5.* Don't step on or pinch the power adaptor. Be very careful, particularly near the plugs and the cable's exit point. Do not place heavy items on the power adaptor, which may damage it. Keep the entire device out of children's reach! When playing with the power cable, they can seriously injure themselves.

6.* Unplug this device during lightning storms or when unused for a long period.

1. Keep the device away from heat sources such as radiators, heaters, stoves, candles and other heat-generating products or naked flame.

2. Avoid using the device near strong magnetic fields.

3. Electrostatic discharge can disturb normal usage of this device. If so, simply reset and restart the device following the instruction manual. During file transmission, please handle with care and operate in a static-free environment.

4. Warning! Never insert an object into the product through the vents or openings. High voltage flows through the product and inserting an object can cause electric shock and/or short circuit internal parts. For the same reason, do not spill water or liquid on the product.

11.Do not use in wet or moist areas such as bathrooms, steamy kitchens or near swimming pools.

12.Do not use this device when condensation may occur.

1. Although this device is manufactured with the utmost care and checked several times before leaving the factory, it is still possible that problems may occur, as with all electrical appliances. If you notice smoke, an excessive build-up of heat or any other unexpected phenomena, you should disconnect the plug from the main power socket immediately.

2. This device must operate on a power source as specified on the specification label. If you are not sure of the type of power supply used in your home, consult your dealer or local power company.

15.* The socket outlet must be installed near the equipment and must be easily accessible.

16.* Do not overload ac outlets or extension cords. Overloading can cause fire or electric shock.

17.* Devices with class 1 construction should be connected to a main socket outlet with a protective earthed connection.

18.* Devices with class 2 construction do not require a earthed connection.

1. Keep away from rodents. Rodents enjoy biting on power cords.

20.* Always hold the plug when pulling it out of the main supply socket. Do not pull the power cord. This can cause a short circuit.

1. Avoid placing the device on any surfaces that may be subject to vibrations or shocks.

2. To clean the device, use a soft dry cloth. Do not use solvents or petrol based fluids. To remove severe stains, you may use a damp cloth with dilute detergent.

3. The supplier is not responsible for damage or lost data caused by malfunction, misuse, modification of the device or battery replacement.

4. Do not interrupt the connection when the device is formatting or transferring files. Otherwise, data may be corrupted or lost.

5. If the unit has USB playback function, the usb memory stick should be plugged into the unit directly. Don't use an usb extension cable because it can cause interference resulting in failing of data.

6. The apparatus shall not be exposed to dripping or splashing and make sure that no objects filled with liquids, such as vases, are placed on or near the apparatus.

27.* To completely disconnect the power input, the mains plug of the apparatus shall be disconnected from the mains, as the disconnect device is the mains plug of apparatus.

1. If the unit works with battery, Battery shall not be exposed to excessive heat such as sunshine, fire or the like.
2. Attention should be drawn to the environmental aspects of battery disposal.
3. The apparatus can only be used in moderate extremely cold or climates warm environments should be avoided.
4. The rating label has been marked on the bottom or back panel of the apparatus.
5. This device is not intended for use by people (including children) with physical, sensory or mental disabilities, or a lack of experience and knowledge, unless they're under supervision or have received instructions about the correct use of the device by the person who is responsible for their safety.
6. This product is intended for non professional use only and not for commercial or industrial use.
7. Make sure the unit is adjusted to a stable position. Damage caused by using this product in an unstable position or by failure to follow any other warning or precaution contained within this user manual will not be covered by warranty.
8. Never remove the casing of this apparatus.
9. Never place this apparatus on other electrical equipment.
10. Do not use or store this product in a place where it is subject to direct sunlight, heat, excessive dust or vibration.
11. Do not allow children access to plastic bags.
12. Only use attachments/accessories specified by the manufacturer.
13. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as the power supply cord or the plug, when liquid has been spilled or objects have fallen into the apparatus, when the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
    41.*Do not use a damaged power cord or plug or a loose outlet. Doing so may result in fire or electric shock.
14. Prolonged exposure to loud sounds from personal music players may lead to temporary or permanent hearing loss.

Installation:

Unpack all parts and remove protective material.

*Do not connect the unit to the mains before checking the mains voltage and before all other connections have been made.
*These instructions are related only to products using power cable or AC power adaptor.

Packing Included:

Usage of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

This unit should not be adjusted or repaired by anyone except qualified service personnel.

Diagram showing a remote control with a coiled cable, a battery pack, and a screen (no text or symbols present)

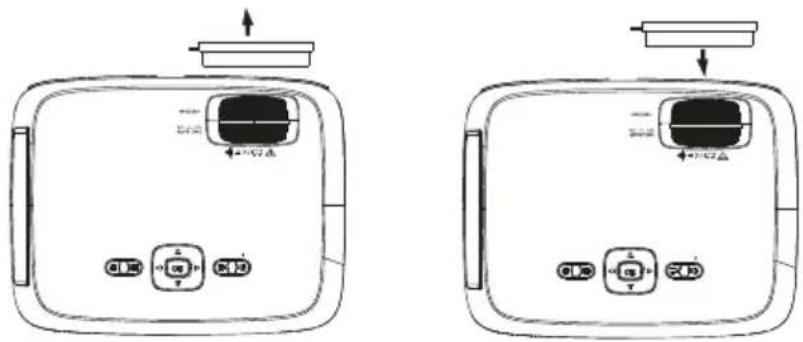

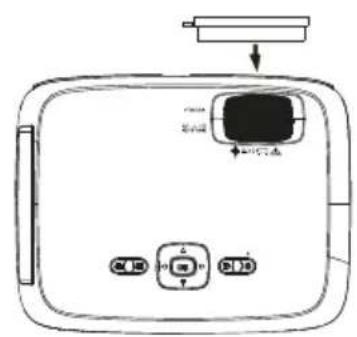

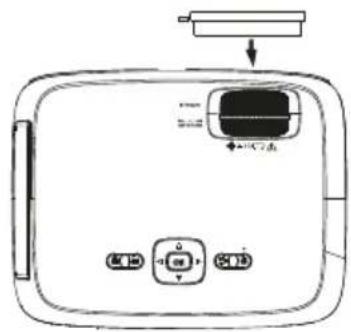

Remove & close the lens cover:

Your projector can be installed in four different configurations:

-Remove the lens cover before using
-Close the lens cover when unit not using

Placing your projector:

Your projector can be installed in four different configurations:

Front Table:

Select this location with the projector placed near the floor in front of the screen. This is the most common way to position the projector for quick setup and portability.

Line drawing of a meeting with a panel of people seated at a table facing a presentation screen (no text or symbols present)

Front Ceiling:

Select this location with the projector suspended upside-down from the ceiling in front of the screen.

NOTE: A projector mount is required to install the projector in a ceiling.

Illustration of a meeting room with a projection screen and seated attendees (no text or symbols)

Rear Table:

Select this location with the projector placed near the floor behind the screen.

NOTE: That a special rear projection screen is required.

Illustration of a meeting scene with participants seated and a large triangular projection on the right (no text or symbols)

Rear Ceiling:

Select this location with the projector suspended upside-down from the ceiling behind the screen.

NOTE:

A projector mount is required to install the projector in a ceiling. A special rear projection screen is required.

Line drawing of a meeting room with a speaker at the front and a projection screen showing an audience (no text or symbols)

To reduce image distortion:

It is recommended to move the projector as close to center of screen.

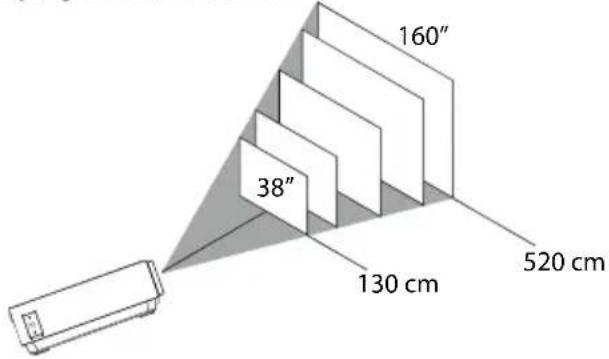

Distance between the projector and screen:

Measure the distance between the projector and where you want to position the screen. This is the projection distance.

Optimal distance: 3,5 m 106"

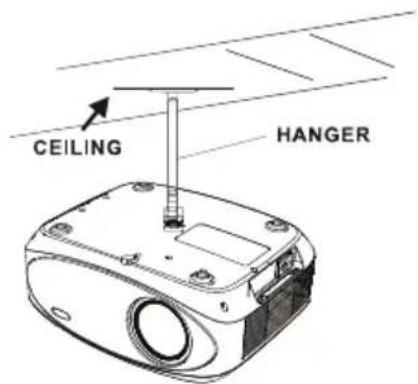

Placing your projector on ceiling:

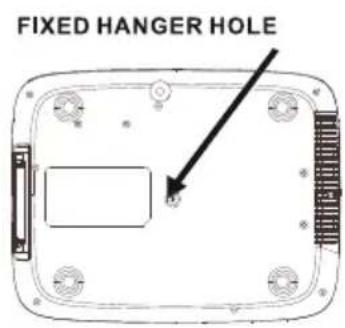

When installing the projector in the ceiling, please purchase a projector mount recommended by an installation professional and follow the instructions that come with the mount.

Before installing the projector in the ceiling, please check to make sure the ceiling structure can support the weight of the projector and the mount. If in doubt, please ask the advice from an installation professorial.

NOTE: Projector mount and screw(s) not included

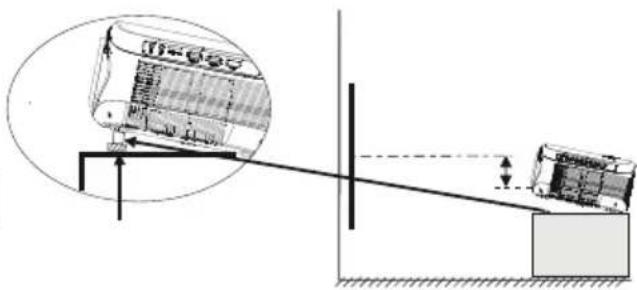

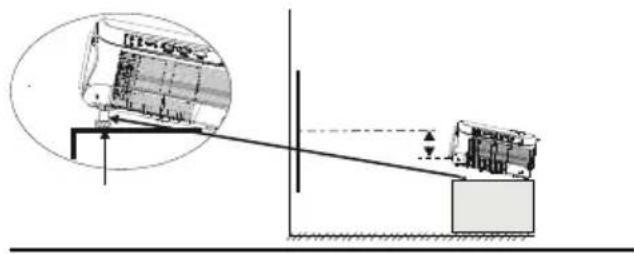

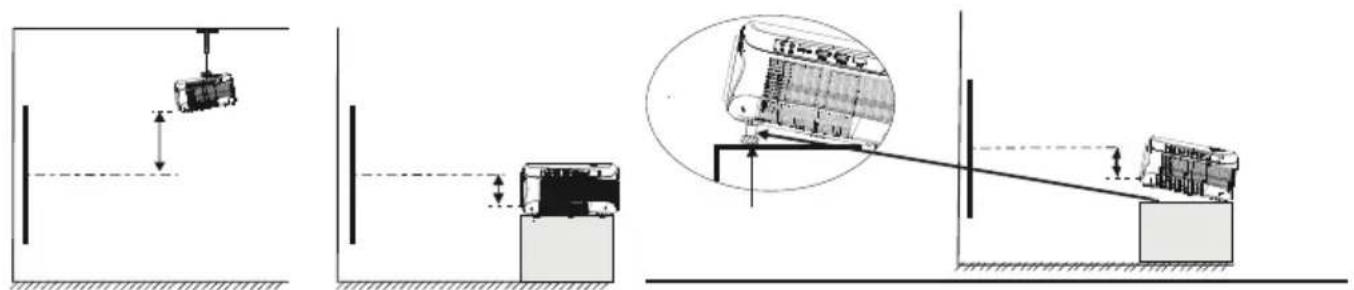

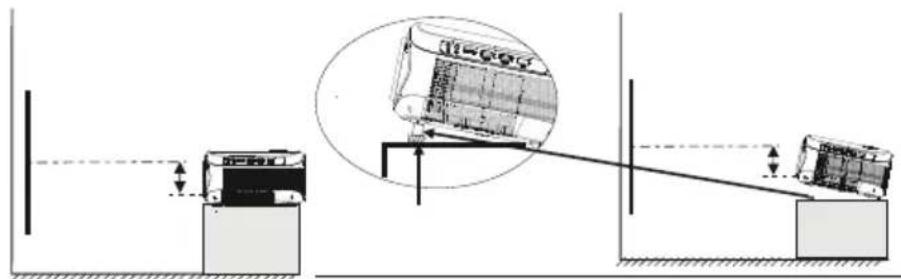

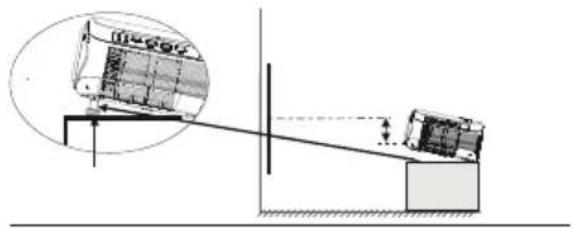

Adjust the vertical location:

Follow below picture to adjust the vertical location.

Technical diagram showing three mechanical setups with a crane lifting a load, and a magnified inset of a device mounted on a platform (no text or symbols present)

Adjust the focus and keystone

Follow below picture to adjust the focus and trapezoidal screen.

Diagram of a device rear panel with ports and an arrow pointing to a central component (no text or symbols)

Adjust the focus by turning the knob while observing the image pixels near the center of the screen. Optimal focus is obtained when the pixels are clearly visible. Depending on the projected screen size, the focus near the screen edges may be less sharp than the screen center.

Keystone image is created when the projector beam is projected to the screen in an angle.

Keystone correction will restore the distorted image to a rectangular or square shape.

Controls of remote:

Power

Press to power ON. Press and hold to power OFF

Previous / Next

Press to skip between chapters or tracks

Stop

Press to stop playback

Flip

Press to flip display image 180°

Play/Pause

Press to play or pause an individual

chapter or track

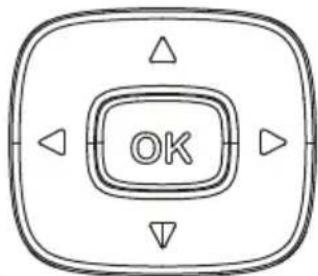

Arrows/OK

Press to navigate and confirm selections in

Settings and other menus

Menu

Press to access projector Settings

Go To/Number Keypad

Press to enter specific chapter or track numbers

Use Play button to begin playing

Mute

Press to mute volume

Back / Fwd

Press to search through an individual chapter or track

VOL+/VOL-

Press to adjust audio level

Source

Press to select media source (AV, PC, HDMI, MEDIA)

Exit

Press to exit menus

Zoom

Press to zoom display image in or out

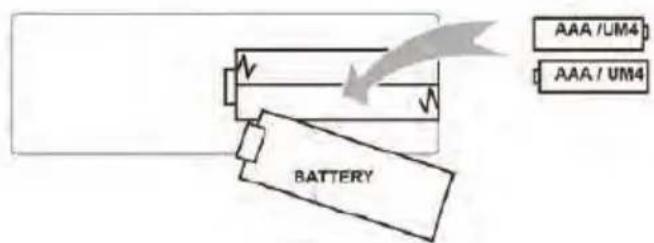

Install / Remove battery of remote

Remove the battery compartment cover on the back of your remote by carefully sliding to open.

The battery cover can then be lifted away. Fit the correct batteries (2 X AAA batteries not included), referring to the polarity markings. Finally, replace the cover.

NOTES:

Batteries shall not be exposed to excessive heat such as sunshine, fire

Be sure that the batteries are installed polarity correctly.

Only same or equivalent type batteries as recommend are to be used.

Do not dispose of batteries in fire, battery may explode or leak. Do not try to recharge a battery

Do not mix old and new batteries.

Do not mix alkaline, standard (carbon-zinc), or rechargeable (ni-cad, ni-mh, etc) batteries

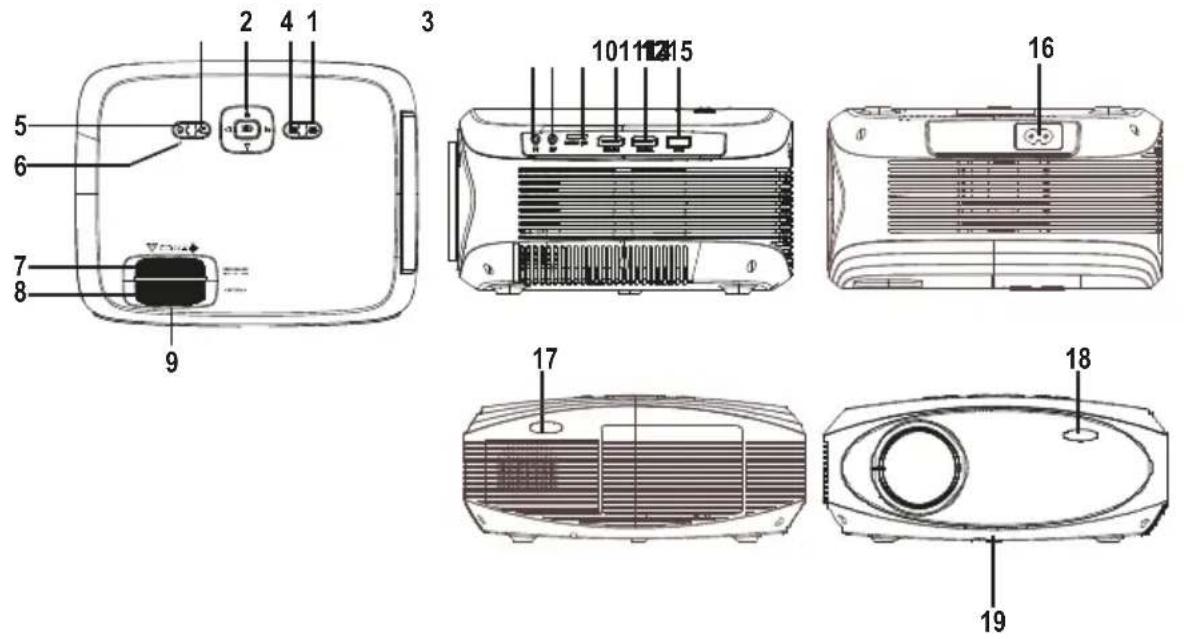

Controls of projector:

1. EXIT
2. NETVIGATOR ✿ buttons
3. SOURCE
4. MENU
5. POWER
6. Power On Indicator
7. TRAPEZOIDAL ADJ. Knob
8. FOCUS ADJ. Knob
9. LENS

10. EARPHONE Jack

11. AV OUT Jack

12. Micro SD Card
13. HDMI Port 1
14. HDMI Port 2
15. USB Port
16. AC IN Jack
17. IR Window (Rear Side)
18. IR Window (Front Side)
19. ANGEL ADJ. Knob

Main operation:

Controls

Source

Press to change media source mode.

Menu

Press to access on-screen menu(s) and options.

Arrows/OK

Exit

Press to return to a previous page or setting in the on-screen menu(s).

Power

Press to power on the projector.

Press and hold to power OFF.

Press to navigate on-screen menu(s) and make selections.

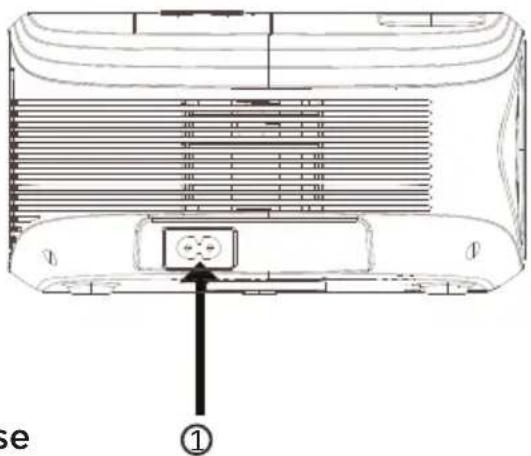

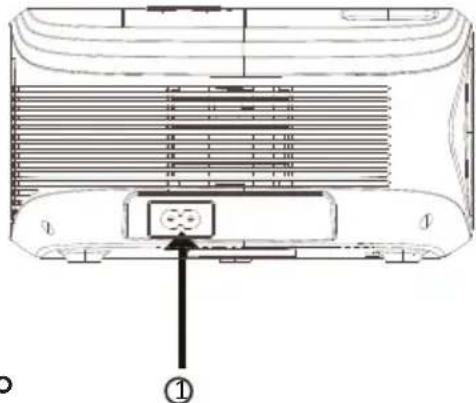

Install Power Adapter

As shown in Picture ①, connect the projector and the power source with the includde AC Power cable.

Connection Instructions

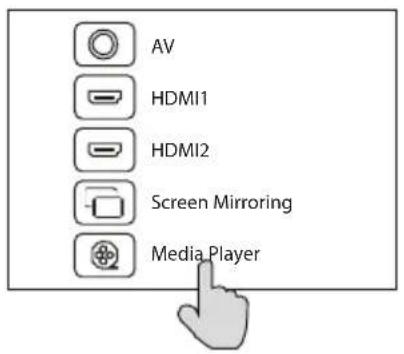

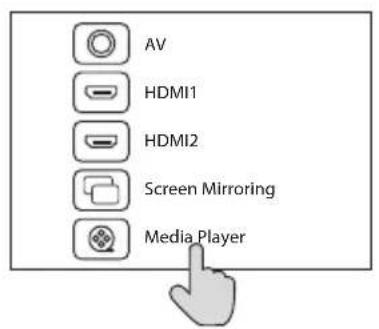

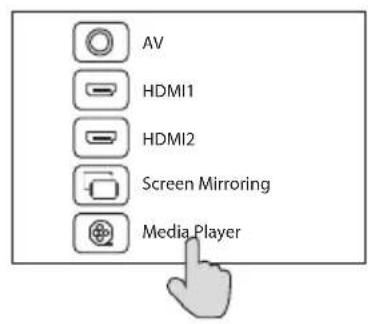

Select an input source

You will see the picture below when the projector is turned on.

You can choose between the different input sources (AV / HDMI1 / HDMI2 / Screen Mirroring/ Media Player) by pressing the

" Source " button at the projector touch panel, or remote controller.

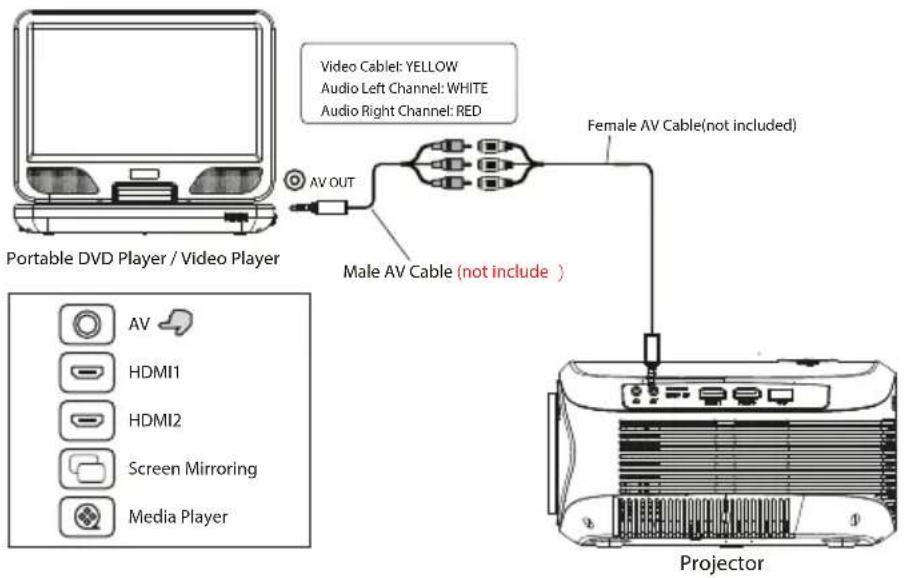

You can connect different devices with the projector, according to the following connection instructions.

Interface

Source

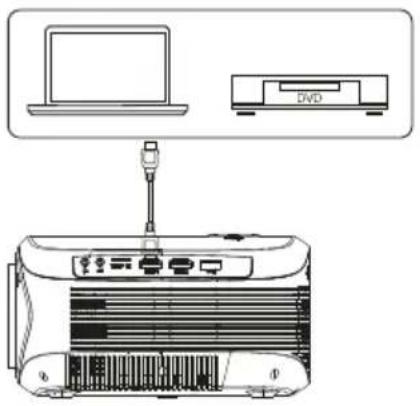

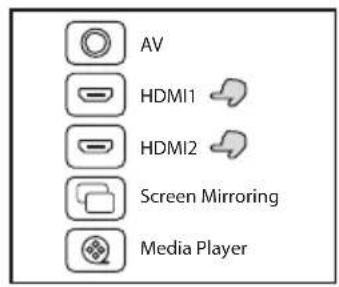

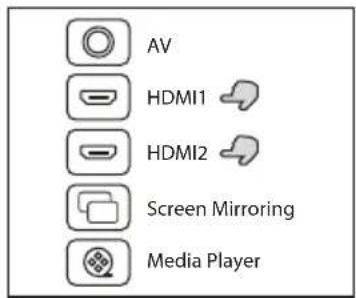

HIMI device connection

The projector can connect to devices with HDMI input function. It is compatible with laptops, DVD players, Blu-ray players, Chromecast, TV Stick, etc. An HDMI cable not is included. The F-405 projector is equipped with 2 HDMI input ports,

①If you connect your devices to the projector via "HDM 1" port, please choose "HDMI 1" input source.
②If you connect via the "HDMI 2" port, please choose the "HDMI 2" input source.

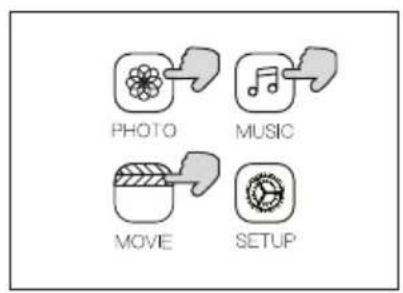

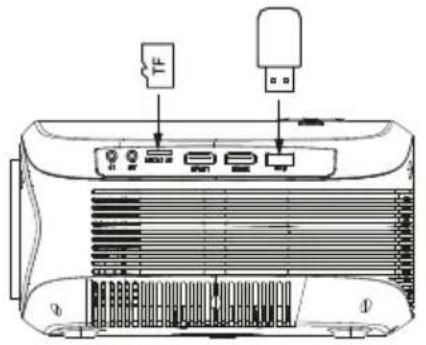

Multimedia connection

Insert USB / Micro SD card ( TF card ) into the corresponding slots (as shown in the picture). Choose Media source, Select " Video ", " Music ", " Picture " to enter the content you want to play.

AV video device connection

Connect the projector AV interface with the AV cable, as is shown in the pictures.

Using Bluetooth playback

Audio devices connection

The projector can connect to a headphone and to a wired audio system using a 3.5mm jack (not include)

Bluetooth On/Off	Bluetooth is OFF by default when the projector first powers ON
Pairing to Bluetooth Wireless Speaker	Turn on Bluetooth. The projector will begin searching for a nearby Bluetooth device, choose one and connect successfully.
	When successfully connected, the projector will display the Bluetooth name on the top right portion of the Main Menu screen, and ou will be heard through the Bluetooth receiver
Attention
The Bluetooth function only supports audio devices. Smart phone, tablet, or computers can not connect to the projector ! ! !
About automatically connect. After the initial pairing, The device will keep the pairing status all the time when Bluetooth functions for both devices are opened. To ensure that you can hear from the projector next time, we suggest that turn off the Bluetooth function before the turn off the projector.
When you try to connect a new blue tooth speaker please turn off the previous speaker /headphone and re-search your new Bluetooth device for connecting.

Connect to Smartphone/Pad

Connection guide	Wireless Connection	iOS (Two Methods)	WiFiW
			WiFiout W
		Android (Two Methods)	WiFiW
			Without WiFi
	Wired Connection	iOS(One Method)	USB to Lightning Cable
		Android(One Method)	Usb to Micro USB/Type C Cable(Need to Download the APP)
Please check your wireless environment first and then connect your device with the correct way by below introduction.
NOTE: Depend of WLAN environment, it is normal that the process to loading the IP address or Scan QR code may take some seconds, please be patient!

There are three types of connection for IOS system. You can choose one of these connections.

Dear user,

In order to establish the Wireless or USB connection, press the button Source in the remote and select the option "Screen Mirroring". Throughout the manual this option is referred to as "Miracast".

Wired Screen Mirroring Connection

1 Press the signal source key "S" of the projector or the remote control and select "Miracast" to enter the interface.

② Plug an original USB charging cable into the USB port of this projector.
3 Please select "Trust this device" when the iPhone asks "Trust" or "Don't trust", and enter the Your iPhone password to connect.

2

Wireless Screen Mirroring Connection --Requires Cellular Data Traffic Transfer

1 Press the signal source key of the projector or the remote control and select "Miracast". (Picture Guidelines Refer to the first step of ios system wired connection)
2 Open the wifi in the Phone settings, search and select projector hotspot NETLINK -***, enter password to connect (Note: The hotspot name is on the screen "SSID: NETLINK -**, the password is "*******". If the phone is disconnected from the projector wifi at this point, reconnect the phone to the projector hotspot)
3 Slide the phone interface from the bottom up to enter the control central (Full-screen phones slide down from above, those with home button slide up from below), then open "Screen Mirroring". Then Search and select the projector device (Note: The name of the projector device is NETLINK -***, click to connect.

Wireless WIFI Connection — Wifi Transfer

1 Press the signal source key of the projector or the remote control and select "Miracast".
2 Long press the "Menu" button on the projector or remote control, click wifi setting, select your home wireless network in the projector display interface, enter the password.

System Settings

Language	< English >
Wifi setting	OK
Miracast setting	< Video mode >
Airplay mode	< Airplay mode >
Local update	OK
Online update	OK
Software version	nl.1.1.21-rcb1(97)
Restore factory default	OK

3 Open the phone WiFi settings, connect to your home wireless network
4 Slide the phone interface from the bottom up to enter the control central (Full-screen phones slide down from above, those with home button slide up from below), then open "Screen Mirroring". Then search and select the projector device. (Note: the name of the projector device is NETLINK -***), click to connect.

There are two types of connection for Android system. You can choose one of these connections.

Dear user,

In order to establish the Wireless or USB connection, press the button Source in the remote and select the option "Screen Mirroring". Throughout the manual this option is referred to as "Viracast".

Wired Screen Mirroring Connection

1 Press the signal source key of the projector or the remote control and select "Miracast".

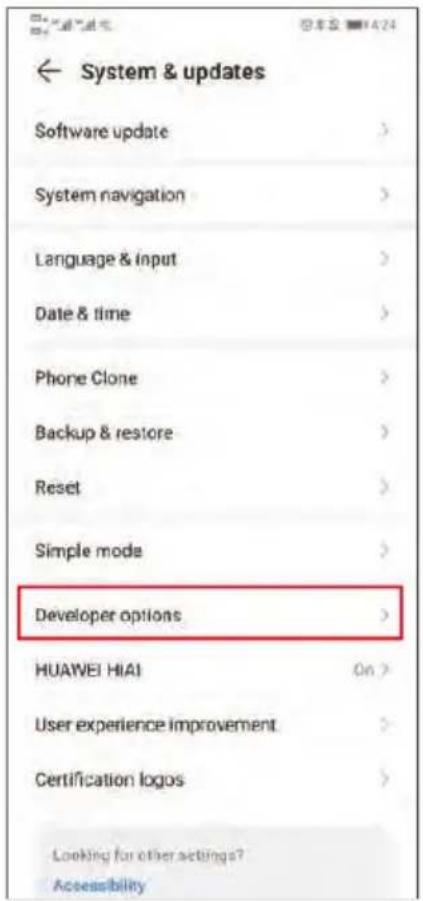

2 Find the developer option, turn on USB debugging function. Keeo the mobile phone awake and connect the USB charging cable.

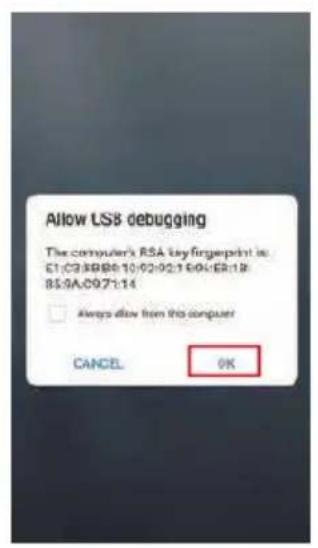

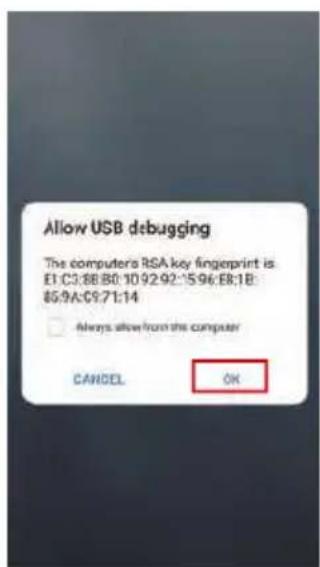

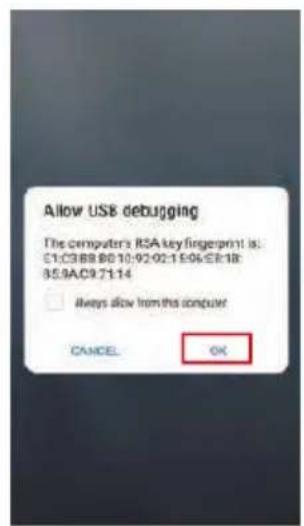

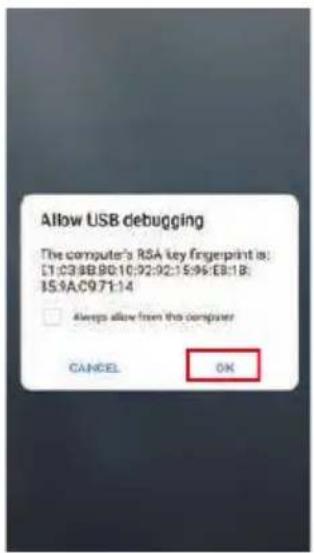

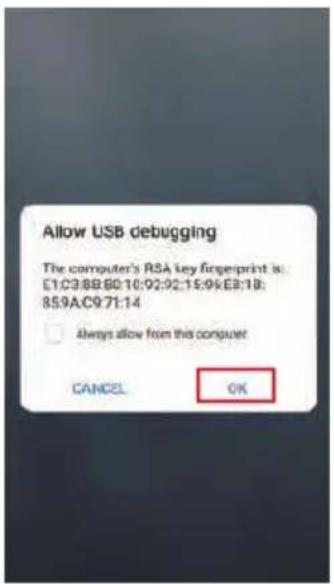

3 After plugging in the data cable, the phone will pop up an interface, select "transfer files", then click "ok" to achieve the screen mirroring.

4 At this time, the voice is still played via the mobile phone. If you need the sound to play on the projector, you can turn on the Blue-tooth of your mobile phone and choose to connect the projector Bluetooth "PJ_BT" device.

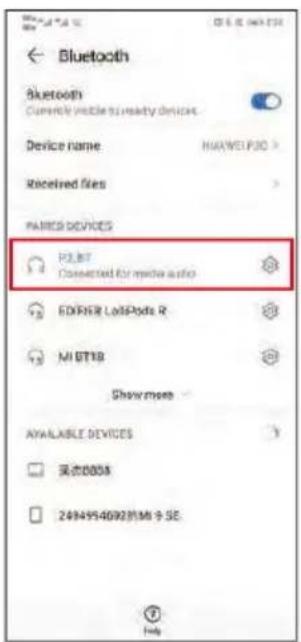

(Note: When connecting to Bluetooth for the first time, if the projector still has no sound, please unplug the data cable and connect again)

Wireless Screen Mirroring Connection

1 Press the signal source key of the projector or the remote control and select "Miracast". (Picture Guidelines Refer to the first step of ios system wired connection)
Since different brands of Android phones have different settings, find the screen share and connect the projector. Samsung phones find "Smart View", Huawei phones find "Multi-screen". Then Search and select the projector device (Note: The name of the projector device is NETLINK -**), click to connect.

Using Projector Menu 1.0

Press ≡ button to enter projector menu. Press again to previous status.

Use 🔒 buttons to select manual page.

This manual showed on right upper of view screen.

Picture Mode

Select Vivid, User (custom), Soft, or Standard

Contrast, Brightness, etc

Set Picture Mode to "User" to adjust these settings

Color Temperature

Select Warm, Cool, or Medium.

Aspect Ratio

Select 16:9, 4:3, or Auto

Noise Reduction

Select Off, Low, Middle, High or Default

Screen

Picture Mode	Standard
Contrast	50
Brithness	50
Color	50
Sharpness	50
Tint	50
Color Temperature Medium
Aspect Ratio	Auto
Noise Reduction	Middle
Screen

Color temper... (temperature)
Customer define	Parameter
red	0-100
blue	0-100
green	0-100

Aspect Ratio
4:3	The signal in a 4:3 aspect ratio projection image
16:9	The signal in a 16:9 aspect ratio projection image

Using Projector Menu 2.0

Press ≡ button to enter projector menu. Press again to previous status.

Use 🔊 buttons to select manual page.

This manual showed on right upper of view screen.

Sound Mode

Select Music, Movie, User (custom), Sports, or Standard

Treble, Bass

Set Sound Mode to "User" to adjust these settings

Balance

Adjust the audio balance.

Sound Mode	Standard
Treble	50
Bass	50
Balance	0
Auto Volume	Off

Sound Mode - User	Parameter
Treble	0-100
Bass	0-100

Using Projector Menu 3.0

Press ≡ button to enter projector menu. Press again to previous status.

Use 🔊 buttons to select manual page.

This manual showed on right upper of view screen.

OSD Language

Select different language, Follow below figure.

Bluetooth

Select ON or OFF.

Display the unit information as below.

Using Projector Menu 4.0

Press ≡ button to enter projector menu. Press again to previous status.

Use 🔒 buttons to select manual page.

This manual showed on right upper of view screen.

Clock-- --

Select clock to Day, Month, Year, Hour, and Minutes.

Off Timer

Select turn off timer to Day, Hour, and Minutes.

On Timer

Select turn on timer to Day, Hour, and Minutes.

Sleep Timer

Select sleep timer to Off, 10min, 20min, 30 min, 60min, 90min, 120min, 180min, 240min

Auto Sleep

Select auto sleep function to Never, 4 hour, 6 hour, 8 hour.

Troubleshooting

Before resorting the maintenance service, please kindly check by yourself with the following chart.

No Image is Projected or a "No Signal" message is displayed

1.Power light is on. If it is not on, check the projector is plugged into the mains, that the socket is switched on, and then press the power button on the projector.2.Check the lens cover has been removed.3.Check the cables are securely attached and installed as per the User Manual.4.The image source may not be set correctly. Press the Source button on the Control Panel or the Remote, to select the correct setting.5.Check in the Menu section under Video input signal to make sure that has been set correctly.

The Lamp (Bulb) switches off after a period of time	Is the warning light indicator red? If so, the projector is overheating which turns the light off automatically.1.Leave the projector to cool for a few moments.2.Once cooled, check nothing is blocking the ventilation vents.3.Check the air filter is clean and clean if necessary.4.Turn on the projector.If the issue persists please contact your support provider for further assistance.
The Image is wider at the top/bottom of the screen	This is called keystone and is due to the projection angle not being perpendicular to the screen. To correct use the projectors inbuilt keystone function to adjust the image.
Spots on the screen	Using a vacuum cleaner to clean the lens. If cleaning doesn't resolve things, please contact your support provider for further assistance.
The image brightness has faded	This could possible be caused by the ambient light in the room. If not ,the chances are that you need to replace the lamp (bulb).

Disclaimer

Updates to Firmware and/or hardware components are made regularly. Therefore some of the instruction, specifications and pictures in this documentation may differ slightly from your particular situation. All items described in this guide for illustration purposes only and may not apply to particular situation. No legal right or entitlements may be obtained from the description made in this manual.

Disposal of the Old Device

This symbol indicates that the relevant electrical product or battery should not be disposed of as general household waste in Europe. To ensure the correct waste treatment of the product and battery, please dispose them in accordance to any applicable local laws of requirement for disposal of electrical equipment or batteries. In so doing, you will help to conserve natural resources and improve standards of environmental protection in treatment and disposal of electrical waste (Waste Electrical and Electronic Equipment Directive).

Warranty policy

This product is guaranteed for 2 years from the date of purchase. When you have a problem that you can not solve, you must access the web www.prixton.com and click on the contact option to send us your assistance form.

These technical and electrical specifications are those of typical units and may be changed without prior notice in order to provide improved equipment.

Simplified eu declaration of conformity

We, La Trastienda Digital located in Avenida Cervantes 49, módulo 25, Basauri 48970, Bizkaia hereby declare that the following goods, imported and selling at European market:

BRAND	MODEL NAME DESCRIPTION		CATEGORY
PRIXTON	PICASSO	PROJECTOR	IMAGE

Are in compliance with the EC Council Directive of 2014/53/EU (EM DIRECTIVE) and harmonized standards and with the board of the 16th of April 2014.

The complete text of the UE Declaration of conformity is available anytime at this website address:

www.prixton.com

LA TRASTIENDA DIGITAL

Diagram showing a remote control with a coiled cable, a power plug, and a separate monitor (no text or symbols present)

Line drawing of a meeting with a panel of people seated at a table facing a stage (no text or symbols)

Line drawing of a meeting scene with participants seated at a table and a large triangular panel on the right (no text or symbols)

À L'ARRIÈRE, SUR UNE TABLE

Illustration of a meeting with a projection screen and audience (no text or symbols)

Illustration of a meeting scene with a speaker at the front and a projection screen on the right (no text or symbols)

Top-down schematic of a device casing with mounting holes and a black arrow pointing to a component (no text or symbols)

Simple diagram showing a vertical line with a horizontal dashed line and a suspended object above it, no text or symbols present.

Press to change media source mode.

Menu

Press to access on-screen menu(s) and options.

Arrows/OK

Exit

Press to return to a previous page or setting in the on-screen menu(s).

Power

Press to power on the projector.

Press and hold to power OFF.

Press to navigate on-screen menu(s) and make selections.

Install Power Adapter

As shown in Picture ①, connect the projector and the power source with the includde AC Power cable.

Diagram of a computer setup with an attached laptop and DVD unit (no text or symbols visible)

Pure electrical circuit lines without any symbols

Illustration of a meeting with a speaker at the front and a projection screen extending outward (no text or symbols)

FRONTALE SOPRA IL TAVOLO

Illustration of a meeting with a projection screen and audience (no text or symbols)

FRONTALE NEL TETTO

Illustration of a meeting scene with a group of people seated at a table and a large triangular screen in front (no text or symbols visible)

POSTERIORE SOPRA IL TAVO_O

Illustration of a meeting scene with a speaker at the front and a projection screen on the right (no text or symbols)

POSTERIORE SOPRA IL TETTO

Two identical line drawings of a device front panel with buttons and ports, no text or symbols present.

Source Press to change media source mode.

Menu

Press to access on-screen menu(s) and options.

Arrows/OK

Exit

Press to return to a previous page or setting in the on-screen menu(s).

Power

Press to power on the projector.

Press and hold to power OFF.

Press to navigate on-screen menu(s) and make selections.

Install Power Adapter

As shown in Picture ①, connect the projector and the power source with the includde AC Power cable.

Diagram of a computer setup with an open laptop, a CD, and a rear panel showing internal components (no text or labels)

Diagram of a device with headphones connected to a power connector (no text or symbols present)

Projector

Line drawing of a coiled electrical plug with two terminal connectors (no text or symbols)

Two abstract geometric shapes: a rectangular block and a horizontal bar, both without any text or symbols.

Illustration of a meeting with a panel of people seated at a table facing a presentation screen (no text or symbols)

FRONTAL AUF DEM TISCH

Illustration of a meeting with a projection screen and a group of people seated at a table (no text or symbols present)

Illustration of a meeting with a projection screen and audience (no text or symbols)

FRONTAL AN DER DECKE

Illustration of a meeting scene with a speaker at the front and a projection screen on the right (no text or symbols)

Top-down schematic of a device casing with mounting holes and a black arrow pointing to a component (no text or symbols)

Simple line drawing of a mechanical device with downward force arrow and ground level (no text or symbols)

Diagram showing a device positioned above a vertical line with a distance measurement arrow (no text or symbols)

Diagram of a mechanical setup with two blocks on a platform, one with an inset showing a cylindrical component (no text or symbols)

Simple line drawing of a device with a button and indicator lights (no text or symbols)

Simple line drawing of a device rear panel with buttons and a central button (no text or symbols)

1. EXIT
2. NETVIGATOR 🎨 buttons
3. SOURCE
4. MENU
5. POWER
6. Power On Indicator
7. TRAPEZOIDAL ADJ. Knob
8. FOCUS ADJ. Knob
9. LENS

10. EARPHONE Jack

11. AV OUT Jack

12. Micro SD Card
13. HDMI Port 1
14. HDMI Port 2
15. USB Port
16. AC IN Jack
17. IR Window (Rear Side)
18. IR Window (Front Side)
19. ANGEL ADJ. Knob

Press to change media source mode.

Menu

Press to access on-screen menu(s) and options.

Arrows/OK

Exit

Press to return to a previous page or setting in the on-screen menu(s).

Power

Press to power on the projector.

Press and hold to power OFF.

Press to navigate on-screen menu(s) and make selections.

Install Power Adapter

As shown in Picture ①, connect the projector and the power source with the includde AC Power cable.

Verbindungshinweise

Bluetooth-Playback

Line drawing of a coiled electrical plug with two terminal connectors (no text or symbols)

Diagram of a device front panel with buttons and a top handle (no text or symbols)

Illustration of a meeting with a speaker at the front and a group of seated attendees facing a stage (no text or symbols)

FRONTAL SOBRE A MESA

Illustration of a meeting scene with a speaker at the front and a projector on the right (no text or symbols)

TRASEIRA SOBRE A MESA

Illustration of a meeting room with a projection screen and seated attendees (no text or symbols)

FRONTAL NO TETO

Illustration of a meeting scene with a speaker at the front and a projection screen on the right (no text or symbols)

TRASEIRA NO TETO

Diagram of a device casing with mounting holes and a black arrow pointing to a component (no text or symbols)

Simple line drawing of a mechanical device with height dimension and ground reference (no text or symbols)

Simple line drawing of a vertical wall and a rectangular object with a dashed line indicating measurement or alignment (no text or symbols)

Diagram of a mechanical setup with a device mounted on a platform and a load system, showing alignment and displacement (no text or symbols)

Source Press to change media source mode.

Menu

Press to access on-screen menu(s) and options.

Arrows/OK

Exit

Press to return to a previous page or setting in the on-screen menu(s).

Power

Press to power on the projector.

Press and hold to power OFF.

Press to navigate on-screen menu(s) and make selections.

Install Power Adapter

As shown in Picture ①, connect the projector and the power source with the includde AC Power cable.

Diagram of a front view of a portable air conditioner unit with a labeled connector (no text or symbols present)

Diagram of a printer setup with a laptop, an DVD unit, and a base device (no text or symbols present)

Ligação Multimédia

Line drawing of a coiled electrical plug with two terminal connectors (no text or symbols)

Two abstract geometric shapes: a rectangular block and a horizontal rectangle, both without any text or symbols.

Montage van de projector:

Line drawing of a meeting with a panel of people seated at a table facing a stage with a spotlight (no text or symbols)

VOORAAN OP DE TAFEL

Illustration of a meeting scene with a group of people seated at a table facing a large triangular screen (no text or symbols present)

ACHTERAAN OP DE TAFEL

Illustration of a meeting scene with a projection screen and audience (no text or symbols)

VOORAAN OP HET PLAFOND

Line drawing of a meeting room with a speaker at the front and a projection screen on the right (no text or symbols)

Simple diagram showing a mechanical device positioned above a vertical line with a dashed horizontal line, no text or symbols present.

Diagram showing a vertical line and a rectangular object with a dashed line, no text or symbols present

Diagram of a device rear panel with ports and an arrow pointing to a central component (no text or symbols)

Press to change media source mode.

Menu

Press to access on-screen menu(s) and options.

Arrows/OK

Exit

Press to return to a previous page or setting in the on-screen menu(s).

Power

Press to power on the projector.

Press and hold to power OFF.

Press to navigate on-screen menu(s) and make selections.

Install Power Adapter

As shown in Picture ①, connect the projector and the power source with the includde AC Power cable.

Top-down schematic of a refrigerator with ventilation grilles and a small appliance on the back (no text or symbols)

①

Aansluitinstructies

Diagram of a printer connected to a laptop and an output device (no text or symbols visible)

Projector
