USER MANUAL Lumière Prixton

Usage of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

This unit should not be adjusted or repaired by anyone except qualified service personnel.

Precautions before use:

KEEP THESE INSTRUCTIONS IN MINO:

I. Do not use this device near water. 2. Clean only with a slightly damp cloth.

1. Do not cover or block any ventilation openings. When placing the device on a shelf, leave 5cm (2") free space around the whole device.

2. Install in accordance with the supplied user manual.

S.* Don't step on or pinch the power adaptor. Be very careful, particularly near the plugs and the cable's exit point. Do not place heavy items on the power adaptor, which may damage it. Keep the entire device out of children's reach! When playing with the power cable, they can seriously injure themselves.

1. • Unplug this device during lightning storms or when unused for a long period.

2. Keep the device away from heat sources such as radiators, heaters, stoves, candles and other heat-generating products or naked flame.

3. Avoid using the device near strong magnetic fields.

4. Electrostatic discharge can disturb normal usage of this device. If so, simply reset and restart the device following the instruction manual. During file transmission, please handle with care and operate in a static-free environment.

5. Warning! Never insert an object into the product through the vents or openings. High voltage flows through the product and inserting an object can cause electric shock and/or short circuit internal! parts. For the same reason, do not spill water or liquid on the product. II.Do not use in wet or moist areas such as bathrooms, steamy kitchens or near swimming pools.

12.Do not use this device when condensation may occur.

1. Although this device is manufactured with the utmost care and checked several times before leaving the factory, it is still possible that problems may occur, as with all electrical appliances. If you notice smoke, an excessive build-up of heat or any other unexpected phenomena, you should disconnect the plug from the main power socket immediately.

2. This device must operate on a power source as specified on the specification label. If you are not sure of the type of power supply used in your home, consult your dealer or local power company. 15.* The socket outlet must be installed near the equipment and must be easily accessible.

3. • Do not overload ac outlets or extension cords. Overloading can cause fire or electric shock.
4. • Devices with class I construction should be connected to a main socket outlet with a protective earthed connection.
5. • Devices with class 2 construction do not require a earthed connection. 19. Keep away from rodents. Rodents enjoy biting on power cords.
6. • Always hold the plug when pulling it out of the main supply socket. Do not pull the power cord. This can cause a short circuit.

7. Avoid placing the device on any surfaces that may be subject to vibrations or shocks.

8. To clean the device, use a soft dry cloth. Do not use solvents or petrol based fluids. To remove severe stains, you may use a damp cloth with dilute detergent.

9. The supplier is not responsible for damage or lost data caused by malfunction, misuse, modification of the device or battery replacement.

10. Do not interrupt the connection when the device is formatting or transferring files.

Otherwise, data may be corrupted or lost.

1. If the unit has USB playback function, the usb memory stick should be plugged into the unit directly. Don't use an usb extension cable because it can cause interference

resulting in failing of data.
26. The apparatus shall not be exposed to dripping or splashing and make sure that no objects filled with liquids, such as vases, are placed on ornear the apparatus.
27. * To completely disconnect the power input, the mains plug of the apparatus shall be disconnected from the mains, as the disconnect device is the mains plug of apparatus.
28. If the unit works with battery, Battery shall not be exposed to excessive heat such as sunshine, fire or the like.
29. Attention should be drawn to the environmental aspects of battery disposal.
30. The apparatus can only be used in moderate extremely cold or climates warm environments should be avoided.
31. The rating label has been marked on the bottom or back panel of the apparatus.
32. This device is not intended for use by people (including children) with physical, sensory or mental disabilities, or a lack of experience and knowledge, unless they're under supervision or have received instructions about the correct use of the device by the person who is responsible for their safety.
33. This product is intended for non professional use only and not for commercial or industrial use. 34.Make sure the unit is adjusted to a stable position. Damage caused by using this product in an unstable position or by failure to follow any other warning or precaution contained within this user manual will not be covered by warranty.
35. Never remove the casing of this apparatus.
36. Never place this apparatus on other electrical equipment.
37. Do not use or store this product in a place where it is subject to direct sunlight, heat, excessive dust or vibration.
38. Do not allow children access to plastic bags.
39. Only use attachments/accessories specified by the manufacturer.
40. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as the power supply cord or the plug, when liquid has been spilled or objects have fallen into the apparatus, when the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
41. *Do not use a damaged power cord or plug ora loose outlet. Doing so may result in fire or electric shock.
42. Prolonged exposure to loud sounds from personal music players may lead to temporary or permanent hearing loss.

Installation:

Unpack all parts and remove protective material.

*Do not connect the unit to the mains before checking the mains voltage and before all other connections have been made.

*These instructions are related only to products using power cable or AC power adaptor.

Packing Included:

Usage of controls or adjustments or performance of procedures other than those specified here in

may result in hazardous radiation exposure.

This unit should not be adjusted or repaired by anyone except qualified service personnel.

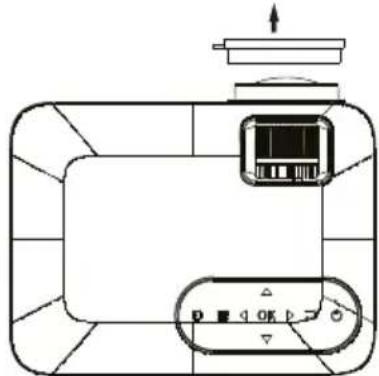

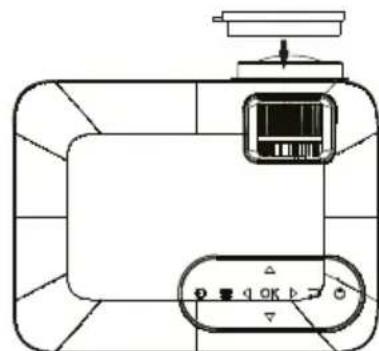

Remove & close the lens cover:

Your projector can be installed in four different configurations:

-Remove the lens cover before using

-Close the lens cover when unit not using

Placing your projector:

Your projector can be installed in four different configurations:

Front Table:

Select this location with the projector placed near the floor in front of the screen. This is the most common way to position the projector for quick setup and portability.

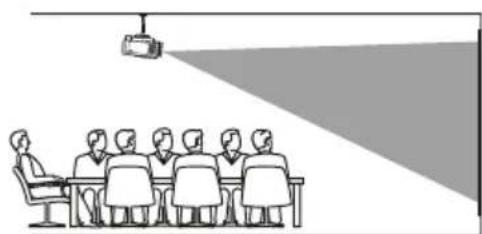

Front Ceiling:

Select this location with the projector suspended upside-down from the ceiling in front of the screen.

NOTE: A projector mount is required to install the projector in a ceiling.

Rear Table:

Select this location with the projector placed near the floor behind the screen. NOTE: That a special rear projection screen is required.

Rear Ceiling:

Select this location with the projector suspended upside-down from the ceiling behind the screen.

NOTE: A projector mount is required to install the projector in a ceiling. A special rear projection screen is required

To reduce image distortion:

It is recommended to move the projector as close to center of screen.

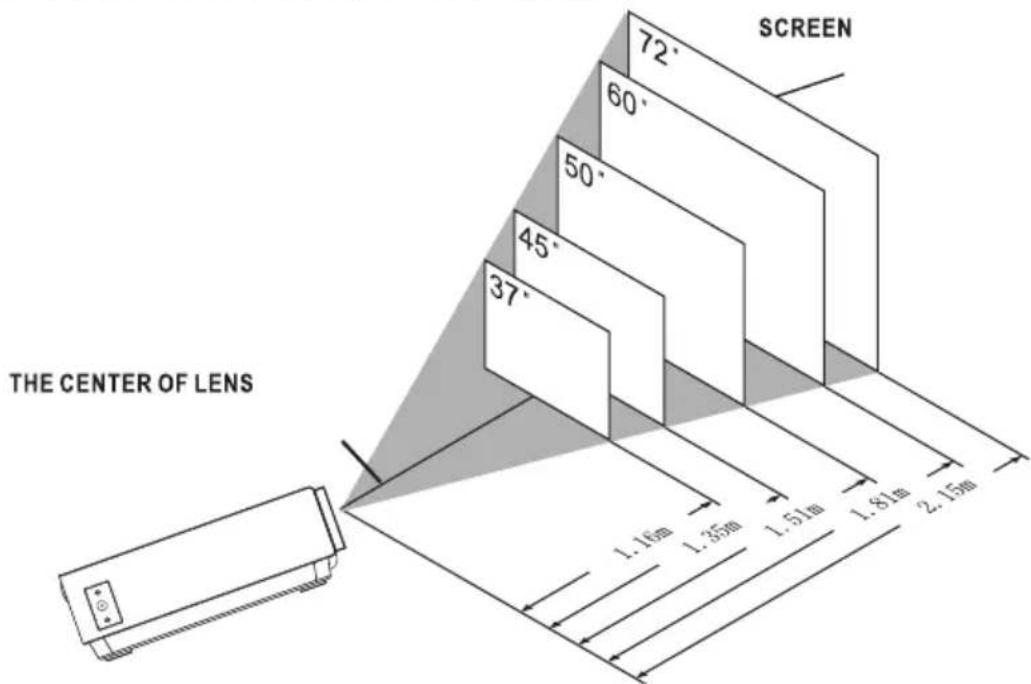

Distance between the projector and screen:

Measure the distance between the projector and where you want to position the screen. This is the projection distance.

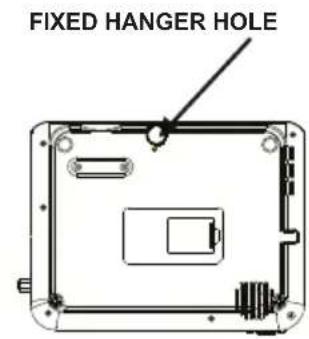

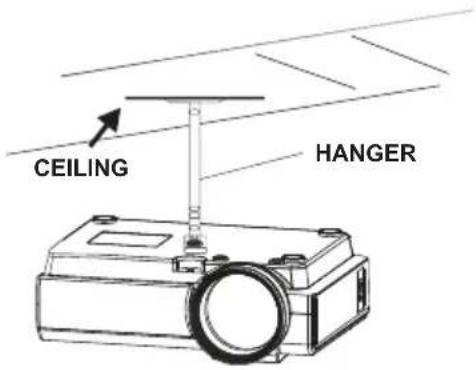

Placing your projector on ceiling:

When installing the projector in the ceiling, please purchase a projector mount recommended by an installation professional and follow the instructions that come with the mount.

Before installing the projector in the ceiling, please check to make sure the ceiling structure can support the weight of the projector and the mount. If in doubt, please ask the advice from an installation professorial.

NOTE: Projector mount and screw(s) not included

Adjust the vertical location:

Follow below picture to adjust the vertical location.

Adjust the focus and keystone

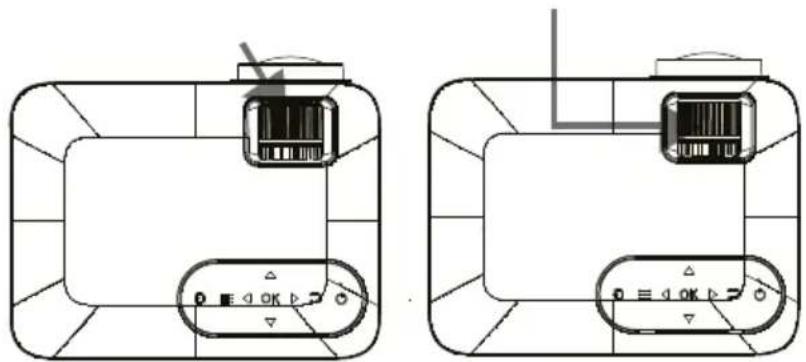

Follow below picture to adjust the focus and trapezoidal screen.

Adjust the focus by turning the knob while observing the image pixels near the center of the screen. Optimal focus is obtained when the pixels are clearly visible. Depending on the projected screen size, the focus near the screen edges may be less sharp than the screen center.

Keystone image is created when the projector beam is projected to the screen in an angle. Keystone correction will restore the distorted image to a rectangular or square shape.

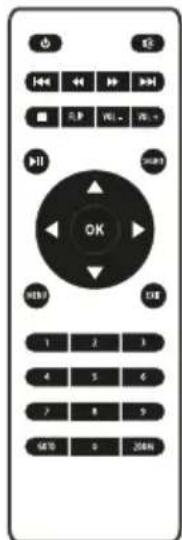

Controls of remote:

Power

Press to power ON. Press and hold to power OFF

Previous/Next

Press to skip between chapters or tracks

Stop

Press to stop playback

Flip

Press to flip display image180°

Play/Pause

Press to play or pause an individual

chapterortrack

Arrows/OK

Press to navigate and confirm selections in

Settings and other menus

Menu

Press to access projector Settings

Go To/Number Keypad

Press to enter specific chapter or track numbers Use Play button to begin playing

Mute

Press to mute volume

Back/Fwd

Press to search through an individual chapter or track

VOL+/VOL-

Press to adjust audio level

Source

Press to select media source (AV, PC, HDMI, MEDIA)

Exit

Press to exit menus

Zoom

Press to zoom display image in or out

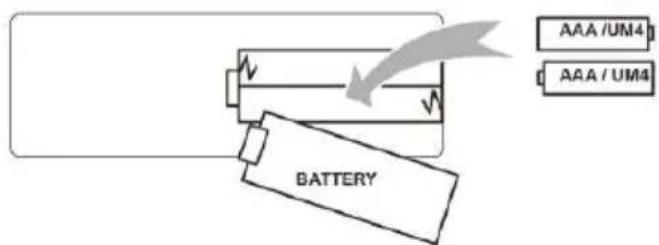

Install / Remove battery of remote

Remove the battery compartment cover on the back of your remote by carefully sliding to open.

The battery cover can then be lifted away. Fit the correct batteries (2 X AAA batteries not included), referring to the polarity markings. Finally, replace the cover.

NOTES:

Batteries shall not be exposed to excessive heat such as sunshine, fire

Be sure that the batteries are installed polarity correctly.

Only same or equivalent type batteries as recommend are to be used.

Do not dispose of batteries in fire, battery may explode or leak. Do not try to recharge a battery

Do not mix old and new batteries.

Do not mix alkaline, standard (carbon-zinc), or rechargeable (ni-cad, ni-mh, etc) batteries

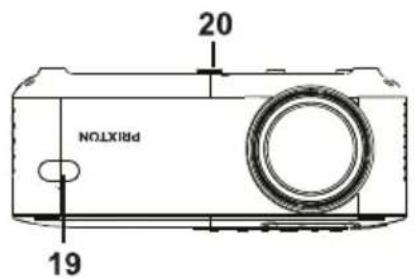

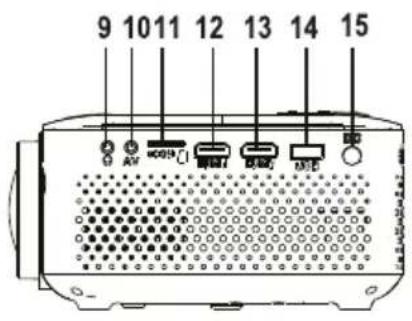

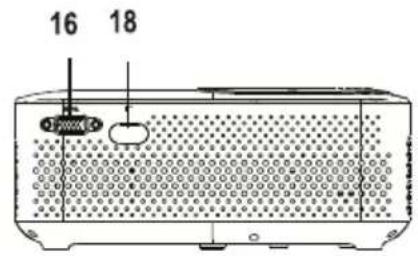

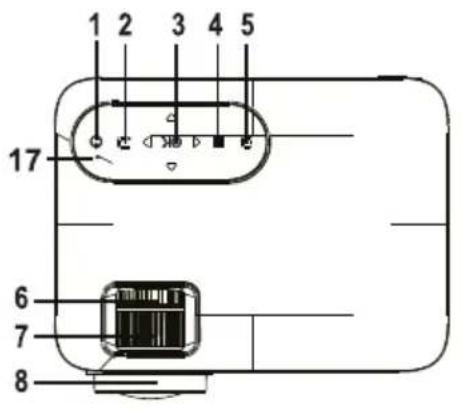

Controls of projector

1. POWER button
2. RETURN Button
3. NAVIGATION
4. MENU Button
5. SOURCE Button
6. TRAPEZOIDAL ADJ. Knob
7. FOCUS ADJ. Knob
8. LENS
9. EAR PHONE Jack

10. AVIN Jack

11. Micro SD Card
    12.HDMI Port 1
    13.HDMI Port 2

12. USB Port
13. DC IN jack
    16.VGA Port
14. POWER on Indicator
15. IR Window ( Rear Side)
16. IR Window (Front Side)
    20.ANGEL ADJ.Knob

Main operation:

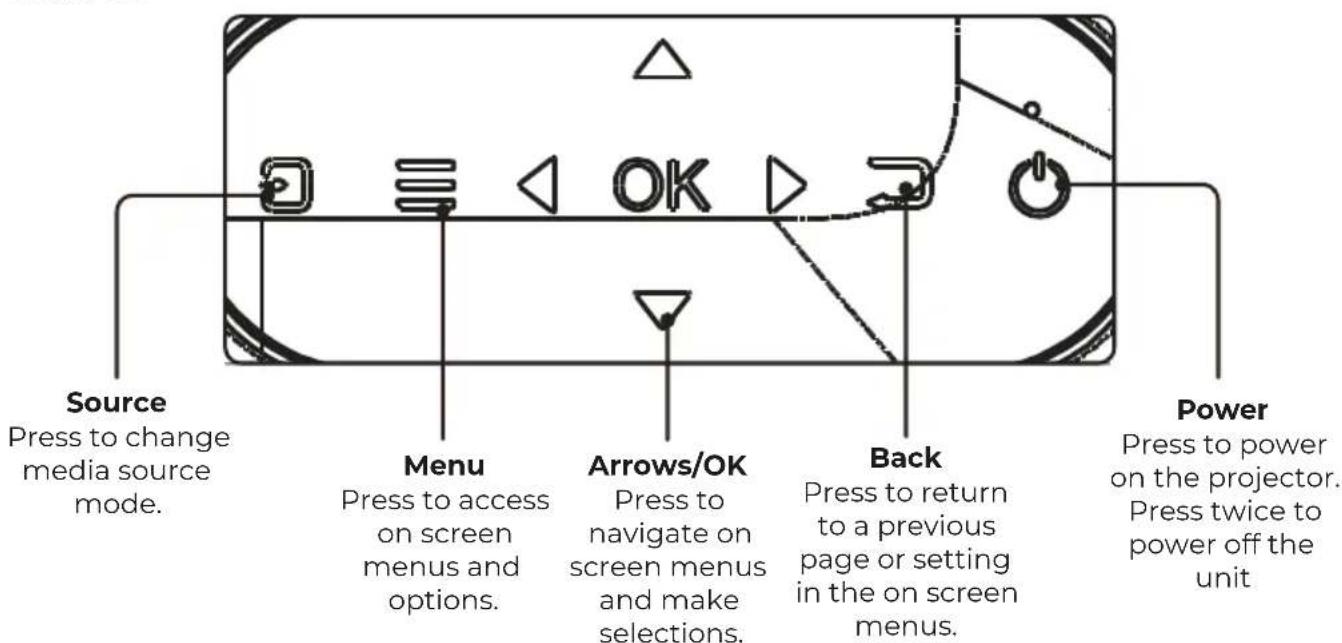

Controls

Install Power Adapter:

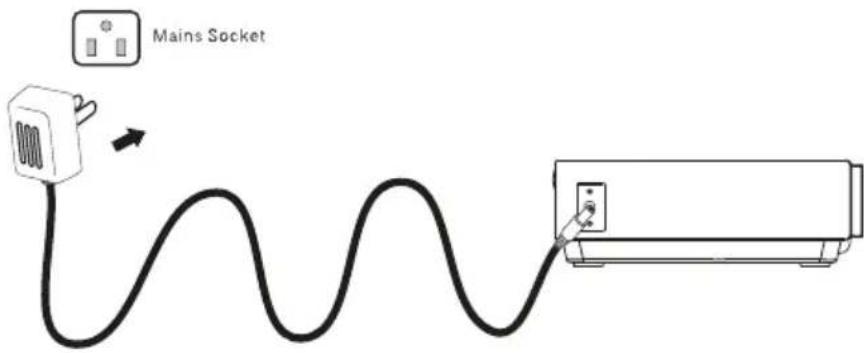

Follow below picture to connect power adapter. Connect small end of adapter FIRST. Plug the adapter body to power outlet.

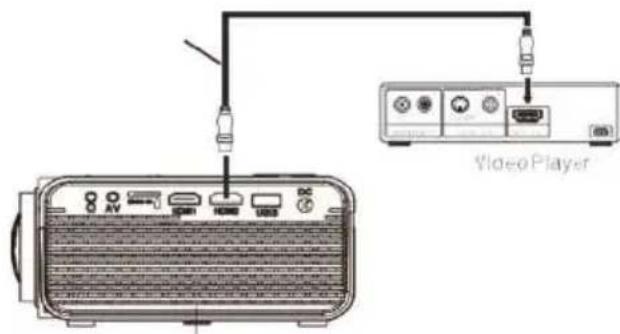

Connect HDMI:

Follow below picture to connect HDMI cable and device. Turn off the unit before connect HDMI cable.

After connect, press the button to turn on unit and power indicator will light GREEN

Press the /SOURCE button to Hdmi mode and the video of HDMI device will show on projector screen. There are 2 HDMI input, HDMI interface corresponds to HDMI 7 in SOURCE mode, and HDMI2 interface corresponds to HDMI 2 in SOURCE mode.

Press the button to turn off unit power.

HDMI hd signal input: this interface can be input with HD player HDMI output at the connection

In rare cases, if the projector's speaker has no sound when playing a DVD movie in a player connecting to the HDMI input, please check the player's digital audio settings and make sure it is set to "Auto" mode or "PCM" mode.

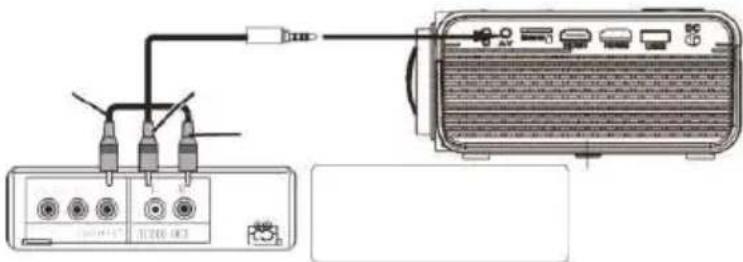

Connect AV:

Follow below picture to connect AV cable and device. Turn off the unit before connect AV cable.

Use AV cable to connect fallow below figure

After connect, press the button to turn on unit and power indicator will light GREEN

Press the /SOURCE button to AV mode and the video of AV device will show on projector screen

Press the button to turn off unit power.

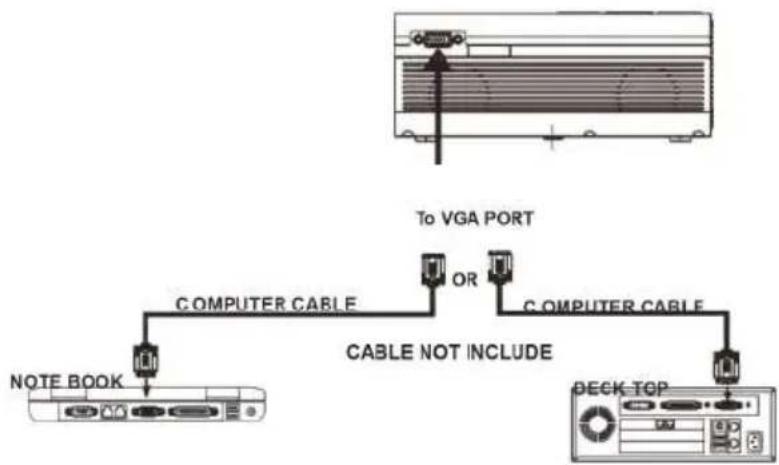

Connect VGA:

Follow below picture to connect VGA cable and device. Turn off the unit before connect VGA cable.

Press the button to turn off power of your projector before connection.

After connect, press the button to turn on unit and power indicator will

light GREEN

Press the /SOURCE button to VGA mode and the video of VGA device

Please refer to the following table to adjust the output signal from computer

TYPE	RESOLUTION		FREQUENCY	FIELD FREQUENCY
PC	VGA	640x480	31.5	60
			34.7	70
			37.9	72
			37.5	75
	SVGA	800x600	31.4	50
			35.1	56
			37.9	60
			46.6	70
			48.1	72
			46.9	75
	XGA	1024x768	40.3	50
			48.4	60
			56.5	70

Connect Audio Output:

Follow below picture to connect audio cable and device.

Press the button to turn off power of your projector before connection. Use audio cable to connect follow below figure.

After connect and turn on both units. Your projector sound from externa! device now. After using, turn off both unit

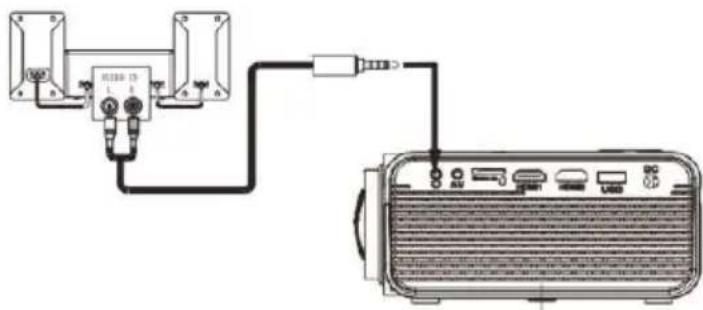

Station Amplifier:

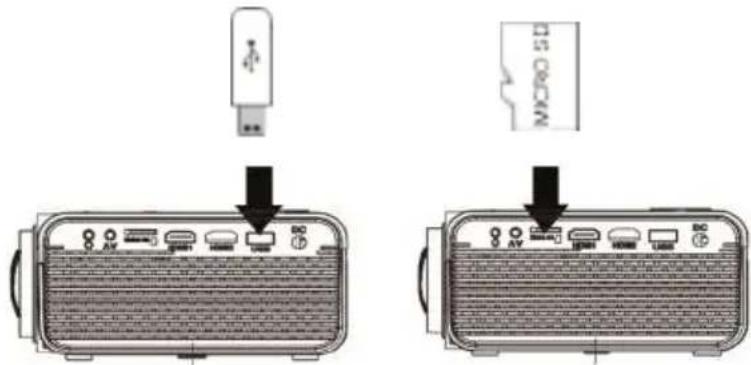

Install USB Device And Micro Sd Card "TF":

Follow below picture to install USB and TF card Turn offthe unit before install USB/TF card.

Using TF Card And USB Playback (Media Player)

Install USB /TF device:

I. Turn off the unit before install USB / TF card.
2. Install the USB device into USB port.
3. After connect, press the button to turn on unit and the power indicator light GREEN.

1. Press the SOURCE button to enter and use@buttons to search the MEDIAPLAYER mode.
2. After selection, use buttons to search the MUSIC/ PHOTO // MOVIE icon and press the button to enter, If necessary, use the button to select TF card or USB and press the press the button to enter.
3. Use buttons to search the correct file and press the OK button to preview playback file and press the button of unit or button of remote to start playback.
4. Press button to fast search forward and rewind.
5. Press button to search next or previous file.
6. During playback, press the button to pause and press again to resume. NOTE: Remove USB/ TF device, press the button to turn off power FIRST.

Sub-Menus on Photo screen

Sub-Menus on Music screen

Sub-Menus on Movie screen

1. When photoplayers back, press the OK button and more function screen show on lower

2. Whenmusic play back,press OK button and more function screenshow on lower

3. Whenmovieplayback,press the OK button and more function screenshow onlower

4. Use the / button to select icon and press OK button to play special function.

5. Use the / button to select icon and press OK button to play special function.

6.Use the button to select icon and press OK button to play special function.

Using Projector Menu 1.0

Press button to enter projector menu. Press again to previous status.

Use buttons to select manual page.

This manual showed on right upper of view screen.

Picture Mode

Select Vivid, User (custom), Soft ,or Standard

Contrast ,Brightness, etc

Set Picture Mode to "User"to adjust these settings

Color Temperature

Select Warm, Cool, or Medium.

Aspect Ratio

Select 76:9, 4:3, or Auto

Noise Reduction

Select Off, Low, Middle, High or Default

Screen

Picture Mode	Standard
Contrast	50
Brightness	50
Color	50
Sharpness	50
Tint	50
Color Temperature Medium
Aspect Ratio	Auto
Noise Reduction	Middle
Screen

Color temper... (temperature)
Customer define	Parameter
red	0-100
blue	0-100
green	0-100

Aspect Ratio
4:3	The signal in a 4:3 aspect ratio projection image
16:9	The signal in a 16:9 aspect ratio projection image

Using Projector Menu 2.0

Press button to enter projector menu. Press again to previous status.

Use buttons to select manual page.

This manual showed on right upper of view screen.

Sound Mode

Select Music, Movie, User (custom). Sports ,or Standard

Treble, Bass

Set Sound Mode to "User"to adjust these settings

Balance

Adjust the audio balance.

Surround Sound

Turn Surround Sound ON or OFF.

Sound Mode	Standard
Treble	50
Bass	50
Balance	0
Auto Volume	Off
Surround Sound	Off

Sound Mode - User	Parameter
Treble	0-100
Bass	0-100

Using Projector Menu 3.0

Press button to enter projector menu. Press again to previous status.

Use buttons to select manual page.

This manual showed on right upper of view screen.

OSD Language

Select different language, Follow below figure.

Display the unit information as below.

Using Projector Menu 4.0

Press button to enter projector menu. Press again to previous status.

Use buttons to select manual page.

This manual showed on right upper of view screen.

Clock-- --

Select clock to Day, Month, Year, Hour, and Minutes.

Off Timer

Select turn offtimerto Day, Hour ,and Minutes.

On Timer

Select turn on timer to Day, Hour, and Minutes.

SleepTimer

Select sleep timer to Off, 1min, 20min, 30 min, 60min, 90min, 720min,

780min, 240min

Auto Sleep

Select auto sleep function to Never, 4 hour, 6 hour, 8 hour.

Troubleshooting

Before resorting the maintenance service, please kindly check by yourself with the following chart.

No Image is Projected or a "No Signal" message is displayed	1.Power light is on. If it is not on, check the projector is plugged into the mains, that the socket is switched on, and then press the power button on the projector. 2.Check the lens cover has been removed. 3.Check the cables are securely attached and installed as per the User Manual. 4.The image source may not be set correctly. Press the Source button on the Control Panel or the Remote, to select the correct setting. 5.Check in the Menu section under Video input signal to make sure that has been set correctly.
The Lamp (Bulb) switches off after a period of time	Is the warning light indicator red? If so, the projector is overheating which turns the light off automatically. 1.Leave the projector to cool for a few moments. 2.Once cooled, check nothing is blocking the ventilation vents. 3.Check the air filter is clean and clean if necessary. 4.Turn on the projector. If the issue persists please contact your support provider for further assistance.
The Image is wider at the top/bottom of the screen	This is called keystone and is due to the projection angle not being perpendicular to the screen. To correct use the projectors inbuilt keystone function to adjust the image.
Spots on the screen	Using a vacuum cleaner to clean the lens. If cleaning doesn't resolve things, please contact your support provider for further assistance.
The image brightness has faded	This could possible be caused by the ambient light in the room. If not ,the chances are that you need to replace the lamp (bulb).

Disclaimer

Updates to Firmware and/or hardware components are made regularly. Therefore some of the instruction, specifications and pictures in this documentation may differ slightly from your particular situation. All items described in this guide for illustration purposes only and may not apply to particular situations. No legal right or entitlements may be obtained from the description made in this manual.

Warranty policy

This product is guaranteed for 2 years from the date of purchase. When you have a problem that you can not solve, you must access the web www.prixton.com and click on the contact option to send us your assistance form.

These technical and electrical specifications are those of typical units and may be changed without prior notice in order to provide improved equipment.

Simplified eu declaration of conformity

We, La Trastienda Digital located in Avenida Cervantes 49, modulo 25, Basauri 48970, Bizkaia hereby declare that the following goods, imported and selling at European market:

BRAND	MODEL NAME DESCRIPTION		CATEGORY
PRIXTON	LUMIÈRE	PROJECTOR	IMAGE

Are in compliance with the EC Council Directive of 2014/53/EU (EM DIRECTIVE) and harmonized standards and with the board of the 16th of April 2014.

The complete text of the UE Declaration of conformity is available anytime at this website address:

www.prixton.com

LA TRASTIENDA DIGITAL

Press to change media source mode.

Menu

Press to access on screen menus and options.

Arrows/OK

Press to navigate on screen menus and make selections.

Back

Press to return to a previous page or setting in the on screen menus.

Power

Press to power on the projector. Press twice to power off the unit

Colocacao do projector:
