CA 10.8 - Battery charger Flex - Free user manual and instructions

USER MANUAL CA 10.8 Flex

Illustration of a gray electrical plug with a cable, showing internal components and mounting holes (no text or symbols)

de Originalbetriebsanleitung 3
en Original operating instructions 7
fr Notice d'instructions d'origine ..... 12
it Istruzioni per l'uso originali 16
es Instrucciones de funcionamiento originales ..... 20
pt Instruções de serviço originais 24
nl Originele gebruiksaanwijzing 28
da Originale driftsvejledning 32
no Originale driftsanvisningen 36
sv Originalbruksanvisning 40
fi Alkuperäinen käyttöohjekirja 44
el Auθεντικές οδηγίες χειρισμού 48
p1 Instrukcja oryginalna 52
hu Eredeti üzemeltetési útmutató 57
cs Originální návod k obsluze 61
sk Originálny návod na obsluhu 65
et Originaalkasutusjuhend 69
It Originali naudojimo instrukcija 73
Iv Lietošanas pamācības oriģināls 77
ru Оригинальная инструкция по эксплуатации ..... 81

Inhalt

Verwendete Symbole 3

Symbole am Gerät 3

Labeled diagram of a mechanical device with numbered parts for identification

Close-up of a mechanical component with a cable inserted, showing internal structure and housing (no text or symbols visible)

Illustration of a small electric shaver with a cable, showing no text or symbols on the device itself.

Handwritten signature or scribble with partial text and a curved line, likely from a document or form.

Manager Research & Development (R & D)

Klaus Peter WeinperEckhard F

Head of Quality Department (QD)

13.01.2016

Symbols used in this manual 7

Symbols on the power tool 7

For your safety 7

Overview 8

Technical specifications 8

Instructions for use 8

Maintenance and care 9

C ∈ Declaration of Conformity ..... 10

UK CA Declaration of Conformity ..... 10

Disposal information 10

Exemption from liability 11

Symbols used in this manual

WARNING!

Denotes impending danger.

Non-observance of this warning may result in death or extremely severe injuries.

CAUTION!

Denotes a possibly dangerous situation.

Non-observance of this warning may result in slight injury or damage to property.

i NOTE

Denotes application tips and important information.

Symbols on the power tool

Before switching on the power tool, read the operating manual!

Short-circuit-proof safety transformer

Device is suitable for use indoors only. Do not expose the device to rain. Store electric power tool and batteries in dry rooms.

Disposal information (see page 10)!

For your safety

WARNING!

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injuries. Save all warnings and instructions for future reference.

Before using the battery charger, read and follow:

– these operating instructions,
- the "General safety instructions" on the handling of power tools in the enclosed booklet (leaflet-no.: 315.915),
– the currently valid site rules and the regulations for the prevention of accidents.

This charger is not intended for use by children and persons with physical, sensory or mental limitations or a lack of experience or knowledge.

This charger can be used by children aged 8 or older and by persons who have physical, sensory or mental limitations or a lack of experience or knowledge if they have been supervised or instructed in the safe operation of the charger and understand the associated dangers. Otherwise, there is a danger of operating errors and injuries.

Supervise children. This will ensure that children do not play with the charger.

Cleaning and user maintenance of the battery charger shall not be made by children without supervision.

Intended use

The battery charger CA 10.8 is designed for charging FLEX batteries of types

- AP 10.8/2.5,

- AP 10.8/4.0 and

- AP 10.8/6.0.

The battery voltage must match the battery charging voltage of the charger. Otherwise there is danger of fire and explosion.

Safety instructions for the battery charger

• Keep the battery charger away from rain or moisture. Penetration of water in the battery charger increases the risk of an electric shock.
• Keep the battery charger clean. Contamination can lead to danger of an electric shock.
  ■ Before each use, check the battery charger, cable and plug. If damage is detected, do not use the battery charger. Never open the battery charger yourself. Have repairs performed only by a qualified technician and only using original spare parts. Damaged battery chargers, cables and plugs increase the risk of an electric shock.
  In case of damage and improper use of the battery, vapours may be emitted. Ventilate the area and seek medical help in case of complaints. The vapours can irritate the respiratory system.
  ■ Do not place any objects on the battery charger and do not place the battery charger on soft surfaces. There is a risk of fire.
  ■ Always check that the mains voltage matches the voltage indicated on the rating plate of the battery charger.

Overview

Labeled diagram of an electronic device with numbered components for identification

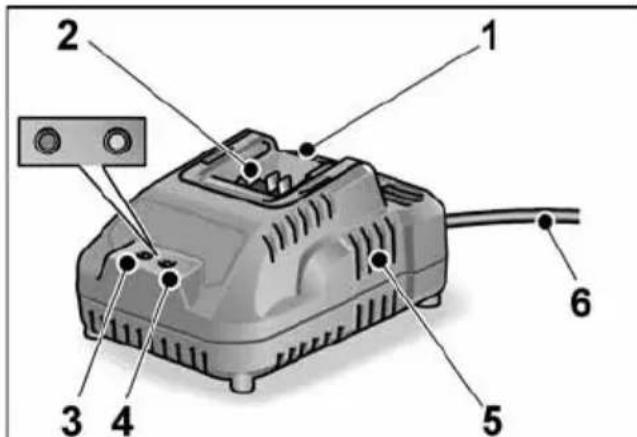

1 Slot for battery
2 Contacts
3 LED fault message (red)
4 LED charge status (green)
5 Ventilation slots
6 Power cord with plug

Technical specifications

Device Battery charger		CA 10.8
Input voltage V~/Hz 220-240/		50-60
Charging voltage V-12.6
Charging time (depen- min)	min	2.5 Ah: 40
ding on charge state)	min	4.0 Ah: 55
	min	6.0 Ah: 85
Operating temperature °C 0-40
Weight (without battery) kg 0.52
Protection class		II / ☐

Instructions for use

CAUTION!

• Never charge batteries at temperatures below 0 °C or above 40 °C.
• Do not charge batteries in an environment which has high air humidity or at a high ambient temperature.
• Do not cover batteries and/or the battery charger during the charging process.

Displays of LED

red green
off flashes Battery is charging.
off on	Charging process finished.Maintenance charging.
	See “Charging process”.
flashes off	Battery is too hot or too cold.
on off Battery or charger is faulty.
	See “Fault messages”.

Charging process

CAUTION!

Use only original batteries in the supplied battery charger.

i NOTE

Battery and charger heat up during the charging process. This is perfectly normal!

■ Insert the charger mains plug.
The LED fault message and the LED charge status light up for a short time.

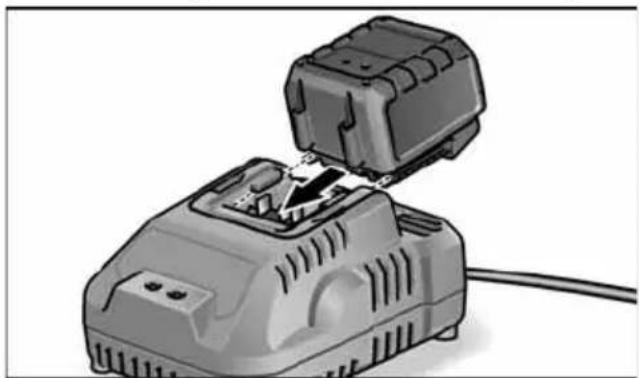

■ Insert battery into the charger as far as stop.
The LED charge status flashes and the battery is charged.
When the battery is fully charged, the LED charge status is lit continuously.

Close-up of a mechanical component with a clamped top and cable, no visible text or symbols

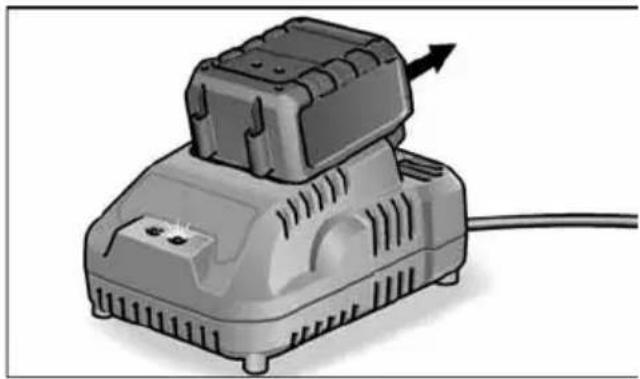

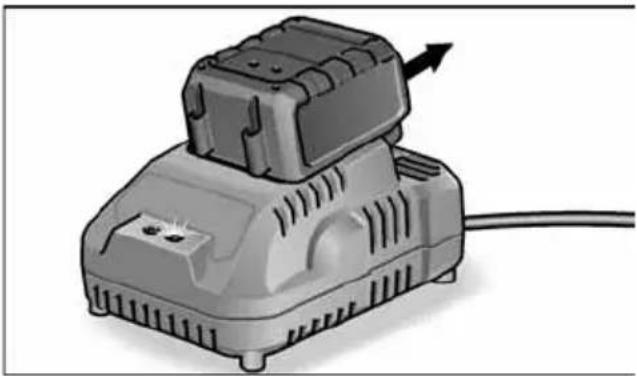

■ Remove the battery from the charger.

Illustration of a portable electrical plug with a cable, showing no text or symbols.

■ Pull out the mains plug.

Fault messages

If the LED fault message lights up after the battery is inserted into the charger, there is an fault with the battery or charger.

The LED warning message is lit up continuously:

- The battery is too hot or too cold. The charging process starts when the battery reaches the charging temperature (0°C...40°C).

The LED fault message flashes or none of the two LEDs lights up:

- Remove battery from the charger. Check contacts at charger and battery for contamination and clean if necessary. Reinsert battery. The battery is faulty if the same display appears again. Replace battery or have it checked in a professional workshop.

- If this fault message is also displayed with a different battery, then there is a fault with the charger. Have the charger checked by a professional workshop.

Maintenance and care

WARNING!

Before performing any work, pull out the mains plug. Do not use water or liquid detergents.

■ Remove dirt and dust from the housing with a paint brush or dry cloth.

Repairs

Repairs may be carried out by an authorised customer service centre only.

Exploded drawings and spare-part lists can be found on our homepage:

www.flex-tools.com

CE Declaration of Conformity

We declare under our sole responsibility that the product described under "Technical Data" conforms to the following standards or normative documents:

EN 60335-1, EN 60335-2-29, EN 55014-1, EN 55014-2, EN 61000-3-2, EN 61000-3-3, 2014/35/EC, 2014/30/EC.

Responsible for technical documents:

Manager Research & Development (R & D)

Klaus Peter WeinperEckhard F

Head of Quality

Department (QD)

13.01.2016

Declaration of Conformity

We as the manufacturer: FLEX

Business address: Bahnhofstr. 15,

71711 Steinheim, Germany

declare under our sole responsibility, that the product(s) described under „Technical specifications“ fulfills all the relevant provisions of The Electrical Equipment (Safety) Regulations S.I. 2016/1101 and also fulfills all the relevant provisions of the following UK Regulations:

Electromagnetic Compatibility Regulations S.I. 2016/1091, The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations S.I. 2012/3032 and are manufactured in accordance with the

following designated Standards:

BS EN 60335-1:2012,

BS EN 60335-2-29:2004,

BS EN 55014-1:2017,

BS EN 55014-2:2015,

BS EN 61000-3-2:2014,

BS EN 61000-3-3:2013

Place of declaration: Steinheim, Germany.

Responsible person: Peter Lameli,

Contact details for Great Britain:

FLEX Power Tools Limited,

Unit 8 Anglo Office Park, Lincoln Road,

HP 12, 3RH Buckinghamshire,

United Kingdom

Peter Lameli Technical Head

Handwritten signature or scribble with partial text and a curved line, likely from a document or form.

Klaus Peter Weinper Head of Quality Department (QD)

19.05.2021

Disposal information

WARNING!

Render redundant power tools unusable by removing the power cord.

EU countries only

Do not throw electric power tools into the household waste! In accordance with the European Directive 2012/19/EC on Waste Electrical and Electronic Equipment and transposition into national law used electric power tools must be collected separately and recycled in an environmentally friendly manner.

Recycling raw materials instead of waste disposal.

Device, accessories and packaging should be recycled in an environmentally friendly manner. Plastic parts are identified for recycling according to material type.

WARNING!

Do not throw accumulators/batteries into the household waste, fire or water. Do not open disused batteries.

Accumulators/batteries should be collected, recycled or disposed of in an environmentally friendly manner.

EU countries only:

In accordance with Directive 2006/66/EC defective or used batteries must be recycled.

NOTE

Please ask your dealer about disposal options!

Exemption from liability

The manufacturer and his representative are not liable for any damage and lost profit due to interruption in business caused by the product or by an unusable product.

The manufacturer and his representative are not liable for any damage which was caused by improper use of the power tool or by use of the power tool with products from other manufacturers.
