USER MANUAL IRT-200 LANAFORM

Close-up of a child receiving a medical or cosmetic procedure, no visible text or symbols

3in1

Close-up of a child using a handheld electric toothbrush (no text or symbols visible)

Close-up of a baby bottle with a green and green medical device attached to it, enclosed in a circular frame (no visible text or symbols)

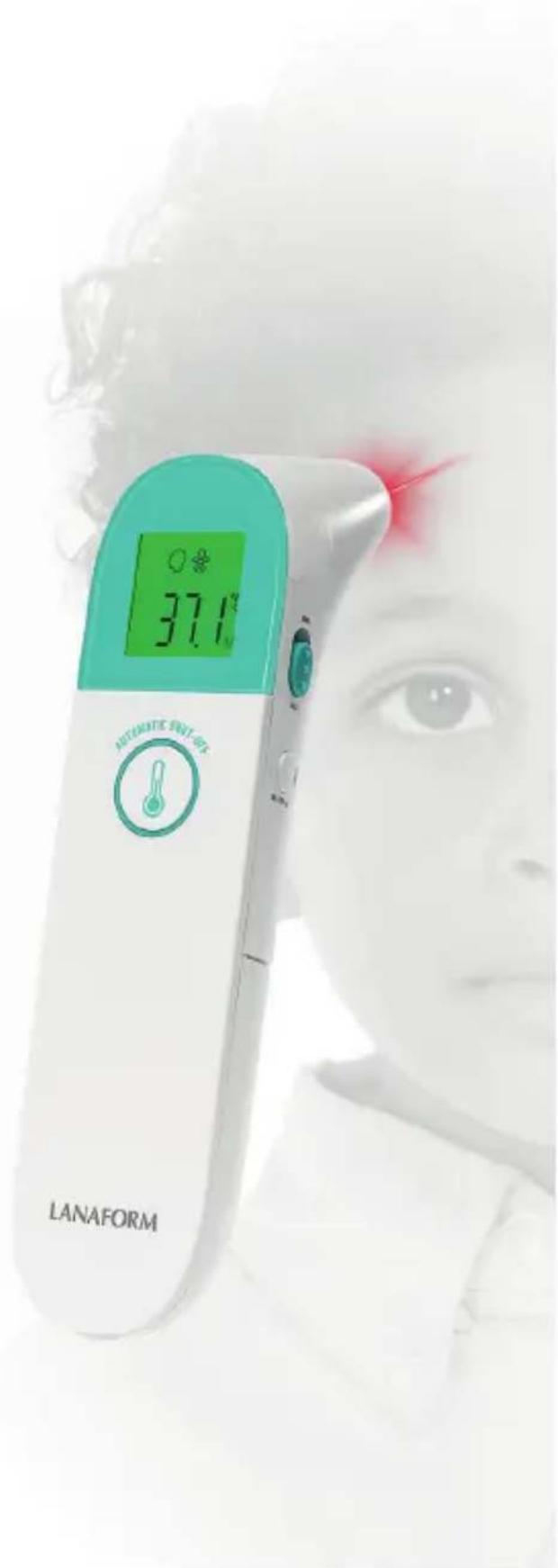

3-in-1: ear, forehead, object

For adults & children

1" instant measurement

37.1°C AUTOMATIC ONLY OK LANAFORM

ENGLISH

PRESENTATION

Thank you for choosing the IRT-200 Forehead & Ear Thermometer from LANAFORM.

Please read all the instructions before using your product, particularly these basic safety instructions.

The photographs and other images of the product in this manual and on the packaging are as accurate as possible, but do not claim to be a perfect reproduction of the product.

CONTENTS

1 Unpacking Check

2 Package Contents

3 Symbols

4 Safety Precautions

5 Body Temperature Basics

6 Product Description

7 Features

8 Product structure

9 Display description

10 Sounds and backlight instructions

11 Display and Operating Instructions

12 Battery replacement

13 Cleaning and Disinfection

14 Maintenance

15 Troubleshooting

16 Specifications

17 Security Class

18 Storage and Transportation

19 EMC Information-Guidance and Manufacture's Declaration

20 Limited Warranty

21 Advice Regarding the Disposal of Waste

22 Service Center

1 UNPACKING CHECK

Please open the package carefully before use, check whether all accessories are available or not and whether any component is damaged during transportation and perform installation and operation following this user manual. In case of any damage or operation problem, please contact the dealer or contact Lanaform directly. You will need the following information when making your claim: device model, serial number, purchase date, and your contact information and address.

2 PACKAGE CONTENTS

· 1 IRT-200 Forehead & Ear Thermometer
- 2 AAA batteries (included)
· 1 Instruction manual
- 1 Storage bag

3 SYMBOLS

The following marks and symbols may appear on the manual, the IRT-200 Forehead & Ear Thermometer and its accessories.

SYMBOL DESCRIPTION
	Type BF applied part.
	Attention must be paid.
	The action is prohibited.
	Information about the manufacturer.
	Date of manufacture.
	Consult the instructions for use.
CE0482	This product complies with the MDD93/42/EEC requirements.
	Waste electrical materials should be sent to a dedicated collection point for recycling.
IP22	Degree of protection against the Ingress of water.
	A personal injury or damage to the thermometer may occur if the thermometer is not used correctly.
	Inaccurate reading or damage to the thermometer may occur if the thermometer is not used correctly.

4 SAFETY PRECAUTIONS

Read the following precautions carefully before using the thermometer.

▲ Attention

Take care of the temperature probe lens, which is fragile.

Dispose used batteries with care. To protect the environment, you are recommended to send the used batteries to a designated collection point. Remove the batteries if the thermometer will not be used for more than two months.

Do not immerse the thermometer in water or expose it to direct sunlight.

Do not subject the thermometer to vibration or impact.

The normal body temperature varies from person to person. Tracking a person's body temperature will help determine whether they have fever.

Do not take body temperature readings within 20 minutes after you do physical exercises or get excited.

Clean the thermometer probe after each use.

Do not use the thermometer on newborns or for continuous temperature monitoring purposes.

Do not use the thermometer for purposes that are not specified in this User's Manual. Follow the instructions in the "Operating Instructions" chapter and carefully operate the thermometer when measuring children's temperature.

Do not immerse the thermometer in water or other liquid, as it is not waterproof. Clean and disinfect the thermometer as described in the "Cleaning and Disinfection" chapter.

Do not touch the tip of the temperature probe, on which a precise temperature sensor resides.

Keep the temperature probe clean to make sure accurate readings.

Before measuring the temperature from the ear canal, clean the earwax, if any.

The ambient temperature must not be extremely high or low. To make sure accurate readings, keep the thermometer under room temperature for more than 30 minutes before use.

Do not use the thermometer under an ambient temperature higher than 40^ C ( 104^ F) or lower than 10^ C ( 50^ F), which is beyond the operating temperature range of the thermometer.

Risk of pollution! The user is recommended to send the overdue thermometer to local garbage disposal site.

2 AAA batteries of 1.5V (included) are the only replaceable accessories of the thermometer. Please do not use the batteries of other voltages or specifications.

▲Warning

Do not force the temperature probe of the thermometer into an ear canal. Otherwise, the ear canal may get injured.

Keep the thermometer out of the reach of children.

The result may be inaccurate if you use the overdue thermometer.

The thermometer is not intended to diagnose or treat any health problem or disease. The measurement results are for reference only.

It is dangerous to make a self-diagnosis or self-treatment based on the obtained measurement results. For such purposes, please consult a doctor.

Do not charge an alkaline dry-cell battery or throw it in fire. Otherwise, the battery may explode.
Do not disassemble the thermometer or attempt to repair it. Otherwise, the thermometer may be damaged permanently.
Do not take temperature measurements on body parts other than forehead and ears. Otherwise, the temperature readings may be inaccurate.
During measurement, do not use a mobile phone or any other device that may cause electromagnetic interference.
Do not use the thermometer in an environment where flammable anesthetic mixture with air or with oxygen or nitrous oxide is available.

5 BODY TEMPERATURE BASICS

Generally, you can take a body temperature on the forehead, in the ear canal, under the armpit, in the mouth, or in the anus. The temperature measured at different parts of the body may differ slightly.

BODYPART	NORMALTEMPERATURE RANGE
Forehead	35.8°C-37.8°C /96.4°F-100°F
Ear canal	35.8°C-38.0°C /96.4°F-100.4°F
Mouth	35.5°C-37.5°C /95.9°F-99.5°F
Armpit	34.7°C-37.3°C /94.5°F-99.1°F
Anus	36.6°C-38.0°C /97.9°F-100.4°F

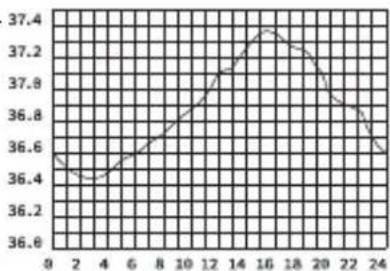

-Variation in body temperature

Normal body temperature varies by the time of day and is also affected by external factors. The body temperature of an individual is the lowest between 2:00 a.m. and 4:00 a.m. and the highest between 14:00 p.m. and 20:00 p.m. An individual's body temperature typically changes by less than 1°C each day.

6 PRODUCT DESCRIPTION

Overview: The IRT-200 Forehead & Ear Thermometer measures the body temperature based on the infrared energy emitted from the eardrum or the forehead. Users can quickly get measurement results after positioning properly the temperature probe in the ear canal or forehead. It can also be used to measure the surface temperature of object (such as milk and water).

Structure: The thermometer consists of a shell, an LCD, a measure button, a beeper, an infrared temperature sensor, and a Microprocessor.

Operating principle: The infrared temperature sensor collects infrared energy emitted by the eardrum or the skin surface. After being focused by a lens, the energy is converted into a temperature reading by the thermopiles and measurement circuits.

A	Infrared temperature probe
B	Ear canal
C	Infrared ray
D	Eardrum

Intended use: The IRT-200 Forehead & Ear Thermometer is intended for the measurement of human body temperatures. The forehead mode is indicated for use by people of all ages and the eardrum mode is indicated for use by people above three months old.

Contraindications: Do not use the thermometer if the ear is infected with otitis or suppuration.

7 FEATURES

Good safety: Passive infrared receiving technology Easy operation: Ergonomic design: One button measurement

Quick measurement: 1-second measurement High accuracy: Advanced infrared temperature sensor, with high sensitivity: High accuracy with automatic temperature calibration

Diverse functions: 20 reading recalled: Fever alert: Switching between °C and °F: Automatic power-off, power saving

Extensive application scope: Forehead temperature measurement applicable to all age groups: Ear temperature measurement applicable to children older than three months, adults, and the elderly Child mode: This mode is recommended for people under 12 years of age

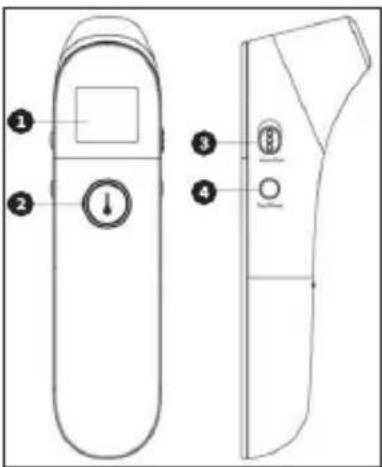

8 PRODUCT STRUCTURE

Technical diagram of a device with labeled parts including buttons and indicators

1 LCD display screen
2 Power button / Measure button
3 Adult mode / Child mode
4 Mode button (Forehead / Ear / Object)

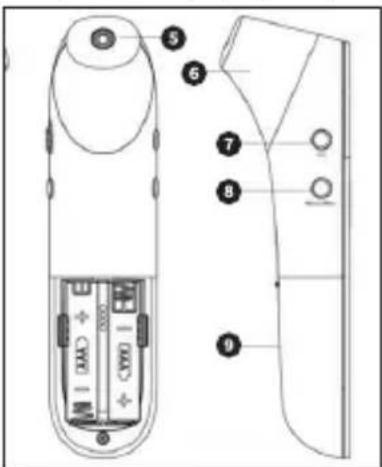

Technical diagram of a remote control device with numbered parts for identification

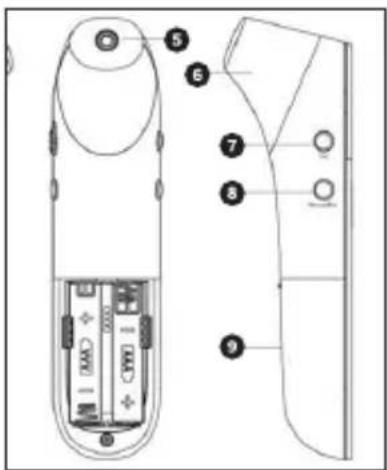

5 Probe (take the cover off when measuring the ear temperature)
6 Probe cover (put the cover on when measuring the forehead temperature)
7 Unit switch button(°C/°F)
8 Memory button / Sound switch
9 Battery cover

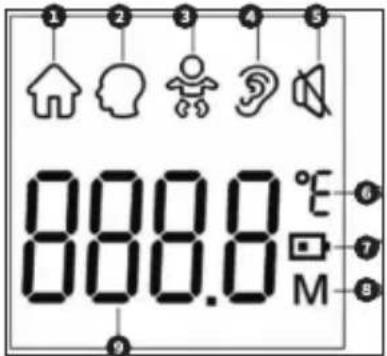

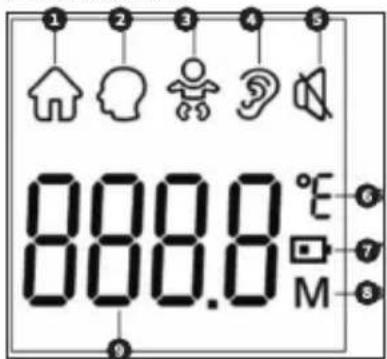

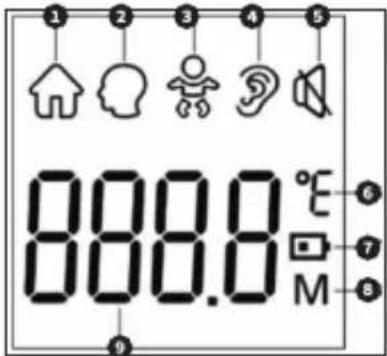

9 DISPLAY DESCRIPTION

800.0 800.0 M E ⑤ ⑦ ③

1 Object temperature mode
2 Forehead temperature mode
3 Child mode
4 Ear temperature mode
5 Mute / un-mute
6 Temperature unit (°C / °F)
7 Low battery
8 Memory recall
9 Temperature value

10 SOUNDS AND BACKLIGHT COLOR INSTRUCTIONS

RANGE SOUNDS BACKLIGHT OUTCOME
Forehead temperature (Adult / Child)
35.0°C-37.5°C / 95.0°F-99.5°F A long beep Green		Normal body temperature
37.6°C-37.9°C / 99.7°F-100.2°F A long beep Orange		Body temperature is slightly eleva t e d
38.0°C-42.2°C / 100.4°F-108.0°F 3 short double beeps Red		Body temperature is a little high
Ear temperature (Adult / Child)
35.0°C-37.5°C / 95.0°F-99.5°F	A long beep	Green	Normal body temperature
37.6°C-37.9°C / 99.7°F-100.2°F A long beep Orange		Body temperature is slightly eleva t e d
38.0°C-42.0°C / 100.4°F-108.0°F 3 short double beeps Red		Body temperature is a little high
Object temperature
0°C-100°C / 32.0°F-212°F A long beep Green

① Note: If you body temperature is a little high, you may have a fever. Please consult your doctor if you are not sure.

DISPLAY AND OPERATING INSTRUCTIONS

When using the thermometer for the first time, move the battery's insulating piece away.

Illustration of a hand holding a pen or tube, showing a stepwise change in the pen tip (no text or symbols present)

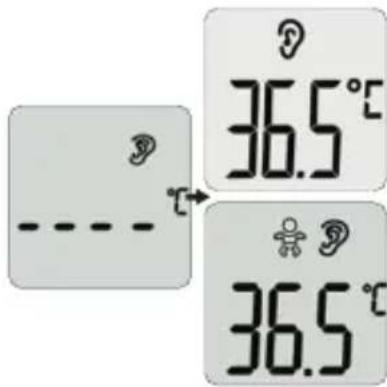

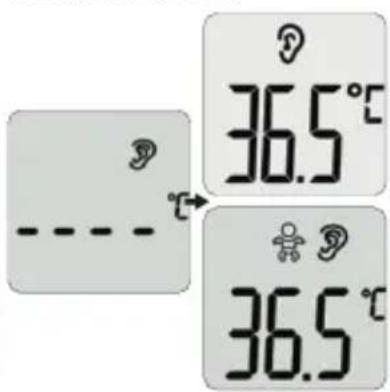

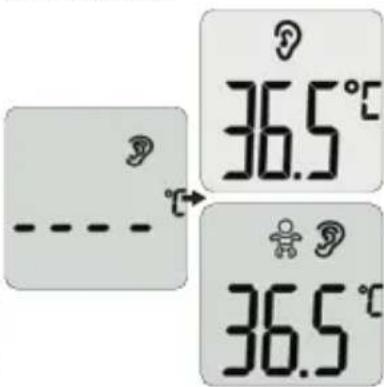

Measuring ear temperature (Adult / Child)

36.5°C 36.5°C

Take off the probe cover.

Press and release the Power button for 1 second to power on the thermometer. Press the Mode button, the thermometer enters the Ear mode. The symbol is displayed on the screen.

When measuring an adult (from 12 years old), place the switch in the "adult" mode. When measuring children (up-to 12 years old), place the switch in the "child" mode and the symbol is displayed on the screen.

Insert the temperature probe into a proper position in the ear canal. Press the Measure button. The ear temperature will be displayed on the screen instantly. If no activity is detected, the thermometer will power off automatically in 12 seconds.

Notes:

· Children under 1 year: pull the ear straight back.
• Children aged 1 year to adult: pull the ear up and back.

▲ Do not force the thermometer into the ear canal. Otherwise, the ear canal may get injured.
When taking the temperature on an adult, gently pull the ear up and back to make sure the ear canal is straight, so that the temperature probe can receive an infrared ray from the eardrum.
▲ Be careful when taking temperature on a child, whose ear canal is small.

Measuring forehead temperature (Adult / Child)

Q 36.8°C Q 36.8°C

Put the cover on the probe, press and release the Power button for 1 second to power on the thermometer. Press the Mode button, the thermometer enters the Forehead mode. The symbol is displayed on the screen.

When measuring an adult, place the switch in the "adult" mode. When measuring children, place the switch in the "child" mode and the symbol is displayed on the screen.

Point the thermometer to the sides of the forehead about 1-3cm away from the skin sur face. Press and release the Measure button. The temperature will be displayed on the screen instantly.

If no activity is detected, the thermometer will power off automatically in 12 seconds.

Measuring object temperature

- - - - °C→ 26.0°C

Put the cover on the probe, press and release the Power button for 1 second to power on the thermometer. Then press the Mode button. The thermometer enters the Object mode. The symbol is displayed on the screen.

Point the thermometer to the center of the object, about 1-3cm away from the object surface. Press and release the Measure button. The temperature will be displayed on the screen instantly. If no activity is detected, the thermometer will power off automatically in 12 seconds.

After a measurement

1 After each measurement, you can enter the recall mode and query earlier temperature readings. For more details, see "Recall 20 memories" in the next chapter.
2 After each measurement, clean the temperature probe with a soft cloth, and put the thermometer in a dry and well-ventilated place.

▲ It is dangerous to make a self-diagnosis or self-treatment based on the obtained measurement results. For such purposes, please consult a doctor.

Out of the measuring range display

• In Ear mode, a temperature reading of more than 42.0°C (107.6°F)
• In Forehead mode, a temperature reading of more than 42.2°C (108.0°F)
• In Object mode, a temperature reading of more than 100°C (212.0°F)

Sound and backlight color: A long beeps, the backlight is red.

• In Ear mode, a temperature reading of less than 35.0°C (95.0°F)
• In Forehead mode, a temperature reading of less than 35.0°C (95.0°F)
• In Object mode, a temperature reading of less than 0°C (32.0°F)

Sound and backlight color: A long beeps, the backlight is red.

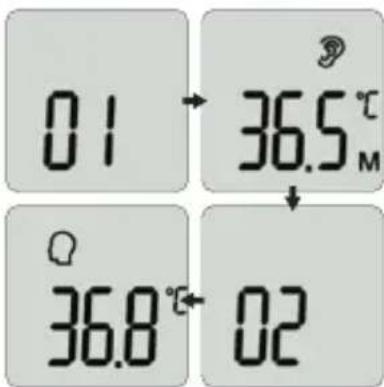

Recall 20 memories

01 36.5°C M 36.8°C 02

In a power-on state, press the Memory but ton enter the memory mode.

When the Memory button is released, 01 will be shown, followed by the recorded reading.

Press the Memory button again for the next recorded data. 02 will be shown, followed by the recorded reading.

A maximum of 20 temperature readings can be recalled.

When the maximum number of records is exceeded, the oldest memory data will be overwritten.

Note: 01 represents the newest data.

Sound and backlight color: Silent, the backlight is green.

No memory data / clear memory data

When the memory data is queried, when there is no memory data under the current serial number, the display is as shown.

Remove 2 dry batteries and re-install the power to clear all memory data.

Sound and backlight color: When the power is turned back on, a long beep, the backlight is green, then turn red.

Switching between mute and un-mute

Two identical diagrams showing a dashed line with arrows and circular symbols inside, no text or labels present.

In the power-on state, press and hold the sound switch button for about 2 seconds to switch the sound on or off. When the sound is turned on, it will beep once and the mute symbol will be displayed when the sound is off.

The symbol is displayed in Mute mode and disappears in Un-mute mode.

Sound and backlight color: When the sound is turned on, it sounds a long beep and the backlight is green.

Switching between object temperature and body temperature

Press the Mode button to switch between object temperature and body temperature.

Body temperature includes the Forehead temperature and Ear temperature.

Sound and backlight color: Silent, the backlight is green.

Switching between °F/°C

Q τ Q f

Press the Unit switch button to toggle the °C/°F unit Sound and backlight color: Silent

Error information & low battery

The ambient temperature is higher than 40.0°C (104.0°F) or lower than 10.0°C (50.0°F).

Sound and backlight color: A long beeps, the backlight is red.

An error occurs when data is being read from or written to the memory, or the temperature correction is not complete.

Sound and backlight color: A long beeps, the backlight is red.

When the battery voltage is lower than 2.5V ± 0.1V , the low battery symbol will appear on the display. Please replace the batteries.

Sound and backlight color: Silent

Notes:

1 The thermometer is suitable for an indoor environment without strong air convection (for example, winds from a fan, an air-conditioner, or a heater) between the thermometer and the person.
2 Make sure that the ear canal is clean and dry before starting a measurement. It is recommended to clean the ear canal with a cotton swab if any dirt exists. Otherwise, the temperature probe may be polluted and temperature readings may be inaccurate.
3 Make sure the forehead has no sweat and no hairs covered before measure the forehead temperature; otherwise, the result could be incorrect;
4 Do not hold the thermometer for a long time, because it is sensitive to the ambient temperature.
5 Make sure the sense head is free of foreign matters before use;
6 No intense emotion or strenuous exercises before measuring;
7 After measuring the data once, you should wait for the backlight to turn off and measure the next data.

12 BATTERY REPLACEMENT

1 Slide the battery cover off along the marked direction and take it off.
2 Insert the two AAA batteries into the compartment according to the stated polarities.

3 Put the battery cover back.

▲ Make sure that the batteries are installed correctly. Otherwise, the thermometer may be damaged.

▲ If the low-battery symbol is displayed on the screen, replace the batteries.

▲ Batteries of a same type should be used. Dispose the used batteries in accordance with the local environmental policies.

▲ The thermometer is shipped with batteries. First open the battery cover, then remove the insulating piece.

13 CLEANING AND DISINFECTION

Cleaning

Recommended detergents:

· Medical detergents;

· Home use mild detergents;

Cleaning steps:

1 Take the batteries out before cleaning.

2 Clean the temperature probe with a soft cloth. Clean the lens of the temperature probe with a cotton swab.

3 Wipe the thermometer body with a slightly damp soft cloth.

▲ Keep water out off the lens during the cleaning process. Otherwise, the lens may be damaged.

▲ The lens may be scratched if it is cleaned with a hard object, which might result in inaccurate readings.

▲ Do not clean the thermometer with corrosive cleansers. During the cleaning process, do not immerse any part of the thermometer into liquid, or allow liquid to penetrate the thermometer.

Disinfection

Recommended disinfectants:

• Isopropyl alcohol solution (concentration: 70%)
· Medicinal alcohol (concentration: 75%)
• Sodium hypochlorite solution (concentration: 3%)

Disinfecting steps:

1 Wet the clean soft cloth with a small quantity of disinfectant, wipe the thermometer and quickly dry it.
2 Disinfect the thermometer body and the area around the temperature probe with a cloth slightly moistened with 75% medical alcohol.

▲ Do not use hot steam or ultraviolet radiation for disinfection. Otherwise, the thermometer may be damaged or quickly aged.

▲ It is recommended to disinfect the thermometer before and after each use. The disinfection time is completed within 1 minute, and the number of repetitions per disinfection is not more than 2 times.
▲ Clean and disinfect the thermometer under the temperature of +10°C\~+40°C (50°F\~104°F), the relative humidity of 15%\~85% RH (no condensation) and the barometric pressure of 86kPa\~106kPa.

14 MAINTENANCE

Preventive inspection & maintenance period:

1 Ensure the safety of thermometer, and check whether it has potential safety hazards in normal use each week, e.g. whether the lens is broken, the shell has cracks and the sensing head is polluted. Do not use the thermometer with potential safety hazard. Clean the thermometer if not used for a long time.
2 After each use, clean the temperature probe as described in the "Cleaning and Disinfection" chapter.
3 Store the thermometer in a dry, dust-free, and well-ventilated place. Make sure that the thermometer is not exposed to sunlight. Make sure that the storage and transportation environments meet the requirements.

4 Check regularly whether safety risks exist.
5 Remove the batteries if the thermometer will not be used for more than two months.

15 ✿ TROUBLESHOOTING

😊 The thermometer fails to power on.

② Low battery.

😊 Change the batteries.

⑦ Polarities of the batteries are reversed.

😊 Make sure that the batteries are installed correctly.

⑦ The thermometer is damaged.
😊 Contact the manufacturer.

😊 "Er1" is displayed.

The ambient temperature is lower than 10^ C ( 50.0^ F) or higher than 40^ C ( 104^ F).
😊 Take a measurement under an ambient temperature between 10^ C ( 50.0^ F) and 40^ C ( 104^ F).

😊 The temperature reading is lower than the typical body temperature range.

② The lens of the temperature probe is dirty.
😊 Clean the lens using a cotton swab.

② The thermometer probe is not aligned to the eardrum.

😊 Reposition the thermometer probe so that it is aligned to the eardrum.

⑦ The thermometer is used within 30 minutes after being taken from a cold environment.
😊 Wait for more than 30 minutes after the thermometer is moved into the measurement environment.

😊 The temperature reading is higher than the typical body temperature range.

⑦ The temperature probe is damaged.
😊 Contact the manufacturer.

16 SPECIFICATIONS

Product Name	Forehead & Ear Thermometer
Product Model	IRT-200 (LA090114)
Power Supply Mode	Internal power supply
Operating Voltage	DC 3V
Battery Model	AAA x 2 (included)
Operating Mode	Continuous operating
Display Segment LCD
Measure time	About 1 second
Latency Time	About 3 second
Measuring Range	Forehead mode:35.0°C-42.2°C95.0°F-108.0°F)Ear mode:35.0°C-42.0°C95.0°F-107.6°F)Object m o de:0.0°C-100.0°C(32.0°F-212.0°F)
Accuracy (Laboratory)	Forehead mode:±0.2°C (±0.4°F)Ear mode:±0.2°C (±0.4°F)Object m o de:±1.0°C/±2.0°F
Resolution 0.1°C (0.1°F)
Memory 20 temperature readings
Low-battery Alert	The low-battery symbol is displayed if the power voltage is lower than 2.5 V±0.1V
Automatic Power-off	The thermometer automatically powers off if it is not used in 12±1 seconds.

Outer dimensions (mm)	149.3×38.1×43.4mm
Weight (g)	Thermometer (with batteries): 86.7 g
Operating Environment	Temperature: 10°C~ 40°C (50°F-104°F)
	Humidity: 15%-95% RH, non-condensing
	Atmospheric pressure: 86 -106 kPa

The infrared thermometer has been tested and conforms to the standard ASTM E1965-98. ASTM laboratory accuracy requirements in the display range of 96.8°F to 102.2°F (36°C-39°C) for ear canal IR thermometers is ±0.4°F (±0.2°C). Note that for mercury-in-glass and electronic thermometers, the requirement per ASTM Standards E667-86 and E1112-86 is ±0.2°F (±0.1°C).

17 SECURITY CLASS

• Type of protection against electric shock: internally powered equipment.
• Degree of protection against electric shock: Type BF applied part.
  • Degree of protection against ingress of water:IP22
• Safety degree of using in flammable anesthetic gas blending with air, oxygen or nitrous oxide: Non-AP/APG
• No application parts of the thermometer prevents defibrillation charge effect.
• No application parts of the thermometer output signal.

- The thermometer is impermanent installed device.

18 STORAGE AND TRANSPORTATION

The thermometer can be transported using general transportation tools. Severe vibration, shock, or rain must be avoided during transportation.

The thermometer must be packaged and then stored in a well-ventilated room without corrosive gas. The ambient temperature must be between -20^ and +55^(-4^ - 131^) , the relative humidity must be lower than 95% (non-condensing), and the atmospheric pressure must be 50 - 106kPa .

19 EMC INFORMATION · GUIDANCE AND MANUFACTURE'S DECLARATION

Declaration

CAUTION

• The IRT-200 Forehead & Ear Thermometer needs special precautions regarding EMC and needs to be installed and put into service according to the EMC information provided for in the ACCOMPANYING DOCUMENTS.
• Portable and mobile RF communications equipment can affect IRT-200 Forehead & Ear Thermometer.
• The IRT-200 Forehead & Ear Thermometer should not be used adjacent to or stacked with other equipment.

Guidance and manufacturer's declaration · Electromagnetic emission · For all equipment and systems

Guidance and manufacturer's declaration · Electromagnetic emission
The IRT-200 Forehead & Ear Thermometer is intended for use in the electromagnetic environment specified below. The customer or the user of the IRT-200 Forehead & Ear Thermometer should assure that it is used in such an environment.
Emissions test	Compliance	Electromagnetic environment · Guidance
RF emissionsCISPR 11	Group 1	The IRT-200 Forehead & Ear Thermometer uses RF energy only for its internal function. Therefore, its RF emissions are very low and are not likely to cause any interference in nearby electronic equipment.
RF emissionsCISPR 11	Class B	The IRT-200 Forehead & Ear Thermometer is suitable for use in all establishments, including domestic establishments and those directly connected to the public low-voltage power supply network that supplies buildings used for domestic purposes.

Guidance and manufacturer's declaration · Electromagnetic immunity · For all equipment and systems

Guidance and manufacturer's declaration · Electromagnetic immunity
The IRT-200 Forehead & Ear Thermometer is intended for use in the electromagnetic environment specified below. The customer or the user of IRT-200 Forehead & Ear Thermometer should assure that it is used in such an environment.
Im munity test IEC	60601 test level Compliance level		Electromagnetic environment · Guidance
Electrostatic discharge (ESD)IEC 61000-4-2	±6kV contact±8 kV air	±6 kV contact±8 kV air	Floors should be wood, concrete or ceramic tile. If floors are covered with synthetic material, the relative humidity should be at least 30%.
Power frequency(50 / 60 Hz)Magnetic fieldIEC 61000-4-8	3 A / m 3 A / m		Power frequency magnetic fields should be at levels characteristic of a typical location in a typical commercial or hospital environment.

Guidance and manufacturer's declaration · Electromagnetic immunity ·

For equipment and systems that are not life-supporting

Guidance and manufacturer's declaration · Electromagnetic immunity
The IRT-200 Forehead & Ear Thermometer is intended for use in the electromagnetic environment specified below. The customer or the user of the IRT-200 Forehead & Ear Thermometer should assure that it is used in such an environment.
Im munity test IEC	60601 test level Compliance level		Electromagnetic environment · Guidance
Radiated RFIEC 61000-4-3	3 V / m80 MHzto 2.5 GHz	3 V / m	Portable and mobile RFCommunications equipment should be used no closer to any part of the IRT-200, including cables, than the recommended separation distance calculated from the equation applicable to the frequency of the transmitter.Recommended separation distance:d=[3.5/E1]√P 80MHz to 800MHzd=[7/E1]√P 800MHz to 2.5GHzwhere p is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer and d is the recommended separation distance in metres (m).Field strengths from fixed RF transmitters, as determined by an Electromagnetic a site surveya,should be less than the compliance level in each frequency rangebInterference may occur in the vicinity of equipment marked with the following symbol:
NOTE 1: At 80 MHz and 800 MHz, the higher frequency range applies.NOTE 2: These guidelines may not apply in all situations. Electromagnetic is affected by absorption and reflection from structures, objects and people.
a. Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the IRT-200 is used exceeds the applicable RF compliance level above, the IRT-200 should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as re-orienting or relocating the IRT-200.b. Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m.

Recommended separation distances between portable and mobile RF communications equipment and the EQUIPMENT or SYSTEM · For EQUIPMENT and SYSTEMS that are not LIFE-SUPPORTING

The IRT-200 Forehead & Ear Thermometer is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the IRT-200 Forehead & Ear Thermometer can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the IRT-200 Forehead & Ear Thermometer as recommended below, according to the maximum output power of the communications equipment.
Rated maximumoutput powerof transmitter (W)	Separation distance according to frequency of transmitter (m)
	80MHz to 800MHzd=[3.5/E1]√P	800MHz to 2.5GHzd=[7/E1]√P
0.01 0.12 0.23
0.1 0.38 0.73
1 1.2 2.3
10 3.8 7.3
100 12 23
For transmitters rated at a maximum output power not listed above, the recommended separation distance d in metres (m) can be estimated using the equation applicable to the frequency of the transmitter, where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer.NOTE 1: At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies.NOTE 2: These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people.

20 LIMITED WARRANTY

LANAFORM guarantees this product against any material or manufacturing defect for a period of two years from the date of purchase, except in the circumstances described below.

The LANAFORM guarantee does not cover damage caused as a result of normal wear to this product. In addition, the guarantee covering this LANAFORM product does not cover damage caused by abusive or inappropriate or incorrect use, accidents, the use of unauthorized accessories, changes made to the product or any other circumstance, of whatever sort that is outside LANAFORM's control.

LANAFORM may not be held liable for any type of circumstantial, indirect or specific damage.

All implicit guarantees relating to the suitability of the product are limited to a period of two years from the initial date of purchase as long as a copy of the proof of purchase can be supplied.

On receipt, LANAFORM will repair or replace your appliance at its discretion and will return it to you.

The guarantee is only valid through LANAFORM's Service Centre. Any attempt to maintain this product by a person other than LANAFORM's Service Centre will render this guarantee void.

21 ADVICE REGARDING THE DISPOSAL OF WASTE

All the packaging is composed of materials that pose no hazard for the environment and which can be disposed of at your local sorting centre to be used as secondary raw materials. The cardboard may be disposed of in a paper recycling bin. The packaging film must be taken to your local sorting and recycling centre.

When you have finished using the device, please dispose of it in an environmentally friendly way and in accordance with the law.

Prior to disposal, please remove the battery and dispose of it at a collection point so that it can be recycled.

Under no circumstances should spent batteries be disposed of with household waste.

22 SERVICE CENTER

[3764]	Shenzhen Jumper Medical Equip ment Co., Ltd. D Building, No. 71, Xintian Road, Fuyong Street, Baoan, Shenzhen, Guangdong, 518103, China Tel: [phone]
[46WS]	MedPath GmbH Mies-van-der-Rohe-Strasse 8, 80807 Munich, Germany Tel: [phone]
	Lanaform SA Rue de la Légende 55, 4141 Louveigné, Belgium Tel: [phone]

FRANÇAIS

PRÉSENTATION

8 STRUCTURE DU PRODUIT

Technical diagram of a remote control device with labeled parts including buttons and indicators

Diagram of a remote control device with labeled parts including battery, buttons, and function keys

Illustration of a hand holding a pen, showing the process with an arrow indicating movement (no text or symbols present)

Q 36.8°C Q 36.8°C

Two identical diagrams showing a dashed line with arrows and circular symbols inside, no text or labels present.

6 PRODUCTBESCHRIJVING

Technical diagram of a remote control device with labeled parts including buttons and indicators

Technical diagram of a remote control device with numbered parts labeled 5 to 9

9 DISPLAYBESCHRIJVING

1 2 3 4 5 800.0 °E 800.0 M 9

Illustration of two hands performing a medical or surgical procedure on a cylindrical object, showing hand positioning and force application (no text or symbols)

Q 36.8°C Q 36.8°C

Two identical diagrams showing a dashed line with arrows and circles, no text or symbols present.

Technical diagram of a handheld device with labeled parts including buttons and indicators

Diagram of a remote control device with numbered parts for identification

Illustration of two-step medical procedure showing hand placement and insertion of a device (no text or symbols)

Q 36.8°C Q 36.8°C

Diagram showing two identical panels with symbols like 'Q', 'τ', and directional arrows, likely representing a physical or mathematical concept.

20 BESCHRÄNKTE GARANTIE

Technical diagram of a remote control device with labeled parts including buttons and indicators

Technical diagram of a remote control device with numbered parts for identification

800.0 800.0 M E ⑤ ⑦ ③

Illustration of two hand positions showing finger movement and color change (no text or symbols)

Q 36.8°C Q 36.8°C

5 ZÁKLADNÍ INFORMACE O TĚLESNÉ TEPLOTĚ

Technical diagram of a remote control device with labeled components including buttons and indicators

Diagram of a remote control device with labeled parts including battery, buttons, and indicator lights

Q 36.8°C Q 36.8°C

Technical diagram of a remote control device with labeled buttons and ports

Technical diagram of a remote control device with numbered parts labeled 5 through 9

Medical illustration showing a hand performing a finger manipulation technique with labeled arrows and text annotations

Meranie teploty v uchu (dospelý/dieta)

36.5°C 36.5°C

Zložte kryt sondy.

Q 36.8°C Q̇ 36.8°C

Diagram showing two identical panels with symbols Q and Q̅, each connected by dashed lines and arrows, likely representing a transformation or mapping process.

Technical diagram of a device with labeled parts including buttons and indicators

Technical diagram of a remote control device with numbered parts for identification

5 Sonda (pri merjenju telesne temperature v ušesu snemite pokrov)
6 Pokrov sonde (pri merjenju telesne tempera-5 ture na čelu nadenite pokrov) 6
7 Gumb za stikalo enote (°C/°F)
8 Gumb za pomnilnik/stikalo za zvok
9 Baterijski pokrov

9 OPIS ZASLONA

1 2 3 4 5 6 7 8 9 888.0 M °E

1 Način merjenja temperature predmetov
2 Način merjenja temperature na čelu
3 Način za uporabo pri otrocih
4 Način merjenja temperature v ušesu
5 Brez zvoka/z zvokom
6 Temperaturna enota (°C/°F)
7 Skoraj prazna baterija
8 Priklic pomnilnika
9 Vrednost temperature

10 NAVODILA ZA ZVOK IN BARVO OSVETLITVE OZADJA

OBSEG	ZVOKI	OSVETLITEV OZADJA	REZULTAT
Temperatura na čelu (odrasli/otroci)
35,0°C-37,5°C / 95,0°F-99,5°F Dolg	pisk Zelena		Normalna telesna temperatura
37,6°C-37,9°C / 99,7°F-100,2°F Dolg	pisk Oranžna		Telesna temperatura je rahlo povišana.
38,0°C-42,2°C / 100,4°F-108,0°F	Trije kratki dvojni piski	Rdeča	Telesna temperatura je nekoliko visoka.
Temperatura v ušesu (odrasli/otroci)
35,0°C-37,5°C / 95,0°F-99,5°F Dolg	pisk Zelena		Normalna telesna temperatura
37,6°C-37,9°C / 99,7°F-100,2°F Dolg	pisk Oranžna		Telesna temperatura je Rahlo povišana.
38,0°C-42,0°C / 100,4°F-108,0°F	Trije kratki dvojni piski	Rdeča	Telesna temperatura je nekoliko visoka.
Temperatura predmeta
0°C-100°C / 32,0°F-212°F Dolg	pisk Zelena

Illustration of two hand positions showing finger movement and color change (no text or symbols)

Merjenje temperature v ušesu (odrasli/otroci)

36.5°C 36.5°C

Odstranite pokrov sonde.

Za eno sekundo pritisnite in sprostite gumb za vklop/izklop, da vklopite termometer. Pritisnite gumb za način, nato termometer vstopi v način merjenja v ušesu. Na zaslonu se prikaže simbol.

Q 36.8°C Q 36.8°C

Sondo pokrijte s pokrovom. Za eno sekundo pritisnite in sprostite gumb za vklop/izklop, da vklopite termometer. Pritisnite gumb za način in termometer vstopi v način merjenja na čelu. Na zaslonu se prikaže simbol

Pri merjenju temperature pri odraslem stikalo nastavite v način »odrasli«. Kadar merite tempe - raturo pri otrocih, stikalo nastavite v način »otrok« in na zaslonu se pojavi simbol .

Termometer usmerite proti stranem čelapribližno 1–3 cm stran od površine kože. Pritisnite in sprostite merilni gumb. Temperatura se bo takoj pojavila na zaslonu.

Two identical diagrams showing a dashed line with arrows and circular symbols, no text or labels present.

Technical diagram of a remote control device with labeled parts including buttons and indicators

1 LCD zaslon
2 Tipka za uključivanje/isključivanje / tipka za mjerenje
3 Način rada za odrasle / način rada za djecu
4 Tipka za način rada (čelo/uho/predmet)

Diagram of a remote control device with labeled parts including battery, buttons, and indicator lights

5 Sonda (uklonite poklopac kada mjerite temperaturu u uhu)
6 Poklopac sonde (postavite poklopac kada mjerite temperaturu na čelu)
7 Tipka za prebacivanje mjerne jedinice (°C/°F)
8 Tipka za memoriju / promjena zvuka
9 Poklopac baterije

9 OPIS ZASLONA 1 Način rada za predmete

1 2 3 4 5 6 7 8 9 800.0 800.0 M °E

Illustration of a hand holding a cylindrical object with arrows indicating movement or force (no text or symbols)

Mjerenje temperature u uhu (odrasli/djec)

36.5°C 36.5°C

Uklonite poklopac sonde.

Q 36.8°C Q 36.8°C

Diagram showing two identical panels with symbols Q, τ, and φ, connected by dashed lines and arrows indicating direction or relationship.

Technical diagram of a handheld device with labeled parts including screen, lock, and control buttons

Diagram of a remote control device with numbered parts for identification

Illustration of two hand positions showing finger movement and positioning (no text or symbols)

Q 36.8°C Q 36.8°C

[3201]	Shenzhen Jumper Medical Equipment Co., Ltd.D Building, No. 71, Xintian Road, Fuyong Street,Baoan, Shenzhen, Guangdong,518103, ChinaTel: [phone]
	MedPath GmbHMies-van-der-Rohe-Strasse8, 80807 Munich, GermanyTel: [phone]
[towest]	Lanaform SARue de la Légende 55, 4141Louveigné, BelgiumTel: [phone]

IRT-200·LA090114·MD

LOT 202108LA090114002·V2.0

DISTRIBUTOR

Distributed by LANAFORM

Shenzhen Jumper Medical

Equipment Co., Ltd. D Building, No. 71,

Xintian Road, Fuyong Street, Baoan,

Shenzhen, Guangdong, 518103, China

MedPath GmbH

Mies-van-der-Rohe-Strasse 8,

80807 Munich, Germany

Tel: [phone]

2 YEAR WARRANTY

LANAFORM
