USER MANUAL IRT100 LANAFORM

Thank you for purchasing our Infrared Thermometer, type AET-R1D1. This Infrared Thermometer is a non-sterile, reusable, handheld device. It can be used by consumers in homecare environment and doctors in clinic as reference. It is intended for measuring human body temperature of three months and above of people by detecting infrared heat from the center of the forehead.

The clinical thermometer is an adjusted mode clinical thermometer.

• The patient can use and maintenance the device as an operator.

• For safe and proper use of this product, be sure to read and fully understand Safety Precautions contained in this user manual.

• Keep this manual with you for a convenient reference.

• Keep this manual in a proper way and avoid any loss.

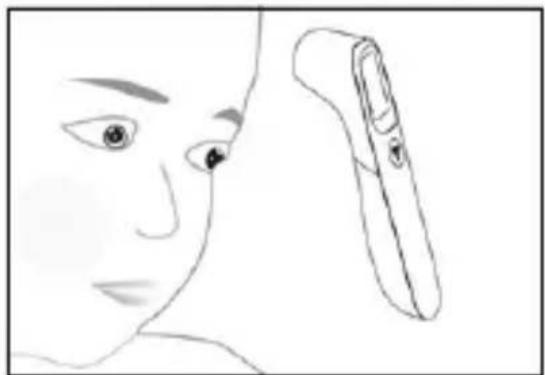

If you need other information, please contact the manufacturer. The correct measurement method to follow: Measure the forehead. Distance 15mm to 50mm.

CORRECT MEASUREMENT METHOD

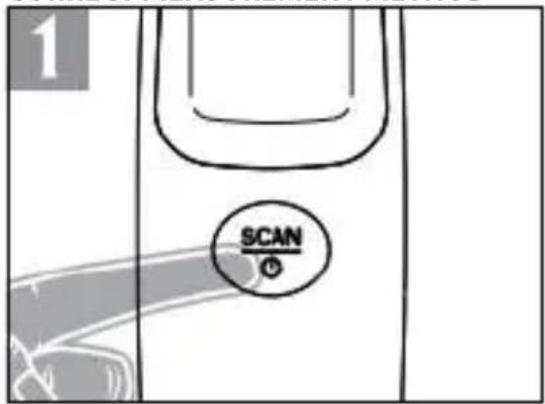

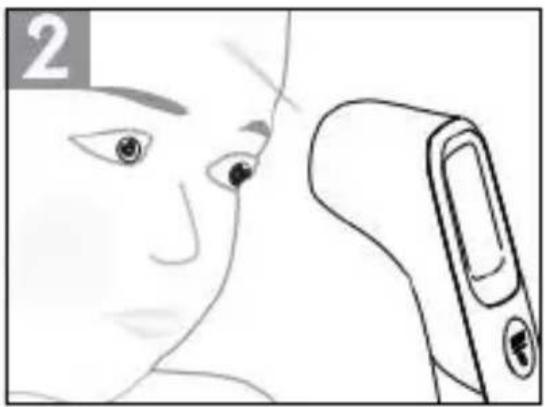

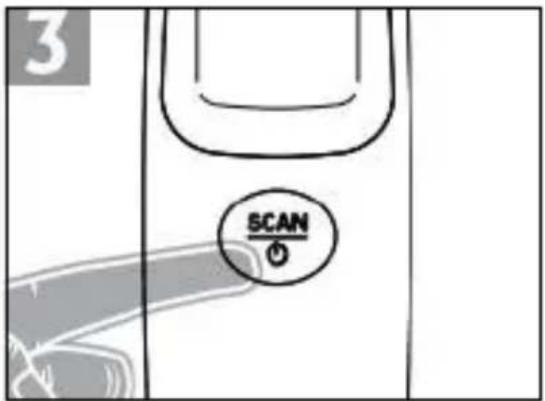

1 Turn the thermometer on by pressing the “SCAN” button. A beep sound will be heard following which the screen will with ---°C indicating the unit is ready for use. 2 Place the thermometer probe point near the forehead and press “SCAN” and release after ~ 1 second and the thermometer will beep and display the accurate temperature. Whenever consecutive readings are required, please wait for at least 5 second. The above procedure can be repeated as many times as required. 3 To turn o the device press and hold the “SCAN” switch for ~ 5 seconds. Or the thermometer will turn o automatically after ~ 60 seconds. UNIT DESCRIPTIONEN

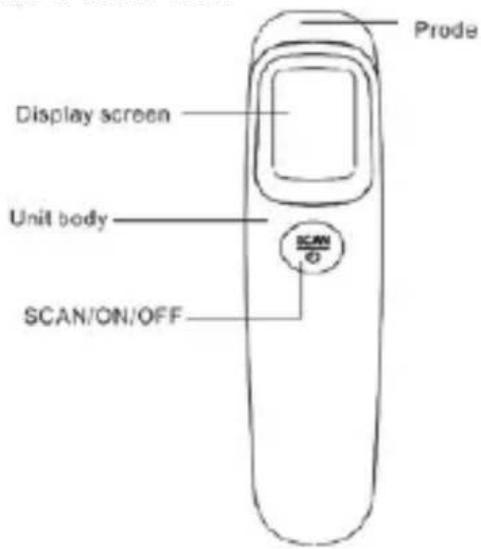

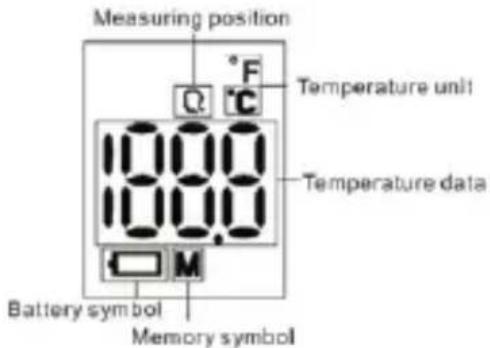

Display information Location indication: The icon indication the correct mea- suring position when measuring. Temperature data indication: The temperature reading is displayed after measuring. Temperature unit indication: Unit of measuring temperature shows °C or °F. Low battery symbol indication: the icon prompts you to replace the battery when the power is low. Memory symbol indication: it shows in memory query mode currently.

LOAD AND REPLACE BATTERIES

Batteries need replace when the icon “ ” is display on the screen. The steps as follow: 1 Press and hold the battery cover, and push it upward diagonally to push the cover away. 2 Install 2*AAA batteries as shown in the positive and negative pole. 3 Close the battery cover.

Please take out the batter y if you do not use the thermo- meter for a long time.

• Please refer to the relevant laws and regulations for the disposal of waste batteries.

• Do not mix old and new batteries;

• Do not mix alkaline, standard (carbon-zinc), or rechar- geable (Ni-Cd, Ni- MH, etc.) batteries.

BEFORE TAKE A MEASUREMENT

1 It is suggested to try the device by yourself rst, so as to know how to use it. 2 In order to avoid aecting accuracy of the device due to the external too cold or too hot environment, it must be placed in general environment of room temperature of 15°C -40°C for at least 30 minutes before use to avoid incorrect measurement results. 3 The person measured should be kept at room temperature for at least 20 minutes to make body temperature balanced. 4 After strenuous exercise, you should rest for at least 30 minutes before taking measurement. 5 Wipe the skin dry and push aside hair strands before commencing. 6 When repeated measurements are made continuously, move away the probe between each measurement and rest for at least 5s before making the next to obtain the most correct result. 7 The normal reading value is about 35.5°C ~ 37.8°C. The user should take more temperature to know his or her own health temperature. Pay attention to physical changes or consult your doctor if there is any abnormality. 8 Check the probe is clean before each measurement to ensure accuracy.

INSTRUCTIONS FOR USE

1 Press the “SCAN” key. The display is activated to show all segments for 1 second. 2 The last measurement reading will automatically be shown on the display for 1 second with the “M” icon. 3 When the “---°C“ display, a beep sound is heard and the thermometer is ready for measurement. 4 Aim the thermometer at the center of the forehead with a distance of 15mm to 50 mm. 5 Press the “SCAN” key, after 1 second a long beep will verify the completion of measurement . If a reading below 32°C is recorded a “Lo” sign will be displayed followed by 2 consecutive beeps. If a reading above 37.8°C is recorded there will be 6 consecutive beeps. If a reading above 42.2°C is recorded a “Hi” sign will be displayed followed by 2 consecutive beeps. 6 Press the “SCAN” key for 5 seconds to turn o the thermometer. Or the unit will switch o automatically after 60 seconds. Recalling Readings from Memory In shutdown mode, long press the “SCAN” key for 4s until the screen is display “M”, then release and the screen display ”01 => 36.8°C”, and then press the “SCAN” key to display the next reading in a sequence from the last reading to the rst reading. The thermometer has the memory to recall the last 32 readings. The thermometer will automatically turn o if it idles forEN

more than 12 secondsChanging Temperature Scales1 Ensure the thermometer is switched o.2 Press the“SCAN”button for 8 seconds to bring it into temperature mode. The current temperature unit will be displayed.3 Release and press the“SCAN”button again to toggle and select between °C and °F .4 The thermometer will switch o automatically if it idles for more than 4 seconds.DISPOSALDo not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact your local government for information regarding the collection systems available. If electrical appliances are disposed of in landlls or dumps, hazardous substancescan leak into the groundwater and get into the food chain, damaging your health and well-being.EXPLANATION OF MARKS OR SYMBOLSThe following symbols may appear on the manual, Infrared Thermometer and its accessories.MUST OBSERVEMeans Obligatory with detailed items expressed in words or g-ures within or beside the mark. Left one means General Com-pulsory. Follow instructions for use.IMPLICATION OF SYMBOLType-BF applied part.Caution: Consult accompanying documents.Do not dispose this product as un-sorted municipal waste. Collec-tion of such waste separately for special treatment is necessary.Transport package shall be kept away from rain.Transport package shall not be ex-posed to sunlight.Indicates correct upright position of the transport package.Contents of the transport pack-age are fragile therefore it shall be handled with care.Indicates temperature limits with-in which the transport package shall be stored and handled. Non-ionizing electromagnet-ic radiation.Do not roll.Lot number.Production date.The device should not be used after the end of the shown or the day IP22 Protected against solid foreign objects of 12.5mm diameter and greater. Protected against verti-cally falling water drops when the device is tilted up to 15°.ManufacturerCE Mark: indicates that the device complies with theEU 2017/ 745Authorized Representative in the European CommunityMedical device Thecorrectmeasurement methodtofollow: Measuretheforehead. Distance15mmto50mm 1.Turnthethermometeronby pressingthe“ ”ON/OFF/MEASURE button.Tochoosemodepress “ ”ontheshutoffON/OFF/MEASURE mode.Abeepsoundwillbeheard followingwhichthescreenwill indication ℃with--- indicatingthe unitisreadyforuse. 2.Placethethermometerprobe pointneartheforeheadandpress “ ”andreleaseON/OFF/MEASURE after~1secondandthe thermometerwillbeepanddisplay theaccuratetemperature.Whenever consecutivereadingsarere quired, pleasewaitforatleast5seconds. Theaboveprocedurecanbe repeatedasmanytimesasrequired. 3.Toturnoffthedevicepressand holdthe“ ”switchON/OFF/MEASURE for~5secondsandthethermometer willturnoffautomaticallyafter~60 seconds. Introduc tion Correct measurement method -ThankyouforpurchasingourInfraredThermometer, typeAET-R1 1.ThisInfraredThermometerisanon-D sterile,reusable,handhelddevice. -Theclinicalthermometerisanadjustedmodeclinical thermometer. -Thepatientcanuseandmaintenancethedeviceasan operator. -Forsafeandproperuseofthisproduct,besuretoread andfullyunderstandSafetyPrecautionscontainedinthis usermanual. -Keepthismanualwithyouforaconvenientreference. -Keepthismanualinaproperwayandavoidanyloss. -Ifyouneedotherinformation,ple asecontactthe manufacturer. TheInfraredThermometerisintendedformeasuring humanbodytemperatureofpeopleaged3monthsand abovebydetectinginfraredheatfromnon-contact(about 1.5-5.0cmdistances)withtheforeheadinthehomeor hospitalenvironment. Unit description Display informati on Memorysymbol Temperatureunit Batterysymbol Measuringposition Temperaturedata Load and rep lace batt eries

Voltagefluctuations/flickeremissions

(Test specifications for ENC LO SU RE

WARNINGDo not use the thermometer under temperature extremes (below 15°C / 59°F or over 40°C /104°F) or humidity extremes (below 10%RH or over 80% RH). * Failing to do so may cause inaccuracy.Do not expose the thermometer to temperature extremes (below -20°C / -4°F or over 55°C / 131°F) or humidity extremes (below 15% RH or over 93% RH).* Failing to do so may cause inaccuracy.Temperature probe has been shocked and lax.* Contact your retailer immediately.It is dangerous for patients to perform a self-eval-uation and self-treatment based on the measur-ing results. Be sure to follow doctors’ instruction.* A self-evaluation may cause deterioration of diseases.Don’t touch or blow infrared sensor. * A polluted or broken infrared sensor may cause inaccuracy.Clean a polluted infrared sensor with a soft dry cloth in a gentle manner. * Clean with toilet tissue or paper towel may scratch the infrared sensor, causing inaccuracy.Install the battery in the right position accord-ing to the manual.* Incorrect replacement will cause battery heat.Do not immerse the thermometer in liquids.* This instrument is not waterproof.Do not use a mobile phone nearby when the ther-mometer is working.* Portable and mobile RF communications equip-ment can aect MEDICAL ELECTICAL EQUIPMENT. Falling to do so may cause inaccuracy.The probe glass is made from special material which is not easybroken.*If there is any damage, stop using it and con-tact the retailerimmediately.EN

WARNING Do not modify this equipment without authoriza- tion of the manufacturer.

• Contact the retailer immediately. The device is not repairable and contains no user serviceable parts.

• If there is any problem, contact the retailer im- mediately. The device requires no calibration. *If there is any problem, contact the retailer im- mediately. No modication of this equipment is allowed.

• If there is any problem, contact the retailer im- mediately. If this equipment is modied, appropriate in- spection and testing must be conducted to en- sure continued safe use of the equipment.

• If there is any problem, contact the retailer im- mediately. The operator shall not touch the thermometer and the patient simultaneously. Keep the ma- chine out of children’s reach.

• For accidental swallow of battery or protective lm, please consult the doctor at once. For temperature dierence between storage ar- ea and measurement site, condition the ther- mometer for about 30 minutes in room tempera- ture (measurement site).

• Failing to do so may cause inaccuracy. Ensure that children do not use the instrument unsupervised.

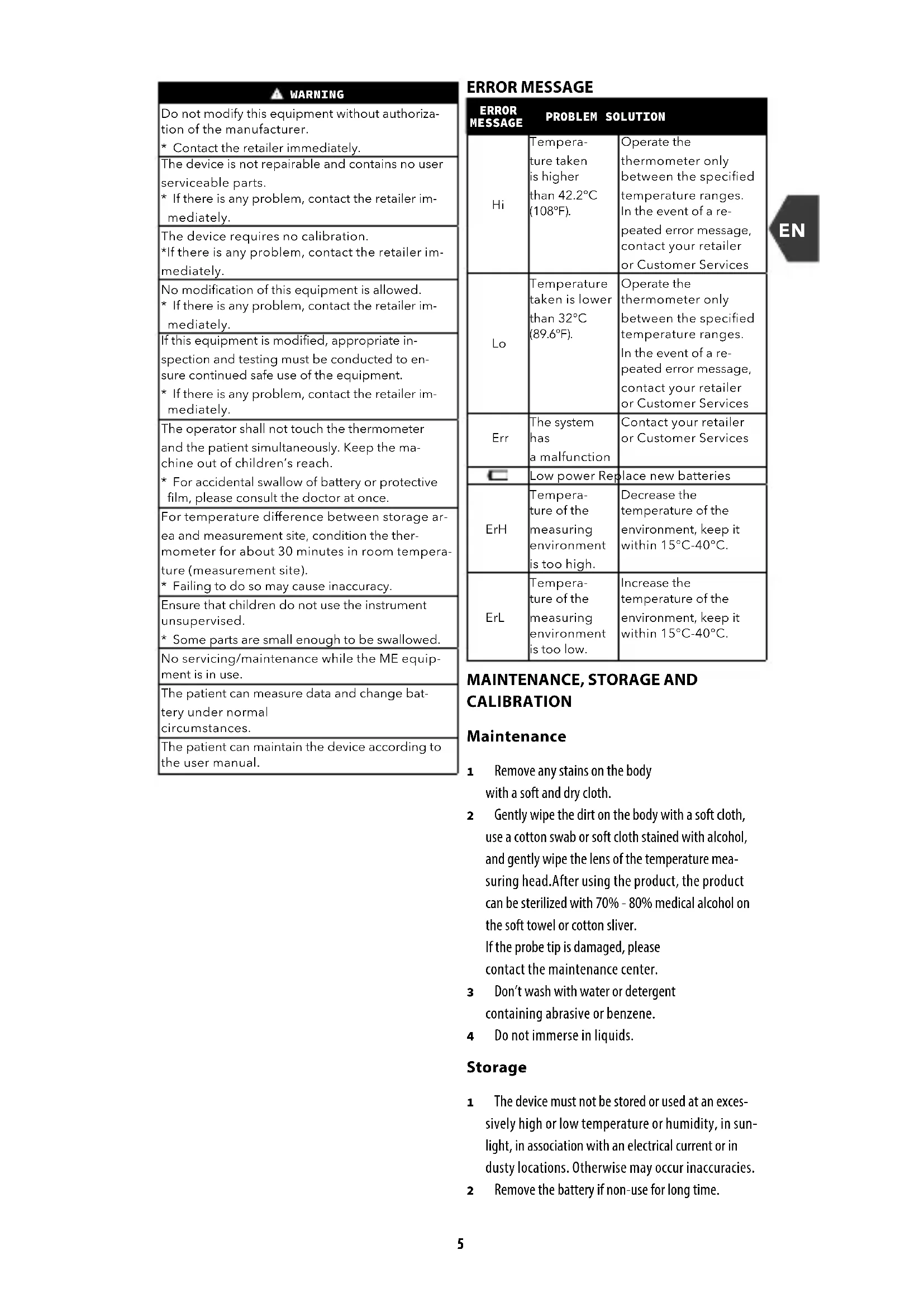

• Some parts are small enough to be swallowed. No servicing/maintenance while the ME equip- ment is in use. The patient can measure data and change bat- tery under normal circumstances. The patient can maintain the device according to the user manual. ERROR MESSAGE ERROR MESSAGE PROBLEM SOLUTION

Tempera- ture taken is higher than 42.2°C (108°F). Operate the thermometer only between the specied temperature ranges. In the event of a re- peated error message, contact your retailer or Customer Services

Temperature taken is lower than 32°C (89.6°F). Operate the thermometer only between the specied temperature ranges. In the event of a re- peated error message, contact your retailer or Customer Services Err The system has a malfunction Contact your retailer or Customer Services Low power Replace new batteries ErH Tempera- ture of the measuring environment is too high. Decrease the temperature of the environment, keep it within 15°C-40°C. ErL Tempera- ture of the measuring environment is too low. Increase the temperature of the environment, keep it within 15°C-40°C.

MAINTENANCE, STORAGE AND

CALIBRATION Maintenance 1 Remove any stains on the body with a soft and dry cloth. 2 Gently wipe the dirt on the body with a soft cloth, use a cotton swab or soft cloth stained with alcohol, and gently wipe the lens of the temperature mea- suring head.After using the product, the product can be sterilized with 70% - 80% medical alcohol on the soft towel or cotton sliver. If the probe tip is damaged, please contact the maintenance center. 3 Don’t wash with water or detergent containing abrasive or benzene. 4 Do not immerse in liquids. Storage 1 The device must not be stored or used at an exces- sively high or low temperature or humidity, in sun- light, in association with an electrical current or in dusty locations. Otherwise may occur inaccuracies. 2 Remove the battery if non-use for long time.EN

Calibration This thermometer is calibrated at the time of manuf actured. If the thermometer is used according to the instruction, periodic recalibration is not required. If at any time you question the accuracy of the measurement, please contact the retailer immediately. Don’t attempt to modify or reassemble the thermometer. TECHNICAL SPECIFICATIONS Device name Infrared Thermometer Measurement Mode Forehead mode Measuring site Forehead Reference body site Oral Measurement range ( for ehead mo de ) 32.0°C to 42.2°C ( 89. 6°F -108 °F ) Measuring ac- curacy ( for lab. con- dit ion ) ±0.2°C(35.0°C- 42.0°C)/±0.4°F (95°F-107.6°F), ±0.3°C (±0.5°F ) other range Clinical repeat- ability ≤±0. 3°C ( 0.5 °F ) Accuracy for clin- ical test ≤±0. 3°C ( 0.5 °F ) Resolution of display 0.1°C (0.1°F) Measurement distance 15mm to 50mm from the measuring point Measuring time 1s (5s later for another meas- urement) Memories recall 32 measurements recall Battery 2xAAA batteries ( DC 3V ) Battery life New batteries (2 AAA batter- ies) will take approx. 1000 measurements. Product life 5 years Automatic shut- down function 60s±10s Operating Conditions Temperature:15°C-40°C; Relative humidity: 10%-80%; Atmospheric pressure: 70- 106 kPa Storage & transportation Condition Temperature:-20°C-55°C; Relative humidity: 15%-93%; Atmospheric pressure: 70- 106 kPa Time of ther- mometer from highest or lowest temper- ature environment to operation envi- ronment 30 minutes High tempera- ture hint ≥37.8° C ( 100 °F ) Dimensions 138mm x 37mm x 37mm Weight 47g without batteries Software version A.01 Note: Not intended to be sterilized. Not for use in an OXYGEN RICH ENVIRONMENT. Not intended for use in the emergency medical services environment. Not intended for use with amma- ble agents. Not intended for use with ammable anesthetics. STANDARD The product is made under the ISO80601-2-56. GUARANTEE Two-year warranty is available from purchasing date, excluding user-caused failures listed below: 1 Failure resulted in unauthorized disassemble and modication. 2 Failure resulted in unexpected drop during application or transportation. 3 Failure resulted in operation away from proper instruction in User’s Manual.

• Instruction for use x1 Manufacturer information: Manufacturer: Alicn Medical Shenzhen, Inc. Address: Room 4C, Building 1,Zhongcheng Biomedical Industrial Park,No.21 Linhui Road, Jinsha Community, Kengzi Street,Pingshan District,518118 Shenzhen, Guangdong,PEOPLE’S REPUBLIC OF CHINA Tel: [phone] Email: [e-mail] Website: http://www.alicn-med.com Authorized EU Representative CMC Medical Devices & Drugs S.L. Address: C/ Horacio Lengo Nº 18, CP 29006, Málaga, Spain Web: www.cmcmedicaldevices.com Tel: [phone] Lanaform SA Rue de la Légende 55, 4141 Louveigné, Belgium Tel: [phone] Version: 1.0 Date modied: 2024-12-01 ELECTROMAGNETIC COMPATIBILITY The ME EQUIPMENT or ME SYSTEM is suitable for home or hospital environment.
