USER MANUAL IAM 40-4625 S IKRA

IAM 40-4325 IAM 40-4625 S

CE

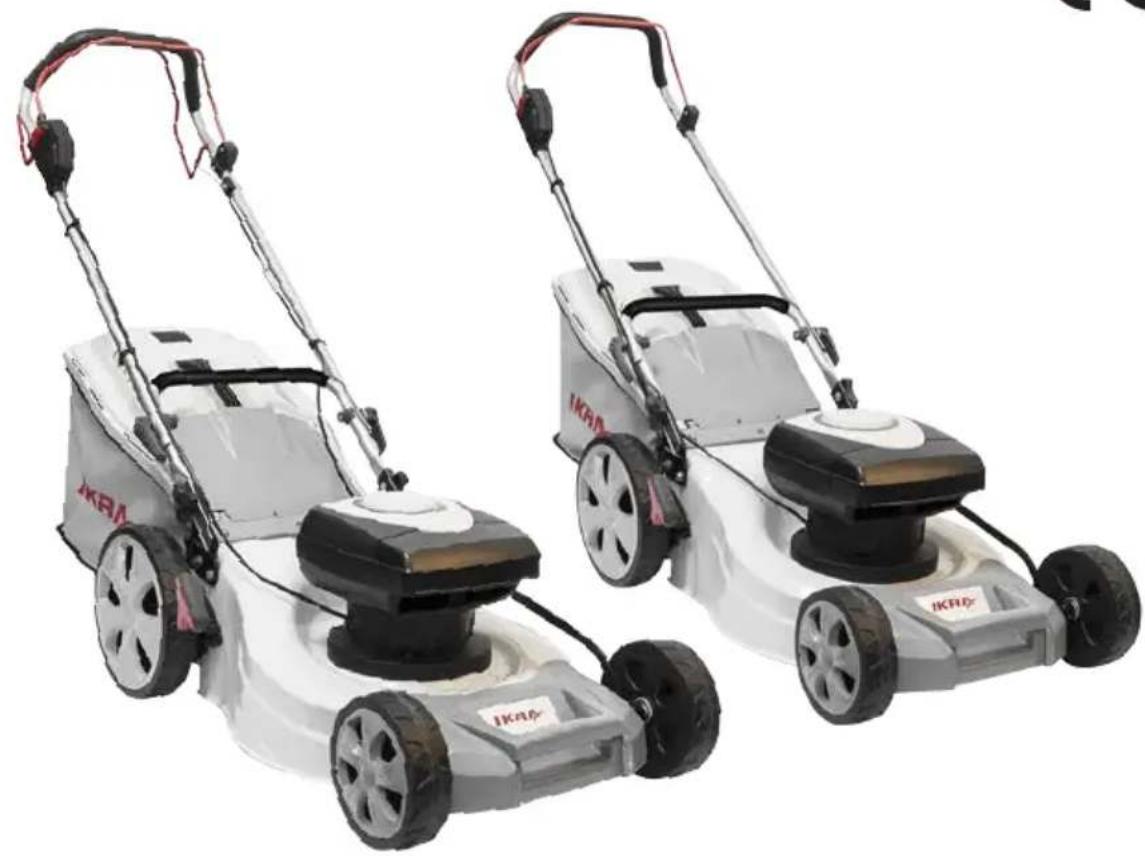

Two identical LKRA lawn curlers with black and silver wheels, no visible text or symbols on the motors themselves.

GB translation of the original instructions

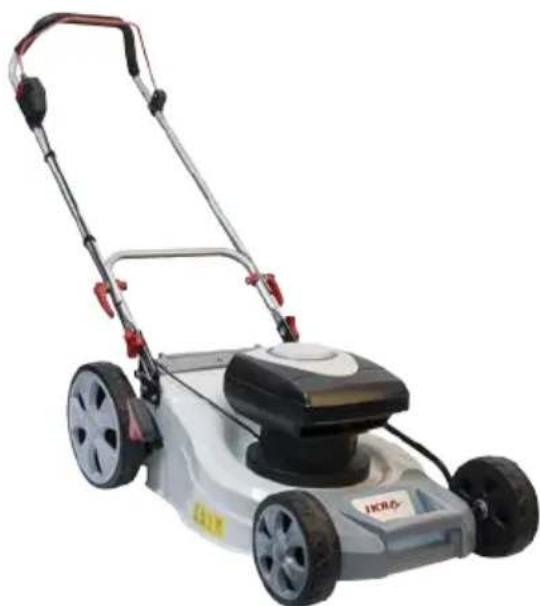

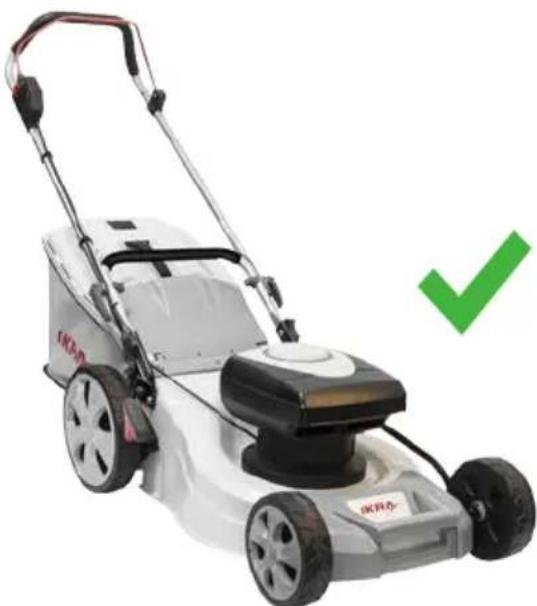

Cordless (3in1) Steel Deck Lawn Mower

Exterior view of a lawn mower with a black downward arrow indicating motion (no text or symbols)

V
8-10

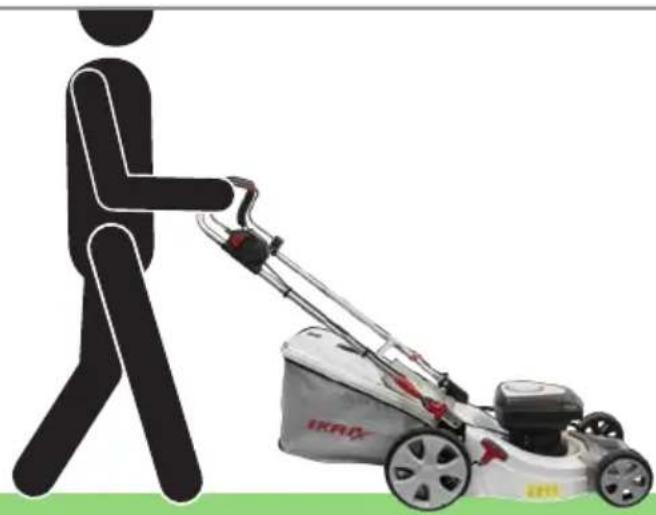

Silhouette of a person pushing a lawn mower (no text or symbols)

START | STOP

II
4-5

Black and white photo of a 40V battery with visible power rating and indicator lights (no text or symbols on body)

VI
11

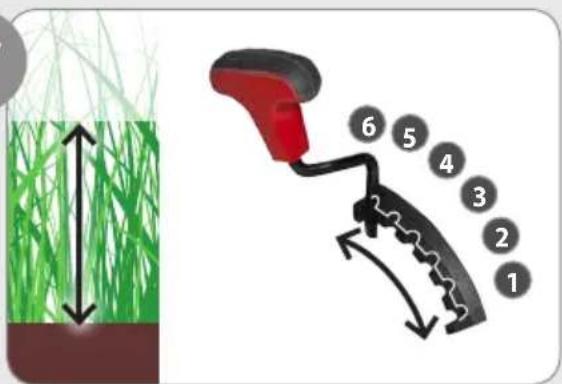

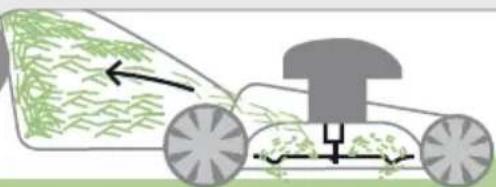

Diagram of a grassy field with a tractor, showing grass blades and a directional arrow (no text or symbols)

Diagram of a car with two wheels and a handle, no text or symbols present

[Non-Text]
6

Close-up of a black plastic component with red and white arrows indicating internal features, no visible text or symbols.

VII
12

Illustration of a lawn mower with a house and arrow indicating direction (no text or symbols)

IV
7

Diagram illustrating a hair follicle with labeled parts and directional arrows indicating measurement or movement.

VIII
13

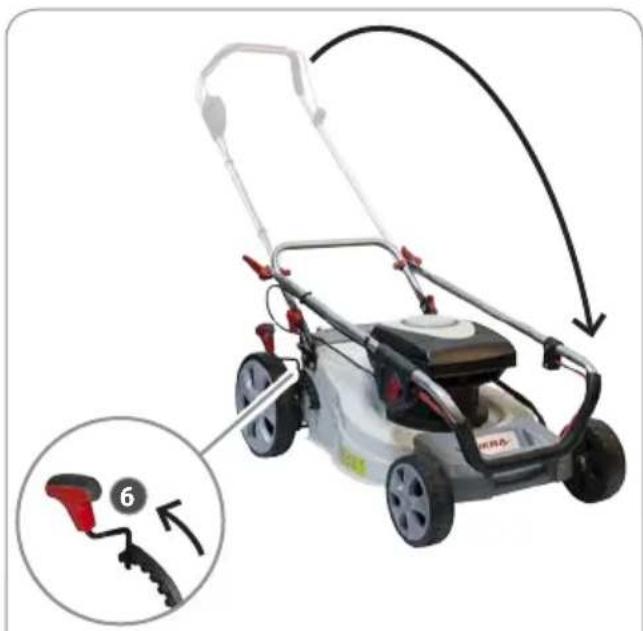

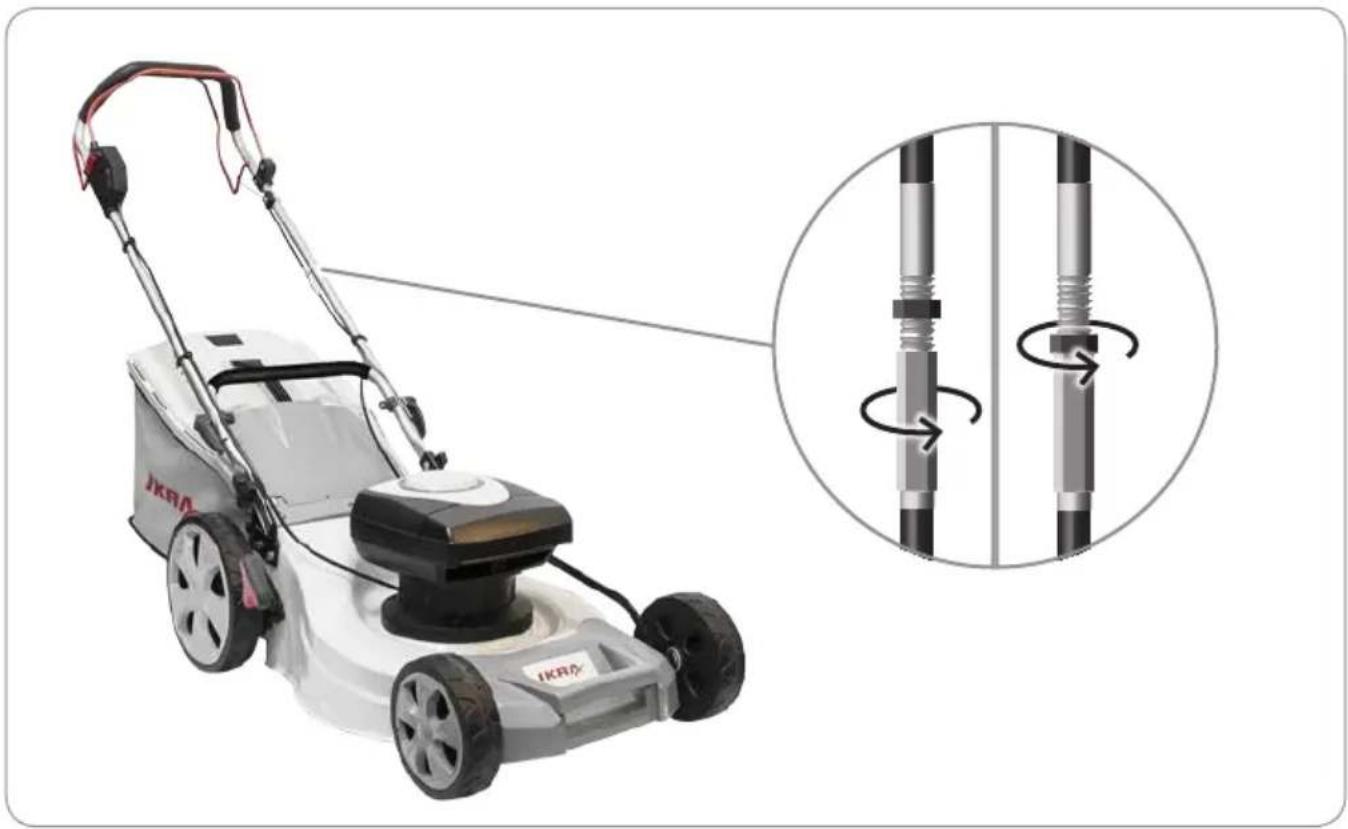

L howitzer on a lawn mower with an inset diagram showing the mechanical components (no text or symbols present)

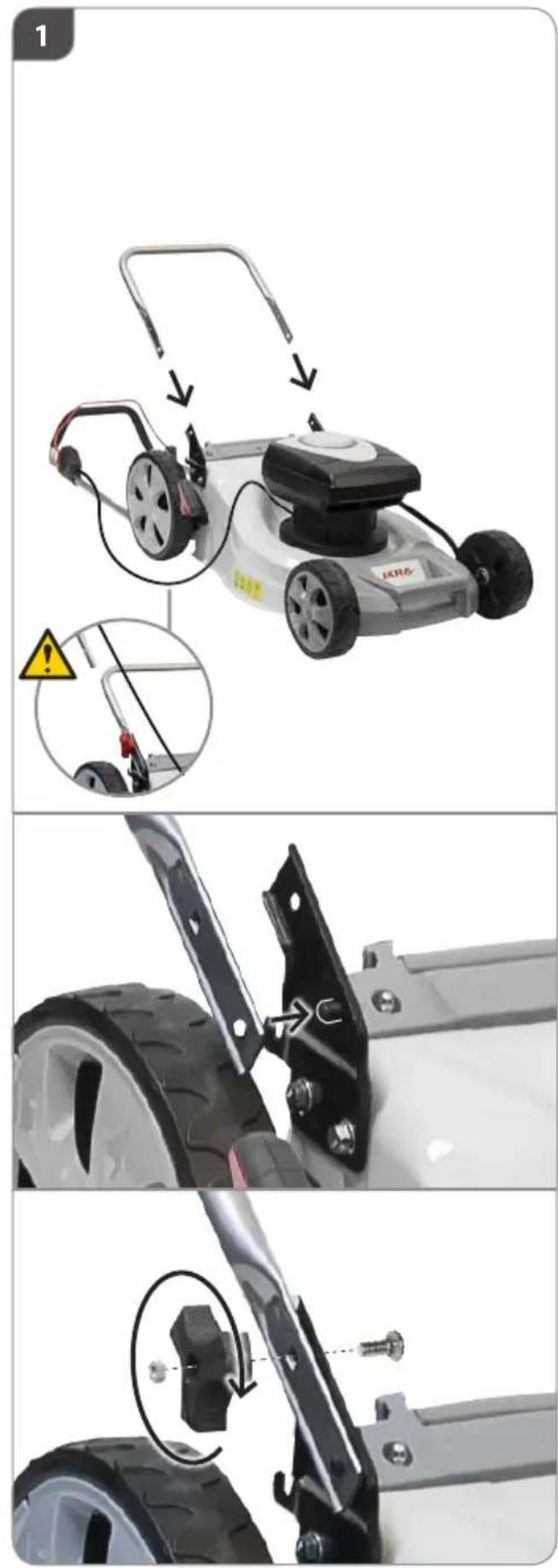

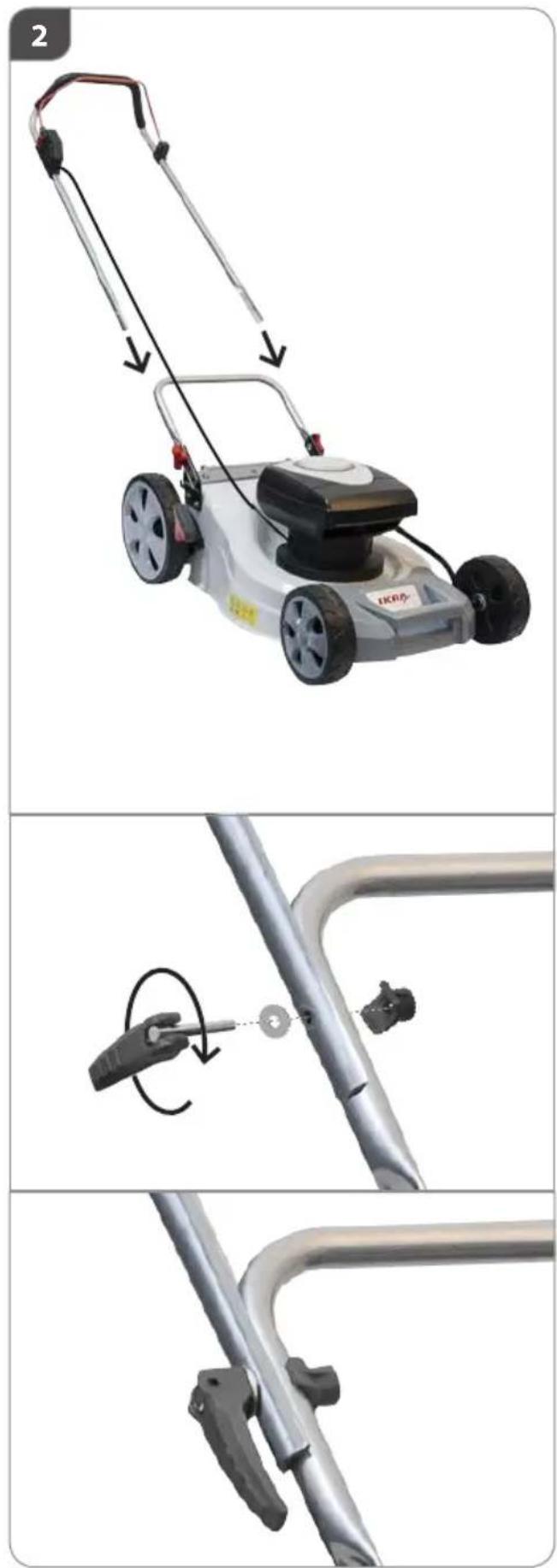

Instructional diagram showing three steps of a lawn mower with labeled parts and warning indicators

Three-step diagram showing a lawn mower being adjusted, connected to a tool and holding a clip (no text or symbols present)

[Non-Text]

3

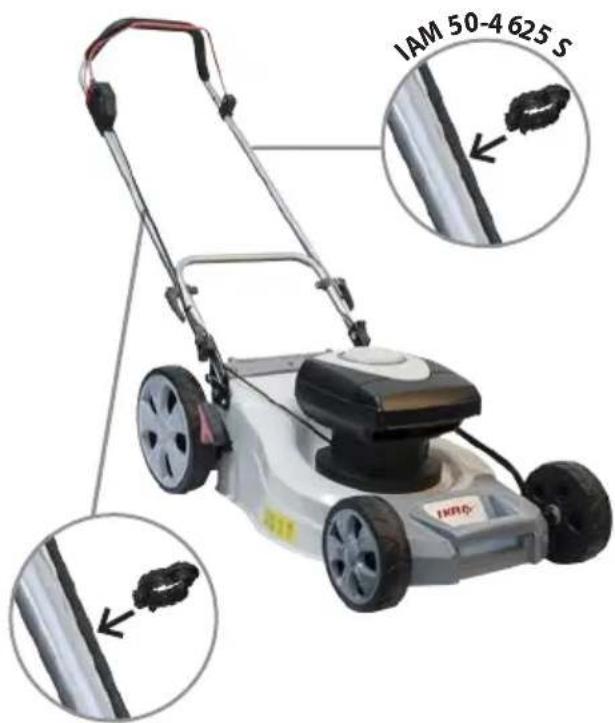

IAM 50-4 625 S

4

L how to cut the lawn into a mower, showing blade and handle assembly (no text or symbols)

Exterior view of a modern lawn mower with black and silver wheels (no text or symbols visible)

White lawn mower with black handle and wheels, marked with 'NO.0' and a green checkmark (no text or symbols on the motor itself)

Exterior view of a black and silver power bank (no visible text or symbols)

R3-360-AH-U-02

17180929-1

www.ikra.de

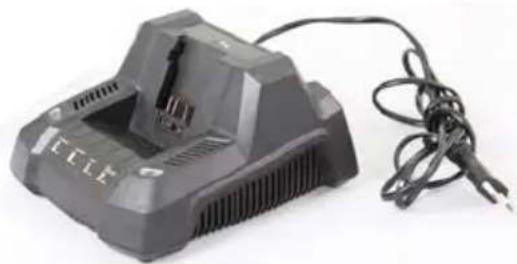

Black electric vehicle charging station with attached power cord (no visible text or symbols)

R3-360-3A-02

17180973-1

www.ikra.de

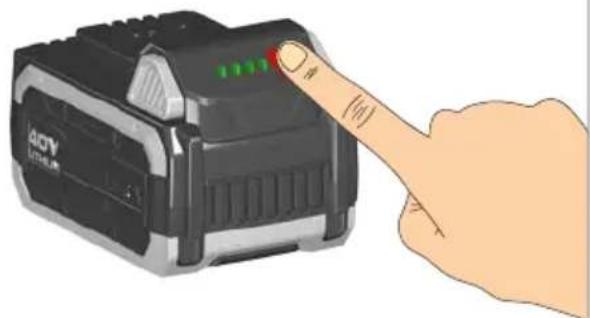

Illustration of a hand pointing at a black D271 water heater with green indicator lights (no text or symbols on the device itself)

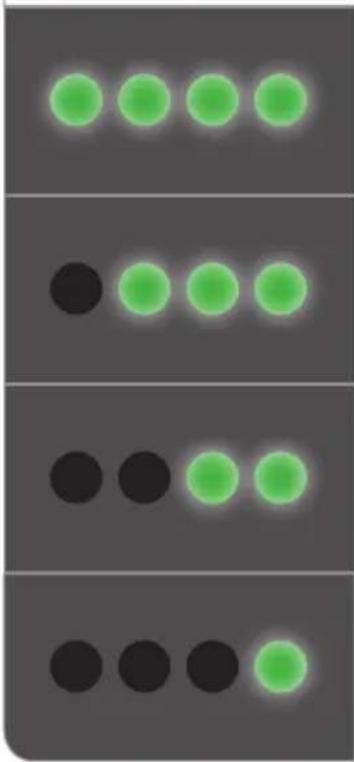

Four vertical panels showing green circular dots on a gray background, no text or symbols present

Black electronic device with attached cable and connector (no visible text or symbols)

R3-360-1A-02

17180983-1

www.ikra.de

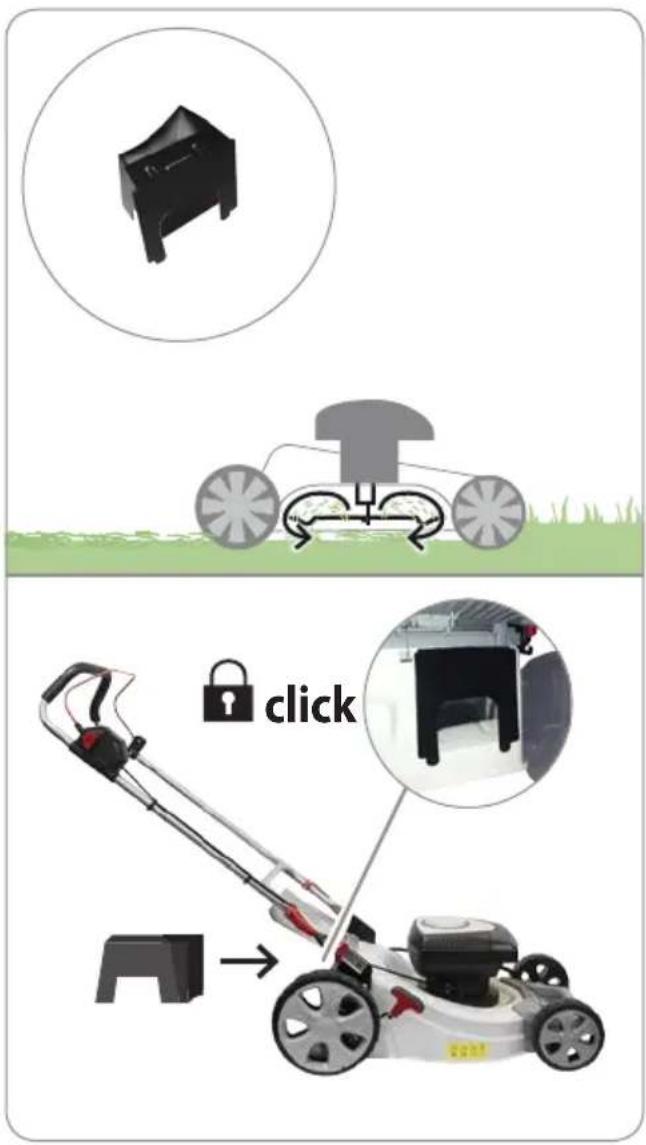

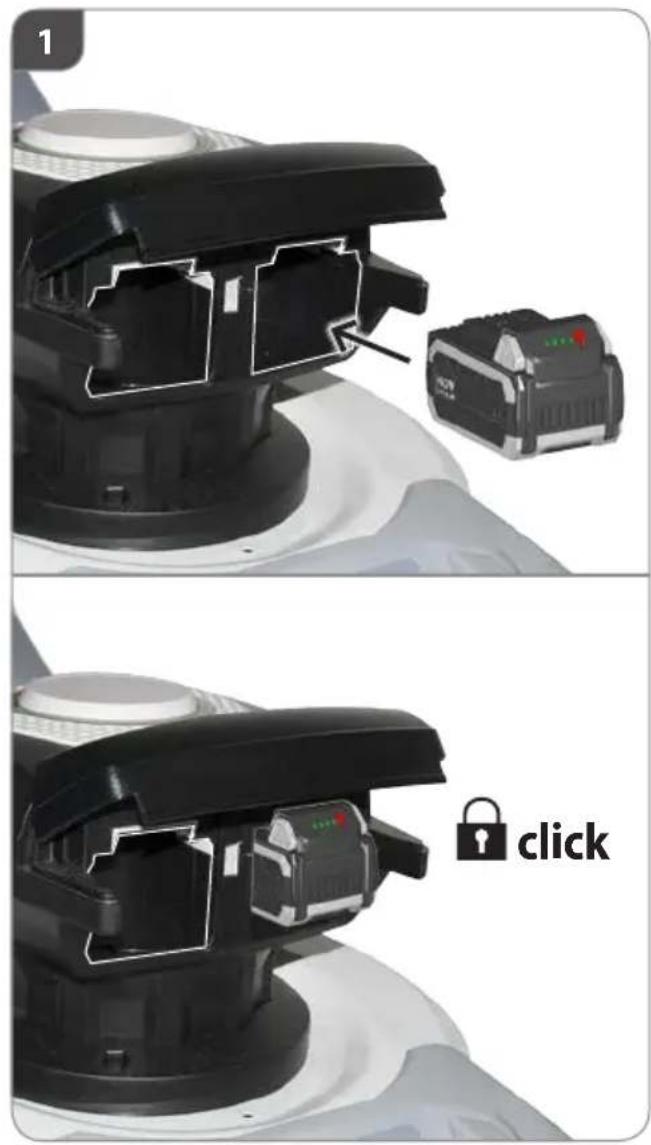

1 click

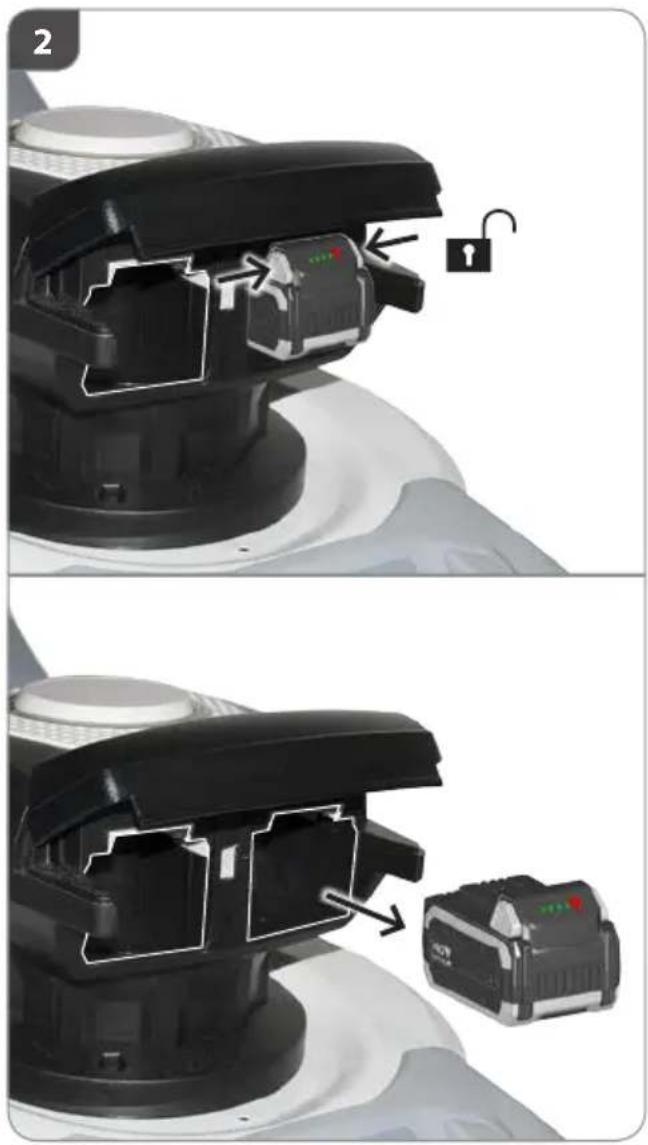

Diagram showing two views of a device with internal components and lock mechanism, labeled with Chinese text.

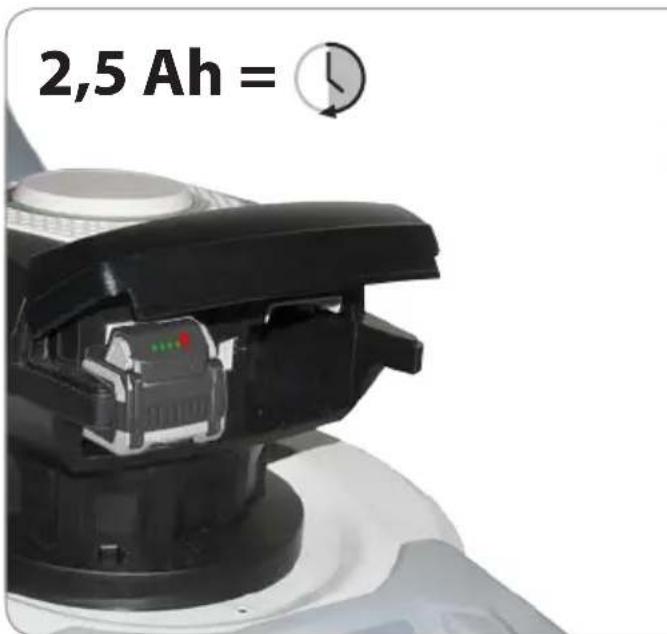

2,5 Ah = ℃

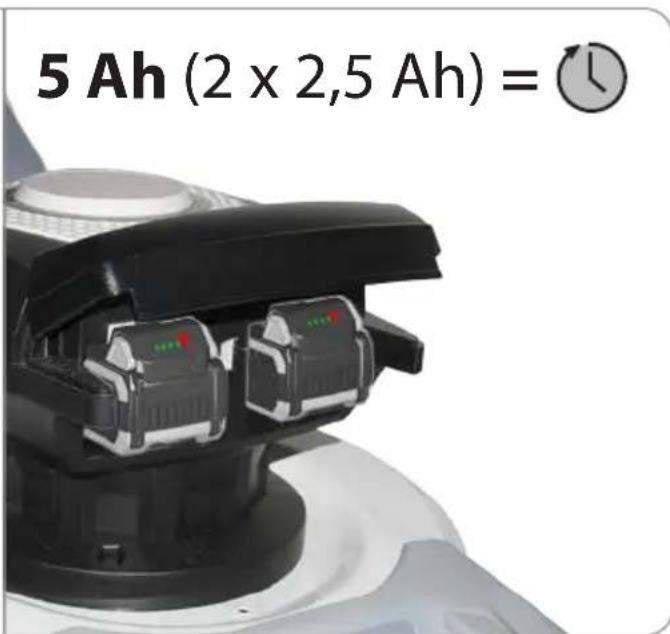

5 Ah (2 x 2,5 Ah) = 0

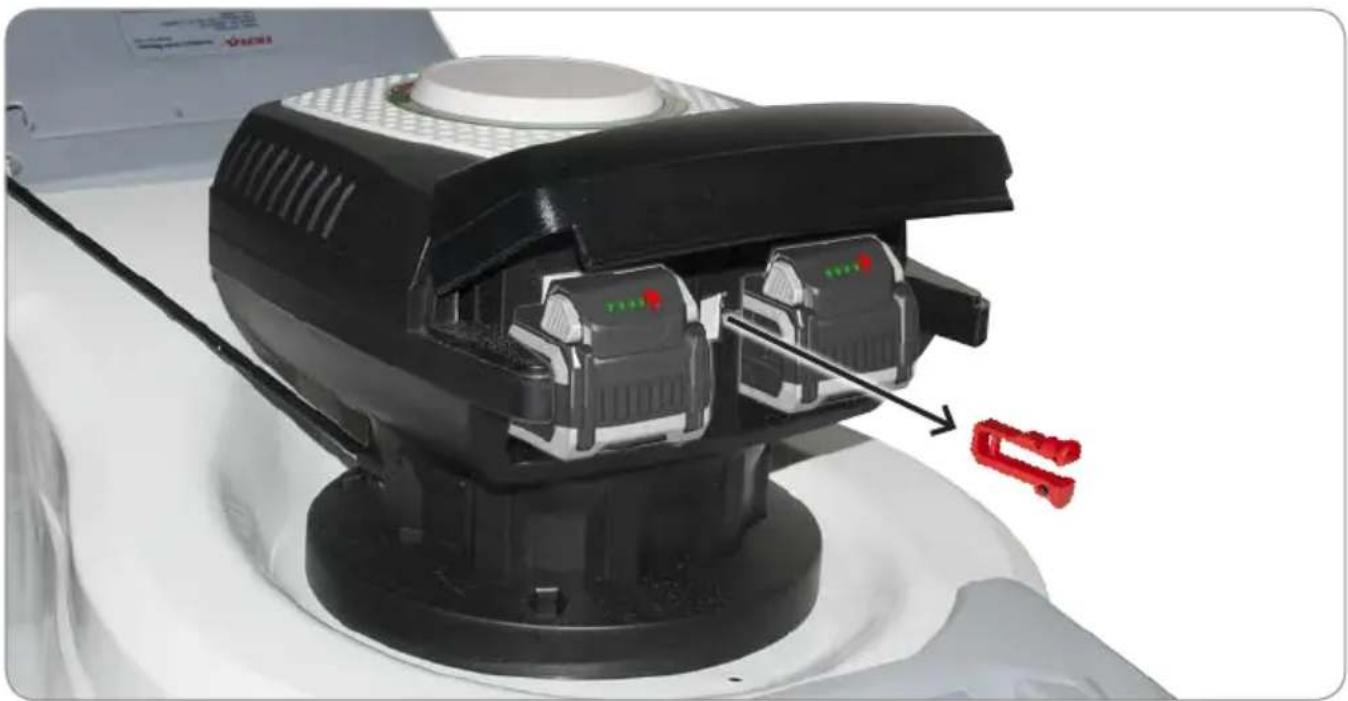

Close-up of a black industrial machine with red indicator lights and a red arrow pointing to a component (no visible text or symbols)

Warning sign with yellow triangle and black key icon, indicating no hazard or absence

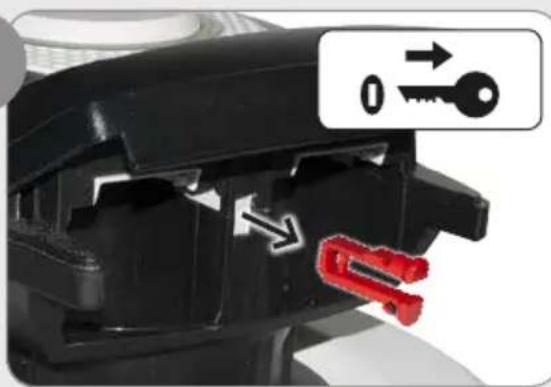

GB Any works / adjusting on the machine to be only performed with the engine switched off, contact key taken out and when the mowing blade is not moving.

Diagram and schematic of a lawn mower system with labeled parts and dimensions

START

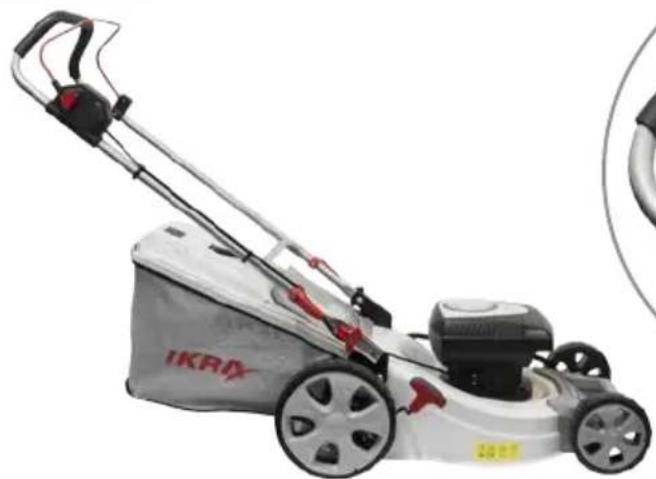

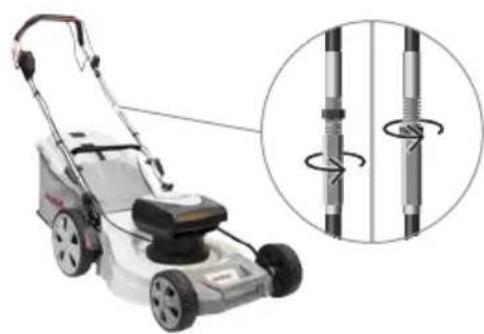

Lhouette of a white lawn mower with red trim and a black head, shown with a magnified inset highlighting the blade (no text or symbols on the main image)

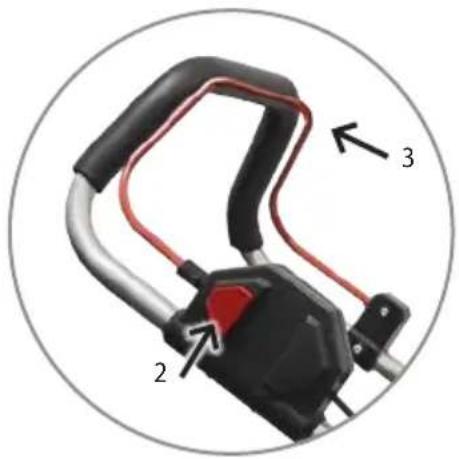

Close-up of a black automotive clutch with red wiring, labeled parts 2 and 3 (no text or symbols beyond labels)

Silhouette of a person pushing a lawn mower with a box labeled 'SKA' (no text or symbols on the diagram itself)

STOP

White and silver lawn mower with attached black handle, no visible text or symbols on body

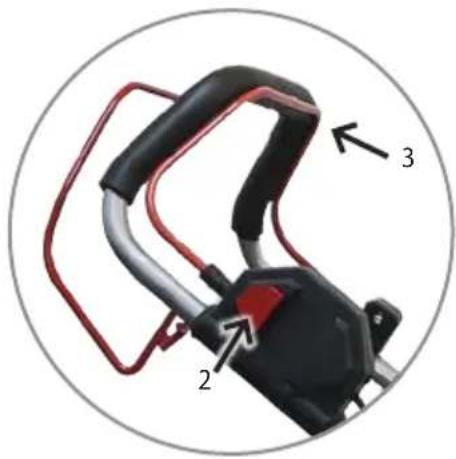

Close-up of a black and red automotive brush head with a curved handle, enclosed in a circular frame (no text or symbols visible)

START
TIP 5 Ah (2 x 2,5 Ah)

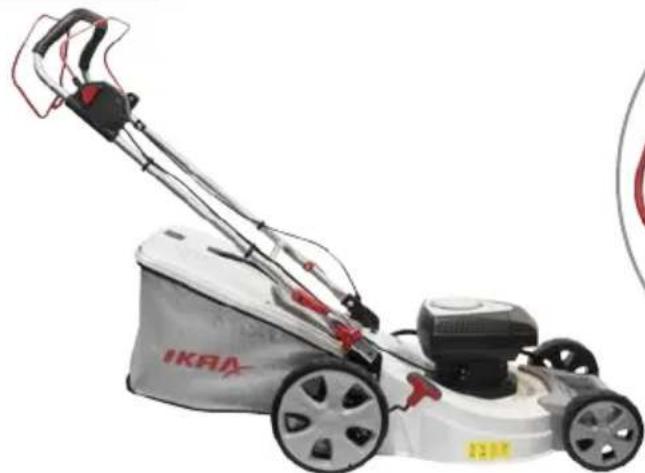

Lhouette of a white IKRA lawn mower with attached power cord, shown with a magnified inset showing red clamps (no text or symbols on the main image)

Diagram of a mechanical device with labeled parts 2, 3, and directional arrows indicating components.

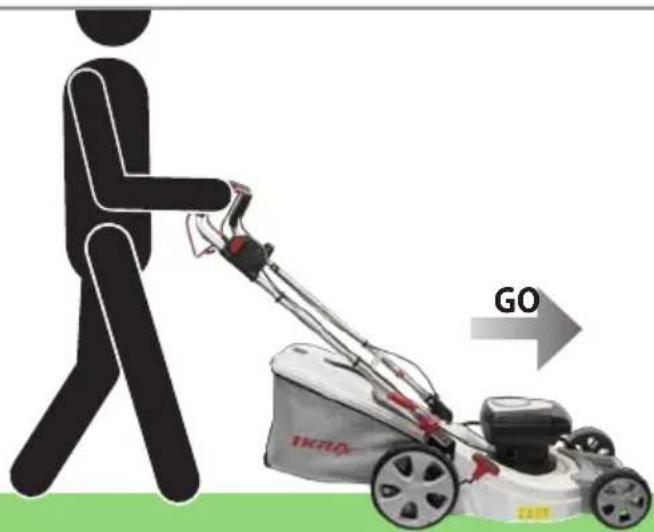

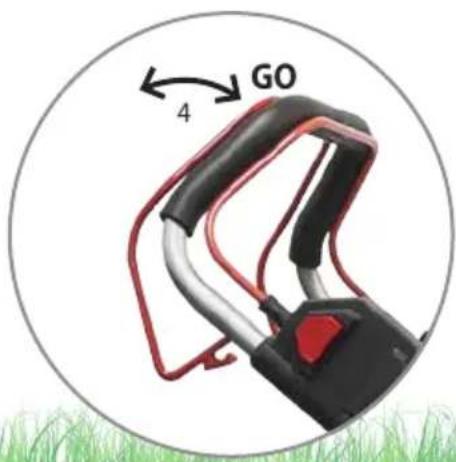

GO TKRA

GO 4

STOP

White lawn mower with attached black and red components, no visible text or symbols on the motor body

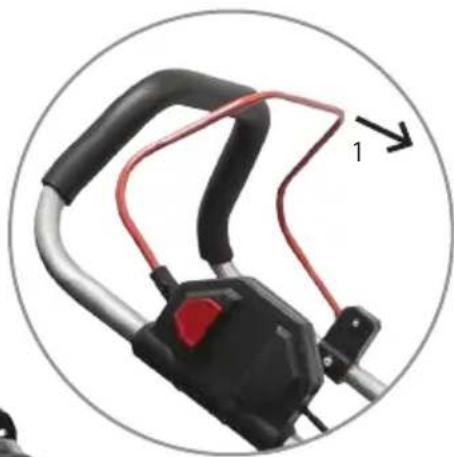

Close-up of a black and red automotive lever handle with a red belt, enclosed in a circular frame (no text or symbols visible)

Safety warning illustration showing a person using a lawn mower to clean debris, with incorrect safety symbols and a 'NO NO' sign.

max. 15° ×

STOP ###

OKPO X

Two-panel image showing a lawn mower with a camouflaged cover and its open mouth, plus a detailed close-up of the cover (no text or symbols)

Diagram illustrating the use of a lawn mower to adjust its base, showing step-by-step installation and lock mechanism.

Simple line drawing of a triangular shape with a black tick mark and a green checkmark (no text or symbols)

STOP

Safety warning illustration showing a lawn mower with warning symbols and a house diagram, indicating hazard or hazard.

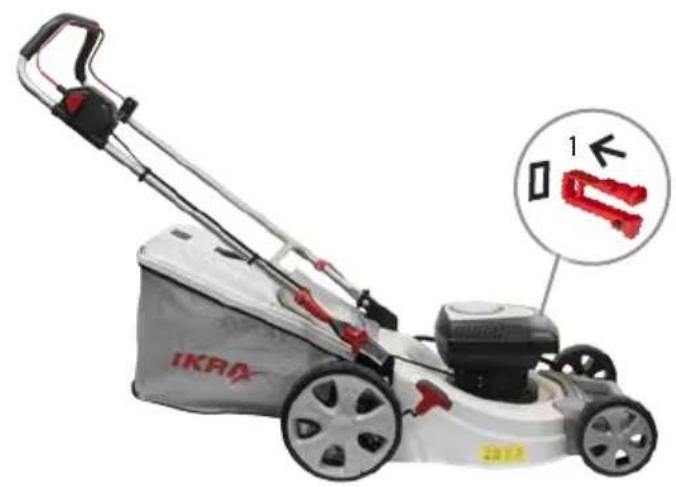

Electric lawn mower with attached hose and handle, shown with a magnified inset showing a red plug inserted (no text or symbols)

Top-down view of a small robotic lawn mower with green grass inside, marked by a checkmark and a diagonal stripe (no text or symbols on the main body)

Exterior view of a lawn mower with visible blades and wheels, showing mechanical components and motion direction (no text or symbols)

Top-down view of a small robotic lawn mower with green grass blades spraying, no text or symbols visible

Model of a small wheeled robot with a green checkmark above it, no visible text or symbols on the device itself.

DE Automatischer Vorschub funktioniert nicht
GB Automatic feed is not working
FR Alimentation automatique ne fonctionne pas
IT Alimentazione automatica non funziona
NL Automatische aandrijving werkt niet
CZ Automatický posuv nepracuje

SK Automatický posuv nepracuje
HU Automatikus takarmány nem működik
SI Avtomatsko vozite ne deluje
HR Automatsko voziti ne radi
BG Автоматично карам не работи
RO Furaje automată nu este de lucru

Exterior view of a JIKRA lawn mower with attached circuit breakers, showing mechanical assembly and rotational motion (no text or symbols)

Technical changes reserved.

WARNING: The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period.

The vibration emission level will vary because of the ways in which a power tool can be used and may increase above the level given in this information sheet.

The vibration emission level may be used to compare one tool with another.

It may be used for a preliminary assessment of exposure.

An accurate estimate of the vibratory load should also take into account the times when the tool is shut down or when it is running but not actually in use. This may significantly reduce the vibratory load over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

DANGER!

Non-observance will result in the risk of serious injury or death to oneself or others.

WARNING

Non-observance will result in the risk of injury to oneself or others.

CAUTION

Non-observance will result in the risk of injury to oneself or others.

NOTE

These give details or further information on what has already been said, in the aim to prevent damage to the machine.

Warning/caution!

Read the Operating Instructions!

Save all warnings and instructions for future reference.

Wear eye protective goggles!

Wear ear protectors!

Wear safety cut through resistant shoes with safety sole and steel toe!

Warning against thrown-off items

Do not let other persons get near due to foreign objects being thrown off.

CAUTION Blades run down. Wait until all rotating parts have stopped.

Warning against sharp knives. Knives keep running for a short time after the appliance is switched off.

Keep dry at all times. Never expose tool to rain.

IAM 40-4325: Guaranteed sound power level LWA 96 dB(A)

The cordless lawn mower has been designed to cut small to medium-sized grass areas in private gardens by the house or in hobby gardens. Due to the physical danger to the user and other persons, the lawn mower may not be used for other purposes.

WARNING

Risk of injury

The mower must not be used for cutting bushes, hedges and thickets, for cutting and mulching creepers or lawns on roofs or in balcony boxes. The mower must also not be used as a crusher for mulching tree cuttings and hedges or levelling any terrain roughness.

Read and understand the operating instructions before using the appliance. Familiarise with the control elements and how to use the appliance properly.

Abide by all the safety measures stated in the service manual. Act responsibly toward third parties. The operator is responsible for accidents or risks to third parties.

Never allow children or people unfamiliar with these instructions to use the lawn mower.

Local regulations may stipulate the minimum age of the user.

Keep children and other persons including animals in a safe distance when using the appliance.

Persons over 16 years of age can only work on the appliance. An exception includes youngsters trained in order to reach knowledge under supervision of the trainer during occupational education.

Switch the appliance off and remove the contact key before any adjustment, cleaning and servicing work.

CE marking

Any damaged or disposed electric or electronic devices must be delivered to appropriate collection centres.

IAM 40-4625 S: Guaranteed sound power level LWA 96 dB(A)

Do not use this product in any other way as stated for normal use. Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages.

Please note that permissible uses for the tool could be limited by national regulations. It is necessary to comply with the regulations applicable in the country where the truck is used.

Do not use the device near flammable liquids or gases. Risk of fire and explosion in case of short circuit.

DANGER!

Wear personal protective equipment.

• Always wear goggles when using the machine.
- Wear ear protectors!
- Wear solid shoes and long trousers.
- Do not wear loose clothing or jewels. Hear, clothing and gloves must be out of reach of moving parts as they could get caught by the rotating parts. Do not use the appliance when barefooted or in open sandals.
- Use protective gloves when handling the blades.

Carefully check the terrain where the appliance is going to be used and remove all objects that could get caught or thrown off by the appliance such as stones, branches, wires, animals, etc.

Before using, always visually inspect to see that the blades, blade bolts and cutter assembly are not blunt, worn or damaged. Replace worn or damaged blades and bolts in sets to preserve balance;

Do not use the appliance if you are tired, ill, under influence of drugs, alcohol drinks or medicaments.

Do not overreach. Keep proper footing and balance at all times. Be careful when going backwards – risk of tripping!

Provide adequate lighting or good lighting conditions when working with the machine. Poor lighting/light conditions represent a high safety risk.

Avoid operating the equipment in wet grass, where feasible;

Walk! Never run!

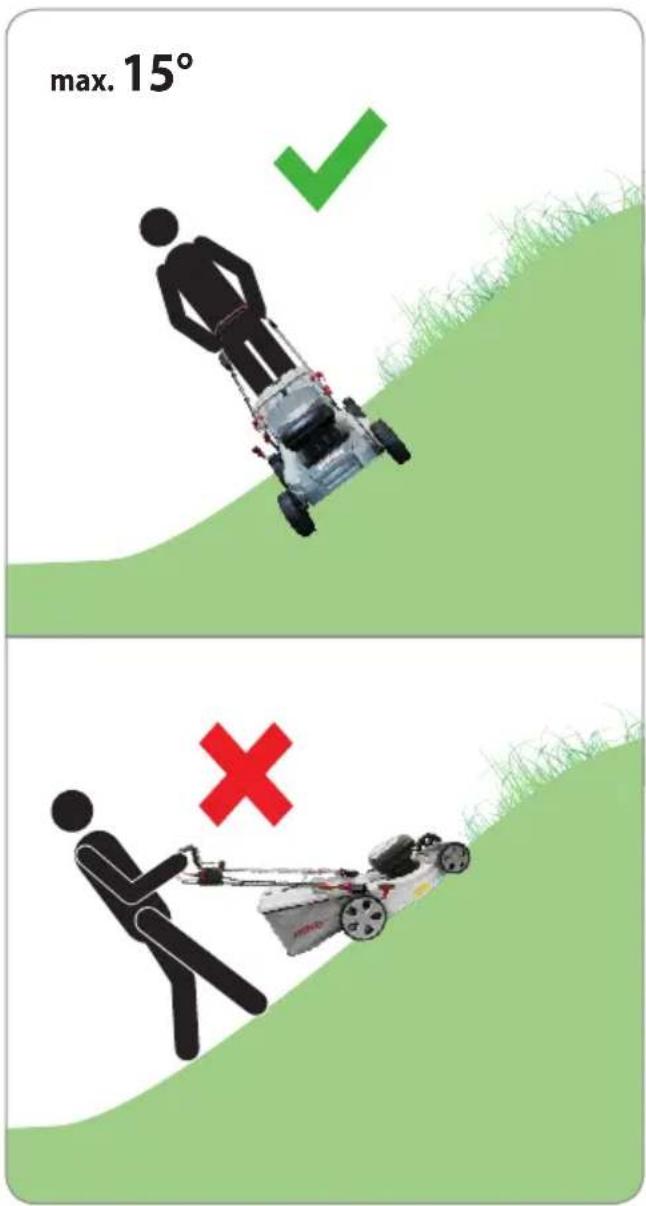

Make sure your posture is safe, especially on slopes. Do not cut on too steep slopes. Be particularly careful when changing travelling direction on slopes.

Exercise extreme caution when changing direction on slopes.

Pay maximum attention when turning around and pulling the appliance to you.

WARNING

Risk of injury

Rotating blades may lead to serious injuries by cutting or amputating parts of the body.

• Switch the mower off whenever carrying or inclining it or when being outside a grass area. Wait until all rotating parts have stopped.
• All protection covers and safety devices must be correctly attached to operate the device.
• Never remove the collection bag when the machine is being operated.
• Do not start the engine before your feet are in a safe distance from the cutting tools.
• Do not incline the appliance when being started.
• Do not start the appliance when you are standing in front of the ejection opening.

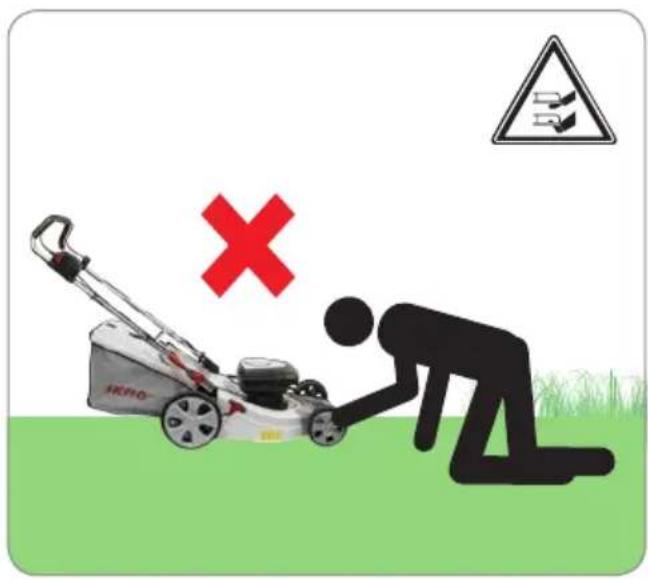

• Never touch under the housing body when the engine is running. Keep a distance from the ejection opening at all times.
• Avoid any inadvertent starting of the engine. Make sure, that the control lever is always in 'Start' position when you pull the starter rope.
• Any works / adjusting on the machine to be only performed with the engine switched off, contact key taken out and when the mowing blade is not moving.

WARNING

Risk of injury

Thrown-off stones or soil may lead to injuries.

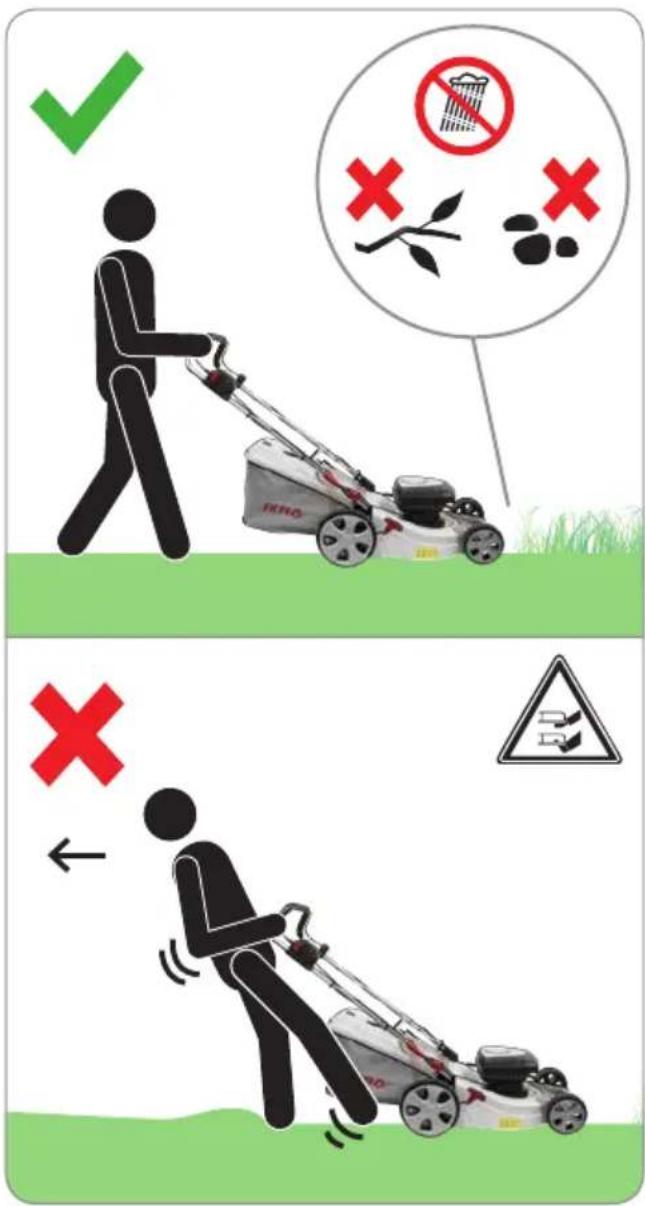

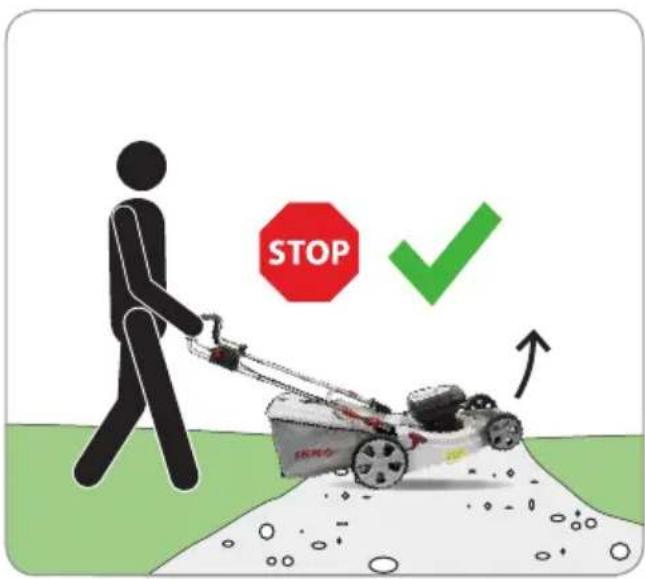

• Before mowing, check the area to be mowed for any undesirable objects.

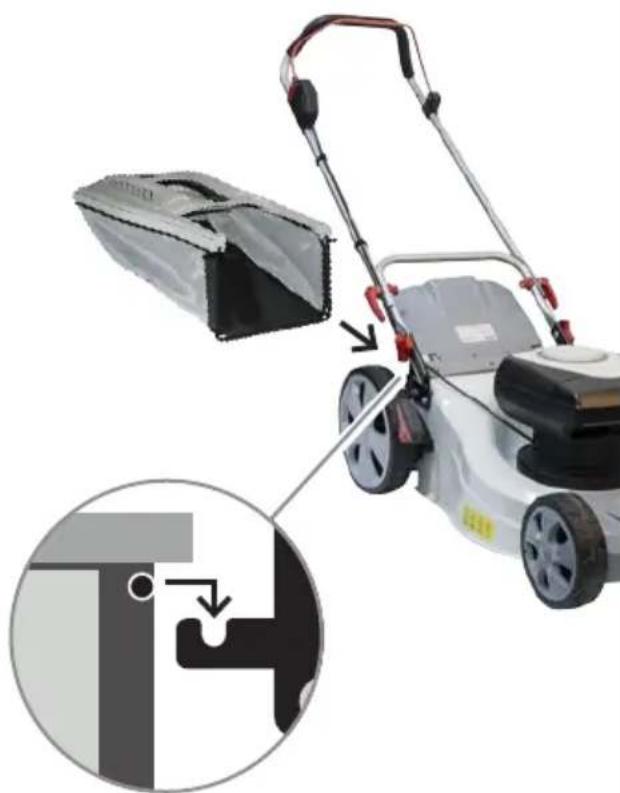

• Make sure the collection bag is properly suspended.
• Wear safety goggles when working.

- Stop the machine and take out the contact key. Wait until all rotating parts have stopped and the unit has cooled down. Take out the key.whenever you leave the lawnmower.

• To release a blocked blade.

- Clean the mower or do any other works before checking the mower.

- Check the machine if working perfectly after catching an undesirable object. Repairs must be executed before putting the machine into operation again..

If the appliance starts abnormally vibrating, switch the engine off and search for the cause immediately. Generally, vibrations are a warning against operating failure. The appliance must not be used if damaged or safety equipment is defective. Replace any worn-out and damaged parts.

The ON/OFF switch and safety switch must not be locked. When working with this machine, do not use spare parts other than those recommended by us. Using spare parts not recommend by us can result in serious injuries to persons or damage to the machine.

Despite the observance of the operating instructions there still may be some hidden residual risks.

CAUTION

Damage to health arising from vibrations to hand and arms if the device is used for a long time or if the device is not guided and evaluated properly.

Vibration damping systems are no guaranteed protection against white finger disease or carpal tunnel syndrome. Therefore, it is necessary to carefully check the state of your fingers and wrist if you have regularly used the appliance for a long time. If any symptom of the diseases above appears, seek medical advice immediately. To reduce the white finger disease risk, keep your hands warm and take regular breaks during your work.

CAUTION

Hearing damage

A longer stay in the immediate vicinity of the running unit may cause hearing damage. Wear ear protectors!

When working with the device, a certain level of noise cannot be avoided. Noisy work should be scheduled for hours, during which it is allowed by statute or other local regulations. Adhere to any applicable rest times and limit your working time to the necessary minimum time. For your personal protection and the protection of people nearby, suitable hearing protection must be worn.

Noise emission information in accordance with the German Product Safety Act (ProdSG) and the EC Machine Directive: the noise pressure level at the place of work can exceed 80 dB(A). In such cases the operator will require noise protection (e.g. wearing of ear protectors).

Please do also consider any local regulations concerning noise protection!

Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.

When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

Vapours may leak out in case of unauthorised use or when using a damaged accumulator. Bring fresh air and seek medical advice if experiencing difficulties. Vapours may irritate the respiratory system.

WARNING

Risk of fire! Risk of explosion!

Never use damaged, defective or deformed accumulators. Never open or damage the accumulator or let it fall on the ground.

Umgebungstemperatur

Protect the battery against heat and fire.

Battery to be used at the ambient temperatures between 10^ C and +40^ C only.

Never put the battery on heaters and do not expose it to strong sunlight for a long time.

After being subject to heavy load, let the battery cool down first.

Short circuit - do not bridge the accumulator contacts with metal parts.

The accumulator must be packaged (plastic bag, box) or accumulator contacts must be sealed up for accumulator disposal, transport or storage.

DANGER!

Switch the appliance off and remove the contact key before any adjustment, cleaning and servicing work. Wait until all rotating parts have stopped and the appliance has cooled down.

Keep hands away from all cutting edges and moving parts. Fingers can be pulled into cutting carriage and be cut or crushed.

After every work stint, clean the machine thoroughly to remove all dust and debris, and repair or replace any faulty parts.

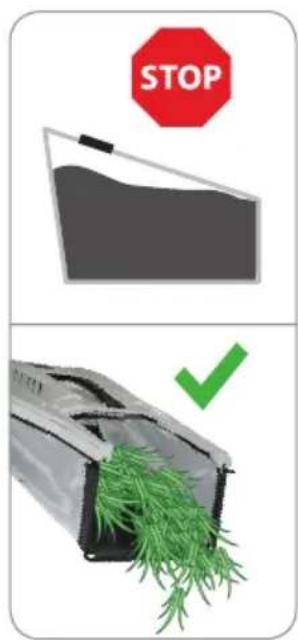

Check the collection bag at regular intervals for any wear and aging.

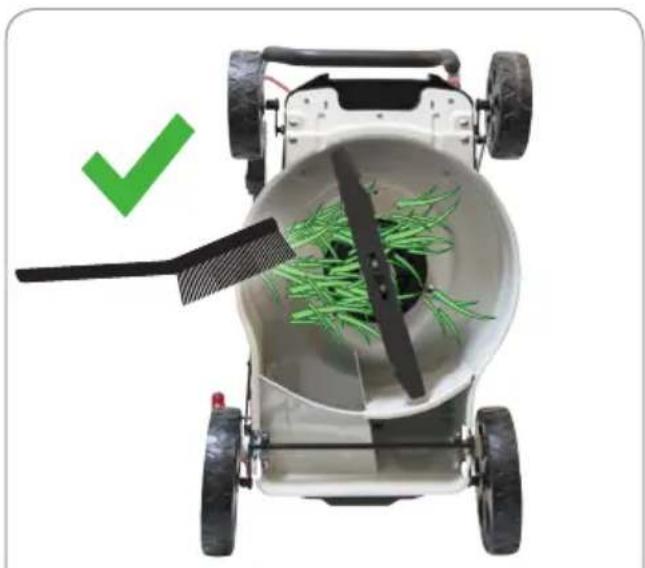

Clean the ejection opening and cover at regular intervals. Keep the device, in particular the air vents, clean at all times. Never spray water on the device body!

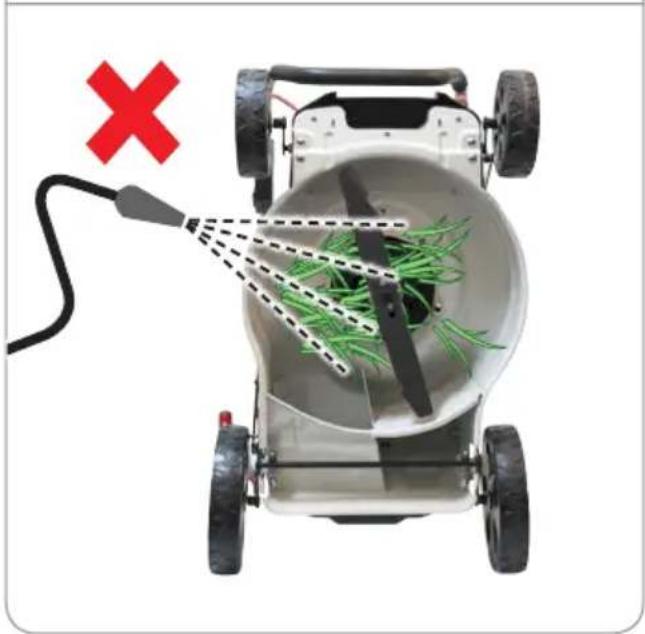

Never clean the machine and its components with solvents, flammable or toxic liquids. Us only a damp cloth making.

Keep all nuts, bolts and screws tight to be sure the equipment is in safe working condition;

Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insufficient maintenance and care can lead to unforeseen accidents and injuries.

Repairs and works specified in these Instructions may only be performed by qualified authorised staff.

Use only original accessories and original spare parts. Using other spare parts can result in accidents/injuries of the user. The manufacturer will not be liable for any such damage.

Please contact our service department if you need accessories or spare parts.

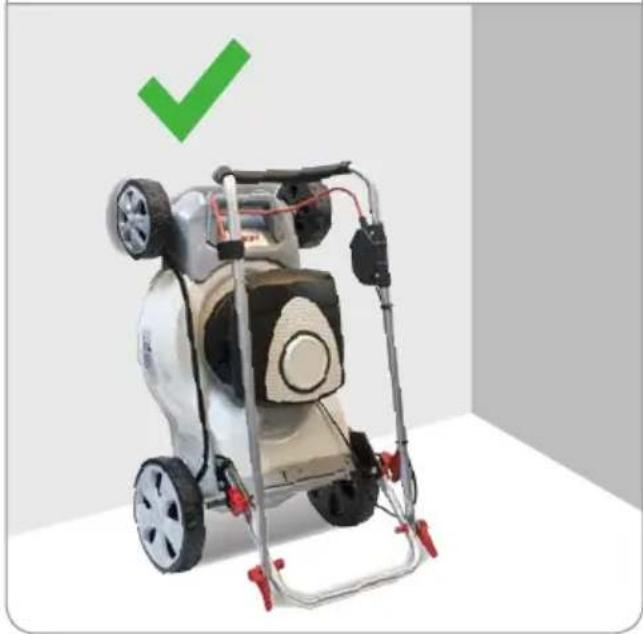

The appliance must be stored in a dry place and protected from frost.

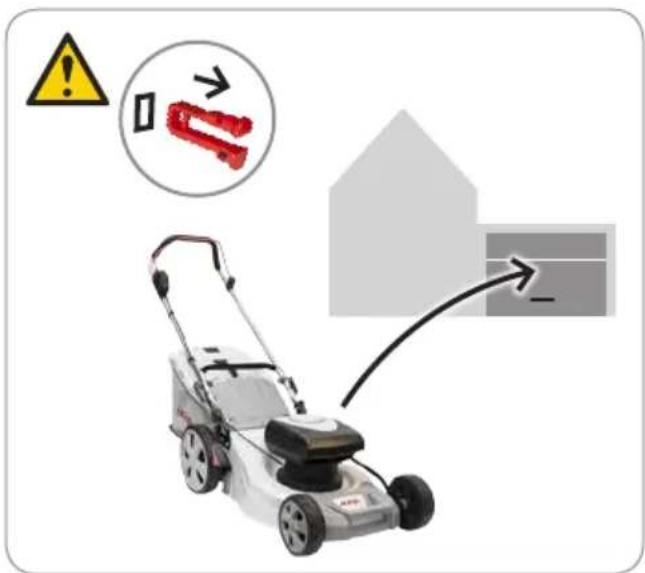

Lock the device in a proper place to protect it from

unauthorised use.

Let the engine cool down, before you store the device in a closed room.

Defect	Cause	Removal
The motor does not start	Battery is empty Charge the battery
	Battery is defective

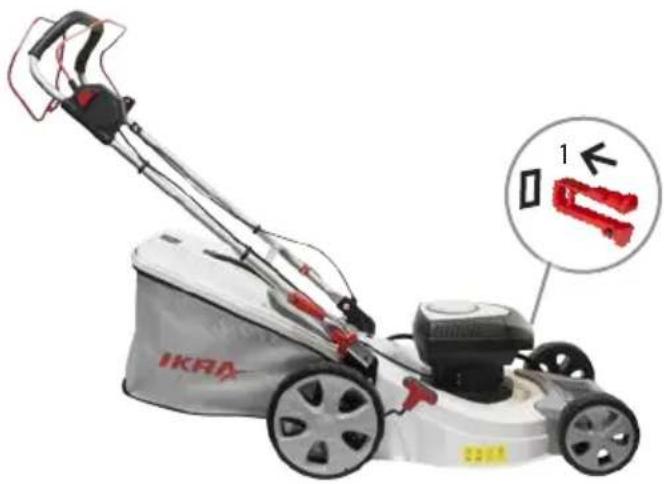

	Contact key is not inserted Refer to the instructions in these operating instructions.

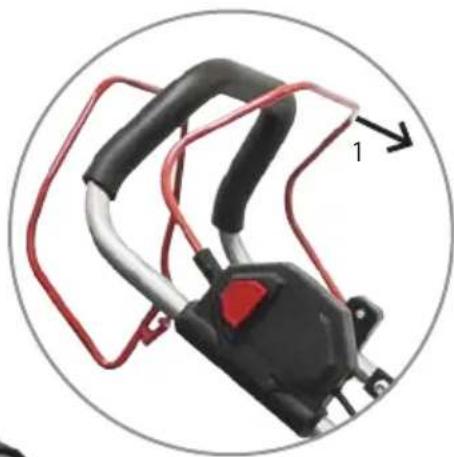

	Main switch or safety arch is not controlled Refer to the instructions in these operating instructions.

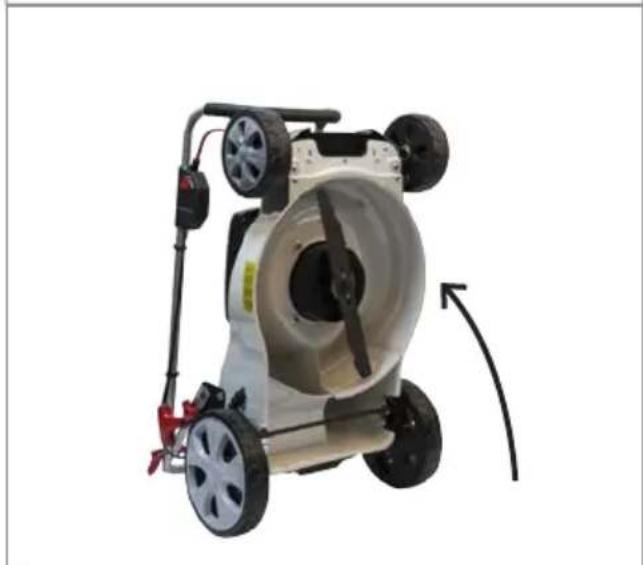

Unsteady running, strong vibrations	Blade is damaged Replace the blade
	Blade is loose Check and tighten the blade clamping
Poor mowing/catching performance	Blade is blunt Have the blade sharpened or replaced
	Battery is defective
	Collection bag is blocked Empty the collection bag
	Mowing height adjustment not regulated Adjust the mowing height

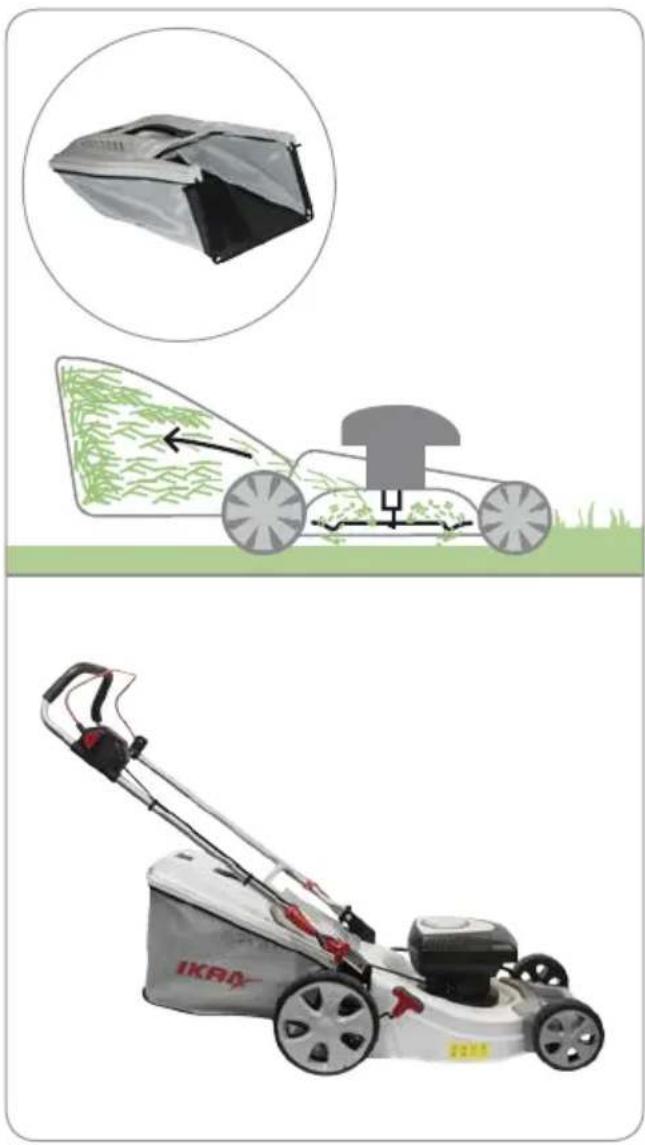

Grass is not collected	Linked channel Clean the ejection channel
	Full collection bag Empty the collection bag
	Too wet grass Cut in dry weather

If your device should become useless somewhere in the future or you do not need it any longer, do not dispose of the device together with your domestic refuse, but dispose of it in an environmentally friendly manner.

Please dispose of the device itself at an according collecting/recycling point. By doing so, plastic and metal parts can be separated and recycled. Information concerning the disposal of materials and devices are available from your local administration.

Batteries are not to be put into the rubbish. As a consumer you are legally obliged to return used batteries and accumulators. At the end of the duration of your appara-

tus, the batteries or accumulators have to be taken from the apparatus, disposing of them separately. You have the possibility of delivering your old batteries and accumulators to the local collecting points of your municipality or to your dealer or to the distribution centers.

Dispose of the batteries when discharged. We recommend applying an adhesive tape on the poles to protect them against short circuit. Never open the battery.

For this tool, the company provides the end user - independently from the retailer's obligations resulting from the purchasing contract - with the following warranties: The warranty period is 24 months beginning from the hand-over of the device which has to be proved by the original purchasing document. For commercial use and use for rent, the warranty period is reduced to 12 months. Wearing parts, rechargeable batteries and defects caused by the use of non fitting accessories, repair with parts that are not original parts of the manufacturer, use of force,

strokes and breaking as well as mischievous overloading of the motor are excluded from this warranty. Warranty replacement does only include defective parts, not complete devices. Warranty repair shall exclusively be carried out by authorized service partners or by the company's customer service. In the case of any intervention of not authorized personnel, the warranty will be held void. All postage or delivery costs as well as any other subsequent expenses will be borne by the customer.

We, ikra GmbH, Schlesierstraße 36, D-64839 Münster, declare under our sole responsibility that the Cordless lawn mower IAM 40-4325, IAM 40-4625 S, to which this declaration relates correspond to the relevant basic safety and health requirements of Directives 2006/42/EC (Guideline of Machines) 2014/30/EU (EMC-Guideline) 2011/65/EU (RoHS-Guideline) 2000/14/EC + 2005/88/EC (noise directive) For the relevant implementation of the safety and health requirements mentioned in the Directives, the following standards and/or technical specification(s) have been respected:

Conformity assessment method to annex VI / Directive 2000/14/EC

Notified Body: 0036, TÜV SÜD Industrie Service GmbH, Westendstraße 199, 80686 München, Germany

IAM 40-4325:

Measured sound power level 91,5 dB (A)

Guaranteed sound power level 96 dB (A)

IAM 40-4625 S:

Measured sound power level 93,9 dB (A)

Guaranteed sound power level 96 dB (A)

The year of manufacture is printed on the nameplate and can be additionally retrieved via the consecutive serial number.

Münster, 2017-10-17

Matthias Fiedler, Senior Product Manager Ikra GmbH

Maintenance of technical documentation:

Ikra GmbH, Schlesierstrasse 36, 64839 Münster, Germany

2011/65/UE (RoHS directivelor)

2000/14/CE + 2005/88/CE (şi directivei privitoare la zgomot inclusiv modificări)

DE Ikra Mogatec - Service

11 Othellos Street, Dali Industrial Zone

2540 Nicosia

[phone]

[phone]

CZ Drupal

GB-Northampton, NN3 8RH

UK/N.Ireland: 0344 824 3524

@ [e-mail]

GR Panos Vrontanis & Co

3 Molas Street

13671 Aharnes

[phone]

[phone]

HR VAR - ERCO d.o.o.

Stipana Vilova 14A

10090 ZAGREB

[phone]

[phone]

HU Tooltechnic Kft.

Bárd u. 2.

1097 Budapest

[phone]

[phone]

IN Agritech Floritech Inc.

206-B Rajindera Arihant Tower

B-1 Community Centre Janak Puri

New Delhi - 110058 / India

[phone]

[phone]

IR BGR8 Ltd. c/o Seabourne Group

South Portway Close, Round Spinney

Northampton, NN3 8RH

[phone]

[phone]

[e-mail]

IT ikra Service Italia, by BRUMAR

Loc. Valgera 110/B

14100 ASTI (AT)

[phone]

[phone]

JO Taha & Qashou Agri Co. (LLC)

205 Mekka Street

Amman 11821, Jordan

[phone]

[phone]

LT Ikra Mogatec official store / Customer service

Kalvariju str. 206

Vilnius LT-08314

[phone] / [phone]

@ [e-mail]

LU Bobinage Georges Back

53, Rue Nic. Meyers

4918 Bascharage

[phone]

[phone]

MD OLSOM S.R.L.

Mateevici Str., 38/1

2009 Chisinau

[phone]

[phone]

MK FEROELEKTRO D.O.O.

Str.Nikola Parapunov br.35A/3

1000 Skopje

[phone]

[phone]

NL Muldertechniek

Noorderkijl 1

9571 AR 2 e Exloermond

[phone]

[phone]

Timetable: 09:00 to 12:30 and

14:00 to 18:30 (except Friday that is 18:00)

RO BRONTO COMPROD S.R.L.

Str. Corneliu Coposu nr. 35-37

400235 Cluj-Napoca

[phone]

[phone]

SE ikra Service

Verkstadsgatan 8

57341 Tranàs

[phone]

@ [e-mail]

SI BIBIRO d.o.o.

Trzaska cesta 233

1000 Ljubljana

+386 1'256 4868

[phone]

SK AGF Invest s.r.o.

Hlinikova 365/39

95201 Vrable 1

[phone]

[phone]
