GB | Operating Instructions

Dear Customer

these Operating Instructions are intended to facilitate your becoming acquainted with the machine and using it in accordance with the regulations. The Operating Instructions contain important information on how to use the machine safely, correctly and economically. Observing this information will help increase the reliability and working life of the machine. The Operating Instructions must always be at hand when the machine is being used.

They must be read and observed by every person dealing with the machine, whether operating, servicing or transporting it.

In addition to the Operating Instructions and the applicable rules of the prevention of accidents valid in the country of use and on site, the generally recognised rules on working safely and correctly must be observed as well as the accident prevention rules of the relevant professional associations.

CONTENT Page

Introduction to the Operating Instructions 1

Technical Data 2

Illustration and explanation of pictograms 3

1. Hedge cutter attachment

• Intended use 4
• General safety instructions 4
• General safety information for power tools 4
• Assembly 7
• Use 7
• Pivoting the Power Head 8
• Cutting tips 8
  • Using the pole hedge trimmer 8
• Cleaning, maintenance and storage of the pole trimmer 9

2. Battery-powered telescopic handle Gartenmeister (not included in the scope of delivery) 10

• Safety instructions 10
• Inserting/removing the battery 11
• Switching the hedge trimmer/pruner on and off 11
• Setting the working length 12
• Putting on the shoulder strap 12
• Cleaning, maintenance and storage 12
• Storage 12

Repair Service 12

Information for environmental protection/ disposal 12

Spare parts 12

Warranty 13

EC Declaration of Conformity 13

Hedge cutter attachment GM ATHS 4043 Gartenmeister

Technical Data

Battery voltage/operation voltage 40 V DC

Cutting length 430 mm

Cutting Thickness 18 mm

Battery type (not included in the scope of delivery) R3-360-AH-U-02

Voltage / battery capacity / energy Li-Ion 40 V / 2,5 Ah / 100 Wh

Charging device (not included in the scope of delivery) R3-360-3A-02 Quick charger R3-360-1A-02 charger

Runtime max. approx. 100 Min.

Angle at which the motor can be set from -90^ to 22,5^

Tool length from 2.30 m to 3.00 m

Weight 4,2 kg

Sound Pressure Level L_pA (2000/14/EG) 87,5 dB(A) [K 3,0 dB(A)]

Vibration (EN 60745-2-13:2009) <2,5 m/s ^2 [K 1,5 m/s ^2 ]

Technical changes are reserved.

The specified vibration emissions value is measured in accordance with EN ISO 10517. This can be used for any other hedge trimmer with the same design and type of power supply.

The specified vibration emissions value limits the working time. Stop working if you notice a tingling sensation or a discolouration (white) of the fingers.

WARNING: When in operation, the tool's actual vibration emissions value can deviate from the specified value depending on how the tool is used, as in the following examples or because it is used in another way:

• How the tool is being used and which materials are being cut.
• The tool is well maintained and in good working order. The correct accessories are being used and care has been taken to make sure they are sharp and in good working order.
• How secure the hand grip is and whether anti-vibration accessories are being used.
• Whether the tool is being used in accordance with its design and as specified in these instructions.
• The tool can cause hand-arm vibration syndrome symptoms if it is not used properly.

WARNING: To make sure, an assessment should be made of the strain exerted when the tool is in use, for example when the tool is switched off or is idling. This will make it possible to significantly reduce the strain exerted during the entire time the tool is in use.

Minimise your risks if the tool vibrates.

Take care of the tool as specified in these instructions and make sure the tool is properly lubricated (if necessary).

If the temperature is 10^ C or less, do not use the tools. Prepare a work schedule so that work is distributed over several days when using tools that exert high vibrations.

Noise emission information in accordance with the German Product Safety Act (ProdSG) and the EC Machine Directive: the noise pressure level at the place of work can exceed 80 dB(A). In such cases the operator will require noise protection (e.g. wearing of ear protectors).

Attention: Noise protection! Please observe the local regulations when operating your device.

GB | Operating Instructions

Battery-powered telescopic handle Gartenmeister (not included in the scope of delivery)

Technical Data

Rated Voltage 40 V DC

Battery type*

R3-360-AH-U-02

Voltage / battery capacity / energy

Li-Ion 40 V / 2,5 Ah / 100 Wh

Charging device * R3-360-3A-02 rapid charger

R3-360-1A-02 standard charger

* not included in the scope of delivery

Technical changes are reserved.

Illustration and explanation of pictograms

Hedge cutter attachment

1

2

1 Attention: Environmental Protection! This device may not be disposed of with general/household waste.
2 Confirms the conformity of the electric tool with the Directives of the European Community.

Battery-powered telescopic handle Gartenmeister (not included in the scope of delivery)

1

2

3

4

5

6

7

8

9

10

1 Use protective means for eyes and ears!
2 Caution!
3 Read instructions for use!
4 This electric machine must not be exposed to rain.
5 Attention: Environmental Protection! This device may not be disposed of with general/household waste.
6 Guaranteed acoustic capacity level L WA 96 dB(A)
7 Remove rechargeable battery before repair and maintenance work!
8 Before starting, wear a protective helmet.
9 Always wear safety boots and gloves when operating the device.
10 Maintain a minimum clearance of 10 m from current-carrying lines. Life-threatening danger from electric shock!

1. Hedge cutter attachment

Intended use

This hedge trimmer is only intended to be used to trim shrubs, bushes, ornamental plants and hedges. It is designed to cut branches with a diameter of no more than 18 mm. The hedge trimmer is not intended for commercial use. The user of the hedge trimmer must make sure that the protective equipment specified in the operating instructions and by the warning label on the trimmer is attached whenever the trimmer is in use. The hedge trimmer must be checked for electrical or mechanical damage before it is used or while it is being used.

Stop working and contact a specialist workshop if you find any damage.

Improper use

Any use not identified in the chapter „Intended use“ is an improper use.

The user of the hedge trimmer is solely liable for any property damage or personal injury arising from improper use of the hedge trimmer.

The manufacturer's obligation to honour the warranty is voided if the hedge trimmer is used with non-original parts.

Residual dangers

Residual risks always remain even if the hedge trimmer is used properly. The hedge trimmer's design can entail the following hazards:

• Contact can be made with the unprotected blade (resulting in cutting injuries)
• Reaching into or grabbing the hedge trimmer while it is in operation (resulting in cutting injuries)
• Unanticipated, sudden movement of the plant material being cut (resulting in cutting injuries)
• Ejection or catapulting of damaged cutting teeth
• Ejection or catapulting of the plant material being cut
• Hearing damage if the specified hearing protection is not worn
  • Inhalation of cut materials

General safety instructions

Noise emission information in accordance with the German Product Safety Act (ProdSG) and the EC Machine Directive: the noise pressure level at the place of work can exceed 80 dB(A). In such cases the operator will require noise protection (e.g. wearing of ear protectors).

Attention: Noise protection! Please observe the local regulations when operating your device.

General safety information for power tools

Warning! Read all safety-related information and safety instructions! Failure to observe the safety information and instructions may result in electric shock, burns and/or severe injury.

Keep the safety information and instructions for future reference.

The term ‘power tool’ as used in the safety information and instructions includes both mains-operated tools (with power cord) and battery-operated tools (without power cord).

1) Safety at the workplace
a) Keep your working area clean, tidy and well-lit. Disorder and poorly lit working areas may result in accidents.
b) Do not operate the power tool in potentially explosive environments containing combustible fluids, gases or dusts. Power tools generate sparks that may ignite dusts or fumes.
c) Keep children and other persons away while you are operating the power tool. Distractions may result in the operator loosing control over the tool.

2) Electrical safety

a) Avoid physical contact with earthed surfaces as pipes, heaters, ovens and refrigerators. There is an increased risk of electric shock if your body is earthed.
b) Keep the tool out of the rain or moisture in general. The penetration of water into a power tool increases the risk of electric shock.

3) Personal safety

a) Always pay attention to what you do and apply reasonable care when working with a power tool. Do not use the power tool when you are tired or under the influence of medication, drugs or alcohol. When working with power tools, even a short moment of inattentiveness may result in severe injury.

b) Wear personal protection equipment and always wear eye protection (safety goggles). Wearing personal protection equipment as a dust mask, nonslip safety shoes, safety helmet or ear protectors (depending on the type and application of the tool) reduces the risk of injury.

c) Avoid unintentional operation. Make sure that the power tool is switched off before you connect it to the mains supply and/or the battery and whenever you pick up or carry the tool. When carrying the tool with your finger on the on/off switch or connecting the tool to the mains supply with the switch in 'ON' position, this may result in accidents.
d) Remove adjustment tools or wrenches and the like before you switch the power tool on. A wrench or other tool that is inside or on a rotating part of the tool may cause injury.
e) Avoid unusual postures. Make sure to have a safe footing and keep your balance at all times. This will allow you to better control the power tool in unexpected situations.
f) Wear suitable clothes. Do not wear wide clothing or jewellery. Keep your hair, clothes and gloves clear of all moving parts. Loose clothing, jewellery or long hair may get caught in moving parts.
g) If dust extraction/collection devices are provided make sure that they are connected and used properly. The use of a dust extraction device may reduce risks caused by dust.
4) Use and handling of the power tool
a) Do not overtax the power tool. Use the power tool intended for your type of work in each case. The use of the suitable power tool within the stated range of performance makes working more effective and safer.
b) Do not use a power tool with a damaged switch. A power tool that cannot be switched on or off any more is dangerous and must be repaired.
c) Pull the mains plug and/or remove the battery before adjusting a tool, changing accessories or putting the tool aside. This precaution avoids the unintentional start of the tool.
d) Store power tools that are currently not used out of the reach of children. Do not allow persons to use the tool if they are not familiar with the tool or these instructions. Power tools are dangerous if used by inexperienced persons.
e) Thoroughly maintain your power tool. Check whether moving parts are working properly and are not jamming/sticking,

and whether parts are broken or otherwise damaged in a way that may affect the function of the power tool. Have damaged parts repaired before using the tool. Many accidents are the result of poorly maintained power tools.
f) Keep cutting tools sharp and clean. Thoroughly maintained cutting tools with sharp cutting edges are jamming less often and are easier to guide.
g) Use power tools, accessories, add-on tools, etc. in accordance with these instructions and in the way prescribed for the respective type of tool. You should also consider the working conditions and the work to be carried out. The use of power tools for purposes other than those intended for the respective tool may result in dangerous situations.
5) Battery tool use and care
a) Make sure that the device has been switched off before inserting the battery. Inserting a battery into a switched-on power tool may lead to accidents!
b) Only use charging devices recommended by the manufacturer to charge the batteries. Charging units are usually designed for certain types of batteries; if used with other types there is a risk of fire!
c) Only use batteries designed for your power tool. The use of other batteries may lead to injury and risk of fire!
d) Keep unused batteries clear of paper clips, coins, keys, nails, screws or other small metal objects that may bridge the contacts. A short circuit between the battery contacts may lead to burns or fire!
e) Improper use may result in fluid leaking out of the battery. Avoid any contact with battery fluid. Flush with water in case of contact. If battery fluid should get into your eyes seek medical advice additionally. Leaking battery fluid may lead to irritations of the skin or burns!
6) Service
a) Have the power tool serviced by qualified technical personnel only; repairs should be carried out using exclusively original spare parts. This will ensure the continued safe operation of the power tool.

GB | Operating Instructions

Safety instructions for hedge trimmers:

• Keep all parts of your body away from the cutting blades. Do not try to remove cut-off matter with the tool running. Do not try to hold material to be cut off with your hand. Remove cut-off matter that is stuck between the blades only with the tool being switched off! When working with hedge trimmers even a short moment of inattentiveness may result in severe injury.
• Carry the hedge trimmer at the handle with the cutting blades standing still. Always put on the protection cover when transporting or storing the hedge trimmer. Careful handling reduces the risk of injury through the cutting blades.
• Check the hedge for hidden objects such as wire fencing before beginning to cut.
• The hedge trimmer may not be used by persons who are younger than 16 years of age or by persons who have not been trained to use it.
• Keep the hedge trimmer away from children, other persons and pets.
• Wear suitable clothing. Do not wear loose clothing or jewellery. This could become caught in moving parts. Wearing rubber gloves and sturdy footwear is recommended. Wear a hair net if you have long hair.
• Wear a dust mask if it is dusty where you are working.
• Do not use the hedge trimmer if the cutter is not properly secured or if it is damaged.
• Make sure before switching on the hedge trimmer that the blades do not come into contact with stones or rubble.
• When working, keep the cutter away from your body and extremities.
• Do not cut hard objects. This can cause injuries and damage the hedge trimmer.
• Use only in daylight or if there is sufficient artificial lighting.
• When the hedge trimmer is not being used, store it in a dry location in such a way that the blade is not exposed and the hedge trimmer is out of the reach of children.
• Never use the hedge trimmer in the rain. Keep away from the wet and the damp. Do not leave outdoors overnight. Do not cut damp or wet grass.
• Make sure the hedge trimmer does not start accidentally. Do not carry the hedge trimmer with fingers on both switches if the hedge trimmer is plugged in. Make sure the switch is set

to off before plugging the plug into the socket.

• Do not attempt to remove cut materials or attempt to hold on to materials being cut while the blades are in motion. Make sure that the hedge trimmer has been switched off and has come to a complete stop before attempting to remove jammed material. Do not lift or hold the hedge trimmer by the blades.
• If solid object are caught in the cutting blade and jam the motor, switch off the machine at once, remove the battery, remove the object and continue with the work.

CAUTION: The blades continue to run after the trimmer has been switched off.

• Do not overload the hedge trimmer. The trimmer works better and poses less risk of injury if it is operated as intended.
• Be careful, pay attention to what you are doing. Use common sense. Do not use the hedge trimmer if you are tired.
• Take care of the hedge trimmer, keep the blades sharp and clean; the blades then provide the best performance and pose less risk of injury. Keep the grips dry, clean and free of oil and grease.
• A tingling feeling or numbness in the hands is sign of excessive vibration. Limit the operating time, take sufficiently long work breaks, distribute the work between several people or wear anti-vibration gloves when using the tool for extended periods.
• A certain degree of noise from this device is unavoidable. Perform noise-intensive work at times when this is permitted and at times intended for this type of work. Where applicable, observe quiet times and limit working time to the absolute minimum. You and other persons in the area where the trimmer is being used should wear suitable hearing protection.

General safety

WARNING: When using electric gardening appliances, basic safety precautions should always be followed to reduce risk of fire, electric shock, and personal injury, including the following:

Before use the pole trimmer

READ ALL INSTRUCTIONS

1. Stay Alert – Watch what you are doing. Use common sense when operating Pole Trimmer.

GB | Operating Instructions

1. Avoid Dangerous Environments:

2. Do not operate Pole Trimmer in rain or in damp or wet locations..

3. Do not operate Pole Trimmer while under the influence of alcohol, medications, or drugs.
4. Do nobperate Pole Trimmer where highly-flammable liquids or gases are present.
5. Do not operate Pole Trimmer while standing on a ladder or in a tree.

6. Do not operate Pole Trimmer if it is damaged or not securely and fully assembled.

7. Keep Children Away – Keep all visitors, children and pets a safe distance from work area, at least 30 ft (10 m) away.

8. Use Right Appliance – Do not use Pole Trimmer for any job except that for which it is intended.
9. Only well instructed adults should operate Pole Trimmer. Never allow children to operate Pole Trimmer.
10. Dress Properly when operating Pole Trimmer

- Do not wear loose clothing or jewelry that can get caught in the moving blades or parts of the Pole Trimmer.

- Always wear rubber gloves and substantial foot wear when working outside.

- Always wear protective hair covering to contain long hair.

- Always wear a face or dust mask if operation is dusty.

1. Always wear eye protection.
2. Your power tool is not insulated against electric shock. To reduce the risk of electrocution, never operate this power tool in the vicinity of any wires or cables (power, etc.) which may be carrying electric current. Electricity can jump from one point to another by means of arcing. Higher voltage increases the distance electricity can arc. Electricity can also move through branches, especially if they are wet. Maintain a clearance of at least 30 feet (10 m) between the pole trimmer (including any branches it is contacting) and any electrical line carrying live current. Before working with less clearance, contact your electric utility and make sure the current is turned off.
3. This power tool has a large range. In order to reduce the risk of personal or even fatal injury to bystanders from falling objects or inadvertent contact with the moving blades of your power tool always keep bystanders

at least 30 feet (10 m) away when the power tool is running.

When using the telescopic hedge trimmer

1. WARNING: Pay attention to what you are doing. Be careful when using the telescopic hedge trimmer.
2. Avoid leaning out when working with the hedge trimmer: make sure that your footing and balance is always secure.

DANGER: Keep hands away from blades at all times. Keep both hands on handle areas when Pole Trimmer is on. Do not attempt to remove cut material nor hold material to be cut when blades are moving. Do not grasp the exposed cutting blades or cutting edges when picking up or holding the Pole Trimmer.

CAUTION: The blades are hot after the trimmer has been switched off.

1. Disconnect Pole Trimmer – Always remove the battery before inspection and adjustment work:

2. when not in use

3. before servicing
4. when changing accessories such as blades
5. when clearing jammed material from blades

6. when moving from one worksite to another.

7. Do Not Force Pole Trimmer – It will do the job better and with less likelihood of a risk of injury at the rate for which it was designed.

8. Make sure the blades are not touching anything before starting the telescoping hedge trimmer.

Assembly

WARNING! Before assembling the device, remove the battery.

1. Slide the hedge cutter onto the tube (to do so, the screw sleeve (8) must be loosened by turning it anti-clockwise).
2. Tighten the screw sleeve (8) by turning it clockwise to attach the hedge trimmer to the tube.

Use

Warning! Let the device run at its own speed. Do not overload it.

WARNING: Read and understand this owner's manual before operating Pole Trimmer. Make certain you read and understand all Safety Warnings of this manual. Improper use of this Pole Trimmer can result in severe injury or death from fire, electric shock, or body contact with moving parts.

GB | Operating Instructions

Pivoting the Power Head (Fig. 2)

Warnung! Always remove the battery before inspection and adjustment work.

The Pole Trimmer is equipped with a power head that pivots. The power head has a spring-loaded button that allows it to be locked into several different positions within its 112,5-degree rotation. Before connecting the Pole Trimmer to the electrical supply, make sure the power head is locked into position. Do this by trying to rotate the power head in either direction. The power head should be locked in position and should not rotate. To pivot the power head, follow the instructions below

1. Push the round button (2) located on the side of the pivot bracket. The button is spring-loaded, so you will feel some resistance when pulling it out.
2. Grasp the power head motor housing and rotate the power head to either of the 6 positions.
3. Release the round button.

It should snap back into its seated position. If it does not, rotate the power head back and forth slightly until the button snaps back into its seated position. The power head is now locked into position and ready for use.

Cutting tips

WARNING! Always hold your hedge trimmer by both handles for use. Never hold your hedge trimmer with one hand and the hedge to be cut with the other. Ignoring this warning can result in serious physical injuries.

WARNING: Clear away the cutting area before using the device. Remove all objects, such as power cables, electrical lines or wires, that could jam on the teeth of the cutter and cause serious physical injuries.

- When using the extension cable, always keep behind the hedge cutter. Never lay it over the hedge to be cut.

- Do not force the hedge cutter through dense bushes. This can cause the blades to become difficult to move and slower. Reduce the work speed if the blades become slower.

- Do not attempt to cut branches or twigs that are thicker than 18 mm, or those which are obviously too large for the cutting blade. Use a manual handsaw to shorten large branches.

- Stop the motor if the blades jam, remove the battery and try to remove the blockage.

- If you prefer, you can use a string to help cut the hedge straight. Decide how high you want the hedge. Pull a string along the hedge at the desired height. Cut the sides of a hedge so that it is a little narrower at the top. When a hedge is cut like this, more of it is visible and it appears more uniform.

- Wear gloves when cutting thorny or spiky plants. Make sweeping movements to cut young offshoots so that the stems are guided directly to the blade. Older branches are thicker and are easier to cut using sawing movements.

Using the pole hedge trimmer

The Pole Trimmer is a dual-purpose tool. It is designed to trim and shape tall, hard-to-reach hedges and bushes with its extended reach and pivoting power head. You can also adjust the Pole Trimmer to trim and shape smaller hedges and shrubs near the ground without having to bend or stoop.

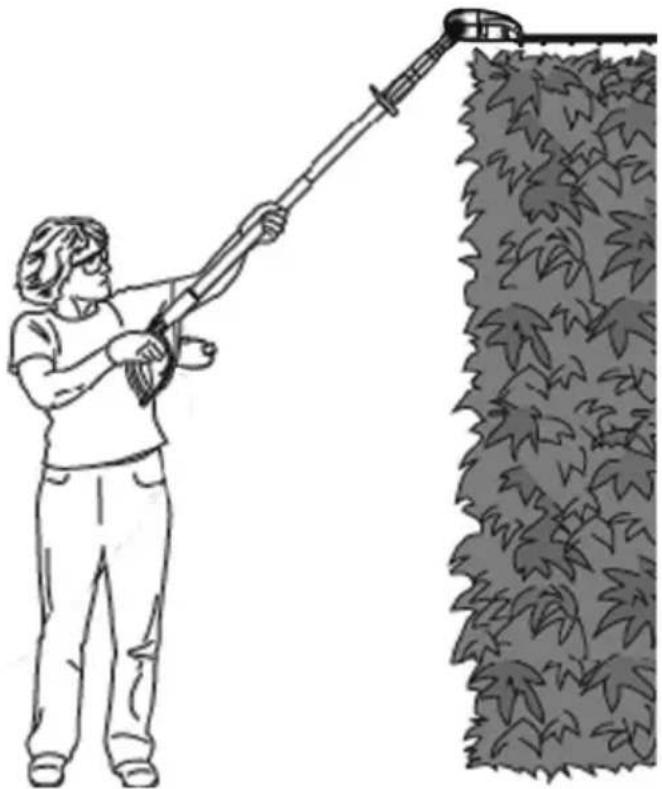

To use the Pole Trimmer for trimming tall, hard-to-reach hedges or shrubs, hold the Pole Trimmer at the positions shown. Pivot the power head to several different positions to shape or sculpt shrubs or hedges.

Illustration of a person using a manual power shaver to clean leafy plants (no text or symbols)

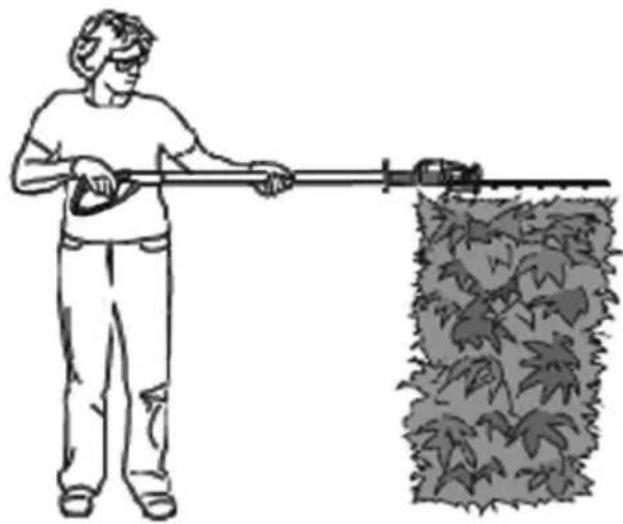

To use the Pole Trimmer for trimming smaller hedges or shrubs, hold the Pole Trimmer at the positions as shown.

Illustration of a person using a long tool to clean vegetation, with no text or symbols present.

GB | Operating Instructions

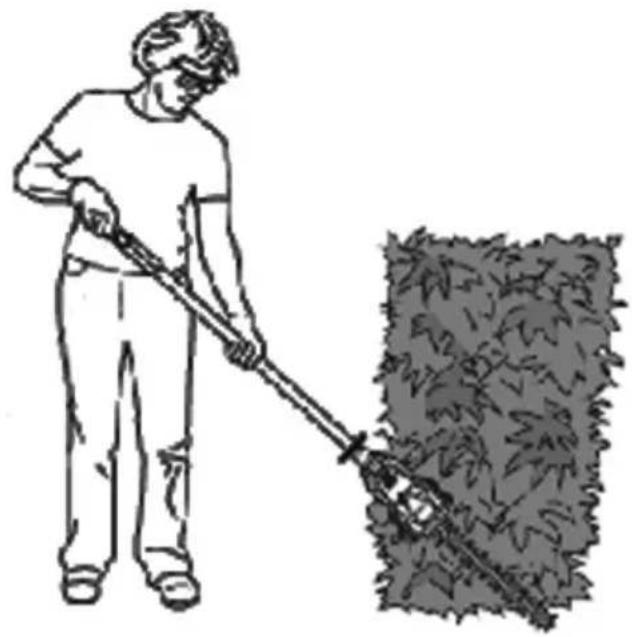

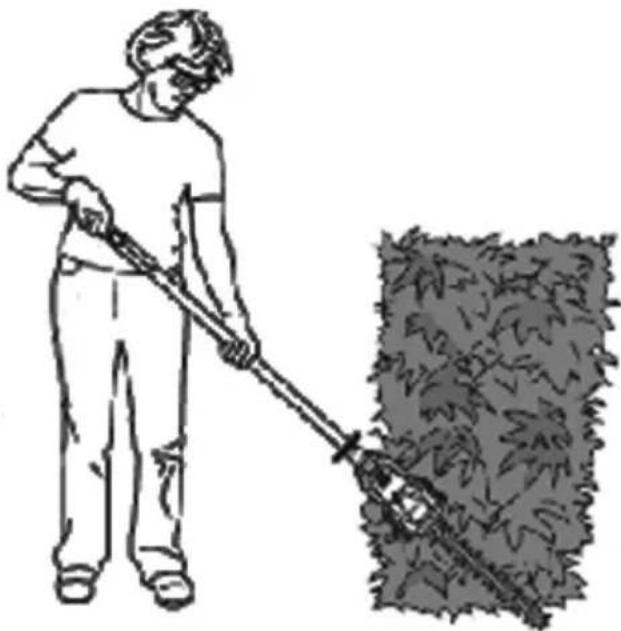

To use the Pole Trimmer for trimming the bottoms and sides of hedges and shrubs, hold the Pole Trimmer at the positions as shown.

Illustration of a person using a manual power shoveling a leafy plant (no text or symbols)

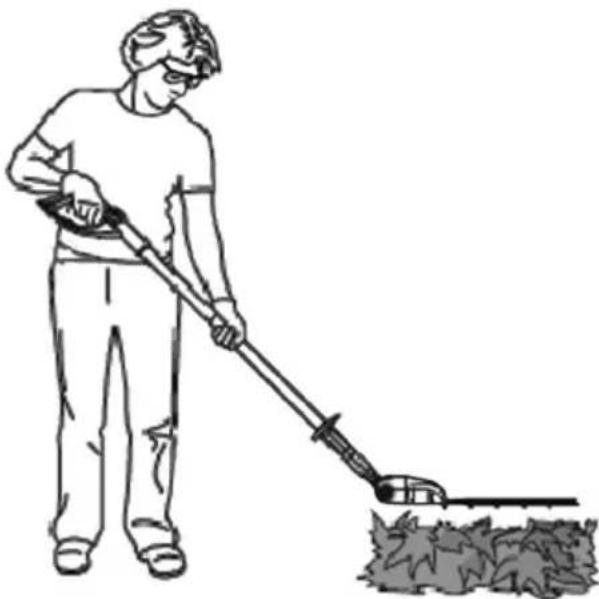

To use the Pole Trimmer for trimming low-lying foliage or ground cover, hold the Pole Trimmer at the position as shown.

Line drawing of a person using a power tool to clean or brush the ground (no text or symbols)

Use the Pole Trimmer properly. Always wear eye protection, rubber gloves, and substantial foot wear while using the Pole Trimmer. Always maintain proper footing and balance and never overreach when using Pole Trimmer. Before starting the Pole Trimmer, hold the unit with both hands on the grip areas. Make sure that the cutter blade is not touching anything.

Always keep the extension cord behind the Pole Trimmer when in use. Do not drape the cord over the hedge where it may be cut by the blades. Use smooth steady sweeping motions to trim new growth. Do not try to cut too much at one time. This can cause the Pole Trimmer to slow down or get jammed, reducing the cutting efficiency.

Do not force the Pole Trimmer through dense growth. A slight back and forth sawing action may ease the cutting of larger, more dense growth. If the Pole Trimmer begins to slow down, reduce the rate of speed at which you are trying to cut. If the Pole Trimmer becomes jammed, immediately turn Pole Trimmer off. Disconnect Pole Trimmer from the power supply and remove the jammed debris from the cutter blades.

Do not try to cut branches larger than 18mm in diameter. For best results, trim the sides of hedges with an upward sweeping motion. Trim the hedges so that the top is slightly narrower than the bottom.

Cleaning, maintenance and storage of the pole trimmer

WARNING: Always remove the battery before inspection and adjustment work. Severe injury or death could occur from fire, electrical shock, or body contact with moving cutter blades.

WARNING: When cleaning Pole Trimmer:

• Do not submerse Pole Trimmer in any liquids.
• Do not use products that contain Ammonia, Chlorine, or abrasives.
• Do not use chlorinated cleaning solvents, Carbon Tetrachloride, Kerosene, or Gasoline.

Use a soft cloth dampened with a mild soap and water mixture to wipe Pole Trimmer pole, housing, and cutter blades clean. Do not spray or pour water directly onto Pole Trimmer.

• Keep cutting edge sharp and clean for best performance and to reduce the risk of injury
• Follow instruction for lubricating and changing accessories.
• Keep handles dry, clean, and free from oil and grease.

1. Check Damaged Parts

• If a part is damaged, carefully check the damaged part before using the Pole Trimmer. Make sure the part will operate properly and perform its intended function.

• Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting, and any other condition that may affect its operation.

• When servicing Pole Trimmer, use only identical replacement parts.

• Store Idle Pole Trimmer Indoors.

When not in use, the Pole Trimmer should be stored indoors in a dry location. Store Pole Trimmer above the reach of children or in a locked area out of the reach of children.

2. Battery-powered telescopic handle Gartenmeister

(not included in the scope of delivery)

Safety instructions

Attention! Read all instructions contained herein. Failure to observe the following instructions may result in electric shock, burns and/or severe injury. The term ‘power tool’ used in the following includes both mains-operated tools (with mains supply) and battery-operated tools (without mains supply).

KEEP THESE INSTRUCTIONS CAREFULLY!

1) Working area

a) Keep your working area clean and tidy. Untidy and poorly lit working areas may lead to accidents.
b) Do not operate the tool in potentially explosive environments containing combustible fluids, gases or dusts. Power tools generate sparks that may ignite dusts or fumes.
c) Keep children and other persons away when you are operating the power tool. Distractions may result in the operator loosing control over the tool.

2) Electrical safety

a) The mains plug of the power tool must fit into the mains socket. The plug must not be modified in any way. Do not use adapter plugs/connectors in combination with tools with protective earthing. Unmodified plugs and fitting sockets reduce the risk of electric shock.
b) Avoid physical contact with earthed surfaces as pipes, heaters, ovens and refrigerators. There is an increased risk of electric shock if your body earthed.
c) Keep the tool out of the rain. The penetration of water into a power tool increases the risk of electric shock.
d) Do not use the cable to carry or hang up the tool or to pull the plug out of the socket. Keep the cable away from heat, oil and sharp edges or moving parts of the tool. Damaged or tangled cables increase the risk of electric shock.
e) When operating a power tool outdoors,

use exclusively extension cables that are approved for outdoor-use. The use of an extension cable that is suitable for outdoor use reduces the risk of electric shock.

3) Personal safety

a) Always pay attention to what you do and apply reasonable care when working with a power tool. Do not use the tool when you are tired or under the influence of medication, drugs or alcohol. When working with power tools even a short moment of inattentiveness may result in severe injury.
b) Wear personal protection equipment and always wear eye protection (safety goggles). Wearing personal protection equipment as a dust mask, nonslip safety shoes, safety helmet or ear protectors (depending on the type and use of the tool) reduces the risk of injury.
c) Avoid unintentional operation. Make sure that the switch is in 'OFF' position before pulling the plug from the mains socket. When carrying the tool with your finger on the on/off switch or connecting the tool to the mains supply with the switch in 'ON' position, this may result in accidents.
d) Remove adjustment tools or wrenches and the like before you switch the tool on. A wrench or another tool that is inside or on a turning part of the tool may cause injury.
e) Do not overestimate your abilities. Take care of a safe footing and keep your balance at all times. This will allow you to better control the tool in unexpected situations.
f) Wear suitable clothes. Do not wear wide clothing or jewellery. Keep your hair, clothes and gloves clear of all moving parts. Loose clothing, jewellery or long hair may get caught in moving parts.
g) If dust extraction/collection devices are provided make sure that they are connected and used properly. The use of these devices reduces hazards caused by dust.

4) Careful handling and use of power tools

a) Do not overtax the power tool. Use the power tool intended for your type of work in each case. The use of the suitable power tool within the stated range of performance makes working more effective and safer.

GB | Operating Instructions

b) Do not use a power tool with a damaged switch. A power tool that cannot be switched on or off any more is dangerous and must be repaired.

c) Pull the mains plug out of the socket before you adjust a tool, change accessories or put the tool aside. This precaution avoids the unintentional start of the tool.

d) Store power tools out of the reach of children. Do not allow persons to use the tool if they are not familiar with the tool or these instructions. Power tools are dangerous if used by inexperienced persons.

e) Thoroughly maintain your power tool. Check whether moving parts are working properly and are not jamming/sticking, and whether parts are broken or otherwise damaged in a way that affects the function of the tool. Have damaged parts repaired before using the tool. Many accidents are the result of poorly maintained power tools.

f) Keep cutting tools sharp and clean. Thoroughly looked-after cutting tools with sharp cutting edges are jamming less often and are easier to guide.

g) Use power tools, accessories, add-on tools, etc. in accordance with these instructions and in the way prescribed for the respective type of tool. You should also consider the working conditions and the work to be carried out. The use of power tools for purposes other than those intended for the respective tool may result in dangerous situations.

5) Appropriate handling and use of battery-operated power tools

a) Make sure that the device has been switched off before inserting the battery. Inserting a battery into a switched-on power tool may lead to accidents!

b) Only use charging devices recommended by the manufacturer to charge the batteries. Charging units are usually designed for certain types of batteries; if used with other types there is a risk of fire!

c) Only use batteries designed for your power tool. The use of other batteries may lead to injury and risk of fire!

d) Keep unused batteries clear of paper clips, coins, keys, nails, screws or other small metal objects that may bridge the

contacts. A short circuit between the battery contacts may lead to burns or fire!

e) Improper use may result in fluid leaking out of the battery. Avoid any contact with battery fluid. Flush with water in case of contact. If battery fluid should get into your eyes seek medical advice additionally. Leaking battery fluid may lead to irritations of the skin or burns!

6) Service

a) Have the power tool serviced by qualified technical personnel only; repairs should be carried out using exclusively original spare parts. This will ensure the safe operation of the power tool.

Inserting/removing the battery (not included in the scope of delivery) (Fig. 4)

• Press the battery release buttons (a) to remove the rechargeable battery (E) from the hedge trimmer/pruner.
• The charged battery can be inserted into the battery mounting on the hedge trimmer/pruner with a light press. The locking mechanism will ,click' when the battery is in place.

Warning: To prevent accidental operation, make sure that the battery is removed and that the chain cover is in position on the saw chain before carrying out the following procedures. Failure to do this can result in serious personal injuries.

Warning: To prevent accidental operation, make sure that the battery is removed before carrying out the following procedures. Failure to do this can result in serious personal injuries.

Switching the hedge trimmer/pruner on and off (Fig. 5)

Before switching on: remove the blade guard.

• Insert the rechargeable battery.
• Place take a safe standing position to switch on the hedge trimmer/pruner.
• Hold the hedge trimmer/pruner with both hands by the handles provided
• Press the locking mechanism button (2) using your thumb and press the on/off switch (1) at the same time.
• Release the locking mechanism button (2).
• NOTE: This hedge trimmer/pruner has a two-hand safety circuit. It can only be put into operation if both switches are activated.
• To turn the device off, simply let go of the switches. The hedge trimmer/pruner will switch off after releasing one of the two switches.
• Pay attention to the cutting blade running on after switching off.

Warning: Never attempt to use the hedge trim-mer/pruner if parts are damaged or missing.

GB | Operating Instructions

Always replace or repair parts first. Failure to do so can lead to severe injury.

Setting the working length (Fig. 6)

Warning: Always remove the rechargeable battery before inspection and adjustment work.

Loosen the quick-lock of the telescopic handle (7). Press the shaft together to shorten the length or pull it apart to lengthen the shaft. Tighten the quick-lock (7) once the setting is complete.

NOTE: Only extend the shaft far enough to just reach the hedge and shrubs.

Putting on the shoulder strap (Fig. 7)

WARNING! Danger of injury! If the shoulder strap is not detached promptly in an emergency, serious injuries can result.

• In an emergency, detach the shoulder strap from the hedge trimmer/pruner.

• Familiarise yourself with the correct function of the strap lock before using the hedge trimmer/pruner.

• Place the shoulder strap (5) over your left shoulder.

• Fasten the snap hook to the strap holder (4).

• To open the strap lock, hold the hedge trimmer firmly with one hand and press both sides of the strap lock at the same time with the other.

Cleaning, maintenance and storage

Always remove the rechargeable battery from the hedge trimmer/pruner before any work on the machine.

Your device has been designed for operation over a long period with little maintenance. Permanent satisfactory operation depends on diligent care and regular cleaning of the device.

Your charger does not require any maintenance apart from regular cleaning.

Warning: Before performing any maintenance on the device, remove the battery. Unplug the charger before cleaning it.

After use and prior to storage

• Clean the ventilation slots regularly with a clean, dry paintbrush
• Only use mild soap and a moist cloth to clean the device. Never allow any fluids to get into the device or immerse any parts of the device in fluids.
• Remove debris using a hard brush

Storage

If the device is not going to be used for a few months, it is preferable to leave the battery in the charger. Otherwise proceed as follows:

• Fully charge the battery

• Remove the battery from the device

• Store the device and the battery in a safe and dry place. The storage temperature must always be in the range between +5 degrees Celsius and +40 degrees Celsius. Place the battery on a level surface.

• Before using the device after prolonged storage, fully charge the battery again.

Repair Service

Repairs to electric power tools should only be carried out by specialist electrical personnel.

Always keep the original packaging for a possibly required shipping of the tool.

Information for environmental protection/disposal

Dispose of the machine properly after it is worn out. Disconnect the mains cable in order to prevent misuse. Do not dispose of the machine with the household waste. In the interest of environmental protection, take it to a collection point for electric machines. Your responsible local authority can provide you with addresses and operating times. Also take the packaging materials and worn out accessories to the appropriate collection points.

Only for EU countries

Do not discard electric tools in the household waste!

In accordance with European Directive 2012/19/EC on waste electrical and electronic equipment and its implementation in national law, waste electric tools must be collected separately for environmentally-compatible re-use.

Recycling alternative to the return invitation:

Instead of returning the electric equipment, the owner is alternatively obligated to take part in the proper recycling in the case of relinquishment of ownership. The waste equipment can also be taken to a collection facility which disposes of it in the sense of the national recycling management and waste acts. This does not pertain to the accessory parts and auxiliary equipment without electrical components accompanying the waste equipment.

Spare parts

Please contact our service department if you need accessories or spare parts.

When working with this machine, do not use spare parts other than those recommended by us. Using spare parts not recommend by us can result in serious injuries to persons or damage to the machine.

The following information should be provided when ordering spare parts:

• Type of machine
• Item number of the machine

GB | Operating Instructions

Warranty

For this electric tool, the company provides the end user - independently from the retailer's obligations resulting from the purchasing contract - with the following warranties:

The warranty period is 24 months beginning from the hand-over of the device which has to be proved by the original purchasing document. For commercial use and use for rent, the warranty period is reduced to 12 months. Wearing parts and defects caused by the use of not fitting accessories, repair with parts that are no original parts of the manufacturer, use of force, strokes and breaking as well as mischievous overloading of the motor are excluded from this warranty. Warranty replacement does only include defective parts, not complete devices. Warranty repair shall exclusively be carried out by authorized service partners or by the company's customer service. In the case of any intervention of not authorized personnel, the warranty will be held void.

All postage or delivery costs as well as any other subsequent expenses will be borne by the customer.

EC Declaration of Conformity

We, ikra GmbH, Schlesierstraße 36, 64839 Münster, Germany, declare under our sole responsibility that the product Hedge cutter attachment GM ATHS 4043 Gartenmeister, to which this declaration relates correspond to the relevant basic safety and health requirements of Directives 2006/42/EC (Machinery Directive), 2014/30/EU (EMC-Guideline), 2011/65/EU (RoHS-Guideline) and 2000/14/EC+2005/88/EC (noise directive) incl. modifications. For the relevant implementation of the safety and health requirements mentioned in the Directives, the following standards and/or technical specification(s) have been respected:

EN 60745-1:2009+A11:2010

EN 60745-2-15:2009+A1:2010

EN ISO 10517:2009+A1:2013

measured acoustic capacity level 97,9 dB (A)

guaranteed acoustic capacity level 100 dB (A)

Conformity assessment method to annexe V / Directive 2000/14/EC

The year of manufacture is printed on the nameplate and can be additionally retrieved via the consecutive serial number.

Münster, 12.01.2018

Matthias Fiedler, Senior Product Manager Ikra GmbH

Maintenance of technical documentation:

Ikra GmbH, Schlesierstrasse 36, 64839 Münster, Germany

Illustration of a person using a long tool to clean vegetation, with no text or symbols present.

Illustration of a person using a hatched tool to clean vegetation (no text or symbols)

Illustration of a person using a manual power tool to brush a large pile of hay or straw (no text or symbols)

Line drawing of a person using a power tool to clean or brush the ground (no text or symbols)

Illustration of a person using a hatched tool to clean vegetation, with no text or symbols present.

Illustration of a person using a long-handled tool to clean vegetation, with no text or symbols present.

Illustration of a person using a manual power shaver to lift a large pile of harvested grass (no text or symbols)

FR | Mode d'emploi

Line drawing of a person using a power tool to clean or brush a hedgehog (no text or symbols)

DE Ikra Mogatec - Service

11 Othellos Street, Dali Industrial Zone

2540 Nicosia

Tel.: [phone]

[phone]

CZ Drupal

GB-Northampton, NN3 8RH

UK/N.Ireland: 0344 824 3524

@ [e-mail]

GR Panos Vrontanis & Co

3 Molas Street

13671 Aharnes

[phone]

[phone]

HR VAR - ERCO d.o.o.

Stipana Vilova 14A

10090 ZAGREB

[phone]

[phone]

HU Tooltechnic Kft.

Bárd u. 2.

1097 Budapest

[phone]

[phone]

IN Agritech Floritech Inc.

206-B Rajindera Arihant Tower

B-1 Community Centre Janak Puri

New Delhi - 110058 / India

[phone]

[phone]

IR BGR8 Ltd. c/o Seabourne Group

South Portway Close, Round Spinney

Northampton, NN3 8RH

[phone]

[phone]

@ [e-mail]

IT Ikra Service Italia, by BRUMAR

Loc. Valgera 110/B

14100 ASTI (AT)

[phone]

[phone]

JO Taha & Qashou Agri Co. (LLC)

205 Mekka Street

Amman 11821, Jordan

[phone]

[phone]

LTikra Mogatec official store / Customer service

Kalvariju str. 206

Vilnius LT-08314

[phone] / [phone]

@ [e-mail]

LU Bobinage Georges Back

53, Rue Nic. Meyers

4918 Bascharage

[phone]

[phone]

MD OLSOM S.R.L.

Mateevici Str., 38/1

2009 Chisinau

[phone]

[phone]

MK FEROELEKTRO D.O.O.

Str.Nikola Parapunov br.35A/3

1000 Skopje

[phone]

[phone]

NL Muldertechniek

Noorderkijl 1

9571 AR 2 e Exloermond

[phone]

[phone]
