Product type	Electric scarifier and dethatcher
Brand	IKRA
Model	IEVL 1840
Category	Lawn mower (scarifier/dethatcher)
Rated voltage / Frequency	230-240 V ~ 50 Hz
Rated power	1800 W
Working width	400 mm
Weight (with scarifier roller / aerator)	12.8 kg / 12.3 kg
Protection class	II (double insulation)
Protection rating	IP X4 (protected against water splashes)
Sound pressure level (L_pA)	85.56 dB(A) (K=3 dB)
Measured sound power level	100.55 dB(A) (K=3.27 dB)
Guaranteed sound power level	104 dB(A)
Vibration emission value (a_h)	5.508 m/s² (K=1.5 m/s²)
Intended use	Scarification, moss removal, leaf and weed collection on private lawns
Main functions	Scarification (blade roller) and aeration (tine roller)
Safety devices	Safety switch, splash protection, quick blade stop
Recommended maintenance	Clean after use, check screw tightening, sharpen or replace worn blades
Spare parts	Rollers, blades, belt, collection bag – use genuine parts
Repairability	Have complex repairs done by a specialized workshop
Warranty	24 months (private users), 12 months (professional use)

Frequently Asked Questions - IEVL 1840 IKRA

How to start the IKRA IEVL 1840 scarifier?

Make sure the device is properly plugged into an outlet with a residual current device (30 mA). Set the switch to the on position (I). Hold the handle firmly with both hands and press the safety button before operating the start trigger. Release the safety button once the motor is running.

What working depth is recommended for scarification?

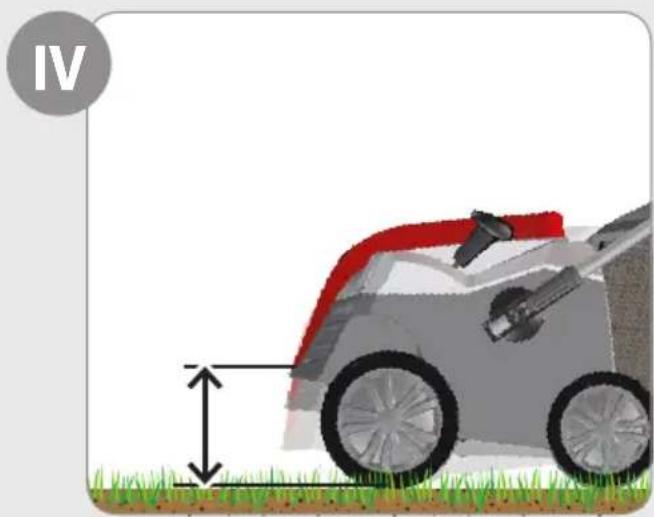

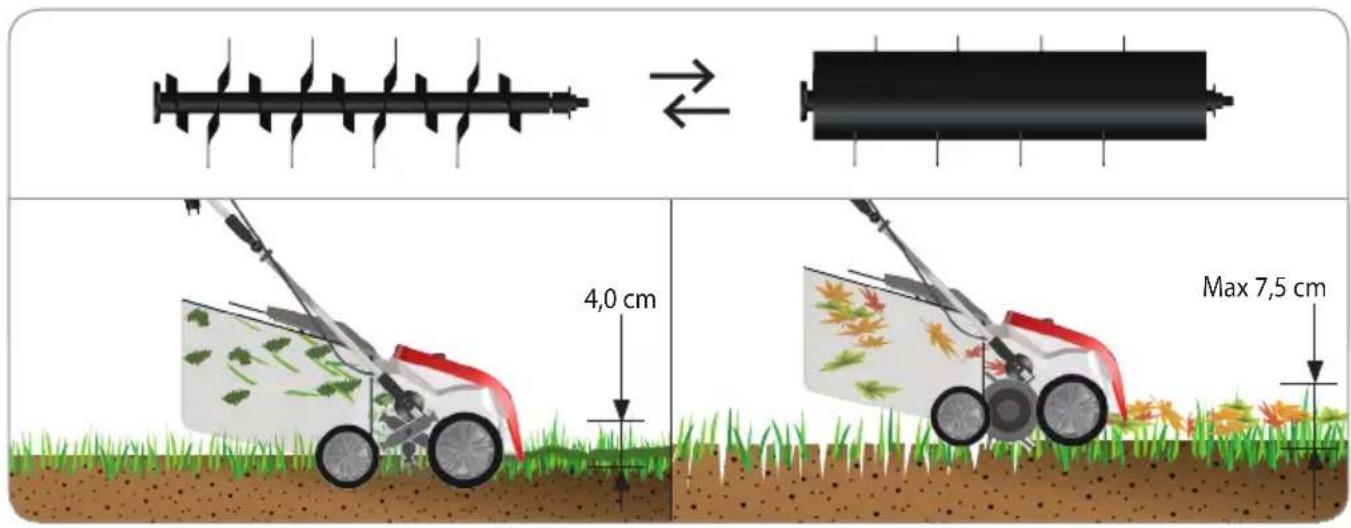

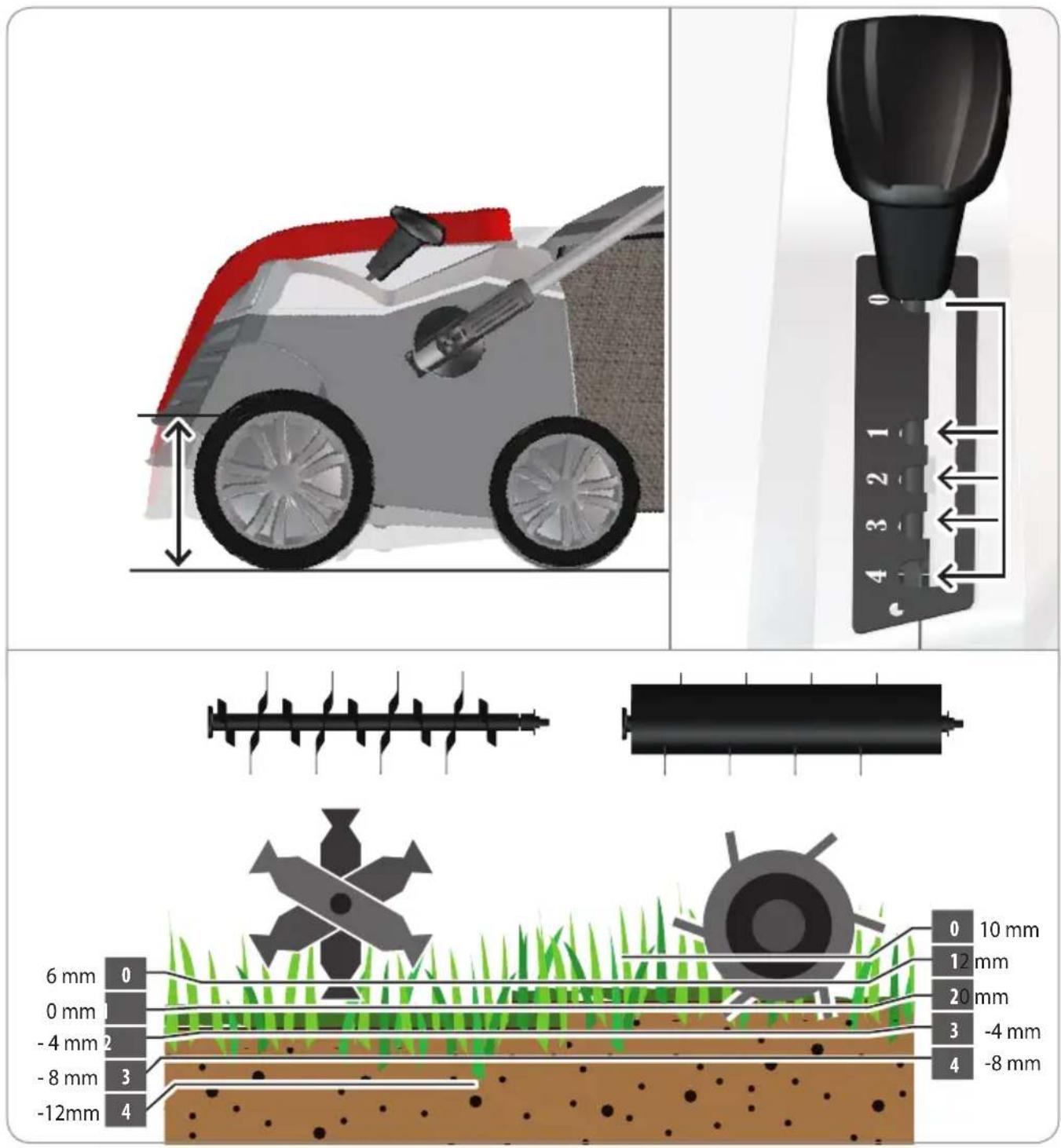

Set the depth between -5 and +10 mm depending on the lawn condition. For a first scarification, choose a shallow depth (-5 mm) to avoid damaging the grass. Increase gradually if necessary.

How to maintain the scarifier roller blades?

Before any maintenance, unplug the device and wait for the blades to stop completely. Clean the blades with a stiff brush and soapy water. Never use solvents. Check for wear and replace blunt or damaged blades with genuine parts.

Can I use an extension cord with this device?

Yes, only an extension cord approved for outdoor use, with a minimum cross-section of 1.5 mm² up to 25 m and 2.5 mm² beyond. The extension cord must be protected against water splashes and must not be damaged. Keep it away from rotating blades.

What to do if the motor does not start?

Check the power outlet, the power cord, and the extension cord. Make sure the switch is in the on position. If the roller is blocked, remove any obstacles. If the problem persists, contact an electrician or an authorized workshop to check the motor or the belt.

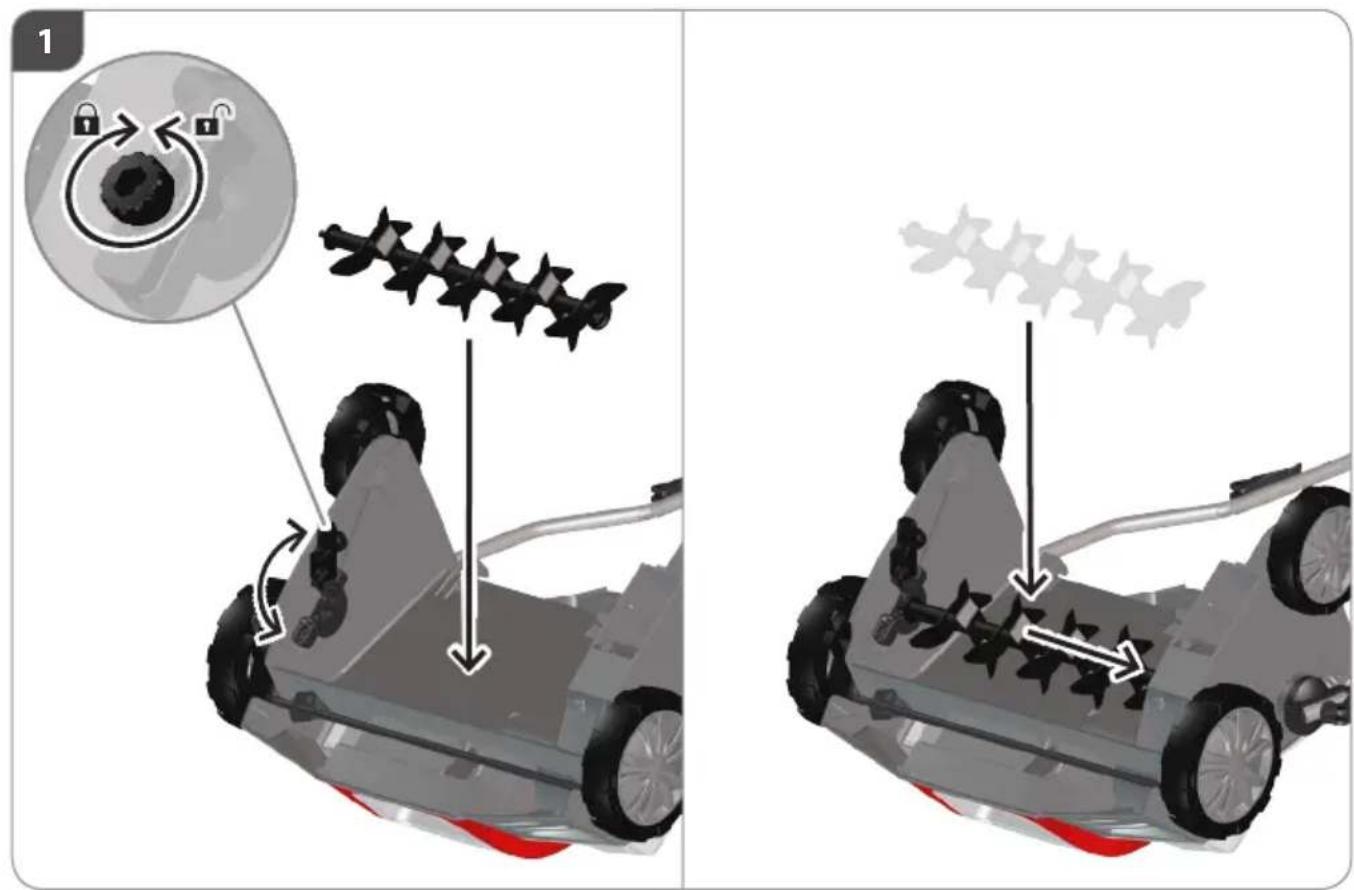

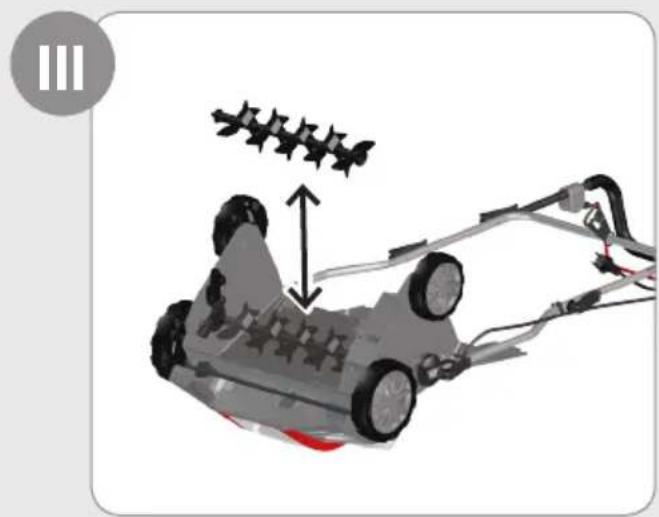

How to change the scarifier roller to an aerator roller?

Unplug the device and wait for it to stop completely. Remove the roller fixing screws using a suitable wrench. Replace with the desired roller and tighten the screws. Check that the roller turns freely before putting the device back into service.

Is the device suitable for large lawns?

Yes, with a working width of 400 mm and an 1800 W motor, it is suitable for medium to large lawns (up to approximately 1000 m²). For very large areas, choose a self-propelled mower.

What is the warranty of the IKRA IEVL 1840?

The warranty is 24 months for private use (presentation of the receipt). In case of commercial or rental use, it is reduced to 12 months. Wear parts (blades, belt) are not covered. Repairs must be carried out by an authorized workshop.

How to store the device in winter?

Clean the device thoroughly, remove grass and moss residues. Store it in a dry place, frost-free and out of reach of children. Allow the motor to cool before storing in an enclosed space. Unplug the cable and coil it without kinking.

Where can I buy spare parts for the IEVL 1840?

Contact IKRA France after-sales service ([e-mail]) or an authorized dealer. Use only genuine parts to ensure safety and performance. Blades, belts and rollers are available on order.

USER MANUAL IEVL 1840 IKRA

Illustration of a lawn mower with red and gray casing (no text or symbols)

Translation of the original Electric Lawn Scarifier and Raker 16 instructions

3D rendered image of a gray and red robotic car with wheels and a red strap (no text or symbols visible)

2

Diagram showing a mechanical component with red and black parts, alongside three small mechanical parts labeled 1, 2, and 3.

3

Mathematical expression with geometric shapes and symbols, including a right angle bracket and three icons: a circle, a fork, and a beaker.

4

Pure mechanical component diagrams without any text, numbers, or symbols

5

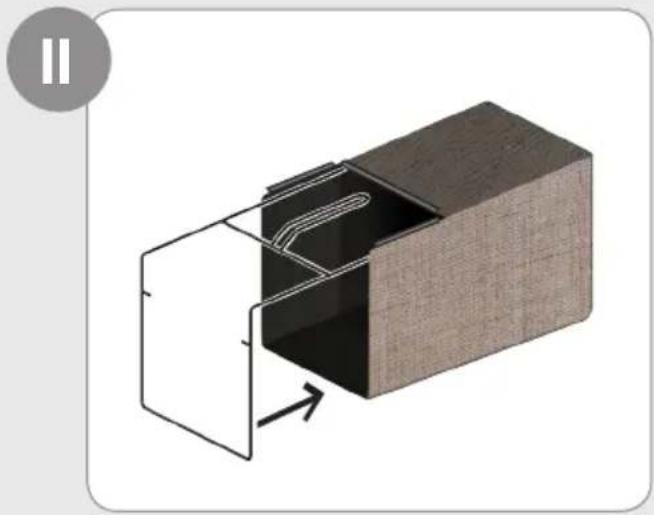

Simple 3D illustration of a rectangular box with a handle, no text or symbols present

6

7

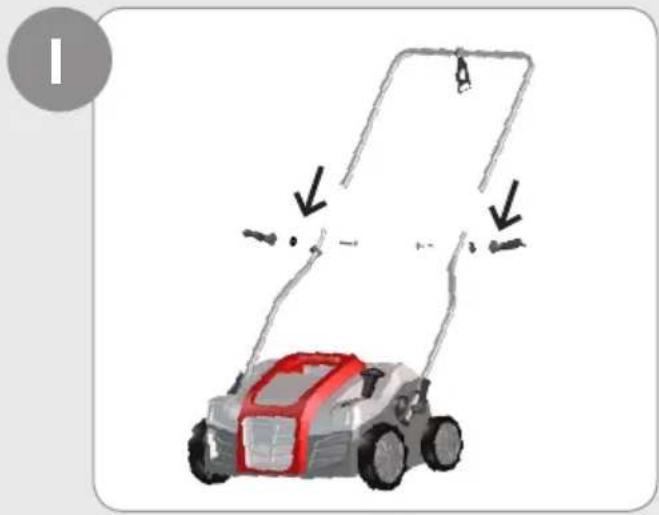

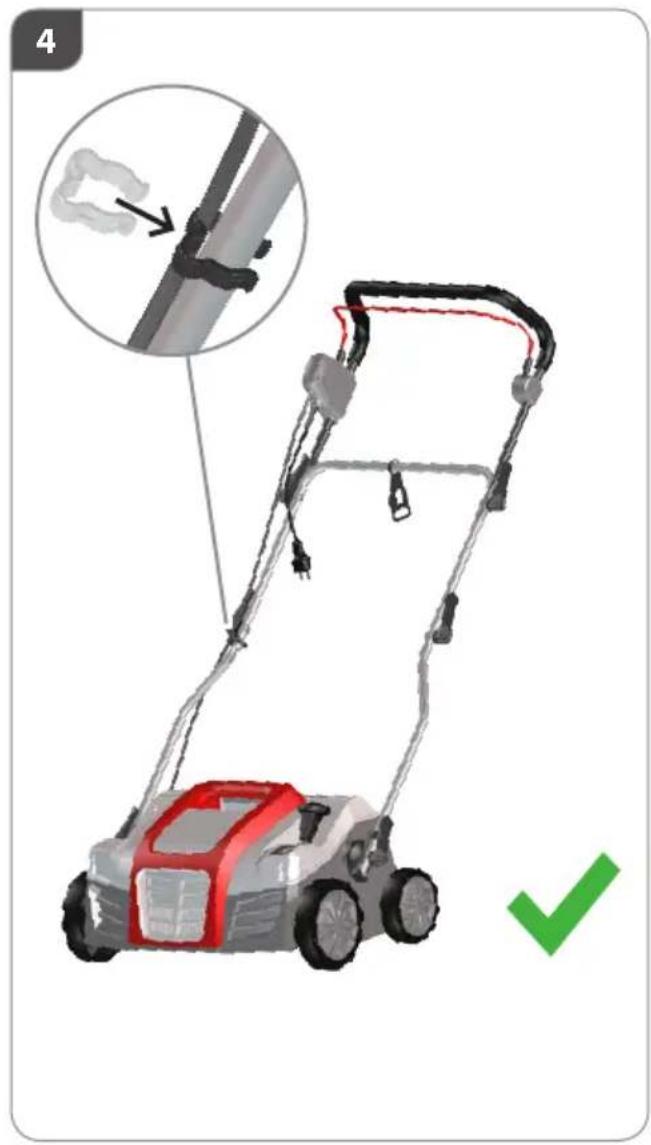

Illustration of a red and gray lawn mower with attached wires, no text or symbols present

3D diagram of a mechanical component with internal structure and directional arrow (no text or symbols)

Diagram of a lawn mower system with attached blades and structural components (no text or labels)

Illustration of a lawn mower on grass, showing blade and wheel positioning (no text or symbols)

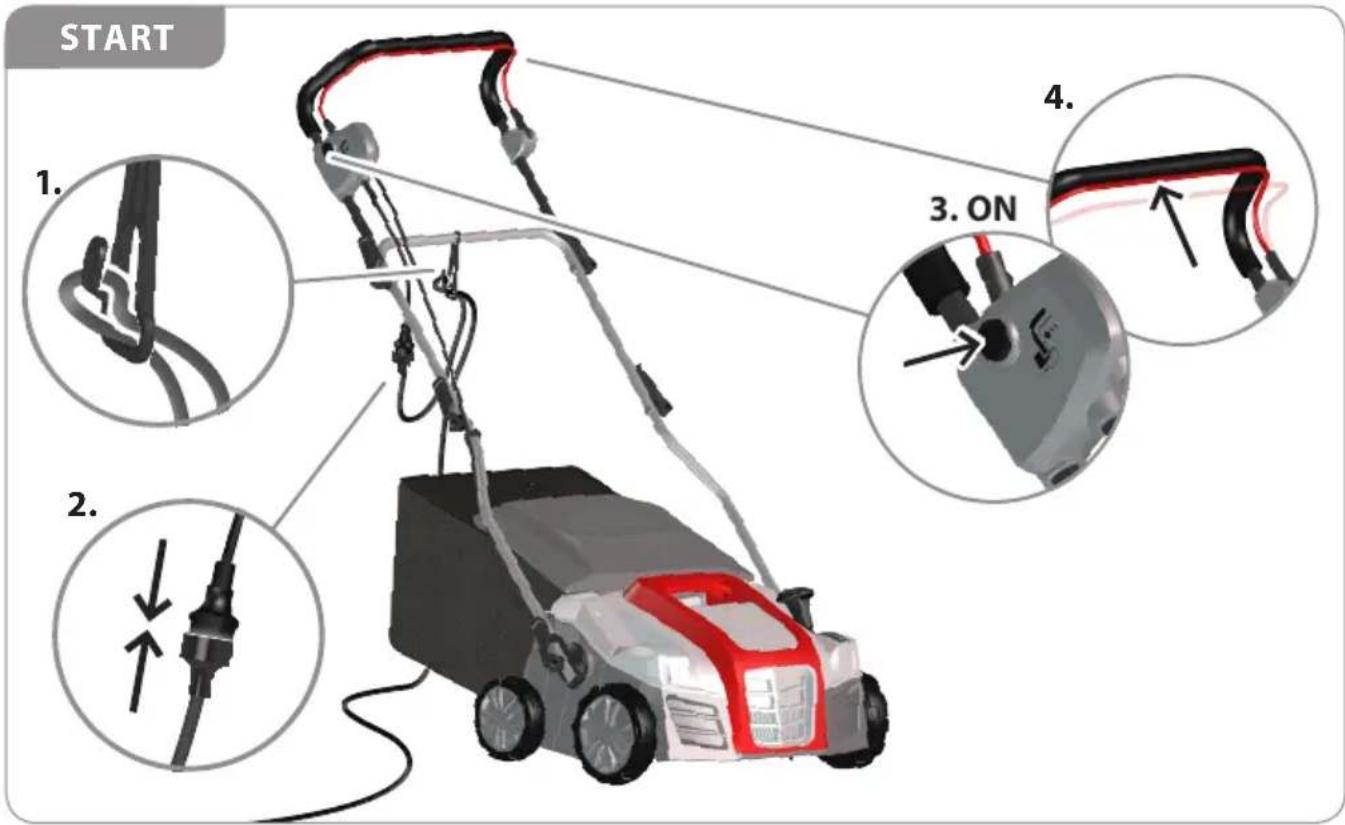

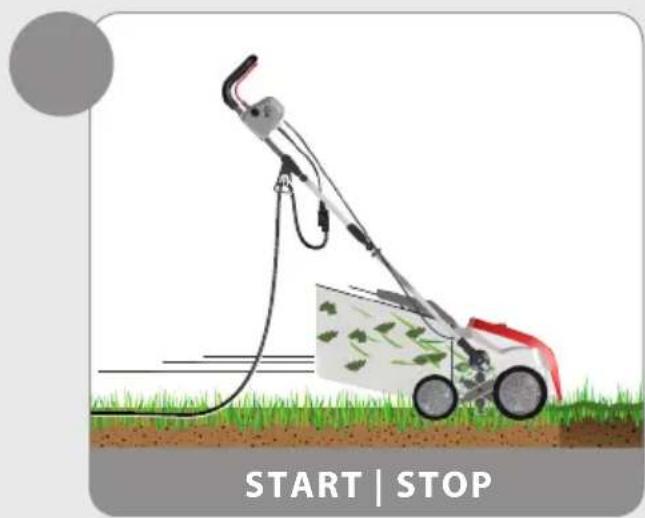

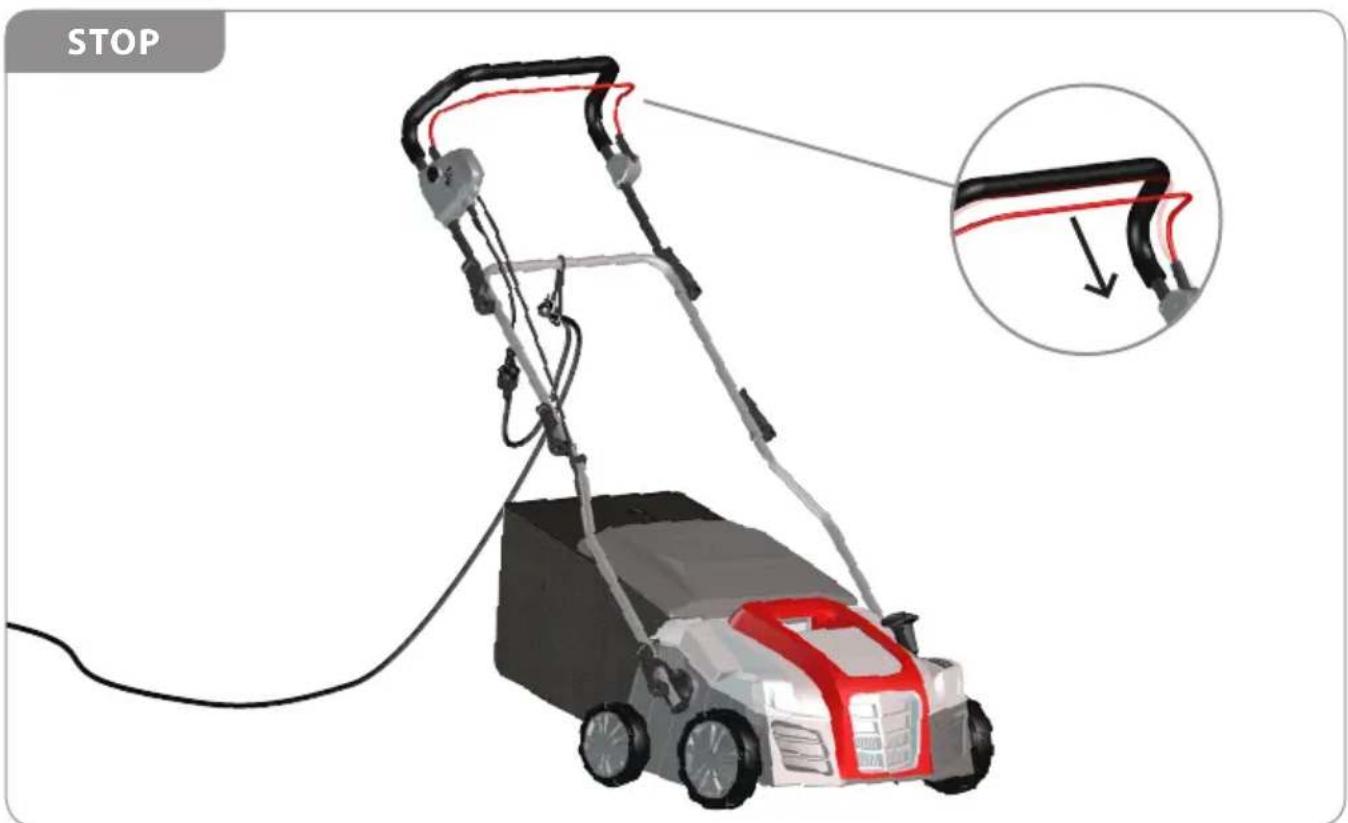

START | STOP

Illustration of a lawn mower with a roof-mounted device, showing motion direction (no text or symbols)

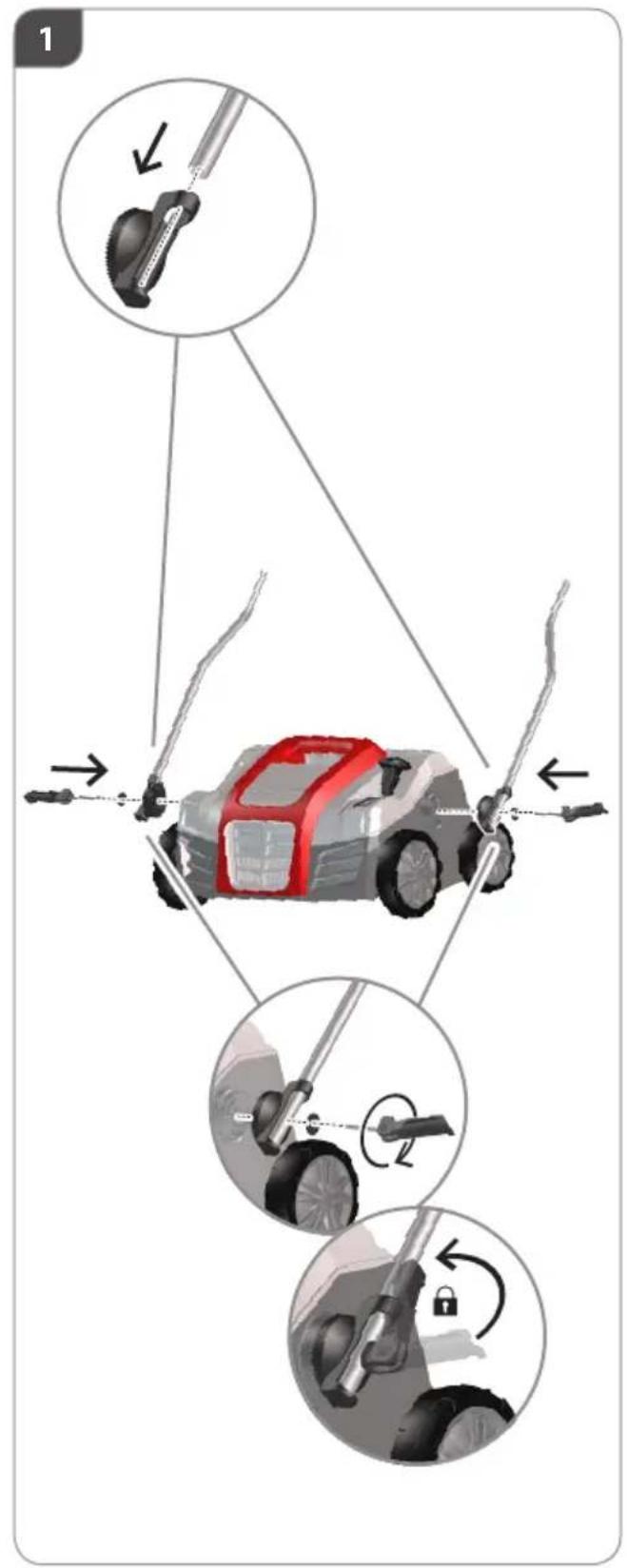

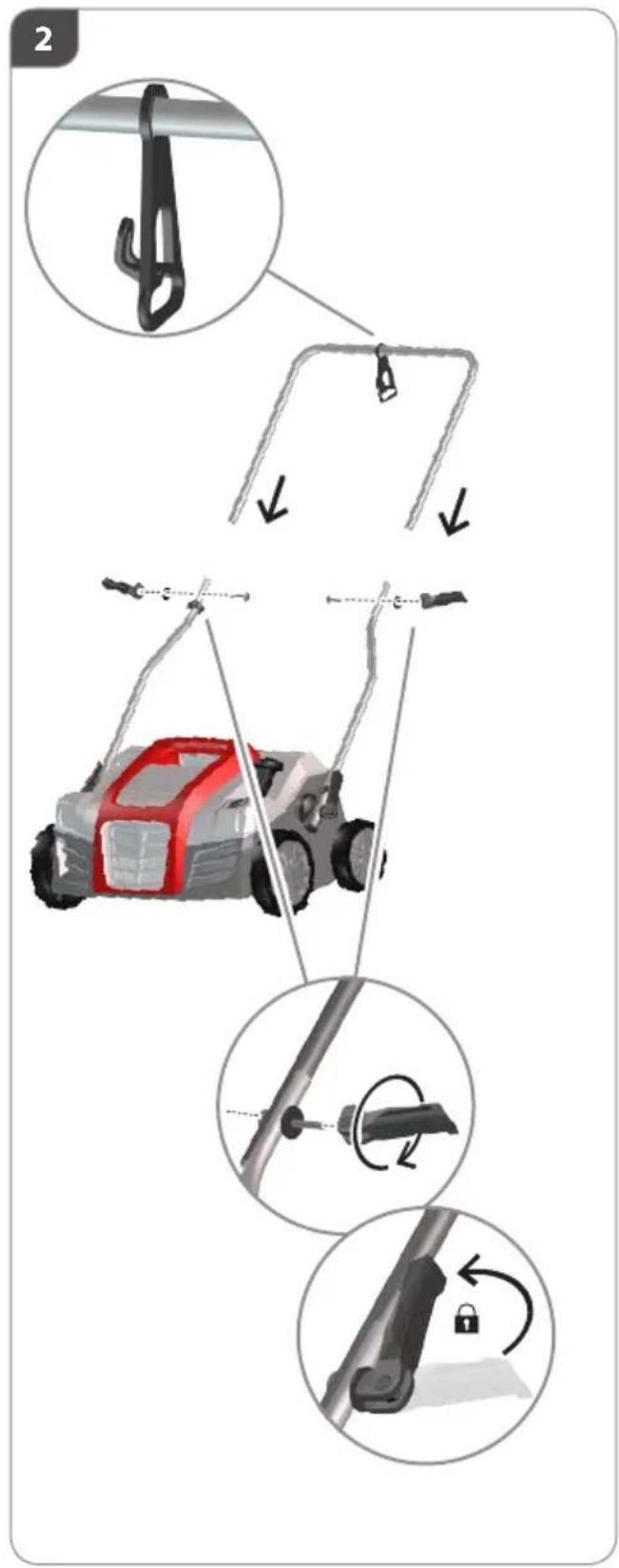

Diagram illustrating the step-by-step installation of a lawn mower, showing tool path and lock mechanism with labeled arrows.

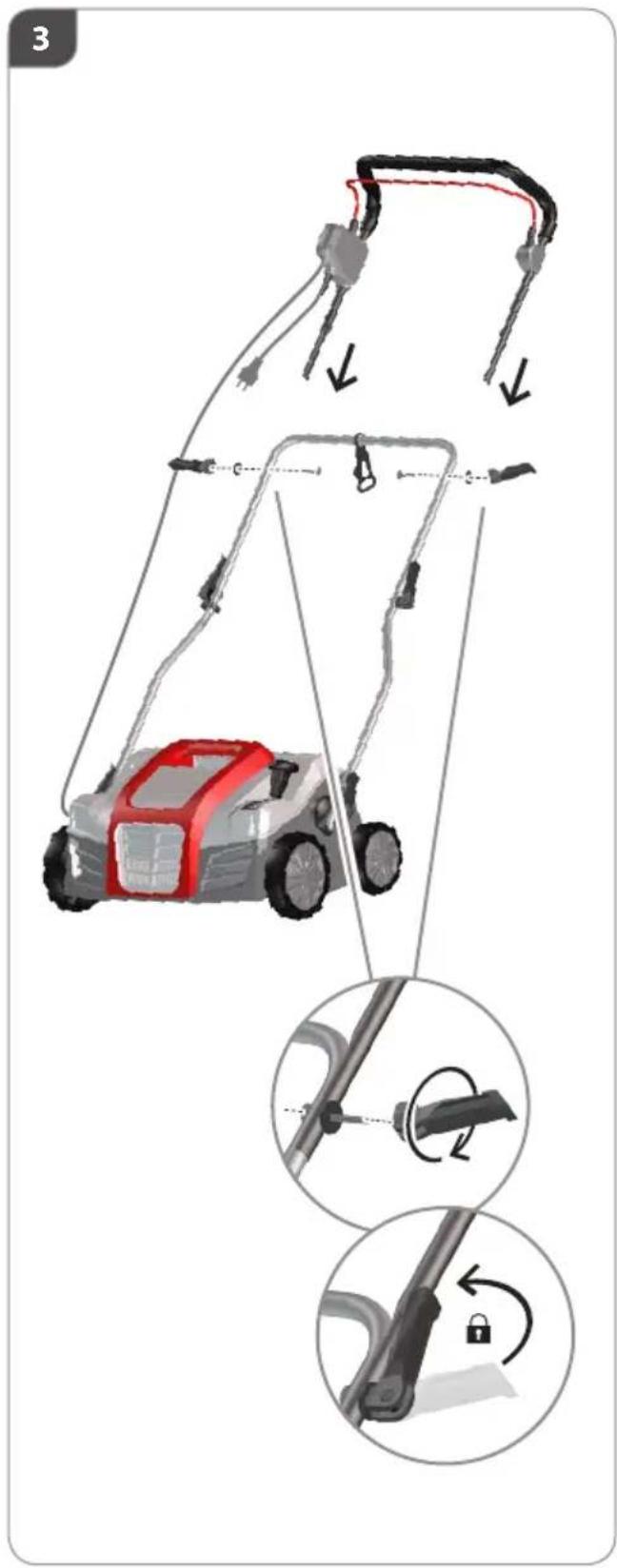

Instructional diagram showing how to lift a lawn using a grassy rental vehicle, with steps to lock the angle and lock position.

3

4 ✓

1

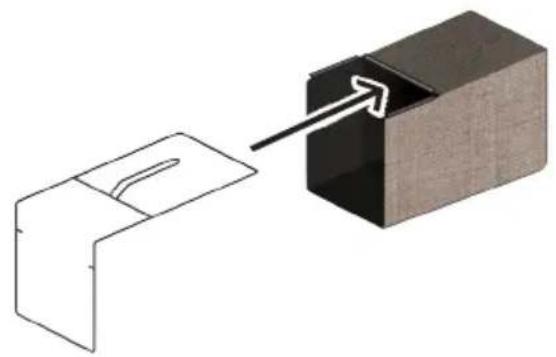

Diagram showing a 3D block being cut with an arrow indicating direction (no text or symbols present)

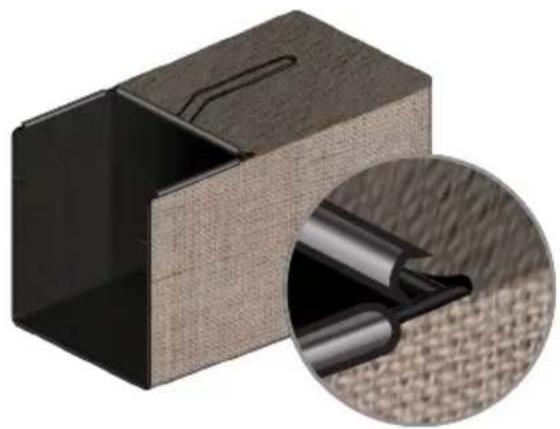

Close-up of a black wooden box with textured surface and a magnified inset showing a mechanical component (no text or symbols visible)

2

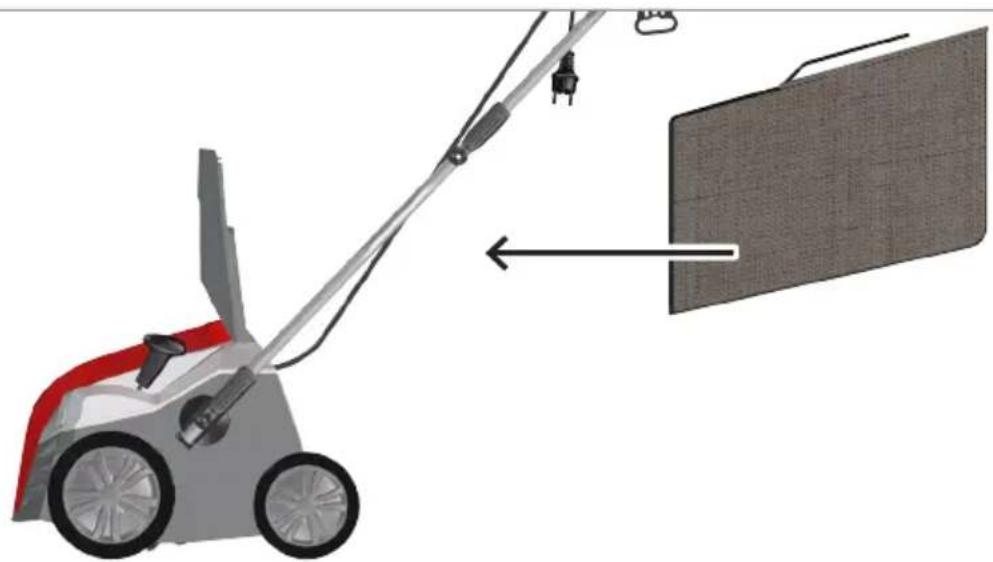

Diagram of a lawn mower with attached lever and load, showing mechanical components (no text or symbols)

3

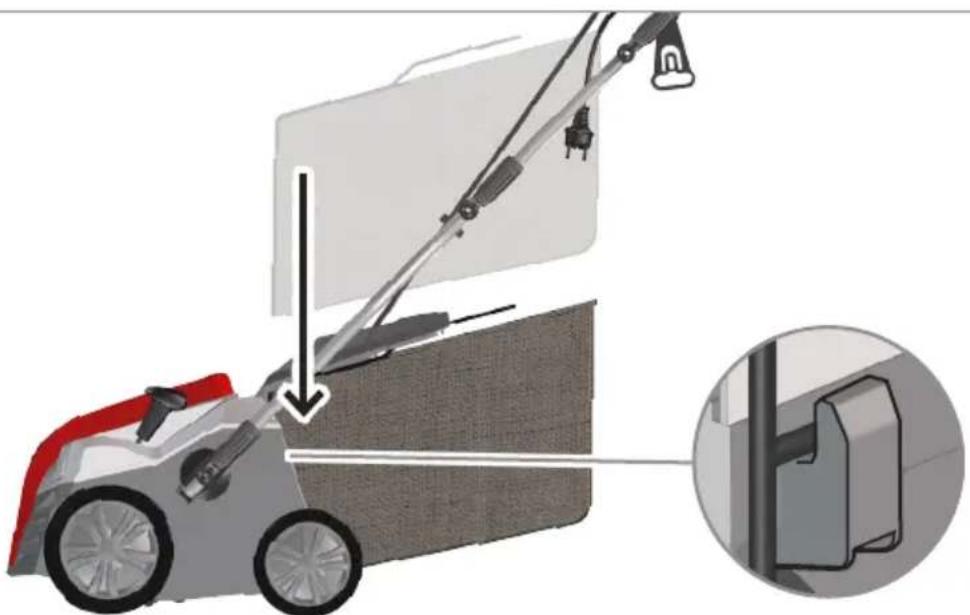

Diagram of a lawn mower system with a crane lifting a wall, showing structural components and an inset close-up (no text or symbols)

4,0 cm Max 7,5 cm

Diagram illustrating robot motion with labeled parts and directional arrows, showing gear movement and lock mechanism

Technical diagram illustrating a grass lawn cutter tool with labeled dimensions and component layout

START 1. 2. 3. ON 4.

STOP

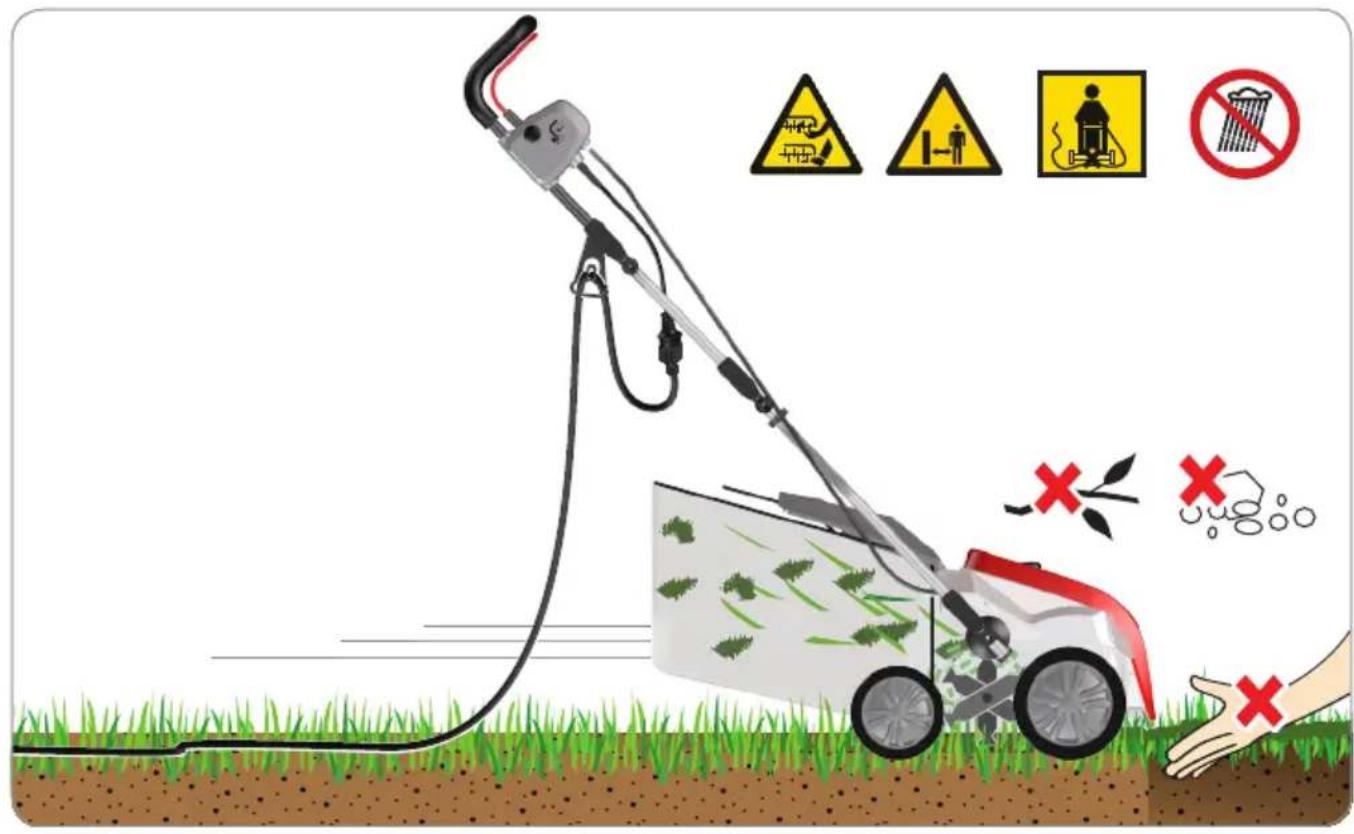

Illustration of a manual lawn curling machine with warning symbols and environmental icons, showing environmental hazard.

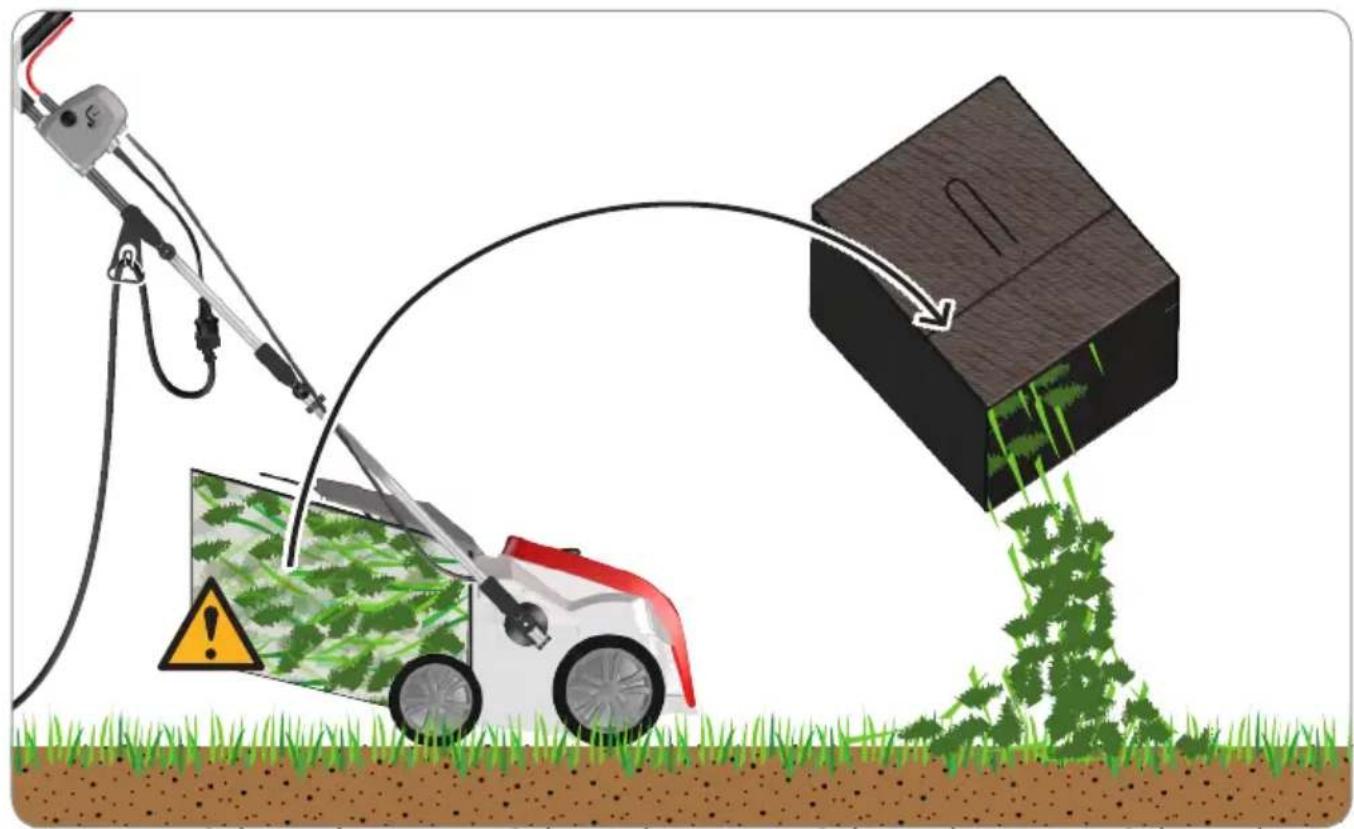

Illustration of a lawn mower system with a warning sign and a soil block pouring green material from a machine (no text or symbols)

Diagram illustrating a lawn mower system with labeled components and directional arrows, including a magnified view of the tool's height.

2 ✓ ×

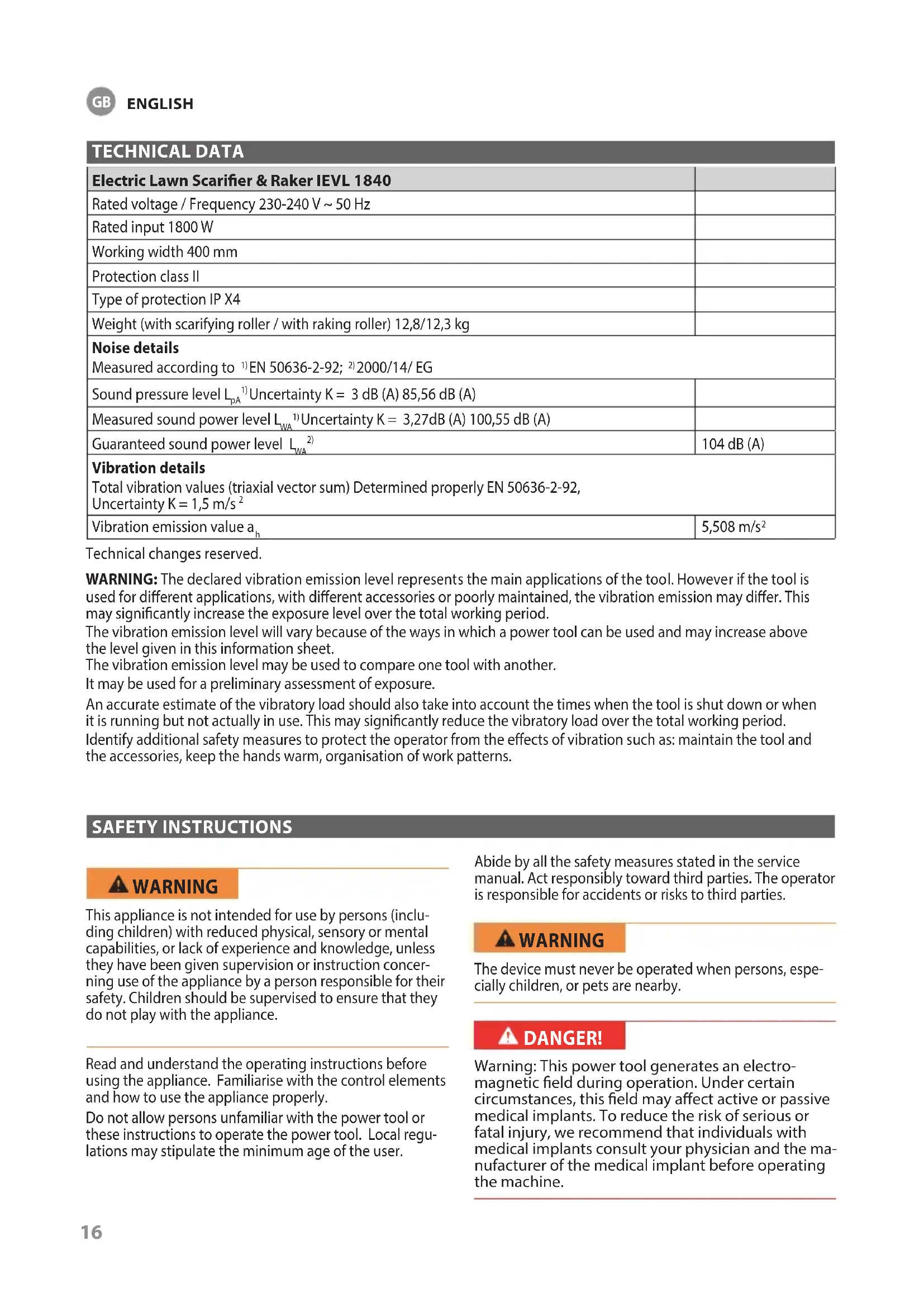

TECHNISCHE DATEN

Senior Product Manager

Ikra

GmbH

Electric Lawn Scarifier & Raker IEVL 1840
Rated voltage / Frequency 230-240 V ~ 50 Hz
Rated input 1800 W
Working width 400 mm
Protection class II
Type of protection IP X4
Weight (with scarifying roller / with raking roller) 12,8/12,3 kg
Noise detailsMeasured according to ^1) EN 50636-2-92; ^2) 2000/14/ EG
Sound pressure level L_pA^1) Uncertainty K = 3 dB (A) 85,56 dB (A)
Measured sound power level L_WA^1) Uncertainty K = 3,27dB (A) 100,55 dB (A)
Guaranteed sound power level L_WA^2)	104 dB (A)
Vibration detailsTotal vibration values (triaxial vector sum) Determined properly EN 50636-2-92, Uncertainty K = 1,5 m/s ^2
Vibration emission value a_h	5,508 m/s ^2

Technical changes reserved.

WARNING: The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period.

The vibration emission level will vary because of the ways in which a power tool can be used and may increase above the level given in this information sheet.

The vibration emission level may be used to compare one tool with another.

It may be used for a preliminary assessment of exposure.

An accurate estimate of the vibratory load should also take into account the times when the tool is shut down or when it is running but not actually in use. This may significantly reduce the vibratory load over the total working period. Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

SAFETY INSTRUCTIONS

WARNING

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

Read and understand the operating instructions before using the appliance. Familiarise with the control elements and how to use the appliance properly.

Do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Local regulations may stipulate the minimum age of the user.

Abide by all the safety measures stated in the service manual. Act responsibly toward third parties. The operator is responsible for accidents or risks to third parties.

WARNING

The device must never be operated when persons, especially children, or pets are nearby.

DANGER!

Warning: This power tool generates an electromagnetic field during operation. Under certain circumstances, this field may affect active or passive medical implants. To reduce the risk of serious or fatal injury, we recommend that individuals with medical implants consult your physician and the manufacturer of the medical implant before operating the machine.

Wear personal protective equipment.

• Always wear goggles when using the machine.
- Wear ear protectors!
- Wear solid shoes and long trousers.
- Do not wear loose clothing or jewels. Hair, clothing and gloves must be out of reach of moving parts as they could get caught by the rotating parts. Do not use the appliance when barefooted or in open sandals.
- Use protective gloves when handling the blades.

WARNING

Risk of injury

Rotating blades may lead to serious injuries by cutting or amputating parts of the body.

• Be careful to avoid injury by the cutting tools. Careful appliance handling reduces the risk of injury by knife.
• Do not touch any dangerous moving parts before the machine has been disconnected from the power supply and the moving parts have come to a complete standstill. Stop the device and disconnect it from the power supply

CAUTION

Damage to health arising from vibrations to hand and arms if the device is used for a long time or if the device is not guided and evaluated properly.

Vibration damping systems are no guaranteed protection against white finger disease or carpal tunnel syndrome. Therefore, it is necessary to carefully check the state of your fingers and wrist if you have regularly used the appliance for a long time. If any symptom of the diseases above appears, seek medical advice immediately. To reduce the white finger disease risk, keep your hands warm and take regular breaks during your work.

CAUTION

Hearing damage

A longer stay in the immediate vicinity of the running unit may cause hearing damage. Wear ear protectors!

When working with the device, a certain level of noise cannot be avoided. Noisy work should be scheduled for hours, during which it is allowed by statute or other local regulations. Adhere to any applicable rest times and limit your working time to the necessary minimum time. For your personal protection and the protection of people nearby, suitable hearing protection must be worn.

Despite the observance of the operating instructions there still may be some hidden residual risks.

Carefully check the terrain where the appliance is going to be used and remove all objects that could get caught or thrown off by the appliance such as stones, branches, wires, animals, etc.

Check all screw and plug-in connections and protective equipment if firm and tightened properly and whether all moving parts are running smooth whenever the appliance is to be put into operation.

Replace worn or damaged blades and bolts in sets to preserve balance;

Damaged or illegible security stickers must be replaced.

Do not use the appliance in bad weather, especially when there is a risk of storm.

Do not use the appliance if you are tired, ill, under influence of drugs, alcohol drinks or medicaments.

Provide adequate lightning or good lighting conditions when working with the machine. Poor lighting/light conditions represent a high safety risk.

Avoid operating the equipment in wet grass, where feasible;

Do not overreach. Keep proper footing and balance at all times. Provide a safe posture, especially on slopes.

Walk! Never run!

Always operate rotary machines with wheels at a right angle to the slope and not up and down.

Do not work on too steep slopes. Be particularly careful when changing travelling direction on slopes.

Pay maximum attention when turning around and pulling the appliance to you.

The protective equipment on the appliance is strictly prohibited to be disassembled, changed, used in conflict with the designation and it is prohibited to attach any protective equipment of other manufacturers.

Start the engine carefully according to the operating instructions. Ensure sufficient distance between the feet and the tines.

Keep connection and extension cables away from the tines.

When starting the engine, do not tilt the device unless it needs to be lifted for the operation. In this case, tilt the device only as far as absolutely necessary and lift only the side facing away from the operator. Always make sure that both hands are in operating position before the machine is returned to the ground.

Never put your hands or feet on or under rotating parts. Keep a distance from the ejection opening at all times.

The appliance must not be used if damaged or safety equipment is defective. Replace any worn-out and damaged parts.

Never remove the collection bag when the machine is being operated.

Never touch under the housing body when the engine is running.

Keep the power source free of debris and other build-ups to prevent damaging it or a possible fire.

Stop the device and disconnect it from the power supply. Wait until all rotating parts have stopped and the appliance has cooled down.

• whenever you leave the lawnmower
• before removing blockages
• before checking, cleaning or working on the device
• after contact with a foreign object, to check the device for damage
• before freeing the device from accumulated material
• before tilting or transporting the device

Disconnect the machine from the power source and take the following steps before restarting and operating the machine:

• check for damage
• replace or repair damaged parts
• check for loose parts and tighten them

When working with this machine, do not use spare parts other than those recommended by us. Using spare parts not recommend by us can result in serious injuries to persons or damage to the machine.

MAINS CONNECTION

DANGER!

Operation is only allowed with a safety switch against stray current (RCD max. stray current of 30mA).

Before use check machine, cable, and plug for any damages or material fatigue. Repairs should only be carried out by authorised Service Agents.

Insert the plug of the electrical cable in a socket of suitable shape, voltage and frequency complying with current regulations.

Keep the connection and extension cables away from dangerous moving parts to avoid damaging them.

Only use splash proof extension cables approved for outdoor purposes. The stranded wire cross-sectional area of the extension cable must be at least 1.5 mm ^2 for cables up to 25 m and 2.5 mm ^2 for cables above 25 m.

Only plug-in when machine is switched off.

The device is only intended for use on premises that have a continuous current carrying capacity of ≥ 100 A per

phase and are supplied from a electrical grid with a rated voltage of 400/230V.

If necessary, please consult your electricity company to ensure that the continuous current carrying capacity of the mains at the connection point is sufficient for connecting the device.

WARNING

WARNING! Electric shock! There is a risk of an injury caused by electric shock!

Do not use the device if the cable or plug is damaged or worn.

If the cable is damaged during use, it must be disconnected from the mains supply immediately. Do not touch the cable until it has been disconnected from the mains. Do not connect a damaged cable to the power supply and do not touch a damaged cable before disconnecting it from the power supply, as damaged cables can lead to contact with active parts.

SPECIFIED CONDITIONS OF USE

The scarifier & raker may only be used for scarifying and removing moss or for raking leaves, moss or weeds from lawns in residential and hobby gardens – depending on the attached roller.

The device may not be used in commercial applications.

WARNING

Risk of injury

Rotating blades may lead to serious injuries by cutting or amputating parts of the body.

• Be careful to avoid injury by the cutting tools. Careful appliance handling reduces the risk of injury by knife.
• Do not touch any dangerous moving parts before the machine has been disconnected from the power supply and the moving parts have come to a complete standstill.
• All protection covers and safety devices must be correctly attached to operate the device.
• Never use the machine with a damaged cover or protective device or without cover or protective devices.

Do not use this product in any other way as stated for normal use. Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages.

Please note that permissible uses for the tool could be limited by national regulations. It is necessary to comply with the regulations applicable in the country where the device is used.

Do not use the device near flammable liquids or gases. Risk of fire and explosion in case of short circuit.

SYMBOLS

Warning/caution!

Wear eye protective goggles!

Wear ear protectors!

Before any adjustment, cleaning and maintenance work, switch off the device and disconnect it from the power supply.

Read the Operating Instructions! Save all warnings and instructions for future reference.

Warning against thrown-off items Do not let other persons get near due to foreign objects being thrown off.

Caution – Sharp tines Keep fingers and feet away. Switch off the device and disconnect the mains plug before carrying out any maintenance, adjustment or cleaning work or if the cable is tangled or damaged. The tines continue to run after the engine has been switched off.

Keep connection and extension cables away from the tines.

Warning against sharp knives. Knives keep running for a short time after the appliance is switched off.

Do not touch any dangerous moving parts before the machine has been disconnected from the power supply and the moving parts have come to a complete standstill.

Caution – Sharp tines The tines continue to run after the engine has been switched off.

Keep dry at all times. Never expose tool to rain.

Rated voltage / Frequency

Rated input

Idling speed n_0

Working width

Class II tool.

Sound power level

CE marking

Any damaged or disposed electric or electronic devices must be delivered to appropriate collection centres.

MAINTENANCE

DANGER!

Before any adjustment, cleaning and maintenance work, switch off the device and disconnect it from the power supply.

WARNING

Risk of injury

Caution – Sharp tines

Keep fingers and feet away.

For machines with several tine attachments, ensure that the movement of one tine attachment can lead to rotation of the other tine attachments.

When adjusting the machine, be careful that no fingers are trapped between moving tine attachments and stationary parts of the machine.

When maintaining the tine bodies, be aware that the tine bodies can be moved even when the drive is switched off.

Check the collection bag at regular intervals for any wear and aging.

After every work stint, clean the machine thoroughly to remove all dust and debris, and repair or replace any faulty parts.

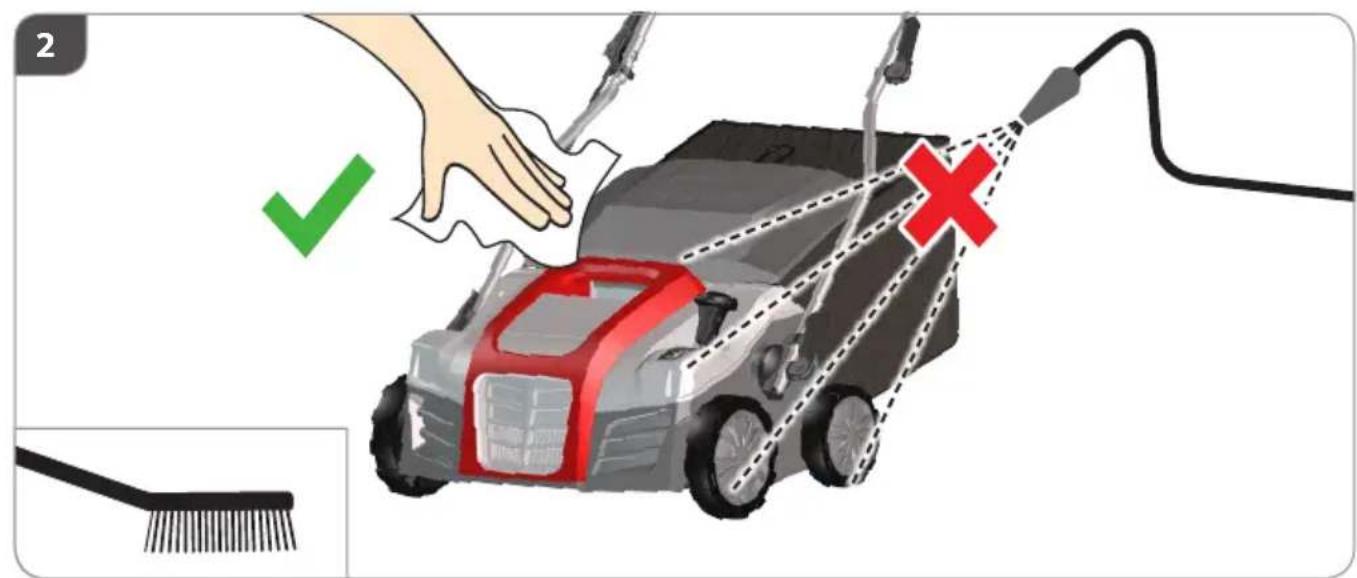

Keep the device, in particular the air vents, clean at all times. Never spray water on the device body!

Never clean the machine and its components with solvents, flammable or toxic liquids. Us only a damp cloth making.

Keep all nuts, bolts and screws tight to be sure the equipment is in safe working condition;

Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insufficient maintenance and care can lead to unforeseen accidents and injuries.

Repairs and works specified in these instructions may only be performed by qualified authorised staff.

Use only original accessories and original spare parts.

Using other spare parts can result in accidents/injuries of the user. The manufacturer will not be liable for any such damage.

Please contact our service department if you need accessories or spare parts.

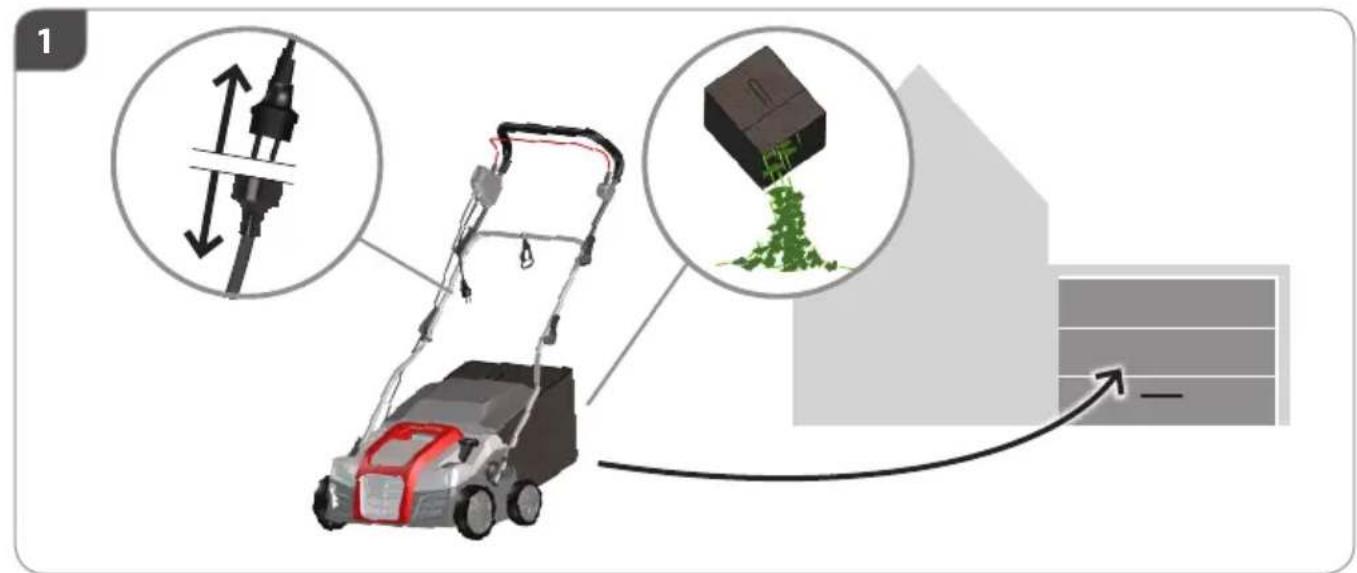

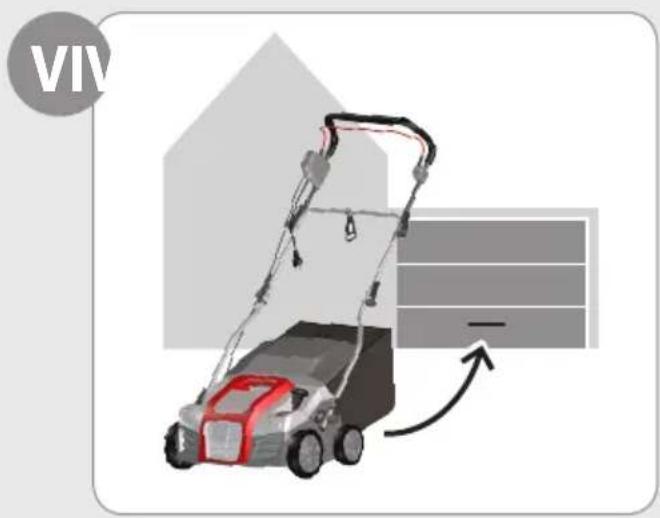

STORAGE

The appliance must be stored in a dry place and protected from frost.

Lock the device in a proper place to protect it from unauthorised use.

Store idle power tools out of the reach of children.

Let the engine cool down, before you store the device in a closed room.

DISPOSAL

If your device should become useless somewhere in the future or you do not need it any longer, do not dispose of the device together with your domestic refuse, but dispose of it in an environmentally friendly manner.

Please dispose of the device itself at an according collecting/recycling point. By doing so, plastic and metal parts can be separated and recycled. Information concerning the disposal of materials and devices are available from your local administration.

WARRANTY

For this tool, the company provides the end user - independently from the retailer's obligations resulting from the purchasing contract - with the following warranties:

The warranty period is 24 months beginning from the hand-over of the device which has to be proved by the original purchasing document. For commercial use and use for rent, the warranty period is reduced to 12 months. Wearing parts, rechargeable batteries and defects caused by the use of non fitting accessories, repair with parts that are not original parts of the manufacturer, use of force,

strokes and breaking as well as mischievous overloading of the motor are excluded from this warranty. Warranty replacement does only include defective parts, not complete devices. Warranty repair shall exclusively be carried out by authorized service partners or by the company's customer service. In the case of any intervention of not authorized personnel, the warranty will be held void.

All postage or delivery costs as well as any other subsequent expenses will be borne by the customer.

EC DECLARATION OF CONFORMITY

We, ikra GmbH, Schlesierstraße 36, D-64839 Münster, declare under our sole responsibility that the Electric

Lawn Scarifier & Raker IEVL 1840, to which this declaration relates correspond to the relevant basic safety and health requirements of Directives

2006/42/EC (Guideline of Machines)

2014/30/EU (EMC-Guideline)

2000/14/EC+ 2005/88/EG (noise directive)

2011/65/EU (RoHS-Guideline)

For the relevant implementation of the safety and health requirements mentioned in the Directives, the following standards and/or technical specification(s) have been respected:

EN 60335-1:2012+A11:2014

EN 50636-2-92:2014

EN 62233:2008

EN 55014-1:2006 + A1:2009 + A2:2011

EN 55014-2:2015

EN 61000-3-2:2014

EN 61000-3-11:2000

EN 50581:2012

AfPS GS 2014:01 PAK

Conformity assessment method to annex V / Directive 2000/14/EC

Measured sound power level 100,55 dB (A)

Guaranteed sound power level 104 dB (A)

The year of manufacture is printed on the nameplate and can be additionally retrieved via the consecutive serial number.

Münster, 2018-10-15

Matthias Fiedler

Senior Product Manager

Ikra

GmbH

Maintenance of technical documentation:

64839 Münster, Germany

FAILURE REMOVAL

Failures Causes Removal
Engine does not start No power supply	Check the socket outlet, cable, line	and plug, and carry out repairs by a qualified electrician if necessary
	Roller blocked Check roller
Roller does not rotate Toothed belt defective Visit a specialist workshop
Engine output drops Working depth too large Adjust to a smaller working depth
Work result unsatisfactory Working depth too large Adjust to a smaller working depth
blades are worn out		Visit a specialist workshop
unbalanced run, device vibrates	Blade is damaged Visit a specialist workshop

CARACTÉRISTIQUES TECHNIQUES

CONDITIONS DE GARANTIE

DÉCLARATION DE CONFORMITÉ POUR LA CE

Senior Product Manager

Ikra

GmbH

64839 Münster, Germany

RÉSOLUTION D'UNE PANNE

Senior Product Manager

Ikra

GmbH

Senior Product Manager

Ikra

GmbH

64839 Münster, Germany

Drujba1, 5038 Str, near block 86a 1592 Sofi a

[phone]

[phone]

[e-mail]

11 Othellos Street, Dali Industrial Zone

2540 Nicosia

[phone]

[phone]

[e-mail]

CZ |Drupol

FR | ikra Service France

GB-Northampton, NN3 8RH

UK/N.Ireland: 0344 824 3524

[e-mail]

GR | Panos Vrontanis & Co

3 Molas Street

13679 Aharnes

[phone]

[phone]

[e-mail]

HR |VAR - ERCO d.o.o.

Stipana Vilova 14A

10090 ZAGREB

[phone]

[phone]

[e-mail]

HU |Tooltechnic Kft.

Budaörsi út 165.

1112 Budapest

[phone]

[phone]

[e-mail]

IN | Agritech Floritech Inc.

206-B Rajindera Arihant Tower

B-1 Community Centre Janak Puri

New Delhi - 110058 / India

[phone]

[phone]

info@agrifl oritech.com

IR | BGR8 Ltd. c/o Seabourne Group

South Portway Close, Round Spinney

Northampton, NN3 8RH

[phone]

[phone]

[e-mail]

IT | Ikra Service Italia, by BRUMAR

Loc. Valgera 110/B

14100 ASTI (AT)

[phone]

[phone]

[e-mail]

JO | Taha & Qashou Agri Co. (LLC)

205 Mekka Street

Amman 11821, Jordan

[phone]

[phone]

[e-mail]

LT I ikra Lithuania

Kalvariju g. 206

08314 Vilnius

[phone] / [phone]

[e-mail]

LU | Bobinage Georges Back

53 Rue Nic. Meyers

4918 Bascharage

[phone]

昌 [phone]

MK | FEROELEKTRO D.O.O.

Str.Nikola Parapunov br.35A/3

1000 Skopje

[phone]

[phone]

[e-mail]

MD | OLSOM S.R.L.

Mateevici Str., 38/1

2009 Chisinau

[phone]

[phone]

[e-mail]

NL | Muldertechniek

Noorderkijl 1

9571 AR 2 e Exloermond

[phone]

[phone]

RO I BRONTO COMPROD S.R.L.

Str. Corneliu Coposu nr. 35-37

400235 Cluj-Napoca

[phone]

[phone]

[e-mail]

SE | ikra Service Sweden

Verkstadsgatan 8

57341 Tranås

[phone]

[e-mail]

SI | BIBIRO d.o.o.

Tržaška cesta 233

1000 Ljubljana

[phone]

[phone]

[e-mail]

SKI AGF Invest s.r.o.

Hlinikova 365/39

95201 Vráble

[phone]

[phone]

info@agfi nvest.sk

(LLC "TC "Euroinstrument")

бул. I. Лепсе, 79
