Space Q45 - Earphones soundcore - Free user manual and instructions

Product Type	Wireless Bluetooth Headphones
Brand	Soundcore
Model	Space Q45
Connectivity Technology	Bluetooth 5.3
Bluetooth Range	15 m / 49 ft
Active Noise Cancellation (ANC)	Yes, adaptive and customizable
Transparency Mode	Yes, customizable
Battery Life (ANC on)	Up to 40 hours
Battery Life (ANC off)	Up to 55 hours
Charging Time	Approx. 2 hours
Battery Capacity	580 mAh
Driver Size	40 mm
Frequency Response	20 Hz - 20 kHz
Impedance	16 Ω
Weight	Approx. 250 g
Key Features	Dual Connection, Wear Detection, Easy Chat, Soundcore App, LDAC Codec, Google Fast Pair
Included Accessories	USB-C cable, 3.5 mm AUX cable
Care and Cleaning	Clean with a soft, dry cloth. Completely dry the USB port before charging.
Safety	Use a certified USB-C charger. Do not expose to water. Do not turn on while charging.
Spare Parts and Repairability	Contact Soundcore customer service for any spare parts or repairs.
General Information	Brand: Soundcore, Model: Space Q45, Category: Headphones. Manual available in multiple languages.

Frequently Asked Questions - Space Q45 soundcore

How to turn on and pair the Soundcore Space Q45 headphones for the first time?

Press and hold the power button for 3 seconds to turn on the headphones. On first use, they automatically enter Bluetooth pairing mode. Select "soundcore Space Q45" from your device's Bluetooth list. For Android 6.0+ smartphones, you can use Google Fast Pair for instant pairing.

How to activate noise cancellation (ANC) and transparency mode?

Use the NC button on the headphones to switch between modes. By default, ANC is enabled. You can customize ANC and transparency levels in the Soundcore app. Adaptive ANC automatically adjusts the level based on the environment.

How to use the Easy Chat function?

Press and hold the left earcup panel for 1 second to activate Easy Chat mode: the music lowers and the other person's voice is amplified. Release to deactivate. You can also enable it automatically in the app: it activates when you speak and deactivates after 5 seconds of silence.

How to connect the headphones to two devices simultaneously (dual connection)?

Make sure you are already connected to a first device. Double-press the power button to enter pairing mode, then connect the second device from its Bluetooth settings. You can also manage this function in the Soundcore app (Settings > Dual Connections).

What to do if the headphones don't connect to the Soundcore app?

Check that the app is up to date and reinstall it if necessary. Make sure Bluetooth is enabled and the headphones are on. If the problem persists, restart your phone or reset the headphones (see question on resetting).

How to reset the Soundcore Space Q45 headphones?

First, delete the pairing history from your Bluetooth device. On the headphones, press and hold the volume + button and the power button simultaneously for 5 seconds until the LED flashes red three times. The headphones are then reset.

What is the battery life of the headphones and how to charge them?

Battery life is 40 hours with ANC on and 55 hours without ANC. Full charging takes about 2 hours via a USB-C cable. Use a certified charger and dry the USB port before charging. Do not turn on the headphones while charging.

How to use the LDAC codec for better audio quality?

Enable LDAC in the Soundcore app (Sound Mode > Preferred Audio Quality). Only available on Android 8.0 or later devices. LDAC offers better sound quality but increases power consumption. Use it in a low-interference environment.

Can the headphones be used in wired mode?

Yes, plug a 3.5 mm AUX cable into the headphones and the audio device. Bluetooth mode automatically turns off when the cable is connected.

What do the LEDs on the headphones mean?

- Flashing white: pairing mode. - Flashing red: low battery or resetting. - Flashing blue: firmware update in progress. - Solid blue: connected. - Light off: off or standby.

USER MANUAL Space Q45 soundcore

Line drawing of a pair of Beats headphones with blue patterned background (no text or symbols)

soundcore Space One

USER MANUAL

Illustration of various electronic devices including desktops, laptops, headphones, and a monitor (no text or symbols)

Say hello

to a more sustainable product

IT products are associated with a wide range of sustainability risks throughout their life cycle. Human rights violations are common in the factories. Harmful substances are used both in products and their manufacture. Products can often have a short lifespan because of poor ergonomics, low quality and when they are not able to be repaired or upgraded.

This product is a better choice. It meets all the criteria in TCO Certified, the world's most comprehensive sustainability certification for IT products. Thank you for making a responsible product choice, that help drive progress towards a more sustainable future!

Criteria in TCO Certified have a life-cycle perspective and balance environmental and social responsibility. Conformity is verified by independent and approved verifiers that specialize in IT products, social responsibility or other sustainability issues. Verification is done both before and after the certificate is issued, covering the entire validity period. The process also includes ensuring that corrective actions are implemented in all cases of factory non-conformities. And last but not least, to make sure that the certification and independent verification is accurate, both TCO Certified and the verifiers are reviewed regularly.

Want to know more?

Read information about TCO Certified, full criteria documents, news and updates at tcocertified.com. On the website you'll also find our Product Finder, which presents a complete, searchable listing of certified products.

English 01
Čeština 05
Dansk 09
Deutsch 13
ελληνικά	17
Español 21
Suomi 25
Français 29
Magyar 33
Italiano 37
Nederlands 41
Norsk 45
Język polski 49

Português 53
Portugues do Brasil 57
Русский	61
Slovenský Jazyk 65
Slovenski Jezik 69
Svenska	73
Türkçe	77
한국어	81
简体中文	85
繁體中文	89
	93
	97

soundcore

Google Play and the Google Play logo are trademarks of Google Inc.

Apple and the Apple logo are trademarks of Apple Inc.

Download the soundcore app to switch ambient sound modes, adjust EQ settings, update firmware, and explore more.

If your headphones cannot connect with the soundcore app, re-install the app or update it to the latest version in your mobile app store.

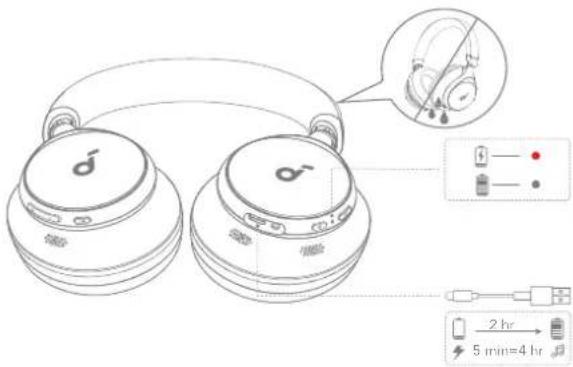

CHARGING

Fully dry the USB port before charging.

Do not turn on your headphones while charging.

Use a certified USB-C charging cable and charger to prevent any damage.

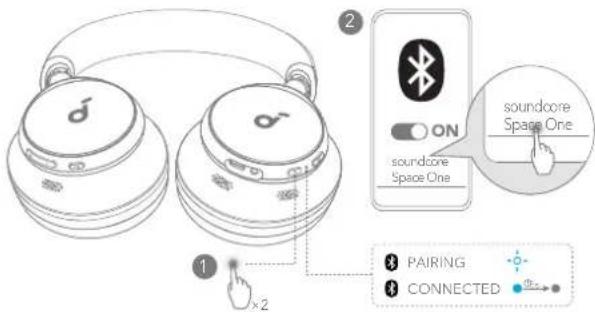

DUAL CONNECTIONS DUAL

The headphones can connect with two devices at the same time.

When already connected to one device, press the power button twice to pair with another device.

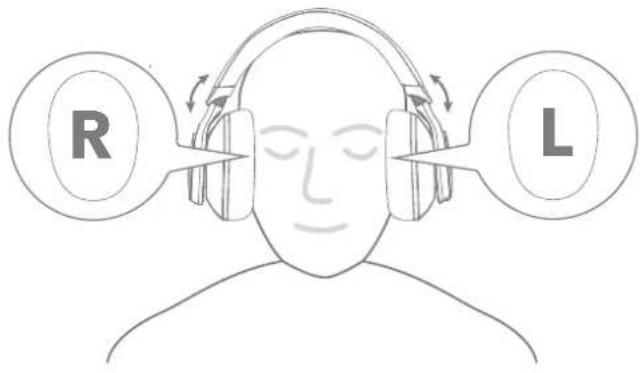

Wear the headphones with the "L" logo on your left ear and "R" logo on your right ear. Adjust the length of the headband for a comfortable fit.

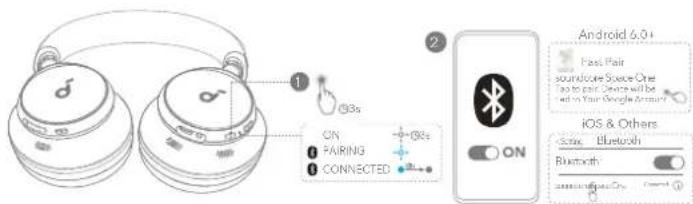

POWERING ON & PAIRING

Auto Pairing: Press and hold the power button for 3 seconds to power on. The headphones will automatically enter Bluetooth pairing mode when connecting for the first time. Select "soundcore Space One" on your device's Bluetooth list to connect.

Google Fast Pairing: Enjoy instant pairing with your Android smartphone (running Android 6.0 and above) via Fast Pair enabled by Google. To manually enter Bluetooth pairing mode, when the headphones are powered off, press and hold the power button for 5 seconds to pair.

NECTIONS

In the soundcore app, go to settings and select Dual Connections > Enable Dual Connections > Connect New Device.

* You can enable Normal mode in the soundcore app.

NOISE CANCELLATION TRA

To reduce ambient noise, switch to noise cancellation (default) via the NC button and customize it in the soundcore app.

• Adaptive Noise Cancelling: Adjust the level of noise cancellation automatically for various scenarios.
• Custom Noise Cancelling: Set the level of noise cancellation manually.

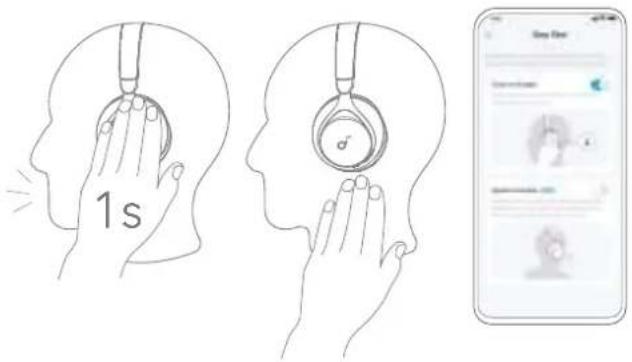

EASY CHAT

Easy Chat mode automatically lowers the volume of music and amplifies the voice of the person you're talking to so that you can communicate without taking the headphones off.

• To activate Easy Chat, hold the left panel for 1 second until you hear a notification sound. Turn off this mode by releasing your hand. (Enabled in app)
• Easy Chat will automatically turn on when you're talking, and off when you stop talking for 5 seconds. (Beta version is enabled in app)

[STHX]
[BAD3]
	[4X0D]	[9ZX7]	[HTX]

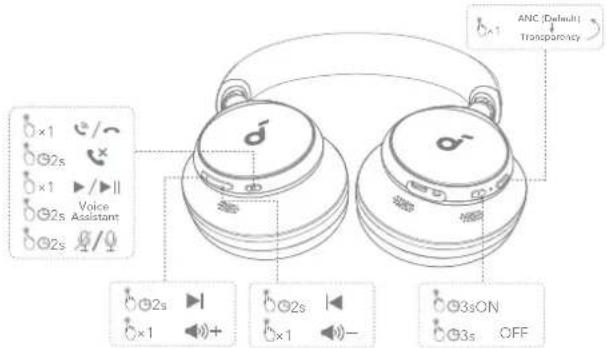

	Answer / End a call Press once
[XXA5]		[088K]
~	~	~	~
	[DB0D]	~
[W8KC]	[2X04]

ARENCY

To stay aware of your surroundings while listening to music, switch to transparency mode via the NC button and customize it in the soundcore app.
- Custom Transparency Mode: Set the level of transparency manually.

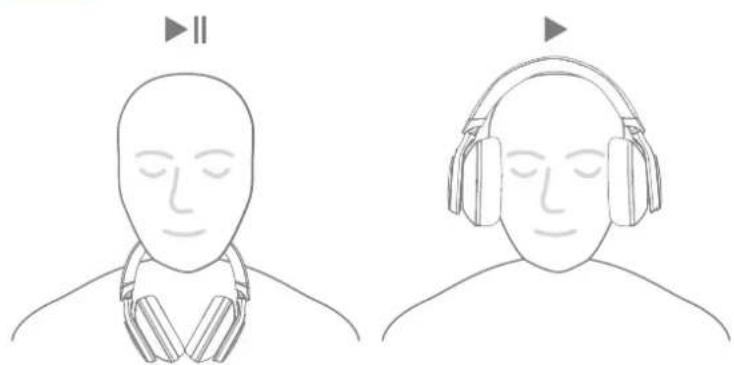

WEARING DETECTION

Line drawing of a person wearing headphones, showing head turned position (no text or symbols)

Auto-pause music playback when removing the headphones, wear them again to resume.

*You can enable Wearing Detection in the soundcore app.

WEARING DETECTION

LDAC

LDAC

Enable LDAC in the soundcore app for higher-quality audio. *Only available on devices powered by Android 8.0 or later.

LDAC

LDAC WIRED LISTENING

• Use devices powered by Android 8.0 or later to experience LDAC quality sound.
• LDAC provides higher quality sound, increases power consumption, and reduces playtime.

• Enable LDAC in a low-interference environment to ensure a stable Bluetooth connection.

• Go to settings in the soundcore app.

• Click on "Sound Mode".
• Select "Preferred audio quality" to switch to LDAC codec.
• You will be notified that the headphones do not support LDAC when connected to two devices. Select "Turn on" to continue.
• It takes about 10 seconds to switch audio codecs. You may be requested to update the headphones' firmware if available.

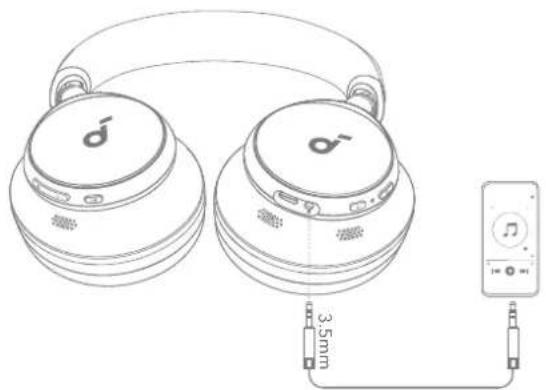

AUX

[Non-Text]

Line drawing of two earbuds connected to an audio player via a 3.5mm cable (no text or symbols present)

Play audio on an external device by plugging in a 3.5mm AUX cable. Wired listening will automatically turn off Bluetooth mode.

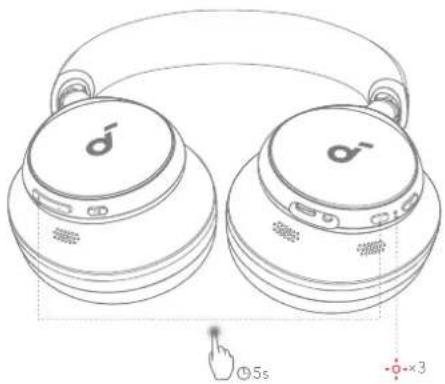

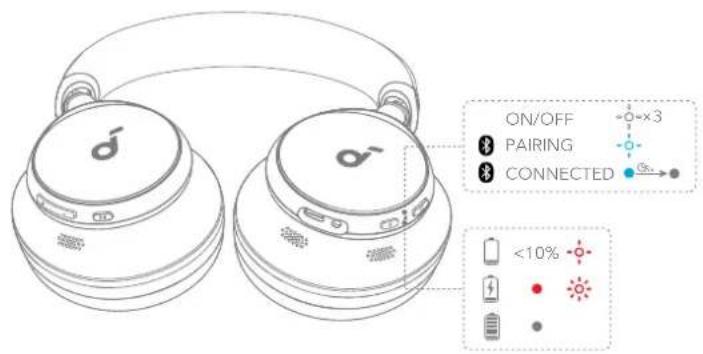

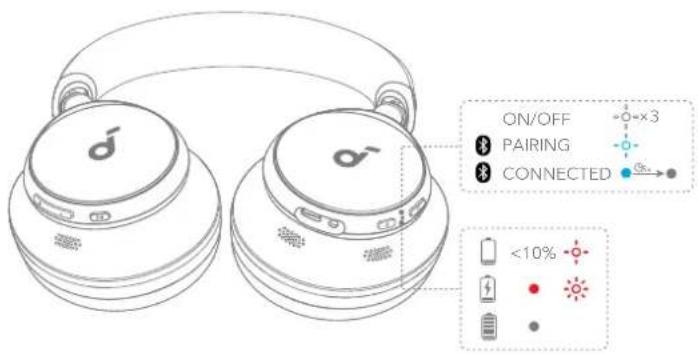

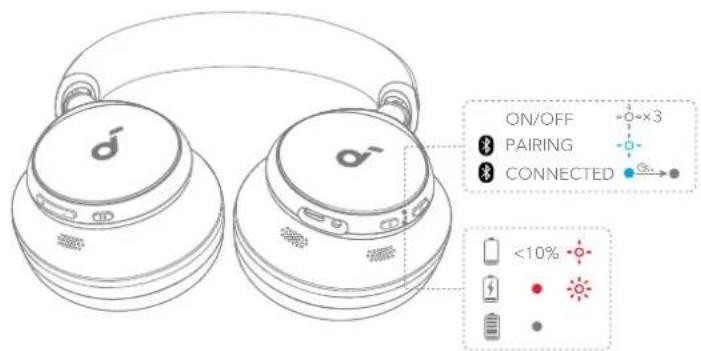

RESET LED LIGHT GUIDE

Line drawing of two SaaS headphones with male and female branding, showing front and side views (no text or symbols)

You might need to reset your headphones if you experience connectivity or function issues.

Delete the pairing history from your Bluetooth device first. Press and hold the volume up and power button simultaneously for 5 seconds until the LED flashes red three times.

	Flashing white
	Flashing red
	Flashing blue
	Steady blue
	Light off

You will be informed once the new version of firmware is detected when you connect the headphones with the app. Ensure the headphones are powered on and connected to a device until the firmware update is complete. During the update, avoid any usage and ensure stable access to the internet.

Specifications are subject to change without notice.

Input 5 V	--- 0,58 A
Rated output power 10mW
Battery capacity 580mAh
Charging time 2 hours
Playtime (with ANC off) Up to 55 hours
Playtime (with ANC on) Up to 40 hours
Driver size 40mm
Frequency response 20Hz - 20kHz
Impedance 16Ω
Bluetooth version 5.3
Bluetooth range 15m / 49ft

soundcore

Google Play and the Google Play logo are trademarks of Google Inc.

Apple and the Apple logo are trademarks of Apple Inc.

Line drawing of a person wearing headphones, showing head turned position (no text or symbols)

LDAC

LDAC

Line drawing of two Gaia headphones with male and female branding, showing front and side views (no text or symbols)

Line drawing of two ear headphones connected to an audio player via a 3.5mm cable (no text or symbols present)

Google Play and the Google Play logo are trademarks of Google Inc.

Apple and the Apple logo are trademarks of Apple Inc.

Du kan aktivere Normal tilstand i soundcore-appen.

ST∅JBEGRÆNSNING TRAN

Line drawing of a person wearing headphones, showing head turned position (no text or symbols)

LDAC

LDAC

Line drawing of two earbuds connected to an audio player via a 3.5mm cable (no text or symbols present)

Line drawing of two SaaS headphones with earbuds and a finger icon, no text or symbols present

Google Play and the Google Play logo are trademarks of Google Inc.

Apple and the Apple logo are trademarks of Apple Inc.

Line drawing of a person wearing headphones, showing head positions before and after (no text or symbols)

LDAC

LDAC

Line drawing of two SaaS headphones with male and female branding, showing front and side views (no text or symbols)

Line drawing of two headphones connected to an audio player via a 3.5mm cable (no text or symbols present)

Google Play and the Google Play logo are trademarks of Google Inc.

Apple and the Apple logo are trademarks of Apple Inc.

Line drawing of a person wearing headphones, showing head positions before and after (no text or symbols)

LDAC

LDAC

Line drawing of two Gaia headphones with male and female branding, showing front and side views (no text or symbols)

Line drawing of two headphones connected to an audio player via a 3.5mm cable (no text or symbols present)

Apple and the Apple logo are trademarks of Apple Inc.

Line drawing of a person wearing headphones, showing head turned position (no text or symbols)

LDAC

LDAC

Line drawing of two SaaS headphones with male and female branding, showing front and side views (no text or symbols)

Line drawing of two headphones connected to an audio player via a 3.5mm cable (no text or symbols present)

Apple and the Apple logo are trademarks of Apple Inc.

Line drawing of a person wearing headphones, showing head positions before and after (no text or symbols)

LDAC

LDAC

Line drawing of two white headbuds with male gender symbols on top, connected by a strap (no text or labels)

Line drawing of two earbuds connected to an audio player via a 3.5mm cable (no text or symbols present)

Google Play and the Google Play logo are trademarks of Google Inc.

Apple and the Apple logo are trademarks of Apple Inc.

Line drawing of a person wearing headphones, showing head positions before and after (no text or symbols)

LDAC

LDAC

Line drawing of two headphones connected to an audio player via a 3.5mm cable (no text or symbols present)

Line drawing of two SaaS headphones with male and female branding, showing front and side views (no text or symbols)

Google Play and the Google Play logo are trademarks of Google Inc.

Apple and the Apple logo are trademarks of Apple Inc.

Line drawing of a person wearing headphones, showing head turned position (no text or symbols)

LDAC

LDAC

Line drawing of two SaaS headphones with male and female branding, showing front and side views (no text or symbols)

Line drawing of two ear headphones connected to a music player via cable (no text or symbols)

Google Play and the Google Play logo are trademarks of Google Inc.

Apple and the Apple logo are trademarks of Apple Inc.

Line drawing of a person wearing headphones, showing head turned position (no text or symbols)

LDAC

LDAC ASCOLTO CABLATO

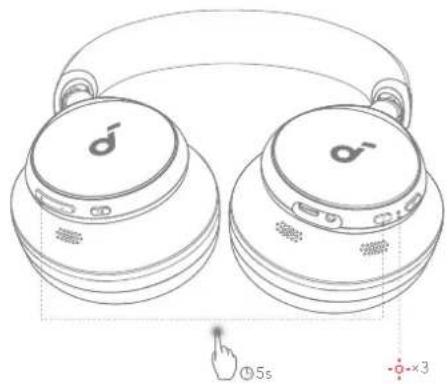

RESET GUIDA LUCE LED

Line drawing of two SaaS headphones with male and female branding, showing front and side views (no text or symbols)

Line drawing of two headphones connected to an audio player via a 3.5mm cable (no text or symbols present)

Google Play and the Google Play logo are trademarks of Google Inc.

Apple and the Apple logo are trademarks of Apple Inc.

Je kunt de Normale modus inschakelen in de soundcore-app.

RUISONDERDRUKKING TRA

Line drawing of a person wearing headphones, showing head positions before and after (no text or symbols)

LDAC

LDAC

Line drawing of two headphones connected to an audio player via a 3.5mm cable (no text or symbols present)

Line drawing of two white headphones with male and female branding, showing front and side views (no text or symbols)

STATUSANDUIDING INDICATIELED

Google Play and the Google Play logo are trademarks of Google Inc.

Apple and the Apple logo are trademarks of Apple Inc.

I soundcore-appen, gå til innstillinger og velg Dual Connections > Aktiver Dual Connections > Koble til ny enhet.

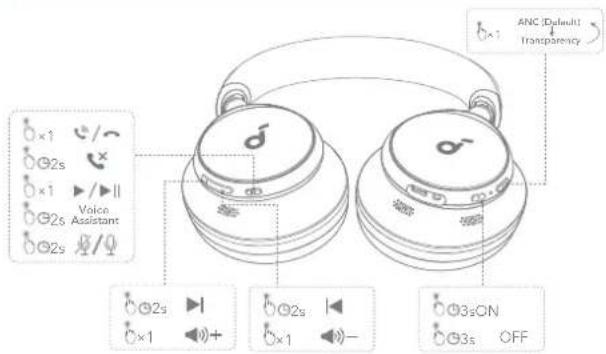

KNAPPEKONTROLLER KNA

Du kan aktivere Normal modus i soundcore-appen.

RUISONDERDRUKKING TRA

Line drawing of a person wearing headphones, showing head turned position (no text or symbols)

LDAC

LDAC

Line drawing of two headphones connected to an audio player via a 3.5mm cable (no text or symbols present)

Spill lyd på en ekstern enhet ved å koble til en 3,5 mm AUX-kabel. Trådtilkoblet lytting vil automatisk slå av Bluetooth-modusen.

RESETTEN LED-LYSVEILEDN

Line drawing of two SaaS headphones with male and female branding, showing front and side views (no text or symbols)

Google Play and the Google Play logo are trademarks of Google Inc.

Apple and the Apple logo are trademarks of Apple Inc.

Line drawing of a person wearing headphones, showing head turned position (no text or symbols)

LDAC

LDAC

Line drawing of two headphones connected to an audio player via a 3.5mm cable (no text or symbols present)

Line drawing of two Gaia headphones with earbuds and headband, showing front and rear views (no text or symbols)

Google Play and the Google Play logo are trademarks of Google Inc.

Apple and the Apple logo are trademarks of Apple Inc.

Line drawing of a person wearing headphones, showing head turned position (no text or symbols)

LDAC

LDAC

Line drawing of two headphones connected to an audio player via a 3.5mm cable (no text or symbols present)

Line drawing of two SaaS headphones with male and female branding, showing front and side views (no text or symbols)

Apple and the Apple logo are trademarks of Apple Inc.

Line drawing of a person wearing headphones, showing head positions before and after (no text or symbols)

LDAC

LDAC

Line drawing of two white headphones with male and female branding, showing front and side views (no text or symbols)

Line drawing of two earbuds connected to an audio player via a 3.5mm cable (no text or symbols present)

Google Play and the Google Play logo are trademarks of Google Inc.

Apple and the Apple logo are trademarks of Apple Inc.

Line drawing of a person wearing headphones, showing head turned position (no text or symbols)

LDAC

LDAC

Line drawing of two headphones connected to an audio player via a 3.5mm cable (no text or symbols present)

Line drawing of two white headbuds with male and female logos, connected by a strap (no text or symbols on the devices themselves)

Google Play and the Google Play logo are trademarks of Google Inc.

Apple and the Apple logo are trademarks of Apple Inc.

Stiahnite si aplikáciu soundcore pre prepínanie režimov okolitého zvuku, nastavenie EQ, aktualizáciu firmvéru a objavovanie dálších funkcií.

Automatické párovanie: Stlačte a podržte tlačidlo napájania po dobu 3 sekúnd, aby ste ho zapli. Slúchadlá sa automaticky prepnú do režimu Bluetooth párovania pri prvom pripojení. Vyberte "soundcore Space One" z Bluetooth zoznamu na vašom zariadení pre pripojenie.

Pre zníženie okolitého hluku prepni na potlačenie hluku (predvolené) pomocou tlačidla NC a prispôsob si ho v aplikácii Soundcore.

REŽIM BEZ REDUKCIE HLUKU

Line drawing of a person wearing headphones, showing head positions before and after (no text or symbols)

LDAC

LDAC

Line drawing of two white headbuds with male gender symbols on top, connected by a strap (no text or labels)

Line drawing of two earbuds connected to a music player via 3.5mm cable (no text or symbols on devices)

	Utripa belo
	Bliká na červeno
	Utripa modro
	Stálo rozsvietená modrá
	Nesvieti

Google Play and the Google Play logo are trademarks of Google Inc.

Apple and the Apple logo are trademarks of Apple Inc.

Popolnoma posušite USB priključek pred polnjenjem.

Line drawing of a person wearing headphones, showing head turned position (no text or symbols)

LDAC

LDAC

Line drawing of two earbuds connected to an audio player via a 3.5mm cable (no text or symbols present)

Na zunanji napravi predvajajte zvok, tako da priključite 3,5-mm AUX kabel. Žično poslušanje bo samodejno izklopilo način Bluetooth.

PONASTAVITEV LED SVETL

Line drawing of two white headbuds with male gender symbols on top, connected by a strap (no text or labels)

Google Play and the Google Play logo are trademarks of Google Inc.

Apple and the Apple logo are trademarks of Apple Inc.

Line drawing of a person wearing headphones, showing head turned position (no text or symbols)

LDAC

LDAC

Line drawing of two headbuds connected to an audio player via a 3.5mm cable (no text or symbols present)

Line drawing of two SaaS headphones with male and female branding, showing front and side views (no text or symbols)

m = 311

Google Play and the Google Play logo are trademarks of Google Inc.

Apple and the Apple logo are trademarks of Apple Inc.

Line drawing of a person wearing headphones, showing head positions before and after (no text or symbols)

LDAC

LDAC

Line drawing of two SaaS headphones with male and female branding, showing front and side views (no text or symbols)

Line drawing of two earbuds connected to a music player via 3.5mm cable (no text or symbols)

Google Play and the Google Play logo are trademarks of Google Inc.

Apple and the Apple logo are trademarks of Apple Inc.

Line drawing of a person wearing headphones, showing head turned position (no text or symbols)

LDAC

Line drawing of two earbuds connected to an audio player via a 3.5mm cable (no text or symbols present)

Line drawing of two SaaS headphones with male and female branding, showing front and side views (no text or symbols)

在充电前请确保 USB 端口完全干燥。

充电时请勿打开耳机。

Line drawing of a person wearing headphones, showing head turned position (no text or symbols)

LDAC

LDAC

Line drawing of two earbuds connected to an audio player via a 3.5mm cable (no text or symbols present)

Line drawing of two white headbuds with male gender symbols on top, connected by a strap (no text or labels)

Google Play and the Google Play logo are trademarks of Google Inc.

Apple and the Apple logo are trademarks of Apple Inc.

在充電之前，請完全乾燥 USB 端口。

充電時請勿開啟耳機。

Line drawing of a person wearing headphones, showing head turned position (no text or symbols)

LDAC

LDAC

Line drawing of two earbuds connected to an audio player via a 3.5mm cable (no text or symbols present)

Line drawing of two white headbuds with male and female logos, showing front and side views (no text or symbols)

Google Play and the Google Play logo are trademarks of Google Inc.

Download on the App Store

Apple and the Apple logo are trademarks of Apple Inc.

Line drawing of a human head silhouette with a hand touching the brain, featuring a stylized headset labeled 'd' (no text or symbols beyond the label)

Line drawing of a person wearing headphones with eyes closed, no text or symbols present

Line drawing of a person wearing headphones with closed eyes, head tilted upward (no text or symbols)

Line drawing of two Gaia headphones with earbuds and headband (no text or symbols)

Google Play and the Google Play logo are trademarks of Google Inc.

Apple and the Apple logo are trademarks of Apple Inc.

. USB-7 USB-7 USB-7 USB-C 7

1. 1. Bluetooth "Space One" (Android 6.0)

תְקַרָה בְּרָה

תְשָׁרִי

.Soundcore

תְקַרִי אָא

הַתְרָׁ (בַתְרָׁ בַתְרָׁ) אַלְרָׁ הַעֹשִׁוּוּוּוּוּוּוּוּוּוּוּוּוּוּוּוּוּוּוּוּוּוּוּוּוּוּוּוּוּוּוּוּוּוּי . Soundcore הַעֹשִׁוּוּוּוּוּוּוּוּוּוּוּוּוּוּוּוּוּוּוּוּוּוּוּוּוּוּוּוּוּו₂

Line drawing of a person wearing headphones, showing head turned position (no text or symbols)

. Android 8.0

LDAC

LDAC

תְרַעָה בְרַעָה

.LDAC

.הכלה

.Υ'ν' Bluetooth

Line drawing of two SaaS headphones with male and female branding, showing front and side views (no text or symbols)
