Product type	Soldering station
Brand	Ersa
Model	i-CON PICO
Power	68 W
Supply voltage	220-240 V ~ 50/60 Hz or 110-120 V ~ 50/60 Hz
Temperature range	150 to 450 °C (300 to 842 °F)
Default set temperature	360 °C (680 °F)
Station dimensions (W x H x D)	145 mm x 80 mm x 103 mm
Station weight	1,050 g
i-Tool pico soldering iron	L x handle diameter: 175 mm x 12 mm, weight 30 g (without cord)
Stand	Dimensions 140 mm x 80 mm x 80 mm, weight 200 g
Main functions	Temperature regulation, dual digital display, calibration, timed standby mode, programming via SD card
Display	Digital display with actual and set temperature
Iron replacement	Interchangeable iron (i-Tool pico only)
Soldering tip	Changeable, screw/unscrew on the holder
Calibration	Calibration range: -70 to +50 °C (-126 to +90 °F)
Standby mode	Adjustable timer from 0 to 60 min (0 = disabled)
Programming	Via micro SD card (HC) for fixed temperatures, locking, etc.
Safety	Hot surface, possible auto shutdown, burn instructions
Maintenance	Clean the tip regularly, replace worn tip
Error codes	Err7: tighten the heating element; Err8: replace the heating element
Warranty	Heating elements and irons are wear parts excluded from warranty
Article number (station)	0IC1300
Article number (iron)	0130CDK
Article number (stand)	0A53

Frequently Asked Questions - i-CON PICO Ersa

What is the default temperature of the i-CON PICO station?

The default set temperature is 360 °C (680 °F). You can adjust it between 150 and 450 °C.

How to change the soldering tip?

Turn off the station and let the tip cool to about 40 °C. Unscrew the tip from the holder, remove it, then screw on the new tip firmly.

What to do if the screen shows Err7 or Err8?

Err7 means the heating element is loose: tighten it. Err8 indicates the heating element is defective and must be replaced.

How to adjust the temperature?

Use the arrow keys: press the upper key to increase, the lower key to decrease. The display shows the actual temperature and the set point.

How to activate standby mode?

Press and hold both keys to open the menu. Set the time from 0 to 60 minutes with the keys (0 = disabled). Wait 5 seconds to save.

Can I use an SD card with this station?

Yes, a micro SD card (HC) allows programming additional functions: temperature, wait time, locking, display °C/°F, etc. Download the software from the Ersa website.

How to calibrate the temperature?

Set the calibration set temperature, measure the actual temperature with a thermometer, calculate the deviation, then briefly press both keys to open the calibration menu. Adjust with the keys and wait 5 seconds.

What are the dimensions and weight of the station?

The station measures 145 x 80 x 103 mm and weighs 1,050 g. The i-Tool pico iron has a handle 175 mm long and 12 mm diameter, weight 30 g without cord.

Is the soldering iron interchangeable?

Yes, you can replace the iron with another i-Tool pico (reference 0130CDK). Follow the disassembly instructions in the manual.

What accessories are included in the package?

The package contains: the i-CON pico station, the i-Tool pico iron with a mounted tip, a stand, the user manual and safety instructions.

USER MANUAL i-CON PICO Ersa

Ersa soldering machine with digital display and soldering tool (no visible text or symbols)

Black-and-white photo showing hands selecting a product list from an open book, with warning arrows and warning symbols in the background.

English 8 User Manual

Ceramic + COM/4000 Ceramic + COM/4000 01

Exterior view of a vintage electronic device labeled 'ersa 5.0 control' connected to a soldering terminal (no visible text or symbols on the device itself)

Close-up of hands using a soldering iron to apply a defect, with warning symbols and a magnifying glass nearby (no readable text or symbols)

Hand holding a coiled wire in a small electronic component, with warning symbol (no text or labels)

Close-up of a white electrical outlet plug with a black cable inserted, showing a pointed tip and arrow (no text or symbols)

Close-up of a hand pressing a button on a heat sink component, with warning symbol and label '4 06' (no readable text or symbols beyond labels)

ersa I-CON PICO 350°C 350°C 07

ersa i-CON PICO 370°C

ersa i-CON®PICO B 370 369°C A 09

Close-up of a hand using a tool to test electronic components on a circuit board, with a digital thermometer and warning symbol (no readable text)

Hand holding a coiled spring attached to a small electronic device with a warning symbol (no text or labels)

Close-up of a hand pressing a button on a heat sink with warning symbol (no text or symbols on main subject)

Inbetriebnahme

Close-up of a black electrical soldering iron with a coiled wire, isolated on white background (no text or symbols)

Ersa i-Tool pico 0130CDK

Close-up of a soldering iron plug inserted into a black base with a textured material inside (no text or symbols visible)

Ersa A53 0A053

Close-up of a textured, irregularly shaped object on a plain white background (no text or symbols visible)

0008M

BTSA/TIN 120 °C DC-34 DC-120 T

Ersa DTM 100 0DTM100

Close-up of a hand inserting a small electronic component into a black heat sink (no visible text or symbols)

40 °C / 104 °F 14

Close-up of a hand holding a soldering iron with a screwdriver, no visible text or symbols

Close-up of a hand holding a soldering iron with a tool, no visible text or symbols

8 17

Close-up of a hand pressing a button on a black industrial heat exchanger unit with a warning symbol (no text or labels visible)

ersa i-CON PICO 36.5°C 19

Black-and-white photo showing a hand holding a tool next to a digital display and a thermocouple, with warning symbols and numbers 21 and 20 visible.

Close-up of a digital temperature measurement device with a 360°C display and connected test probes (no visible text or symbols)

ersa i-CON PICO 0℃ 22

ersa i-CON PICO 5° 23 24

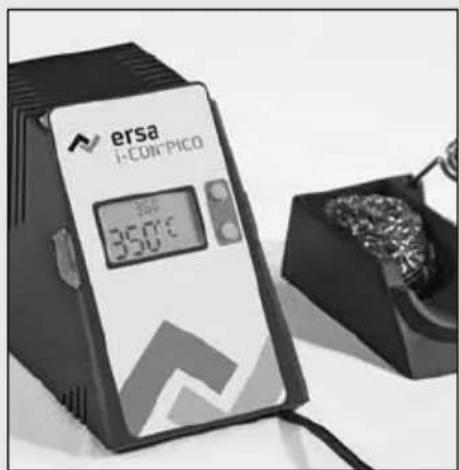

ersa I-CON PICO 350°C

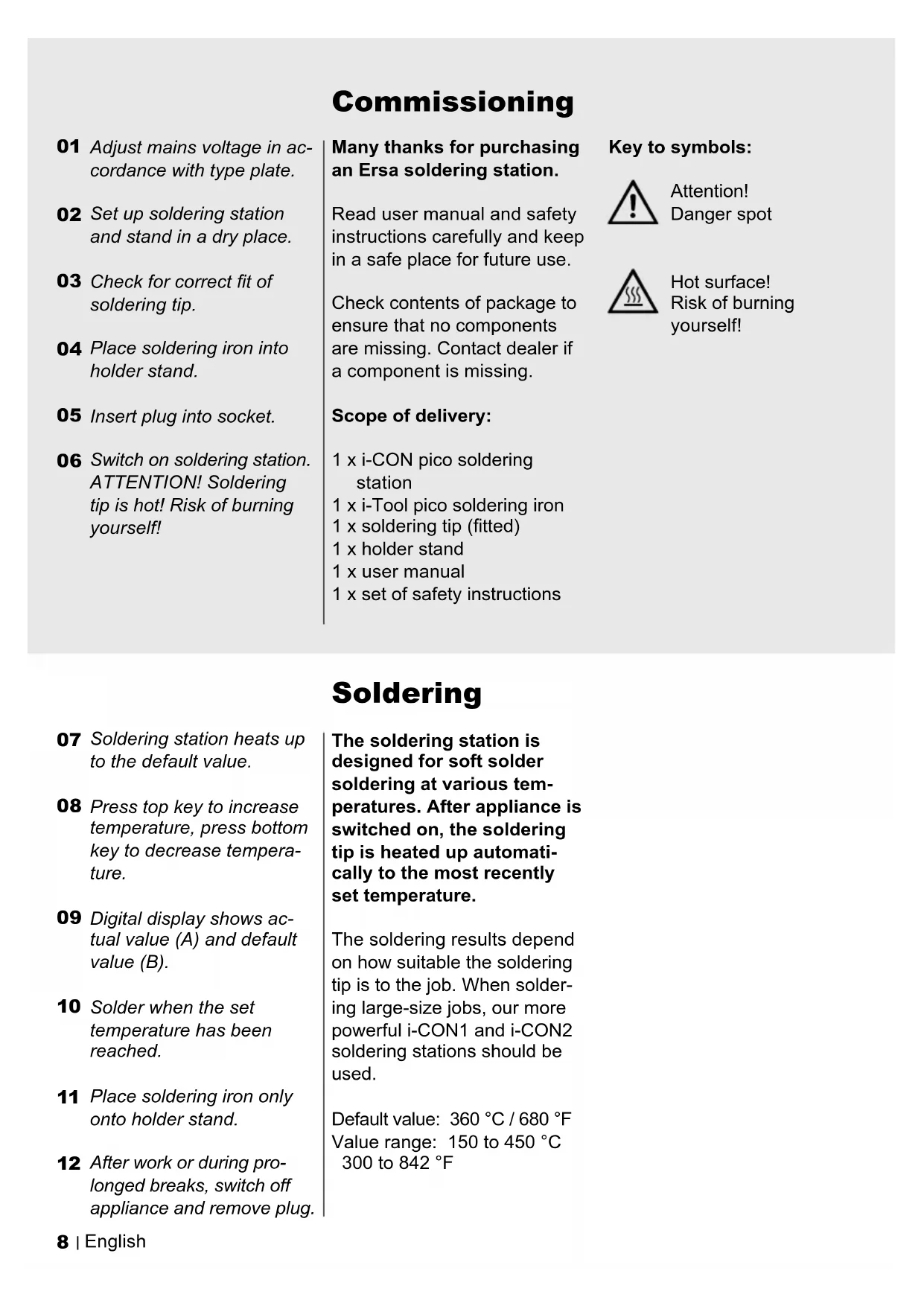

01 Adjust mains voltage in accordance with type plate.

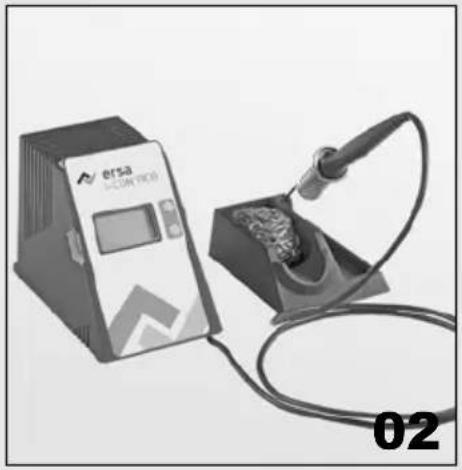

02 Set up soldering station and stand in a dry place.

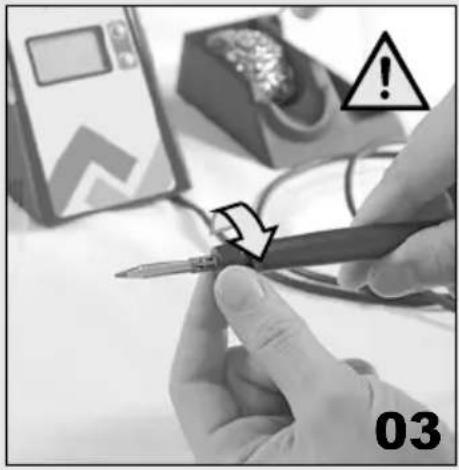

03 Check for correct fit of soldering tip.

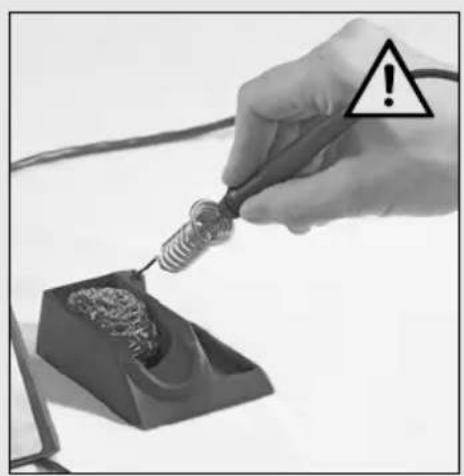

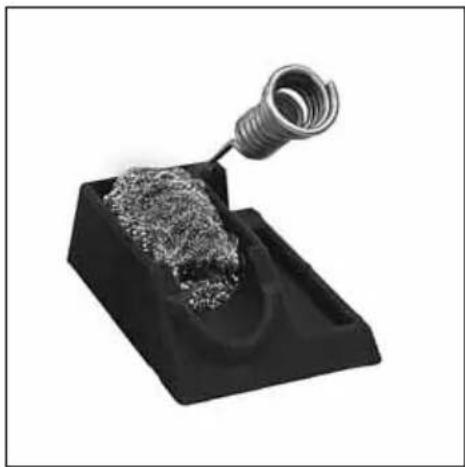

04 Place soldering iron into holder stand.

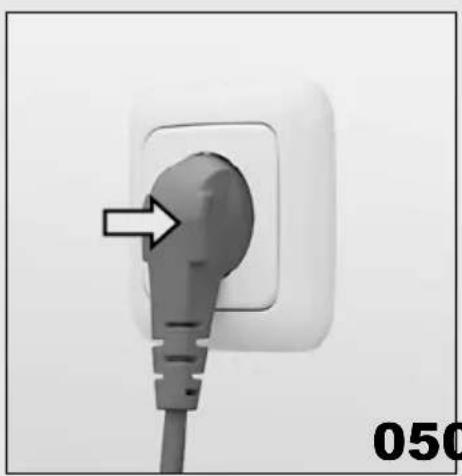

05 Insert plug into socket.

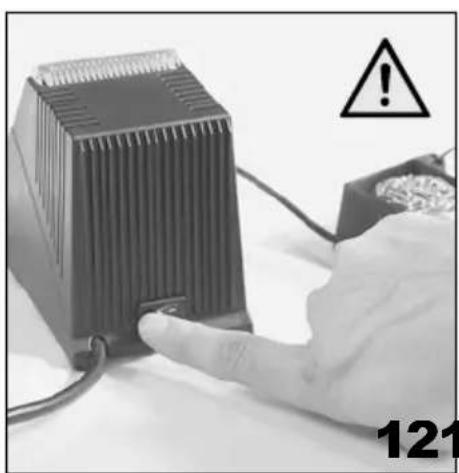

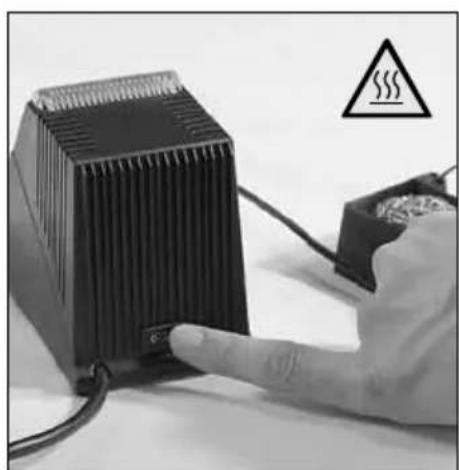

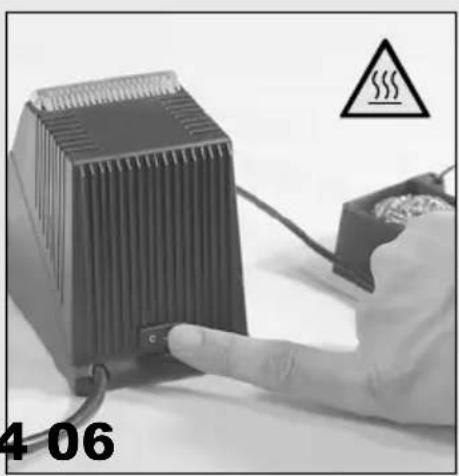

06 Switch on soldering station. ATTENTION! Soldering tip is hot! Risk of burning yourself!

Many thanks for purchasing an Ersa soldering station.

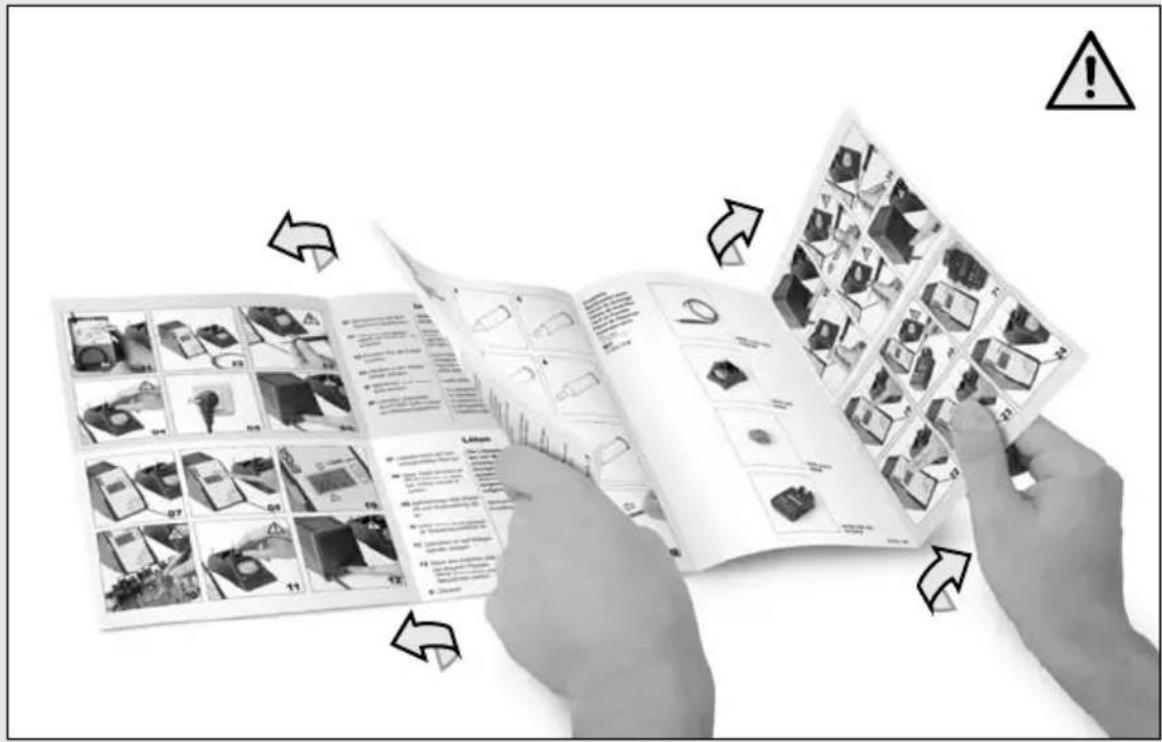

Read user manual and safety instructions carefully and keep in a safe place for future use.

Check contents of package to ensure that no components are missing. Contact dealer if a component is missing.

Scope of delivery:

1 x i-CON pico soldering station
1 x i-Tool pico soldering iron
1 x soldering tip (fitted)
1 x holder stand
1 x user manual
1 x set of safety instructions

Key to symbols:

Attention! Danger spot

Hot surface! Risk of burning yourself!

Soldering

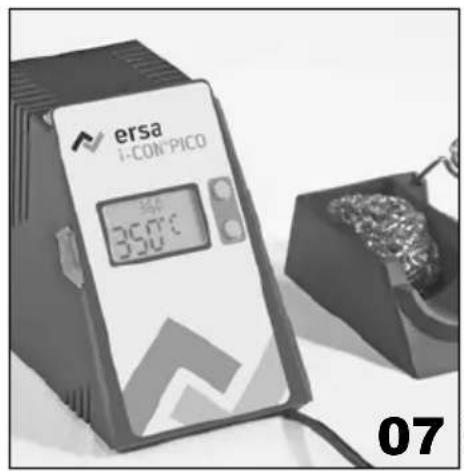

07 Soldering station heats up to the default value.

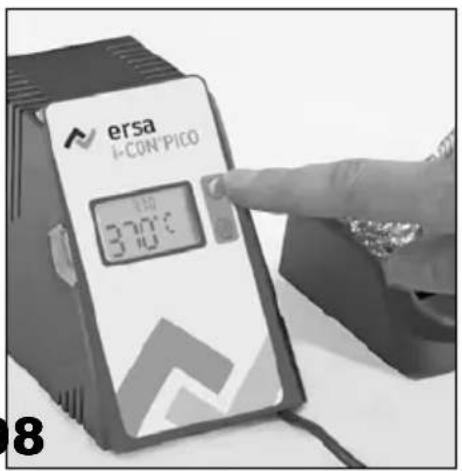

08 Press top key to increase temperature, press bottom key to decrease temperature.

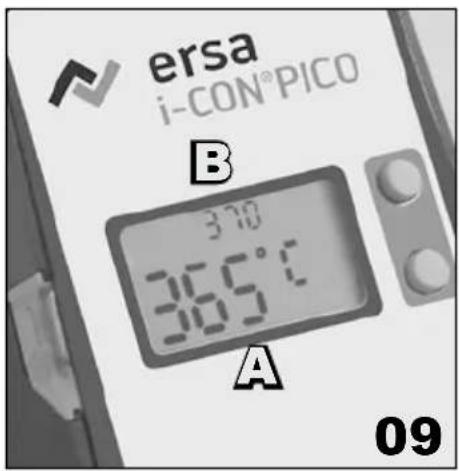

09 Digital display shows actual value (A) and default value (B).

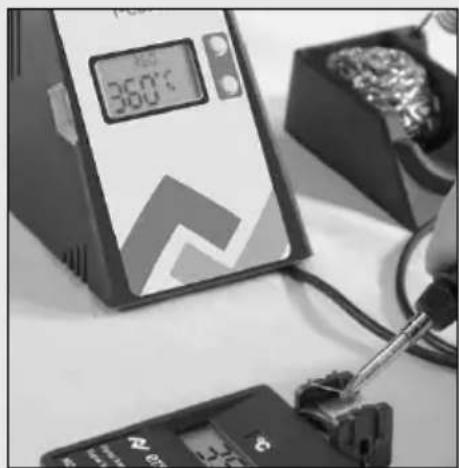

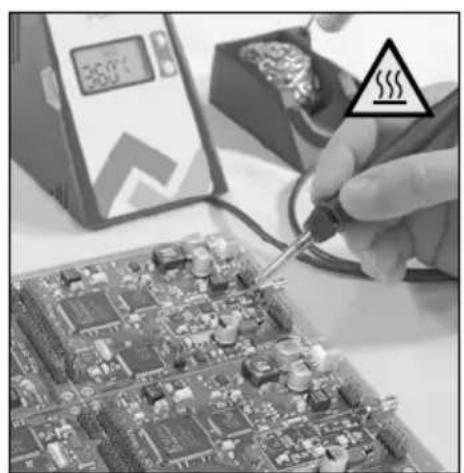

10 Solder when the set temperature has been reached.

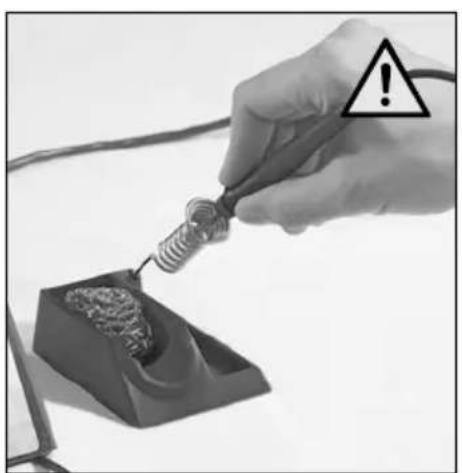

11 Place soldering iron only onto holder stand.
12 After work or during prolonged breaks, switch off appliance and remove plug.

The soldering station is designed for soft solder soldering at various temperatures. After appliance is switched on, the soldering tip is heated up automatically to the most recently set temperature.

The soldering results depend on how suitable the soldering tip is to the job. When soldering large-size jobs, our more powerful i-CON1 and i-CON2 soldering stations should be used.

Default value: 360 °C / 680 °F Value range: 150 to 450 °C 300 to 842 °F

Changing the soldering tip

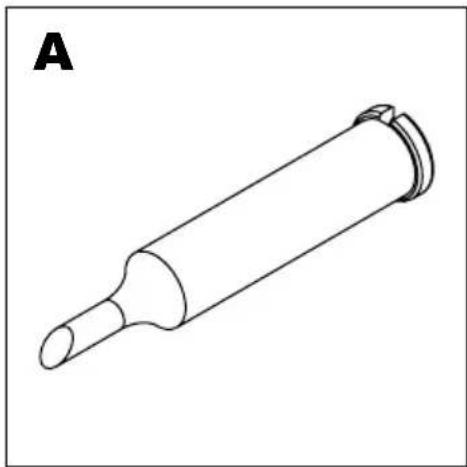

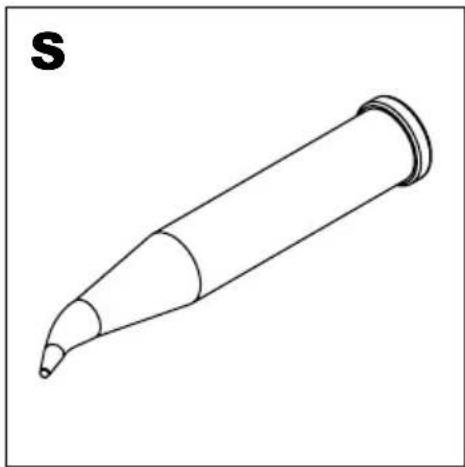

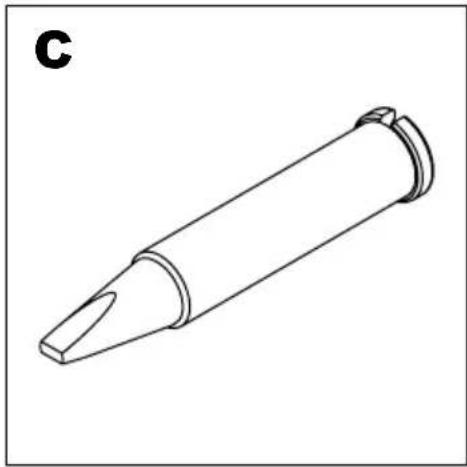

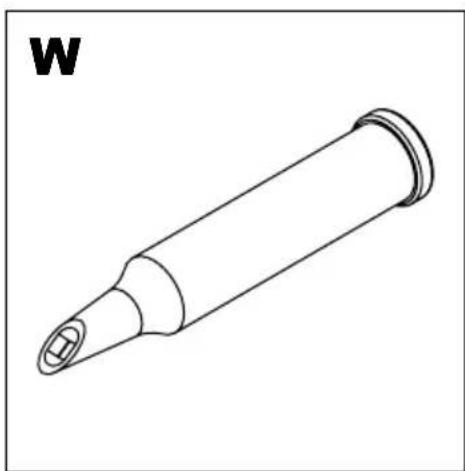

Various soldering tips can be used with the i-CON pico soldering station. In this way, the soldering station can be adapted to various areas of operation. See page 48.

More soldering tips are available from the Ersa dealer. Downloadable overview of standard tips:

Downloadable overview of special tips:

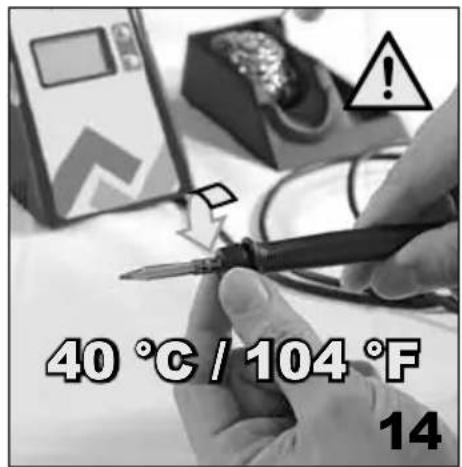

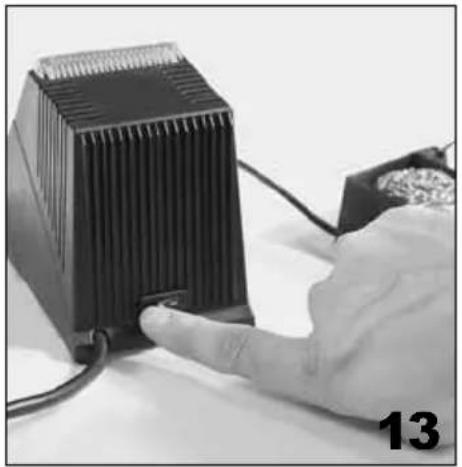

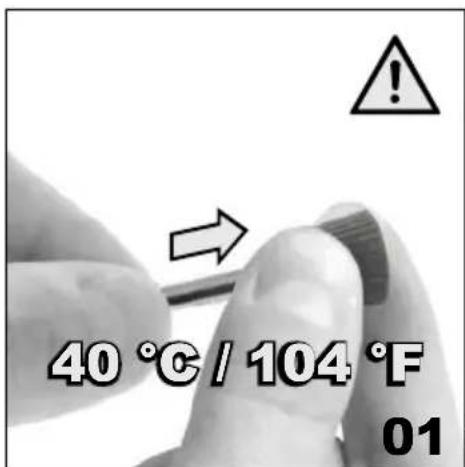

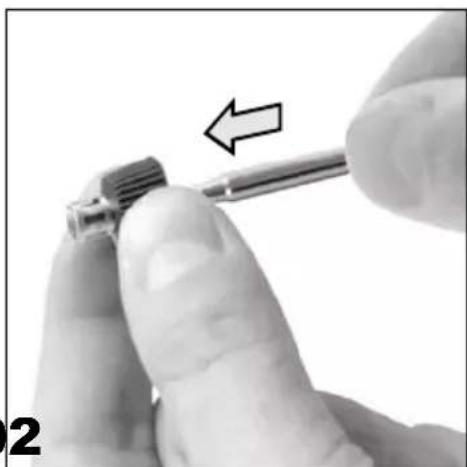

13 Switch off soldering station and allow soldering tip to cool to approx. 40 °C / 104 °F.

14 Screw soldering tip onto the knurled section of the soldering iron.

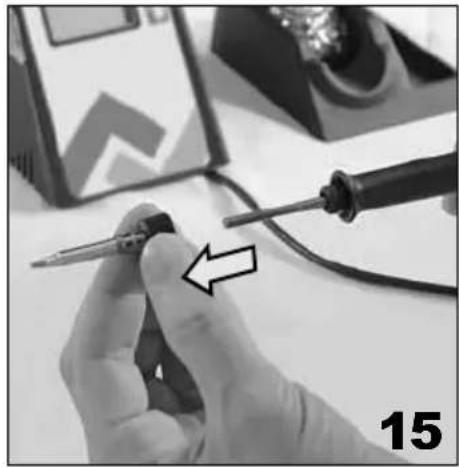

15 Remove soldering tip from soldering iron.

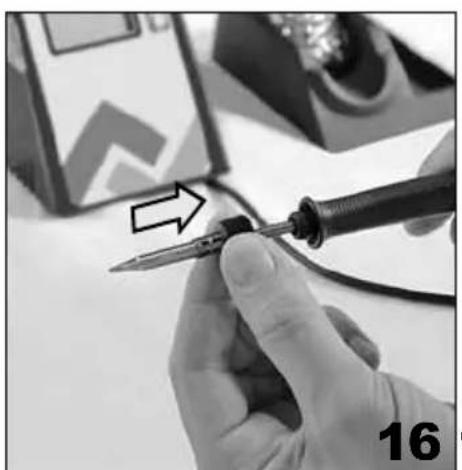

16 Place desired soldering tip onto soldering iron.

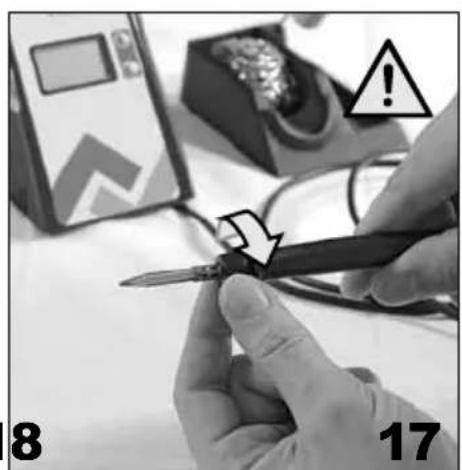

17 Fit soldering tip with knurled section onto soldering iron and check for correct fit.

18 Switch on soldering station. ATTENTION! Soldering tip is hot! Risk of burning yourself!

Temperature calibration

If the set temperature and the actual temperature of the soldering tip do not concur, then the temperature can be calibrated in order to resume work at exact soldering temperatures.

Default value: 0

Value range: -70 to +50 °C -126 to +90 °F

19 Select reference value for calibration at the soldering station.

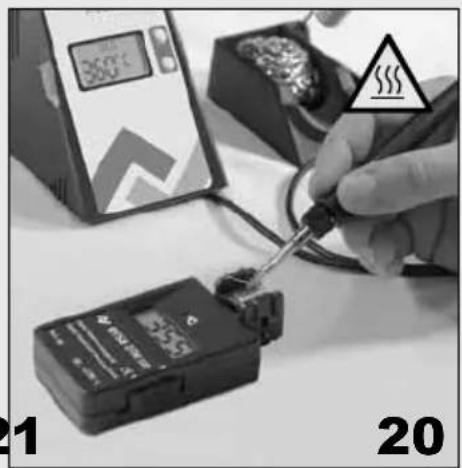

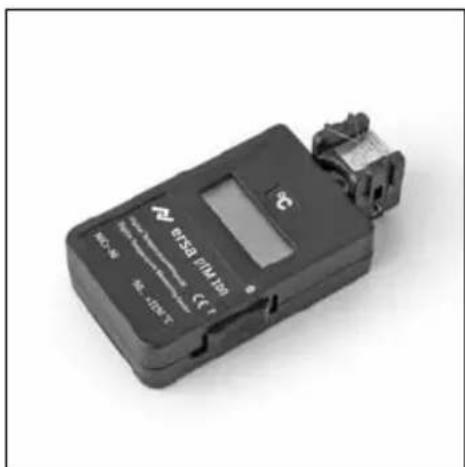

20 Determining actual temperature using a digital temperature-measuring instrument.

21 Calculating deviation between reference value and actual value.

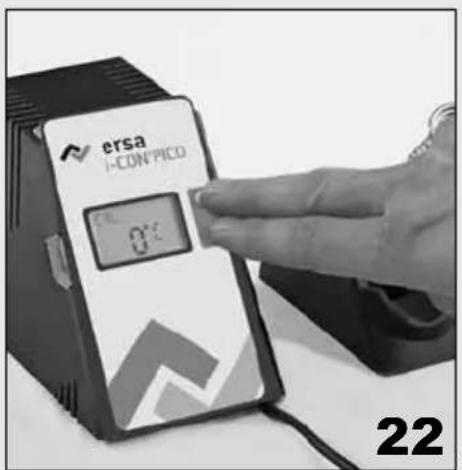

22 Press both keys briefly to call up the calibration menu.

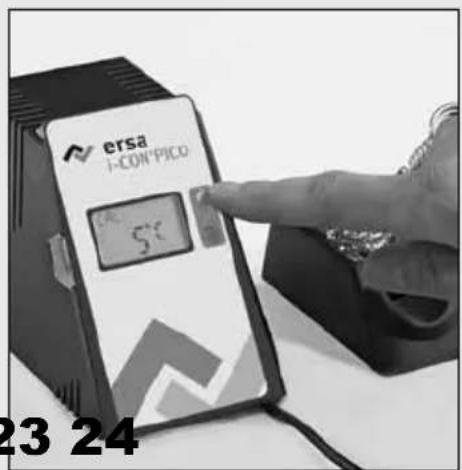

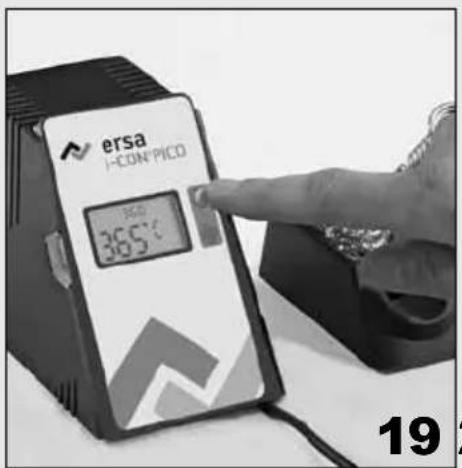

23 Setting temperature using the keys in accordance with the deviation.

24 Wait five seconds to save the value.

Standby time Soldering iron

SD card

After a certain time, the appliance reduces the soldering temperature to save power.

To quit stand-by, press key or cool the soldering tip by approx. 5 °C / 9 °F.

Default value: 5 Min.

Value range: 0 to 60 Min.

$$ 0 = \text { Off } $$

A Hold down both keys for a prolonged period to open the standby time menu.
B Adjust standby time by pressing the keys (0 = Off).
C Wait five seconds to save the value.

If required, the soldering iron can be changed or exchanged.

Use only soldering irons bearing the description Ersa i-Tool pico.

Installation of the exchange iron is by analogy the reverse of the dismantling sequence.

A Turn appliance onto its side.
B Pull cable of soldering iron out of holders.
C Remove plug in the direction of the operating panel.

Using a micro SD card will permit further settings to be made via software:

• Stand-by temperature & time
• Shutdown time
• Keylock function
• Display in °C or °F
• Up to 3 fixed temperatures
• Power functions can be as-signed

For further information on using the micro SD (HC) card, please consult the software manual.

Both software and the manual can be downloaded free by going to the following link:

http://www.ersa.com/pico

Error codes

In the event of an error, an error code appears on the display. The number above the label 'Err' provides information about the error present.

Codes 7 und 8 indicate faults in the heating element in the soldering iron:

• Err7 Insert heating element and press key.
• Err8 Change heating element

For further information, go to the following link:

http://www.ersa.com/pico

Technical specifications

i-CON pico soldering station:

Power rating:

Operating voltage:

Temperature range:

Dimensions L x W x H:

Weight:

i-tool pico soldering iron:

Dimensions:

Weight:

Holder stand:

Dimensions L x W x H:

Weight:

Order No.: 0IC1300

68 watts

220 - 240 V \~ 50/60 Hz

110 - 120 V \~ 50/60 Hz

150 - 450 °C

300 - 842 °F

145 mm x 80 mm x 103 mm

1050 g

Order No.: 0130CDK

L x handle-ø / 175 mm x 12 mm

30 g (without cable)

Order No.: 0A53

140 mm x 80 mm x 80 mm

200 g

Guarantee

Heating element, and soldering and desoldering tips constitute parts subject to wear that are not covered by the guarantee. Material defects or manufacturing defects must be stated in addition to providing proof of purchase prior to certified return of goods.

Statement of defects and proof of purchase must be returned along with the goods.

Ersa has created this manual with the utmost care. However, no guarantee is provided as regards content, completeness and quality of the details contained in this manual. Content is maintained and adapted to prevailing conditions.

All data published in this

manual and details on products and methods have been ascertained by using state-of-the-art aids according to the best of our knowledge. These details are not binding and do not relieve the user of personal responsibility to check the appliance prior to use. We accept no responsibility for infringements of third-party patent rights for applications and procedures without prior express and written acknowledgement. We reserve the right to undertake technical improvements for the purposes of product improvement.

As part of legal means, liability for direct damage, consequential damage and third-party

damage resulting from the acquisition of this product is excluded.

All rights reserved. Without written approval of Ersa GmbH, this instruction manual may not, even in extract form, be reproduced, transmitted or translated into another language.

Disposal

Should be done according to Directive 2002/96/EC of the European Parliament and of the

Council dated 27.01.2003 applicable to used electrical and electronic appliances. Products bearing the symbol of a strikethrough refuse bin must not be disposed of along with unsorted domestic refuse. The municipalities have set up collection points for this purpose. Please consult your municipal or local authority concerning facilities available for separate collection of used appliances.

In this way, you contribute to reuse or other forms of utili-

sation of used appliances in the interests of environmental protection and human health.

Mise en service

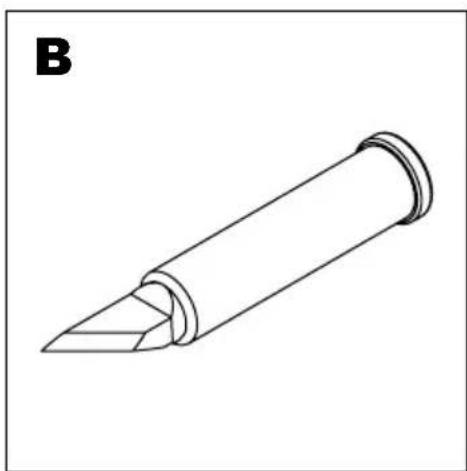

Line drawing of a pointed pen or pipette with a tapered tip and flange (no text or symbols)
