Product type	Immersion blender
Brand	Haier
Model	HHB5B5 011
Power supply	220-240 V ~ 50/60 Hz
Power	1000 W
Shaft material	Metal
Chopper bowl material	Glass
Included accessories	Metal shaft, double whisk, potato masher, glass chopper bowl, beaker
Functions	Blending, whisking, chopping, mashing
Speed control	Power trigger with variable speed (soft press = low, firm press = high)
Safety	Sharp blades, automatic shut-off in case of overheating, not recommended for children under 8 years
Cleaning	Main body and gearboxes not immersible (clean with damp sponge); metal shaft washable under running water; some parts are dishwasher safe (beaker, whisk shaft, blade, glass bowl, anti-slip pad)
Maximum usage time (blending)	1 minute per 4-minute period
Maximum usage time (whisking)	3 minutes per 10-minute period
Maximum usage time (mashing)	1 minute per 5-minute period
Maximum usage time (chopping)	30 seconds per 1-minute period
Included recipes	Vegetable/fruit juice, butter-honey sauce, sponge cakes
Warranty	According to conditions defined by the local representative
After-sales service	Authorized Haier repair center; original spare parts available from the dealer
Standards	CE, directives 2014/35/EU, 2014/30/EU, 2011/65/EU
Manufacturer	CANDY HOOVER GROUP S.r.l., Via Comolli 16, 20861 Brugherio (MB), Italy

Frequently Asked Questions - HHB5B5 011 HAIER

How to clean the Haier HHB5B5 011 immersion blender?

Disassemble all parts. The main body, whisk gearbox, masher gearbox, and chopper lid gearbox must not be immersed: clean them with a damp sponge and wipe dry. The metal shaft can be rinsed under running water. The other parts (beaker, whisk shaft, blade, glass bowl, anti-slip pad) are dishwasher safe. Handle the blades with care as they are very sharp.

Can I use the immersion blender for hot liquids?

Yes, but with caution. Remove the pot from the heat and allow it to cool slightly to avoid burns. Make sure the liquid is no longer boiling. The hot mixture may splatter when starting.

How to assemble the double whisk?

Insert the whisk shaft into the hole of the whisk gearbox until you hear a click. Then mount the gearbox onto the main body by turning counterclockwise until it clicks.

What to do if the appliance overheats during use?

Unplug the appliance immediately and let it cool for about 10 minutes before using it again. Also check that there is no blockage or overloading of ingredients.

What is the maximum usage time for the chopper?

Do not run the chopper continuously for more than 30 seconds. Let it cool for 1 minute every 30 seconds of operation.

How to avoid splattering when blending?

Select a lower speed at first then increase gradually. Place the blade base into the food before switching on. Use a deep container.

Are the blender blades removable?

Yes, for the chopper: disassemble the blade shaft assembly by turning the top blade clockwise to remove it. For the metal shaft, it detaches from the main body. Always handle the blades with care as they are extremely sharp.

Where can I buy spare parts for the HHB5B5 011?

Original Haier spare parts are available from your Haier dealer or directly from Haier. Always provide the model number when ordering.

Is the appliance suitable for children?

The appliance can be used by children aged 8 and above under supervision, provided they have received instructions on safe use. Cleaning must not be done by children under 8 years. Keep the appliance and its cord out of reach of children.

How to assemble the potato masher?

Mount the masher gearbox onto the masher shaft by turning clockwise until it clicks. Then mount the masher blade onto the central hub (clockwise, click). Finally, mount the gearbox onto the main body (counterclockwise) until it is in place.

USER MANUAL HHB5B5 011 HAIER

PykoBoDCTBO noIb3ObaTeIa (RU).....P71

Ooyniexc xphonc (GR) .P77

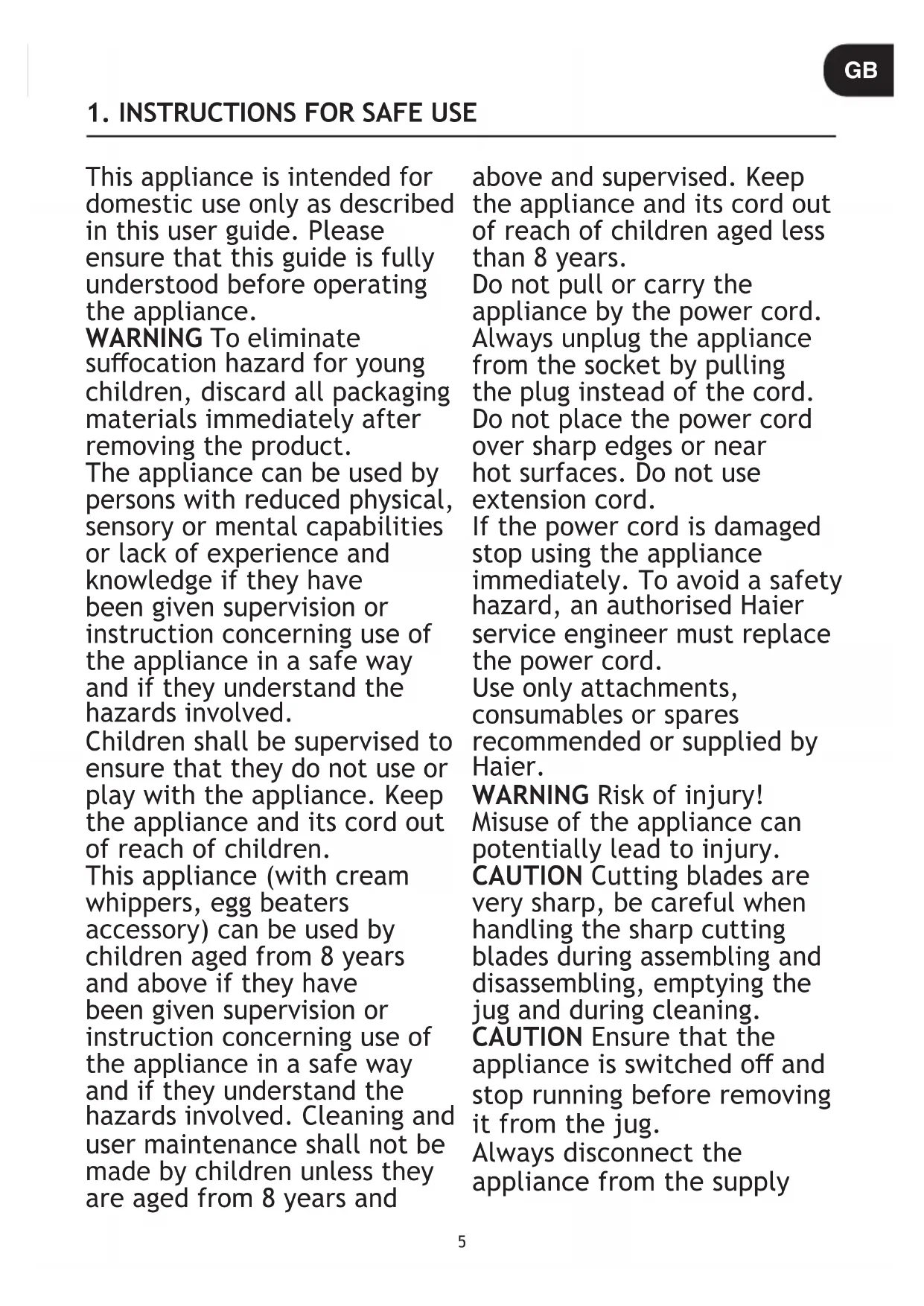

This appliance is intended for domestic use only as described in this user guide. Please ensure that this guide is fully understood before operating the appliance.

WARNING To eliminate suffocation hazard for young children, discard all packaging materials immediately after removing the product.

The appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

Children shall be supervised to ensure that they do not use or play with the appliance. Keep the appliance and its cord out of reach of children.

This appliance (with cream whippers, egg beaters accessory) can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and

above and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years.

Do not pull or carry the appliance by the power cord. Always unplug the appliance from the socket by pulling the plug instead of the cord. Do not place the power cord over sharp edges or near hot surfaces. Do not use extension cord.

If the power cord is damaged stop using the appliance immediately. To avoid a safety hazard, an authorised Haier service engineer must replace the power cord.

Use only attachments, consumables or spares recommended or supplied by Haier.

WARNING Risk of injury! Misuse of the appliance can potentially lead to injury. CAUTION Cutting blades are very sharp, be careful when handling the sharp cutting blades during assembling and disassembling, emptying the jug and during cleaning.

CAUTION Ensure that the appliance is switched off and stop running before removing it from the jug.

Always disconnect the appliance from the supply

if it is left unattended and before assembling, disassembling, cleaning or in the event of an error.

Only use the appliance in accordance with the power specification on the rating plate.

Only use the appliance on a dry level surface and never move it when working.

The appliance is only intended to blend or mix food with recommended size and quantity in the instructions. It must not be used for other than intended use.

Do not use a glass jug right after being taken out from dishwasher or refrigerator.

Be sure it stays at room temperature for at least 5 min before use.

Do not operate the appliance until the blade unit is securely fastened and immersed by the ingredients.

Be careful if hot liquid is poured into the food processor or blender as it can be ejected out of the appliance due to a sudden steaming. Take care when processing hot food which may splash.

Switch off the appliance and disconnect from power supply before changing accessories or approaching parts that move in use.

Do not operate the appliance by means of an external timer or separate remote-control system.

Disconnect from power supply and allow the cutting blades to completely stop before removing any parts and before cleaning or any maintenance.

Never immerse the motor base in ingredient while in use or clean it under running water. Do not operate the appliance with wet hands.

Pay attention to clean surfaces which are intended to come into contact with food! Please note the information on cleaning in the instructions.

Do not continue to use your appliance if it appears faulty. Haier service: To ensure the continued safe and efficient operation of this appliance we recommend that any servicing or repairs are only carried out by an authorised Haier service engineer.

Recipe:

Vegetable/Fruit juice (1 min on / 1 min off, maximum 5 cycles)

Beaker: 360 g carrots + 540 g water

Honey butter sauce (5 s on / 2 min off, maximum 3 cycles)

Chopper glass jug: 200 g

butter + 300 g honey

Sponge cakes (maximum 10 min)

Beaker: 720 g egg whites

Note on the recipe:

1) For each use, the consecutive operation cycle or time and food quantity should be no more than stated as above. At least 10 minutes rest time must be maintained so that the unit cool to room temperature before performing next operation;
2) If you want to stop the machine during operation, release the ON/OFF trigger button anytime.

The Environment

The symbol on this appliance indicates that this appliance may not be treated as household waste. Instead, it must be handed over to

the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this appliance, please contact your local city office, your household and waste disposal service or the shop where you purchased the appliance.

This appliance complies with the

European Directives 2014/35/EU, 2014/30/EU and 2011/65/EU.

CANDY HOOVER GROUP S.r.l. Via

Comolli 16, 20861 Brugherio(MB), ITALY

2. Getting to know your Hand blender

A. ON/OFF Trigger button
B. Main body
C. Metal leg
D. Beaker
E. Gear box of whisk
F. Double whisk
G. Gear box of potato masher
H. Potato masher leg
I. Blade of potato masher
J. Gear box of chopper cover
K. Chopper upper blade
L. Chopper blade shaft
M. Chopper glass jug*
N. Spindle pin
O. Non-slip pad

3. Before first use

Before you use the appliance and accessories for the first time, thoroughly clean the parts that come into contact with food. (Cleaning details refer to Chapter 5)

• Place the food into the beaker or a similar container, then hold the beaker steady.
• Do not fill the beaker more than indication scale. To avoid splashing place the blade base in the food to be processed before switching on. Always ensure that the bottom of the blade base is fully submersed in the ingredients whilst processing.

• Do not fill the chopper glass bowl more than half-bowl for better mixing.

• For certain model only.

• Only immerse the metal leg into the food but not exceed the metal parts, or you risk of electric shock!

• Do not insert any metallic object into the glass jug.
• Do not mix pieces of ingredients larger than 2 × 2 × 2 cm.
• The metal blending shaft and whisk may scratch or mark non-stick coatings. Do not use in non-stick cookware.
• Do not use or insert any part in the microwave.
• Do not use the hand blender with heavy mixtures to ensure long life. If the main body overheats, unplug the appliance and let it cool down for approximately 10 minutes before using again.
• Non-slip pad can be placed on the bottom of beaker and chopper glass jug for non-slip.

4. Using your Hand Blender

Power control [Fig. 13]

Press ON/OFF trigger button to select and adjust the required speed.

Press the trigger button lightly to get low speed.

Press the trigger button firmly to obtain high speed.

It is perfectly suited for preparing dips, sauces, salad dressings, soups, baby food, as well as drinks, smoothies and milkshakes, also suited for mixing hard foods e.g., raw fruits and vegetables.

Metal leg [Fig. 1]

Fit the metal leg to the main body by turning in an anti-clockwise direction which is fully assembled you hear a "click" sound.

• If using the appliance to puree hot food in a saucepan or pot, remove the saucepan or pot from the heat source and ensure the liquid is not boiling.
• For certain model only.

Allow hot food to cool slightly to avoid risk of scalding.

• Do not let the hand blender sit in a hot pan or pot on the cooktop when not in use.
• Do not use the metal leg for longer than 1 minutes in any 4 minutes period.

Double whisk* [Fig. 2,3]

1. Insert the whisk legs to the hole of gear box of whisk which is fully assembled you hear a "click" sound.
2. Fit the gear box of the whisk to the main body by turning in a anti-clockwise direction which is fully assembled you hear a "click" sound.
3. Use the whisk only for whipping cream, beating egg whites, making sponge cakes and ready-mix desserts.
4. To prevent splattering, start slowly and use the whisk attachment in deep containers.
5. Do not use the whisk for longer than 3 minutes in any 10 minutes period.

Potato masher* [Fig. 4,5,6]

It can be used to mash boiled potatoes.

1. Fit the gear box of potato masher to the potato masher leg by turning in a clockwise direction which is fully assembled you hear a "click" sound.
2. Fit the blade of potato masher over the central hub and turn clockwise to locate which is fully assembled you hear a "click" sound.
3. Fit the gear box of potato masher to the main body by turning in a anti-clockwise direction until it locks into place.
4. Never use the potato masher in a saucepan over direct heat.
5. Always remove the saucepan from the heat and allow to cool slightly.
6. Sit the saucepan or bowl on a stable, flat surface, and support it with your free hand.

7. For best results when mashing never fill a saucepan or bowl more than half full of food.

8. Do not process more than one batch without interruption.

Do not use the potato masher for longer than 1 minute in any 5 minutes period.

Chopper attachment* [Fig. 7,8,9,10,11,12]

1. Place the glass jug on a clean, flat surface, assemble the upper blade clockwise on the blade shaft until lock into place.
2. Fit the blade shaft assembly on the spindle pin over the glass jug.
3. Cut the food into suitably sized pieces and place in the glass jug. Larger pieces of food should be cut into approximately 2 × 2 × 2 cm pieces.
4. Fit the gear box of cover on the glass jug and press to lock into place.
5. Fit the main body clockwise onto the gear box of cover which is fully assembled you hear a "click" sound.
6. Plug in
7. Press down on the trigger button to select the desired pulse-speed.

When operating the main body, hold it firmly on it and the glass jug.

• Press the trigger button lightly to obtain low speed.
• Press the trigger button firmly to obtain high speed.
• Alternatively, the trigger button may be pressed down for short periods of time to produce a pulsing action.
• This can be used to avoid over processing food. Operate the chopper until the desired result is achieved.
• Loosen the trigger button firmly to switch off, take out the blades first, then pour out the food.

Do not run the chopper attachment continuously for longer than 30 seconds. Leave to cool for 1 minute in between each 30 second operation.

Reverse the above procedure to disassemble the unit.

5. Cleaning & Maintenance

CAUTION: Make sure that the main body is unplugged from the mains power supply and that the blades have stopped turning before attaching or removing any accessory.

Disassemble all parts before washing.

DO NOT immerse the main body, gear box of whisk, gear box of potato masher and gear box of chopper cover into water or any other liquid, clean with a damp sponge or cloth and wipe dry. The metal leg can be rinsed under running water.

Handle the blades with care they are extremely sharp.

Following parts/tools you could put them in dishwasher to clean.

[Fig. 14]

• Beaker
  Whisk leg*
• Blade of Potato Masher*
• Upper blade*
• Blade shaft*
  Glass jug*
  Non-slip pad

All parts must be completely cleaned and dry before being stored.

Assemble the appliance with the blades, chopper accessories and main body in position.

Store the appliance in the box or in a clean, dry place well out of the reach of children.

6. Troubleshooting

1. Hand blender starts to slow or labor during processing.

Check that the bottom of motor head is clean and there is no food blocking connection when placing on containers or too much food in the container.

If the unit has overheated, unplug and wait approximately 10 minutes before using again.

1. Excessive splashing during processing Select a lower speed initially and increase as the mixture thickens.
   Select an appropriately sized container. Place the blades into the food before switching on.
2. Main body gets hot during operation. Allow the unit to cool fully before using again.

7. Technical data

Electrical connection 220	-240V~50/60Hz
Power 1000W

8. Important information

Haier Spares and Consumables

Always replace parts with genuine Haier spares. These are available from your local Haier dealer or direct from Haier. When ordering parts always quote your model number.

Quality

Haier's factories have been independently assessed for quality. Our products are made using a quality system which meets the requirements of ISO 9001.

Your Guarantee

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Hachoir* [Fig. 7,8,9,10,11,12]

This appliance is intended for domestic use only as described in this user guide. Sorg for at denne veiledningene er forstatt fullstendig for du bruker apparatet.

ADVARSEL For a unngå kvelningsfare for sma barn, kast all emballasje umiddelbart etter at du har fjernetproduktet.

HcNoIb30BaHnCOrJaCHO

daHHbIM HNCTpyKcIyM.

PpeKdyeM npnCTyNTb K

3KcPnyaTauHn DaHHoro 6bITOBORO

3JIeKTpO npn6opa, y6eIntecb

B TOM, YTO Bbl NOHIMaeTe

HaCToIuee pyKOBOdCTBO.

PPEyPExEHEHe Bo

H36eKaHHe ONaCHOCTN yDyUbya

yNaKOBOuHbI MaTePnAJIbI Cpa3y

Jxepocne paCnakOBKn np6opa.

Данныnpибор может

HcnoB30BaTbCraIuCaMn C

OrpaHnueHHbIMN OIN3NueCKHMN,

CEHCOPHbIMN INIyMCTBeHHbIMN

CnOCO6HOCTaMKOM

OnbITA N 3HaHn Pn yCIOBnN

COOTBETCTByoIeRo HaI3Opa IIN

IpeBapnteHOro HnCTpyKtJaxa

He nCnoJb30BaJI npn6Op n He

Hrpaln c Hm. XpaHnte np6op

I ero uHyp B HeIOCTyINHOM IJIa DeTei MeCTe.

Aetn B Bo3paCTe ot 8 let n

CTapWe MOryT N0JIb3OBAtbcra 3TNIM

Pn60pom (co B3bBaTeIaMn

CINBOK, aKceccyapom dIa

B36nBaHnaIa) npu yCIOBn, YTO

OHn HaxoJrTcI IOd IprncMOTpOM

HIN pOHHCTpyKTHnpOBaHbI O

6e30NaCHOM HcNoIb30BaHnN

прибopa и eclin OHN OCO3HaIOT

CBAaHHbIe C 3TnM PnCKN. DeTN

do 8 let He doJxHbI 3aHmTaBcA

OuHCTKoI N TexHnueCKM 06cLyXnBaHnem npn6opa.

XpaHnTe npnbop n ero shHyp B MeCTe, HeIOCTyINHom dIaJeTei MlaIaIe 8 JeT.

He TAHNTe Hn He npehocHTe,
depka np6op 3a shHyp NITaHna.

Bcerda otKJIouaTe npn6op ot

p03eTKn,NOTaHyB 3a BnIky,a He 3a shyp.He Klaadnte shhyp

HITaHnHa OCTpIe KpaNII

B6IIN3n TOpAunx NOBepXHocTei.

He nCnoIb3yIte ydInHnTeIb.

Ecnn npoBOD nHTaHnA

NOBpeKdEh, HeMeIeHHO

OTKJIIOUHTe np6Op.Bo

H36eXaHHe yrpo3bI 6e30NaChOCTN

3aMeHy npoBODa NITaHnI dOJIxKeH

PPOBOdntb TOnbKO MaCTep

aBTopn3OBaHHoN cepBnCHoN cnJx6bl Haier.

IcnoJb3yIe ToJIbKO Te HaCaIKN,

pacxOndhle MaTePnaIbI NII

3aNaChbIe YactN, KOtOpblE

peKOMeHdyeT nIN NOCTaBJIaTeHaier.

ПЕДУПЕЖДЕНЕ OnaCHOCTb

TpaBmbl! HnpaBnIbHoe

OCTOPOXHbI npn 6paueHHN

C OCTpbIMN Ie3BnA M N BO

BpeMa c6OpKn n pa36OpKn,

ONOPOXKHeHnaaHnOuHCTKN.

OCTOPOXHO Ipepe

n3BLeueHnem yaun y6eNTecb,

чTo np60р ВьIKJIIOueH I

OCTaHOBJIeH.

Bcerda otKlouaTe np6op ot

3JIeKtpocetn,ecJH OH OCTaETCA

6e3 npncMOtpa, a TaKxe nepei c6opko, pa360pKO, ouHCTKO nIN B Clyuae HeNCnPaBHOCTN. IcnoIb3yIte np6Op TOnbKO B COOTBeTCTBHN C MOUHOCTbHO, yKa3aHHoHa NaCnOPTHO Ta6nUKe.

IcnoJb3yInTe np6Op Tolbko Ha cyXoPOBHOIOBepxHocTN HNKOrDa He nepemeaTe erO BO BpeMa pa60Tbl.

Прибор предаизаун.

TOJIbKO DЯ N3MeJbUeHnRAIIN CMeUWBaHnRA IPOdYKTOB, pa3Mep IN KOJIuYeCTBO KOTOpbIX yKa3aHO B INHcTpyKzIN. 3aPpeUaETcA NCIOJIb3OBA Tb pN6Op He nO Ha3HaueHnIO.

He nCnoJb3yIte cTeKJIaHHHyU 7a7y cpa3y nocIe n3BLeueHnE H3 NocCyJOMOeHOn Ma7nHbI nJIx OJIoJNbHnKa. OHa dOJXHa HaxoJNTcR pR KOMHaTHOH TeMnepaType He MeHee 5 MmHyT NepeD nCNoJb30BaHnEm.

He BkIouaTe np6Op, noka HoxeBOJ 6lOK He 6yDet HaDeXHO 3aKpeJIenHn He 6yDet norgyKeH B INHrpeDIneHTbl.

Будыо octopokнbl, ecn B KuxoHbI KOM6aH NII IN 6leHdep HaNBaETcra TOpYaJ XNkOCTb, TaK KaK OHa MoXeT 6bITb BbI6poWeHa n3 np6opa n3-3a BHe3aHOrO o6pa30BaHnЯnapa.

CobJIOdaIte octopoxHocTb npn
6pa6OTke ropaynx npOdyKTOB,
KOTOpbIe MOryT pa36pbI3rNBaTbcra.
BbIKIOUHTe np6Op n
OTcoEHHTE erO OT 3JeKTPOcETn
peed 3aMeHOn aKceccyapOB nIn
pnp6JIHXeHNHeM K DBNKUzHMcra
YacTAM.
He BkIooaIte np6Op c

NOMOUIBHeHrTo TaMepa
IINOTDeJIbHOINCTeMbI
DnCTaHcHOnHOYnpaBLeHnra.
OTKIOUHTe np6Op OT
3JIeKTPOCeTN DaITe HOxam
IOJIHOCTbIO OCTaHOBVtbcApeEd
CHaTHeM IIO6bIX DeTaJIe,
a TaKJKe pePeJ YnCTKOJ
IINI JIO6bIM TexHNueCKm
06ClyXHBaHnem.

HnkOrda He norgykaite OCHOBaHHe DBNrTaTeJI B XnDKoCTb BO BpeMpa60TbI H He MoIte erO noI npToCHoB BoDoI. He pa60taIte c np6Opom MOKpbIMn pyKaMn.

O6aTeIbHo OUnuAHTe NOBepXHOCTN, KOToPbIE KOHTaKTnpyOT C npOdyKTamn PtTaHn! HOpMaun 06 OunchTKe pINBOdntcB INHCTpyKxJx.

B clyuae HencnpaBHOCTn He cIeDyET npoJoxaTb PoiIb30BaTbcr np6Opom.

CepBnchoe 6cIyKbAHne:
Ja rapaHTn 6e30NaCHO n
HaJeXHO pa6Otbl DaHHOro
np6opaMbI peKOMeHdyem
PpRlAaTb aBTOpN3OBaHHbIX
HHKeHepOB cepBnCHoH
cLyX6bl Haier dJa BblOnJIHeHnra
TexHnueCKOrO 6cIyKbAHnra n
peMOHTa.

Peçent:

OBOUH/ΦpyKTOBbIcOK (1 MHN. BKN. / 1 MHN.BbIKI., MaKcHMyM 5 UHKIOB)

CtakaHc MepHoN uKaJIoN:360g MOpKOBb ^+ 540 g Boda

MeIOBO-MacIaHbI COyc (5 cek. BkI / 2 MIn H BblKl., MaKcIMyM 3 uKla)

CteKJIaHHa YaHa N3MeIbUHTeJIa: 200g CInBouHoe Maclo + 300g Med

БИСКВИТ (MaKcHmym 10 MInHyT)
Стakaн c Мерношkaю: 720 g
Яинble 6eJIKN

Приимechи К pecentу:

Haxmnte KhoNky BKJI/BblKJI, YTO6bl Bbl6paTb N yCTaHOBnTB HxKHyO CKOpOCTb.

Pn JERKOM HaxaTN 6JeHep 3anyCKaETcHa HN3KoI CKOPOCTN.

Pn CnIbHOM HaXaTHN CKOpOCTb yBEnuBaETc.

Бileндер ИideальноюдяпригOTOBlencoycOB,ЗаразВОКдяcaIaTOB,CyIOB,ДETCKOROПИТAHЯ,a TaKKeHaNTKO,BcMy3NIMOLOCHbIXKOKTeJIe.TaKKe NOxODITДЯСMeUWBANrTBepDbIXnpOdyKTOB,TaknxKaKcbIpBieФpykTbINOBOUH.

MetaJIInuecka HOXka [Pnc. 1]

YCTaHOBHTe MeTaJIHnueCKyIO HOxKHa
rIaBbI KOpNyc, NOBepHyB ee npOTNb
yacOBoI CTpeKN. PpN FHKcauIN Bbl
yCblIiHTe ⅢeJUOK.

• EcIn Bbl roTOBnTe nOpE n3 ropAunx npOdyKTOB B COUYKHe nH KAcTpIone,
• Tólbko y KOHKpeTHbIX MoDénei.

CHIMITE NOCydy C PJIHTbI, YTO6bl XHIDKOCTb He KInpeJa. DaTe ropAemy 6JIOy HEMHORO OCTbITb, YTO6bl NCKIIIOUHTb PNCK OXORA.

He octablanTe 6IeHep norgyKeHHbIM B ropeuee 6IIOo B KacTpIone Ha nnITE.
He HcnoJb3yIte MeTaJIInueckyIO HOxKy 60Jee 1 MHyTbI HeNpepbIBHO TceHHe 4-MHyTHoro INHTepBaJa.

ДаиTe npi60py noJIHOCTbIO OCTbITb, npeXKeYeM npoJoJxNtB pa6Oty.

7. TexHnueckne daHHbIe

Злектуше的各种 нанble	220-240V~50/60Hz
Моцност b 1000W

8. BaXHo!

3aapanchbIe Yactn npacxoHbIe MaTePnaJIbI KOMpaHn Haier

Ipn 3aMeHe qacteH nCnoJIb3yInTe TOnbKO opnHaJIbHbIe 3aIacHbIe qactN I pacXoJHbIe MaTePnaJIbI KOMpaHn Haier.

Ix MoXHo npNo6peCTn y BaUero MeCTHO dInlepa KompanHn Haier Pn oOopMJeHN 3aKa3a Ha 3aNaChbIe qAChn O6raTeJbHo yKa3bIbAaTe HOMep MoJeN pnp6opa.

KaueCTBO

3aBoDbI KOMpaHn Haier npoJIn He3aBncMMyO uEKnHa npedMeT co6JIOpHeHn Tpe6oBaHn K KaueCTBy BblNcKaeMoN npOdyKuHn. Hawa npOdyKuHn H3rOtaBnBAeTcN C npIMeHHeHem CnCTeMbI KaueCTBa, yDObJIeTBopraUoSei Tpe6oBaHnM cTaHdApTa ISO 9001.

UCIOBNA TAPAHTN

YcNoBnI rapaHTnДЯ daHHOrO 6bITOBORO
3JIeKTPnueckoro npnbopa onpeJeJIoTcra
HaHIM npeDCTaBnTeJBCTBOM B CtpaHe, rDe 3OT
3JIeKTPoPnp6Op npoDaH. Bolee noDpo6HyIO
HHΦopMaunO 63THx ycNoBnx Bbl MoKeTe
NOlyuHTb y npoDaBua HIN H3 rapaHTnHOrO
cepTnΦHKaTa Ha daHHbI INp6Op. B clyuae
BO3HNKHOBeHnA CNTyaUHN, NOKpbBaEMOn
rapaHTnHBIMN O8a3aTeMbCTBAMN H3ROTOBnTeJRA
PnO6paUeHN B ynoJHOMOeHHyIO cepBnCHyIO
OPraHn3aUIO Heo6XoDmO npdeBnTB
TOBapHO-KaccobBi Yek NII INHO JOKymENT,
NODTBepKdAioUnn HauAo NCTeueHn
rapaHTnHOrO cPoKa, npedycMOTpeHHOrO
UCNoBnMn rapaHTn DIAHHORO np6Opa.

Autn n ouokekun npoopiZetai
movo yia oikiakn xpno, onwcs
Tepiypapetai oE autov tov
OOnyoxpnc. Piv Dokmuoe Tn ouokku,
Baowote otexte katavonoi
Tic oyie tsou plexi o oyoc
Tou kpatate ota xepia oac.

PPOOXH Ia va a i Tov Kivouvo aospueiac yia ta uikpa Taioia, anoppiye ola ta uika OoKeuaoiac aEoswC eTaN V apiaepoovtoc. H xpnon tnc ouokenuc ano atota ma e EIOKEc avaykec n atota xomega c Eoikewon otnv Aetoupyia napoioov ooakuwv EITpeNTal movo eoov th a EINBETovta ano atoto pou th a qepeltnv eUovn yia tnV aoopaia touc kai yywiizI tnV Aetoupyia tnc.

Tłuczek do ziemniaków* [Rys. 4,5,6]

Part no. 48700503/01
