182085 - Deep fryer PRINCESS - Free user manual and instructions

Type de produit	Multifunction fryer with steam and air fry
Marque	Princess
Modèle	182085
Dimensions approximatives (L x P x H)	35 x 35 x 35 cm
Poids approximatif	5 kg
Alimentation	220-240 V, 50/60 Hz
Puissance	1500 W (estimated)
Capacité du réservoir d'eau	1150 mL
Plage de température	80 °C to 200 °C
Minuterie	1 to 90 minutes
Programmes préréglés	9 programs: cooking, fries, rice, vegetables, bread, steak, drumsticks, fish, whole chicken
Modes de cuisson	Steam, Air Fry, Combo (steam then air fry)
Matériau du boîtier	Plastic and metal
Pièces amovibles	Water tank, condensation tray, cooking plate, cooking mesh, grill tray
Nettoyage	Hand washing recommended; plates dishwasher-safe; steam cleaning function
Sécurité	Auto shut-off, overheat protection, hot surface
Indicateur de calcaire	Yes, with steam descaling function
Entretien	Regular descaling with descaling solution

Frequently Asked Questions - 182085 PRINCESS

How to use the Air Fry function?

Select the Air Fry mode or a preset program (fries, cooking, drumsticks). Set the temperature (80-200°C) and time (1-90 min) using the + and - icons. Press Start. It is recommended to preheat for 3 minutes before adding food.

How does steam cooking work?

Fill the water tank to the MAX level (1150 mL). Select the Steam mode or a preset (rice, vegetables, fish). The temperature is set to 100°C. Set the cooking time and press Start. Make sure not to block the steam outlet.

What to do if smoke comes out of the appliance?

A slight smoke may come from the fat of the food. If the smoke is black with a strong smell, unplug the appliance and contact the supplier. Make sure the appliance is clean and the food is not too greasy.

How to clean the water tank?

Wash the water tank with warm soapy water using a soft sponge. Do not use abrasive detergents. Dry it thoroughly before putting it back. It is recommended to clean the interior regularly to avoid bacteria.

How to descale the appliance?

The scale indicator lights up when descaling is needed. Use the steam cleaning function: fill the water tank with water and a descaling solution, then run the 20-minute cycle. Then rinse with pure water for 15 minutes.

Can I put the cooking plates in the dishwasher?

Yes, the cooking plates are dishwasher-safe. However, hand washing is recommended to extend their lifespan.

How to use the start timer?

Press the Start Timer icon, set the start time between 30 minutes and 6 hours using the Time + and - icons. Press Start, then set the cooking program. The countdown is displayed and cooking starts at the set time.

What to do if water leaks from the bottom of the appliance?

First check the condensation tray: if it is full, empty it. If the problem persists, the water tank cover may be incorrectly installed or the internal connections may be faulty. Contact the supplier.

What are the available preset programs?

The appliance offers 9 preset programs: Cooking, Fries, Rice, Vegetables, Bread, Steak, Drumsticks, Fish, and Whole Chicken. Each program has optimal time and temperature settings, but you can adjust them manually.

Is the appliance suitable for people with reduced mobility?

The manual indicates that the appliance should not be used by persons with reduced capabilities without supervision. Ensure that the user is able to handle the appliance safely, especially when removing hot food.

USER MANUAL 182085 PRINCESS

ENL Instruction manual

Modern air fryer oven with broccoli inside, open to show interior (no text or symbols visible)

STEAM AIRFRYER Oven

01.182085.01.001

PRINCESS

PARTS DESCRIPTION / ONDERDELENBESCHRIJVING / DESCRIPTION DES PIÈCES / TEILEBESCHREIBUNG / DESCRIPCIÓN DE LAS PIEZAS / DESCRÍÇÃO DOS COMPONENTES / DESCRIZIONE DELLE PARTI / BESKRIVNING AV DELAR / OPIS CZĘSCI / POPIS SOUČÁSTÍ / POPIS SÚČASTÍ

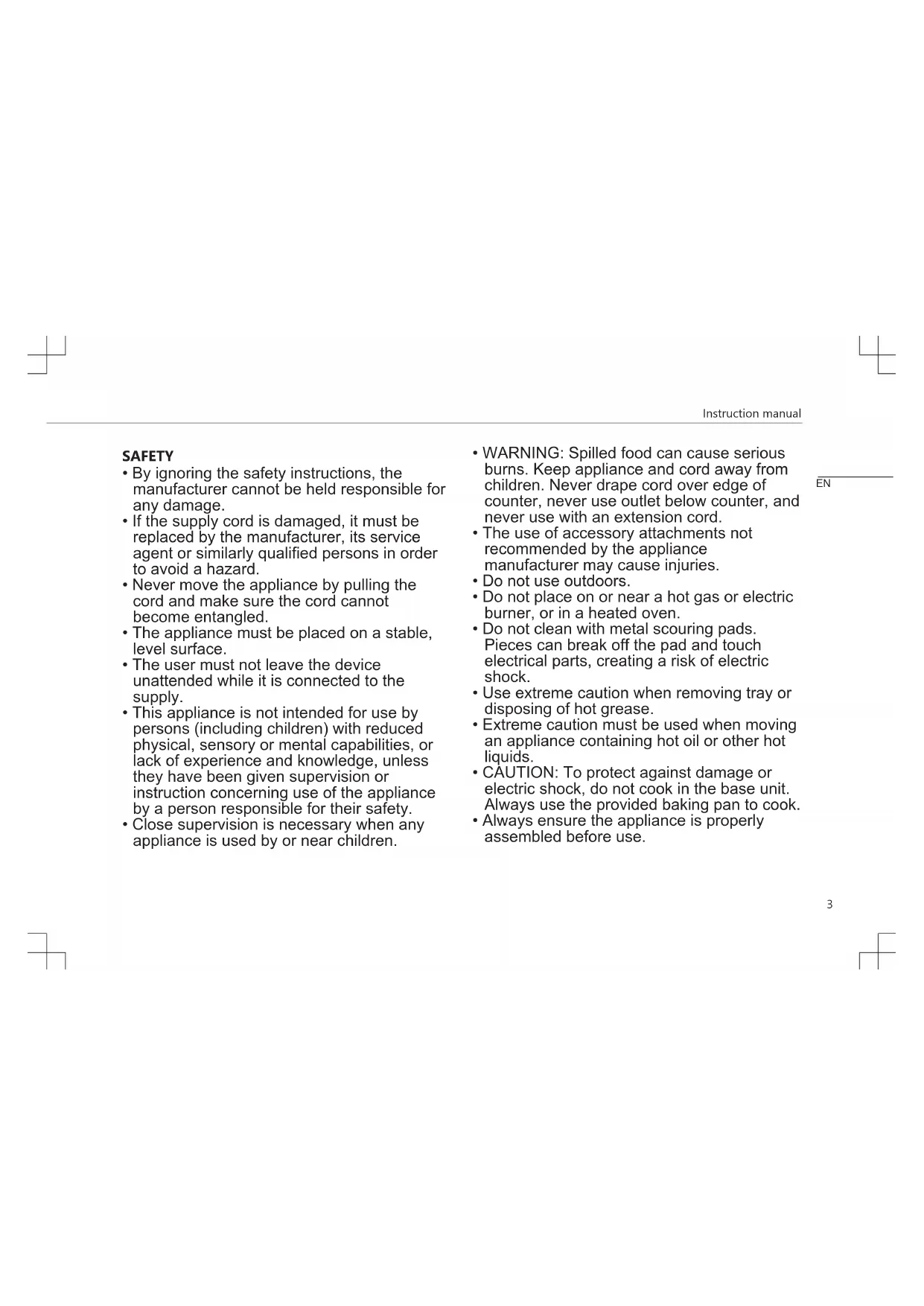

SAFETY

- By ignoring the safety instructions, the manufacturer cannot be held responsible for any damage.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- Never move the appliance by pulling the cord and make sure the cord cannot become entangled.

• The appliance must be placed on a stable, level surface.

- The user must not leave the device unattended while it is connected to the supply.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- Close supervision is necessary when any appliance is used by or near children.

- WARNING: Spilled food can cause serious burns. Keep appliance and cord away from children. Never drape cord over edge of counter, never use outlet below counter, and never use with an extension cord.

- The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.

- Do not use outdoors.

- Do not place on or near a hot gas or electric burner, or in a heated oven.

- Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical parts, creating a risk of electric shock.

- Use extreme caution when removing tray or disposing of hot grease.

- Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.

- CAUTION: To protect against damage or electric shock, do not cook in the base unit. Always use the provided baking pan to cook.

• Always ensure the appliance is properly assembled before use.

PRINCESS ^ Instruction manual

• Care should be taken when removing the baking trays, it's recommended to use oven mittens.
• To avoid possible damage from steam, place the unit away from walls and cabinets during use.
  • This appliance is intended to be used in household and similar applications such as:
• Staff kitchen areas in shops, offices and other working environments.
• By clients in hotels, motels and other residential type environments.
  • Bed and breakfast type environments.
• Farm houses.
  • Children shall not play with the appliance.
• This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
  • To protect yourself against an electric shock, do not immerse the cord, plug or appliance in the water or any other liquid.
• Do not heat the food for too long.
• The connector must be removed before the appliance will be cleaned, please make sure the inlet is completely dry before the unit will be used again.

• Service is liable to get hot during use.
- WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of an electric shock.
- The temperature of accessible surfaces may be high when the appliance is operating.
- The appliance is not intended to be operated by means of an external timer or a separate remote-control system.
- The appliance is to be connected to a socket-outlet having an earthed contact (for class I appliances).
- In order to prevent disruptions of the airflow do not put anything on top of the appliance and make sure there is always 10 centimetres of free space around the appliance.

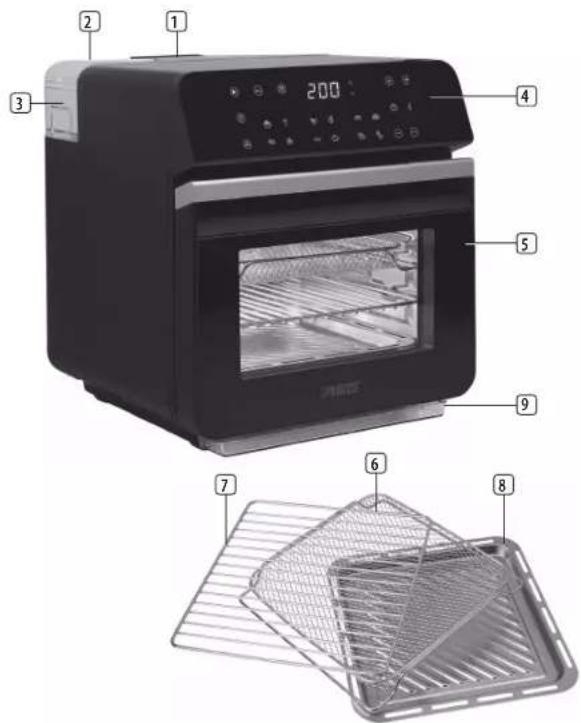

PARTS DESCRIPTION

1. Heat outlet
2. Tank cover
3. Water tank
4. Display

5. Oven door

6. Baking net

7. Grill tray
8. Baking tray
9. Condensation tray

BEFORE THE FIRST USE

• Remove all packaging material.
• Remove any stickers or labels from the appliance.
  • Thoroughly clean the parts with hot water, some washing-up liquid and a non-abrasive sponge.
• Wipe the inside and outside of the appliance with a moist cloth.
• Place the appliance on a stable, horizontal and level surface, do not place the appliance on non-heat-resistant surfaces.
• Use only fresh, cold tap water, softened water or carbonated mineral water for filling the water tank,
• Before the first time use it is recommended to let it the appliance operate in steam mode for 15 minutes without any food inside. See instructions in this manual under the section "USE". When in use for the first time, the pump may produce a loud vibration sound, this is normal and the sound will fade.

Note: When the device is turned on for the first time, a slight odour will occur. This is normal, ensure adequate ventilation. This odour is only temporary and will disappear soon.

OPERATION

Functions on the Display

Start

• Press the Start icon to activate the display when it is in standby mode.
• Press the Start icon to start an operation.

Return

• Press the Return icon to return to the last step.
• Press the Return icon to stop an operation.

Start Timer

- Press the Start Timer icon, then use the Time + and - icons to set the desired starting time. The timer can be set to start between 30 mins to 6 hours. More instructions under the section "USE".

Active Timer indicator

- The timer indicator will flash in the display when the timer has been activated. More instructions under the section "USE".

MIN/°C

Time and Temperature display

PRINCESS

Instruction manual

• Displays the cooking time or temperature.

- Use the Time + and - icons to increase or decrease the cooking time in 1-minute increments. The cooking time can be set between 1 – 90 minutes.

- Press and hold the Time + or - icons for rapid increase/decrease of the time.

- The time can be also be adjusted while the appliance is in operation.

- Use the Temperature plus and minus icons to increase or decrease the temperature by 5°C increments. The temperature can be set between 80°C - 200°C.

- Press and hold the plus or minus icons for rapid increase/decrease of the temperature.

- The temperature can be also be adjusted while the appliance is in operation.

Light

- Use the light icon to turn the oven lamp on or off.

Steam Cleaning

- Press the steam cleaning icon to automatically clean the appliance.

Water Level Warning

- The Water Level Warning icon will illuminate and an alarm bel will be heard for 3 minutes when the tank is empty and the steam function is selected. Please re-fill the water tank when this happens then press start to continue the operation. If no water is added, the operation will automatically end.

- Note: The water tank capacity is 1150mL , filled with water it can run more than 60 minutes, however the length of time the water lasts may vary depending on the ingredients being used.

Steam

- Press the STEAM icon to activate the Steam function.

Air Fry

- Press the AIR FRY icon to activate the Air frying function.

Steam/ Air Fry Combi

- Press the Steam/ Air Fry Combi icon to activate the Steam and Air Fry function simultaneously, the Air Fryer will begin with steaming then switch to air frying.

"In Operation" indicators

- Runs consecutively in the display when the appliance is in operation.

Limescale Indicator

- The limescale indicator will illuminate when there is a limescale build up in the appliance and a steam cleaning in required.

9 Pre-set Cooking Programs

BAKE, FRIES, RICE, VEGETABLES, BREAD, STEAK, DRUMSTICKS, FISH, WHOLE CHICKEN.

• Touch the icon of the desired pre-set cooking program. The pre-set time and temperature for the selected program will show alternatively in the display.
  • See the chapter 'Pre-Set cooking Programs' for more information.

Air Fry pre-set programs	Steam pre-set Programs	Steam/ Air fry Combi pre-set programs
Bake	[Rice]	Bread
Fries	Vegetables	Steak
Drumsticks	Fish	Whole Chicken

Use

- Put the mains plug in an earthed wall socket.

• Open the oven door, place the tray with ingredients to be cooked onto desired rack in the oven and close the oven door.
• Touch the start icon to activate the display.
• From here you can choose for either for Air Frying, Steaming or for both by using the COMBI feature.

AIR FRYING

- Press the Air Fry icon or use one of the Air-frying pre - sets (bake, fries or drumsticks).

Tip: If you need to preheat the appliance, you can preheat it without putting food in it. Just set the cooking time for 3 minutes longer than the expected cooking and add the food after the 3-minute pre-heating phase.

• Use the pre-set values or adjust using the Time + and - and the Temperature + and - icons to set the desired time and temperature.
• Press the Start button to start the operation. The "In operation" indicators will run in the display and the operation will start.

Note: For best results, some ingredients require turning halfway through the preparation time. To turn the ingredients -

• Open the oven door halfway through the operation, the operation will stop.
• Use oven mittens to remove the baking tray and turn the ingredients as needed.
• Place the baking tray back into the appliance and close the door, the operation will resume automatically.

PRINCESS

Instruction manual

- Do not touch the inside the appliance during and sometime after use as it gets very hot.

STEAMING

Note: When steaming, please ensure that the steam outlet located on the inside left of the baking area is not blocked with anything and that water tank is has adequate water in it.

• Remove the water tank from the appliance.
• Open the cover and fill the water tank with water.
• Do not overfill the tank and pay attention to the MAX water level indicator.
  • Always fill with pure water as this helps to delay a limescale build-up.
• Make sure to properly secure the tank cover then attach the water tank back onto the appliance.
• Press the STEAM icon or use one of the Steaming pre-sets (Rice, Vegetables, or Fish)
• Use with the pre-set value for the time or adjust the time using the Time + and - icons. The temperature will be automatically set to 100^ and cannot be adjusted in Steam mode.
• Press the Start icon to start the operation. The “In operation” indicators will run in the display and the operation will start.

Steam/Air Fry Combi

Use the Steam/Air Fry function if you want to STEAM then AIR FRY your food consecutively. The food will first be steamed then Air fried. You must first set the steaming time, then set the air frying time and temperature.

• Make sure that there is adequate water in the water tank.
• Press the Steam/Air fry Combi icon or one of the combi pre-sets (Bread, Meat or Whole Chicken)
• Use the default settings or Set the steaming time by using the Time + and - icons. (The default steam temperature is 100^ and cannot be adjusted).
• Press the Start icon to switch to Combi Air Fry programming.
• Set the air frying time and temperature using the Time and Temperature + and - icons.
• Press the Start icon to start the operation.

- When the Air frying, Steaming or Combi operation is complete the appliance will beep 5 times.

- Open the oven door and carefully remove the baking tray with ingredients from the appliance using oven mittens.

- Unplug the appliance and allow it to cool down completely before cleaning.

Using the Start Timer

You can use the start timer to set a time for an operation to begin. The timer can be set to start within 30 minutes to 6 hours.

Note: Please evaluate how long the food can be kept at room temperature. To prevent food spoilage and not affect the taste, it is advised that the time should not exceed 2 hours.

• Press Start to activate the display.

• Press the Start Timer icon.

• Use the Time + and - icons to set the desired starting time (30mins to 6 hours).

• Press the Start icon.
• Choose the desired cooking program, make any desired adjustments to the cooking time and temperature then press the Start.
• The display will show the countdown and the operation will begin when the countdown is over.

To cancel the Start Timer-

- Unplug the appliance to cancel a timer setting or when the display is showing the timer settings and the in-operation indicator is active, press the return icon, then press the start timer icon then press the start icon.

Note: When the product is not in use for 20 seconds, the appliance will return to standby mode. Activate it again by pressing the Start icon.

Function	Pre - set program	Minutes	°C Manual Adjustment Range -Steam Minutes °C		Manual Adjustment Range - Air Fry Minutes °C
STEAM	Vegetables 22	100	1 -	90	100 -
	Fish 10	100	1 -	90	100 -
	Rice /pasta/ grain	25	100	1 -	90	100 -
AIR-FRY	Fries 20	200	1 -			80 - 200
	Cake 45	160	1 -			80 - 200
	Drumsticks 20	200	- -	1 -		80 - 200

PRE-SET COOKING PROGRAMS

PRINCESS

Instruction manual

COMBI(1stSteamthen Airfry)	Meat
	(Steam) 5 100 1 -			90	100 -
	(Air fry) 10 200 - - 1 -					90	80 -200
	Bread
	(Steam)□(Air Fry)	3 100 1 -		90	100 -
		40 40 1 -		90	100 1	-90	40 -200
	Chicken(whole)
	(Steam)□(Air Fry)	20 100 1 -		90	100 1	-90	80 -200
		10 200 - - -

CLEANING AND MAINTENANCE

• Before cleaning, unplug the appliance and wait for the appliance to cool down.
• Use a soft damp cloth to wipe clean the exterior of the appliance.
• Use a small brush or cotton swab if necessary. Never pour any liquid into the base of the unit.
• Wash the removable parts in warm soapy water with a soft cloth or sponge.

• Note that the baking trays are dishwasher safe. However, we recommend to wash them by hand as this will be beneficial for the lifetime of the product.
• After using the appliance for a period of time, the inside of the water tank may breed bacteria, please clean the inner wall of the water tank regularly.
• Dry each piece thoroughly.
- Never use harsh chemical detergents, scouring pads or powders on any of the parts or accessories.

Limescale Steam Cleaning

The limescale icon will illuminate when a steam cleaning is required. The steam cleaning function can clean the interior of the appliance to a certain extent under the action of high temperature steam, especially for some places that cannot be cleaned directly with a cloth. You must allow the cleaning process to run its course completely. It can be done using only water or with water and a descaling solution.

• Fill the water reservoir up to the MAX level with water and add a descaling solution according to the instructions of the descaler.
• Press Start then press the Self-cleaning icon.
• Press the Self-cleaning icon. Cleaning will begin and last for 20 minutes.
  • Empty the water from condensation tray.

• Refill the water tank will pure water then press Start.
• Press the self -cleaning icon.
  • After 15 minutes, the limescale cleaning will be completed and the limescale indicator light will turn off.
  • Empty the water from the condensation tray.
• Dry the appliance with a kitchen towel.

Storing Instructions

• Unplug the appliance and allow unit to cool completely.
  • Always empty the water tank before storing the appliance, the water can go bad before the next use.
• Store the baking trays inside the unit.
• Store the unit in its original box or covered in a cool, dry place.

TROUBLESHOOTING

The unit is equipped with safety features that will shut the unit down if an abnormal condition is encountered during cooking.

Problem Possible reason	Solution
Appliance not functioning	Plug not inserted Insert	the plug into the wall socket
	Appliance is in standby	Press any icon on the display
Ingredients are not properly cooked	The food is too thick Cut	at large of food pieces into smaller pieces
	The cooking time is too short	Lengthen the cooking time
	The cooking temperature is too low	Increase the cooking temperature
	Some foods require turning	Turn the ingredients halfway during the cooking process
Smoke is rising from the appliance	The ingredients are greasy	Grease from the ingredients has seeped into the cavity, this will not affect the result
The appliance is giving off black smoke and a strong smell	Appliance malfunction	Unplug the appliance and contact your supplier

PRINCESS

Instruction manual

The fried ingredients are not crispy	Brittleness depends on the oil and water	Make sure the fries are dry and brush the tray with a few drops of oil
Water tank is leaking The	tank cover is not properly installed	Check and reinstall the cover properly
There is water flowing from the bottom of the appliance	The condensation tray is full	Empty the condensation tray
	Internal connections defect	Contact the supplier
The appliance has an unpleasant smell	The appliance was not cleaned after use	Empty all the water and clean the appliance

ENVIRONMENT

This appliance should not be put into the domestic garbage at the end of its durability, but must be offered at a central point for the recycling of electric and electronic domestic appliances. This symbol on the appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling of used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection.

Support

You can find all available information and spare parts at www.princesshome.eu!

VEILIGHEID

Active timer-indicator

Combi Vapore/Air Fry

Combi Vapore/Air Fry

WSTĘPNIE USTAWIONE PROGRAMY GOTOWANIA

FOR ACCESSORIES AND SPARE PARTS TO EXTEND YOUR ITEM!
