X5C - VCR EZVIZ - Free user manual and instructions

Product type	Digital video recorder (NVR)
Brand	EZVIZ
Model	X5C
Dimensions (approx.)	260 x 220 x 45 mm
Weight (approx.)	1.2 kg
Power supply	12 V DC, 2 A
Video interfaces	1 x VGA, 1 x HDMI
Audio interfaces	1 x audio input, 1 x audio output
Network interfaces	1 x Ethernet RJ45 (LAN)
USB interfaces	1 x USB (for mouse)
Internal storage	1 x SATA for 3.5-inch hard drive (not included)
Recording resolution	Up to 1080p
Number of supported cameras	Up to 4 cameras (depending on model)
Camera connectivity	Wired (Ethernet) and wireless (Wi-Fi)
Mobile app	EZVIZ (iOS and Android)
Main functions	Continuous recording, motion detection, alarm, remote viewing
Warranty	1 year (parts and labor)
Care and cleaning	Unplug before cleaning; use a soft, dry cloth
Safety	Minimum distance of 20 cm between device and body
Spare parts and repairability	Hard drive replaceable by user; other repairs by certified professional

Frequently Asked Questions - X5C EZVIZ

How to install a hard drive in the X5C?

Remove the cover by unscrewing the six screws (No. 1 to 6). Connect the data cable and power cord to the hard drive, then screw it in with screws No. 7 to 10. Close the cover.

How to connect wireless cameras to the X5C?

Go to Menu > Camera > Search. When the camera is ready to connect to Wi-Fi, click Search then + to add it.

How to reset the X5C?

Insert a pin into the reset hole (RESET) and hold it for 8 seconds until the indicator blinks red.

Can I use the EZVIZ app to control the X5C?

Yes, download the EZVIZ app on iOS or Android, create an account, then add the X5C by scanning the QR code on the device.

What should I do if the LED is solid red?

A solid red light indicates an error or alarm. Check connections and refer to the manual for details.

What is the maximum distance between the camera and the X5C?

The camera must be within 10 meters (32.8 feet) of the X5C for optimal wireless connection.

Can the X5C operate without a hard drive?

The X5C can be used without a hard drive for live viewing, but recording requires an installed SATA hard drive.

How to properly shut down the X5C?

On the monitor interface, go to Menu > Shutdown then click Yes. Do not unplug the device while it is running.

What types of cameras are compatible with the X5C?

The X5C is compatible with EZVIZ wireless and wired (Ethernet) cameras. Cameras must be within 10 m for wireless.

What should I do if the screen shows no image?

Check that the VGA or HDMI cable is properly connected and that the monitor is set to the correct input source. Also ensure the X5C is powered on.

USER MANUAL X5C EZVIZ

Abstract four-petal logo composed of colored ovals (blue, green, magenta, orange) with white curved lines, no text or symbols present.

ezviz™

Vault Live

Quick Start Guide

About the Documents

The documents include instructions for using and managing the product. Pictures, charts, images and all other information hereinafter are for description and explanation only. The information contained in the documents is subject to change, without notice, due to firmware updates or other reasons. Please find the latest version in the website (http://www.ezvizlife.com).

Any and all information, including, among others, wordings, pictures, graphs are the properties of EZVIZ Inc. or its subsidiaries (hereinafter referred to be “EZVIZ”). The documents cannot be reproduced, changed, translated, or distributed, partially or wholly, by any means, without the prior written permission of EZVIZ. Unless otherwise stipulated, EZVIZ does not make any warranties, guarantees or representations, express or implied, regarding to the documents.

Trademarks Acknowledgement

ezviz™. 📋™, and other EZVIZ's trademarks and logos are the properties of EZVIZ in various jurisdictions. Other trademarks and logos mentioned in the documents are the properties of their respective owners.

Legal Disclaimer

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE PRODUCT DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, IS PROVIDED "AS IS", WITH ALL FAULTS AND ERRORS, AND EZVIZ MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR PURPOSE, AND NON-INFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL EZVIZ, ITS DIRECTORS, OFFICERS, EMPLOYEES, OR AGENTS BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF EZVIZ HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL EZVIZ'S TOTAL LIABILITY FOR ALL DAMAGES EXCEED THE PURCHASE PRICE THE PRODUCT.

EZVIZ does not undertake any liability for personal injury or property damage, as the result of product interruption or service termination cause by: a) improper installation or usage other than as requested; b) the protection of national or public interests; c) Force Majeure; d) yourself or the third party, including not limitation, using any third party's products, software, applications, and among others.

REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS. EZVIZ SHALL NOT TAKE ANY RESPONSIBILITES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, EZVIZ WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.

Regulatory Information

FCC Information

FCC compliance: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that may cause undesired operation.

Note: This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This product generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

—Reorient or relocate the receiving antenna.

—Increase the separation between the equipment and receiver.

—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

—Consult the dealer or an experienced radio/TV technician for help.

Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This equipment should be installed and operated with a minimum distance 20cm between the radiator and your body

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:

(1) this device may not cause interference, and

(2) this device must accept any interference, including interference that may cause undesired operation of the device.

Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.

EU Conformity Statement

This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European standards listed under the Radio Equipment Directive 2014/53/EU, the EMC Directive 2014/30/EU, the RoHS Directive 2011/65/EU.

2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points. For more information see: www.recyclethis.info.

2006/66/EC and its amendment 2013/56/EU (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentation for specific battery information. The battery is marked with this symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a designated collection point. For more information see: www.recyclethis.info.

Use only power supplies listed in the user instructions.

Power Adapter: MSA-C1500IC12.0-18P-DE.

Made by: Moso Power Supply Technology Co., Ltd.

Industry Canada ICES-003 Compliance

This device meets the CAN ICES-3 (B)/NMB-3(B) standards requirements.

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:

(1) this device may not cause interference, and

(2) this device must accept any interference, including interference that may cause undesired operation of the device.

This equipment should be installed and operated with a minimum distance 20cm between the radiator and your body.

Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.

CAUTION: THE PRODUCT IS BUILT IN A REPLACEABLE BATTERY. RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

Due to the product shape and dimension, the name and address of the importer/manufacturer are printed on the package.

EC DECLARATION OF CONFORMITY

Hereby, Hangzhou Hikvision Digital Technology Co., Ltd. declares that the radio equipment type [CS-X5C-4/CS-X5C-8] is in compliance with Directive 2014/53/EU.

The full text of the EC DECLARATION OF CONFORMITY is available at the following web link:

http://www.ezvizlife.com/declaration-of-conformity.

For more information, please visit www.ezvizlife.com

Need help? Contact us:

Phone:

USA/CAN:[phone]

MX: [phone]

Email:

USA/CAN/MX: [e-mail]

Other countries: [e-mail]

SAVE THIS MANUAL FOR FUTURE REFERENCE

Basic Information

EN

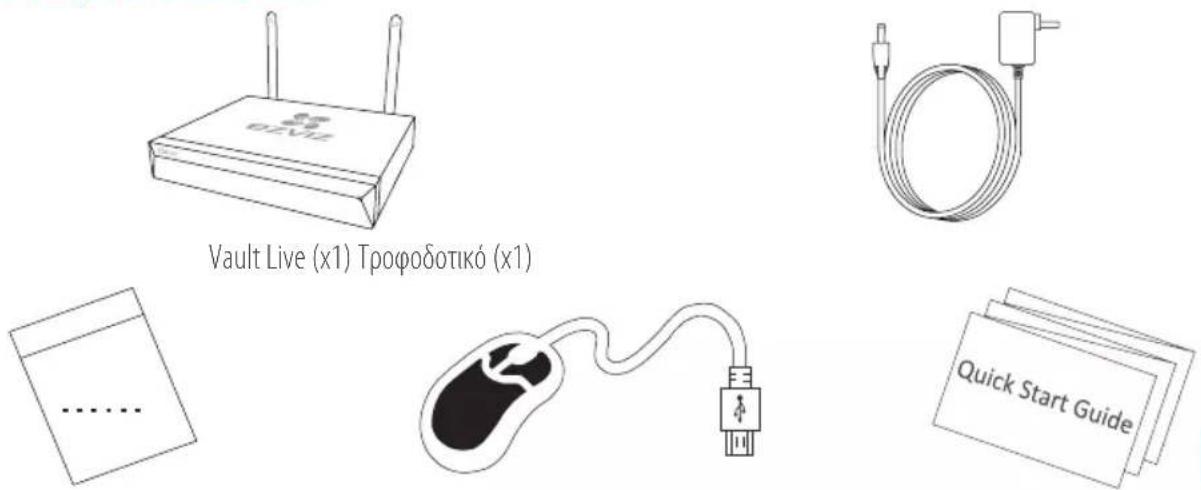

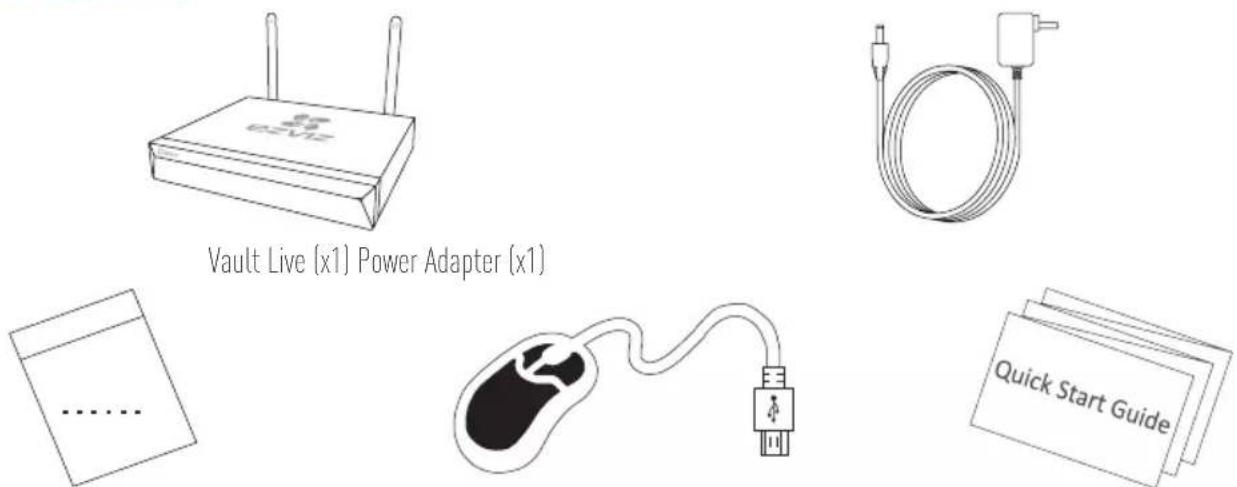

Box Contents

Accessories (x1) Mouse (x1) Quick Start Guide (x1)

For models equipped with HDDs, the accessories are not included in the box contents.

Product View

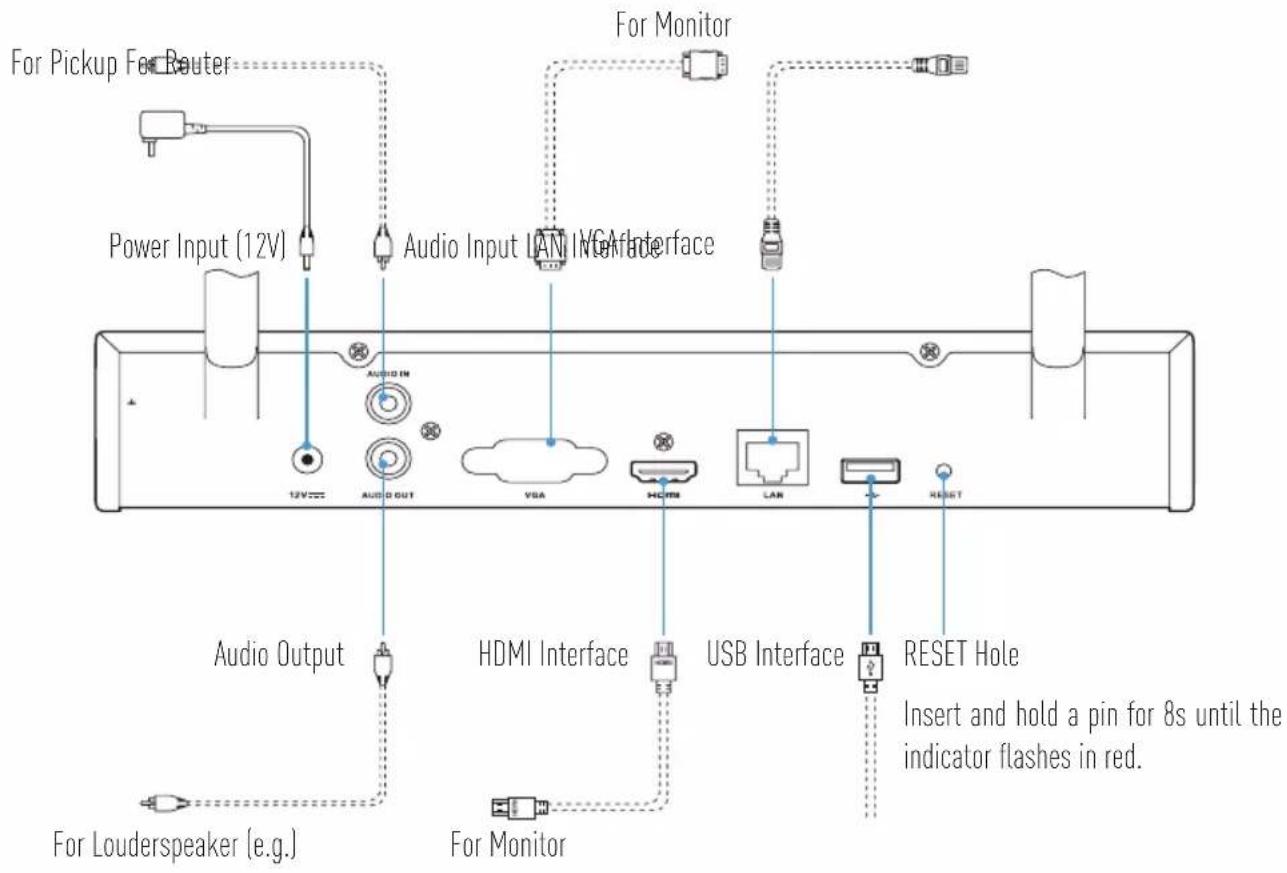

Rear Panel Overview

For Pickup For Router Power Input (12V) Audio Input LAN VGA Interface For Monitor Audio Output HDMI Interface USB Interface RESET Hole Insert and hold a pin for 8s until the indicator flashes in red. For Louderspeaker (e.g.) For Monitor

The cables with dotted lines above are not included.

Wiring

If you want to install HDD by yourself, refer to Appendix.

Cable Connection

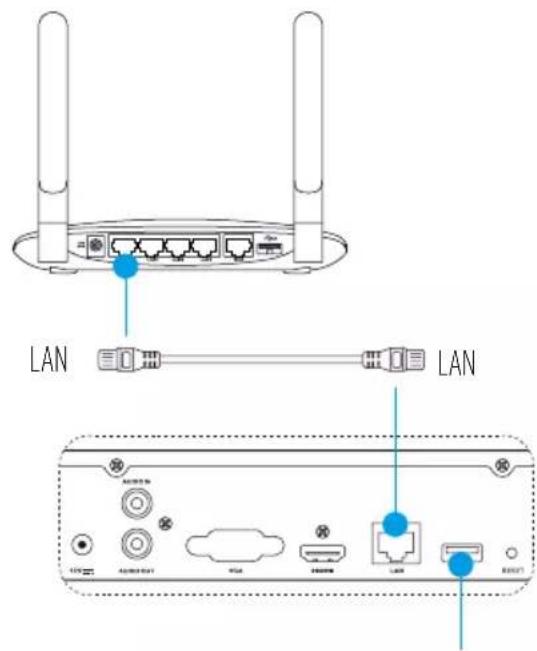

1. Connect the LAN interface of Vault Live to that of router using network cable.
2. Connect the mouse to the USB interface of Vault Live.

LAN LAN

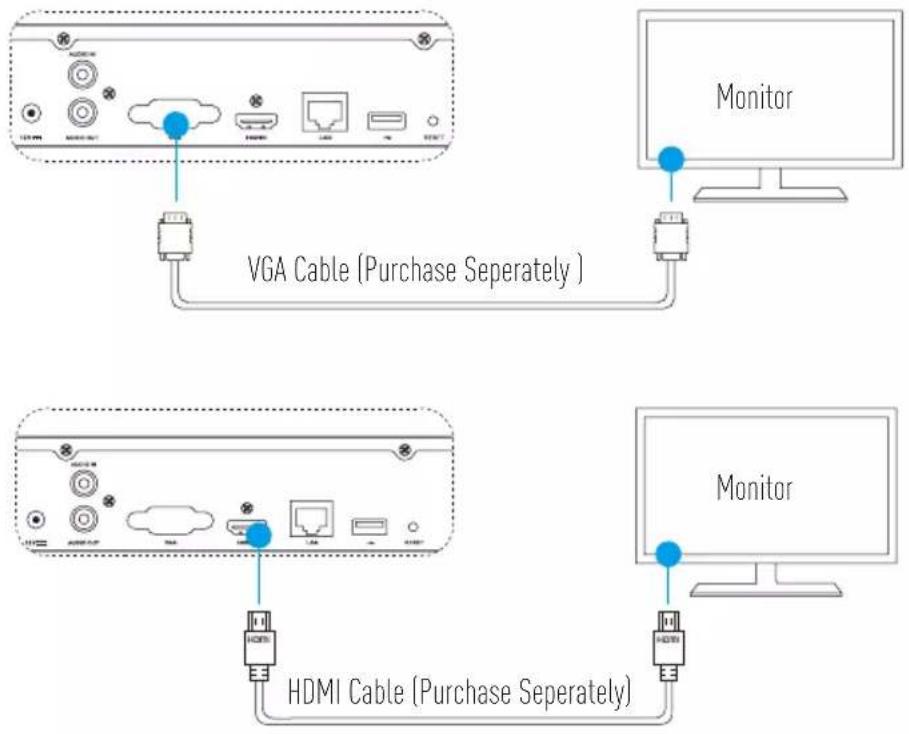

1. Connect Vault Live to the Monitor using VGA or HDMI cable.

VGA Cable (Purchase Separately) Monitor HDMI Cable (Purchase Separately)

i Choose the corresponding signal source of the Monitor according to different connections.

Setup

Powering on

The camera should be within 10m (32.8ft) from the Vault Live.

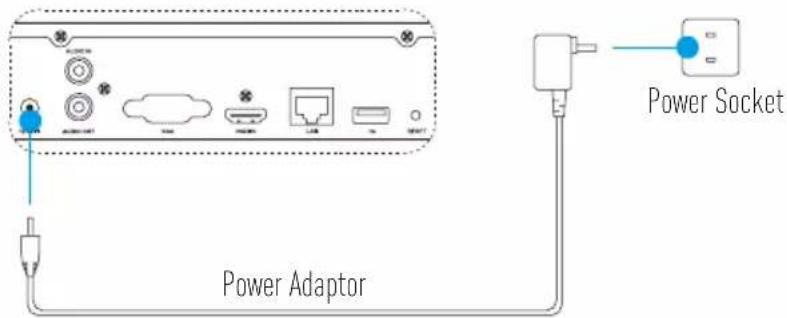

1. Power on the Vault Live using power adaptor and power socket.

Power Adaptor Power Socket

i Use stable power supply to avoid device exception or even damage.

1. Wait until the Wizard interface appears on the Monitor and set the password (For First Time Access).
2. Log in the Vault Live.

(Optional) Shutdown

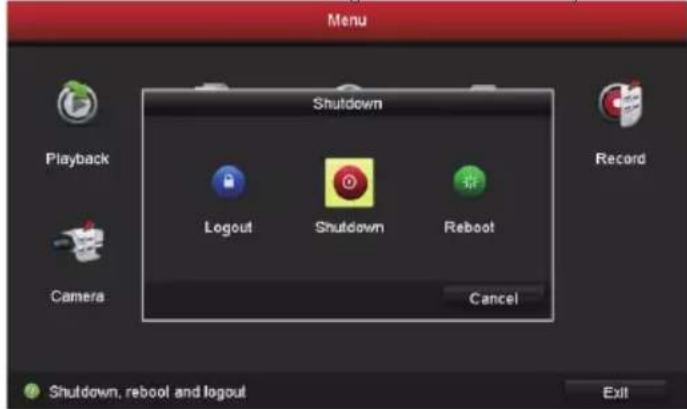

1. In the operation interface of Vault Live (Monitor), go to Shutdown by Menu → Shutdown and click it.

Menu Shutdown Playback Logout Shutdown Reboot Camera Cancel Record Shutdown, reboot and logout Exit

1. Click Yes.

For device protection, do not power off it when it is still working.

Linkage

Linking through Monitor

Power on all devices before you start.

Quick Linkage for Wireless Camera

i Restore the camera if it has been connected to Wi-Fi before

Line drawing of a wireless router with two leads (no text or symbols on body)

Line drawing of a stylized digital device with a face, button, and base (no text or symbols)

Option 1:

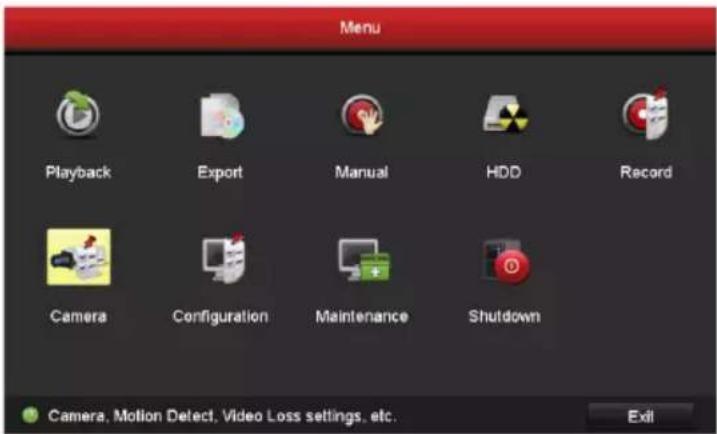

1. Go to Camera Management by Menu → Camera.

Menu Playback Export Manual HDD Record Camera Configuration Maintenance Shutdown Camera, Motion Detect, Video Loss settings, etc. Exit

1. When camera is ready to connect Wi-Fi, click Search.

The camera will automatically connect to the Vault Live.

1. Click "+" to add linked camera.

Option 2:

A. Connect camera to the Wi-Fi from Vault Live's uplink router or switch.
B. Repeat Step 1 and 3 in Option 1.

Quick Linkage for Cabled Camera

A. Connect camera to Vault Live's uplink router or switch with network cable.
B. Repeat Step 1 and 3 in Option 1.

LED Indicator Status

Line drawing of a wireless router with two leads and a dashed-line connection point (no text or symbols)

Steady Green: Working Properly

Steady Red: Device Exceptions or Alarm

Flashing Red: Restore Factory Defaults

Linking through Phone

1. Download the App in your Phone (Optional).

2. Search for "EZVIZ" in the App Store/Google Play™ to download and install the App.

3. Launch the App.

4. Register an EZVIZ user account.

5. Add the Vault Live.

6. Log into the EZVIZ App.

7. Click “+” on the upper-right corner to go to QR code scanning interface.

Home + Hi~ Click here to add your EZVIZ device(s).

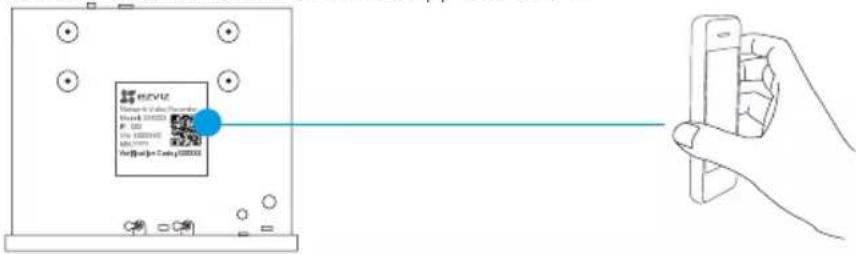

- Scan the QR Code of Vault Live with the EZVIZ App and add it.

H2V1Z H2V1Z Viali Pachmire H2V1Z 000000 P. GSD H2V1Z 000000 H2V1Z 000000 H2V1Z Pin Caxing 000000

1. Open the Vault Live in the EZVIZ App.
2. Click “+” to add camera(s).

Appendix

HDD Installation

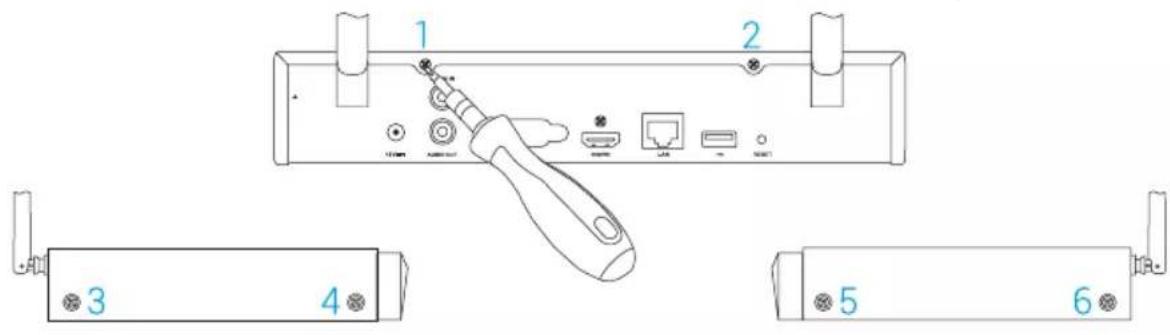

1. Loosen six screws No.1 to 6 on the back and both sides of the device to take apart the cover.

Diagram showing labeled ports and connectors for a device, including battery, switch, and ports 1-6.

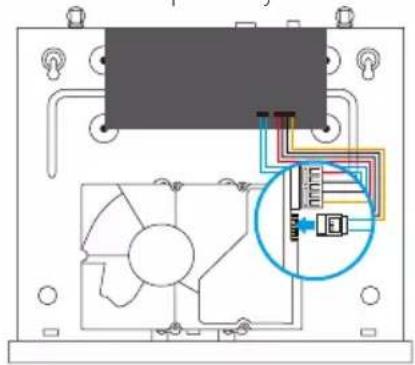

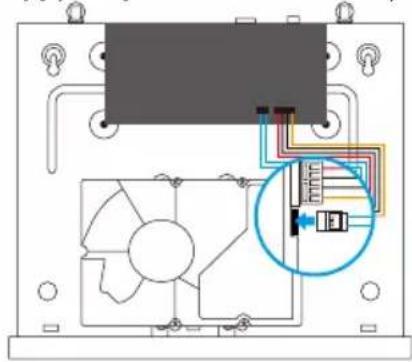

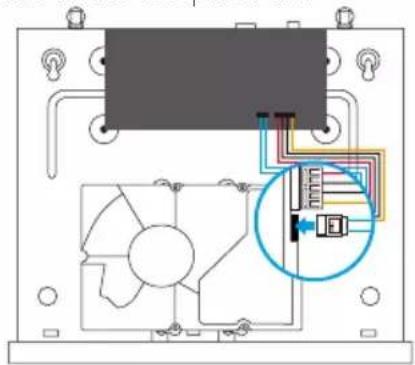

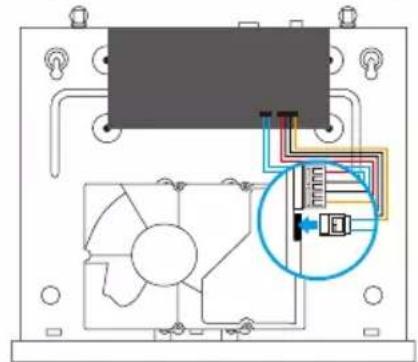

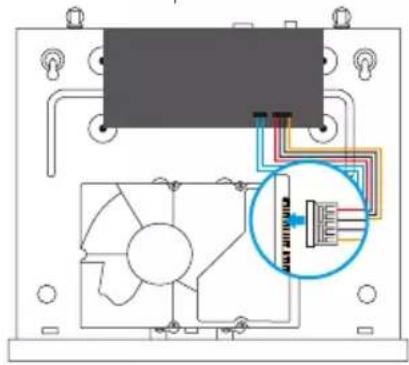

1. Connect the data cable and power cable of Vault Live with HDD respectively.

Technical diagram showing a device with fan, circuit, and internal components, including a magnified inset highlighting a component with labeled pins.

Power Interface

Technical diagram showing internal components of a device with labeled parts and wiring connections

Data Interface

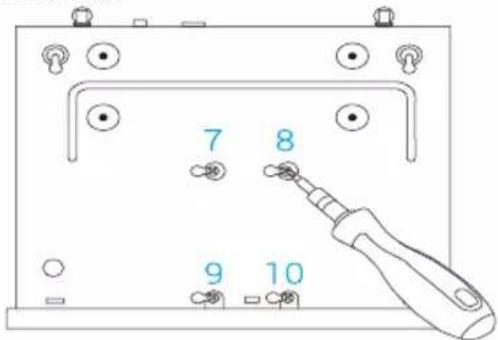

1. Use screws (No. 7, 8, 9, 10) to fix the HDD.

7 8 9 10

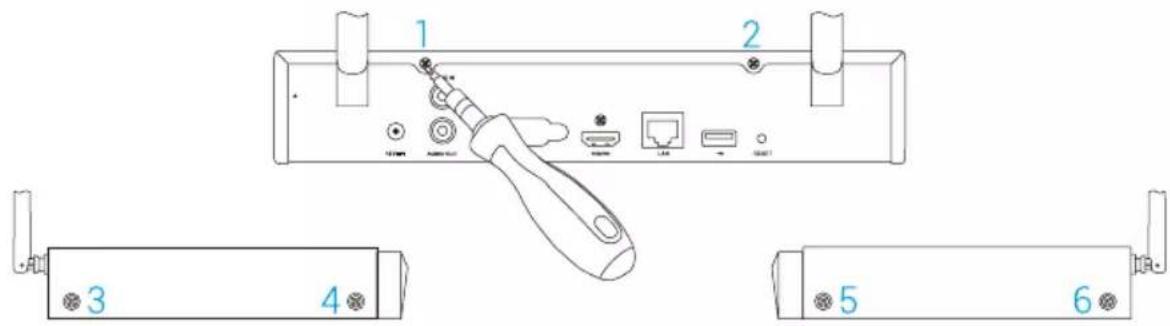

1. Re-assemble the Vault Live with screws (No.1 to No. 6).

Diagram of a device rear panel with labeled ports and connectors, showing internal components and terminal labels.

Menu Shutdown Playback Logout Shutdown Reboot Camera Cancel Record Shutdown, reboot and logout Exit

Menu Playback Export Manual HDD Record Camera Configuration Maintenance Shutdown Camera, Motion Detect, Video Loss settings, etc. Exit

Home Hi~ Click here to add your EZVIZ device(s).

Diagram showing labeled ports and connectors for a device, including battery, switch, and ports 1-6

Pure electrical circuit lines without any symbols

Stromanschluss

Pure electrical circuit lines without any symbols

Datenanschluss

Diagram showing labeled ports and connectors for a device, including ports 1, 2, 3, 4, 5, and 6 with visible pin labels.

Información básica

Menu Shutdown Playback Record Camera Logout Shutdown Reboot Cancel Shutdown, reboot and logout Exit

1. Haga clic sobre Yes (Sí).

Menu Playback Export Manual HDD Record Camera Configuration Maintenance Shutdown Camera, Motion Detect, Video Loss settings, etc. Exit

Home + Hi~ Click here to add your EZVIZ device(s).

Technical diagram showing a fan assembly with labeled components and a highlighted connection point

Pure electrical circuit lines without any symbols

Interfaz de datos

Technical diagram showing labeled components of a device rear panel with ports and connectors

Informations de base

Contenu du carton

Line drawing of a wireless router with two leads (no text or symbols)

Coiled electrical cable with two connectors (no text or symbols visible)

FR

Simple geometric diagram of a rectangle with a dashed line inside, no text or symbols present.

Simple line drawing of a computer mouse connected to a USB cable (no text or symbols)

Quick Start Guide

Menu Shutdown Playback Logout Shutdown Reboot Cancel Record Camera Shutdown, reboot and logout Exit

Menu Playback Export Manual HDD Record Camera Configuration Maintenance Shutdown Camera, Motion Detect, Video Loss settings, etc. Exit

Home + Hi~ Click here to add your EZVIZ device(s).

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

Menu Shutdown Playback Logout Shutdown Reboot Cancel Record Camera Shutdown, reboot and logout Exit

Line drawing of a wireless router with two leads (no text or symbols)

Line drawing of a stylized digital device with a face, button, and base (no text or symbols)

Opzione 1:

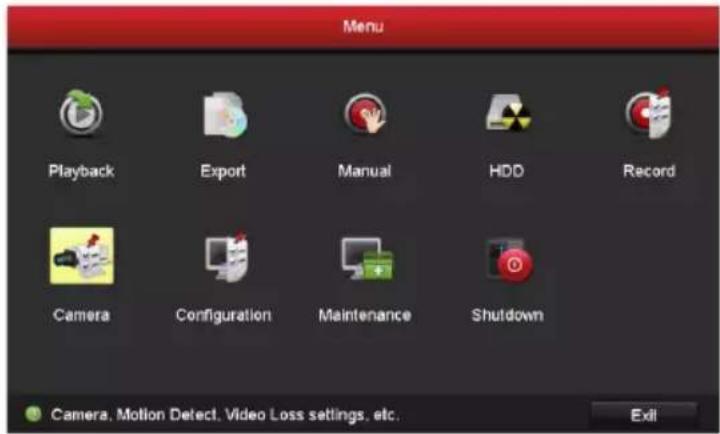

1. Accedere a Camera Management (Gestione telecamera) da Menu → Camera (Telecamera).

Menu Playback Export Manual HDD Record Camera Configuration Maintenance Shutdown Camera, Motion Detect, Video Loss settings, etc. Exit

Line drawing of a wireless router with two leads (no text or symbols)

Home + Hi~ Click here to add your EZVIZ device(s).

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

Interfaccia dati

Technical diagram showing labeled components of a device rear panel with ports and connectors

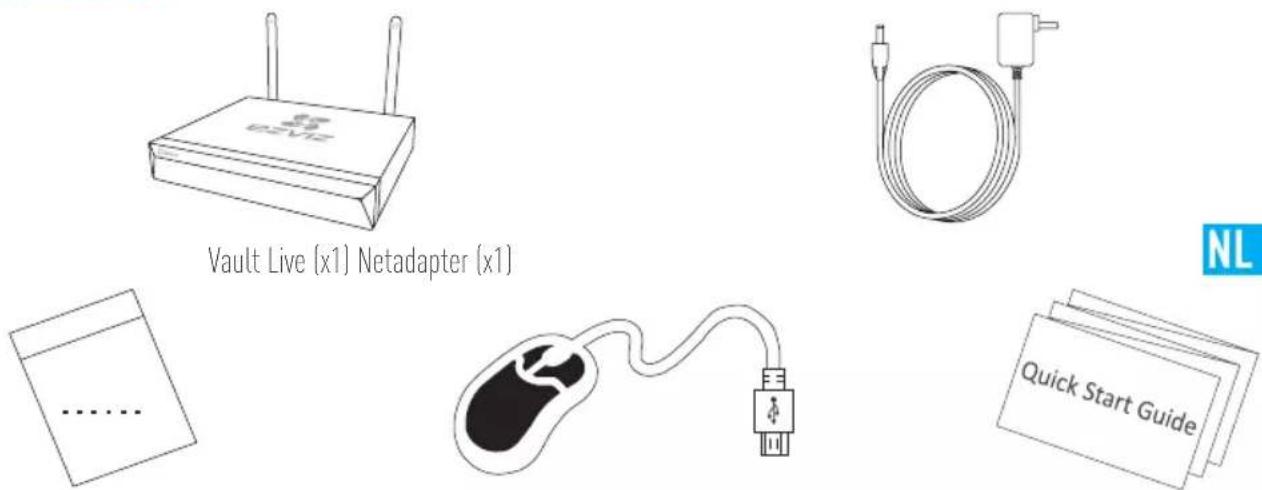

Basis informatie

Doosinhoud

Accessoires (x1) Muis (x1) Snelstartgids (x1)

Voedingsadapter Stopcontact

Menu Shutdown Playback Logout Shutdown Reboot Cancel Record Camera Shutdown, reboot and logout Exit

1. Klik op Yes (Ja).

Line drawing of a wireless router with two leads (no text or symbols)

Line drawing of a stylized digital device with a rounded top and base (no text or symbols)

Optie 1:

Menu Playback Export Manual HDD Record Camera Configuration Maintenance Shutdown Camera, Motion Detect, Video Loss settings, etc. Exit

Line drawing of a wireless router with two antennas and a base labeled '02VZ' (no additional text or symbols)

Home + Hi~ Click here to add your EZVIZ device(s).

Pure electrical circuit lines without any symbols

Power Interface

Pure electrical circuit lines without any symbols

Data-interface

Menu Shutdown Playback Logout Shutdown Reboot Cancel Record Camera Shutdown, reboot and logout Exit

Menu Playback Export Manual HDD Record Camera Configuration Maintenance Shutdown Camera, Motion Detect, Video Loss settings, etc. Exit

Home Hi~ Click here to add your EZVIZ device(s).

PL

Diagram showing labeled ports and connectors for a device, including battery, switch, and ports 1-6

Pure electrical circuit lines without any symbols

złącze zasilania

Diagram of a device interior showing fan, circuit board, and internal wiring (no text or labels)

złącze danych

Line drawing of a wireless router with two leads (no text or symbols)

Simple line drawing of a coiled electrical or medical device with two ports (no text or symbols)

Simple geometric diagram of a rectangle with a dashed line inside, no text or symbols present.

Simple line drawing of a computer mouse connected to a USB port (no text or symbols)

Quick Start Guide

RU

Menu Shutdown Playback Logout Shutdown Reboot Cancel Record Camera Shutdown, reboot and logout Exit

1. Нажмите Да.

Menu Playback Export Manual HDD Record Camera Configuration Maintenance Shutdown Camera, Motion Detect, Video Loss settings, etc. Exit

Line drawing of a wireless router with two leads (no text or symbols)

Home + Hi~ Click here to add your EZVIZ device(s).

RU

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

Diagram showing labeled ports and connectors for a device, including ports 1, 2, 3, 4, 5, and 6 with visible pin labels.

Βασικές πληροφορίες

Περιεχόμενα κουτιού

Menu Shutdown Playback Logout Shutdown Reboot Cancel Record Camera Shutdown, reboot and logout Exit

Menu Playback Export Manual HDD Record Camera Configuration Maintenance Shutdown Camera, Motion Detect, Video Loss settings, etc. Exit

Line drawing of a wireless router with two leads (no text or symbols)

Home + Hi~ Click here to add your EZVIZ device(s).

GR

Pure electrical circuit lines without any symbols

Θύρα τροφοδοσίας

Diagram of a device interior showing fan, drive, and internal wiring (no text or labels)

Θύρα δεδομένων

Menu Shutdown Playback Logout Shutdown Reboot Cancel Record Camera Shutdown, reboot and logout Exit

Menu Playback Export Manual HDD Record Camera Configuration Maintenance Shutdown Camera, Motion Detect, Video Loss settings, etc. Exit

Home + Hi~ Click here to add your EZVIZ device(s).

CZ

E2VIZ Enerate Value Processor MnA-300000 F-021 EN-800000 EN-7000 P+0.05/1.0/1.0/1.0/1.0/1.0/1.0/1.0/1.0/1.0/1.0/1.0/1.0/1.0/1.0/1.0/1.0/1.0/1.0/1.0/1.0/1.0/1.0/1.0/1.0/1.0/1.5

Pure electrical circuit lines without any symbols

Rozhraní napájení

Pure technical diagram of an electrical enclosure with internal components and wiring, no text or symbols present

Datové rozhraní

Diagram of a device rear panel with labeled ports and connectors, showing internal components and terminal labels.

LIMITED WARRANTY

Thank you for purchasing EZVIZ products. This limited warranty gives you, the original purchaser of the EZVIZ product, specific legal rights. You may also have other legal rights that vary by state, province or jurisdiction. The disclaimers, exclusions, and limitations of liability under this limited warranty will not apply to the extent prohibited by applicable law. No distributor, reseller, agent, or employee is authorized to make any medication, extension, or addition to this limited warranty.

Your EZVIZ product is warranted for a period of one (1) year from the date of purchase against defects in materials and workmanship, or such longer period as may be required by law in the country or state where this product is sold, when used normally in accordance with user manual.

You can request warranty service by emailing us at [e-mail].

For any defective EZVIZ products under warranty, HANGZHOU HIKVISION DIGITAL TECHNOLOGY CO., LTD. ("the Company") will, at its option, (i) repair or replace your product free of charge; (ii) exchange your product with a functional equivalent product; (iii) or refund the original purchase price, provided you provide the original purchase receipt or copy, brief explanation of the defect, and return the product in its original packaging. At the sole discretion of the Company, repair or replacement may be made with a new or refurbished product or components. This warranty does not cover the postal cost, insurance and any other incidental charges incurred by you in returning the product.

Except where prohibited by applicable law, this is your sole and exclusive remedy for breach of this limited warranty. Any product that has either been repaired or replaced under this limited warranty will be covered by the terms of this limited warranty for the longer of ninety (90) days from the date of delivery or the remaining original warranty period.

This warranty does not apply and is void:

• If the warranty claim is made outside the warranty period or if the proof of purchase is not provided.
• For any consumable parts, such as batteries, where the malfunction is due to the normal aging of the product.
• Cosmetic damage, including but not limited to scratches, dents and broken plastic on ports.
• Any software, even if packaged or sold with EZVIZ hardware.
• For any other damages free from defects in material or workmanship.
• Routine cleaning, normal cosmetic and mechanical wear and tear.

- For any malfunction, defect or failure caused by or resulting from the evidence of impact, mishandling, tampering, use contrary to the applicable instruction manual, incorrect power line voltage, accident, loss, theft, fire, flood or other Acts of God, shipping damage or damage resulting from repairs performed by unauthorized personnel.

Please do not hesitate to contact your seller, or send e-mails to us [e-mail], with any questions.

COPYRIGHT ©2017 HANGZHOU HIKVISION DIGITAL TECHNOLOGY CO., LTD. ALL RIGHTS RESERVED.

BESCHRÄNKTE GARANTIE

Abstract logo with four colored petal-like shapes (blue, green, magenta, orange) arranged in a cross pattern, no text or symbols present.

ezviz
