Product View

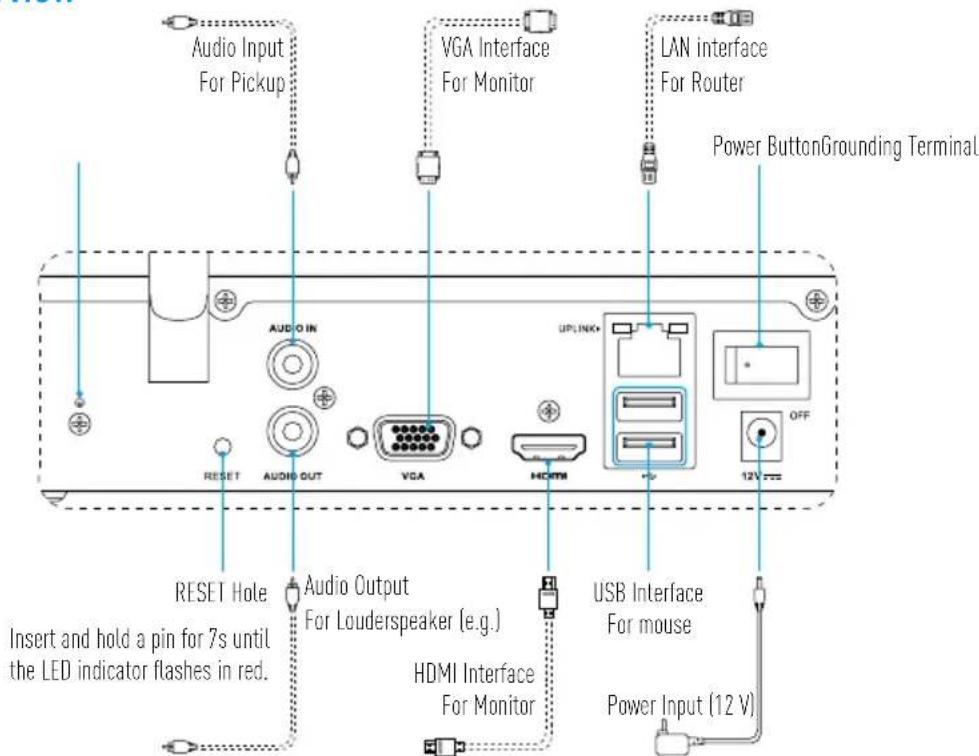

Rear Panel Overview

The cables with dotted lines above are not included.

Wiring

If you want to install HDD by yourself, refer to Appendix.

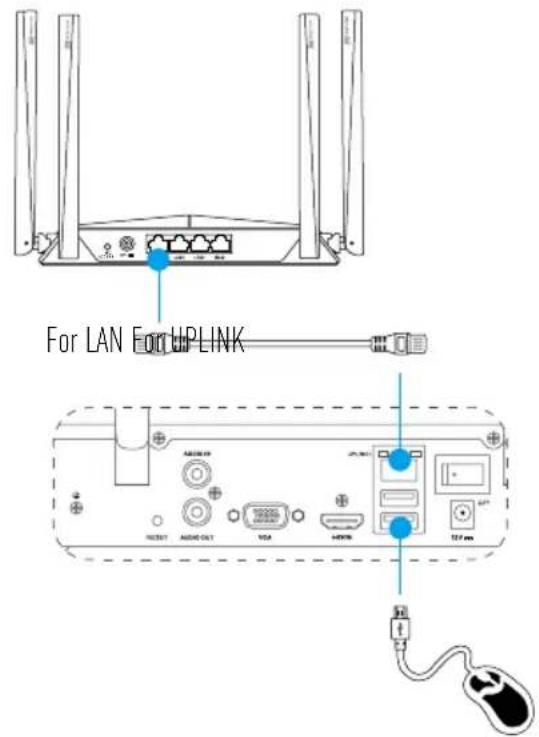

1. Connect the LAN interface of NVR to that of router using network cable (suggested).
2. Connect the mouse to the USB interface of NVR.

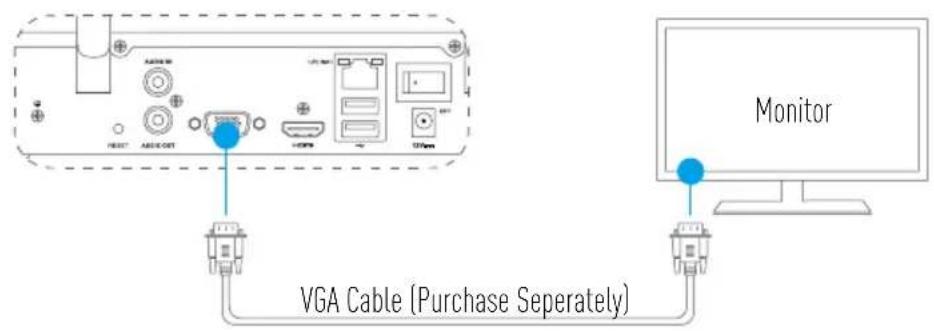

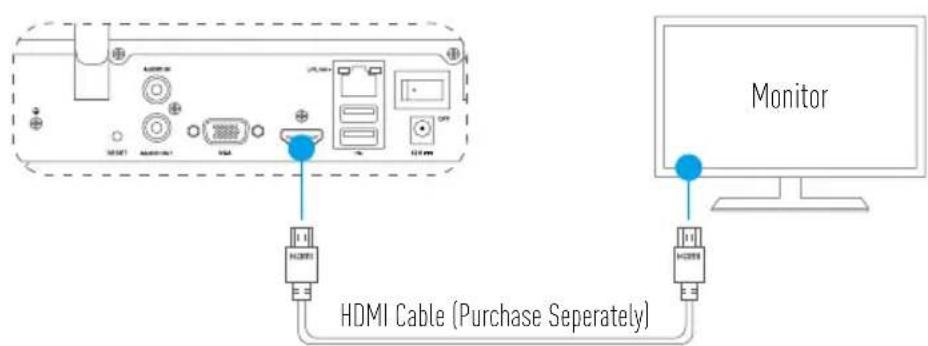

1. Connect NVR to the Monitor using VGA or HDMI cable.

Choose the corresponding signal source of the Monitor according to different connections.

Setup

Power on

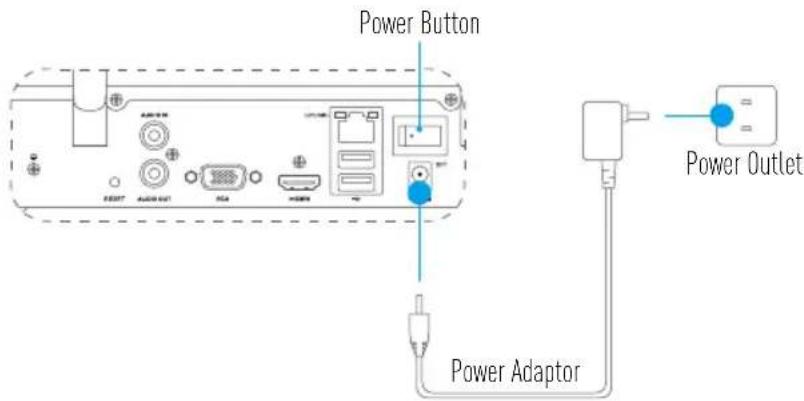

1. Connect NVR with power outlet and turn on the power button.

Use stable power supply to avoid device exception or even damage.

1. Wait until the Wizard interface appears on the Monitor and set the password (For the first time access).

It is recommended to set new password for better security.

1. Log in the NVR.

2. Admin password is the verification code on the table of the device.

If the wizard does not appear, please check the steps above.

(Optional) Shutdown

1. In the operation interface of NVR (Monitor), go to Shutdown by Menu → Shutdown and click it.

2. Click Yes.

For device protection, do not turn off or disconnect the power supply while the device is working.

Linkage

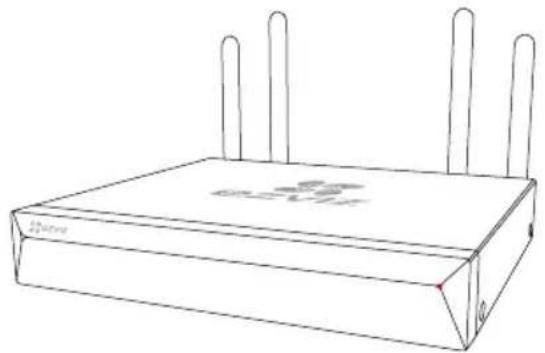

Link through Monitor

Make sure that the camera and device are using the same network, wired or wireless.
The wireless camera in its initial state can be added to the device's Wi-Fi network by the following steps.

Power on all devices before you start.

• Reset the camera if it has been connected to Wi-Fi before.
• The camera and device should be within the distance of up to 10m (32.8 feet). Stay away from wireless device or barriers to avoid signal decreasing.

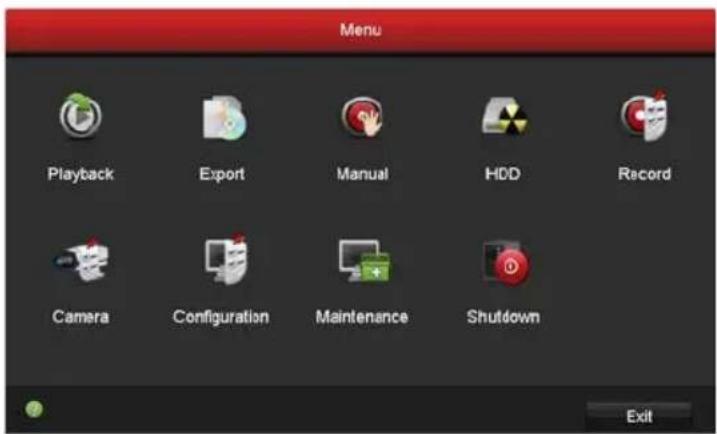

1. Go to Camera Management by Menu Camera.

1. When camera is ready to connect Wi-Fi, click Search.
2. Click "+" to add linked camera.

The camera will automatically connect to the device.

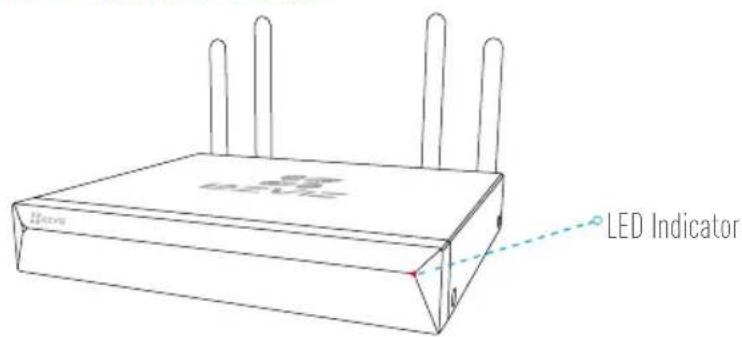

LED Indicator Status

LED Indicator Status

Steady Green Working Properly

Steady Red Device Exceptions or Alarm

Flashing Red Restore Factory Defaults

Link to EZVIZ APP

You can add your devcie to EZVIZ app for more functions.

1. Download the App in your Phone (Optional).

2. Search for "EZVIZ" in the App Store/Google Play™ to download and install the app.

3. Launch the App.

4. Register an EZVIZ user account.

5. Add the NVR.

6. Log into the EZVIZ App.

7. Click "+" on the upper-right corner to go to QR code scanning interface.

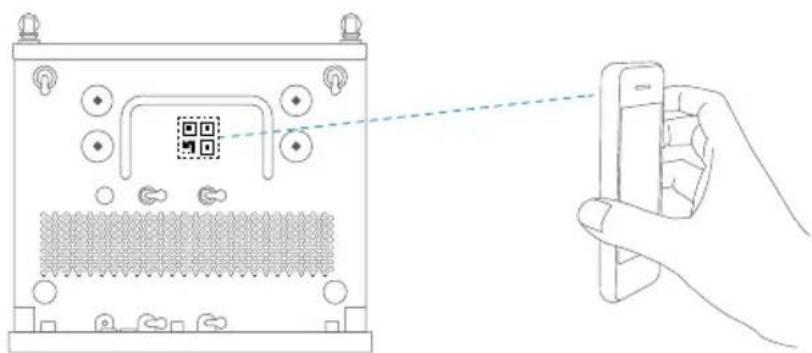

• Scan the QR Code at the bottom to add the device.

Appendix

HDD Installation

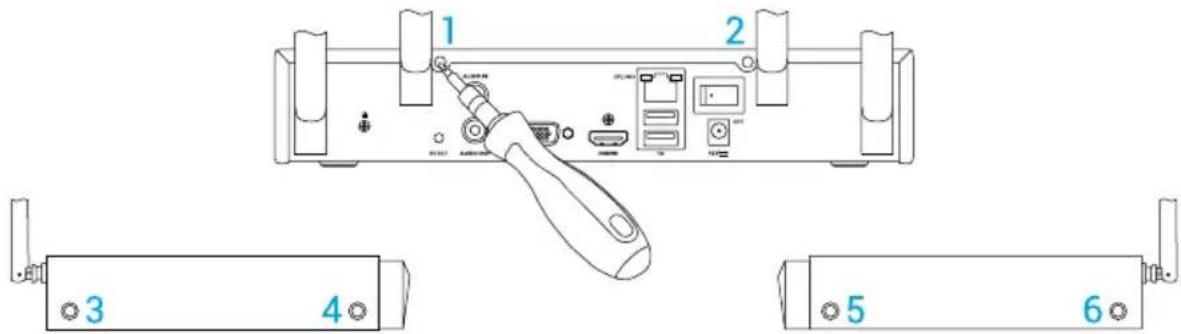

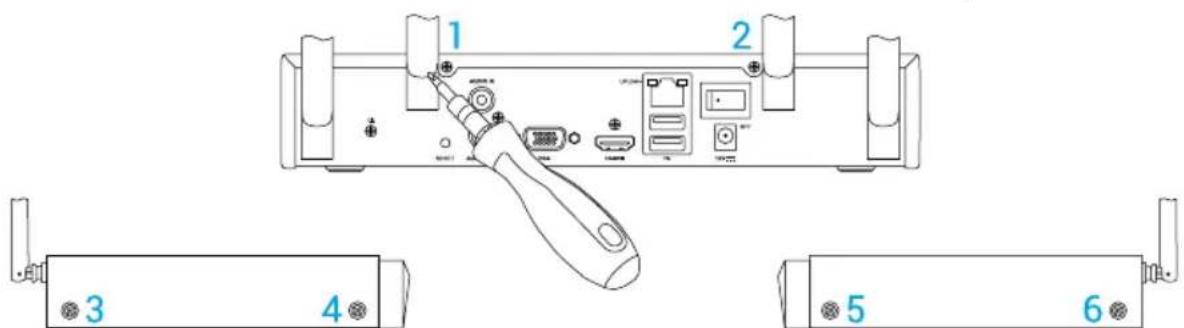

1. Loosen six screws No.1 to 6 on the back and both sides of the device to take apart the cover.

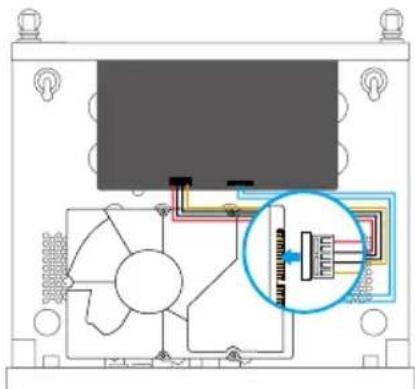

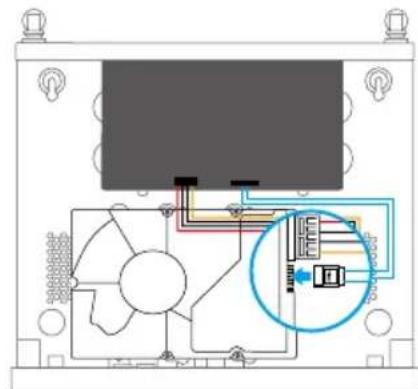

1. Connect the data cable and power cable of NVR with HDD respectively.

Power Interface

Data Interface

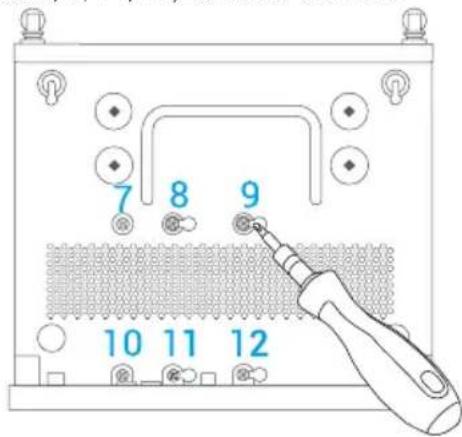

1. Use screws (No. 7, 9, 10, 12) or (No. 8, 9, 11, 12) to fixate the HDD.

1. Re-assemble the NVR with screws (No.1 to No. 6).
