X3 - VCR EZVIZ - Free user manual and instructions

Product Type	Recorder (NVR) 8 channel
Brand	EZVIZ
Model	X3
Power Supply	5 V DC (power adapter included)
Network Connectivity	Ethernet RJ45 (no Wi-Fi)
Number of supported cameras	Up to 8 cameras
Internal Storage	2.5-inch hard drive (7 mm or 9 mm thickness)
Box Contents	1 X3 unit, 1 power adapter, 1 Ethernet cable, 1 power cable, 1 quick start guide, rubber inserts (depending on version)
LED Indicator	Blue: normal operation; Yellow: anomaly (no hard drive or hard drive error)
USB Interface	Present (reserved)
Reset Button	Yes (hold for 10 seconds with a pin)
Mobile App	EZVIZ (iOS and Android)
Warranty	1 year (conditions apply)
Camera Compatibility	EZVIZ cameras on the same network
Maintenance	Keep the device in a dry and ventilated place
Dimensions	Approximately 120 x 120 x 25 mm (estimated)
Weight	Approximately 200 g (without hard drive)
Repairability	Hard drive replaceable by user; contact support for other parts

Frequently Asked Questions - X3 EZVIZ

How to install a hard drive in the X3?

Remove the 4 screws under the device (including one under the label), open the cover, install the appropriate rubber inserts for the drive thickness (7 or 9 mm), connect the cable and place the drive. Close the cover and screw back in.

Can the X3 connect via Wi-Fi?

No, the X3 does not support Wi-Fi. It must be connected to the router via an Ethernet cable.

How to add a camera to the X3?

In the EZVIZ app, first add the X3 by scanning its QR code, then add each camera the same way. In the camera settings, select the X3 as storage to start recording.

What does the solid yellow LED indicator mean?

A solid yellow light indicates an anomaly: no hard drive, hard drive error, or other device malfunction.

How to reset the X3?

Press and hold the reset button with a pin for at least 10 seconds while powered on, then release until the LED blinks quickly.

What is the warranty of the X3?

The X3 is warranted for 1 year from the date of purchase against defects in materials and workmanship, subject to proper use. Contact [e-mail].

Can I use a 3.5-inch hard drive?

No, the X3 only accepts 2.5-inch hard drives with 7 mm or 9 mm thickness (inserts included depending on version).

How many cameras can I record with the X3?

The X3 supports recording up to 8 cameras.

How to download the EZVIZ app?

Search for 'EZVIZ' in the App Store (iOS) or Google Play (Android) and install it. Create a user account to configure your devices.

What to do if the light stays yellow after installing the hard drive?

Check that the hard drive is properly connected and recognized. Make sure you used the appropriate inserts. If the problem persists, contact EZVIZ support.

USER MANUAL X3 EZVIZ

Abstract logo with four colored petal-like shapes (blue, green, magenta, orange) arranged in a cross pattern (no text or symbols)

ezviz

X3

Quick Start Guide

COPYRIGHT ©2016 Hangzhou Hikvision Digital Technology Co., Ltd. or its sub RESERVED.

About this Manual

The Manual includes instructions for using and managing the product. Pictures, which other information hereinafter are for description and explanation only. The information is subject to change, without notice, due to firmware updates or other reasons. Manual is subject to change, without notice, due to firmware updates or other reasons. Latest version in the ^TM website (http://www.ezvizlife.com).

Any and all information, including, among others, wordings, pictures, graphs are that Hangzhou Hikvision Digital Technology Co., Ltd. or its subsidiaries (hereinafter re This user manual (hereinafter referred to be “the Manual”) cannot be reproduced, or distributed, partially or wholly, by any means, without the prior written permission otherwise stipulated, Hikvision does not make any warranties, guarantees or represents implied, regarding to the Manual.

Trademarks Acknowledgement

ezviz ^TM , and other Hikvision's trademarks and logos are the properties of I- various jurisdictions. Other trademarks and logos mentioned below are the property owners.

LegalisDissolaimer

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE PR HARDWARE, SOFTWARE AND FIRMWARE, IS PROVIDED "AS IS", WITH AND HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCI MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A PARTIC INFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL HIKVISION, ITS I OR AGENTS BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PRO OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE U HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGE PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL HIKVISION'S EXCEED THE PURCHASE PRICE THE PRODUCT.

HIKVISION does not undertake any liability for personal injury or property data product interruption or service termination cause by: a) improper installation or requested; b) the protection of national or public interests; c) Force Majeure; d) party, including not limitation, using any third party's products, software, appliances, and others.

REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF

YOUR OWN RISKS. HIKVISION SHALL NOT TAKE ANY RESPONSIBILITES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.

SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS TO THE APPLICABLE LAW. YOU FUTHER AGREE THAT THIS PRODUCT IS ONLY FOR CIVIL USE, AND HIKVISION SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS USED WITH ILLEGITIMATE PURPOSES, SUCH AS THIRD PARTY RIGHTS INFRINGEMENT, MEDICAL TREATMENT, SAFETY EQUIPMENT OR OTHER SITUATIONS WHERE THE PRODUCT FAILURE COULD LEAD TO DEATH OR PERSONAL INJURY, OR WEAPON OF MASS DESTRUCTION, CHEMINICAL AND BIOLOGICAL WEAPON, NUCLEAR EXPLOSION, AND ANY UNSAFE NUCLEAR ENERGY USES OR ANTI-HUMANITY USAGES. YOU SHOULD UNDERTAKE ALL RESPONSIBILITIES FOR LOSSES OR DAMAGES RESULTING FROM THE ABOVE USAGES WHATSOEVER.

IN THE EVENT OF ANY CONFLICTS BETWEEN THE ABOVE AND THE APPLICABLE LAW, THE LATER PREVAILS.

Regulatory Information

FCC Information

Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

FCC compliance: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

—Consult the dealer or an experienced radio/TV technician for help

FCC Conditions

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.

EU Conformity Statement

This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European standards listed under the EMC Directive 2014/30/EU, the RoHS Directive 2011/65/EU.

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points. For more information see: www. recyclethis.info.

Simple line drawing of a trash bin with two crossed lines indicating no waste or restriction (no text or symbols)

2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentation for specific battery information. The battery is marked with this symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a designated collection point. For more information see: www.recyclethis.info.

Industry Canada ICES-003 Compliance

This device meets the CAN ICES-3 (B)/NMB-3(B) standards requirements.

Operations

Step 1 Installing 2.5-inch HDD

If the product you purchases has a built-in HDD, skip this step.

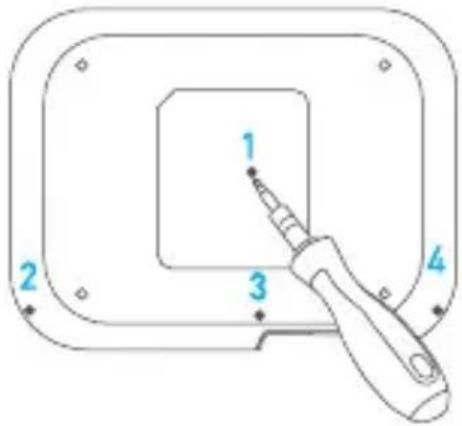

1 Loosening the Screws

Loosen the 4 screws on the base of the X3 with a screwdriver, as shown in the figure below:

1 2 3 4

The No.1 screw is behind the label. Tear off the lable, you can see the No. 1 screw.

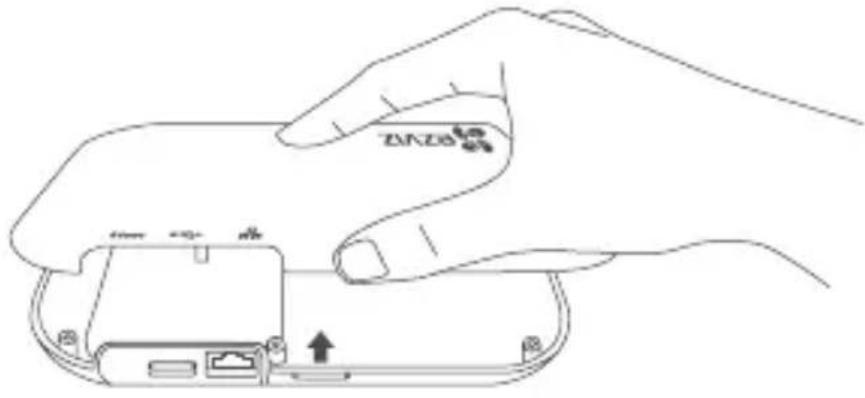

2 Opening the Cover

Open the cover at the groove according to the direction of arrow, as shown in the figure below:

ZuVza 68

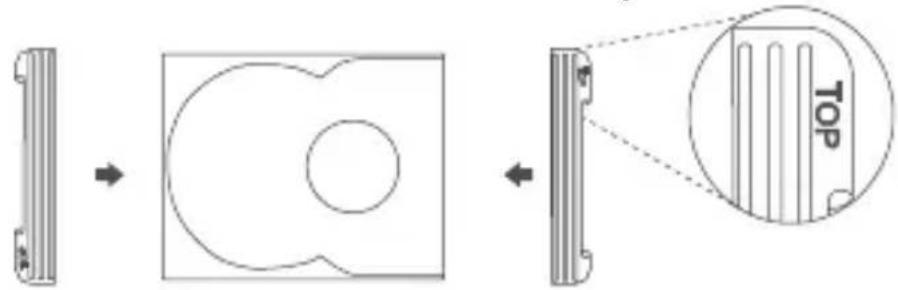

3 Installing the HDD Rubber Case

Pick an appropriate rubber case according to the HDD thick, and cover the rubber case on the two sides of the HDD, as shown in the figure below.

Diagram illustrating the process of a device's top view, showing transformation from a rectangular component to a square with a circular hole, and finally to a close-up of the top component.

If the HDD is 9mm thick, the TOP mark of the rubber case should be facing upward when installing.

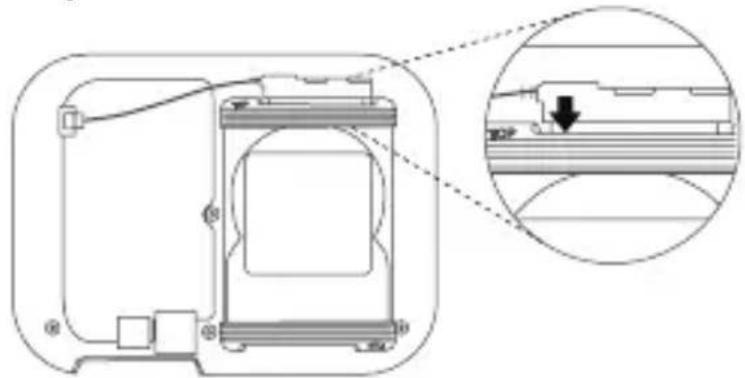

4 Installing the HDD

Connect the HDD cable to the HDD and place the HDD in the designated position, as shown in the figure below.

Technical diagram of a mechanical component with an inset showing a close-up view of a slot or slot (no text or symbols present)

5 Completing Installation

Replace the cover and fasten the 4 screws in the step 1 and complete the installation.

Step 2 Starting up the X3

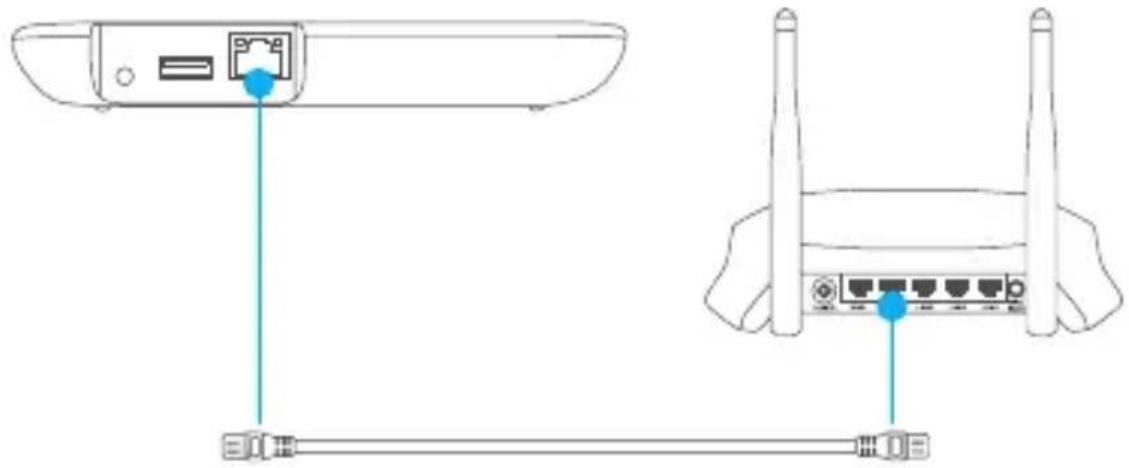

1 Connecting to the Network Connect X3 to the router with a network cable.

Diagram of two wireless devices showing front and rear ports with connectors (no text or symbols)

i X3 does not support the Wi-Fi network connection.

2 Power-on Connect the X3 to the power adapter with a power cable, and connect to the power socket. The LED indicator turns solid blue when the X3 starts completely.

i The indicator turns solid yellow in the following cases:

• No installed HDD
• HDD error
• Device exceptions

Step 3

Adding Devices to EZVIZ

1 Installing the EZVIZ App

• Download and install the EZVIZ app by searching the "EZVIZ" in App Store or Google Play™.
• Launch the app and register for an EZVIZ user account.

2 Adding X3 to EZVIZ

• Log into the EZVIZ app.
• Click the "+" on the upper-right hand corner to add a device.
• Scan the QR Code on the bottom of X3.

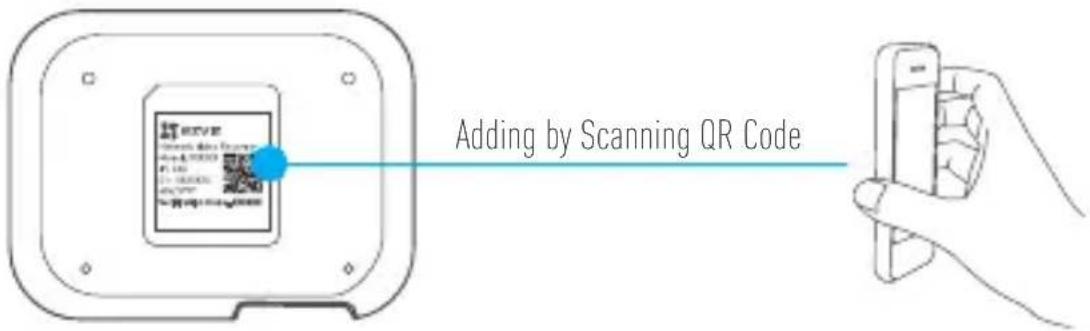

Adding by Scanning QR Code

3 Adding Camera to EZVIZ

• The procedure of adding a camera is the same as the adding X3. Refer to the step 2 to add a camera to your EZVIZ account.
• Enter the Settings page of the camera, tap Storage Status and select X3 in the storage list to start X3 recording of the camera.

The X3 supports up to 8 cameras recording and only connects to cameras that are on the same network.

Appendix

Box Contents

ezvtz

Quick Start Guide

X3 (x1) Power Adapter (x1) Quick Start Guide (x1)

Coiled cable with two connectors (no text or symbols visible)

Power Cable (x1) Network Cable (x1)

Two identical cylindrical objects with textured surfaces, no text or symbols visible

HDD Rubber Case 1 (Optional) (x2)
(For 7mm thick HDD)

Coiled cable with two connectors (no text or symbols visible)

Two identical cylindrical objects with textured surfaces, no visible text or symbols

HDD Rubber Case 2 (Optional) (x2)
(For 9mm thick HDD)

The HDD rubber case will not be included if the product is equipped with a HDD by default.

Basics

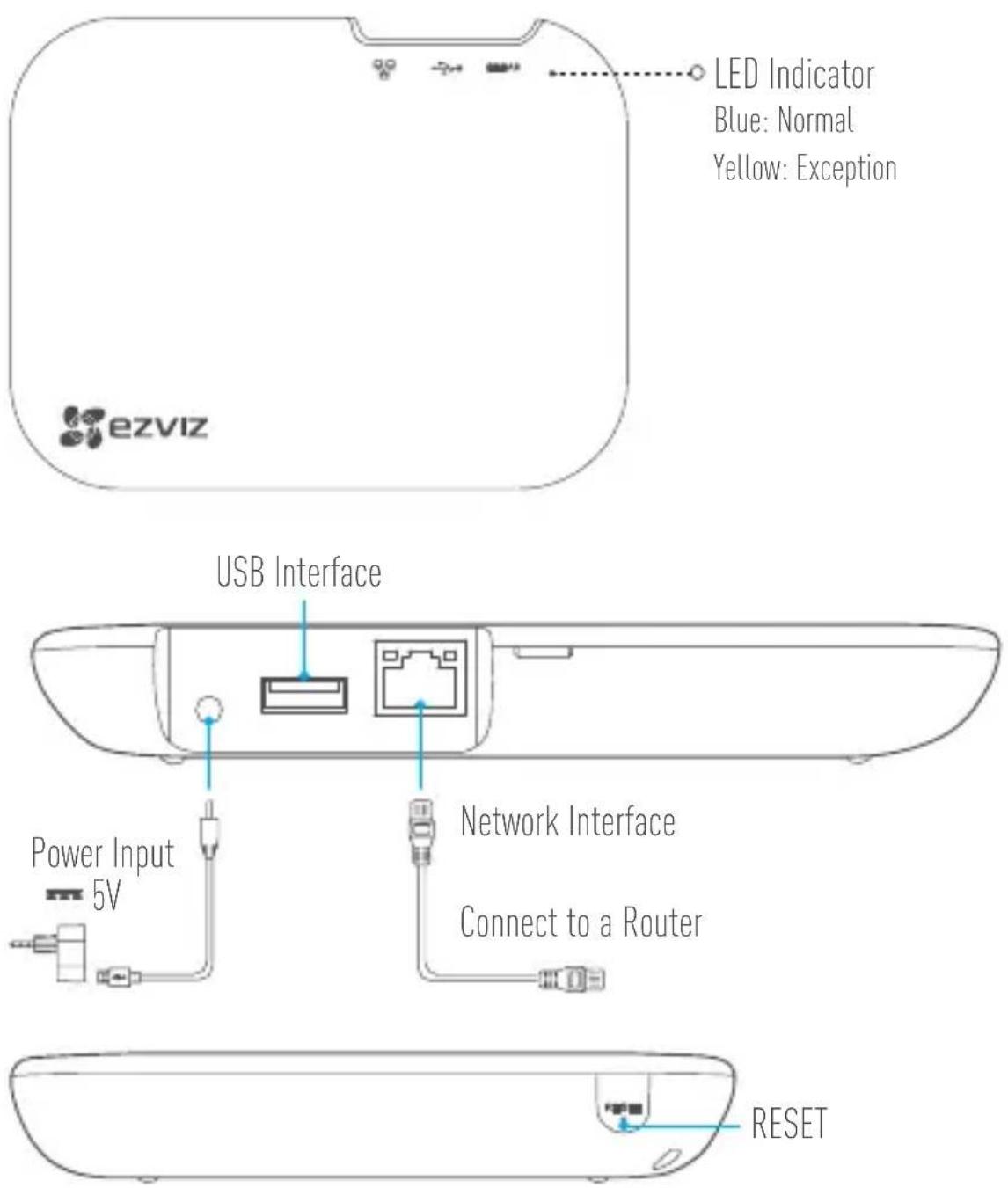

LED Indicator Blue: Normal Yellow: Exception ezviz USB Interface Power Input 5V Network Interface Connect to a Router RESET

To reset the settings: Hold down the RESET button with a needle for as least 3 seconds when the device is power-on, and release until the LED indicator flickers quickly.
