Karl Big - Humidifier STADLERFORM - Free user manual and instructions

Product type	Natural evaporation humidifier
Brand	STADLERFORM
Model	Karl Big
Dimensions (L x H x D)	502 x 335 x 242 mm
Weight	4.6 kg
Power supply	100 – 240 V / 50 / 60 Hz, 2.4 – 40 W
Tank capacity	11.0 litres
Max humidity output	1100 g/h
Max recommended area	150 m² / 375 m³
Noise level	27 – 60 dB(A)
Humidity setting (hygrostat)	40 %, 45 %, 50 %, 55 % and continuous operation (CO)
Humidification levels (fan speed)	1, 2, 3, Turbo
Automatic mode	Yes, maintains desired humidity
LED lighting	Dimmer: normal, dimmed, off
WiFi connectivity	Yes, via Smart Life – Smart Living app (Tuya)
Filter change reminder	Yes, every 60 days
Automatic shut-off when tank empty	Yes, red LED
Humidifier filters	4 pieces, change every 2-3 months
Water Cube™	Ensures optimal hygiene, replace each season
Textile cover	Removable, washable at 30°C (delicate cycle)
Recommended cleaning	Tank: every 3 days; descaling: every 4 weeks
Child safety	Possible use from age 8 under supervision
Minimum distance from water point	3 meters (bathtub, shower, pool)
Compliance	CE, DEEE, RoHS, EAC, UKCA
Warranty	2 years (wear parts excluded)
Spare parts available	Filters, Water Cube, textile cover, adapter

Frequently Asked Questions - Karl Big STADLERFORM

How to fill the water tank while the unit is operating?

Press the filling opening (13) on the top of the device to open it. Pour clean cold water using a watering can or bottle, without exceeding the Max mark (17). Caution: do not let water enter the air outlet (14).

What does the red light that stays on mean?

The red light (11) indicates that there is no more water in the tank. The device stops automatically. Fill the tank with water to turn off the red light and restart the device.

How to set the desired humidity level?

Use the hygrostat button (6) to choose between 40%, 45%, 50%, 55% relative humidity or continuous mode (CO). The white LEDs indicate the selected level. When the LEDs flash, the desired level is reached.

How to activate automatic mode?

Press the Auto Mode button (8). The LED under the button lights up. Important: automatic mode is not available if the hygrostat is set to continuous operation (CO). The device automatically adjusts the fan speed to maintain the selected humidity.

How to reduce the intensity of the LED lighting?

Press the Dimmer button (9): once for dimmed mode, twice to turn off the LED, once more to return to normal mode. The red low water level LED remains on in all modes.

How to connect the humidifier to WiFi?

Press and hold the WiFi button (10) for 3 seconds. The LED flashes to indicate pairing mode. Use the Smart Life – Smart Living app from Tuya (available on App Store and Google Play) to connect the device to your smartphone.

When and how to change the filters?

The filters should be changed every 2 to 3 months. An LED reminder flashes after 60 days of use. After replacing the filters (4 for Karl Big), press and hold the reset button (12) until the LED remains on.

How to clean the tank and descale the device?

Every 3 days: empty the water and clean with a little dish soap. Every 4 weeks: remove the filters and the Water Cube, descale the inside with a household descaler or vinegar, then rinse thoroughly with cold water.

Can essential oils or fragrances be used?

No, the use of scented products is prohibited. They can damage the plastic and cause malfunctions. Use only clean water.

What are the essential safety precautions?

Place the device at least 3 meters away from a bathtub or shower. Unplug it before filling and cleaning. Never immerse the device in water. Children under 8 years old should not use it without supervision. Use only the supplied adapter.

USER MANUAL Karl Big STADLERFORM

Operating instructions

Gebrauchsanweisung

Mode d'emploi

Two modern portable sound amplifiers with textured surfaces, one labeled 'Stellor Farm' and the other 'Stellor Farm', shown against a plain background (no text or symbols on the devices themselves).

Karl & Karl ^big

12 11 10 9 8 7 6 5 Stadler Form 19

Stadler Form 1 2 3 4 13 14 15 16 17 18

Congratulations! You have just acquired the exceptional air humidifier KARL / KARL BIG. It will give you great pleasure and improve the indoor air for you.

As with all domestic electrical appliances, particular care is needed with this model also, in order to avoid injury, fire damage or damage to the appliance. Please study these operating instructions carefully before using the appliance for the first time and follow the safety advice on the appliance itself.

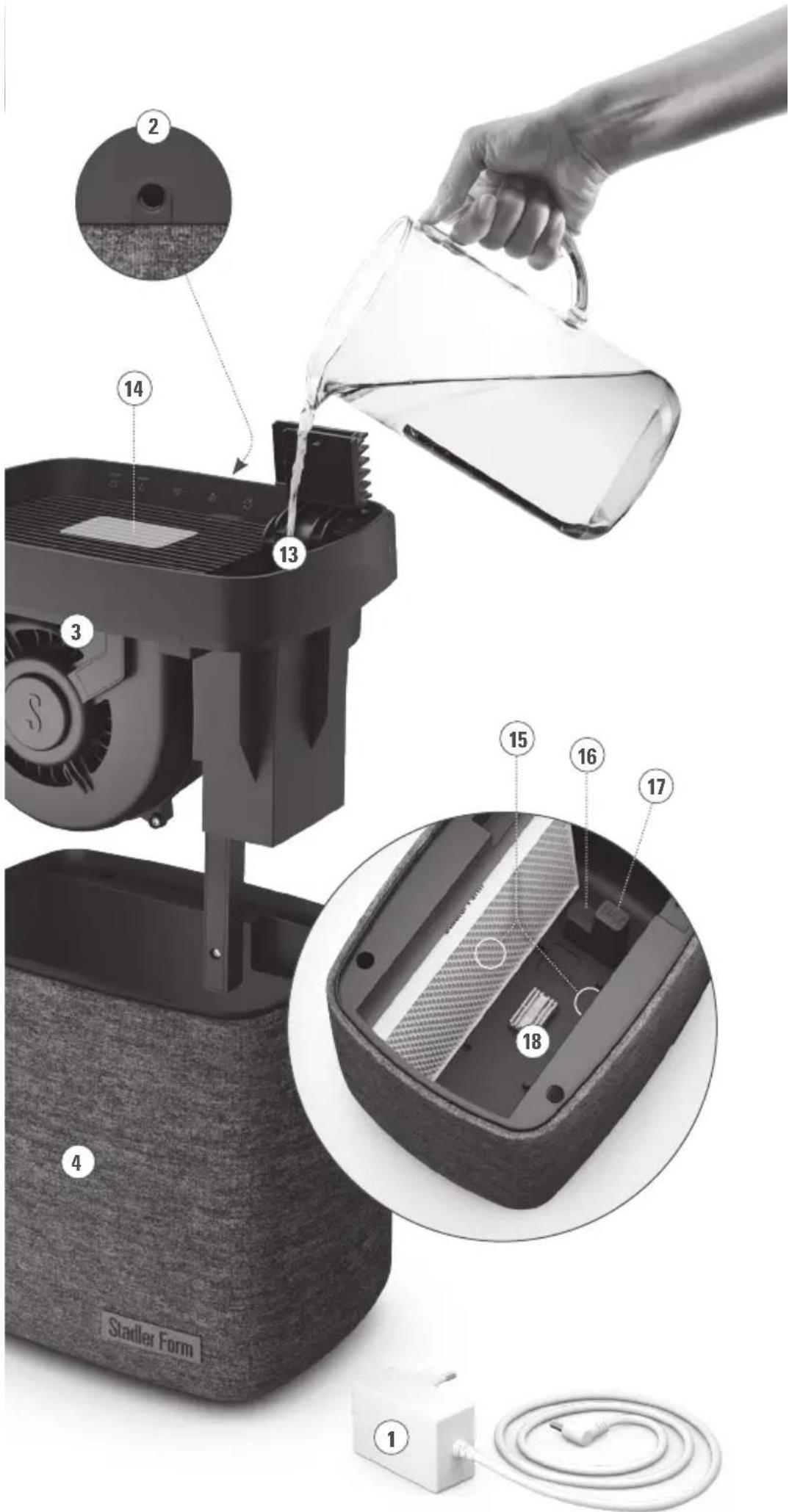

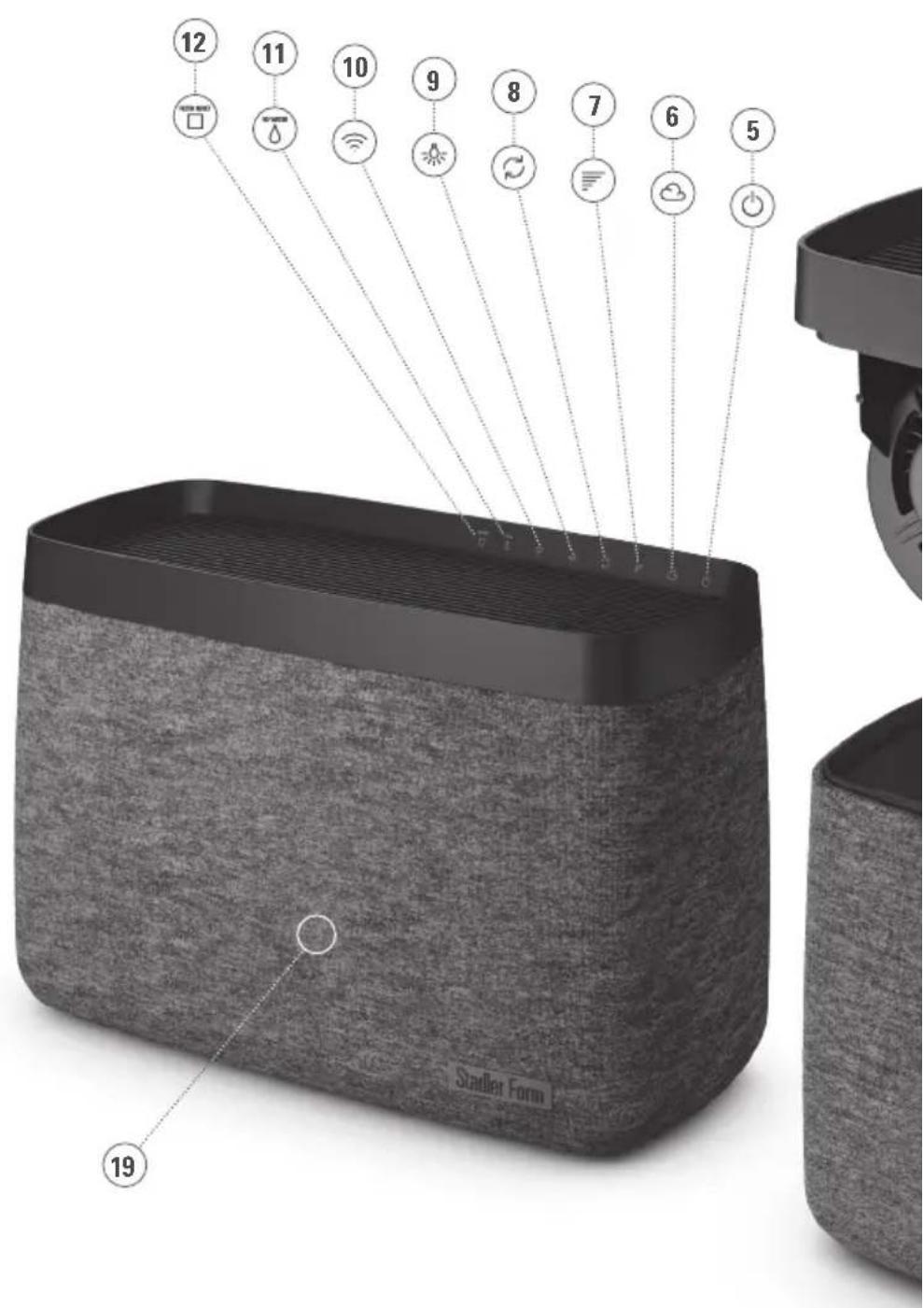

Description of the appliance

The appliance consists of the following main components:

1. Cable with power adapter
2. Power adapter connection
3. Upper part of air humidifier with motor
4. Lower part of air humidifier (water container)
5. On/Off button
6. Button for the selection of the desired humidity (hygrostat: 40 – 55 % and continuous operation "CO")
7. Button for selecting humidification levels: 1,2,3, Turbo
8. Button for auto mode
9. Button for LED dimmer (LEDs normal, dimmed or off)
10. Button for Wi-Fi
11. LED display for «container empty»
12. Reset button for the filter change reminder function
13. Opening for refilling while in operation
14. Air outlet opening (Caution: no water may enter this opening!)
15. Humidifier filters (Karl 2 pcs. / Karl big 4 pcs.)
16. Midi mark (half full)
17. Maximum mark
    18.WaterCube™
    19.Textilecover

How your product works

Your humidifier works on the natural principle of evaporation. A fan passes the dry indoor air through the humidifier filters, which are soaked with water. The air thereby only absorbs as much moisture as it needs at the current temperature.

Important safety instructions

Please read through the operating instructions carefully before you use the appliance for the first time and keep them safely for later reference; if necessary pass them on to the next owner.

• Stadler Form refuses all liability for loss or damage which arises as a result of failure to follow these operating instructions.
• The appliance is only to be used in the home for the purposes described in these instructions. Unauthorised use and technical modifications to the appliance can lead to danger to life and health.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruc-

tion concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Only connect the cable to alternating current. Observe the voltage information given on the appliance.
• Do not use damaged extension cords.
• Do not run the power cord over sharp edges and make sure that it does not get trapped.
• Do not pull the plug from the socket with wet hands or by holding on to the power cord.
• Do not use the appliance in immediate vicinity of a bath tub, a shower or a swimming pool (observe a minimum distance of 3 m). Place the appliance such that a person in the bath tub cannot touch the appliance.
• Keep the device away from heat sources.
• Do not place the appliance near a heat source. Do not subject the power cord to direct heat (such as a heated hotplate, open flames, hot iron sole plates or heaters for example). Protect power cords from oil.
• See to it that the appliance is properly positioned to ensure a high stability during its operation and make sure that no one can trip over the power cord.
  • The appliance is not splash-proof.
• For indoor use only.
• Do not store the appliance outdoors.
• Store the appliance in a dry place inaccessible to children (pack the appliance).
• If the power cord is damaged, it must be replaced by the manufacturer or a repair shop authorized by the manufacturer or by similarly qualified persons in order to avoid a hazard.
• Be aware that high humidity levels may encourage the growth of biological organisms in the environment.
• Unplug the appliance during filling and cleaning.
• Never leave water in the water container when the appliance is not in use.
• Clean the water container every 3 days
• Empty and clean the humidifier before storage. Clean the humidifier before next use.
• Warning: Micro-organisms that may be present in the water or in the environment where the appliance is used or stored, can grow in the water container and be blown in the air causing very serious health risks.
• Only use the adapter provided by the manufacturer.
• The appliance must not under any circumstances be operated with or come into contact with fragrances because these damage the plastic and may lead to appliance malfunctions.

Important information

With an evaporator, humidification can take a bit longer than it does when using a nebuliser or vaporiser. So Karl / Karl big takes a while to achieve a measurable humidification result. If you are operating the evaporator in a very dry environment, we recommend that you operate the device on level 5 (hygrostat) and at least level 3 (humidification level) for the first few days to allow the humidity to rise effectively.

Setting up / operation

1. Place Karl / Karl big in the desired location on a flat surface. Lift off the upper part (3) of the device to fill the lower part (4) with clean cold tap water up to the maximum mark (17) directly from the tap or use a clean watering can to fill the container via the opening for refilling (13). Caution: no water may enter the air outlet opening (14)! If you filled the lower part directly from the tap, put the upper part (3) back on the lower part (4), making sure that they fit together properly. Connect the power cable (1) to the power adapter connection (2) on the device first of all and then to a suitable socket outlet.

2. Start the appliance by pressing the On/Off button (5). The white LED should then light up. If a red lamp (11) lights up however, this indicates no water in the appliance.

3. You can use the hygrostat to set the desired air humidity. To do this, press on the button for the hygrostat (6). You can choose between the following levels: 40 % relative air humidity (1 white LED), 45 % (2 white LEDs), 50 % (3 white LEDs), 55 % (4 white LEDs), constant operation "CO" (5 white LEDs). If the LEDs are flashing, this indicates that the desired air humidity has already been reached. Please note that the hygrostat needs about 3 seconds to measure the current humidity in the room. The hygrostat will switch the device on again automatically as soon as the relative humidity in the room drops below the set value. We recommend that you set your room humidity to 45 – 60 % (comfort range).

4. Press the button for selecting the humidification level (7) to change the fan speed (levels 1–4). Pressing once increases the speed by one level. If you would like to increase the speed by another level, press again. The setting chosen is indicated by the number of LEDs illuminated underneath the humidification level button (7) (1 LED for level 1, 2 LEDs for level 2, 3 LEDs for level 3, 4 LEDs for Turbo). Level 2 is the default setting.

5. Press the auto mode button (8) to activate the auto mode. The LED below the auto mode button lights up. In auto mode, the appliance automatically maintains the desired humidity level. First, set the hygrostat (6) to the desired humidity (40 / 45 / 50 or 55 %). The auto mode can not be activated when the hygrostat (6) is set to continuous operation (5 LEDs lit). The lower the current humidity, the higher the speed of the fan is set automatically. The closer the current humidity is to the desired value, the lower the speed level is selected (e.g. if desired humidity is 45 % and current humidity is below 34 %, level 3 is selected, from 35-40 % = level 2, from 41-45 % = Level 1). As soon as you press the button for changing the humidification level (7) (or the auto mode button (8) again), auto mode is deactivated.

6. If you find the lamps too bright (in a bedroom for example), you can reduce the brightness of the LEDs by pressing the dimmer button (9). You can choose between three different modes:

• Normal mode (default mode)
- Dimmed mode (press once)
- Lights-out mode (press twice)
- By pressing the dimmer button once more, you can go back into normal mode.

If there is no water in the appliance, the red LED (11) lights up in all modes (normal and night mode). The red light can not be dimmed.

1. Karl / Karl big has a reminder function for filter change. At first use timer will be set automatically. After a whole operating duration of 60 days the filters must be changed. In that case, the white LED underneath the button for the filter change reminder function (12) flashes. After changing the filters, press and hold the reset button (12) until the white filter LED is illuminated continuously again.

2. If you want to top up the water during operation, you can open the opening for refilling (13) on the top of the device by pressing on the opening. You can then refill the appliance using a water can or water bottle without having to switch it off. Caution: no water may enter the air outlet opening (14)! Pay attention to the illuminated midi (16) and maximum (17) marks when filling in order to reach your optimum water level. If the water container (4) is empty, the device switches off automatically and the LED (11) lights up red.

3. Press the Wi-Fi button (10) to connect Karl / Karl big to the "Smart Life – Smart Living" App from Tuya Inc. (available in the App Store and via Google Play) on your smartphone. If the device is in pairing mode, the LED underneath the Wi-Fi button (10) flashes. If the LED underneath the Wi-Fi button is illuminated continuously, this indicates that there is an existing connection between Karl / Karl big and your smartphone. You can control all the functions of the appliance via the app and monitor the air quality in real time, even when you are not at home. More detailed information on connecting the device to your smartphone can be found in the enclosed "Wi-Fi – Quick Setup Guide" or on our website: www.stadlerform.com/connect.

Cleaning

Prior to any maintenance, cleaning and after each use, turn off the unit and remove the plug from the plug socket. Before you clean Karl / Karl big, the power adapter (1) must be separated from the power adapter connection (2).

Attention: Never submerge the appliance in water (danger of short-circuit). For hygienic reasons and to ensure proper operation, we recommend the following cleaning intervals.

- Daily: Fill the appliance with fresh, cold tap water. If the appliance is not used for several days, empty the water from the lower part (4) beforehand and if necessary, clean it with a bit of dish detergent and a clean cloth. Fill fresh water into the lower part (4) before putting the appliance back into operation.

- Every 2 weeks: First remove the filters (15) and the Water Cube™ (18). Clean the inside of the lower part (4) thoroughly every 2 weeks with a bit of dish detergent, warm water and a soft, clean cloth, sponge or brush. Then rinse the lower part (4) thoroughly with cold water and put the filters and the Water Cube back in.

- Approx. every 4 weeks (depending on the hardness of the water): First remove the filters (15) and the Water Cube™ (18). In the case of limescale deposits on the inside of the lower part (4), we recommend using the Stadler Form Cleaner & Descaler (www.stadlerform.com/accessories). Alternatively, you can use a household decalcifier or vinegar. Then rinse the lower part (4) thoroughly with cold water and put the filters and the Water Cube back in. For hygienic reasons, the filters (15) must be replaced every 2–3 months. Textile cover: Over time, dust will collect on the textile cover. You can remove this using the soft brush attachment for your vacuum cleaner.

- Regularly as required: For external cleaning, rub with a damp cloth and then dry thoroughly. The textile cover (19) can be taken off the housing. The textile cover (19) can be washed at 30° Celsius („cold wash“) on a gentle cycle. Make sure that the textile cover (19) is completely dry before attaching it to the device again. Put the textile cover (19) back on the device from the top so that the logo ends up in the front bottom right-hand corner (see the image on page 5/6). This will enable the textile cover (19) to be put back correctly on the device.

- At the end of the season: Before storing the appliance at the end of the season, clean it inside and out thoroughly and let it dry completely. Descale the lower part (4) as described above. Clean the fan wheel in the upper part (3) using the soft brush attachment for your vacuum cleaner. Wash the textile cover (19) as described above. Insert new humidifier filters (15) and a new Water Cube (18) in order for your appliance to be ready for the start of the next season.

Replacement of the humidifier filters

- For hygienic and optimum operation of the air humidifier, the filters must be replaced every 2 – 3 months. If the filters remain in use for longer than this, on the one hand the humidity output may decline severely and on the other, the antimicrobial action of the filters can no longer be guaranteed.

The humidifier filters can be obtained from the dealer where you purchased your Karl / Karl big. Note: The devices are compatible with the Oskar Filter Pack.

Water Cube™ – optimal hygiene for your air humidifier

The Water Cube ^™ (18) by Stadler Form provides optimal hygiene in your air humidifier. It keeps your humidifier running smoothly, extending its lifespan. The Water Cube ^™ (18) even works when your appliance is switched off, so the humidifier stays fresh all season long. We recommend replacing the Water Cube ^™ at the start of the humidifier season.

Repairs

- Repairs to electrical appliances must only be carried out by a qualified electrical technician. If improper repairs are carried out, the warranty lapses and all liability is refused.

- Never operate the appliance if the adaptor or plug is damaged, after it has malfunctioned, if it has been dropped or has been damaged in any other way (cracks/breaks in the casing).

- Do not push any object into the appliance.

- If the appliance is beyond repair, make it unusable immediately by cutting through the cable and hand it in at the collection point provided for the purpose.

- In the event of a repair, the following points must be observed before the appliance is shipped or taken to the dealer: completely empty the water in the appliance (water tray and any water tank), remove any filters and/or anti-limescale cartridges and allow the appliance to dry completely. Appliances containing residual water may be damaged during transport, invalidating the warranty

Disposal

The European directive 2012 / 19 / CE on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Specifications Karl

Rated voltage 100 – 240 V / 50 / 60 Hz

Rated power 1.4–30W

Humidity output up to 690 g/h

Room size (up to) 100 m ^2 / 250 m ^3

Dimensions 296 x 304 x 212 mm

(width x height x depth)

Weight 2.5 kg

Tank capacity 4.7 liter

Sound level 27 - 59 dB(A)

Complies with EU

regulations CE / WEEE / RoHS / EAC / UKCA

Specifications Karl big

Rated voltage 100 – 240 V / 50 / 60 Hz

Rated power 2.4–40W

Humidity output up to 1100 g/h

Room size (up to) 150 m ^2 / 375 m ^3

Dimensions 502 x 335 x 242 mm

(width x height x depth)

Weight 4.6 kg

Tank capacity 11.0 liter

Sound level 27 - 60 dB(A)

Complies with EU

regulations CE / WEEE / RoHS / EAC / UKCA

This device contains a radio module from Stadler Form Aktiengesellschaft type: WBR3. It operates in the ISM band in the range 2.400 – 2.4835 GHz with a maximum transmitted power 20 dBm.

All rights for any technical modifications are reserved

Two dark gray rectangular objects with textured surfaces, possibly containers or storage units (no visible text or symbols)

Deutsch

Two dark gray rectangular blocks with textured surfaces, no visible text or symbols

Español

Specifications Karl big

Nominale spanning 100 – 240 V / 50 / 60 Hz

Nominale vermogen 2.4–40W

Two dark gray rectangular containers with textured surfaces, no visible text or symbols

This warranty covers defects of construction, manufacturing and material. Excluded are all wearing parts and improper usage, or consequential damages due to lack of cleaning and/or descaling of the appliance.

2 Jahre Garantie

Portrait of a bald man wearing glasses and a dark shirt (no text or symbols visible)

Design by Matti

Thanks to all people involved in this project: Del Xu for his engagement and cultural bridges, Lin Shouming for the engineering and Zhang Jingtao for his CAD work, Mario Rothenbühler for the photos, Matti Walker for the timeless design, user friendly ideas and graphic work.

Martin Stadler, CEO Stadler Form Aktiengesellschaft
