182092 - Deep fryer PRINCESS - Free user manual and instructions

Product type	Air fryer
Brand	Princess
Model	182092
Reference	01.182092.01.001
Dimensions (L × W × H)	310 × 445 × 275 mm
Weight	6.25 kg
Power supply	220-240 V ~ 50/60 Hz
Power consumption	1760 W
Cooking programs	Grill, Air Crisp, Meat, Oven bake, Fish
Maximum temperature	Up to 265 °C (Grill program)
Temperature probe	Included, adjustable from 35 °C to 85 °C
Included accessories	Sieve, grill plate, basket, temperature probe
Main material	Stainless steel and heat-resistant plastic
Care and cleaning	Grill plate, sieve and basket are dishwasher safe; base and panel cleaned with a damp cloth
Safety	Automatic shut-off, overheat protection, lockable lid, temperature probe
Intended use	Indoor, household
EAN code	Not specified
Warranty	Manufacturer's standard

Frequently Asked Questions - 182092 PRINCESS

How to use the temperature probe?

Plug the probe into the designated port, select a program, press the probe button, set the desired temperature (35°C to 85°C), insert the probe horizontally into the thickest part of the food, then start cooking. The appliance will stop automatically when the internal temperature is reached.

What are the different cooking programs?

The programs are: Grill (temperature 205°C to 265°C, duration 10 min), Air Crisp (200°C, 20 min), Meat (200°C, 25 min), Oven bake (160°C, 35 min), and Fish (180°C, 20 min).

Can I use oil in the fryer?

No, this air fryer is designed to cook without oil. Never fill the fryer basket with oil.

How to clean the accessories?

The grill plate, sieve, and basket can be washed in the dishwasher or with hot soapy water. For stubborn residues, soak the parts in hot soapy water for a few hours. The base and control panel can be cleaned with a soft damp cloth. Never immerse the main unit.

What should I do if the screen shows 'Shut Lid'?

This message indicates that the lid is open. Close the lid using the handle to continue cooking.

The food is not crispy, what should I do?

Make sure the food is evenly distributed in the basket. During cooking, you can open the lid, remove the basket, and shake the food to mix it. Also check that the temperature is high enough.

Can I use metal utensils?

No, avoid metal utensils as they may damage the non-stick coating of the basket. Preferably use heat-resistant plastic utensils.

How to adjust the temperature manually?

Press the temperature button (B15) to adjust the temperature in steps. You can do this at any time, even during cooking.

What does the error code E0 to E4 mean?

These codes indicate a malfunction of the appliance. Please contact Princess customer service for repair by a qualified technician.

What is the maximum capacity of the basket?

The maximum capacity is indicated inside the fryer basket. Never fill above this mark to avoid contact with the heating element.

USER MANUAL 182092 PRINCESS

Illustration of a modern electric air fryer with digital display and warning symbol (no text or labels)

Airfryer Grill

01.182092.01.001

EN User manual 4
NL Gebruiksaanwijzing 11
FR Manuel de l'utilisateur 19
DE Benutzerhandbuch 27
PL Instrukcja obsługi 36
cs Uživatelská příručka 44

Close-up of a woven fabric or mesh material with a blue arrow pointing to the number 10 (no text or symbols on the pattern itself)

Black and white illustration of a circular object with radial grooves, no text or symbols present

3D illustration of a gray container with a handle and label '12' pointing to the side (no text or symbols on the container itself)

Illustration of a sword with a handle and pointed tip, labeled with number 13 (no text or symbols on the object itself)

B

C

Illustration of a microwave oven with a blue arrow indicating the process, showing internal components and airflow direction (no text or symbols)

D

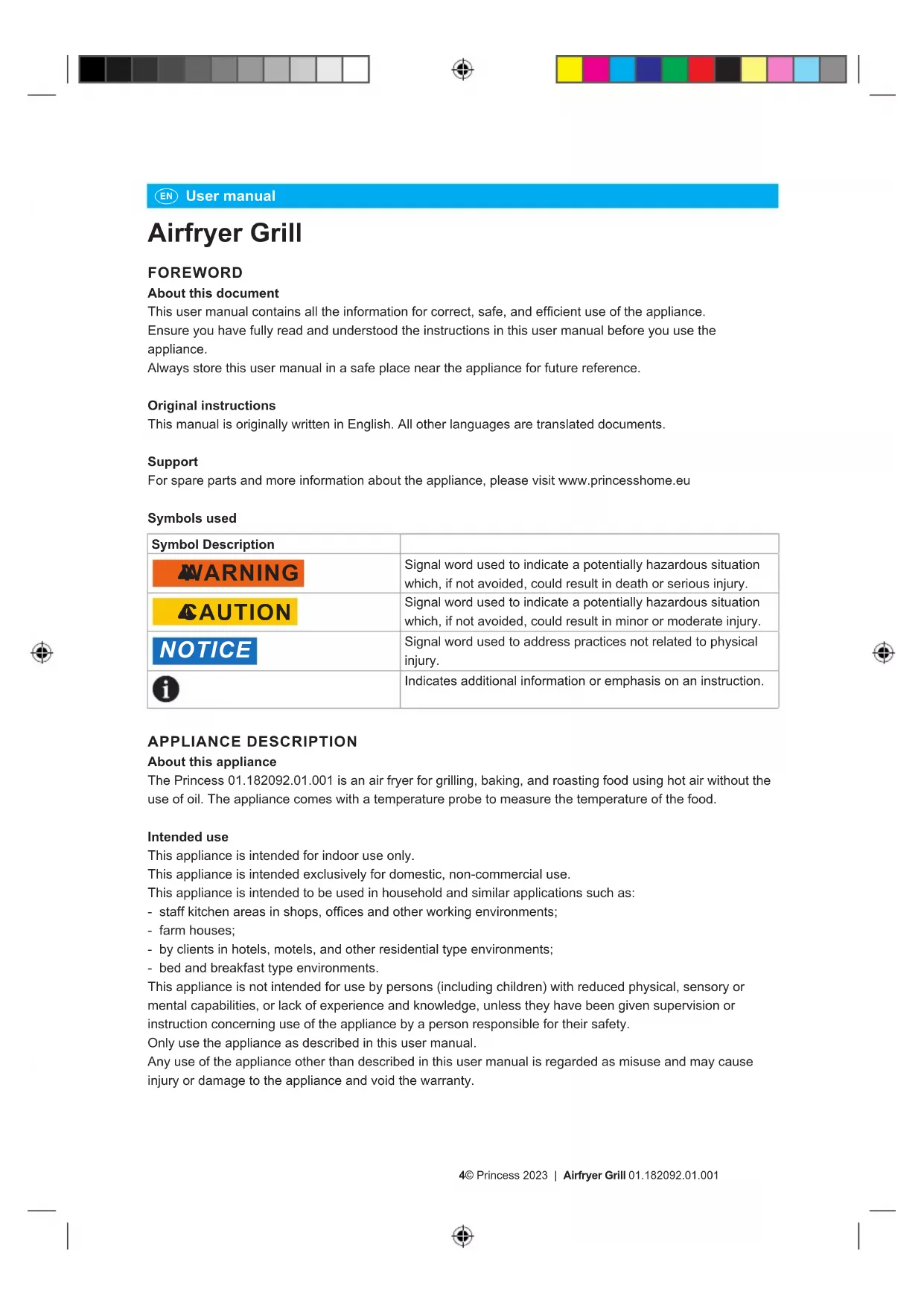

EN User manual

Airfryer Grill

FOREWORD

About this document

This user manual contains all the information for correct, safe, and efficient use of the appliance. Ensure you have fully read and understood the instructions in this user manual before you use the appliance.

Always store this user manual in a safe place near the appliance for future reference.

Original instructions

This manual is originally written in English. All other languages are translated documents.

Support

For spare parts and more information about the appliance, please visit www.princesshome.eu

Symbols used

Symbol Description
WARNING	Signal word used to indicate a potentially hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION	Signal word used to indicate a potentially hazardous situation which, if not avoided, could result in minor or moderate injury.
NOTICE	Signal word used to address practices not related to physical injury.
	Indicates additional information or emphasis on an instruction.

APPLIANCE DESCRIPTION

About this appliance

The Princess 01.182092.01.001 is an air fryer for grilling, baking, and roasting food using hot air without the use of oil. The appliance comes with a temperature probe to measure the temperature of the food.

Intended use

This appliance is intended for indoor use only.

This appliance is intended exclusively for domestic, non-commercial use.

This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
• farm houses;
• by clients in hotels, motels, and other residential type environments;
• bed and breakfast type environments.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Only use the appliance as described in this user manual.

Any use of the appliance other than described in this user manual is regarded as misuse and may cause injury or damage to the appliance and void the warranty.

Technical specifications

Appliance name Airfryer Grill
Article number 01.182092.01.001
Dimensions (l × w × h) 310 × 445 × 275 mm
Weight 6.25 kg
Power supply AC 220 – 240 V ~ 50/60 Hz
Maximum electrical power 1760 W
Power consumption in use 1760 W
Power consumption standby N/A

Main parts (see image A)

1 Temperature probe port
2 Control panel
3 Handle
4 Mesh screen mounting clip
5 Lid

6 Base

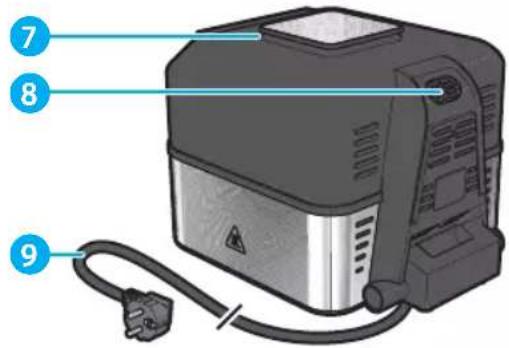

7 Air inlet
8 Air outlet
9 Power cable
10 Mesh screen

11 Grill plate
12 Basket
13 Temperature probe

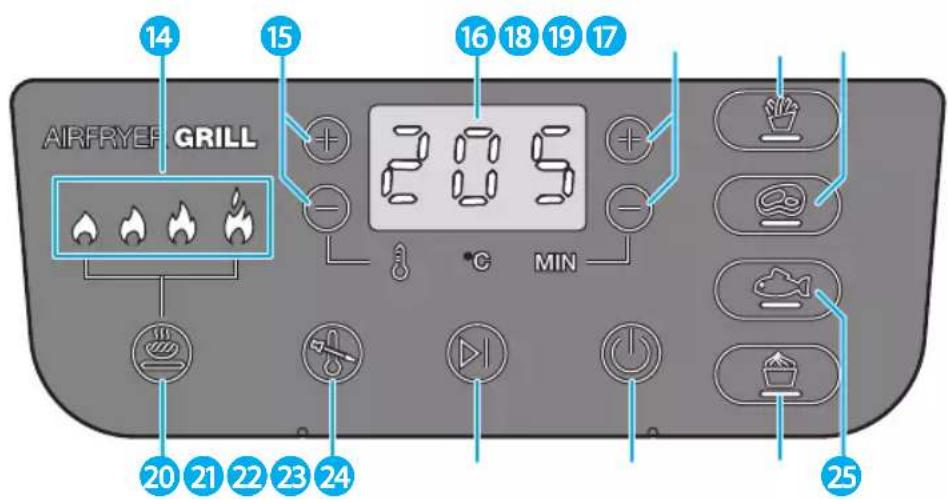

Control panel (see image B)

14 Heat setting indicator
15 Temperature control
16 Display
17 Timer control

18 Air crisp program
19 Meat program
20 Grill program
21 Temperature probe button

22 Start/stop button
23 On/off button
24 Bake program
25 Fish program

SAFETY

Safety symbols

Symbol Description

Indication for a hot surface. Contact may cause burns. Do not touch.

Safety precautions

WARNING

Electric shock hazard due to short-circuiting:

• Never use the appliance if there are visible signs of damage or defects to the appliance or power cable. Always replace a damaged or defective appliance or power cable immediately or contact customer service.
• Never immerse the main unit or the temperature probe cable in water or any other liquid.
  • Always avoid spillage on the power cable.
• Never open the appliance. The appliance may only be opened for maintenance by an authorised technician.

• Never replace the power cable yourself. Always let the manufacturer, its service agent or a similarly qualified person replace the power cable.
• Never lift the appliance by the power cable. Lifting the appliance by the power cable may damage the power cable. Only lift the appliance by holding the base.
• Always unplug the power cable when the appliance is not in use or unattended, and before cleaning.
• Always check if the voltage stated on the type plate of your appliance matches your mains voltage before use.
• Never insert any objects into the air vent openings.

Fire hazard due to overheating:

• Never leave the appliance unattended when in use. Only use the appliance under supervision. Switch off the appliance and remove the power cable from the power outlet when you leave the room.
• Never use the appliance with a programmer, timer, separate remote control system or any other device that switches the appliance on automatically.
• Always ensure there is enough space around the appliance. Leave at least 15 cm of free space around the appliance to ensure proper ventilation.
• Never place the appliance directly underneath a power outlet. The appliance may become hot during use. Always keep the back of the appliance clear of any objects.
• Never cover the appliance or the air vents when in use.
• Never place the appliance near a heat source.
• Never use the appliance without the mesh screen or pan in place.
• Never fill the pan with oil.

Fire hazard due to short-circuiting:

• Never drop the appliance and avoid bumping. Excessive vibrations can lead to loosened connections and can influence proper functioning of the appliance. Stop using the appliance if the appliance has been dropped.
• Never use the appliance with an extension cable.

Fire hazard due to burnt food:

- Always clean all parts that come into contact with food after use.

- Never exceed the maximum level indicated on the inside of the pan to avoid contact with the heating element.

Burning hazard due to hot liquids:

• Never use the appliance on recreational vehicles or boats. Hot liquid may spill out of the appliance.
• Always ensure the lid is fully closed. Hot liquid may splatter out of the appliance.
• Never move the appliance during use. Hot liquid may spill out of the appliance.

Choking hazard due to plastic packaging:

- Never let children play with the packaging material. Always keep the packaging material out of the reach of children.

Snagging hazard due to moving parts:

- Always switch off and disconnect the appliance from the power source before changing accessories or approaching parts that move in use.

CAUTION

Burning hazard due to heat:

• Children should be supervised to ensure that they do not play with the appliance.
• Never touch the hot surfaces during or shortly after use. The hot surfaces may be subject to residual heat. Let the appliance cool down completely before handling the appliance.
• Be careful when opening the lid. Hot steam may escape.

Tripping hazard due to loose cables:

- Never leave the power cable hanging out in a way that someone might trip over it or accidentally pull it.

NOTICE

Risk of damaging the appliance:

• Never use aggressive chemical cleaning agents that can damage the appliance when cleaning the appliance.
• Only use the appliance with the provided accessories or accessories recommended by Princess.

• Never fill the pan above the maximum capacity marking to prevent overflowing.

• Never place the appliance in a dishwasher.

• Never place the appliance near the edge of a countertop during use. Vibrations may occur during use which may cause the appliance to move. Always place the appliance on a stable, flat, heat, and moisture resistant surface.
• Never use metal utensils to remove food from the pan. Metal utensils may damage the non-stick coating.
• Never place the main unit and temperature probe in a dishwasher.

USE

Preparation (see image C)

1. Remove all packaging.
2. Clean all parts that come in contact with food before use. Follow the instructions in chapter Cleaning and maintenance.

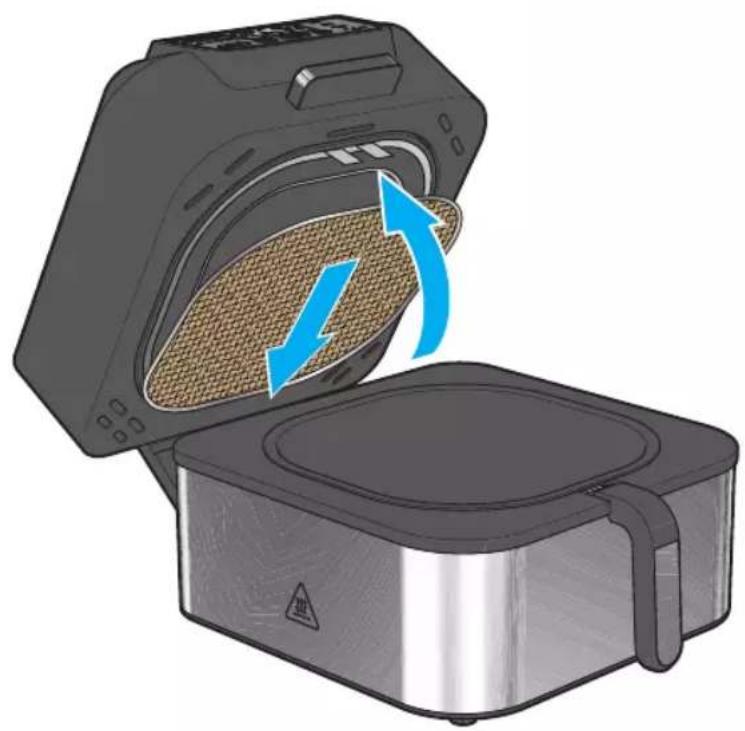

3. Place the mesh screen A10 into the lid A5. Push the mesh screen A10 into the lid A5 until you hear a click.
4. Place the basket A12 into the base A6.
5. Place the grill plate A11 into the basket A12.
6. Close the lid A5 with the handle A3.

Using the appliance

1. Plug the power cable A9 into a power outlet.
2. Press the on/off button B23 to switch on the appliance.

3. Press one of the cooking program buttons to select a cooking method of your preference.

4. Grill program B 20

5. Air crisp program B 18
6. Meat program B 19
7. Bake program B 24
8. Fish program B 25

Program Cooking temperature Cooking time
Grill
- Low 205°C 10 minutes
- Medium 215°C
- High 245°C
- Max Up to 265°C
Air crisp 200°C 20 minutes
Meat 200°C 25 minutes
Bake	160°C 35 minutes
Fish	180°C 20 minutes

1. Press the temperature control B15 to adjust the cooking temperature.
2. Press the timer control B17 to adjust the cooking time.
   When using the temperature probe A13, from here on, follow the instructions in chapter Using the temperature probe.
3. Press the start/stop button B22.

The display B16 shows AddFood when the appliance is ready for use.

1. Open the lid A5 with the handle A3.

2. Place the food inside the basket A12.

3. Close the lid A5 with the handle A3.

The appliance automatically starts cooking the food.

The timer counts down from the set cooking time.

To interrupt the cooking process to check if the food is ready, open the lid A5 with the handle A3. The cooking process automatically pauses. If needed, remove the basket A12 from the appliance and shake to mix up the food. Place the basket A12 back into the appliance and close the lid A5 to continue the cooking process.

Plug in the temperature probe ^13 anytime during the cooking process to test if the food is at the correct temperature. The display B ^16 alternately shows the current food temperature, cooking temperature, and remaining time.

The appliance emits a beep and the display B16 shows END when the cooking process is finished.

To add more time to the cooking time, press the timer control B ^17 to add more time to the cooking time. Press the start/stop button B ^22 to continue cooking.

1. Open the lid A5 with the handle A3.

2. Remove the food from the basket A12 with a heat-resistant plastic tong.

3. Allow the appliance to cool down after use.

Keep the lid open to speed up the cooling down process.

Using the temperature probe (see image D)

1. Press one of the cooking program buttons to select a cooking method of your preference.

2. Plug the temperature probe A13 into the temperature probe port A1.

3. Press the temperature probe button B21.

The display B16 shows 80°C by default.

1. Press the temperature control B15 to adjust the cooking temperature.

i The cooking temperature can be set between 35°C and 85°C.

iPress the temperature control to adjust the cooking temperature any time during the cooking process.

Food type Recommended temperature
Fish 60°C
Poultry 75°C
Pork 60°C
Beef
- Rare 50°C
- Medium rare 55°C
- Medium 60°C
- Medium well 65°C
- Well done	70°C
Ground pork	70°C
Ground turkey	70°C

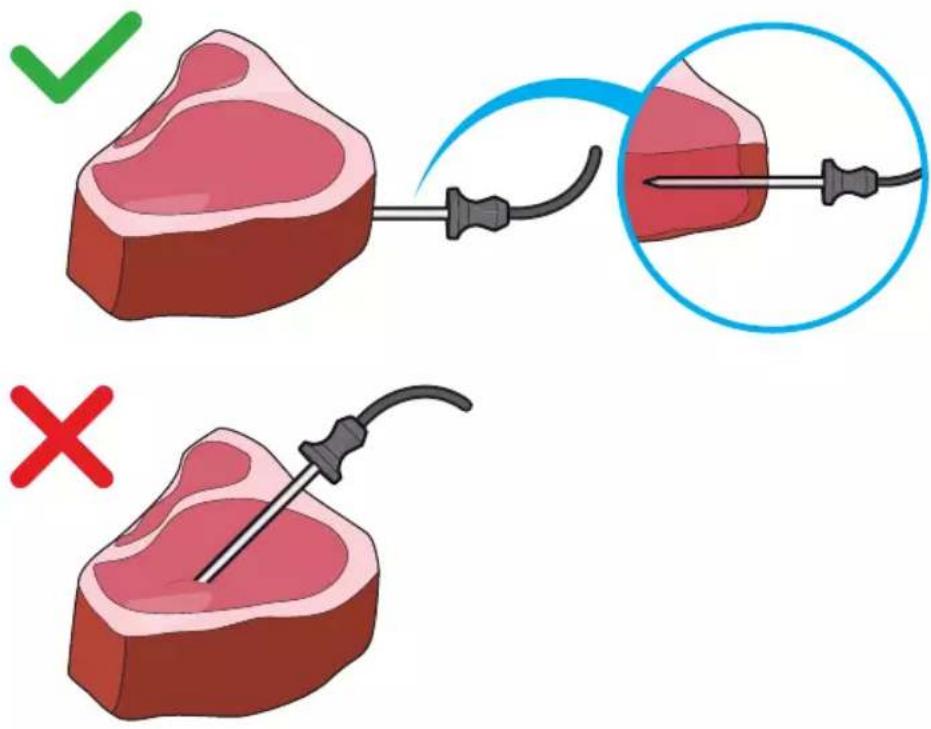

1. Insert the temperature probe A13 horizontally in the middle of the thickest part of the food.

2. Open the lid A5 with the handle A3.

3. Place the food inside the basket A12.

4. Close the lid A5 with the cord of the temperature probe A13 in-between the lid A5 and the base A6.

5. Press the start/stop button B22 to start cooking.

The display B16 alternately shows the current temperature and the set temperature.

The appliance emits a beep and the display B16 shows END when the cooking process is finished.

The appliance automatically stops heating when the food has reached the set temperature.

1. Remove the food from the basket A12 with a heat-resistant plastic tong.
2. Remove the temperature probe A13 from the food with oven mitts.

CLEANING AND MAINTENANCE

Clean the appliance after each use.

1. Unplug the power cable A9 from the power outlet.
2. Let the appliance cool down.
3. Push the mesh screen mounting clip A4 upwards to remove the mesh screen A10 from the lid A5.
4. Remove the grill plate A11 and the basket A12 from the base A6.

5. Clean the following parts with warm, soapy water or in a dishwasher:

6. Grill plate A 11

7. Mesh screen A 10

8. Basket A 12

9. Remove persistent residue or grease from the grill plate A11, mesh screen A10, or basket A12 by soaking it in warm, soapy water for a few hours or overnight.

10. Clean the metal end of the temperature probe A13 with warm, soapy water.
11. Clean the base A6 and control panel A2 with a soft, damp cloth.

STORAGE

Store the appliance in a dry and enclosed space and in the original packaging to ensure safe storage and protection against dust, moist or other filth.

TROUBLESHOOTING

Problem Possible cause Possible solution
The display B16does not light up.	The power cable A9is not properly connected to a working power outlet.	Plug the power cable A9into a working power outlet.
	The appliance is switched off.	Press the on/off button B23to switch on the appliance.
The display B16shows Shut Lid.	The lid A5is open. Close the lid A	5with the handle A3.
The display B16shows Add Pot.	The basket A12is not placed in the base A6.	Place the basket A12into the base A6.
The display B16shows Plug In.	The plug of the temperature probe A13is not properly plugged into the temperature probe port A1.	Plug the temperature probe A13into the temperature probe port A1.
The display B16shows error code E0 - E4.	The appliance is not working properly. Contact customer service. The appliance must be repaired by a qualified technician.
The food got burned.	The basket A12is overfilled with food. Fill	the basket A12up to the maximum level indicated on the inside of the pan to avoid contact with the heating element.
	The food is left in the appliance after the cooking time is done.	Immediately remove the food from the appliance when the cooking time is done.

The food is not crispy.	The food is not evenly spread out in the basket A12.	Place the food in an even layer in the basket A12.
		Remove the basket A12 from the appliance during cooking and shake to mix up the food.
	The temperature is set too low. Cook the food according to the instructions on the packaging of the food.
The food is overcooked/undercooked.	The temperature probe A13 is not inserted correctly into the food.	Insert the temperature probe A13 horizontally in the middle of the thickest part of the food.
	The temperature is set too high/low. Cook	the food according to the instructions on the packaging of the food.

DISPOSAL

Follow the local regulations when you need to dispose the appliance. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle the appliance responsibly to promote the sustainable reuse of material resources.

BESCHRIJVING APPARAAT

Over dit apparaat

FOR ACCESSORIES AND SPARE PARTS TO EXTEND YOUR ITEM!

© Princess 2023 | Swaardvenstraat 65 | 5048 AV Tilburg | The Netherlands | www.princesshome.eu
