| Product type | Aquarium |
| Brand | Oase |
| Model | biOrb LIFE 45 |
| Capacity | 45 L |
| Dimensions (L x W x H) | 45 x 30 x 30 cm |
| Supply voltage | 100-240 V AC, 50/60 Hz |
| Power supply output voltage | 12 V DC |
| Protection rating | IP 20 |
| Power consumption (oxygenation pump) | 2.1 W |
| Pump cable length | 1.5 m |
| Lighting | LED MCR (Multi Color RGB) |
| Lighting energy class | A++ |
| Lighting power | 2.4 W |
| Lighting cable length | 1.4 m |
| Number of preset colors | 15 |
| Brightness levels | 4 |
| Day/night cycle function | Yes, with settings 8/10/12/14 hours |
| Remote control battery | CR 2025 (if included) |
| Maintenance | Use only biOrb maintenance products |
| Manufacturer warranty | 24 months |
Frequently Asked Questions - biOrb LIFE 45 OASE
User questions about biOrb LIFE 45 OASE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Aquarium in PDF format for free! Find your manual biOrb LIFE 45 - OASE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. biOrb LIFE 45 by OASE.
USER MANUAL biOrb LIFE 45 OASE
BY OASE
LIGHTING


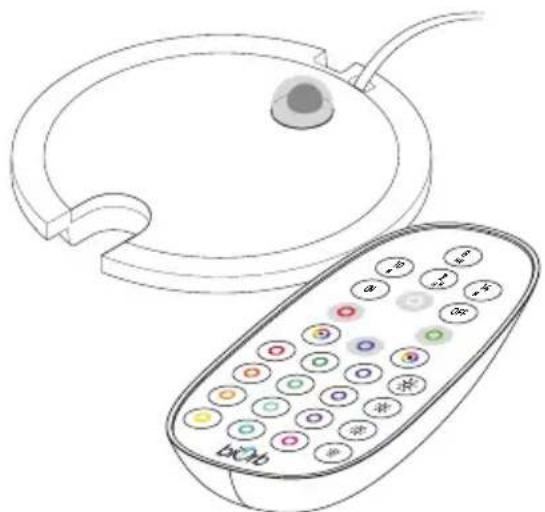

Line drawing of a remote control with a circular dial and a rectangular button (no text or symbols)1


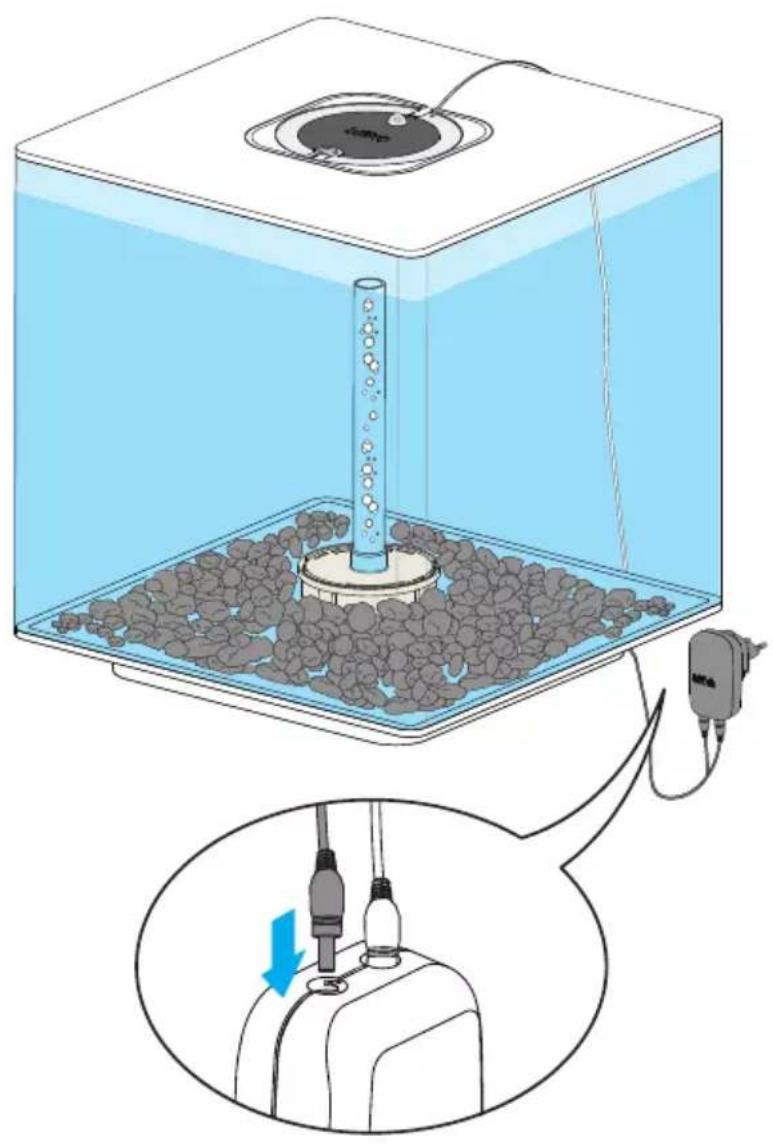

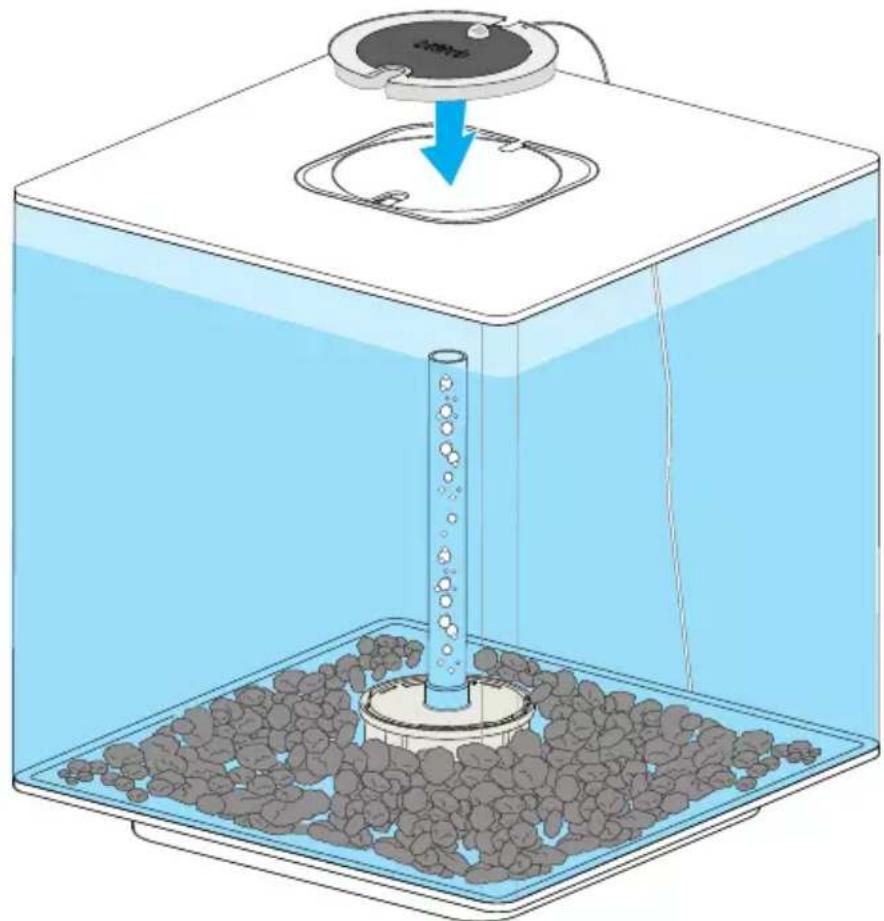

Illustration of a petri dish setup with a vertical tube inside a transparent container, connected to a power plug and a device (no text or symbols present)3
4
LED

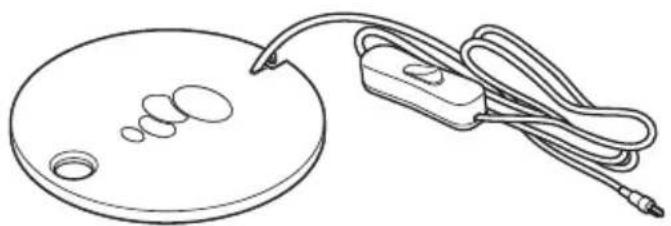

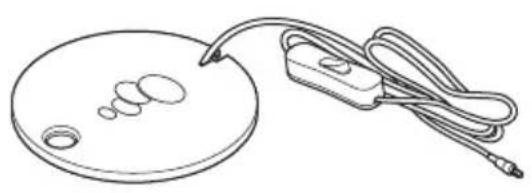

MCR
LIGHTING


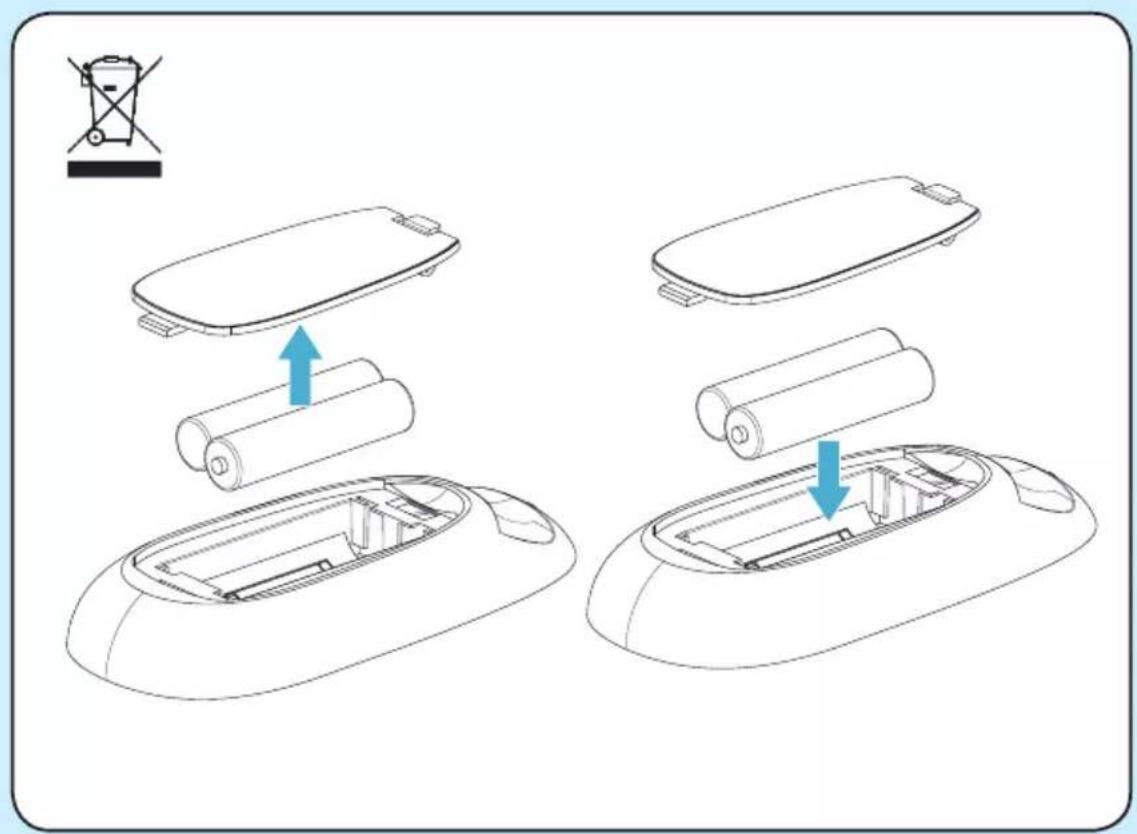

Diagram of a device's internal structure showing battery, casing, and housing with a blue arrow indicating assembly (no text or symbols)5 MCR LIGHTING
HALO

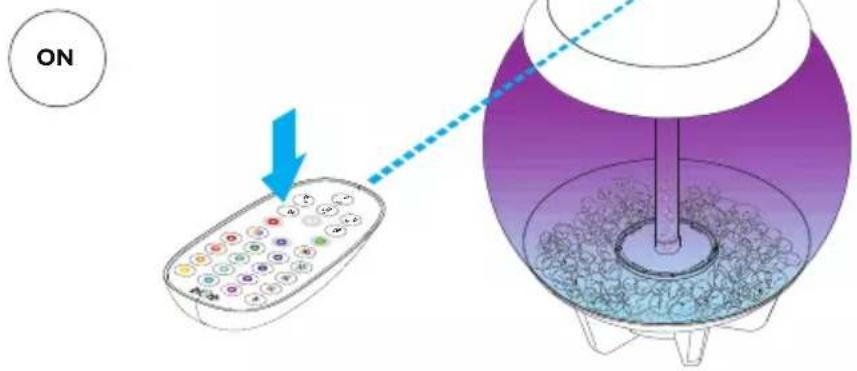

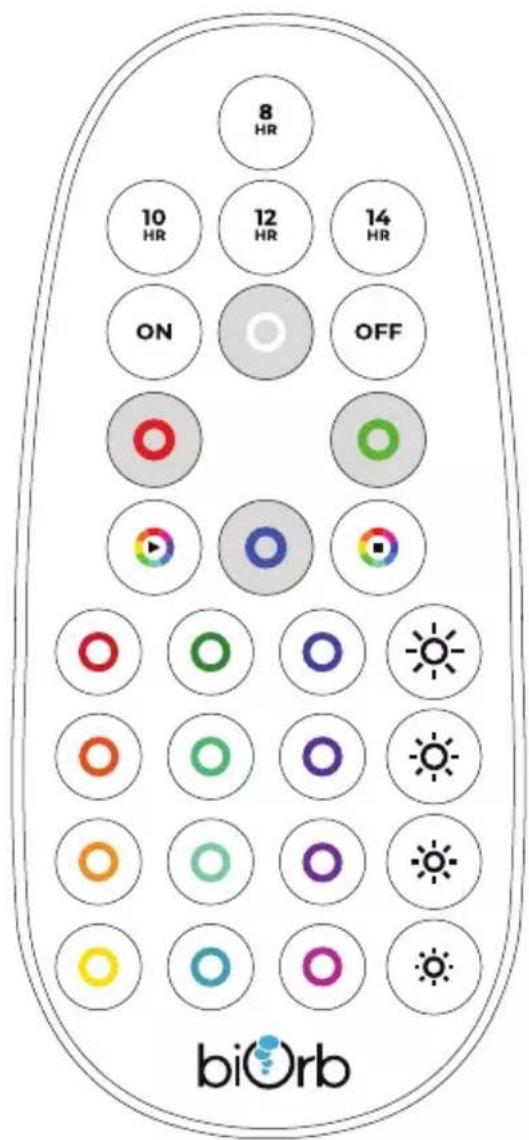

EN Switches on the light
EN Switches off the light
EN End of the colour light cycle
EN Start of the colour light cycle
Example for the 8 HR cycle: Sunrise 15 min - Daylight 7.5 hr - Sunset 15 min - Nightlight 16 hr. When the 10, 12 or 14 HR button is selected, the time for "Daylight" and "Nightlight" changes accordingly. "Daylight" is always reduced by 30 minutes for "Sunrise" and "Sunset". Total duration of a cycle: 24 hr.
DE Zyklusfunktion
EN Dims the light, 4 brightness stages.
EN 15 predefined colours.
MAINTENANCE AND CLEANING
Cleaner pads
Reinigungspads
Feutres de nettoyage
Panni detergenti
Reinigingspads


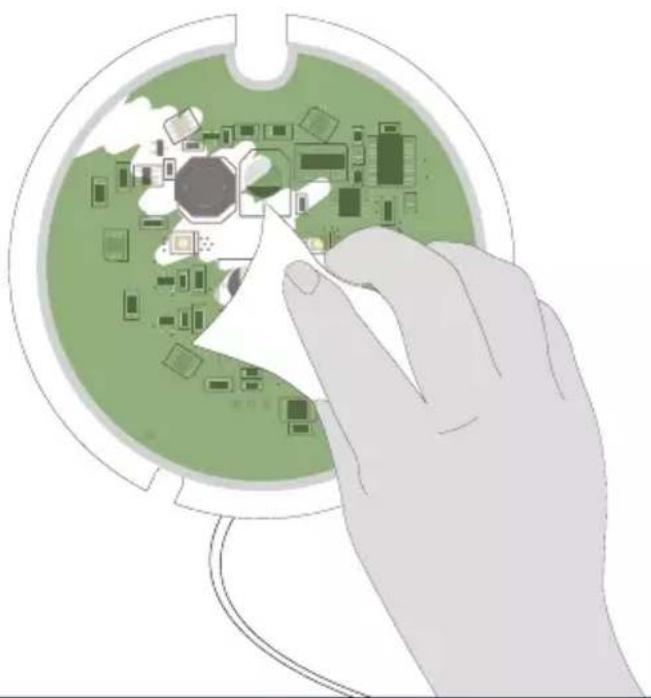

Illustration of a hand inserting a component into a green circuit board (no text or symbols)WARNING
WARNUNG
WAARSCHUWING
AVERTISSEMENT
ADVERTENCIA
AVISO
AVVISO
ADVARSEL
WARNING
VAROITUS
FIGYELMEZTETÉS
OSTRZEŻENIE
VAROVÁNÍ
VÝSTRAHA
OPOZORILO
UPOZORENJE
AVERTIZARE
ПРЕДУПРЕЖДЕН
ИЕПОПЕРЕДЖЕННЯ
ПРЕДУПРЕЖДЕНИЕ
警告
EN

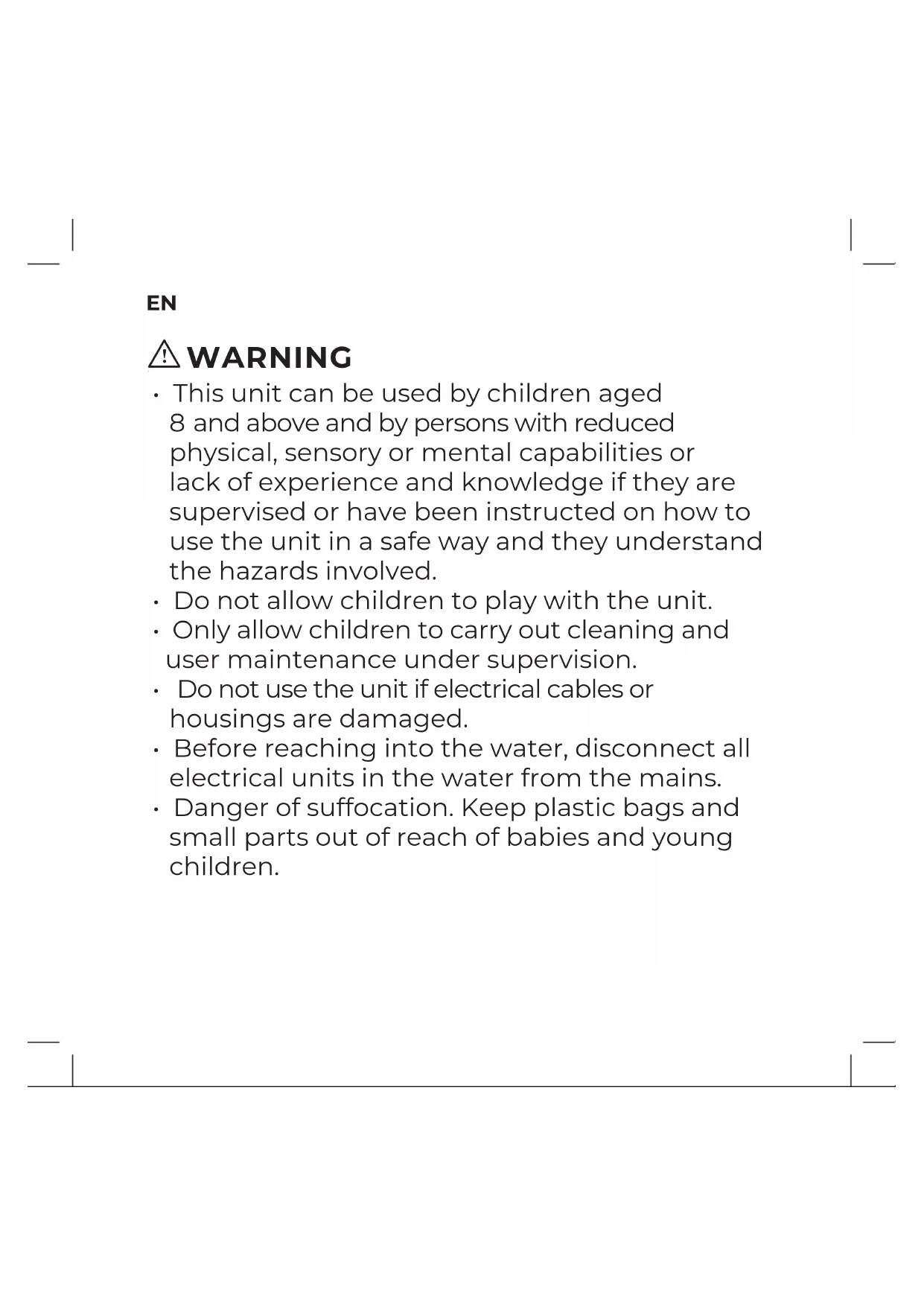

WARNING
- This unit can be used by children aged 8 and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised or have been instructed on how to use the unit in a safe way and they understand the hazards involved.
- Do not allow children to play with the unit.
- Only allow children to carry out cleaning and user maintenance under supervision.
- Do not use the unit if electrical cables or housings are damaged.
- Before reaching into the water, disconnect all electrical units in the water from the mains.
- Danger of suffocation. Keep plastic bags and small parts out of reach of babies and young children.
EN
SAFETY INFORMATION
- Do not expose the unit to direct sunlight.
- Never carry or pull the unit by the electrical cable.
- Route cables such that they are protected from damage and do not present a tripping hazard.

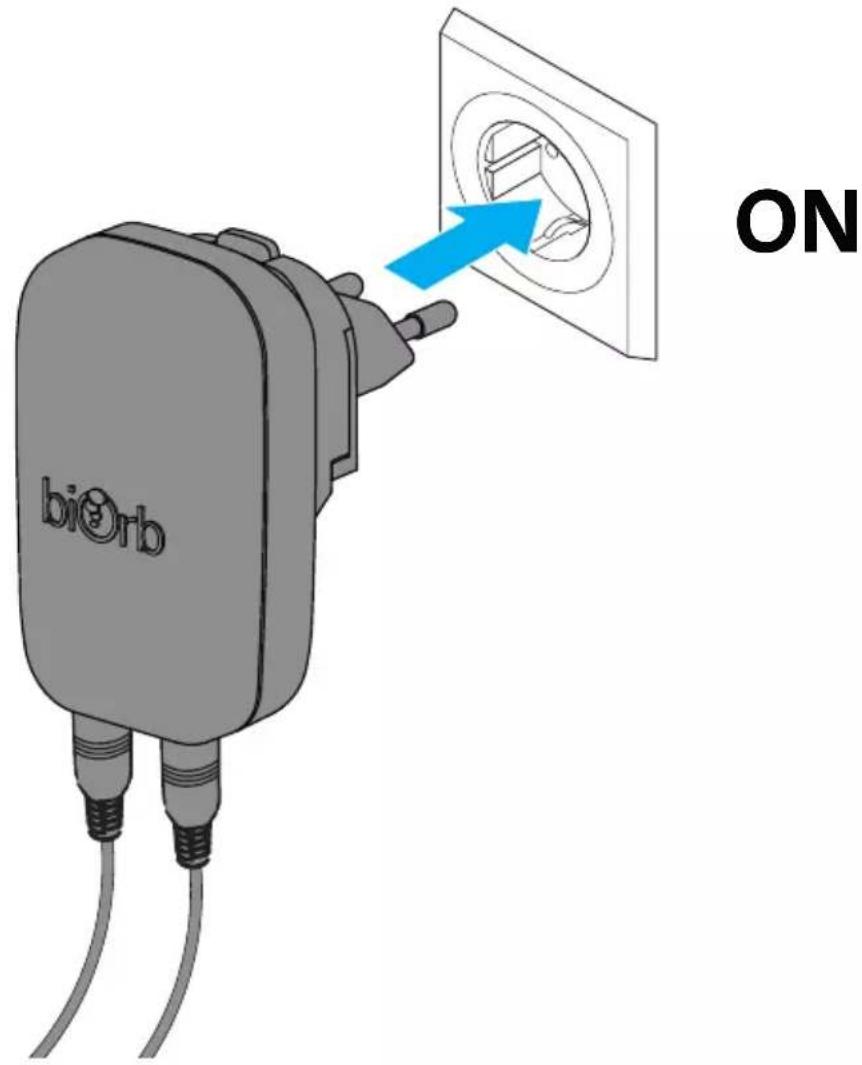

- Only connect the unit if the electrical data of the unit and the power supply correspond.
- Only connect the unit to a correctly fitted socket.
- Protect the plug connection from moisture.
- When using heaters, ensure that they are approved for use in the aquarium and that they do not come into contact with the acrylic wall of the aquarium.
- Disconnect the power plug before carrying out any work on the unit.
- Only open the unit housing or its attendant components if this is explicitly specified in the operating instructions.
- Never carry out technical changes to the unit.
- Exclusively use biOrb cleaning product to clean the aquarium. Other cleaning agents may cause scratches or tears in the acrylic material.
- Only use original spare parts and accessories for the unit.
For the complete operating manual, visit
www.biorb.com
EN
GUARANTEE
For this OASE unit purchased by you, OASE GmbH assumes a 24 month manufacturer's guarantee in accordance with the guarantee conditions laid down in the following. The guarantee period starts with the first purchase from an OASE specialist dealer. In other words, in the event of a resale, the guarantee period will not start again. If services are provided under the terms of this guarantee, this does not lead to extension or renewal of the guarantee period. Your legal rights as a purchaser, especially those ensuing from the warranty, per-sist. They are not restricted by this guarantee.
Guarantee conditions
OASE GmbH guarantees impeccable, purpose-related properties and workmanship, expert as-sembly and proper functionality. Subject to our discretion, the guarantee refers to free-of-charge repair or free-of-charge supply of spare parts or of a replacement unit respectively. Should the unit type concerned no longer be manufactured, we reserve the right, at our discretion, to supply a replacement unit from our range that is closest to the type subject to complaint. Claims, the origin of which can be traced back to installation and operating faults as well as lack of care, e.g. the use of unsuitable cleaning materials or negligent maintenance, use other than that intended, damage due to accidents, falls, impact, effect of frost, cutting plugs, shortening cables, calcium deposits or im-proper attempts to repair the unit, are not covered by our guarantee. We hereby refer to the proper use as specified in
the instructions of use that form an integral part of the guarantee. Wear parts such as bulbs etc. are exempted from the guarantee.
The refund of costs for removal and installation, checks, claims for lost profit and damages are exempted from the guarantee together with further reaching claims for damages and loss of whatever nature caused by the unit or its use.
The guarantee is only valid in the country in which
the unit was purchased from an OASE dealer.
This guarantee is governed by German law under the
exclusion of the agreement of the United Nations covering contracts governing the
international sale of goods (CISG) regulations.
Guarantee claims can only be brought forward by
presenting the sales receipt to us, OASE GmbH, Tecklenburger Straße 161 in D-48477 Hörstel, Germany by returning to us the unit or part of the unit subject to complaint, freight free, at your own risk, accompanied by a copy of the original purchase receipt from the OASE specialist dealer, this guarantee document and written information of the fault encountered.
EN
TECHNICAL DATA
| biOrbAquarium | CLASSIC / FLOW / CUBE / LIFE / TUBE / HALO |
| Power supply voltage of the power pack V AC 100 - 240 | |
| Mains frequency Hz 50/60 | |
| Power pack output voltage V DC 12 | |
| Protection type IP 20 | |
| Aerator pump power consumption W 2.1 | |
| Aerator pump rated voltage V AC 12 | |
| Length of connection cable of the aerator pump m 1.5 | |
Standard LED MCR LED
| biOrbLighting unit | large small | HALO30/60 | large | small | HALO15/30/60 | ||
| Energy efficiency class | A++ | A++ | A++ | A+ | A+ | A | |
| Energy efficiency | lm/W | 85 | 73 | 85 | 74 | 72 | 17 |
| Rated power | W | 2.4 | 2.0 | 2.0 | 2.8 | 2.8 | 2.9 |
| Rated voltage | V DC | 12 | 12 | 12 | 12 | 12 | 12 |
| Length of the connection cable | m | 1.4 | 1.4 | 1.5 | 1.5 | 1.5 | 1.4 |
| Remote control battery | Type | - | - | - | CR 2025 | CR 2025 | CR 2025 |
