Product type	Illuminated cylindrical aquarium
Brand	Oase
Model	biOrb TUBE 15
Category	Aquarium
Lighting	Multicolored LED with remote control
Power supply	12 V DC via mains adapter
Power consumption	2.8 W
Rated voltage	12 V AC
Connection cable length	1.5 m
Remote control battery type	CR 2025
Energy class	A+
Luminous efficacy	74 lm/W (small), 72 lm/W (large)
Main functions	Cyclic day/night lighting, color variation, 15 preset colors, 4 brightness levels
Lighting modes	Daylight, blue night light, cycles of 8 to 14 hours
Number of colors	15 predefined colors + RGB combinations
Brightness levels	100%, 80%, 60%, 40%, 20%
Maintenance	Clean with special OASE cleaning cloth (ref. 46027)
Cleaning	Wipe lower part with special cloth, upper part with damp cloth
Safety	Do not immerse, do not use with damaged cable, keep out of reach of children under 8 years
Spare parts and repairability	CR2025 battery, cleaning cloths; cable not replaceable, device must be disposed of if damaged
Warranty	2 years (OASE manufacturer warranty)
Intended use	Lighting for biOrb CLASSIC, LIFE, FLOW, TUBE aquariums; indoor use, private aquarium
Restrictions	Exclusive connection to a biOrb transformer; do not use outdoors

Frequently Asked Questions - biOrb TUBE 15 OASE

How do I install the biOrb MCR LED lighting on a biOrb TUBE aquarium?

Insert the lighting unit into the aquarium lid, plug it into the separate socket of the mains adapter, then plug the adapter into the power socket. Use the on/off switch to turn it on. See figures B and C in the manual.

How do I use the lighting remote control?

Before first use, remove the plastic battery protector. Point the remote at the sensor on the lighting unit. Use the buttons to turn on/off, change color (R, G, B or one of 15 preset colors), adjust brightness (4 levels) or activate day/night cycle mode.

How do I clean the aquarium lighting?

Use a special OASE cleaning cloth (ref. 46027) for the lower part with the lighting unit to avoid scratches. Wipe the upper part with a damp cloth. Never immerse the device in water.

How do I change the remote control battery?

Turn the remote over so you can see the back. Open the battery compartment, fully remove the holder, replace the battery with a CR 2025, observing polarity, then reinsert the holder. Close the compartment.

What should I do if the lighting does not turn on?

Check that the mains adapter is plugged in and the on/off switch is set to 'on'. If the light was turned off via the remote, turn it back on with the remote. If the problem persists, check the connections.

The remote control is not working, what should I do?

Make sure the remote is pointed at the sensor on the lighting unit. Reduce the distance if it is too far. If the battery is dead, replace it with a new CR 2025.

What safety instructions must be observed?

Never immerse the device in water. Always disconnect the power before carrying out any work. Do not use if the cables or housing are damaged. Children under 8 years must be supervised. Do not look directly at the light source.

How do I set the day/night cycle mode?

Press one of the cycle buttons (8, 10, 12 or 14 HR) to activate the cycle function. The sunrise and sunset duration is 15 minutes. Daylight lasts between 7.5 and 13.5 hours depending on the selected duration, and blue night light (20%) completes the 24-hour cycle.

What is the warranty for the biOrb MCR LED lighting?

OASE offers a 24-month manufacturer's warranty from the date of first purchase from an authorized dealer. It covers manufacturing defects but not damage due to incorrect use, wear (bulbs, batteries) or unauthorized repairs. Consumable parts such as batteries are excluded.

How do I dispose of the device or batteries?

Do not dispose of the device with household waste. Cut the cable to make it unusable. Remove the batteries and take them to a designated collection point. The device must be recycled via a take-back system. Batteries containing harmful substances are marked Pb, Cd, Hg or Li.

USER MANUAL biOrb TUBE 15 OASE

Product photo of various electronic devices including a circular display, remote control, and ring components (no visible text or symbols)

MCR LED

EN Operating instructions

FR Notice d'emploi

Line drawing of electronic devices including a CD, remote control, and a switch (no text or symbols)

B

Technical line drawing of a mechanical component with a circular base and cable, no text or symbols present

BOB0052

C

BOB0012

D

Technical illustration of a device with three views: top view, side view, and bottom view showing internal components (no text or symbols)

BOB0036

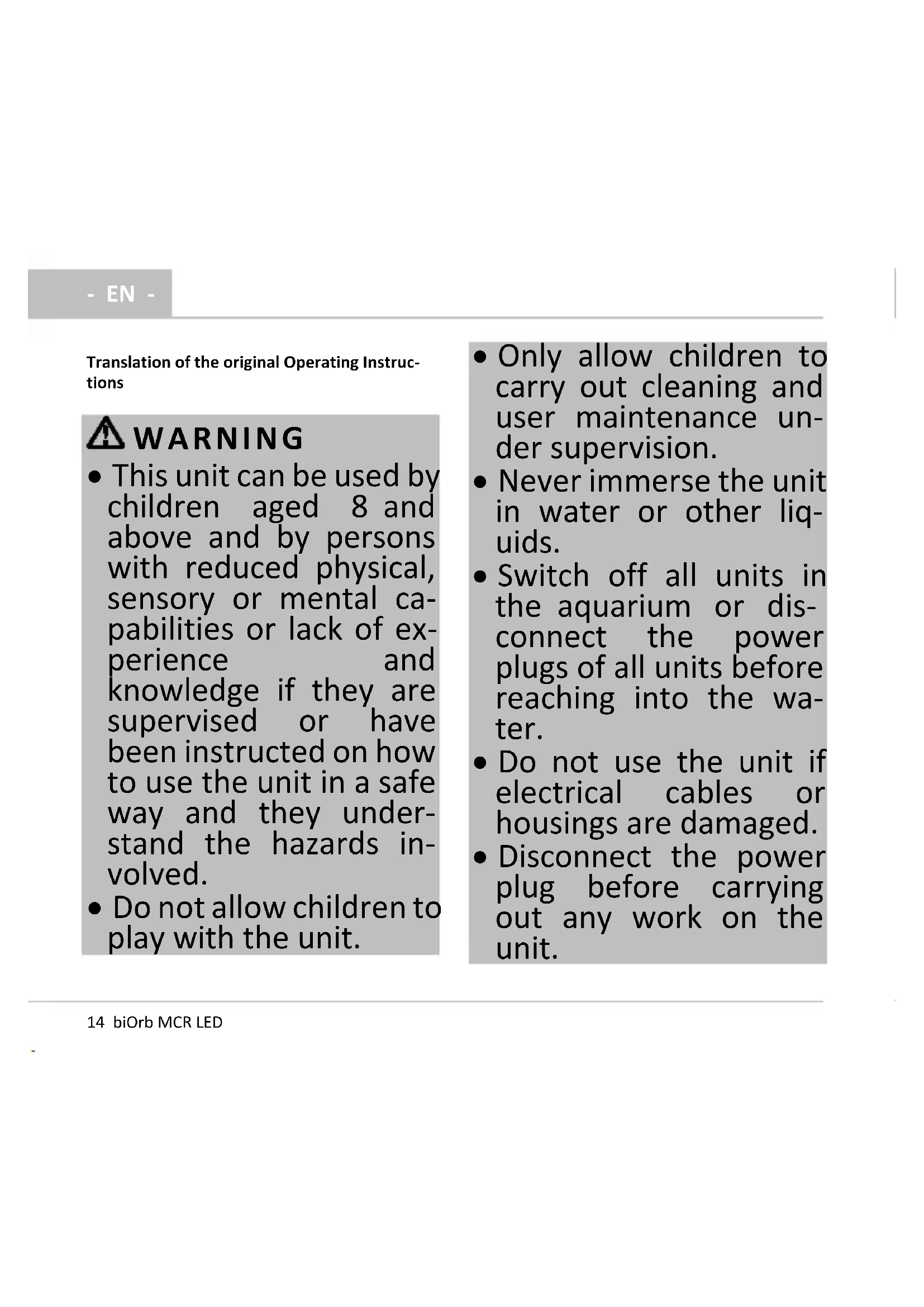

Translation of the original Operating Instructions

WARNING

• This unit can be used by children aged 8 and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised or have been instructed on how to use the unit in a safe way and they understand the hazards involved.

- Do not allow children to play with the unit.

• Only allow children to carry out cleaning and user maintenance under supervision.
• Never immerse the unit in water or other liquids.
• Switch off all units in the aquarium or disconnect the power plugs of all units before reaching into the water.
• Do not use the unit if electrical cables or housings are damaged.
• Disconnect the power plug before carrying out any work on the unit.

SAFETY INFORMATION

• Never operate the unit if the housing is defective!
• Never operate the unit if any electrical cables are defective!
• Never carry or pull the unit by the electrical cable.
• Route cables such that they are protected from damage and do not present a tripping hazard.
• Power connection cables cannot be replaced. If the cable is damaged, the unit must be disposed of.
• Do not look directly into the light source.
• Only connect the unit if the electrical data of the unit and the power supply correspond. The unit data is to be found on the unit type plate, on the packaging or in this manual.
• Protect the plug connection from moisture.

Symbols used in these instructions

CAUTION

• Indicates a possibly hazardous situation.
• Non-observance may lead to slight or minor injuries.

NOTE

Indicates information intended to give the user a better understanding.

Additional information

☐ A Reference to a figure, e.g. Fig. A.

PRODUCT DESCRIPTION

Intended use

biOrb MCR LED, referred to in the following as "unit", may only be used as specified in the following:

For lighting a biOrb CLASSIC, biOrb LIFE, biOrb FLOW, biOrb TUBE aquarium.

- Operation under observance of the technical data.

The following restrictions apply to the unit:

• Only intended for connection to a biOrb transformer.
• Only use indoors and for aquaristic purposes in the home (not for commercial use).

Function description

Individually adjustable lighting for the aquarium biOrb; can be set by remote control (included in the delivery scope).

Possibility for cyclical lighting:

- EN -

A gradually changing light in colour and brightness during a 24 hour day, simulating daylight and night light. Blue night light (dimmed to 20%), white daylight (100%).

INSTALLATION, CONNECTION, START-UP

CAUTION

Strong LED radiation!

Possible consequences: Eye injury due to light flash.

- Never look into the light source.

Prerequisite:

- The plug-in transformer of the aquarium has been disconnected from the power supply.

How to proceed:

□ B

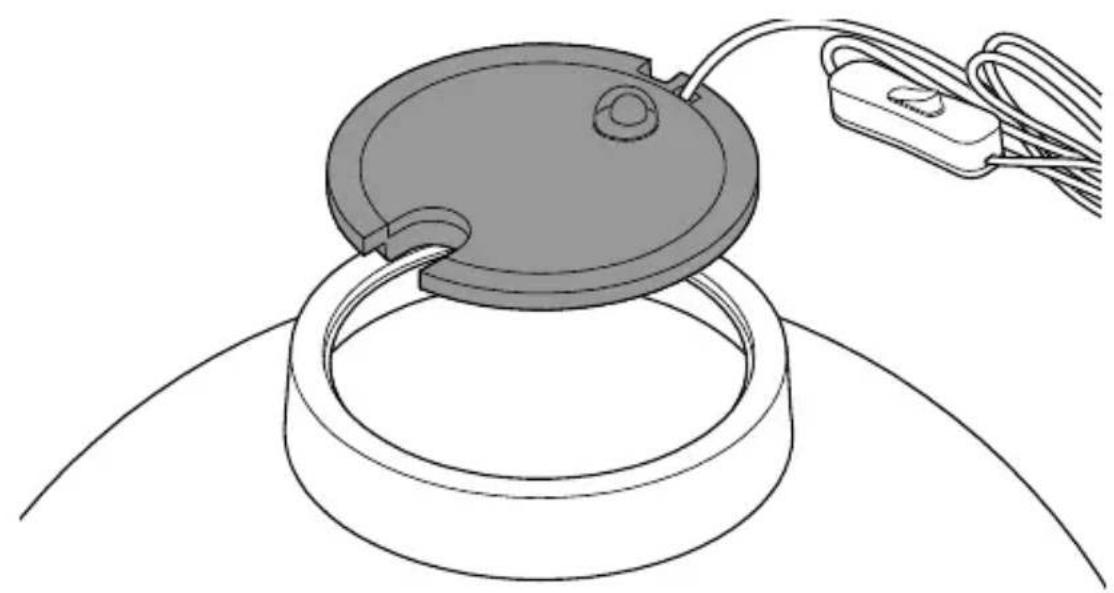

- Insert the lighting unit into the cover of the biOrb aquarium.

□ C

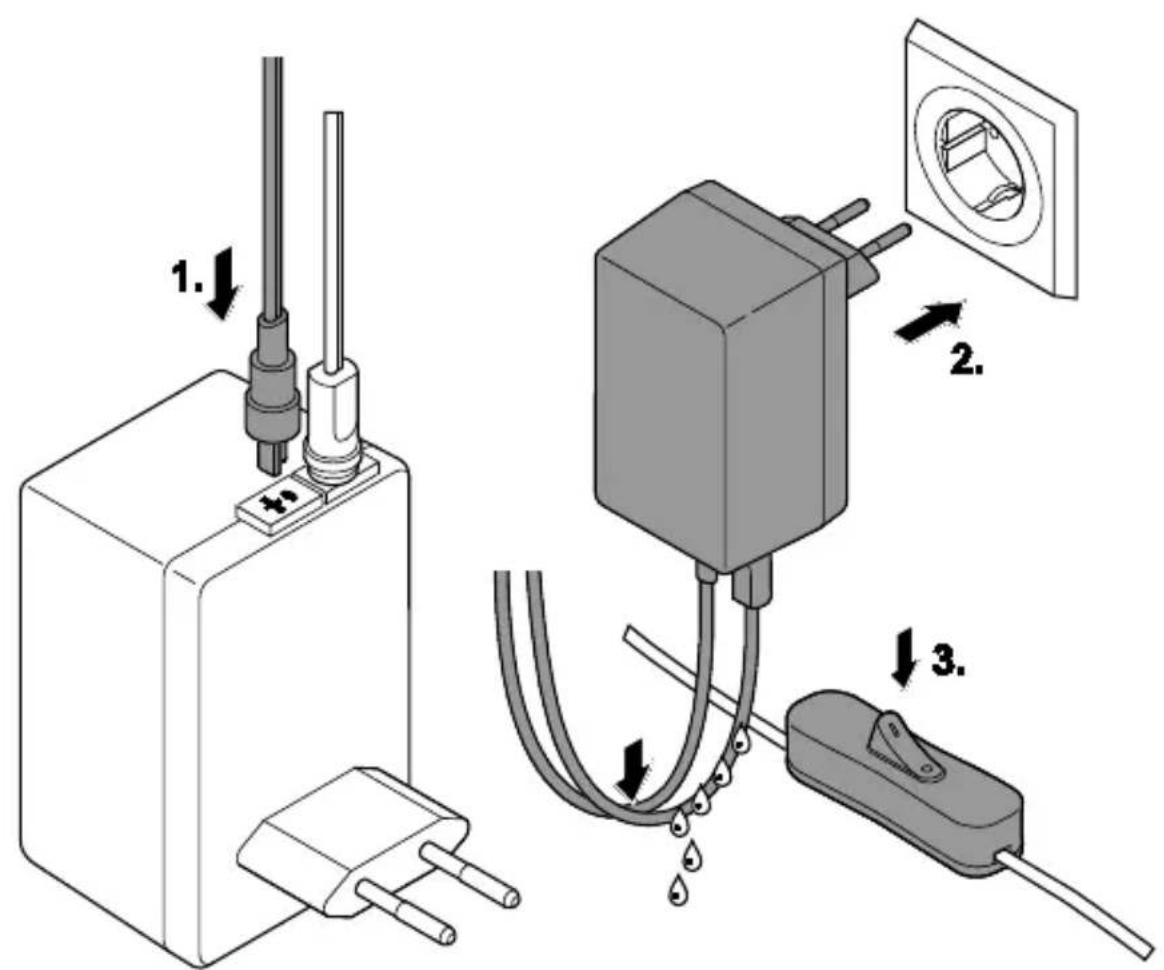

1. Insert the plug of the lighting unit into the separate socket of the plug-in transformer.

2. Insert the plug-in transformer into the socket. — Ensure that all connection cables form a drip loop.

3. Actuate the switch of the lighting unit for switching on/off.

4. Carry out further settings with the aid of the remote control.

- When the lighting unit is switched on and off with the ON/OFF switch, the current settings for the mode and "Automatic" are retained.

CLEANING

Cleaning cloths are available as OASE biOrb Reinigungstücher Set (46027).

How to proceed:

- Bottom surface of the lighting unit: Wipe with a special cleaning cloth to avoid scratches.

- Wipe the top with a damp cloth.

Change battery

How to proceed:

□ E

1. Turn the remote control over and open the battery compartment.

2. Pull the battery holder completely out and change the batteries.

— Pay attention to the polarity of the batteries.

1. Push the battery holder back into the remote control.

OPERATION

How to proceed:

□D

• Pull out the small plastic strip before using the remote control for the first time.
• Switch on the lighting unit with the ON/OFF switch.

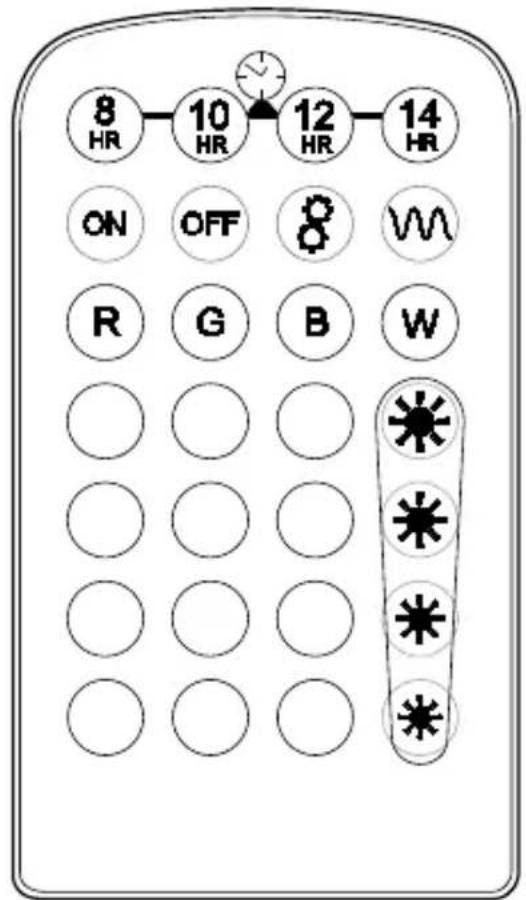

ON	Switches on the light.
OFF	Switches off the light.
	Start of the cycle through the possible light colours.
	End of the cycle through the possible light colours.
R	Switches the LED to the basic colour red (R). Green (G), blue (B) respectively, or colours other than these 3 basic colours. 15 predefined colours.
W	White light ("Daylight""", W)

Dims the light, 4 brightness stages: 80% ... 20%. To reset to 100% press any button for selecting the light colour.

One of the 4 buttons for activating the cycle function.

Cycle function

Example for the 8 HR cycle. When the 10, 12 or 14 HR button is selected, the time for "Daylight" and "Night light" changes accordingly. "Day light" is always reduced by 30 minutes for "Sunrise" and "Sunset". Total duration of a cycle: 24 h.

Mode	Time
Sunrise	15 min
Daylight	7.5 h
Sunset	15 min
Nightlight	16 h

REMEDY OF FAULTS

Malfunction	Cause	Remedy
The lighting does not switch on.	Incorrect connection	Check the connection
	The ON/OFF switch is set to OFF	Switch on
	Light switched off via the remote control	Switch on the light via the remote control.
The remote control is not having any effect.	The remote control is not reaching the sensor.	Point the remote control in the direction of the sensor.
	Too large a distance between the remote control and the unit.	Reduce the distance.
	The remote control battery capacity is exhausted.	Replace the battery.

TECHNICAL DATA

Description		Value, biOrb MCR LED
		MCR small	MCR large
Energy efficiency class		A+	A+
Energy efficiency	lm/W	74	72
Rated power	W	2.8	2.8
Rated voltage	V AC	12	12
Length of the connection cable	m	1.5	1.5
Remote control battery	Type	CR 2025	CR 2025

SYMBOLS ON THE UNIT

		Protection class II, reliable electrical isolation from the mains by reinforced or double insulation.
		For use indoors.
		Do not dispose of with household waste.
		Read and adhere to the instructions for use.

DISPOSAL

NOTE

This unit contains electronic components - do not dispose of this unit with domestic waste!

• Render the unit unusable by cutting off the cables.
• Remove the replaceable or rechargeable batteries from the unit and dispose of them separately via the return system provided for this purpose.
• Dispose of the unit by using the return system provided for this purpose.

NOTE

Disposal of batteries

Do not dispose of batteries with household waste.

- Only dispose of the batteries by using the return system provided for this purpose.

Disposal of batteries within the European Union

As a consumer you are legally obliged to return used batteries. Return is free of charge.

- Either dispose of batteries through the public return and recycling systems of your town or

municipality, or return the batteries to the place where they were purchased.

Labelling of batteries containing harmful substances

PB = Battery contains lead

Cd = Battery contains cadmium

Hg = Battery contains mercury

Li = Battery contains lithium

GUARANTEE

For this OASE unit purchased by you, OASE GmbH assumes a 24 month manufacturer's guarantee in accordance with the guarantee conditions laid down in the following. The guarantee period starts with the first purchase from an OASE specialist dealer. In other words, in the event of a resale, the guarantee period will not start again. If services are provided under the terms of this guarantee, this does not lead to extension or renewal of the guarantee period. Your legal rights as a purchaser, especially those ensuing from the warranty, persist. They are not restricted by this guarantee.

Guarantee conditions

OASE GmbH guarantees impeccable, purpose-related properties and workmanship, expert assembly and proper functionality. Subject to our discretion, the guarantee refers to free-of-charge repair or free-of-charge supply of spare parts or of a replacement unit respectively. Should the unit type concerned no longer be manufactured, we reserve the right, at our discretion, to supply a replacement unit from our range that is closest to the type subject to complaint. Claims, the origin of which can be traced back to installation and operating faults as well as lack of care, e.g. the use of unsuitable cleaning materials or negligent maintenance, use other than that intended, damage due to accidents, falls, impact, effect of frost, cutting plugs, shortening cables, calcium deposits or improper attempts to repair the unit, are not covered by our guarantee. We hereby refer to the proper use as specified in the instructions of use that form an integral part of the guarantee. Wear parts such as bulbs etc. are exempted from the guarantee.

The refund of costs for removal and installation, checks, claims for lost profit and damages are exempted from the guarantee together with further reaching claims for damages and loss of whatever nature caused by the unit or its use.

The guarantee is only valid in the country in which the unit was purchased from an OASE dealer. This guarantee is governed by German law under the exclusion of the agreement of the United Nations covering contracts governing the international sale of goods (CISG) regulations.

Guarantee claims can only be brought forward by presenting the sales receipt to us, OASE GmbH, Tecklenburger Straße 161 in D-48477

Hörstel, Germany by returning to us the unit or part of the unit subject to complaint, freight free, at your own risk, accompanied by a copy of the

original purchase receipt from the OASE specialist dealer, this guarantee document and written information of the fault encountered.
