USER MANUAL ProMax MudDrain 7000 OASE

Man spraying water outdoors near a brick wall, no visible text or symbols

ProMax MudDrain 7000 | 11000 | 14000 | 20000

EN Operating instructions

FR Notice d'emploi

Three industrial water purifier units with black bases and blue handles, no visible text or symbols

A
ProMax MudDrain 7000/11000/14000

Technical diagram of a mechanical device with numbered parts labeled 1 through 6

ProMax MudDrain 20000

Technical diagram of a mechanical device with numbered parts labeled 1 through 6

POX0008

B

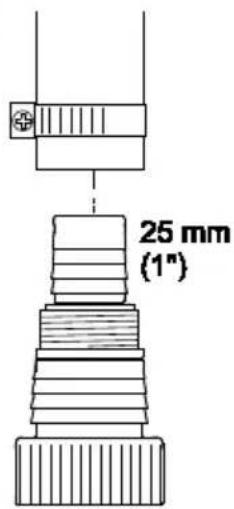

25 mm (1")

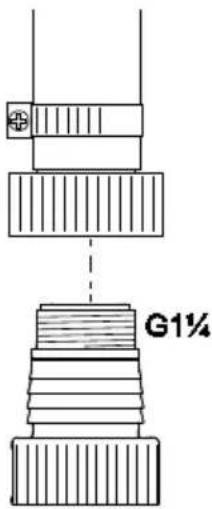

G1¼

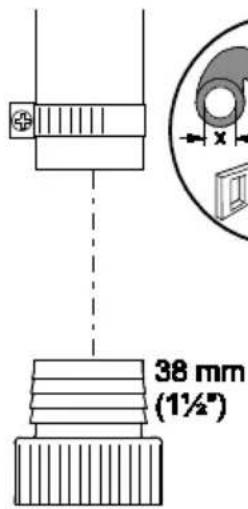

38 mm (1½")

1.

Technical diagram showing mechanical assembly with labeled parts and directional arrows indicating motion or force

POX0013

C

D

E

POX1010

F(0/01)

7010109

Translation of the original Operating Instructions

WARNING

• This unit can be used by children aged 8 and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised or have been instructed on how to use the unit in a safe way and they understand the hazards involved.
• Do not allow children to play with the unit.
• Only allow children to carry out cleaning and user maintenance under supervision.
• Ensure that the unit is fused for a rated fault current of max. 30 mA by means of a fault current protection device.
• Only connect the unit if the electrical data of the unit and the power supply correspond. The unit data is to be found on the unit type plate, on the packaging or in this manual.
• Possible death or severe injury from electrocution! Before reaching into the water, always disconnect all units in

the water that have a voltage of >12 V AC or >30 V DC from the power supply.

• Only operate the unit if no persons are in the water.
• If a power connection cable is damaged, have it immediately replaced by OASE, an authorised customer service or a qualified electrician to prevent electric shock.

SAFETY INFORMATION

Electrical connection

• Extension cables and power distributors (e.g. outlet strips) must be suitable for outdoor use (splash-proof).
• Protect the plug connection from moisture.
• Only connect the unit to a correctly fitted socket.

Safe operation

• Never operate the unit if the housing is defective!
• Never operate the unit if an electrical cable is defective!
• Never carry or pull the unit by the electrical cable.
• Route cables such that they are protected from damage and do not present a tripping hazard.
• Never carry out technical changes to the unit.
• Only carry out work on the unit that is described in this manual. If problems cannot be overcome, please contact an authorised customer service point or, if in doubt, the manufacturer.
• Only open the unit housing or its attendant components if this is explicitly specified in the operating instructions.
• Only use original spare parts and accessories for the unit.

INFORMATION ABOUT THIS OPERATING MANUAL

You made a good choice with the purchase of this product ProMax MudDrain 7000/11000/14000/20000.

Prior to commissioning the unit, please read the instructions of use carefully and fully familiarise yourself with the unit. Ensure that all work on and with this unit is only carried out in accordance with these instructions.

Adhere to the safety information for the correct and safe use of the unit.

Keep these instructions in a safe place! Please also hand over the instructions when passing the unit on to a new owner.

Symbols used in these instructions

Warnings

The warning information is categorised by signal words, which indicate the extent of the hazard.

WARNING

• Indicates a possibly hazardous situation.
• Non-observance may lead to death or serious injuries.

NOTE

Information for the purpose of clarification or for preventing possible damage to assets or to the environment.

Additional information

☐ A Reference to a figure, e.g. Fig. A.
→ Reference to another section.

PRODUCT DESCRIPTION

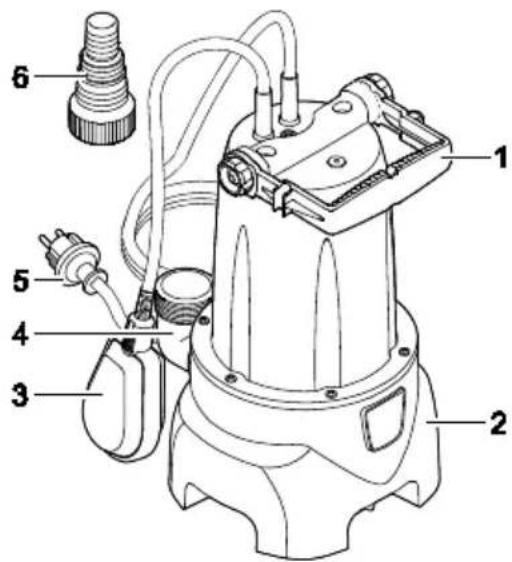

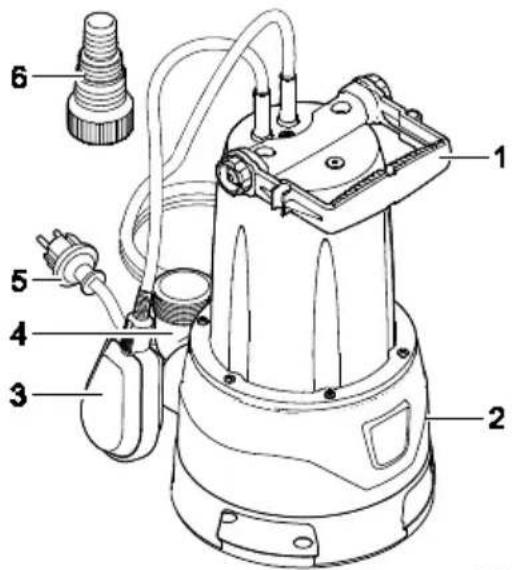

Overview

☐ A	ProMax MudDrain7000/11000/14000/20000
1	Handle, adjustable
2	Pump base
3	Float switch
4	Connection, pressure side, G 112
5	Power connection cable
6	Stepped hose adapter

Intended use

ProMax

MudDrain

7000/11000/14000/20000, referred to as "unit", may only be used as specified in the following:

• For pumping clear water or rain water.
• Pumping of soiled water and particles up to the permissible grain size. (→ Technical data)
• For irrigating and watering.
• For transferring water from and draining basins or ponds/pools.
• Extraction of water from a well.
• Only for irrigation and watering purposes!
• For pumping the water out of water butts/rain barrels or cisterns.
• Operate in accordance with instructions. (→ Technical data)

Possible incorrect use

The following restrictions apply to the unit:

• Not suitable for salt water.
• Not suitable for drinking water.
• Do not use for long-term operation (e.g. continuous recirculation of the water in a pond).
• Do not use for commercial or industrial purposes.
• Do not use in conjunction with chemicals, foodstuff, easily flammable or explosive substances.
• Do not connect to the drinking water supply.

INSTALLATION AND CONNECTION

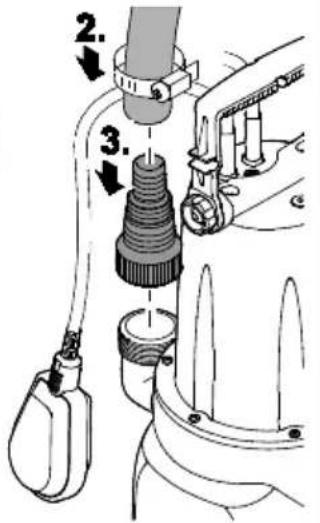

Connecting the pressure hose

An optimum flow rate is achieved with a hose inside diameter of 38 mm (1½").

How to proceed:

□ B

1. Adapt the stepped hose adapter to the hose diameter
2. Screw the stepped hose adapter onto the connection on the pressure side.
3. Connect the pressure hose to the stepped hose adapter.
4. Secure the pressure hose with a hose clip.

Automatic mode

When the water level rises, it lifts the float switch until the switch-on point is reached and the pump switches on.

When the water level drops, the float switch lowers until the switch-off point is reached and the pump switches off.

□ C

• Push the float switch cable into the cable clip.
• The shorter the cable between the float switch and the cable clip, the lower the switch-on point and the higher the switch-off point.

NOTE

To ensure faultless function, ensure that the length of cable between the float switch and the cable clip measures at least 10 cm.

NOTE

The minimum residual water height is only reached in manual mode.

Manual mode

The pump remains permanently switched on if the float switch is set vertically and the cable points downward.

NOTE

The pump can run dry in manual mode.

• Switch off the pump when the minimum water level is reached.
• Running the pump dry increases wear.

□D

- Move the handle into the horizontal position and push the cable directly at the transition to the float switch into the cable clip such that the float switch is in a vertical position.

Installing the pump

□H

• Install the pump in the water in a horizontal and stable position.
• If it needs to be lowered into a well or a shaft, fasten a rope to the handle. Do not carry it by the power connection cable.
• Install the pump so that intake of dirt particles larger than the permissible grain size is avoided (a larger distance from the bottom may be necessary). Otherwise the intake opening will be blokked.
• Ensure that the float switch can always move freely.

OPERATION

WARNING

Dangerous electrical voltage!

Death or severe injury from electrocution.

• Only connect the pump to the power supply when there are no persons in or reaching into the water.
• Before stepping into or reaching into the water, switch off all units located in the water.

Switching on the unit

• Insert the power plug into the socket.
  – The pump is ready for operation.
• The pump will start up as soon as the level of the water reaches the switch-on height.

Switching off the unit

• Disconnect the power plug.
• When the pump is switched off, residual water in the hose may flow back and out of the pump intake.

NOTE

Do not use the unit for long-term operation. Otherwise this will impair the operating life of the unit accordingly.

NOTE

Rinse out the pump with clean water after use.

REMEDY OF FAULTS

WARNING

Dangerous electrical voltage!

Death or severe injury from electrocution.

Prior to starting work:

• Switch off the unit, disconnect the power plug and secure the unit from being switched on again.
• Before stepping into or reaching into the water, switch off all units located in the water.
  On completion of the work:
• Restore all the prerequisites for start-up.

Malfunction	Cause	Remedy
Pump does not start.	Power supply interrupted	Check the fuse and electrical plug connections.
Pump switches off after a short running period.	Overload protection has switched the pump off due to overheating.	Clean the intake and pressure hose.Allow the pump to cool down.
The pump is running but is not delivering, or the delivered quantity is insufficient	Pressure hose kinked	Route the pressure hose without kinksCheck the outlet and clean if necessary
	Intake blocked	Clean the intake
	Air in the pressure hose	Expel the air from the pressure hose.
	If applicable:Non-return valve incorrectly fitted in the pressure hose or clogged	Correctly fit the non-return valve.Clean the non-return valve.
	Impeller defective or worn	Contact OASEThe impeller may only be replaced by the OASE Service.

MAINTENANCE AND CLEANING

WARNING

Dangerous electrical voltage!

Death or severe injury from electrocution.

• Before reaching into the water, switch off the mains voltage of all units in the water.
• Isolate the unit (disconnect from the power supply) before carrying out any work on it.

NOTE

Recommendation on regular cleaning:

- Clean the unit as required but at least twice per year.

- Do not use aggressive cleaning agents or chemical solutions as they could attack the housing or impair the function of the unit.

- Recommended cleaning agent for removing stubborn limescale deposits:

• Pump cleaning agent PumpClean from OASE.
  – Vinegar- and chlorine-free household cleaning agent.

- After cleaning, thoroughly rinse all parts in clean water.

WEAR PARTS

The following components are wear parts and may only be replaced by the OASE Service.

- Impeller

STORAGE/OVERWINTERING

The unit is not frost-proof and has to be removed and put into storage if minus temperatures are expected.

How to correctly store the unit:

• Drain the unit as far as possible, clean thoroughly and check for damage.
• Empty all hoses, pipes and connections as far as possible.
• Thoroughly clean the unit, check it for damage and replace any damaged parts.
• Store the unit in a dry and frost-free place.
• Protect open plug connections from moisture and dirt.

DISPOSAL

NOTE

Do not dispose of this unit with domestic waste.

- Render the unit unusable beforehand by cutting the cables and dispose of the unit via the return system provided for this purpose.

SPARE PARTS

The use of original parts from OASE ensures continued safe and reliable operation of the unit.

Please visit our website for spare parts drawings and spare parts.

www.oase-livingwater.com/spareparts-di

TECHNICAL DATA

ProMax MudDrain			7000	11000	14000	20000
Rated voltage		V AC	230	230	230	230
Rated frequency		Hz	50	50	50	50
Rated power		W	325	625	950	950
Protection type			IPX8	IPX8	IPX8	IPX8
Connection, pressure side		-	G1 12	G1 12	G1 12	G1 12
Minimum switch-on height / maximum switch-off height		mm	500/250	530/270	530/270	480/300
Maximum switch-on height / minimum switch-off height		mm	670/120	700/100	700/100	650/100
Flow rate	Max.	I/h	7500	11500	14500	20000
Head height	Max.	m	5	7	11	10
Immersion depth	Max.	m	7	7	7	7
Particle size	Max.	mm	30	30	30	35
Power connection cable	Length	m	10	10	10	10
Dimensions	Length	mm	193	193	193	200
	Width	mm	247	247	247	254
	Height	mm	395	422	422	440
Weight		kg	5.6	6.8	8.2	8.0
