| Product Type | ATX Motherboard |
| Brand | ASRock |
| Model | Z390 Phantom Gaming SLI/ac |
| Dimensions (L x W) | 305 mm x 244 mm (standard ATX) |
| Estimated Weight | Approximately 1.2 kg |
| Power Requirement | 24-pin ATX connector + 8-pin 12V connector |
| CPU Socket | LGA1151 (8th/9th Gen Intel Core) |
| Chipset | Intel Z390 |
| Memory | 4 x DDR4, max 64 GB, up to 4300+ MHz (OC) |
| Expansion Slots | 2 x PCIe 3.0 x16 (x16/x8+x8), 4 x PCIe 3.0 x1 |
| Storage | 6 x SATA3 6 Gb/s, 2 x Ultra M.2 (PCIe Gen3 x4 & SATA) |
| Networking | 2.5 Gigabit LAN (Dragon RTL8125AG), Wi-Fi 802.11ac + BT 4.2 (SLI/ac model) |
| Audio | Realtek ALC892, 7.1 HD channels with Nichicon capacitors |
| Rear Panel Connectors | 1x PS/2, 1x DVI-D, 1x HDMI, 2x USB 3.1 Gen2 (Type A+C), 4x USB 3.1 Gen1, 1x RJ-45, 5x audio jacks, SPDIF optical output, 2x Wi-Fi antenna connectors |
| Key Features | SLI/CrossFire support, RGB LED (2x 12V headers + 1x addressable 5V), UEFI BIOS, full BCLK overclocking |
| Maintenance | Keep the board dry, dust regularly, avoid electrostatic discharges |
| Safety | Overvoltage protection, lightning/ESD protection on LAN, FCC/CE certification |
| Included Accessories | 2x SATA cables, 1x SLI HB bridge, 2x M.2 screws, 2x Wi-Fi antennas (SLI/ac model), I/O shield, driver CD |
| Compatible Operating System | Windows 10 64-bit |
Frequently Asked Questions - Z390 Phantom Gaming SLI/ac ASROCK
User questions about Z390 Phantom Gaming SLI/ac ASROCK
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Motherboard in PDF format for free! Find your manual Z390 Phantom Gaming SLI/ac - ASROCK and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Z390 Phantom Gaming SLI/ac by ASROCK.
USER MANUAL Z390 Phantom Gaming SLI/ac ASROCK
Published September 2018
Copyright©2018 ASRock INC. All rights reserved.
Copyright Notice:
No part of this documentation may be reproduced, transcribed, transmitted, or translated in any language, in any form or by any means, except duplication of documentation by the purchaser for backup purpose, without written consent of ASRock Inc.
Products and corporate names appearing in this documentation may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners' benefit, without intent to infringe.
Disclaimer:
Specifications and information contained in this documentation are furnished for informational use only and subject to change without notice, and should not be constructed as a commitment by ASRock. ASRock assumes no responsibility for any errors or omissions that may appear in this documentation.
With respect to the contents of this documentation, ASRock does not provide warranty of any kind, either expressed or implied, including but not limited to the implied warranties or conditions of merchantability or fitness for a particular purpose.
In no event shall ASRock, its directors, officers, employees, or agents be liable for any indirect, special, incidental, or consequential damages (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the documentation or product.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
CALIFORNIA, USA ONLY
The Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance controlled in Perchlorate Best Management Practices (BMP) regulations passed by the California Legislature. When you discard the Lithium battery in California, USA, please follow the related regulations in advance.
"Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/perchlorate"
ASRock Website: http://www.asrock.com
AUSTRALIA ONLY
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage caused by our goods. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. If you require assistance please call ASRock Tel : +886-2-28965588 ext.123 (Standard International call charges apply)
The terms HDMI ^® and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
HIGH-DEFINITION MULTIMEDIA INTERFACE

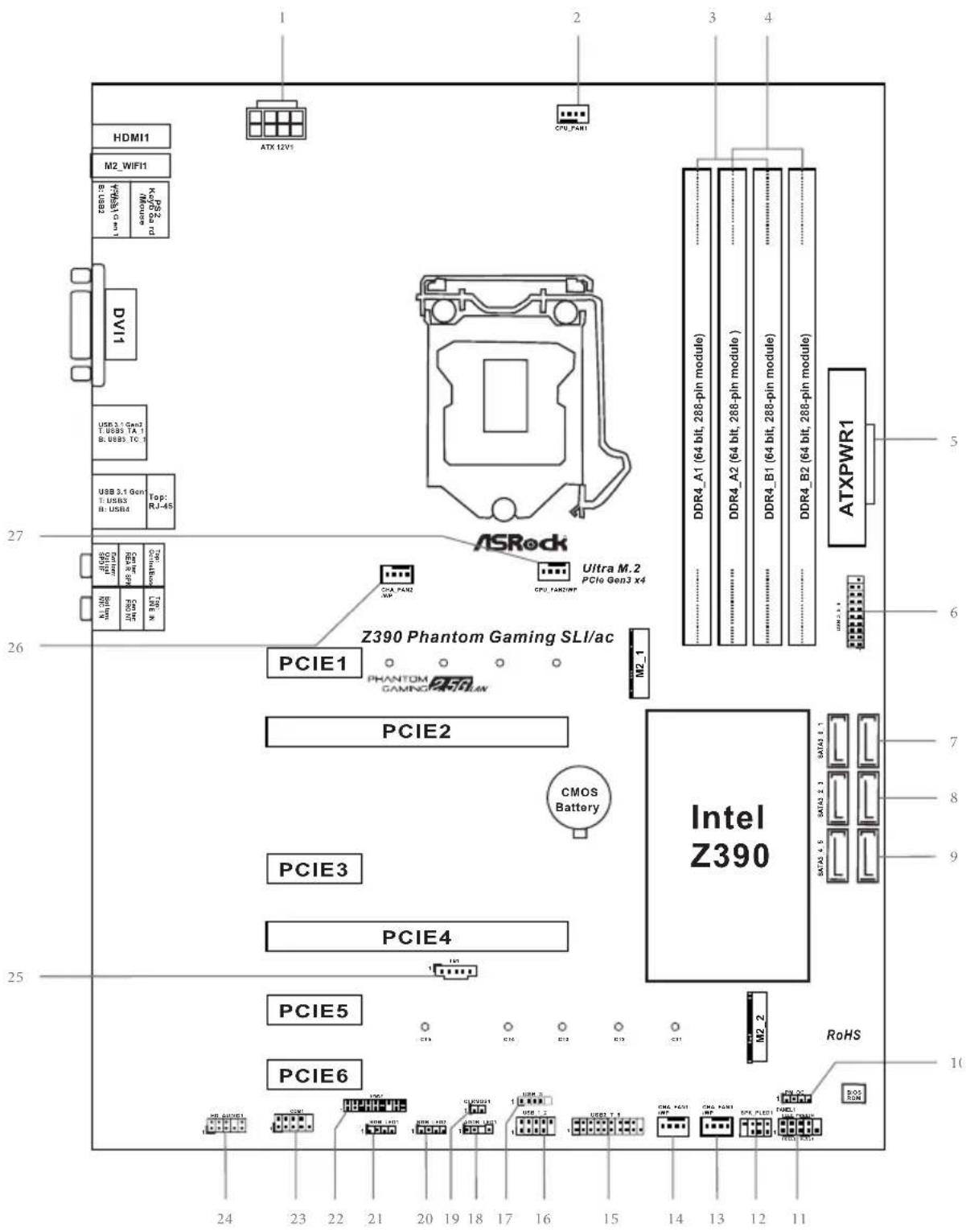

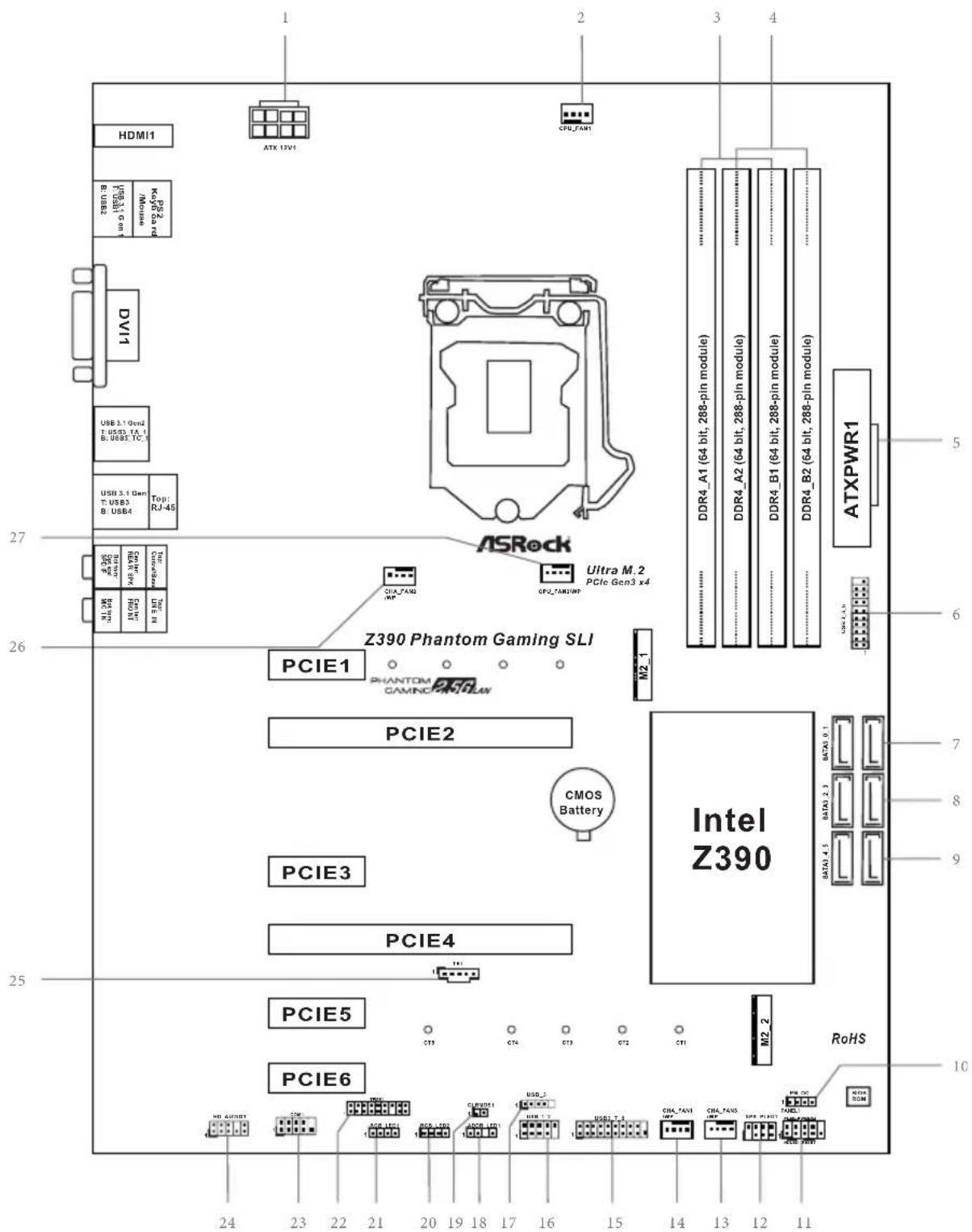

Motherboard Layout
Z390 Phantom Gaming SLI/ac
Z390 Phantom Gaming SLI
No. Description
| 1 ATX 12V Power Connector (ATX12V1) |
| 2 CPU Fan Connector (CPU_FAN1) |
| 3 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1) |
| 4 2 x 288-pin DDR4 DIMM Slots (DDR4_A2, DDR4_B2) |
| 5 ATX Power Connector (ATXPWR1) |
| 6 USB 3.1 Gen1 Header (USB3_5_6) |

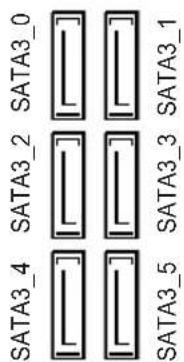

| 7 SATA3 Connectors (SATA3_0_1) |
| 8 SATA3 Connectors (SATA3_2_3) |
| 9 SATA3 Connectors (SATA3_4_5) |
| 10 Performance Mode / Easy OC Header (PM_OC) |
| 11 System Panel Header (PANEL1) |
| 12 Power LED and Speaker Header (SPK_PLED1) |
| 13 Chassis/Water Pump Fan Connector (CHA_FAN3/WP) |
| 14 Chassis/Water Pump Fan Connector (CHA_FAN1/WP) |
| 15 USB 3.1 Gen1 Header (USB3_7_8) |
| 16 USB 2.0 Header (USB_1_2) |
| 17 USB 2.0 Header (USB_3) |

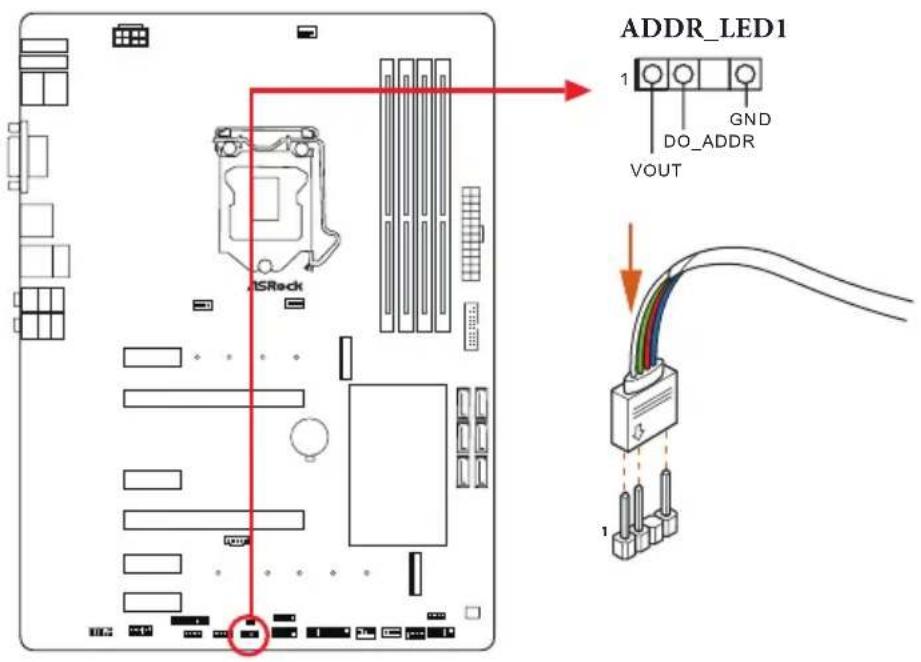

| 18 Addressable LED Header (ADDR_LED1) |
| 19 Clear CMOS Jumper (CLRMOS1) |
| 20 RGB LED Header (RGB_LED2) |
| 21 RGB LED Header (RGB_LED1) |

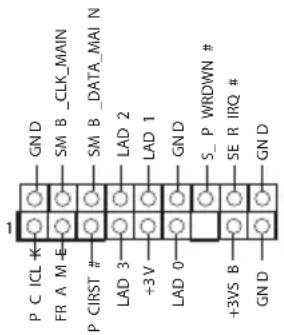

| 22 TPM Header (TPMS1) |
| 23 COM Port Header (COM1) |
| 24 Front Panel Audio Header (HD_AUDIO1) |
| 25 Thunderbolt AIC Connector (TB1) |
| 26 Chassis/Water Pump Fan Connector (CHA_FAN2/WP) |
| 27 CPU/Water Pump Fan Connector (CPU_FAN2/WP) |

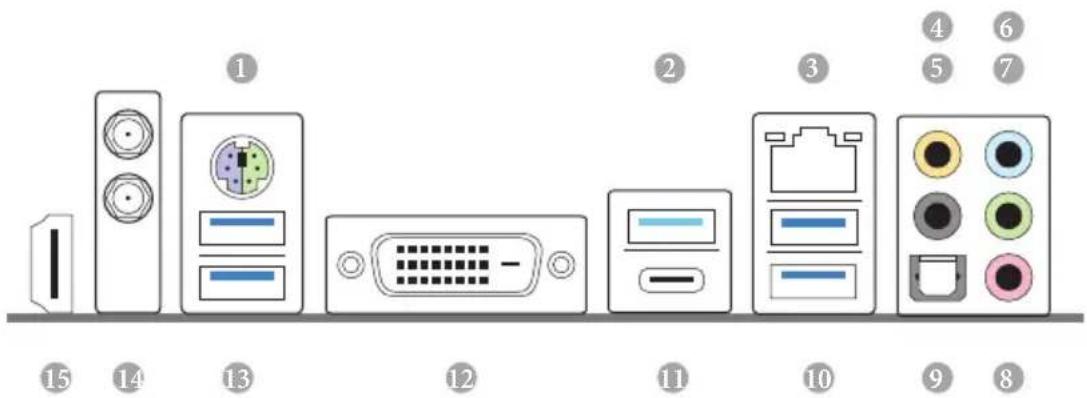

I/O Panel
Z390 Phantom Gaming SLI/ac
No. Description No. Description
1 PS/2 Mouse/Keyboard Port 9 Optical SPDIF Out Port
2 USB 3.1 Gen2 Type-A Port (USB31_TA_1) 10 USB 3.1 Gen1 Ports (USB3_3_4)
3 LAN RJ-45 Port* 11 USB 3.1 Gen2 Type-C Port (USB31_TC_1)
4 Central / Bass (Orange) 12 DVI-D Port
5 Rear Speaker (Black) 13 USB 3.1 Gen1 Ports (USB3_1_2)
6 Line In (Light Blue) 14 Antenna Ports
7 Front Speaker (Lime) ^** 15 HDMI Port
8 Microphone (Pink)

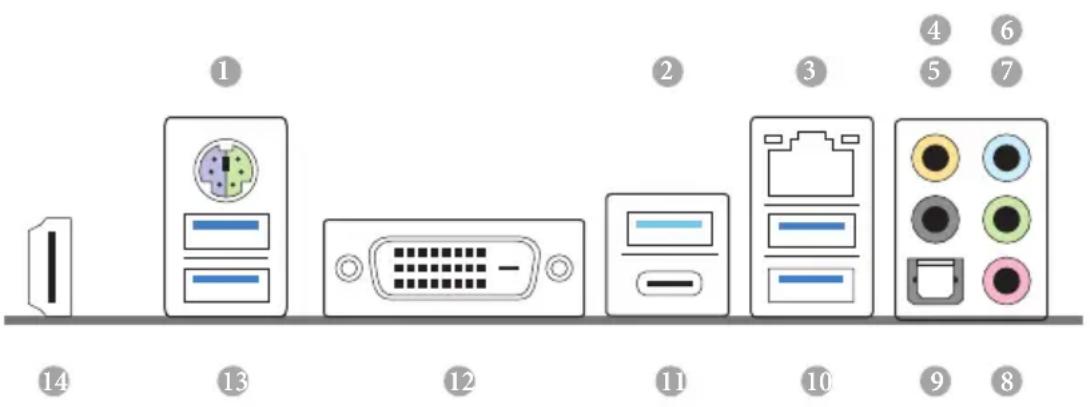

Z390 Phantom Gaming SLI
No. Description No. Description
1 PS/2 Mouse/Keyboard Port 8 Microphone (Pink)
2 USB 3.1 Gen2 Type-A Port (USB31_TA_1) 9 Optical SPDIF Out Port
3 LAN RJ-45 Port* 10 USB 3.1 Gen1 Ports (USB3_3_4)
4 Central / Bass (Orange) 11 USB 3.1 Gen2 Type-C Port (USB31_TC_1)
5 Rear Speaker (Black) 12 DVI-D Port
6 Line In (Light Blue) 13 USB 3.1 Gen1 Ports (USB3_1_2)
7 Front Speaker (Lime) ^** 14 HDMI Port

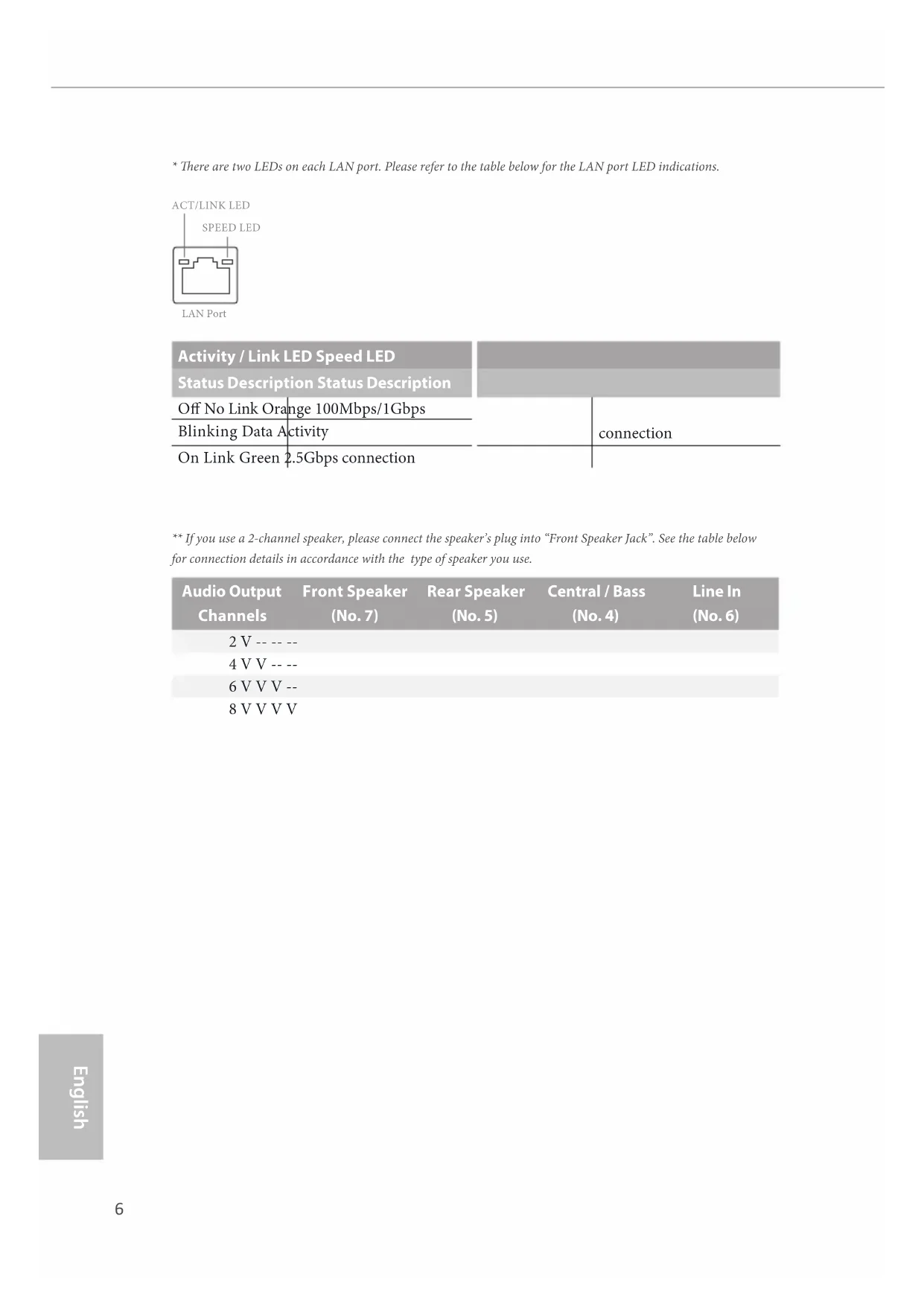

* There are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
ACT/LINK LED
LAN Port
Activity / Link LED Speed LED
Status Description Status Description
Off No Link Orange 100Mbps/1Gbps
Blinking Data Activity
On Link Green 2.5Gbps connection
connection
** If you use a 2-channel speaker, please connect the speaker's plug into "Front Speaker Jack". See the table below for connection details in accordance with the type of speaker you use.
| Audio Output Channels | Front Speaker (No. 7) | Rear Speaker (No. 5) | Central / Bass (No. 4) | Line In (No. 6) |
| 2 V -- -- -- | ||||
| 4 V V -- -- | ||||
| 6 V V V -- | ||||
| 8 V V V V |
Chapter 1 Introduction
Thank you for purchasing ASRock Z390 Phantom Gaming SLI/ac / Z390 Phantom Gaming SLI motherboard, a reliable motherboard produced under ASRock's consistently stringent quality control. It delivers excellent performance with robust design conforming to ASRock's commitment to quality and endurance.
Because the motherboard specifications and the BIOS software might be updated, the content of this documentation will be subject to change without notice. In case any modifications of this documentation occur, the updated version will be available on ASRock's website without further notice. If you require technical support related to this motherboard, please visit our website for specific information about the model you are using. You may find the latest VGA cards and CPU support list on ASRock's website as well. ASRock website http://www.asrock.com.
1.1 Package Contents
ASRock Z390 Phantom Gaming SLI/ac / Z390 Phantom Gaming SLI Motherboard (ATX Form Factor)
ASRock Z390 Phantom Gaming SLI/ac / Z390 Phantom Gaming SLI Quick Installation Guide
ASRock Z390 Phantom Gaming SLI/ac / Z390 Phantom Gaming SLI Support CD 1 x I/O Panel Shield
2 x Serial ATA (SATA) Data Cables (Optional)
1 x ASRock SLI_HB_Bridge_2S Card (Optional)
2 x Screws for M.2 Sockets (Optional)
2 x ASRock WiFi 2.4/5 GHz Antennas (Optional) (for Z390 Phantom Gaming SLI/ac only)
1.2 Specifications
| Platform | ATX Form Factor |
| CPU | Supports 9^th and 8^th Gen Intel ^ Core ^TM Processors (Socket 1151)Digi Power design10 Power Phase designSupports Intel ^ Turbo Boost 2.0 TechnologySupports Intel ^ K-Series unlocked CPUsSupports ASRock BCLK Full-range Overclocking |
| Chipset | Intel ^ Z390 |
| Memory | Dual Channel DDR4 Memory Technology4 x DDR4 DIMM SlotsSupports DDR4 4300+(OC)*/4266(OC)/4133(OC)/4000(OC)/3866(OC)/ 3800(OC)/3733(OC)/3600(OC)/3200(OC)/2933(OC)/2800 (OC)/2666/2400/2133 non-ECC, un-buffered memory* Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/)Supports ECC UDIMM memory modules (operate in non-ECC mode)Max. capacity of system memory: 64GBSupports Intel ^ Extreme Memory Profile (XMP) 2.015μ Gold Contact in DIMM Slots |
| Expansion Slot | 2 x PCI Express 3.0 x16 Slots (PCIE2/PCIE4: single at x16 (PCIE2); dual at x8 (PCIE2) / x8 (PCIE4))*Supports NVMe SSD as boot disks4 x PCI Express 3.0 x1 Slots (Flexible PCIe)Supports AMD Quad CrossFireX ^TM and CrossFireX ^TM Supports NVIDIA ^ Quad SLI ^TM and SLI ^TM Supports NVIDIA ^ NVLink ^TM with dual NVIDIA ^ GeForce ^ RTX series graphics cards* NVIDIA NVLink Bridge does not come with the package.Please purchase it from NVIDIA ^ if necessary.1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O) (for Z390 Phantom Gaming SLI/ac only)15μ Gold Contact in VGA PCIe Slot (PCIE2) |
Graphics
Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
Supports Intel® UHD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® UHD Graphics DirectX 12
HWAEncode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 (Decode only)
Dual graphics output: Support DVI-D and HDMI ports by independent display controllers
Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
Supports HDCP with DVI-D and HDMI Ports
Supports 4K Ultra HD (UHD) playback with HDMI Port
Audio
7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
Premium Blu-ray Audio support
Supports Surge Protection
Nichicon Fine Gold Series Audio Caps
LAN
2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Dragon RTL8125AG
Supports Phantom Gaming LAN Software
- Smart Auto Adjust Bandwidth Control
- Visual User Friendly UI
- Visual Network Usage Statistics
- Optimized Default Setting for Game, Browser, and Streaming Modes
- User Customized Priority Control
Supports Wake-On-LAN Supports Lightning/ESD Protection Supports Energy Efficient Ethernet 802.3az Supports PXE
| Wireless | Intel® 802.11ac WiFi Module |
| LAN (for Z390 Phantom Gaming SLI/ac only) | Supports IEEE 802.11a/b/g/n/acSupports Dual-Band (2.4/5 GHz)Supports high speed wireless connections up to 433MbpsSupports Bluetooth 4.2 / 3.0 + High speed class II |
| Rear Panel I/O | 2 x Antenna Ports (for Z390 Phantom Gaming SLI/ac only)1 x PS/2 Mouse/Keyboard Port1 x DVI-D Port1 x HDMI Port1 x Optical SPDIF Out Port1 x USB 3.1 Gen2 Type-A Port (ReDriver) (Supports ESD Protection)1 x USB 3.1 Gen2 Type-C Port (ReDriver) (Supports ESD Protection)4 x USB 3.1 Gen1 Ports (Intel® Z390) (Supports ESD Protection)1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone |
| Storage | 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 16), NCQ, AHCI and Hot Plug** If M2_1 is occupied by a SATA-type M.2 device, SATA3_1 will be disabled.* If M2_2 is occupied by a SATA-type M.2 device, SATA3_5 will be disabled.1 x Ultra M.2 Socket (M2_1), supports M Key type2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)** |

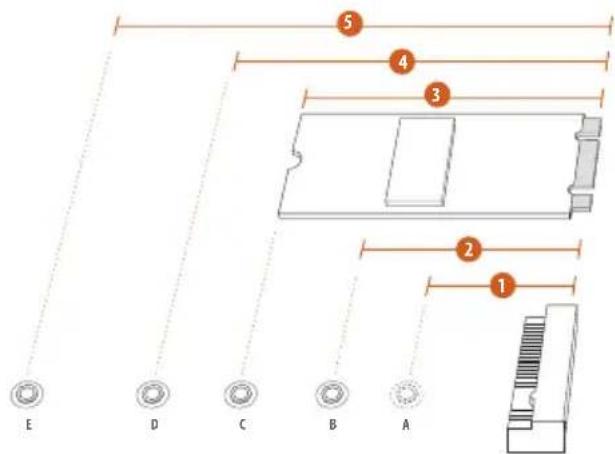

1 x Ultra M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**
** Supports Intel® Optane™ Technology
** Supports NVMe SSD as boot disks
** Supports ASRock U.2 Kit
Connector
1 x COM Port Header
1 x TPM Header
1 x Power LED and Speaker Header

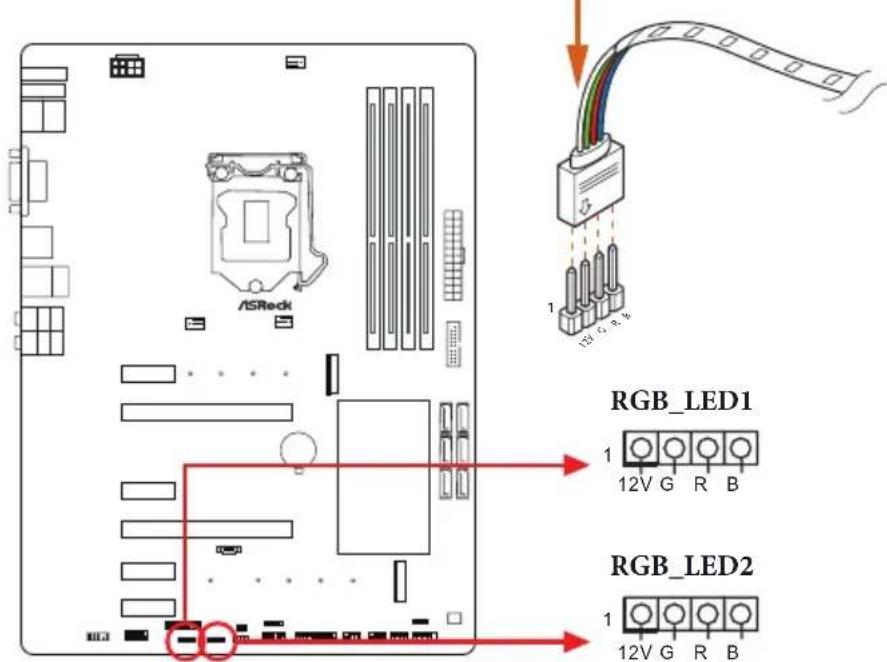

2 x RGB LED Headers
* Support in total up to 12V/3A, 36W LED Strip 1 x Addressable LED Header
* Supports in total up to 5V/3A, 15W LED Strip 1 x CPU Fan Connector (4-pin)
* The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
* The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
* CHA_FAN2/WP supports the water cooler fan of maximum 2A (24W) fan power.
* CHA_FAN1/WP and CHA_FAN3/WP support the water cooler fan of maximum 1A (12W) fan power.
* CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use.
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
1 x Front Panel Audio Connector
1 x Thunderbolt AIC Connector (5-pin)
2 x USB 2.0 Headers (Supports 3 USB 2.0 ports) (Supports ESD Protection)

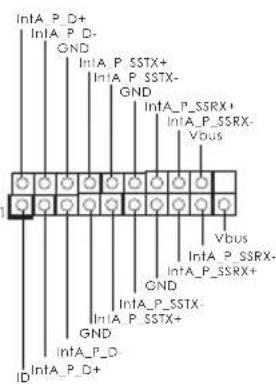

2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (Supports ESD Protection)
1 x Performance Mode / Easy OC Header
| BIOSFeature | AMI UEFI Legal BIOS with multilingual GUI supportACPI 6.0 Compliant wake up eventsSMBIOS 2.7 SupportCPU Vcore, DRAM, PCH 1.0V, VCCIO, VCCST, VCCSAVoltage Multi-adjustment |
| HardwareMonitor | Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump FansFan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump FansQuiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump FansFan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump FansVoltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, VPPM, PCH 1.0V, VCCSA, VCCST |
| OS | Microsoft® Windows® 10 64-bit |
| Certifications | FCC, CEErP/EuP ready (ErP/EuP ready power supply is required) |
* For detailed product information, please visit our website: http://www.asrock.com
Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using third-party overclocking tools. Overclocking may affect your system's stability, or even cause damage to the components and devices of your system. It should be done at your own risk and expense. We are not responsible for possible damage caused by overclocking.
Chapter 2 Installation
This is an ATX form factor motherboard. Before you install the motherboard, study the configuration of your chassis to ensure that the motherboard fits into it.
Pre-installation Precautions
Take note of the following precautions before you install motherboard components or change any motherboard settings.
Make sure to unplug the power cord before installing or removing the motherboard components. Failure to do so may cause physical injuries and damages to motherboard components.
In order to avoid damage from static electricity to the motherboard's components, NEVER place your motherboard directly on a carpet. Also remember to use a grounded wrist strap or touch a safety grounded object before you handle the components.
Hold components by the edges and do not touch the ICs.
Whenever you uninstall any components, place them on a grounded anti-static pad or in the bag that comes with the components.
When placing screws to secure the motherboard to the chassis, please do not over-tighten the screws! Doing so may damage the motherboard.

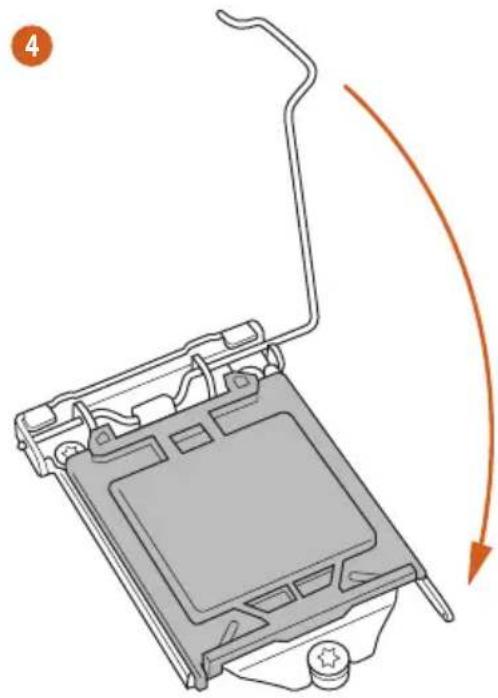

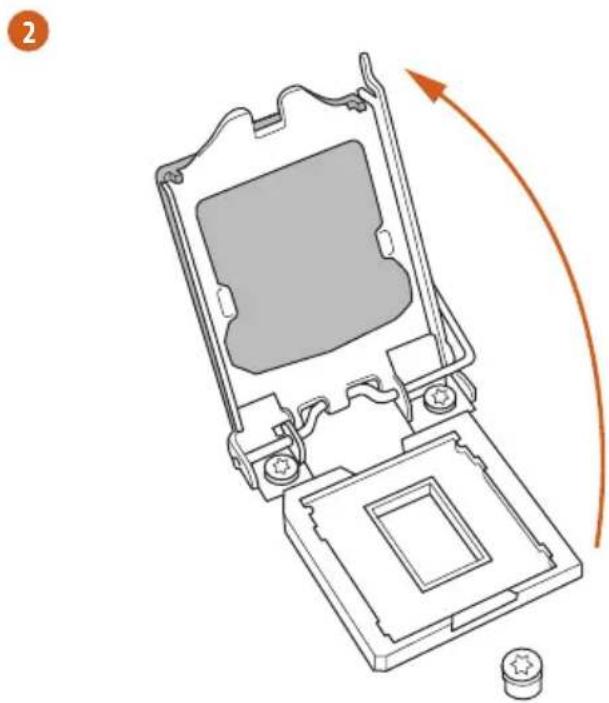

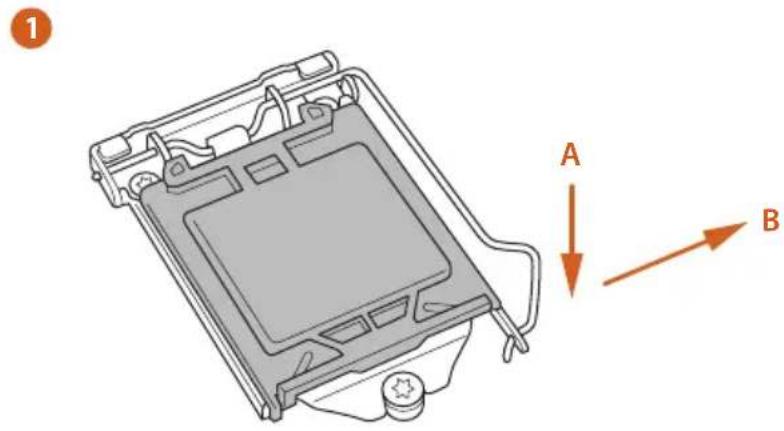

2.1 Installing the CPU
- Before you insert the 1151-Pin CPU into the socket, please check if the PnP cap is on the socket, if the CPU surface is unclean, or if there are any bent pins in the socket. Do not force to insert the CPU into the socket if above situation is found. Otherwise, the CPU will be seriously damaged.
- Unplug all power cables before installing the CPU.


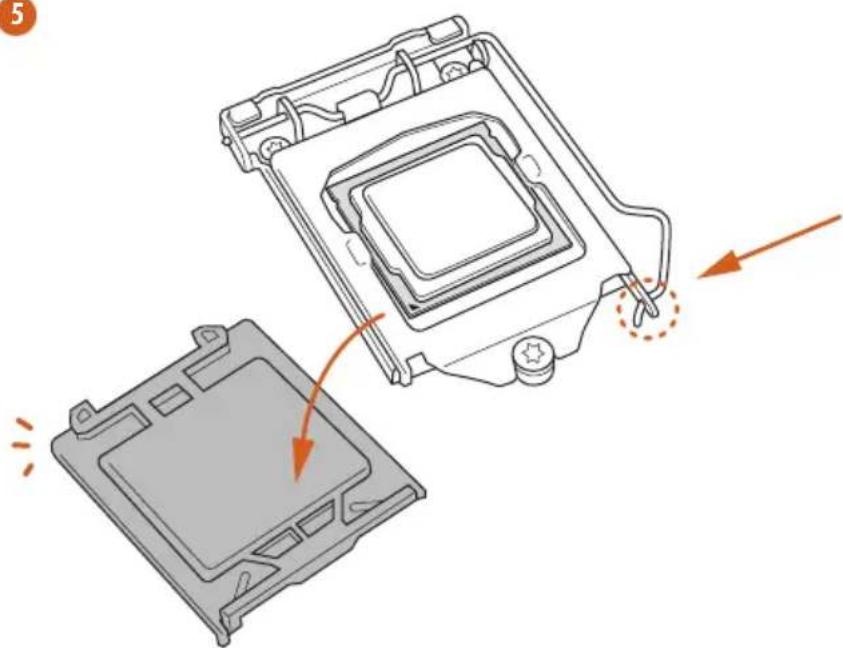

Please save and replace the cover if the processor is removed. The cover must be placed if you wish to return the motherboard for after service.

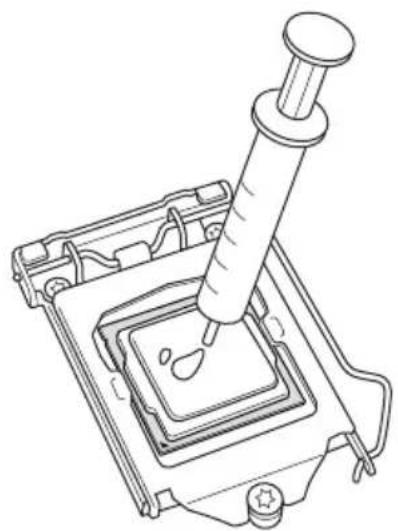

2.2 Installing the CPU Fan and Heatsink
2.3 Installing Memory Modules (DIMM)
This motherboard provides four 288-pin DDR4 (Double Data Rate 4) DIMM slots, and supports Dual Channel Memory Technology.
- For dual channel configuration, you always need to install identical (the same brand, speed, size and chip-type) DDR4 DIMM pairs.
- It is unable to activate Dual Channel Memory Technology with only one or three memory module installed.
- It is not allowed to install a DDR, DDR2 or DDR3 memory module into a DDR4 slot; otherwise, this motherboard and DIMM may be damaged.
Dual Channel Memory Configuration
Priority DDR4_A1 DDR4_A2 DDR4_B1 DDR4_B2
| 1 Populated Populated | ||
| 2 Populated Populated Populated Populated |

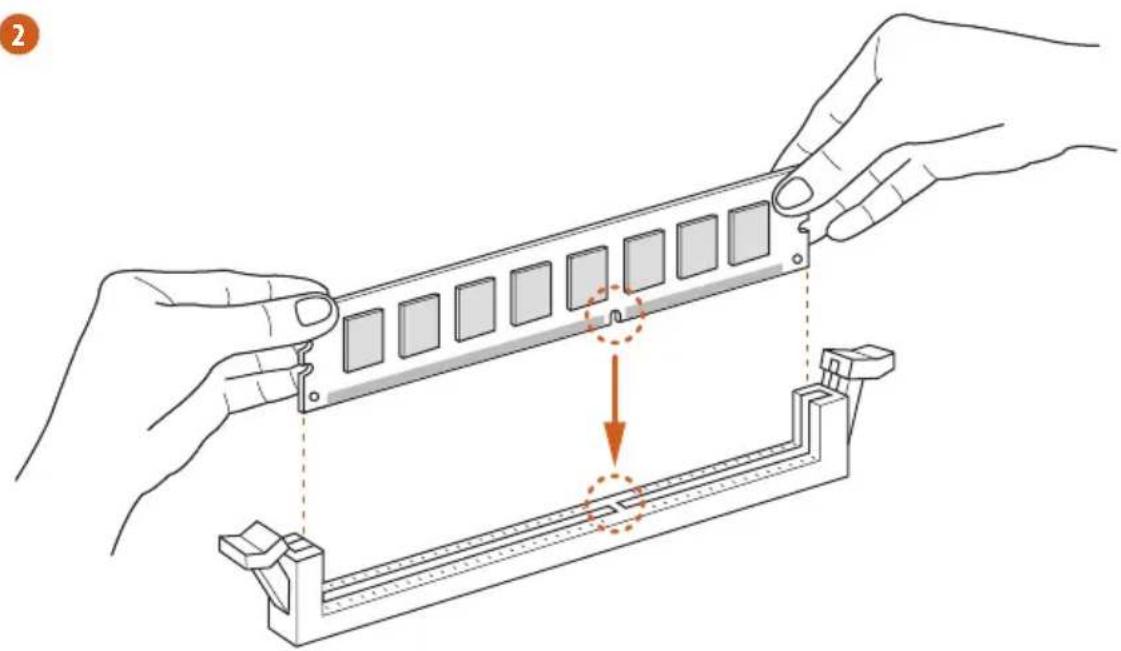

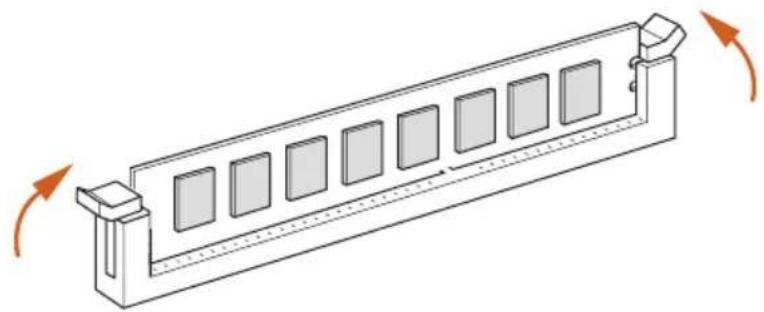

The DIMM only fits in one correct orientation. It will cause permanent damage to the motherboard and the DIMM if you force the DIMM into the slot at incorrect orientation.
1
There are 6 PCI Express slots on the motherboard.
Before installing an expansion card, please make sure that the power supply is switched off or the power cord is unplugged. Please read the documentation of the expansion card and make necessary hardware settings for the card before you start the installation.
PCIe slots:
PCIE1 (PCIe 3.0 x1 slot) is used for PCI Express x1 lane width cards.
PCIE2 (PCIe 3.0 x16 slot) is used for PCI Express x16 lane width graphics cards.
PCIE3 (PCIe 3.0 x1 slot) is used for PCI Express x1 lane width cards.
PCIE4 (PCIe 3.0 x16 slot) is used for PCI Express x8 lane width graphics cards.
PCIE5 (PCIe 3.0 x1 slot) is used for PCI Express x1 lane width cards.
PCIE6 (PCIe 3.0 x1 slot) is used for PCI Express x1 lane width cards.
PCIe Slot Configurations
PCIE2 PCIE4
Single Graphics Card x16 N/A
Two Graphics Cards in
CrossFireX ^TM or SLI ^TM
x8 x8
Mode
For a better thermal environment, please connect a chassis fan to the motherboard's chassis fan connector (CHA_FAN1/WP, CHA_FAN2/WP or CHA_FAN3/WP) when using multiple graphics cards.
2.5 Jumpers Setup
The illustration shows how jumpers are setup. When the jumper cap is placed on the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper is “Open”.
Short
Open
Clear CMOS Jumper (CLRCMOS1)
(see p.1 or 2, No. 19)
2-pin Jumper
Short: Clear CMOS
Open: Default
CLRCMOS1 allows you to clear the data in CMOS. The data in CMOS includes system setup information such as system password, date, time, and system setup parameters. To clear and reset the system parameters to default setup, please turn off the computer and unplug the power cord, then use a jumper cap to short the pins on CLRCMOS1 for 3 seconds. Please remember to remove the jumper cap after clearing the CMOS. If you need to clear the CMOS when you just finish updating the BIOS, you must boot up the system first, and then shut it down before you do the clear-CMOS action.
2.6 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage to the motherboard.
System Panel Header (9-pin PANEL1)
(see p.1 or 2, No. 11)
Connect the power button, reset button and system status indicator on the chassis to this header according to the pin assignments below. Note the positive and negative pins before connecting the cables.
PWRBTN (Power Button):
Connect to the power button on the chassis front panel. You may configure the way to turn off your system using the power button.
RESET (Reset Button):
Connect to the reset button on the chassis front panel. Press the reset button to restart the computer if the computer freezes and fails to perform a normal restart.
PLED (System Power LED):
Connect to the power status indicator on the chassis front panel. The LED is on when the system is operating. The LED keeps blinking when the system is in S1/S3 sleep state. The LED is off when the system is in S4 sleep state or powered off (S5).
HDLED (Hard Drive Activity LED):
Connect to the hard drive activity LED on the chassis front panel. The LED is on when the hard drive is reading or writing data.
The front panel design may differ by chassis. A front panel module mainly consists of power button, reset button, power LED, hard drive activity LED, speaker and etc. When connecting your chassis front panel module to this header, make sure the wire assignments and the pin assignments are matched correctly.
Power LED and Speaker Header
(7-pin SPK_PLED1)
(see p.1 or 2, No. 12)
Please connect the chassis power LED and the chassis speaker to this header.
Serial ATA3 Connectors
(SATA3_0_1:
see p.1 or 2, No. 7)
(SATA3_2_3:
see p.1 or 2, No. 8)
(SATA3_4_5:
see p.1 or 2, No. 9)
These six SATA3
connectors support SATA data cables for internal storage devices with up to 6.0 Gb/s data transfer rate. * If M2_1 is occupied by a SATA-type M.2 device, SATA3_1 will be disabled. * If M2_2 is occupied by a SATA-type M.2 device, SATA3_5 will be disabled.
USB 2.0 Headers
(5-pin USB_3)
(see p.1 or 2, No. 17)
There are two headers on this motherboard.
(9-pin USB_1_2)
(see p.1 or 2, No. 16)
USB 3.1 Gen1 Headers
(19-pin USB3_5_6)
(see p.1 or 2, No. 6)
There are two headers on this motherboard. Each
USB 3.1 Gen1 header can support two ports.
(19-pin USB3_7_8)
(see p.1 or 2, No. 15)
Front Panel Audio Header
(9-pin HD_AUDIO1)
(see p.1 or 2, No. 24)
This header is for connecting audio devices to the front audio panel.
- High Definition Audio supports Jack Sensing, but the panel wire on the chassis must support HDA to function correctly. Please follow the instructions in our manual and chassis manual to install your system.
- If you use an AC'97 audio panel, please install it to the front panel audio header by the steps below:
A. Connect Mic_IN (MIC) to MIC2_L.
B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.
C. Connect Ground (GND) to Ground (GND).
D. MIC_RET and OUT_RET are for the HD audio panel only. You don't need to connect them for the AC'97 audio panel.
E. To activate the front mic, go to the "FrontMic" Tab in the Realtek Control panel and adjust "Recording Volume".
Chassis/Water Pump Fan Connectors
(4-pin CHA_FAN1/WP)
(see p.1 or 2, No. 14)
(4-pin CHA_FAN2/WP)
(see p.1 or 2, No. 26)
(4-pin CHA_FAN3/WP)
(see p.1 or 2, No. 13)
This motherboard provides three 4-Pin water cooling chassis fan connectors. If you plan to connect a 3-Pin chassis water cooler fan, please connect it to Pin 1-3.
CPU Fan Connector
(4-pin CPU_FAN1)
(see p.1 or 2, No. 2)
This motherboard provides a 4-Pin CPU fan (Quiet Fan) connector. If you plan to connect a 3-Pin CPU fan, please connect it to Pin 1-3.
CPU/Water Pump Fan Connector (4-pin CPU_FAN2/WP) (see p.1 or 2, No. 27)
This motherboard provides a 4-Pin water cooling CPU fan connector. If you plan to connect a 3-Pin CPU water cooler fan, please connect it to Pin 1-3.
ATX Power Connector (24-pin ATXPWR1) (see p.1 or 2, No. 5)
This motherboard provides a 24-pin ATX power connector. To use a 20-pin ATX power supply, please plug it along Pin 1 and Pin 13.
ATX 12V Power Connector (8-pin ATX12V1) (see p.1 or 2, No. 1)
This motherboard provides a 8-pin ATX 12V power connector. To use a 4-pin ATX power supply, please plug it along Pin 1 and Pin 5.
Thunderbolt AIC Connector (5-pin TB1) (see p.1 or 2, No. 25)
Please connect a Thunderbolt™ add-in card (AIC) to the Thunderbolt AIC connector via the GPIO cable. * Please install the Thunderbolt™ AIC card to PCIE4 (default slot).
Serial Port Header (9-pin COM1) (see p.1 or 2, No. 23)
This COM1 header supports a serial port module.
TPM Header
(17-pin TPMS1)
(see p.1 or 2, No. 22)
This connector supports Trusted Platform Module (TPM) system, which can securely store keys, digital certificates, passwords, and data. A TPM system also helps enhance network security, protects digital identities, and ensures platform integrity.
RGB LED Headers
(4-pin RGB_LED1)
(see p.1 or 2, No. 21)
(4-pin RGB_LED2)
(see p.1 or 2, No. 20)
RGB LED header is used to connect RGB LED extension cable which allows users to choose from various LED lighting effects.
Caution: Never install the RGB LED cable in the wrong orientation; otherwise, the cable may be damaged.
*Please refer to page 32 for for further instructions on this header.
Addressable LED Header
(3-pin ADDR_LED1)
(see p.1 or 2, No. 18)
This header is used to connect Addressable LED extension cable which allows users to choose from various LED lighting effects.
Caution: Never install the Addressable LED cable in the wrong orientation; otherwise, the cable may be damaged.
*Please refer to page 33 for further instructions on this header.
Performance Mode / Easy
OC Header
(4-pin PM_OC)
(see p.1 or 2, No. 10)
Please connect the OC switch and OC LED indicator on the chassis to this header according to the pin assignments. Note the positive and negative pins before connecting the cables.
2.7 M.2\_SSD (NGFF) Module Installation Guide (M2\_1 and M2\_2)
The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. The Ultra M.2 Sockets (M2_1 and M2_2) support SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s).
* If M2_1 is occupied by a SATA-type M.2 device, SATA3_1 will be disabled.
* If M2_2 is occupied by a SATA-type M.2 device, SATA3_5 will be disabled.
Installing the M.2\_SSD (NGFF) Module
The following is an example of installing M.2_SSD (NGFF) module into the M2_2.
Prepare a M.2_SSD (NGFF) module and the screw.
Step 2
Depending on the PCB type and length of your M.2_SSD (NGFF) module, find the corresponding nut location to be used.
No.12345
| Nut Location A B C D E | |||||
| PCB Length | 3cm | 4.2cm | 6cm | 8cm | 11cm |
| Module Type | Type2230 | Type 2242 | Type2260 | Type 2280 | Type 22110 |
Step 3
Move the standoff based on the module type and length.
The standoff is placed at the nut location D by default. Skip Step 3 and 4 and go straight to Step 5 if you are going to use the default nut. Otherwise, release the standoff by hand.
Step 4
Peel off the yellow protective film on the nut to be used. Hand tighten the standoff into the desired nut location on the motherboard.
Step 5
Align and gently insert the M.2 (NGFF) SSD module into the M.2 slot. Please be aware that the M.2 (NGFF) SSD module only fits in one orientation.
Step 6
Tighten the screw with a screwdriver to secure the module into place. Please do not overtighten the screw as this might damage the module.
M.2\_SSD (NGFF) Module Support List
| Vendor Interface P/N | ||
| ADATA SATA3 AXNS330E-32GM-B | ||
| ADATA SATA3 AXNS381E-128GM-B | ||
| ADATA SATA3 AXNS381E-256GM-B | ||
| ADATA SATA3 ASU800NS38-256GT-C | ||
| ADATA SATA3 ASU800NS38-512GT-C | ||
| ADATA PCIe3 x4 ASX7000NP-128GT-C | ||
| ADATA PCIe3 x4 ASX8000NP-256GM-C | ||
| ADATA PCIe3 x4 ASX7000NP-256GT-C | ||
| ADATA PCIe3 x4 ASX8000NP-512GM-C | ||
| ADATA PCIe3 x4 ASX7000NP-512GT-C | ||
| Apacer PCIe3 x4 AP240GZ280 | ||
| Corsair PCIe3 x4 CSSD-F240GBMP500 | ||
| Crucial SATA3 CT120M500SSD4 | ||
| Crucial SATA3 CT240M500SSD4 | ||
| Intel SATA3 Intel SSDSCKGW080A401/80G | ||
| Intel PCIe3 x4 SSDPEKKF256G7 | ||
| Intel PCIe3 x4 SSDPEKKF512G7 | ||
| Kingston SATA3 SM2280S3 | ||
| Kingston PCIe3 x4 SKC1000/480G | ||
| Kingston PCIe2 x4 SH2280S3/480G | ||
| OCZ PCIe3 x4 RVD400 -M2280-512G (NVME) | ||
| PATRIOTPCIe3 x4 PH240GPM280SSDR NVME | ||
| Plextor PCIe3 x4 PX-128M8PeG | ||
| Plextor PCIe3 x4 PX-1TM8PeG | ||
| Plextor PCIe3 x4 PX-256M8PeG | ||
| Plextor PCIe3 x4 PX-512M8PeG | ||
| Plextor PCIe | PX-G256M6e | |
| Plextor PCIe | PX-G512M6e | |
| Samsung | PCIe3 x4 | SM961 MZVPW128HEGM (NVM) |
| Samsung | PCIe3 x4 | PM961 MZVLW128HEGR (NVME) |
| Samsung | PCIe3 x4 | 960 EVO (MZ-V6E250) (NVME) |
| Samsung | PCIe3 x4 | 960 EVO (MZ-V6E250BW) (NVME) |
| Samsung | PCIe3 x4 SM951 (NVME) | |
| Samsung | PCIe3 x4 | SM951 (MZHPV256HDGL) |
| Samsung | PCIe3 x4 | SM951 (MZHPV512HDGL) |
| Samsung | PCIe3 x4 SM951 (NVME) | |
| Samsung | PCIe x4 | XP941-512G (MZHPU512HCGL) |
| SanDisk | PCIe | SD6PP4M-128G |
| SanDisk | PCIe | SD6PP4M-256G |
| Team | SATA3 TM4PS4128GMC105 | |
| Team | SATA3 TM4PS4256GMC105 | |
| Team | SATA3 TM8PS4128GMC105 | |
| Team | SATA3 TM8PS4256GMC105 | |
TEAM PCIe3 x4 TM8FP2240G0C101
TEAM PCIe3 x4 TM8FP2480GC110
Transcend SATA3 TS256GMTS400
Transcend SATA3 TS512GMTS600
Transcend SATA3 TS512GMTS800
V-Color SATA3 VLM100-120G-2280B-RD
V-Color SATA3 VLM100-240G-2280RGB
V-Color SATA3 VSM100-240G-2280
V-Color SATA3 VLM100-240G-2280B-RD
WD SATA3 WDS100T1B0B-00AS40
WD SATA3 WDS240G1G0B-00RC30
WD PCIe3 x4 WDS256G1X0C-00ENX0 (NVME)
WD PCIe3 x4 WDS512G1X0C-00ENX0 (NVME)
For the latest updates of M.2_SSD (NFGG) module support list, please visit our website for details: http://www.asrock.com
2.8 ASRock Polychrome RGB
ASRock Polychrome RGB is a lighting control utility specifically designed for unique individuals with sophisticated tastes to build their own stylish colorful lighting system. Simply by connecting the LED strip, you can customize various lighting schemes and patterns, including Static, Breathing, Strobe, Cycling, Music, Wave and more.
Connecting the LED Strip
Connect your RGB LED strips to the RGB LED Headers (RGB_LED1, RGB_LED2) on the motherboard.
- Never install the RGB LED cable in the wrong orientation; otherwise, the cable may be damaged.
- Before installing or removing your RGB LED cable, please power off your system and unplug the power cord from the power supply. Failure to do so may cause damages to motherboard components.
- Please note that the RGB LED strips do not come with the package.
- The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.
Connecting the Addressable RGB LED Strip
Connect your Addressable RGB LED strip to the Addressable LED Header (ADDR_LED1) on the motherboard.
- Never install the RGB LED cable in the wrong orientation; otherwise, the cable may be damaged.
- Before installing or removing your RGB LED cable, please power off your system and unplug the power cord from the power supply. Failure to do so may cause damages to motherboard components.
- Please note that the RGB LED strips do not come with the package.
- The RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V) and length within 2 meters.

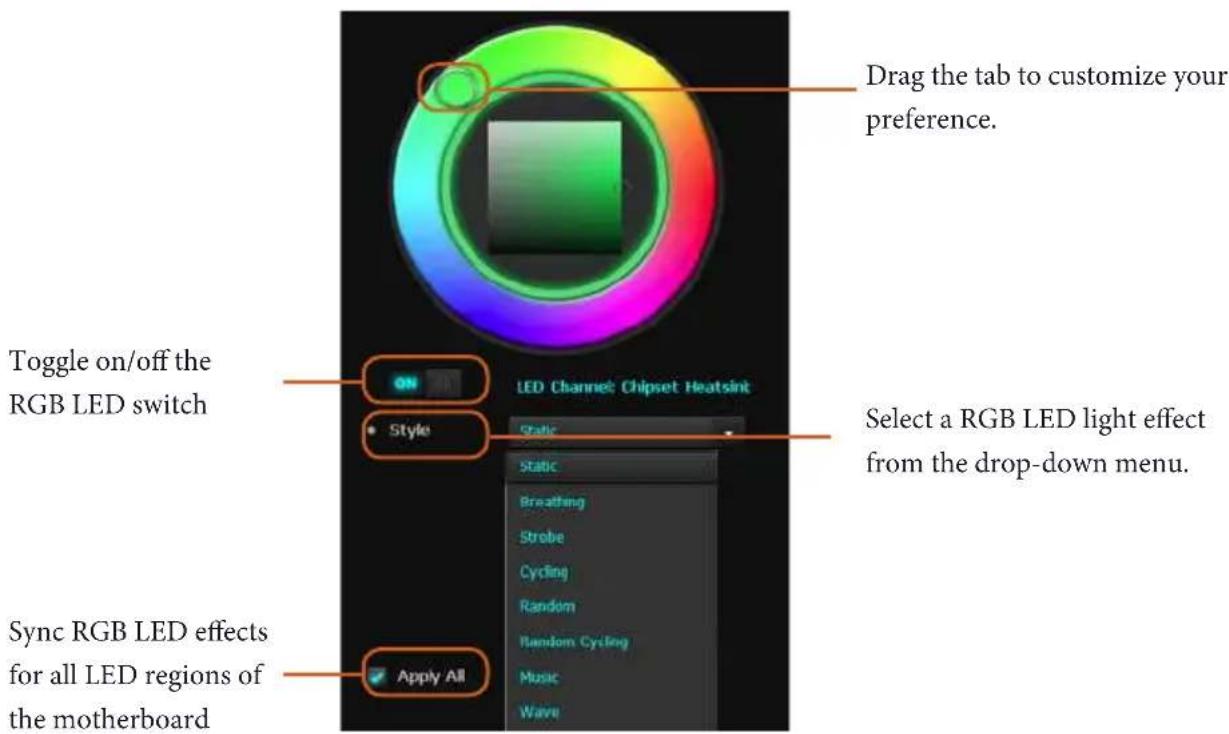

ASRock Polychrome RGB Utility
Now you can adjust the RGB LED color through the ASRock Polychrome RGB Utility. Download this utility from the ASRock Live Update & APP Shop and start coloring your PC style your way!
1 Einleitung
Serial-ATA-III-Anschlüsse
(SATA3_0_1:
(4-polig, CHA_FAN1/WP)
(4-polig, CHA_FAN2/WP)
(4-polig, CHA_FAN3/WP)
Supporta IEEE 802.11a/b/g/n/ac
Supporta Dual-Band (2,4/5 GHz)
6 x connettori SATA3 6,0 Gb/s, supportano RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 16), NCQ, AHCI e Hot Plug*
(CHA_FAN1/WP a 4 pin)
Apagar o Jumper CMOS (CLRCMOS1)
VPPM, PCH 1.0V, VCCSA, VCCST
os
인증
요）
1.2 仕様
CPU
TM
(OC)/3800(OC)/3733(OC)/3600(OC)/3200(OC)/2933(OC)/
TM
TM
TM
TM
TM
TM
TM
LAN
Phantom Gaming LAN
Phantom Gam-
** Intel® Optane™
os
1.3 ジャンパー設定
Short
Open
(CLRCMOS1)
1.4 オンボードのヘッダーとコネクタ
If you need to contact ASRock or want to know more about ASRock, you're welcome to visit ASRock's website at http://www.asrock.com; or you may contact your dealer for further information. For technical questions, please submit a support request form at http://www.asrock.com/support/tsd.asp
ASRock Incorporation
2F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District,
Taipei City 112, Taiwan (R.O.C.)
ASRock EUROPE B.V.
Bijsterhuizen 11-11
6546 AR Nijmegen
The Netherlands
Phone: +31-24-345-44-33
Fax: +31-24-345-44-38
ASRock America, Inc.
13848 Magnolia Ave, Chino, CA91710
U.S.A.
Phone: +1-909-590-8308
Fax: +1-909-590-1026
DECLARATION OF CONFORMITY
Per FCC Part 2 Section 2.1077(a)
Responsible Party Name: ASRock Incorporation
Address: 13848 Magnolia Ave, Chino, CA91710
Phone/Fax N o: +1-909-590-8308/+1-909-590-1026
hereby declares that the product
Product Name : Motherboard
Model Number : Z390 Phantom Gaming SLI/ac / Z390 Phantom Gaming SLI
Conforms to the following specifications:
☒ FCC Part 15, Subpart B, Unintentional Radiators
Supplementary Information:
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Representative Person's Name: James
Signature:
Date : May 12, 2017
EU Declaration of Conformity
ASRock®
For the following equipment:
Motherboard
(Product Name)
Z390 Phantom Gaming SLI/ac / Z390 Phantom Gaming SLI / ASRock
(Model Designation / Trade Name)
ASRock Incorporation
(Manufacturer Name)
2F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District, Taipei City 112, Taiwan (R.O.C.)
(Manufacturer Address)
EMC — Directive 2014/30/EU (from April 20th, 2016)
□ EN 55022:2010/AC:2011 Class B
EN 55024:2010/A1:2015
EN 61000-3-3:2013
—Directive 2014/53/EU
□ EN 300 328 V2.1.1 EN 301 489-17 V3.1.1
□ EN 301 893 V2.1.1
□ EN 300 220 V3.1.1
□LVD —Directive 2014/35/EU (from April 20th, 2016)
□ EN 60950-1:2011+ A2:2013
EN 301 489-3 V2.1.
— Directive 2011/65/EU
CE
(EU conformity marking)
ASRock EUROPE B.V.
(Company Name)
Bijsterhuizen 1111 6546 AR Nijmegen The Netherlands
(Company Address)
Person responsible for making this declaration:
(Name, Surname)
A.V.P
(Position / Title)
October 5, 2018
(Date)
P/N: 15G062122000AK V1.0
