Product Type	ATX Motherboard
Brand	ASRock
Model	B85 Anniversary
Dimensions (ATX standard)	305 mm x 244 mm
Chipset	Intel B85
Processor Socket	LGA1150 (Intel 4th Generation)
Memory Type	DDR3 non-ECC, unbuffered, dual channel
Number of Memory Slots	4 x DIMM
Maximum Memory Capacity	32 GB
Supported Memory Frequencies	1066 / 1333 / 1600 MHz
Expansion Slots	1 x PCIe 3.0 x16, 5 x PCIe 2.0 x1
Graphics Outputs	VGA (D-Sub), DVI-D, HDMI
Storage Connectors	4 x SATA 6 Gb/s, 2 x SATA 3 Gb/s
USB Connectors	Back panel: 4 x USB 2.0, 2 x USB 3.0; headers: 4 x USB 2.0, 2 x USB 3.0
Audio	Realtek ALC662, 5.1 CH HD Audio
Network	Realtek RTL8111GR, Gigabit LAN 10/100/1000 Mbps
Power Requirement	24-pin ATX connector, 8-pin ATX 12V connector, 4-pin PCIe connector
Protections	Solid capacitors, overvoltage and electrostatic discharge protection
Compatible Operating Systems	Windows 7, 8, 8.1 (32 and 64-bit)
Certifications	FCC, CE, ErP/EuP Ready
Maintenance	Clean with a dry cloth or compressed air; avoid liquids
Safety	Full ASRock spike protection: overvoltage, lightning, ESD
Spare parts / Repairability	Not specified; soldered components, difficult replacement

Frequently Asked Questions - B85 Anniversary ASROCK

Which processors are compatible with the ASRock B85 Anniversary motherboard?

The motherboard supports Intel Core i7/i5/i3, Xeon, Pentium, and Celeron processors from 4th and new 4th generation on LGA1150 socket, including models with integrated graphics.

What is the maximum supported RAM capacity?

It supports up to 32 GB of non-ECC, unbuffered DDR3 memory in dual channel configuration, with frequencies of 1066, 1333, and 1600 MHz.

How to update the motherboard BIOS?

You can update the BIOS via the built-in UEFI tool or using the provided CD. Download the latest version from the ASRock website, copy it to a USB key, and use the Instant Flash function in the BIOS.

Can I use Windows 10 on this motherboard?

The official documentation mentions Windows 7, 8, and 8.1. Windows 10 may work, but some drivers may require updates. Check compatibility on the ASRock website.

Does the motherboard support multi-monitor?

Yes, it supports up to three simultaneous displays via VGA, DVI-D, and HDMI ports. The integrated Intel HD Graphics enable this configuration.

What to do if the motherboard does not boot?

Check the connections: power (24-pin and 8-pin), CPU, RAM. Test with a single memory module. If the problem persists, perform a clear CMOS by shorting the CLRCMOS1 pins.

How to clear CMOS settings?

Turn off the computer and unplug the power cord. Wait 15 seconds, then place a jumper cap on pins 2 and 3 of CLRCMOS1 for 5 seconds. Return the jumper to default position (pins 1-2) and reconnect.

What is the difference between SATA2 and SATA3 connectors?

SATA3 connectors (6 Gb/s) offer twice the bandwidth of SATA2 (3 Gb/s). Use SATA3 ports for SSDs or modern hard drives for better performance.

Does the motherboard have front USB 3.0 ports?

Yes, it has a USB 3.0 header (19-pin) allowing connection of up to 2 front USB 3.0 ports, in addition to the 2 rear USB 3.0 ports.

What types of fans can be connected?

The board has connectors for CPU fan (1x 4-pin, 1x 3-pin), chassis fans (1x 4-pin, 1x 3-pin), and power fan (3-pin). Speed control is available for some.

USER MANUAL B85 Anniversary ASROCK

Published August 2014

Copyright©2014 ASRock INC. All rights reserved.

Copyright Notice:

No part of this documentation may be reproduced, transcribed, transmitted, or translated in any language, in any form or by any means, except duplication of documentation by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this documentation may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners' benefit, without intent to infringe.

Disclaimer:

Specifications and information contained in this documentation are furnished for informational use only and subject to change without notice, and should not be constructed as a commitment by ASRock. ASRock assumes no responsibility for any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide warranty of any kind, either expressed or implied, including but not limited to the implied warranties or conditions of merchantability or fitness for a particular purpose.

In no event shall ASRock, its directors, officers, employees, or agents be liable for any indirect, special, incidental, or consequential damages (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the documentation or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance controlled in Perchlorate Best Management Practices (BMP) regulations passed by the California Legislature. When you discard the Lithium battery in California, USA, please follow the related regulations in advance.

"Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/perchlorate"

ASRock Website: http://www.asrock.com

The terms HDMI ^™ and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

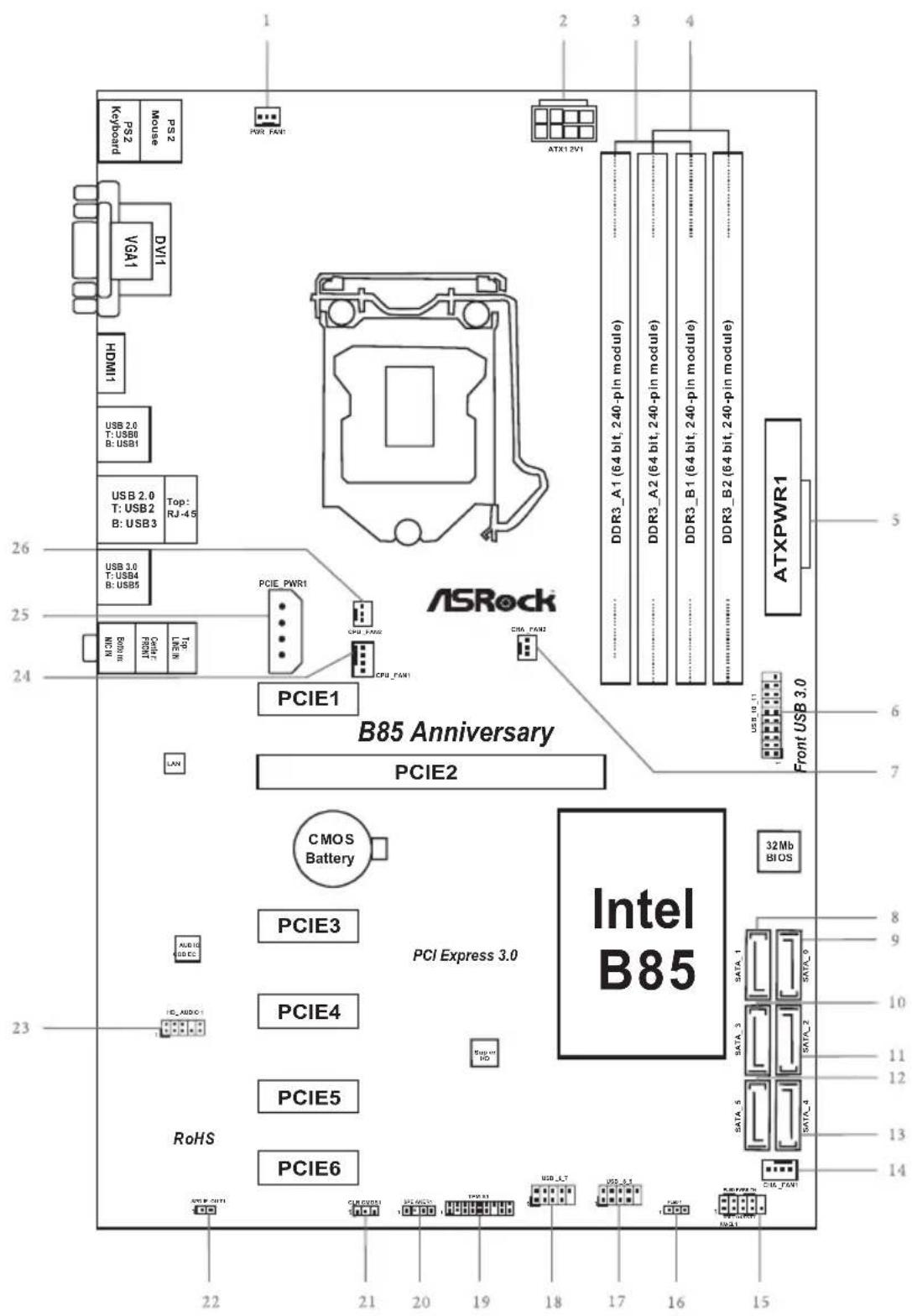

Motherboard Layout

23 24 25 26 PCIE1 PCIE2 PCIE3 PCIE4 PCIE5 PCIE6 PCIE7 PCIE8 PCIE9 PCIE10 PCIE11 PCIE12 PCIE13 PCIE14 PCIE15 PCIE16 PCIE17 PCIE18 PCIE19 PCIE20 PCIE21 PCIE22 PCIE23 PCIE24 PCIE25 PCIE26 PCIE27 PCIE28 PCIE29 PCIE30 PCIE31 PCIE32 PCIE33 PCIE34 PCIE35 PCIE36 PCIE37 PCIE38 PCIE39 PCIE40 PCIE41 PCIE42 PCIE43 PCIE44 PCIE45 PCIE46 PCIE47 PCIE48 PCIE49 PCIE50 PCIE51 PCIE52 PCIE53 PCIE54 PCIE55 PCIE56 PCIE57 PCIE58 PCIE59 PCIE60 PCIE61 PCIE62 PCIE63 PCIE64 PCIE65 PCIE66 PCIE67 PCIE68 PCIE69 PCIE70 PCIE71 PCIE72 PCIE73 PCIE74 PCIE75 PCIE76 PCIE77 PCIE78 PCIE79 PCIE80 PCIE81 PCIE82 PCIE83 PCIE84 PCIE85 B85 Anniversary B85 Anniversary ASRock® ATXPWR1 Front USB 3.0 DDR3_A1 (64 bit, 240-pin module) DDR3_A2 (64 bit, 240-pin module) DDR3_B1 (64 bit, 240-pin module) DDR3_B2 (64 bit, 240-pin module) PS2 Mouse Keyboards

No. Description

1 Power Fan Connector (PWR_FAN1)
2 ATX 12V Power Connector (ATX12V1)
3 2 x 240-pin DDR3 DIMM Slots (DDR3_A1, DDR3_B1)
4 2 x 240-pin DDR3 DIMM Slots (DDR3_A2, DDR3_B2)
5 ATX Power Connector (ATXPWR1)
6 USB 3.0 Header (USB_10_11)
7 Chassis Fan Connector (CHA_FAN2)
8 SATA3 Connector (SATA_1)
9 SATA3 Connector (SATA_0)
10 SATA3 Connector (SATA_3)
11 SATA3 Connector (SATA_2)
12 SATA2 Connector (SATA_5)
13 SATA2 Connector (SATA3_4)
14 Chassis Fan Connector (CHA_FAN1)
15 System Panel Header (PANEL1)
16 Power LED Header (PLED1)
17 USB 2.0 Header (USB_8_9)
18 USB 2.0 Header (USB_6_7)
19 TPM Header (TPMS1)
20 Chassis Speaker Header (SPEAKER1)
21 Clear CMOS Jumper (CLRCMOS1)
22 SPDIF Out Connector (SPDIF_OUT1)
23 Front Panel Audio Header (HD_AUDIO1)
24 CPU Fan Connector (CPU_FAN1)
25 PCIe Power Connector (PCIE_PWR1)
26 CPU Fan Connector (CPU_FAN2)

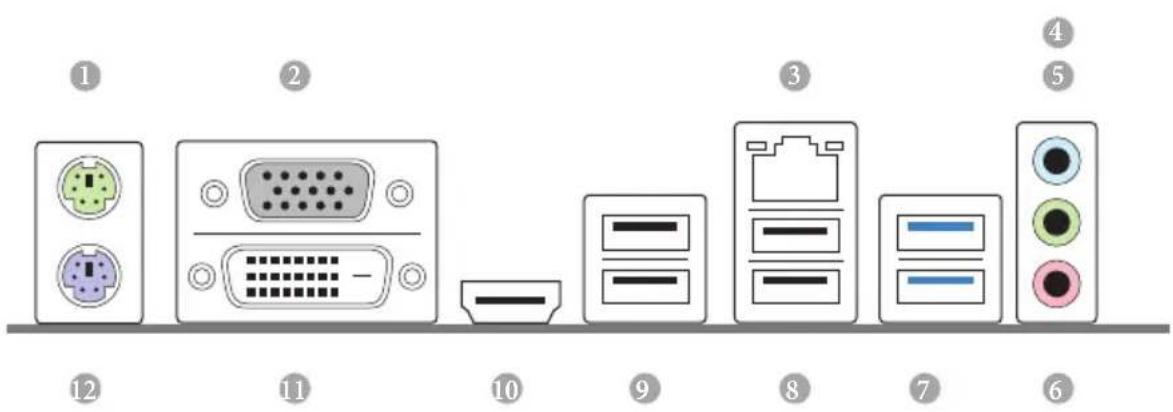

I/O Panel

Diagram showing 12 labeled electronic device ports and connectors, including VGA, Ethernet, and display units

No. Description No. Description

1 PS/2 Mouse Port (Green) 7 USB 3.0 Ports (USB_4_5)
2 D-Sub Port 8 USB 2.0 Ports (USB_2_3)
3 LAN RJ-45 Port* 9 USB 2.0 Ports (USB_0_1)
4 Line In (Light Blue) 10 HDMI Port
5 Front Speaker (Lime) 11 DVI-D Port
6 Microphone (Pink) 12 PS/2 Keyboard Port (Purple)

* There are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.

Activity / Link LED Speed LED

Status Description Status Description

Off No Link Off 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

Chapter 1 Introduction

Thank you for purchasing ASRock B85 Anniversary motherboard, a reliable motherboard produced under ASRock's consistently stringent quality control. It delivers excellent performance with robust design conforming to ASRock's commitment to quality and endurance.

Because the motherboard specifications and the BIOS software might be updated, the content of this manual will be subject to change without notice. In case any modifications of this manual occur, the updated version will be available on ASRock's website without further notice. If you require technical support related to this motherboard, please visit our website for specific information about the model you are using. You may find the latest VGA cards and CPU support list on ASRock's website as well. ASRock website http://www.asrock.com.

1.1 Package Contents

• ASRock B85 Anniversary Motherboard (ATX Form Factor)
• ASRock B85 Anniversary Quick Installation Guide
• ASRock B85 Anniversary Support CD
• 2 x Serial ATA (SATA) Data Cables (Optional)
- 1 x I/O Panel Shield

1.2 Specifications

Platform	ATX Form FactorSolid Capacitor designHigh Density Glass Fabric PCB
CPU	Supports New 4 ^th and 4 ^th Generation Intel® Core ^TM i7/i5/i3/Xeon*/Pentium*/Celeron® Processors (Socket 1150)Digi Power design4 Power Phase designSupports Intel® Turbo Boost 2.0 Technology
Chipset	Intel® B85
Memory	Dual Channel DDR3 Memory Technology4 x DDR3 DIMM SlotsSupports DDR3 1600/1333/1066 non-ECC, un-buffered memoryMax. capacity of system memory: 32GB (see CAUTION)Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2
Expansion Slot	1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)5 x PCI Express 2.0 x1 Slots
Graphics	Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru ^TM 3D, Intel® Clear Video HD Technology, Intel® Insider ^TM , Intel® HD Graphics 4400/4600Pixel Shader 5.0, DirectX 11.1Max. shared memory 1792MBThree graphics output options: D-Sub, DVI-D and HDMISupports Triple Monitor

• Supports HDMI with max. resolution up to 1920x1200 @ 60Hz
• Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
• Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
• Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
  • Supports HDCP with DVI-D and HDMI Ports
• Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports

Audio

• 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
• Supports Surge Protection (ASRock Full Spike Protection)
• ELNA Audio Caps

LAN

• PCIE x1 Gigabit LAN 10/100/1000 Mb/s
• Realtek RTL8111GR
• Supports Wake-On-WAN
• Supports Wake-On-LAN
- Supports Lightning/ESD Protection (ASRock Full SpikeProtection)
• Supports LAN Cable Detection
• Supports Energy Efficient Ethernet 802.3az
- Supports PXE

Rear Panel

• 1 x PS/2 Mouse Port
  • 1 x PS/2 Keyboard Port
• 1 x D-Sub Port
• 1 x DVI-D Port
• 1 x HDMI Port
• 4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))

• 2 x USB 3.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))

• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
  • HD Audio Jacks: Line in / Front Speaker / Microphone

Storage

• 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
• 2 x SATA2 3.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug

Connector

• 1 x TPM Header
  • 1 x Power LED Header
  • 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)
  • 2 x Chassis Fan Connectors (1 x 4-pin, 1 x 3-pin)
  • 1 x Power Fan Connector (3-pin)
  • 1 x 24 pin ATX Power Connector
  • 1 x 8 pin 12V Power Connector
  • 1 x PCIe Power Connector
  • 1 x Front Panel Audio Connector
  • 1 x SPDIF Out Connector
• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
• 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))

BIOS

• 32Mb AMI UEFI Legal BIOS with multilingual GUI support
• ACPI 1.1 Compliant wake up events
- SMBIOS 2.3.1 support
• CPU, DRAM, PCH 1.05V Voltage multi-adjustment

Hardware

• CPU/Chassis temperature sensing (Except for CHA_FAN2)
  • CPU/Chassis/Power Fan Tachometer
• CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature) (Except for CHA_FAN2)
• CPU/Chassis Fan multi-speed control (Except for CHA_FAN2)
  • Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

os

- Microsoft® Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit

Certifications

• FCC, CE, WHQL
• ErP/EuP ready (ErP/EuP ready power supply is required)

* For detailed product information, please visit our website: http://www.asrock.com

Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using third-party overclocking tools. Overclocking may affect your system's stability, or even cause damage to the components and devices of your system. It should be done at your own risk and expense. We are not responsible for possible damage caused by overclocking.

Due to limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows ^® 32-bit operating systems. Windows ^® 64-bit operating systems do not have such limitations. You can use ASRock XFast RAM to utilize the memory that Windows ^* cannot use.

Chapter 2 Installation

This is an ATX form factor motherboard. Before you install the motherboard, study the configuration of your chassis to ensure that the motherboard fits into it.

Pre-installation Precautions

Take note of the following precautions before you install motherboard components or change any motherboard settings.

• Make sure to unplug the power cord before installing or removing the motherboard components. Failure to do so may cause physical injuries and damages to motherboard components.
• In order to avoid damage from static electricity to the motherboard's components, NEVER place your motherboard directly on a carpet. Also remember to use a grounded wrist strap or touch a safety grounded object before you handle the components.
• Hold components by the edges and do not touch the ICs.
• Whenever you uninstall any components, place them on a grounded anti-static pad or in the bag that comes with the components.
• When placing screws to secure the motherboard to the chassis, please do not over-tighten the screws! Doing so may damage the motherboard.

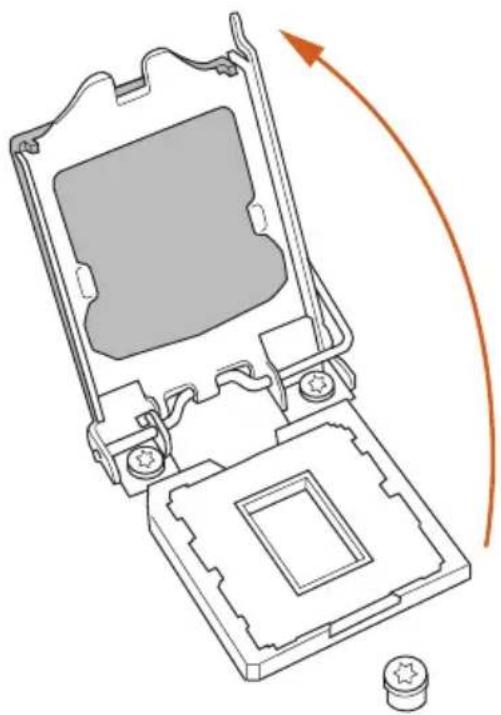

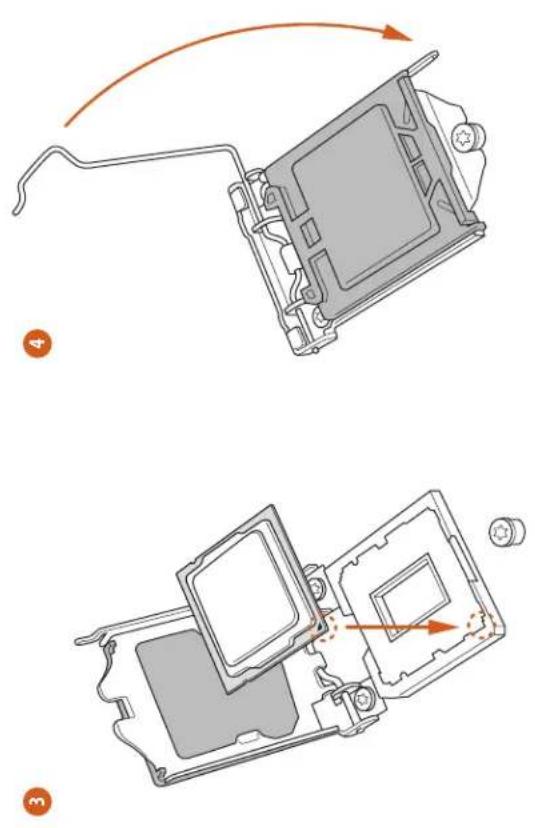

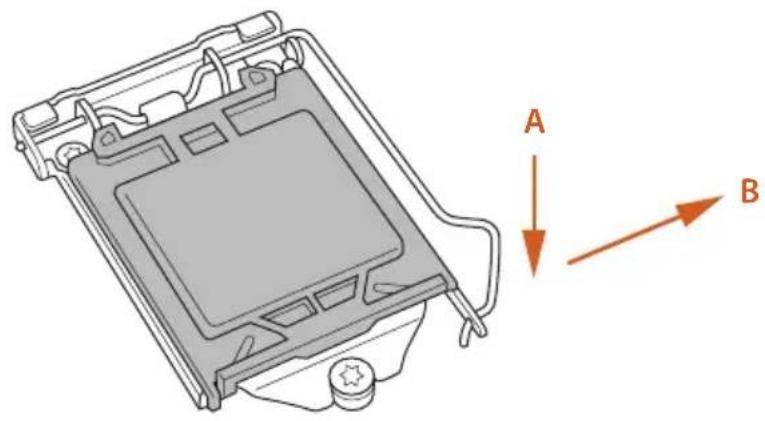

2.1 Installing the CPU

1. Before you insert the 1150-Pin CPU into the socket, please check if the PnP cap is on the socket, if the CPU surface is unclean, or if there are any bent pins in the socket. Do not force to insert the CPU into the socket if above situation is found. Otherwise, the CPU will be seriously damaged.
2. Unplug all power cables before installing the CPU.

1

Technical diagram of a mechanical component with labeled directional arrows (A and B), no readable text or symbols present.

2

Technical line drawing of a mechanical component with an arrow indicating rotation or assembly (no text or symbols present)

Diagram showing a computer processor's internal structure with an external component, no text or symbols present

English

Please save and replace the cover if the processor is removed. The cover must be placed if you wish to return the motherboard for after service.

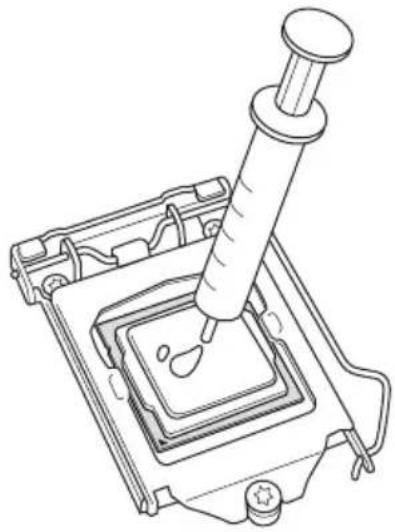

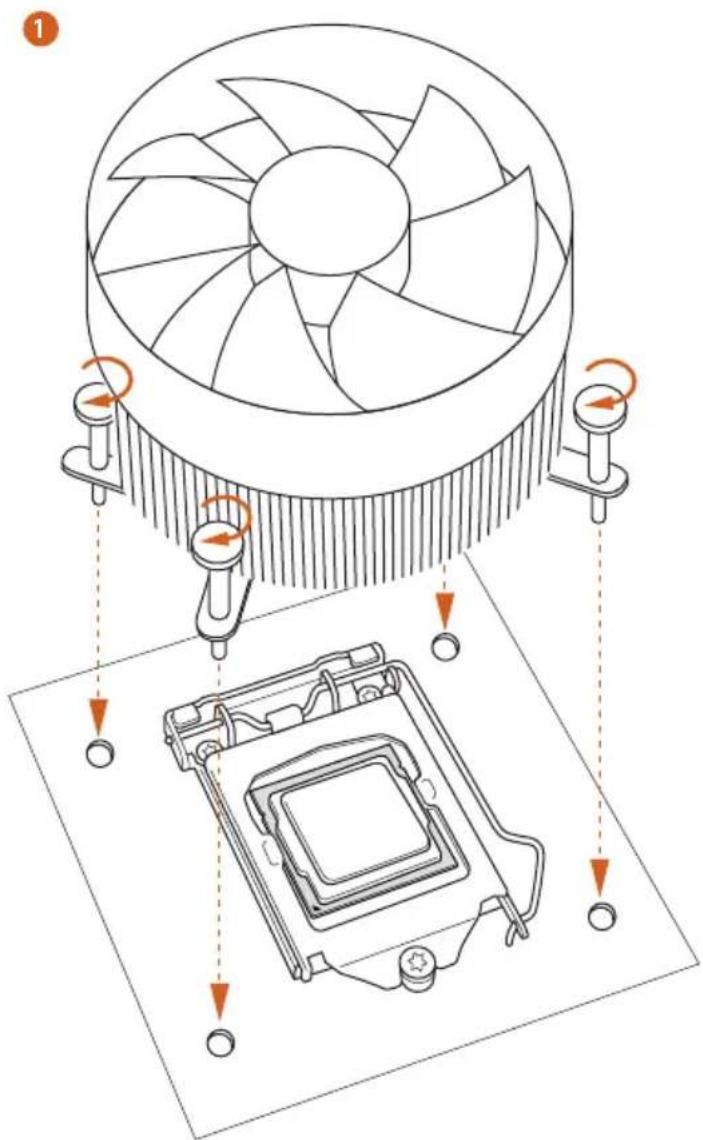

2.2 Installing the CPU Fan and Heatsink

Line drawing of a pipette dispensing liquid into a square container (no text or symbols)

Technical diagram showing cooling fan installation and CPU socket assembly with labeled components

2 C=3.2 N

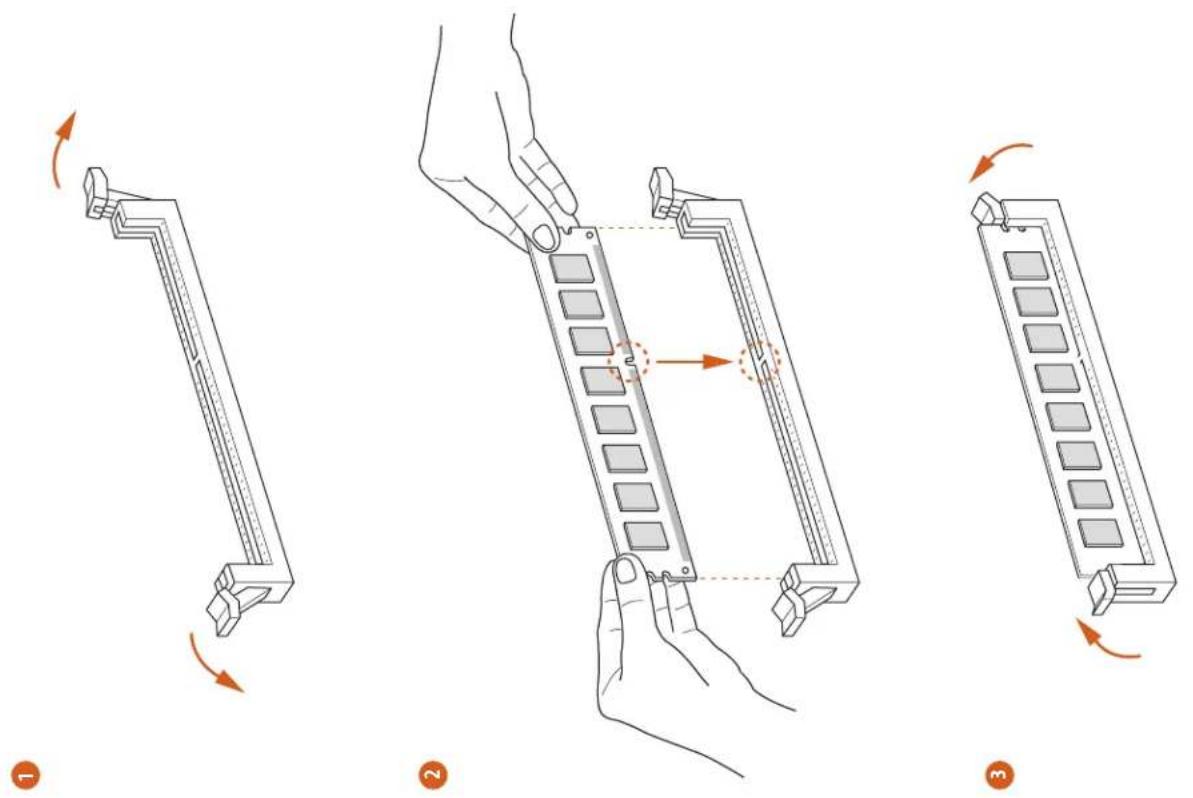

2.3 Installing Memory Modules (DIMM)

This motherboard provides four 240-pin DDR3 (Double Data Rate 3) DIMM slots, and supports Dual Channel Memory Technology.

1. For dual channel configuration, you always need to install identical (the same brand, speed, size and chip-type) DDR3 DIMM pairs.
2. It is unable to activate Dual Channel Memory Technology with only one or three memory module installed.
3. It is not allowed to install a DDR or DDR2 memory module into a DDR3 slot; otherwise, this motherboard and DIMM may be damaged.

Dual Channel Memory Configuration

Priority DDR3_A1 DDR3_A2 DDR3_B1 DDR3_B2

1 Populated Populated
2 Populated Populated
3 Populated Populated Populated Populated

The DIMM only fits in one correct orientation. It will cause permanent damage to the motherboard and the DIMM if you force the DIMM into the slot at incorrect orientation.

English

2.4 Expansion Slots (PCI Express Slots)

There are 6 PCI Express slots on the motherboard.

Before installing an expansion card, please make sure that the power supply is switched off or the power cord is unplugged. Please read the documentation of the expansion card and make necessary hardware settings for the card before you start the installation.

PCIe slots:

PCIE1 (PCIe 2.0 x1 slot) is used for PCI Express x1 lane width cards.

PCIE2 (PCIe 3.0 x16 slot) is used for PCI Express x16 lane width graphics cards.

PCIE3 (PCIe 2.0 x1 slot) is used for PCI Express x1 lane width cards.

PCIE4 (PCIe 2.0 x1 slot) is used for PCI Express x1 lane width cards.

PCIE5 (PCIe 2.0 x1 slot) is used for PCI Express x1 lane width cards.

PCIE6 (PCIe 2.0 x1 slot) is used for PCI Express x1 lane width cards.

2.5 Jumpers Setup

The illustration shows how jumpers are setup. When the jumper cap is placed on the pins, the jumper is "Short". If no jumper cap is placed on the pins, the jumper is "Open". The illustration shows a 3-pin jumper whose pin1 and pin2 are "Short" when a jumper cap is placed on these 2 pins.

Short Open 1 2 3

Clear CMOS Jumper (CLRCMOS1)

(see p.1, No. 21)

Clear CMOSDefault

CLRCMOS1 allows you to clear the data in CMOS. To clear and reset the system parameters to default setup, please turn off the computer and unplug the power cord from the power supply. After waiting for 15 seconds, use a jumper cap to short pin2 and pin3 on CLRCMOS1 for 5 seconds. However, please do not clear the CMOS right after you update the BIOS. If you need to clear the CMOS when you just finish updating the BIOS, you must boot up the system first, and then shut it down before you do the clear-CMOS action. Please be noted that the password, date, time, and user default profile will be cleared only if the CMOS battery is removed.

2.6 Onboard Headers and Connectors

Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage to the motherboard.

System Panel Header

(9-pin PANEL1)

(see p.1, No. 15)

PLED+ PLED- PWRBTN# GND 1 GND RESET# GND HDLED- HDLED+

Connect the power switch, reset switch and system status indicator on the chassis to this header according to the pin assignments below. Note the positive and negative pins before connecting the cables.

PWRBTN (Power Switch):

Connect to the power switch on the chassis front panel. You may configure the way to turn off your system using the power switch.

RESET (Reset Switch):

Connect to the reset switch on the chassis front panel. Press the reset switch to restart the computer if the computer freezes and fails to perform a normal restart.

PLED (System Power LED):

Connect to the power status indicator on the chassis front panel. The LED is on when the system is operating. The LED keeps blinking when the system is in S1/S3 sleep state. The LED is off when the system is in S4 sleep state or powered off (S5).

HDLED (Hard Drive Activity LED):

Connect to the hard drive activity LED on the chassis front panel. The LED is on when the hard drive is reading or writing data.

The front panel design may differ by chassis. A front panel module mainly consists of power switch, reset switch, power LED, hard drive activity LED, speaker and etc. When connecting your chassis front panel module to this header, make sure the wire assignments and the pin assignments are matched correctly.

Power LED Header

(3-pin PLED1)

(see p.1, No. 16)

Please connect the chassis power LED to this header to indicate the system's power status.

Serial ATA2 Connectors

(SATA_4:

see p.1, No. 13)

(SATA_5:

see p.1, No. 12)

SATA_5

These two SATA2

connectors support SATA data cables for internal storage devices with up to 3.0 Gb/s data transfer rate.

Serial ATA3 Connectors

(SATA_0:

see p.1, No. 9)

(SATA_1:

see p.1, No. 8)

(SATA_2:

see p.1, No. 11)

(SATA_3:

see p.1, No. 10)

SATA_1SATA_3 SATA_0SATA_2

These four SATA3

connectors support SATA data cables for internal storage devices with up to 6.0 Gb/s data transfer rate.

USB 2.0 Headers

(9-pin USB_8_9)

(see p.1, No. 17)

(9-pin USB_6_7)

(see p.1, No. 18)

USB_PWR P- P+ GND DUMMY 1 P+ GND P- USB_PWR

Besides four USB 2.0 ports on the I/O panel, there are two headers on this motherboard. Each USB 2.0 header can support two ports.

USB 3.0 Header

(19-pin USB_10_11)

(see p.1, No. 6)

Vbus/Vbus Vbus IntA_PB_SSRX- IntA_PA_SSRX- IntA_PB_SSRX+ GND GND GND IntA_PB_SSTX- IntA_PA_SSTX- IntA_PB_SSTX+ GND IntA_PB_D- IntA_PA_D- IntA_PB_D+ IntA_PA_D+ Dummy 1

Besides two USB 3.0 ports on the I/O panel, there is one header on this motherboard. Each USB 3.0 header can support two ports.

Front Panel Audio Header

(9-pin HD_AUDIO1)

(see p.1, No. 23)

GND PRESENCE# MIC_RET OUT_RET 1 J_SENSE OUT2_L J_SENSE MIC2_R MIC2_L

This header is for

connecting audio devices to the front audio panel.

1. High Definition Audio supports Jack Sensing, but the panel wire on the chassis must support HDA to function correctly. Please follow the instructions in our manual and chassis manual to install your system.
2. If you use an AC'97 audio panel, please install it to the front panel audio header by the steps below:

A. Connect Mic_IN (MIC) to MIC2_L.
B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.
C. Connect Ground (GND) to Ground (GND).
D. MIC_RET and OUT_RET are for the HD audio panel only. You don't need to connect them for the AC'97 audio panel.
E. To activate the front mic, go to the "FrontMic" Tab in the Realtek Control panel and adjust "Recording Volume".

Chassis Speaker Header

(4-pin SPEAKER1)

(see p.1, No. 20)

DUMMY SPEAKER

Please connect the chassis

speaker to this header.

Chassis and Power Fan

Connectors

(4-pin CHA_FAN1)

(see p.1, No. 14)

FAN_SPEED_CONTROL CHA_FAN_SPEED +12V GND

Please connect fan cables to the fan connectors and match the black wire to the ground pin.

(3-pin CHA_FAN2)

(see p.1, No. 7)

(3-pin PWR_FAN1)

(see p.1, No. 1)

CPU Fan Connectors

(4-pin CPU_FAN1)

(see p.1, No. 24)

This motherboard provides a 4-Pin CPU fan (Quiet Fan) connector.

If you plan to connect a 3-Pin CPU fan, please connect it to Pin 1-3.

(3-pin CPU_FAN2)

(see p.1, No. 26)

ATX Power Connector

(24-pin ATXPWR1)

(see p.1, No. 5)

This motherboard provides a 24-pin ATX power connector. To use a 20-pin ATX power supply, please plug it along Pin 1 and Pin 13.

ATX 12V Power

Connector

(8-pin ATX12V1)

(see p.1, No. 2)

This motherboard provides an 8-pin ATX 12V power connector. To use a 4-pin ATX power supply, please plug it along Pin 1 and Pin 5.

PCIe Power Connector

(4-pin PCIE_PWR1)

(see p.1, No. 25)

Please connect a 4 pin molex power cable to this connector when more than three graphics cards are installed.

SPDIF Out

Connector

(2-pin SPDIF_

OUT1)

(see p.1, No. 22)

Please connect the SPDIF_OUT connector of a HDMI VGA card to this header with a cable.

TPM Header

(17-pin TPMS1)

(see p.1, No. 19)

GND SMB_CL_K_MA_IN SMB_DATA MAIN LAD2 LAD1 GND S_PWRD_WN# SERIRQ # GND PCICLK FRAME PCIRST # +3V LAD0 +3VSB GND

This connector supports Trusted Platform Module (TPM) system, which can securely store keys, digital certificates, passwords, and data. A TPM system also helps enhance network security, protects digital identities, and ensures platform integrity.

1 Einleitung

(2-polig, SPDIF_OUT1)

System, das Schlüssel,

digitale Zertifikate,

FAN _ S P EED _ C O N T R O L CHA _ F A N _ S P E E D +12V GND

TPM(Trusted Platform

Module) 시스템을 지

원합니다 .TPM 시스

템은 네트워크 보안을

강화하고,디지털 신

원을 보호하며 플랫폼

무결성을 유지합니다.

Simple graphic with a magnifying glass icon and a horizontal line, no text or symbols present.

1.1 パッケージの内容

1.2 仕様

CPU

^TM i7/i5/i3/Xeon ^e /

TM

TM

HDMI

Blank white image with no visible content, text, or symbols

LAN

I/O

os

bit / 7 32-bit / 7 64-bit

1.3 ジャンパー設定

Short

Open

(CLRCMOS1)

1_2

2 3

/ 7 32-bit / 7 64-bit

认证

If you need to contact ASRock or want to know more about ASRock, you're welcome to visit ASRock's website at http://www.asrock.com; or you may contact your dealer for further information. For technical questions, please submit a support request form at http://www.asrock.com/support/tsd.asp

ASRock Incorporation

2F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District,

Taipei City 112, Taiwan (R.O.C.)

ASRock EUROPE B.V.

Bijsterhuizen 3151

6604 LV Wijchen

The Netherlands

Phone: [phone]

Fax: [phone]

ASRock America, Inc.

13848 Magnolia Ave, Chino, CA91710

U.S.A.

Phone: [phone]

Fax: [phone]
