USER MANUAL Perfetto Neno

The Neno Perfetto device you have bought is an electronic, waterproof (IPX6) breast pump with a touch panel for pumping breast milk from a woman's breast after childbirth. Please read the instructions for use before use.

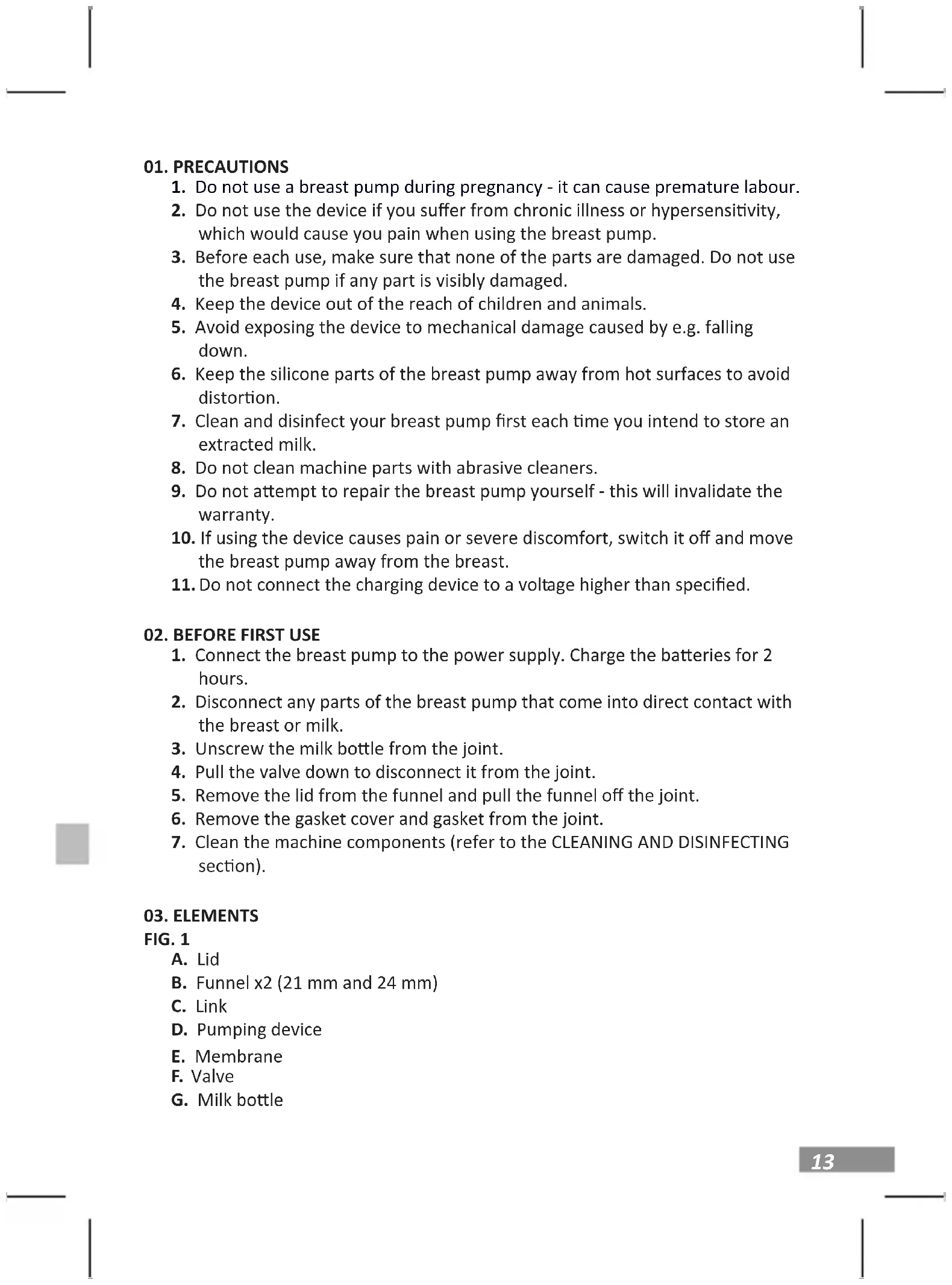

01. PRECAUTIONS

1. Do not use a breast pump during pregnancy - it can cause premature labour.
2. Do not use the device if you suffer from chronic illness or hypersensitivity, which would cause you pain when using the breast pump.
3. Before each use, make sure that none of the parts are damaged. Do not use the breast pump if any part is visibly damaged.
4. Keep the device out of the reach of children and animals.
5. Avoid exposing the device to mechanical damage caused by e.g. falling down.
6. Keep the silicone parts of the breast pump away from hot surfaces to avoid distortion.
7. Clean and disinfect your breast pump first each time you intend to store an extracted milk.
8. Do not clean machine parts with abrasive cleaners.
9. Do not attempt to repair the breast pump yourself - this will invalidate the warranty.
10. If using the device causes pain or severe discomfort, switch it off and move the breast pump away from the breast.
11. Do not connect the charging device to a voltage higher than specified.

02. BEFORE FIRST USE

1. Connect the breast pump to the power supply. Charge the batteries for 2 hours.
2. Disconnect any parts of the breast pump that come into direct contact with the breast or milk.
3. Unscrew the milk bottle from the joint.
4. Pull the valve down to disconnect it from the joint.
5. Remove the lid from the funnel and pull the funnel off the joint.
6. Remove the gasket cover and gasket from the joint.
7. Clean the machine components (refer to the CLEANING AND DISINFECTING section).

03. ELEMENTS

FIG. 1

A. Lid
B. Funnel x2 (21 mm and 24 mm)
C. Link
D. Pumping device
E. Membrane
F. Valve
G. Milk bottle

H. Bottle holder
I. Set with dummy
J. Charging cable
K. Lid for bottle

04. DISPLAY ICONS

FIG.2

1. Power button (B) - Hold down the button for 2 seconds to turn the unit on or off.
2. Mode Change Button (H) - Press the button to change the mode of the unit. There are 3 modes of the unit available (stimulation, collection, milking). The unit will automatically switch from stimulation mode to milk-out mode after 2 minutes.
3. Changing the suction level - Press _n + ^n (G) to increase the suction power or "-" (A) to decrease the suction power. (Stimulation mode (C): levels L1-L9; Deep suction mode (D): levels L1-L9; Mixed mode (C): levels L1-L9).
4. Battery status (F) - The battery icon shows the battery charge status. Connect the device to charge when the battery is close to empty.
5. Device run time (J) - This indicator shows how many minutes have passed since the breast pump was switched on. The device will automatically switch off after 30 minutes.
6. Suction level (I) - Shows the currently selected suction power level.

05. CLEANING AND DISINFECTION

Washing and disinfecting are two different operations. They must be done separately to protect your baby and to ensure the correct operation of the breast pump.

Washing - washing the surface of the unit and removing dirt.

Disinfection - killing organisms such as bacteria or viruses that may be present on the surface of the equipment.

Funnel and funnel lid, breast pump parts (joint, gasket, gasket cover), bottle and teat:

Wash and disinfect before first use.

Wash after each use.

Disinfection once a day.

NOTE:

• Separate and wash all machine parts that come into contact with milk immediately after using the machine. This will remove any milk residue and prevent the growth of bacteria.
• Use only drinkable tap water for washing. Use bottled water if the water in your tap does not meet this requirement.
• When cleaning the valves, do not use brushes. Be careful not to puncture the

valve on the way out.

• Disassemble, wash and rinse all parts of the breast pump that come into contact with milk, except for the pumping device.
• Use a mild dishwashing liquid or soap when washing the breast pump parts.

FIG. 3.A

1. Washing (before first use and after use - in the sink):

a. Rinse all the detached parts (which have come into contact with the breast and milk) in cold water to rinse off any milk residue and deposits that have formed.
b. Soak in warm soapy water for 5 minutes, then wash and rinse.
c. Allow the parts to dry naturally. Store dry parts in a cool, dry place when you are not using them.

FIG. 3.B

1. Disinfection (before first use and once a day on the cooker):

a. Fill the pot with water so that all items placed in it are covered when placed in the water. Bring to the boil. Place the breast pump parts in the boiling water for 10 minutes. Do not boil.
b. Allow the items to dry naturally. Store dry kit items in a cool, dry place when not in use.

FIG. 3.C

1. Cleaning of the pumping device:

a. Wipe the pump unit with a soft, wet cloth and mild dishwashing liquid/ soap. Other cleaners or abrasives may damage the unit and its display.
b. When not using the pump unit, store it in a cool, dry place.

06. BREAST PUMP ASSEMBLY

FIG. 4

1. Wash your hands thoroughly with soap and water before touching the breast pump and breast.
2. Connect the diaphragm and the pumping device to the joint.
3. Connect the funnel to the joint.
4. Place the valve in the joint.
5. Screw the bottle onto the joint by turning clockwise until it stops.

Councils:

a. Before each use, check the parts of the breast pump for damage. If necessary, replace damaged parts with new ones.
b. Always check the cleanliness of the components before using the device.
c. To avoid damaging the breast pump, make sure all its parts are dry before use.

07. CHARGING THE BREAST PUMP

Before first use, charge the breast pump for 2 hours by connecting it to power

using the USB cable. The battery icon on the display will be full when charging is complete.

Full blinking battery - low battery, connect the device for charging.

Incomplete blinking battery - battery connected for charging, current battery charging status.

Full battery - a battery that is fully charged.

You can use the breast pump while the device is plugged in to charge. The device battery will be charged when you connect the device to the power supply. The device battery will not be charged when the pumping device is switched on. Fully charge the breast pump battery before storing it if you intend not to use the device for a long period of time. Charge the device battery before it is completely depleted. This prolongs the life of the battery. If the breast pump has been stored in a hot place, the device battery may not work at first. Allow the breast pump to cool for one hour before use.

08. USE OF A BREAST PUMP

FIG.5

1. Place the funnel on the breast so that the nipple is inside the drainage channel.
2. Press the funnel and breast pump connector against your breast using your thumb and index finger.
3. Support your breast with the palm of your hand.
4. Turn on the breast pump by pressing the power button and select the operation mode that suits you.
5. Press the power button to turn off the breast pump after use and place the lid on the funnel to protect the device from dust.
6. The breast pump starts in stimulation mode. Set the level of suction strength comfortable for you using the + / - buttons. Stimulation mode - fast pumping that mimics your baby's natural sucking of breast milk to stimulate milk flow. After 2 minutes, the breast pump will automatically switch to deep pumping mode. Adjust the level of suction using the + / - buttons to find the highest level of suction that is comfortable for you. If milk starts to flow from your breast before 2 minutes have passed, press the change mode button to manually switch to deep milk extraction mode.
7. Deep pumping mode - slower pumping that gently and efficiently sucks milk from the breast. In intake mode, increase the suction until you feel slight discomfort (not pain) and reduce the suction by one degree.
8. Mixed mode - mimics your baby's sucking pattern by programming the speed and strength of the suction. Can be used after pumping to help empty the breast and increase lactation.

09. PREPARATION OF MILK FOR FEEDING

1. Do not thaw frozen milk in the microwave or in boiling water. There is a risk of scalding the baby's face.
2. Thaw the milk in the fridge overnight. Do not refreeze once thawed milk. You can thaw milk quickly by holding it under running water with a maximum temperature of 37^ .
3. Place the closed bottle/bag in a bowl of warm water for 20 minutes to bring the milk to body temperature.
4. Do not add freshly drained milk to previously frozen milk if the amount of fresh milk exceeds the amount of previously frozen milk.
5. It is recommended that you breastfeed before you start feeding your baby with a bottle.
6. Always check the bottle, teat and other components before and after each feeding. If the teat is damaged, stop using it immediately.
7. To avoid the risk of strangulation, test the strength of the soother by pulling gently on its protruding part.
8. Do not try to enlarge the opening of the teat.
9. Infants should not be bottle fed without adult supervision.
10. The teat of the bottle should not be used as a soother for the baby.

10. REPLACEMENT OF CONSUMABLE PARTS

Consumable parts are subject to natural wear and tear during operation of the breast pump and are therefore not covered by the manufacturer's warranty. Worn components of the breast pump that come into contact with milk should be replaced. A worn component has a crack, deformation, tarnishing or a distinct change in colour.

• Replace the diaphragm every 8 weeks (if you use the breast pump 1-3 times a day) or every 3-4 weeks (if you use the breast pump more than 3 times a day).
• Replace the valve every 2-3 months (if using 1-3 times a day) or every 4 weeks (if using more than 3 times a day).
• Replace the funnel every 6 months if you use the breast pump more than 3 times a day.
• Replace the tube only if moisture enters the tube or the tube is damaged.

11. LONG-TERM STORAGE

The breast pump has a built-in rechargeable battery. To protect against damage, the device goes into storage mode after a long period of inactivity. To deactivate the storage mode, connect the device to power and charge it for 2 hours. Before you put the breast pump away for an extended period of time, make sure that:

All parts of the breast pump are clean.

• You have cleaned the pumping device.
  The device battery is fully charged.

12. FAQ

1. The device does not start: make sure that the breast pump is connected to a working electrical outlet. If the breast pump has no power source, its display will not turn on and no error message will appear.
2. The device does not pump when switched on: make sure the device has a charged battery or is connected to the power supply.
3. No/poor suction: Make sure all parts of the breast pump are correctly positioned. Take the breast pump apart and make sure all parts are clean and undamaged. Reassemble the breast pump according to the instructions in the instructions in the Lactator Assembly section. When pumping, make sure the entire surface of the funnel is pressed against the breast.
4. More milk has come out of your breast than the bottle can hold: turn off the pump and unplug it. Use a moist (not wet) cloth to wipe the breast pump. Wash the parts of the breast pump that contain milk according to the instructions in the CLEANING AND DISINFECTING section. When all parts of the machine are dry, reassemble.

13. SPECIFICATION

Input power: 110-240V 50-60Hz | Output power: 5V 1A | Waterproof: IPX6 | Battery capacity: 3.7V 1100mAh Li-ion | Pump dimensions: 80x68x60 mm | Weight: 183 g

Suction power:

1. Stimulation mode: L1 - 3kPa; L2 - 8kPa; L3 - 13kPa; L4 - 18kPa; L5 - 19kPa; L6 - 25kPa; L7 - 29kPa; L8 - 31kPa; L9 - 33kPa;
2. Deep extraction mode: L1 - 18kPa; L2 - 22kPa; L3 - 26kPa; L4 - 29kPa; L5 - 31kPa; L6 - 36kPa; L7 - 38kPa; L8 40kPa; L9 - 43kPa;
3. Mixed mode: L1 fast - 14kPa; L1 slow - 19kPa; L2 fast - 14kPa; L2 slow - 22kPa; L3 fast - 14kPa; L3 slow - 24kPa; L4 fast - 14kPa; L4 slow - 27kPa; L5 fast - 14kPa; L5 slow - 30kPa; L6 fast - 14kPa; L6 slow - 34kPa; L7 fast - 14kPa; L7 slow - 37kPa; L8 fast - 14kPa; L8 slow - 40kPa; L9 fast - 14kPa; L9 slow - 42kPa.

Allowable difference ± 5 Kpa.

14. WARRANTY/CLAIMS CARD

The product is covered by a 24-month warranty. Warranty conditions can be found at: https://neno.pl/gwarancja

Details, contact and service address can be found at:

https://neno.pl/contact/?lang en

Specifications and contents are subject to change without notice. We apologise for any inconvenience.

DE

Vask after hver drug.

Desinfektion en gang omASN.

BEMERK:

The crossed out trash can symbol indicates that unusable electrical or electronic devices, its accessories (such as power supplies, cords) or components (for example batteries, if included) cannot be disposed of alongside with household waste. In order to dispose of the devices or its components (for example, batteries) deliver the device to the collection point, where it will be accepted free of charge. Disposal is subject to the recast version of the WEEE Directive (2012/19/EU) and the Directive on batteries and accumulators [2006/66 / EC]. Proper disposal of the device prevents degradation of the natural environment. Information about the collection points of the facilities is issued by the competent local authorities. Incorrect disposal of waste is subject to penalties provided for by the law in force in the given area.

DE

KGK TREND Sp. z o.o.

ul. Ujastek 5b, 31-752 Kraków, Polska.

Wyprodukowano w PRC

Manufacturer:

KGK TREND Sp. z o.o.

Ujastek 5b, 31-752 Cracow, Poland.

Made in PRC

C E
