USER MANUAL Camino Neno

1. Always disconnect the device from power aer use if you do not need to

charge the device’s baery.

2. Do not place the product in areas where it may fall into a sink, bath or other

3. The breast pump and its components are not resistant to high temperatures

- keep the device away from hot surfaces and open ames.

4. Do not use the device near ammable materials.

5. The breast pump should not be le unaended when it is connected to a13

6. Never use the device if it has been dropped or otherwise damaged.

7. Do not use a device if its power cord or plug is damaged.

8. Do not use the device in the bath or shower.

9. Do not submerge the device under water or in other liquids.

10. Do not wash the device with running water.

11. Do not connect the device to a power outlet that has come into contact with

water or other liquids.

12. If your device has been exposed to water or other liquids, do not touch the

device directly, unplug it, turn it o, and contact the manufacturer.

13. The device is intended for use by a single user. The use of the breast pump

by more than one person carries a risk of harm to the health of users and voids the warranty.

14. Do not repair or modify the device on your own.

15. Use the breast pump only as described in the manual. Do not use the device

for any other purpose.

16. Inspect all components of the breast pump before each use.

17. Do not heat the milk in the microwave. Microwave-heated milk can burn

the baby’s mouth, as heang with microwave waves can produce pockets of high temperature in the liquid. In addion, microwave waves can change the composion of milk.

18. Do not boil the milk.

19. Before using the breast pump for the rst me, wash and disinfect all parts

of the device that will come into direct contact with your breast or milk.

20. Aer each use of the breast pump, wash all the components of the device

that come into direct contact with your breast or milk.

21. Exercise extra cauon when using the breast pump or its accessories near

SEE FIG. 1 A. Breast shield cover x2 B. Breast shield x2 C. Connector x2 D. Sucon cap x2 E. Sucon bowl x2 F. Valve x4 G. Milk bole x2 H. Bole stand x2

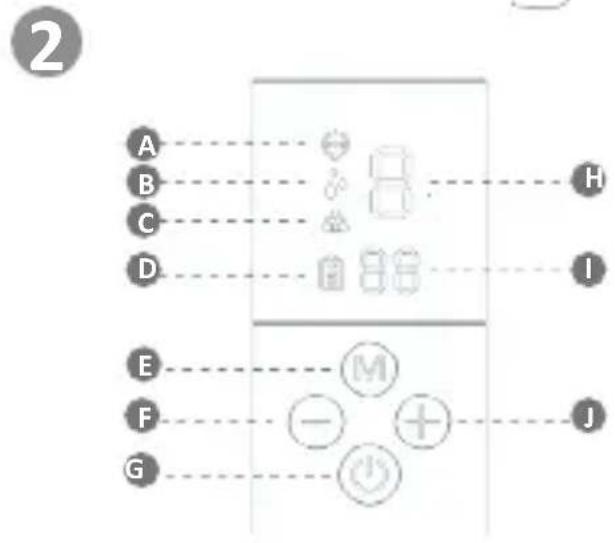

1. Power buon (G) – Hold the buon for 2 seconds to turn the device on

2. Mode change buon (E) – Press the buon to change the operang mode

of the device. There are 3 operang modes of the device (smulaon, expression, let-down). The device will automacally switch from smulaon mode to expression mode aer 2 minutes.

3. Change the sucon level – Press + (F)to increase the sucon or – (J) to re-

duce it.(Smulaon mode (A): L1-L5; Expression mode (B): L1-L9; Let-down mode (C) : L1-L5).

4. Baery status (D) – The baery icon shows the baery status. Connect the

device to power when the baery is close to being discharged.

5. Session duraon (I) – This indicates how many minutes have passed since

the breast pump was switched on. The device will automacally turn o aer 30 minutes.

6. Sucon level (H) – Shows the currently selected sucon level.

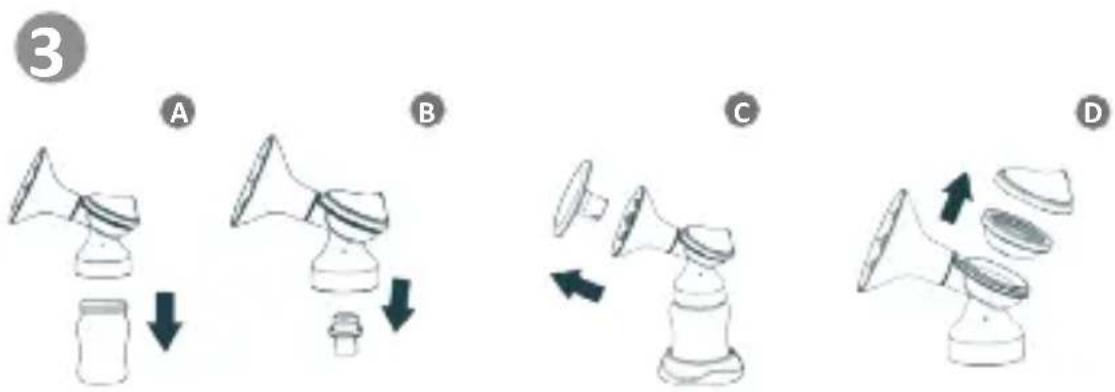

1. Connect the pumping device to a power supply. Charge your device’s baery

2. Disconnect the breast pump components that will come into direct contact

with a breast or milk.

3. Unscrew the milk bole from the connector.

4. Pull the valve down to disconnect it from the connector.

5. Remove the cover from the breast shield and pull the breast shield o the

6. Remove the sucon cap and sucon bowl from the connector.

7. Wash the device components (see CLEANING AND DISINFECTION secon).

05. CLEANING AND DESINFECTION

Cleaning and sanizing are two dierent acvies. They must be done separately to protect your child and ensure that the breast pump works properly. Cleaning - washing the surface of the device and removing dirt. Desinfecon - killing organisms such as bacteria or viruses that may be present on the Surface of the device.15 Breast shield, Breast pump elements (connector, sucon cap, sucon bowl), The bole and teat Before rst use- Cleaning and sanizing Aer each use- Cleaning Once a day- Sanizing

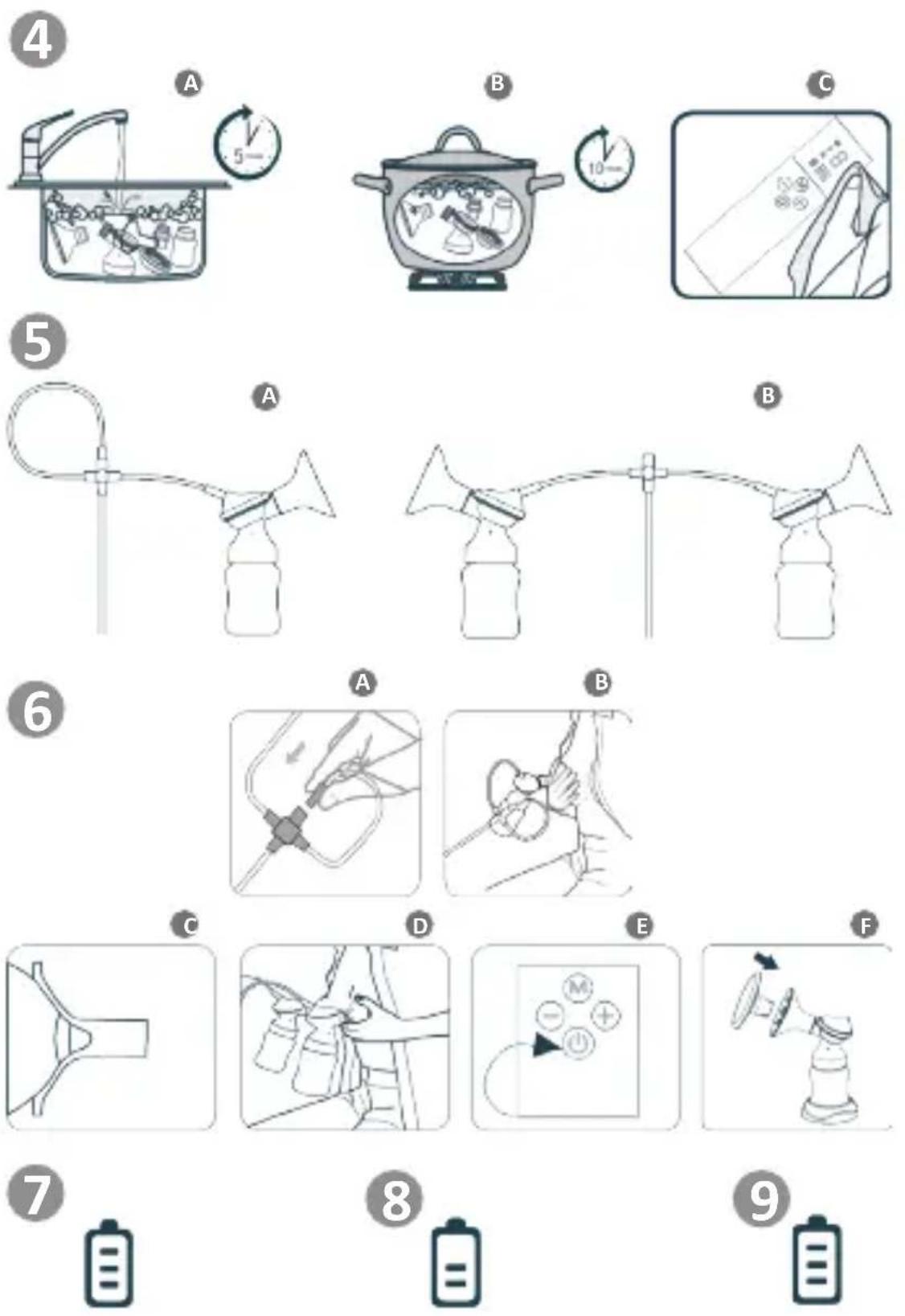

The pumping device, charging cable and charging adapter must not be washed or disinfected in water. Note: - Separate and wash all components of the device that come into contact with milk immediately aer using the device. This will remove the milk residue and prevent the growth of bacteria. - For washing, use only drinking quality tap water. Use boled water if the water in your tap does not meet this requirement. - Do not use brushes when cleaning valves. Be careful not to punctuate the valve. - Disassemble, wash and rinse all breast pump components that come into contact with milk, except for the pumping device. - Use a mild dish soap when washing the breast pump components. SEE FIG. 4 A. Washing (before and aer rst use – in the sink): a. Rinse all elements of the breast pump that have come into contact with breast or milk in cold water to remove the milk residue. b. Soak the elements in warm, soapy water for 5 minutes. Then rinse and wash. c. Let the elements dry naturally. Store the dry parts of the set in a cool, dry place when you’re not using them. B. Disinfecon (before rst use and once a day – on the stove): a. Fill the pot with water so that all the elements placed in it are covered when placed in water. Bring it to boil. b. Place the breast pump elements in boiling water for 10 minutes. c. Let the elements dry naturally. Store the dry parts of the kit in a cool, dry place when you’re not using them. C. Cleaning the pumping unit: a. Wipe the pumping unit with a so, damp cloth and a mild dish soap. Other cleaning products or abrasives may damage the device and its display.16 b. Do not submerge the pumping unit under water or wash it with running water. c. When you are not using the pumping unit, store it in a cool, dry place.

06. ASSEMBLING THE BREAST PUMP

1. Wash your hands thoroughly with soap and water before touching your

breast and the breast pump.

2. Connect the breast shield, sucon cap and sucon bowl to be connector.

3. Place the valve in the connector and screw the milk bole onto the connec-

tor, turning it clockwise unl it stops.

4. Connect the tube to the sucon cap (1) . If you want to express milk from

both breasts simultaneously, connect the tubing to both sucon caps (2) SEE FIG. 5. Tips: a. Check the breast pump components for damage before each use. Repla- ce damaged items with new ones as needed. b. Always check the cleanliness of the elements before using the machine c. To avoid damage to the breast pump, make sure that all its parts are dry before using it.

07. CHARGING THE BREAST PUMP

Before the rst use, charge the breast pump for 2 hours by connecng it to the power supply using the USB cable. The baery icon on the display will be full when charging is complete. SEE FIG. 7 Full blinking baery – low baery, connect device to power. SEE FIG. 8 Blinking baery, not full – baery being charged, current baery charging status. SEE FIG. 9 Full baery – baery fully charged. The breast pump can be used when the device is connected for charging. Your device’s baery will charge when you plug it into power. The baery of the device will not be charged when the pumping device is switched on. Fully charge the baery before pung it into storage if you intend to not use the breast pump for a long period of me. Charge the device’s baery before it is completely depleted. This extends baery life. If the breast pump has been stored in a hot place, the baery of the device may not work at rst. Allow the breast pump to cool down for an hour before using it.17

08. USING THE BREAST PUMP

If expressing milk from one breast - insert the unused end of the tubing into the tubing holder. SEE FIG. 6

1. Place the breast shield on the breast so that the nipple is inside the funnel.

2. Press the breast shields and connectors to your breasts using your thumbs

and index ngers. Support your breasts with your hands.

3. Turn on the breast pump by pressing the power buon and select the mode

of operaon that suits you.

4. Press the power buon to turn o the breast pump aer use and place the

lid on the breast shield to protect the device from dust. The breast pump remembers the last used sucon level sengs in all modes. a. The breast pump starts work in smulaon mode. Set a convenient sucon level for you using the +/- buons. Smulaon mode – fast pumping that mimics the natural sucking of breast milk by the baby, smulang the ow of milk. b. Aer 2 minutes, the breast pump will automacally turn on the expres- sion mode. Adjust the sucon level using the +/- buons to nd the highest level of suco that is comfortable for you. If food starts to ow out of your breasts before two minutes pass, press the mode change buon to manually enter expression mode. c. Expression mode – slower pumping, which gently and eciently sucks milk from the breast. d. In expression mode, increase the sucon force unl you feel slight discomfort (not pain) and reduce the sucon by one level. e. Milk let-down mode – gentle pumping mode. Turn it on when the milk ows from the breast by itself.

09. REPLACEMENT OF CONSUMABLE PARTS

Consumable parts are subject to natural wear and tear during use of the bre- astpump and are therefore not covered by the manufacturer’s warranty. Worn parts of the breastpump that come into contact with milk should be replaced. A worn part has a crack, is deformed, or you noce discolouraon or a marked change in colour.

• Replace the membrane every 8 weeks (if you use the breastpump 1-3 mes a day) or every 3-4 weeks (if you use the breastpump more than 3 mes a day).

• Replace the valve every 2-3 months (if you use the breastpump 1-3 mes a day) or every 4 weeks (if you use it more than 3 mes a day).18

• The breastshield should be replaced every 6 months if you use the breast- pump more than 3 mes a day.

• Replace the tube only if moisture gets into the tube or if it is damaged.

10. MILK PREPARATION

1. Do not thaw frozen milk in the microwave or in boiling water. This can burn

2. Thaw the milk in the fridge overnight. Do not freeze thawed milk again.

3. You can quickly thaw the milk, keeping it under running water at a tempera-

ture of max. 37 °C. Place the closed bole/bag in a bowl of warm water for 20 minutes to bring the milk to body temperature.

4. Do not add freshly expressed milk to previously frozen milk if the amount of

fresh milk exceeds the amount of milk previously frozen. Feeding: a. It is recommended to breaseed before you start feeding your baby with a bole. b. Always check the bole, teat and other components before and aer each feeding. If the teat is damaged, stop using it immediately. c. To avoid a choking hazard, test the strength of the teat by gently pulling the protruding part of it. d. Do not aempt to enlarge the hole in the teat. e. Infants should not be bole fed without adult supervision. f. The bole teat should not be used as a pacier.

The device does not start: Make sure that the breast pump is connected to a working power outlet. If the lactator does not have any power source, its display will not turn on and no error message appears. The device does not pump when turned on: Make sure the device has a charged baery or is plugged in. No/weak sucon: Make sure all breast pump components are posioned correctly. Disassemble the breast pump and make sure that all components are clean and undamaged. Assemble the breast pump again according to the instrucons in the ASSEMBLY secon. During pumping, make sure that the enre surface of the breast shield touches your breast. More milk has owed out of the breast than the bole can hold: Turn o the breast pump and unplug it from the power supply. Use a moist (not wet) cloth to wipe the breast pump. Wash the device components in which the milk is located, according to the instrucons in the CLEANING AND DISINFECTION secon. When all the components of the device are dry, assemble the device again.19

12. LONG-TERM STORAGE

1. The breast pump has a built-in baery. To protect against damage, the

device goes into storage mode aer a long period of inacvity. To turn o storage mode, connect the device to power and charge it for 2 hours.

2. Before pung the breast pump away for a longer period of me, make

sure that: a. All parts of the breast pump are clean. b. You have cleaned the pumping device. c. The device’s baery is fully charged.

The product is covered by a 24-month warranty. The terms of the guarantee can be found at: hps://neno.pl/gwarancja Details, contact and website address can be found at: hps://neno.pl/kontakt Specicaons and contents of the kit are subject to change without noce. We apologise for any inconvenience.
