Product type	Oil-free fryer (air fryer)
Brand	Black & Decker
Model	BXAF3500E
Control panel	Digital touch
Preset programs	9 programs: fries, vegetables, meat, poultry, appetizers, etc.
Manual settings	Temperature and time adjustable via +/- buttons
Cooking temperature	180 °C default, adjustable (range not specified, estimated 80-200 °C)
Timer	15 minutes default, adjustable up to 60 minutes (estimated)
Pause function	Yes, via pause/resume button
Automatic shut-off	Yes, at end of time or if the basket is removed
Basket capacity	Not specified, estimated 3-5 liters (compatible with fries up to 800 g)
Power supply	230 V ~ 50 Hz, grounded outlet 10 A minimum
Power	Not specified, estimated 1500-1800 W
Coating material	Non-stick (do not use metal utensils)
Cleaning	Damp cloth with mild detergent, do not immerse, not dishwasher safe
Safety device	Thermal protection against overheating
Indicator lights	Operation lights (power, heating)
Included accessories	Frying basket, outer container
Spare parts and repairability	Contact authorized after-sales service (http://www.2helpu.com/)
Warranty	Compliant with current legislation, authorized after-sales service

Frequently Asked Questions - BXAF3500E BLACK & DECKER

How to use the fryer for the first time?

Before first use, clean the parts in contact with food (basket and container) with a damp cloth. Dry thoroughly. Plug the appliance into a grounded outlet. Select a program or manually adjust the temperature and time.

How much oil should I put in the fryer?

This is an oil-free fryer. No oil is needed for cooking. You can add a tablespoon of oil to enhance crispiness of certain foods like homemade fries.

How to adjust the temperature and cooking time?

Use the +/- buttons on the control panel to change the temperature (default 180 °C) and time (default 15 minutes). You can also choose from the 9 preset programs by pressing the Menu button.

What to do if the fryer does not turn on?

Check that the plug is properly inserted and the power outlet works. Make sure the cable is not damaged. If the appliance still does not turn on, unplug it, wait 15 minutes, and plug it back in. If the problem persists, contact authorized after-sales service.

How to clean the fryer after use?

Unplug the appliance and let it cool completely. Clean the exterior with a damp cloth and a little mild detergent. The basket and container can be washed by hand, but do not put them in the dishwasher. Never immerse the appliance in water.

Are the foods cooked evenly?

For even cooking, it is recommended to shake the basket halfway through cooking (according to the cooking chart). The fryer uses hot air circulation, so shaking helps distribute the heat.

Can I cook frozen foods directly?

Yes, the fryer is suitable for frozen foods. Refer to the cooking chart in the manual for recommended times and temperatures (e.g., thin frozen fries: 20 min at 200 °C).

How to stop cooking in progress?

Press the pause/start button to pause cooking. The timer stops and displays the remaining time. To resume, press again. You can also remove the container to automatically stop the appliance.

The light is blinking, what does it mean?

The operation lights blink when the appliance is heating or cooking. If a light stays solid or blinks abnormally, consult the manual or contact after-sales service.

Where to find spare parts or get the appliance repaired?

For any repair, contact an authorized technical assistance service. You can find the nearest one at http://www.2helpu.com/. Do not attempt to repair the appliance yourself.

USER MANUAL BXAF3500E BLACK & DECKER

BLACK+ DECKER™

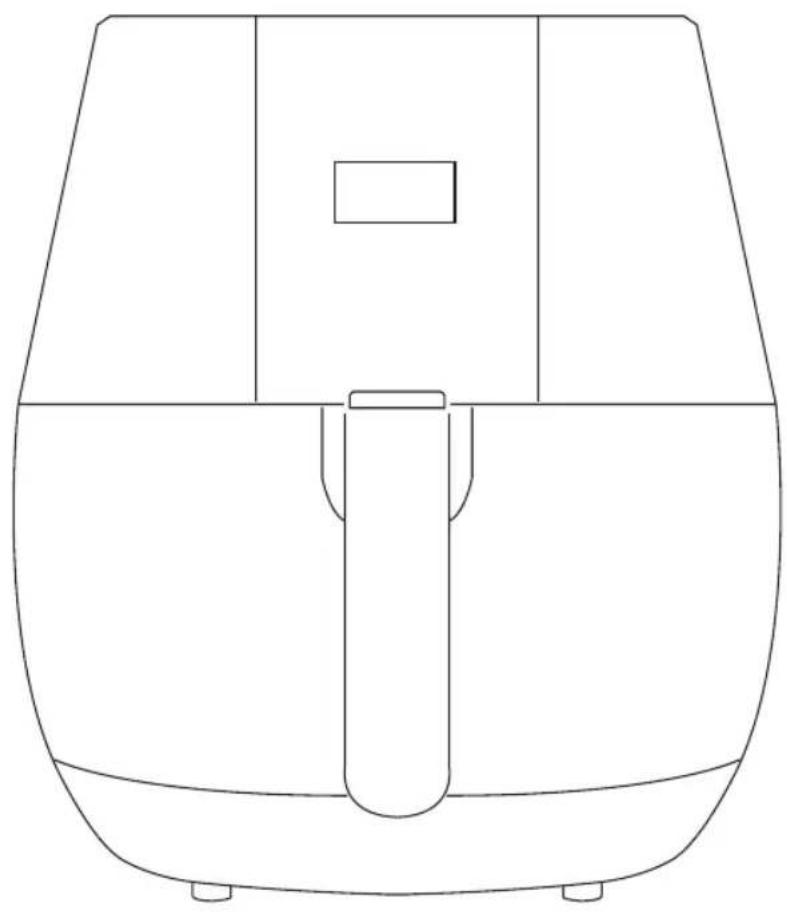

Line drawing of a stylized air fryer with no text or symbols

2 200 °C + - M + - ④ ① ③ ⑤

Fig. 1

Line drawing of a simple kitchen appliance with a lid and base (no text or symbols)

Line drawings of a two-step cooking process: top shows air fryer with stirrer, bottom shows empty bowl with arrows indicating motion (no text or symbols)

ENGLISH

(Original instructions)

Air fryer BXAF3500E

Dear customer,

Many thanks for choosing to purchase a BLACK+DECKER brand product.

Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

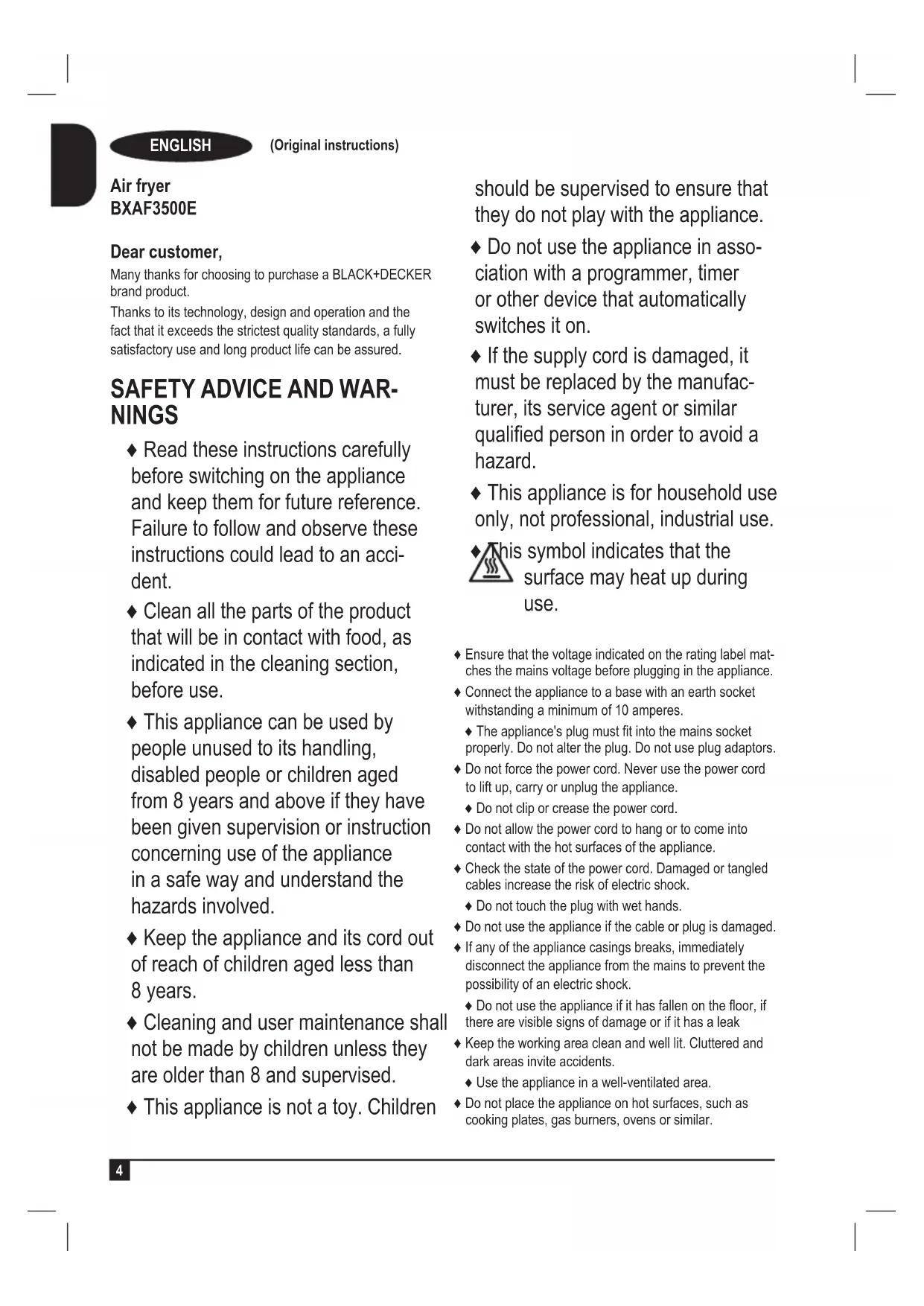

SAFETY ADVICE AND WAR- NINGS

◆ Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions could lead to an accident.
◆ Clean all the parts of the product that will be in contact with food, as indicated in the cleaning section, before use.
- This appliance can be used by people unused to its handling, disabled people or children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
◆ Keep the appliance and its cord out of reach of children aged less than 8 years.
◆ Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
◆ This appliance is not a toy. Children

should be supervised to ensure that they do not play with the appliance.

• Do not use the appliance in association with a programmer, timer or other device that automatically switches it on.
  If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified person in order to avoid a hazard.
  ◆ This appliance is for household use only, not professional, industrial use.

symbol indicates that the surface may heat up during use.

◆ Ensure that the voltage indicated on the rating label matches the mains voltage before plugging in the appliance.
- Connect the appliance to a base with an earth socket withstanding a minimum of 10 amperes.

◆ The appliance's plug must fit into the mains socket properly. Do not alter the plug. Do not use plug adaptors.

Do not force the power cord. Never use the power cord to lift up, carry or unplug the appliance.
◆ Do not clip or crease the power cord.
Do not allow the power cord to hang or to come into contact with the hot surfaces of the appliance.
◆ Check the state of the power cord. Damaged or tangled cables increase the risk of electric shock.
♦ Do not touch the plug with wet hands.
◆ Do not use the appliance if the cable or plug is damaged.
If any of the appliance casings breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.

• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak
  ◆ Keep the working area clean and well lit. Cluttered and dark areas invite accidents.
  ◆ Use the appliance in a well-ventilated area.
  Do not place the appliance on hot surfaces, such as cooking plates, gas burners, ovens or similar.

(Original instructions)

ENGLISH

◆ Place the appliance on a horizontal, flat, stable surface, suitable for withstanding high temperatures and away from other heat sources and contact with water.
♦ CAUTION: In order to prevent overheating do not cover the appliance.
◆ Do not use or store the appliance outdoors.
Do not leave the appliance out in the rain or exposed to moisture. If water gets into the appliance, this will increase the risk of electric shock.
Do not use the appliance in the case of persons insensitive to heat (the appliance has heated surfaces).
Do not touch the heated parts of the appliance, as it may cause serious burns.

SERVICE

◆ Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and void.

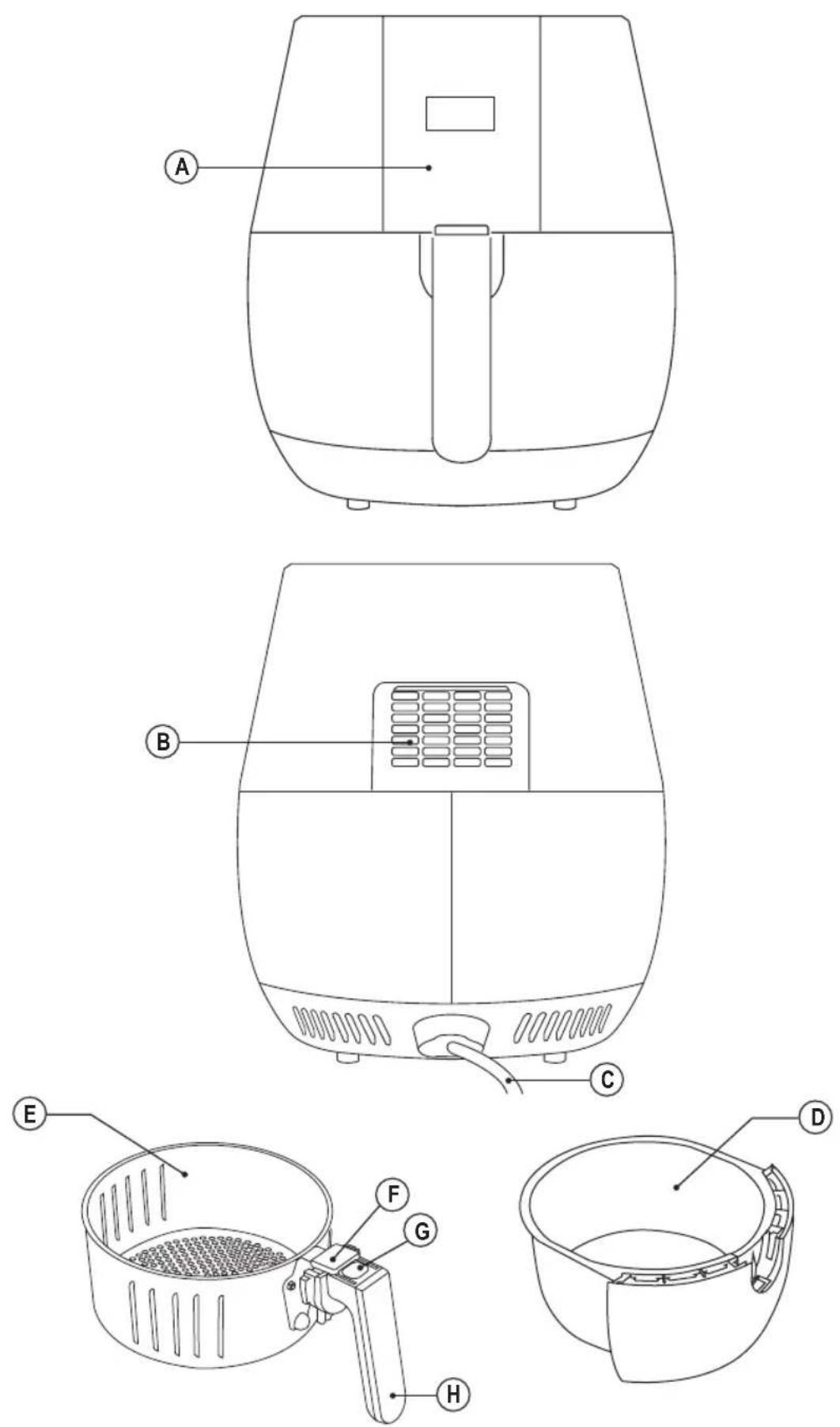

DESCRIPTION

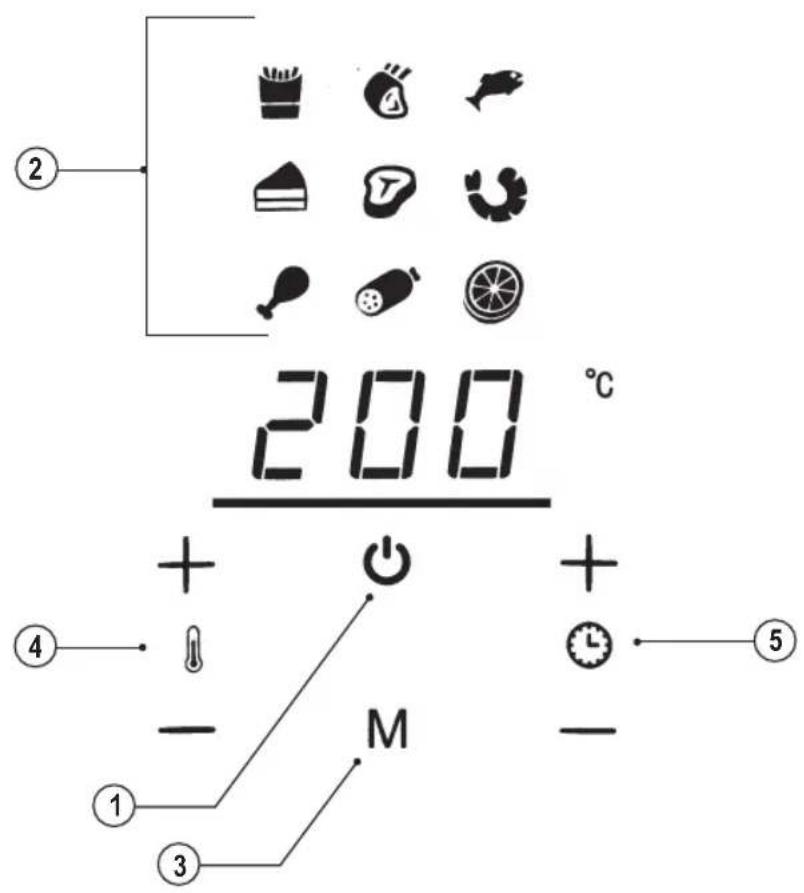

A Digital and tactile control panel

1 ON / start / pause button
2 Heating and operation indicator lights
3 Menu button
4 Temperature selector
5 Time selector

B Air outlet

C Power cable and plug

D Outer container

E Frying basket

F Basket open button protection

G Basket open button

HBasket handle

If the model of your appliance does not have the accessories described above, they can also be bought separately from the Technical Assistance Service.

Use and care:

◆ Fully unroll the appliance’s power cable before each use.
- Do not use the appliance if its accessories are not properly fitted.
Do not use the appliance if the accessories attached to it are defective. Replace them immediately.
◆ Do not use the appliance when empty.
- Do not use the appliance if the timer is not operating correctly.
◆ Do not move the appliance while in use.
◆ To keep the non-stick coating in good condition, do not use metal or pointed utensils on it.

◆ Disconnect the appliance from the mains when not in use and before undertaking any cleaning task.
◆ Store this appliance out of reach of children and/or those with reduced physical, sensorial or mental abilities or who are unfamiliar with its use
- Turning the thermostat control to the minimum (MIN) setting does not guarantee that the appliance is switched off completely.

INSTRUCTIONS FOR USE

Before use:

◆ Make sure that all the product's packaging material has been removed.
Before using the product for the first time, clean the parts that will come into contact with food in the manner described in the cleaning section.

Use:

◆ Unroll the cable completely before plugging it in.
◆ Connect the appliance to an earthed mains socket.

◆ The control panel ON button will light up.

◆ Open the basket and place the ingredients you wish to fry, roast or cook into the basket.

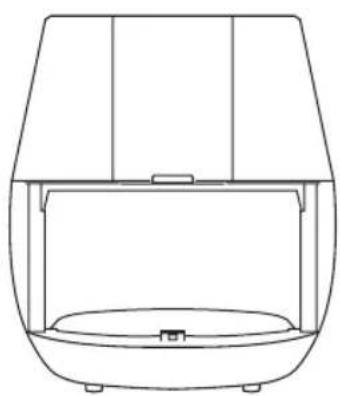

◆ Put the pan back into the appliance.
◆ Note: Never use the pan without the basket inside it.
Note: Always handle the pan by means of the basket and its handle. Do not touch it if it is hot.
◆ Press the ON button on the control panel, the control panel will light up.
* The control panel will display the pre-set 15 minutes and 180°C program

Temperature and time

- You can change the time and temperature by using the +/- symbols..

Pre-set programs

◆ This appliance has 9 pre-set programs
◆ To select the program, press the menu button
◆ you can move from one program to the next by pressing this button.
*If you wish, you can also change the temperature and time settings for the pre-set programs.
Once the program has been selected, press the start button to start heating.
- You will see that the operation indicator light will light up blink.
◆ If you wait for 5 seconds in a menu, the device will start working

ENGLISH

(Original instructions)

◆ To change any settings while cooking, first pause, modify and then resume.
◆ To start heating, press the button

NOTE: During the cooking phase, you can press the pause button to stop the appliance, the timer will also stop and display whatever time remains. Press this button again to resume the cooking phase.

◆ The fryer will beep when the cooking time has finished.
◆ Check to see that the food is cooked.

If it is not, you only have to put the container back in the fryer and program the timer to cook for a few more minutes.

Once cooking has finished, take the whole pan part out of the appliance. The appliance will switch itself off automatically.
♦ CAUTION: both the pan and the basket, as well as the food, will be VERY hot.
◆ Place the basket on a surface that will withstand high temperatures.

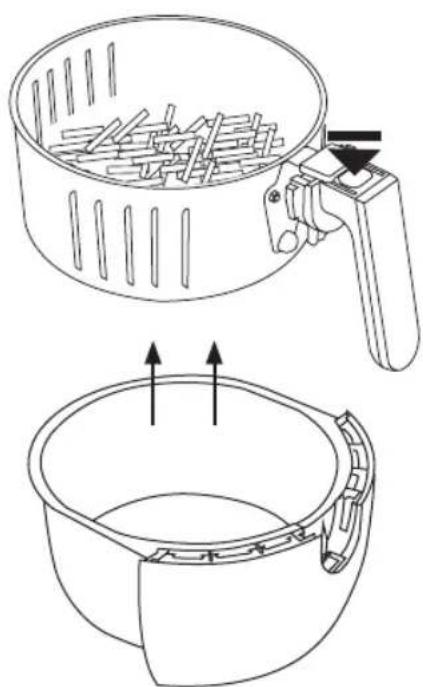

Separate the basket from the pan by using the basket release button and then tip the food out without any risk of burning yourself (Figure 1)
Note: It is not necessary to wait to reuse the air fryer directly after cooking certain foods.

Once you have finished using the appliance:

◆ Unplug the appliance from the mains.
◆ Clean the appliance

Safety thermal protector

• The appliance has a safety device, which protects the appliance from overheating.
  If the appliance turns itself off and does not switch itself on again, unplug it from the mains supply and wait approximately 15 minutes before reconnecting it. If it fails to switch on again, take it to one of the authorised technical assistance services.

CLEANING

◆ Unplug the appliance from the mains and let it cool before performing any cleaning task.
- Clean the equipment using a damp cloth with a few drops of washing-up liquid and then dry.
Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
- Do not immerse the appliance in water or any other liquid, or place it under a running tap.

• It is advisable to clean the appliance regularly and remove any food remains.
  If the appliance is not kept clean, its surface may deteriorate, which will inevitably shorten the appliance's useful life, as well as making it unsafe to use.
  ◆ None of the parts on this appliance are suitable for the dishwasher

◆ Next, dry all the parts before fitting them together and storing.

Table of recommendations

◆ The table below contains common settings that may be of use to you.
Note: these settings are merely indicative. Foodstuffs can vary in origin, size, shape and brand, so we cannot guarantee the best settings for any specific food.

ANOMALIES AND REPAIR

Take the appliance to an authorised technical support service if problems arise. Do not try to dismantle or repair without assistance, as this may be dangerous.

For EU product versions and/or in the case that it is requested in your country: Ecology and recyclability of the product

The materials of which the packaging of this appliance consists are included in a collection, classification and recycling system. Should you wish to dispose of them, use the appropriate public containers for each type of material.
◆ The product does not contain concentrations of substances that could be considered harmful to the environment.

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of waste electrical and electronic equipment (WEEE).

This appliance complies with Directive 2014/35/EU on Low Voltage, Directive 2014/30/EU on Electromagnetic Compatibility, Directive 2011/65/EU on the restrictions of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the ecodesign requirements for energy-related products.

WARRANTY AND TECHNICAL ASSISTANCE

This product enjoys the recognition and protection of the legal guarantee in accordance with current legislation. To enforce your rights or interests you must go to any of our official technical assistance services.
- You can find the closest one by accessing the following web link: http://www.2helpu.com/.
- You can also request related information, by contacting us (see the last page of the manual).
- You can download this instruction manual and its updates at http://www.2helpu.com/.

	MIN-MAX AMOUNT (g)	TIME (min)	TEMPERATURE (°C)	Shake (yes/not)	Extra information
POTATOES & FRIES
Thin frozen fries 500-700 20-25 200 Yes
Thickfrozen fries 500-700 25-30 200 Yes
Home-made fries (5x8mm) 500-800 28-35 180 Yes Add spoon of oil
Home-made potato wedges 300-800 18-22 180 Yes Add spoon of oil
Home-made potato cubes 300-750 12-18 180 Yes Add spoon of oil
VEGETABLES
Scalived peppers, aubergine 200 20 200 Yes Add spoon of oil
MEAT&POULTRY
Hamburguer 100-500 13-15 180
Sausage roll 100-500 15-20 200
Drumsticks 100-500 15-20 180
Chicken breast	100-500 25-30 180
SNAKS
Spring rolls	100-400 10-12 200
Frozen chicken nuggets	100-500 10-12 200 Yes
frozen fish fingers	100-400 10-12 200 Yes
frozen creadcrumbed cheese snaks	100-400 10-15 180

Tabel met suggesties
