Product type	Soundbar with wired subwoofer
Brand	Thomson
Model	SB552BTS
Soundbar dimensions (W x H x D)	720 x 109 x 72 mm
Subwoofer dimensions (W x H x D)	120 x 250 x 470 mm
Total RMS power	Soundbar: 40 W, Subwoofer: 50 W
Peak power	Soundbar: 40 W, Subwoofer: 60 W
Bluetooth version	5.0
Bluetooth transmission range	10 m
Audio inputs	Bluetooth, TV (coaxial), Optical, AUX 3.5 mm, USB
Speakers	Soundbar: 4 x 2.25" (4 Ω), Subwoofer: 1 x 6.5" (4 Ω)
Power supply	AC adapter: DC 21 V, 1.9 A (TP04-210190E)
Power consumption without load	0.09 W
Signal-to-noise ratio	≥ 80 dB
Frequency response	60 Hz - 20 kHz
Maintenance and cleaning	Unplug before cleaning; use a soft dry cloth; do not use abrasive products.
Safety	Do not expose to water or moisture; do not open the casing; indoor use only.
Spare parts and repairability	Entrust any repair to a qualified professional; no user-serviceable parts.
Warranty	2 years from date of purchase
General information	Distributed by Bigben Interactive; customer service: 09 69 39 79 59 (non-premium rate call)

Frequently Asked Questions - SB552BTS THOMSON

What to do if the soundbar produces no sound?

Check that the power indicator is on. Increase the volume using the remote control or the buttons on the soundbar. Make sure that the audio cables are properly connected and that the audio source is set to the corresponding input.

How to connect the soundbar via Bluetooth?

Turn on the soundbar and select Bluetooth mode (blue indicator). On your device (smartphone, tablet), search for Bluetooth devices and select 'SB552BTS'. The maximum connection distance is 10 meters.

The remote control does not work, what to do?

Check that the batteries are inserted correctly (polarity observed) and that they are not worn out. Replace them if necessary. Make sure that no obstacle blocks the signal between the remote and the soundbar.

How to play music via a USB flash drive?

Insert a USB flash drive into the port at the back of the soundbar. Press the 'USB' button on the remote control or the Source button on the soundbar until the pink indicator appears. Playback starts automatically.

TV sound is not audible after optical connection, what to do?

Press the 'OPTICAL' button on the remote control to switch to optical mode (white indicator). If the sound is still absent, set the TV audio output to 'PCM' in the audio settings.

How to switch to standby mode?

The soundbar automatically enters standby after a period of audio inactivity. You can also put it into standby manually by holding down the power button on the soundbar or the remote control.

What are the risks associated with using batteries in the remote control?

Batteries may leak, overheat, or explode if misused. Do not recharge non-rechargeable batteries, do not mix different types or new and used batteries, and remove them if the device is not used for a long time.

How to clean the soundbar?

Always unplug the device before cleaning. Use a soft dry cloth. Never use abrasive products, solvents, or harsh cleaners.

Where to find after-sales service?

Contact Bigben technical support at 09 69 39 79 59 (non-premium rate call) Monday to Friday from 10am to 6pm, or by email at [e-mail].

The soundbar does not turn on, what to check?

Make sure that the power adapter is plugged into a working outlet and that the outlet switch is on. Also check that the power cord is not damaged.

USER MANUAL SB552BTS THOMSON

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPANA, [e-mail]

Tel.: [phone]

SOUNDBAR WITH WIRED SUBWOOFER

USERINSTRUCTIONS

PLEASE READ THIS USER MANUAL CAREFULLY BEFORE OPERATING THIS UNIT AND RETAIN FOR FUTURE REFERENCE.

Getting started 13

Safety warning and notice 13

Contents of the box 15

Description of parts 15

Discover your remote control 16

TV Connection 17

Bluetooth operation 18

USB operation 18

Troubleshooting 18

Warning about batteries 19

Appliance technical specifications 20

Technical specifications of the adapter 20

Care for the environment 21

Additional information 21

Declaration of conformity 21

Getting started

• Take the appliance out of the box.
• Remove all the packaging from the product.
• Place the packaging inside the box or dispose of it safely in compliance with the waste sorting instructions shown on the product packaging.

Safety warning and notice

You must read and understand all the instructions before using this appliance. The warranty will not apply if damage is caused by failure to follow the instructions.

1. Never remove the appliance casing.
2. Never place this appliance on top of other electrical equipment.
3. Protect the power cord from being stepped on or pinched, particularly at the plugs, sockets, and the point where it exits the appliance. Make sure that the power voltage corresponds to the voltage shown on the rating plate at the rear of the appliance. Always pull the plug from the socket when disconnecting from the mains. Never pull on the cord. Ensure you have completed all the other connections before connecting the mains plug.

4. Only use attachments/accessories that are recommended by the manufacturer.

5. Entrust all appliance repairs to qualified repairers. Repair is needed when the appliance has been damaged in any fashion, and in particular:

6. if the power cord is damaged;

7. in the event of a liquid spill or objects being inserted into the appliance;
8. if the appliance is exposed to rain or dampness;
9. if the appliance does not operate normally;

10. or if the appliance has been dropped or impacted.

11. The series panel is located on the bottom of the appliance.

12. Never block the air vents.
13. Make sure you have enough space for ventilation. Place the product on a stable surface.
14. This device must be used in a moderate climate, away from direct sunlight, naked flames or heat, heating devices, cookers or any other devices (including amplifiers) that generate heat. Do not install near a heat source.
15. The batteries (battery pack or inserted batteries) must not be exposed to excessive heat, such as sunshine, fire, etc.
16. Always unplug the device before cleaning it. Never lubricate any part of this appliance.

Clean it with a soft cloth. Do not use abrasive products or harsh cleaners.

1. Ensure that you always have easy access to the power cord, plug or adapter to disconnect this appliance from the mains if necessary.
2. Do not use this appliance near water. It must not be dripped on or splashed. Do not use this appliance in a damp or wet environment.
3. Disconnect this appliance in the event of a storm or if you are not going to use it for a long period of time.
4. This appliance can be used by children aged 8 and over, and by persons with a physical or sensory disability, learning difficulties or a lack of experience and knowledge, provided they are supervised or have received instructions on the safe use of the appliance, and they understand the risks involved. Children must not play with the appliance or the power cord (risk of strangulation). Children must not clean or maintain the appliance without supervision.
5. This device must only be supplied with very low safety voltage corresponding to the marking on the device.
6. The battery should be removed from the device before disposal. The device must be disconnected from the power supply when removing the battery.
7. The product must be at a minimum distance of 20~cm from the human body in operation.
8. This device is for household use only; do not use outdoors.

The lightning bolt symbol within an equilateral triangle alerts users to the presence of dangerous uninsulated voltages inside the device, that may present a risk of electric shock.

The exclamation mark inside a triangle indicates the presence of important operating and maintenance (repair) instructions in the literature accompanying the appliance.

Class II material

Direct current

Alternating current

For indoor use only

Contents of the box

Soundbar
- Separate wired subwoofer
Remote control
- User manual
- 3.5 mm to 3.5 mm cable
- Optical cable
- Mains adapter

Description of parts

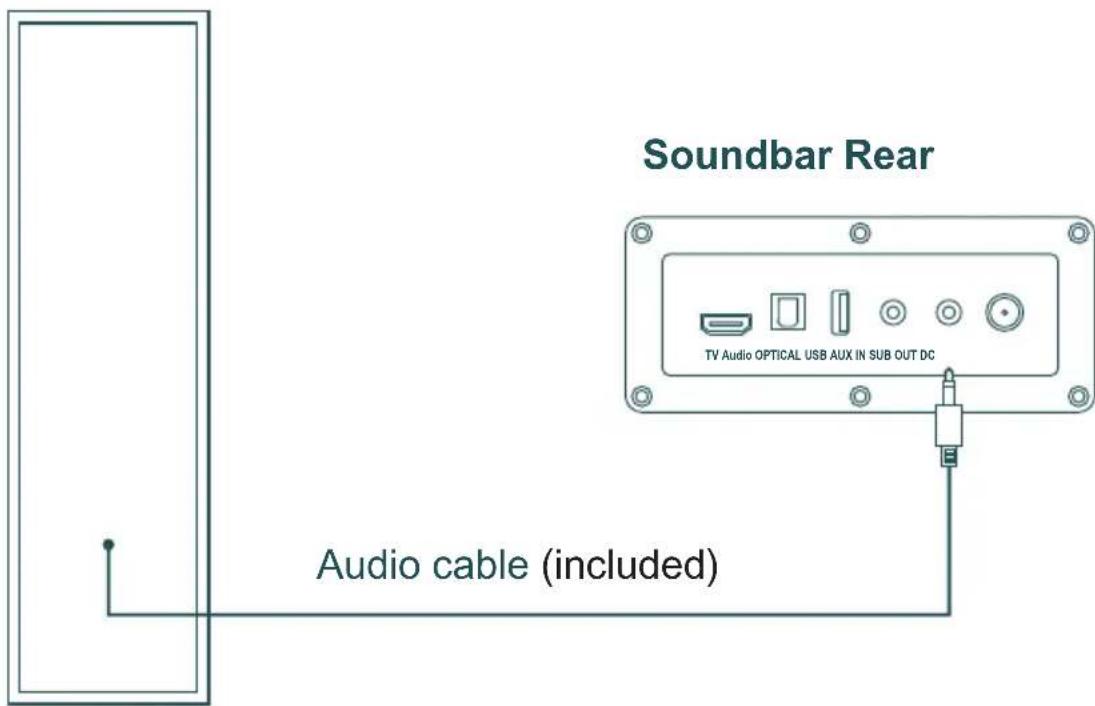

Subwoofer Rear

Optical Digital A	Audio In (optical) - Connects to the digital (optical) output of an external device.
TV Audio TV Input	- Connects to the digital TV socket of your TV or other device (Console, Router).
AUX AUX (3.5m)	- Connects to the analog output of an external device.
USB USB - Connect a USB drive to play audio files directly through the soundbar.
DC Mains Input	(Power Input) - Connects to the AC adapter

Right side of soundbar

Press to turn on/change the audio source; press and hold to turn it off.
Press to move to the next track; press and hold to increase the volume.
Press to return to the previous track; press and hold to turn down the volume.
Select the audio input mode (Bluetooth -> Optical -> TV Audio -> AUX -> USB); press and hold to return the treble and bass to their factory settings.

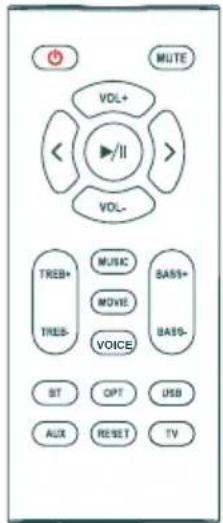

Discover your remote control

	Power button	MUTE	Mute/Unmute
VOL+	Volume up	VOL-	Dance the volume
<	Previous track	>	Next track
	Play/Pause	TREB+TREB-	Increase Decrease treble
BASS+BASS-	Increase or decrease bass	MUSIC	Music mode
MOVIE	Movie mode	Voice mode	Voice Mode
BT	Bluetooth Mode	OPT	Optical mode
USB	USB mode	AUX	Aux mode
RESET	Reset factory settings	TV	TV mode

TV Connection

Method A. 3.5 mm to 3.5 mm cable connection

1. Connect the 3.5mm output of the sound source (TV, Player) to the 3.5mm input of the soundbar.
2. Select the yellow LED by pressing the AUX button on the remote control.

Method B. Optical cable connection

1. Connect the optical input of the soundbar to a sound source (TV, player, etc.) using an optical cable.
2. Press the "OPTICAL" button on the remote control, and the LED will turn WHITE.
3. Set the TV's audio output to "PCM". (More information on the PCM page)

If the TV sound is inaudible, press the "OPTICAL" button on the remote control or at the top of the soundbar to switch to OPTICAL mode. The LED will turn white and the TV we emit sound.

Method C. Connecting using a TV cable

1. Connect the TV port of the soundbar to the TV output port of the TV using a high-speed TV cable.
2. Select the green LED indicator by pressing the AUX button on the remote control.
3. Set the TV's audio output to "PCM". (More information on the PCM page.)

Setting the "PCM" on your TV

If no sound comes out of the TV or soundbar even though all cables are properly connected and the colour of the LED indicator is correct (optical connection or TV), adjust your TV settings as follows:

1. Press the Menu button on the TV remote control.
2. Select "Audio Settings".
3. Select "Advanced Audio" - Some TVs do not have an "Advanced Audio" menu and may display different audio settings.
4. Select "Audio Output Mode" or "Digital Audio Output Mode".
5. Select "PCM" as the audio output mode.
6. Press "OK" to save the settings.

Digital audio output settings may differ by brand, please check your TV's instruction manual.

Bluetooth operation

1. Turn on the soundbar and select Bluetooth mode using the button on the side of the soundbar or remote control. The indicator turns blue.
2. Use the settings function of your source device (mobile phone, tablet, etc.). and search for Bluetooth devices nearby: you will find "SB552BTS" in the list.
3. Pair your device with "SB552BTS".
4. Play the audio tracks on your device and adjust the volume according to preference.
5. Double tap quickly to disconnect Bluetooth.

Note: the maximum connection distance is approximately 10 metres. Place your Bluetooth speaker as close as possible to the device to avoid the connection being disrupted.

USB operation

1. Insert a USB stick into the back of the soundbar.
2. Press the USB button on the remote control or the Source button on the soundbar. The led will turn pink and the USB source will be played.

Troubleshooting

Problem Solution
No sound Check that the p	power indicator is ON.
	Try increasing the volume with the central control knob or the remote control.
	Make sure the audio cables are securely connected and the input is properly set to the speakers.
	Check if there is an output signal from the audio source.
Unable to connect via Bluetooth	Make sure that the speaker is set to Bluetooth input; Bluetooth cannot be paired or connected in another audio input mode.
	Disconnect any Bluetooth device by pressing and holding the volume button in Bluetooth mode, then try again.
The SB552BTS soundbar does not turn on.	The effective Bluetooth transmission range of 10 metres, remember not to exceed this range.
	Try another Bluetooth device to be connected.
	Check that the unit is properly connected to the mains and that the mains socket is switched on.

WARNING: risk of hearing impairment

Set a low volume on the playback device before connecting the headphones to the sound source.

To prevent hearing damage, avoid excessive volume, particularly over extended periods or frequent use. Excessive volume can result in permanent hearing impairment.

This product contains one or more batteries.

• Use batteries correctly to prevent any injury or fire caused by a leak, overheating, explosion, erosion or other damage.
• Keep new and used batteries out of the reach of children or any vulnerable person. Stop using the device if the battery compartment does not close properly.
• If the liquid from an alkaline battery comes into contact with the skin and/or eyes, rinse immediately with fresh water and consult a physician.
  If an alkaline battery leaks, wipe up the liquid with a cloth and replace the battery with a new one.
• Do not swallow batteries. If swallowed, a battery can cause severe internal burns in 2 hours and can cause death. If batteries are swallowed, contact a poison centre immediately and consult a physician.
• Use AA Ni-MH, alkaline or lithium batteries.
• Do not charge these batteries. Charging non-rechargeable batteries causes gas and/or heat emissions that can cause explosions and/or fires.
• Do not use different types of batteries or a mixture of new and old batteries.
• Insert the batteries according to the correct polarity (+ and -).
• Do not put the same battery poles in contact with each other.
• Remove dead batteries quickly. There is a risk of the battery exploding if it is not replaced correctly or if the appliance is unused for a period of time.
• Replace the battery with an identical or equivalent model.
• The batteries (or battery pack) must not be exposed to excessive heat, such as sunlight, fire, etc.
• Do not heat batteries or dispose of them in fire or water.
• Do not use metal pliers or metal objects such as the point of a pen or tweezers to remove batteries. Avoid deforming, crushing or piercing batteries.
• Do not disassemble the batteries.
• Cover the ends of the batteries with tape to prevent explosions and combustion when these are scrapped.
• Scrap batteries and an environmentally friendly way.
• Do not dispose of batteries in ordinary household waste.
• Be sure to comply with the local regulations in force when scrapping batteries.

BATTERY WARNING

KEEP OUT OF REACH OF CHILDREN Swallowing can lead to chemical burns, perforation of soft tissue, and death. Severe burns can occur within 2 hours of ingestion. Seek medical attention immediately.

Type Specifications	Type Specifications
Soundbar 8W x 4 Subwoofer 50W x 1
Peak power 60W/Subwoofer, 40W/ Soundbar		Wireless frequency	2,402 - 2,480 MHz
RMS power 50W/Subwoofer, 40W/ Soundbar		Bluetooth version 5.0
Power consumption 0.09W ERIP -1.86dBm
Power output Subwoofer Output Distortion < 1 %
Power supply CC 21	V, 1.9 A Speaker frequency		60 Hz - 20 kHz
Speaker impedance	4Ω/subwoofer, 4Ω/full speaker system	Input	Bluetooth, TV, Optical, USB, AUX IN
S/B ratio	≥80 dB	Speaker	6.5" x 1, 2.25" x 4, 4 Ohm speakers
Bluetooth pairing name	SB552BTS	Transmission range	10 m
Soundbar Dimensions	720 x 109 x 72 mm	Subwoofer Dimensions	120 x 250 x 470 mm

Technical specifications of the adapter

FIT-POWER
Adapter:TP04-210190E;
AC 100-240V 50/60Hz
21V 1.9A, 39.9 W
Average efficiency in active mode: 88.06%
Low-load efficiency (10%): 82.62%
No-load power consumption: 0.09 W

In an environment with electrostatic discharge, the device may turn off. (When tested, equipment did not function correctly.) The user should therefore restart the appliance by switching it on, selecting the suitable mode and set the time again.

Your product has been designed and manufactured using high-quality materials and components that can be recycled and reused.

Attention should be drawn to the environmental aspects of battery disposal.

When the crossed-out wheelie bin symbol appears on a product, it means that the product is covered by European Directive 2002/96/EC. Please find out about the local sorted collection system for electrical and electronic products. Please act according to local rules and do not dispose of your old products in your household waste. By ensuring this product is disposed of correctly, you are also helping to prevent potentially negative consequences for the environment and human health.

Additional information

• When the appliance does not transmit audio output for a certain amount of time, it will automatically go into standby mode to save energy. It can be switched ON by using the POWER selector.
• If an incoming call is received and answered while the SB552BTS system is connected to your mobile phone during music playback, the music will pause and resume after the call ends. Depending on the mobile phone, playback may sometimes stay paused after the end of the call.
• The word Bluetooth ®, the brand and logo are registered trademarks owned by Bluetooth SIG, Inc., and any use of such marks by Bigben Interactive is under licence. All other brands and trade names are the property of their respective owners.
• THOMSON is a trademark of Talisman Brands, Inc. used under licence by Bigben Interactive.
• This product is manufactured and sold under the responsibility of Bigben Interactive.
• THOMSON and the THOMSON logo are trademarks operated under licence by Bigben Interactive – for more information: www.thomson-brand.com.
• All other products, services, corporate names, trademarks, trade names, and logos referenced herein are the property of their respective owners.

Declaration of conformity

• Bigben Interactive hereby declares that the SB552BTS electrical radio equipment is compliant with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www/bigben-interactive.co.uk/support/

Warranty

This product is guaranteed by Bigben for a period of 2 years from the date of purchase, except in countries of the European Economic Area, which offer a longer warranty period. We recommend that you keep your receipt for any claims. The warranty covers breakdowns due to defective material, a missing element or manufacturing defect. In this case, contact our technical support. For any problem with a defective product, contact your point of purchase with your receipt. The warranty does not cover problems of improper use.

Support

www/bigben-interactive.co.uk/support

[e-mail]

Made in China

Manufactured by BIGBEN INTERACTIVE SA

396, Rue de la Voyette

CRT2-FRETIN

CS 90414

59814 LESQUIN Cedex - France

www/bigben.eu

TO DROP OFF IN STORE

TO DROP OFF IN A RECYCLING CENTER

CE

Fabricant: Bigben Interactive FRANCE

1. Rue de la Voyette, C.R.T. 2. Fretin,

CS90414-59814 Lesquin Cedex, France

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPANA, [e-mail]

Tel.: [phone]

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPANA, [e-mail]

Tel.: [phone]

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPANA, [e-mail]

Tel.: [phone]

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPANA, [e-mail]

Tel.: [phone]

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPANA, [e-mail]

Tel.: [phone]

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPANA, [e-mail]

Tel.: [phone]

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPANA, [e-mail]

Tel.: [phone]
