USER MANUAL SB180BT THOMSON

Black rectangular sound streaming device with 'THOMSON' and 'Rec' branding, connected to a remote control (no visible text beyond branding)

MODE D'EMPLOI

AVANT D'UTILISER CET APPAREIL, VEUILLEZ LIRE ATTENTIVEMENT CE MODE D'EMPLOI ET LE CONSERVER AFIN DE POUVOIR LE CONSULTER ULTÉRIEUREMENT.

Démarrage

1 2 VOL+ 5 4 VOL- 3

88:88 6

PANNEAU ARRIÈRE

TV OPTICAL AUX USB ~ AC IN 12345

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPAÑA, [e-mail]

Tel.: [phone]

Black rectangular sound streaming device with 'THOMSON' and 'Rec' branding, connected to a remote control (no visible text beyond branding)

USER GUIDE

PLEASE READ THIS USER GUIDE CAREFULLY BEFORE OPERATING THE UNIT AND RETAIN FOR FUTURE REFERENCE.

Getting started

• Take the device out of the box.
- Remove all the packaging from the product.
- Place the packaging inside the box or dispose of it safely in compliance with the waste sorting instructions shown on the outside.

Safety warning and notice

You must read and understand all the instructions before using this device. The warranty will not apply if damage is caused by failure to follow the instructions.

1. Never remove the device casing.
2. Never place this device on top of other electrical equipment.

3. Protect the power cable from being stepped on or pinched, particularly at the plugs, sockets, and the point where it exits the device. Make sure that the power rating corresponds to the voltage shown on the rating plate at the rear of the device. Always pull the plug from the socket when disconnecting from the mains. Never pull on the cable. Ensure you have completed all the other connections before connecting the mains plug.

4. Only use attachments/accessories that are recommended by the manufacturer.

5. Entrust all device repairs to qualified repairers. Repair is needed when the device has been damaged in any fashion, and in particular:

6. if the power cable is damaged;

7. in the event of a liquid spill or objects being inserted into the device;
8. if the device is exposed to rain or dampness;
9. if the device does not operate normally;

10. or if the device has been dropped or impacted.

11. The series panel is located on the bottom of the device.

12. Never block the air vents.

13. Make sure you have enough space for ventilation. Place the product on a stable surface.

14. This device must be used in a moderate climate, away from direct sunlight, naked flames or sources of heat, heaters, cookers or any other devices (including amplifiers) that generate heat. Do not install near a heat source.

15. The batteries (battery pack or inserted batteries) must not be exposed to excessive heat, such as sunshine, fire, etc.

16. Always unplug the device before cleaning it. Never lubricate any part of this device. Clean it using a soft cloth. Do not use abrasive products or harsh cleaners.

17. Ensure that you always have easy access to the power cable, plug or adapter to disconnect this device from the mains if necessary.
18. Do not use this device near water. It must not be dripped on or splashed. Do not use this device in a damp or wet environment.
19. Disconnect this device in the event of a storm, or if you intend not to use it for a long period of time.
20. This device can be used by children aged 8 and over, and by persons with a physical or sensory disability, learning difficulties or a lack of experience and knowledge, provided they are supervised or have received instructions on the safe use of the device, and understand the risks involved. Children must not play with the device or power cable (risk of strangulation). Children must not clean or maintain the device without supervision.
21. This device must only be supplied with very low safety voltage as indicated on the device.
22. The battery should be removed from the device before disposal. The device must be disconnected from the power supply when removing the battery.
23. The product must be at a minimal distance of 20 cm from the human body when working.
24. This device is for household use only; do not use outdoors.

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN ATTENTION RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR

The lightning bolt symbol within an equilateral triangle alerts users to the presence of dangerous uninsulated voltages, inside the device, that may present a risk of electric shock.

The exclamation mark inside a triangle indicates the presence of important operating and maintenance (repair) instructions in the literature accompanying the device.

Class II material
Direct current
Alternating current
For indoor use only

Contents of the box

Check and identify the contents of your box:

• Bluetooth soundbar
• Remote control
  • 1.2m optical cable
  • Power cable (model 8)
• Instruction manual
  • Wall mount kit (EVA*2, extension socket *2, screws *2)

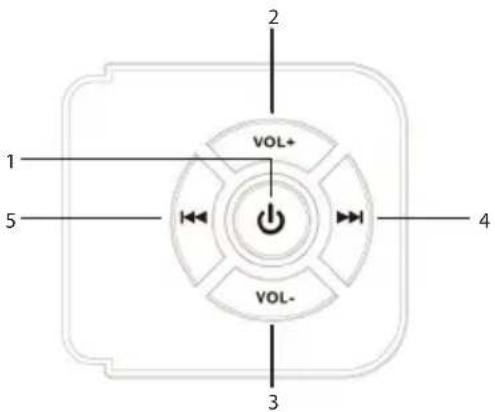

Description of parts FRONT/SIDE PANEL

1. POWER/MODE

Press and hold this button to turn the appliance on or off Briefly press this button to change mode

2. VOL+

Press VOL+ to increase the soundbar volume

3. VOL-

Press VOL- to reduce the volume.

4.

In Bluetooth and USB mode, press this button to move to the next track.

5.

In Bluetooth and USB mode, press this button to return to the previous track.

6. LED display

White LED digital display

1 2 VOL+ 5 4 VOL- 3

88:88 6

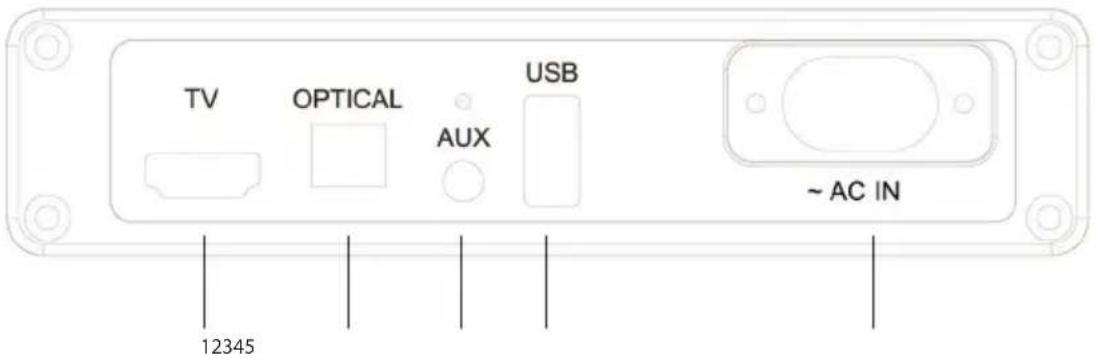

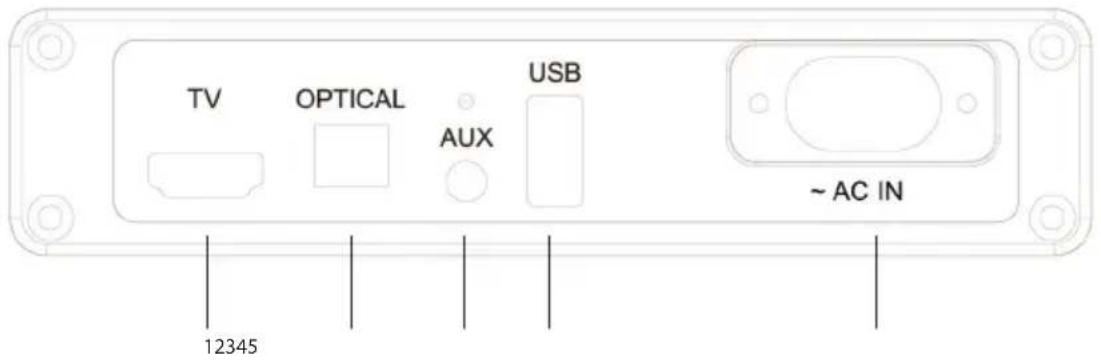

REAR PANEL

TV OPTICAL AUX USB ~ AC IN 12345

1. AUDIO TV input
2. OPTICAL input
3. Aux-in input
4. USB input
5. Power input 110\~240 V 50/60 Hz

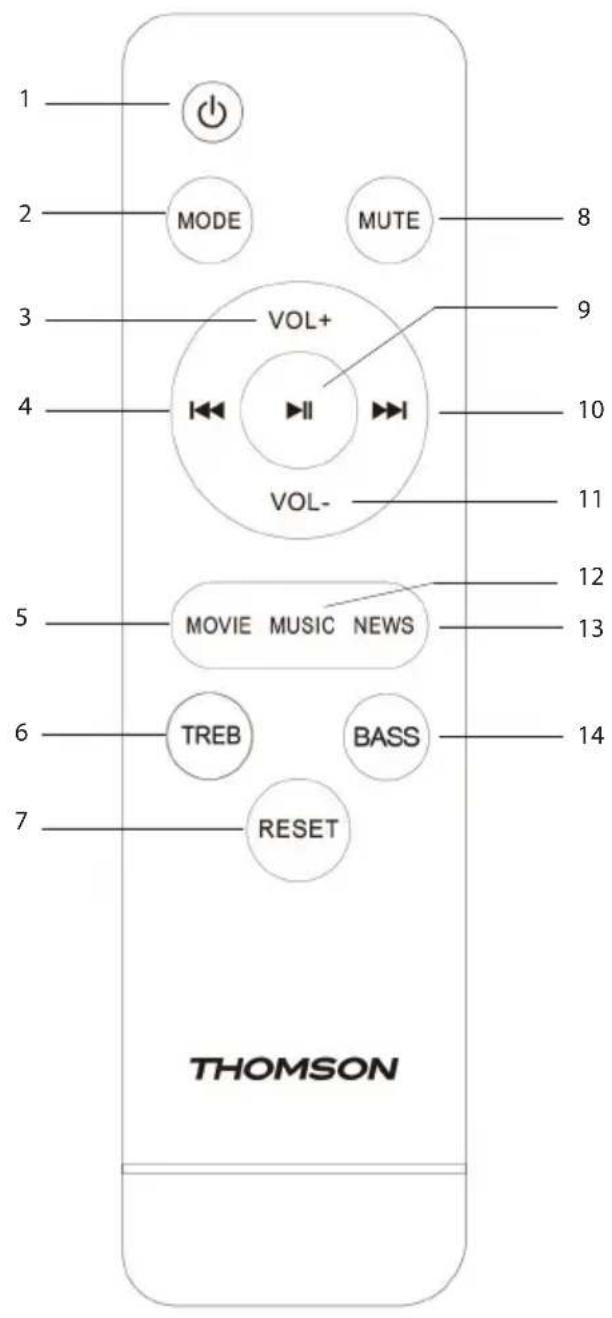

Remote control

Remote control functions:

1. POWER

Press and hold this button to turn the appliance on or off.

2. MODE

Press this button to switch between the Bluetooth, USB, Aux-in, TV and Optical modes.

3. VOL+

Press VOL+ to increase the soundbar volume

4.

In Bluetooth and USB mode, press this button to return to the previous track.

5. MOVIE

Press this button to open the sound effect of MOVIE mode.

6. TREB

Press this button and then press the volume up or down button to adjust the treble level.

7. RESET

Press this button to reset the sound to factory settings.

8. MUTE

During use, press this button to turn off the soundbar sound, press this button again to turn on the sound.

9.

When playing music, press this button to pause playback, and press again to resume playback.

10.

In Bluetooth and USB mode, press this button to move to the next track.

11. VOL-

Press VOL- to reduce the volume.

1 2 MODE MUTE 3 VOL+ 4 I VOL- 5 MOVIE MUSIC NEWS 6 TREB BASS 7 RESET 8 9 10 11 12 13 14 THOMSON

12. MUSIC

Press this button to select the "Music" equaliser settings.

13. NEWS

Press this button to select the "Speech" equaliser settings.

14. BASS

Press this button and then press the volume up or down button to adjust the bass level.

Bluetooth connection

1. Press the "MODE" button repeatedly until Bluetooth mode is selected. The display shows "BT"
2. On your Bluetooth-compatible device, select "SB180BT", the name of the soundbar. The flashing display indicates that it is waiting to pair. Once pairing is successful, the indicator will stay on, the screen will show "BT" and then stop flashing.
3. You can now play music from your Bluetooth-compatible device on the soundbar.

USER MANUAL

When the power cable is connected to the soundbar, press the power button. The screen turns on and you hear the power-on sound, which means that the soundbar is properly turned on. Press and hold the Power/Mode button on the side panel or the Mode button on the remote control to choose the input mode you want.

Aux-in input

If you are using the Aux-in cable to connect the soundbar to the audio equipment, select "AUX" using the Mode button on the remote control or the Power/Mode button on the side panel. The display shows "AUX".

TV input

If you are using a high-speed cable to connect the soundbar to the TV equipment, select "TV" using the Mode button on the remote control or the Power/Mode button on the side panel. The display shows "TV".

OPTICAL input

If you are using an OPTICAL cable to connect the soundbar to the TV equipment, select "OPT" using the Mode button on the remote control or the Power/Mode button on the side panel. The display shows "OPT".

Device specifications

Type Technical	specifications	Type Technical	specifications
Broadband loudspeaker	5275 (20W) *2 Dimensions	800*66*60mm
Peak power 40 W Wireless frequency 2402 - RMS power 40 W Bluetooth version 5.3 / EIRP: -3.34
			dBm
Input power AC 110~240V 50/60Hz		Speaker frequency 45	Hz - 20 kHz
Impedance of the speaker	8 Ohms / speaker Inputs	Bluetooth, Aux-in,	TV, Optical
S/N ratio ≥72 dB Distortion < 1 %
Bluetooth pairing name	SB180BT Transmission range 10 m

N.B.: The maximum connection distance is approximately 10 metres. Place your Bluetooth speaker as close as possible to the device to avoid any interference with the connection.

The device may turn off in an environment with electrostatic discharge. The user must then recharge the battery and reset the device.

Environmental protection

Your product has been designed and manufactured using high-quality materials and components that can be recycled and reused.

Attention should be drawn to the environmental aspects of battery disposal.

When the crossed-out wheelie bin symbol appears on a product, it means that the product is covered by European Directive 2002/96/EC. Please find out about the local sorting and collection system for electrical and electronic products. Please act according to local rules and do not dispose of your old products in your household waste. By ensuring this product is disposed of correctly, you are helping to prevent potentially negative consequences for the environment and human health.

Additional information

• When the device does not transmit audio output for a certain amount of time, it will automatically go into standby mode to save energy. It can then be switched back on using the power button
• If an incoming call is received while the SB180BT system is connected to your mobile phone during music playback, the music will immediately pause when you answer the call, and start again once the call is finished (depending on the type of mobile phone, playback may sometimes stay paused after the end of the call).
• The word Bluetooth ^® , the brand and logo are registered trademarks owned by Bluetooth SIG, Inc., and any use of such marks by Bigben Interactive is under licence. All other brands and trade names are the property of their respective owners.
• THOMSON is a trademark of Talisman Brands, Inc. used under licence by Bigben Interactive.
  • This product is manufactured and sold under the responsibility of Bigben Interactive.
• THOMSON and the THOMSON logo are trademarks operated under licence by Bigben Interactive – for more information: www.thomson-brand.com.
• All other products, services, corporate names, trademarks, trade names, and logos referenced herein are the property of their respective owners.

Declaration of conformity

- Bigben Interactive hereby declares that the SB180BT radio-electrical equipment is compliant with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.bigben-interactive.co.uk/support/

Warranty

This product is guaranteed by Bigben for a period of 2 years from the date of purchase, except in countries of the European Economic Area, which offer a longer warranty period. We recommend that you keep your receipt for any claims. The warranty covers breakdowns due to defective material, a missing element or manufacturing defect. In this case, contact our technical support. For any problem with a defective product, contact your point of purchase with your receipt. The warranty does not cover problems of improper use.

Support

www.bigben-interactive.co.uk/support

[e-mail]

Made in China

Manufactured by BIGBEN INTERACTIVE SA

396, Rue de la Voyette

CRT2 - FRETIN

CS 90414

59814 LESQUIN Cedex - France

www.bigben.eu

EN

This product can be recycled

TO DROP OFF IN STORE

or

TO DROP OFF IN RECYCLING CENTER

Fabricant : Bigben Interactive FRANCE

396, Rue de la Voyette, C.R.T. 2, Fretin, CS90414 - 59814 Lesquin Cedex, France

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPAÑA, [e-mail]

Tel.: [phone]

Black rectangular sound streaming device with 'THOMSON' and 'Rec' branding, connected to a remote control (no visible text beyond branding)

1 2 VOL+ 5 4 VOL- 3

88:88 6

PANEL TRASERO

TV OPTICAL AUX USB ~ AC IN 12345

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPAÑA, [e-mail]

Tel.: [phone]

Black rectangular sound streaming device with 'THOMSON' and 'Rec' branding, connected to a remote control (no visible text beyond branding)

ISTRUZIONI PER L'USO

LEGGERE IL PRESENTE MANUALE CON ATTENZIONE PRIMA DI METTERE IN FUNZIONE IL DISPOSITIVO E CONSERVARLO PER UNA CONSULTAZIONE FUTURA.

Avvio

1 2 VOL+ 5 4 VOL- 3

88.88 6

PANNELLO POSTERIORE

TV OPTICAL AUX USB ~ AC IN 12345

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPAÑA, [e-mail]

Tel.: [phone]

Black rectangular sound streaming device with 'THOMSON' and 'Rec' branding, connected to a remote control (no visible text beyond branding)

MANUAL DE INSTRUÇÕES

ANTES DE UTILIZAR ESTE APARELHO, LEIA ATENTAMENTE ESTE MANUAL DE INSTRUÇÕES E GUARDE-O PARA CONSULTA POSTERIOR.

Inicialização

1 2 VOL+ 5 4 VOL- 3

88:88 6

PAINEL TRASEIRO

TV OPTICAL AUX USB ~ AC IN 12345

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPAÑA, [e-mail]

Tel.: [phone]

Black rectangular sound streaming device with 'THOMSON' and 'Rec' branding, connected to a remote control (no visible text beyond branding)

BEDIENUNGSANLEITUNG

Two triangular warning symbols: a lightning bolt symbol and an exclamation mark, commonly used in safety or hazard prevention contexts.

1 2 VOL+ 5 4 VOL- 3

88:88 6

GERÄTERÜCKSEITE

TV OPTICAL AUX USB ~ AC IN 12345

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPAÑA, [e-mail]

Tel.: [phone]

Black rectangular sound streaming device with 'THOMSON' and 'Rec' branding, connected to a remote control (no visible text beyond branding)

GEBRUIKSAANWIJZING

ALVORENS DIT APPARAAT TE GEBRUIKEN, LEES DEZE INSTRUCTIES AANDACHTIG DOOR EN BEWAAR DEZE VOOR TOEKOMSTIGE RAADPLEGING.

1 2 VOL+ 5 4 VOL- 3

88.88 6

ACHTERPANEEL

TV OPTICAL AUX USB ~ AC IN 12345

1. AUDIO TV-ingang
2. OPTISCHE ingang
3. Aux-in-ingang
4. USB-ingang
5. Stroom-ingang 110\~240 V 50/60 Hz

Afstandsbediening

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPAÑA, [e-mail]

Tel.: [phone]

Black rectangular sound streaming device with 'THOMSON' and 'Rec' branding, connected to a remote control (no visible text beyond branding)

INSTRUKCJA OBSŁUGI

1 2 VOL+ 5 4 VOL- 3

88:88 6

PANEL TYLNY

TV OPTICAL AUX USB ~ AC IN 12345

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPAÑA, [e-mail]

Tel.: [phone]
