USER MANUAL SB402BT THOMSON

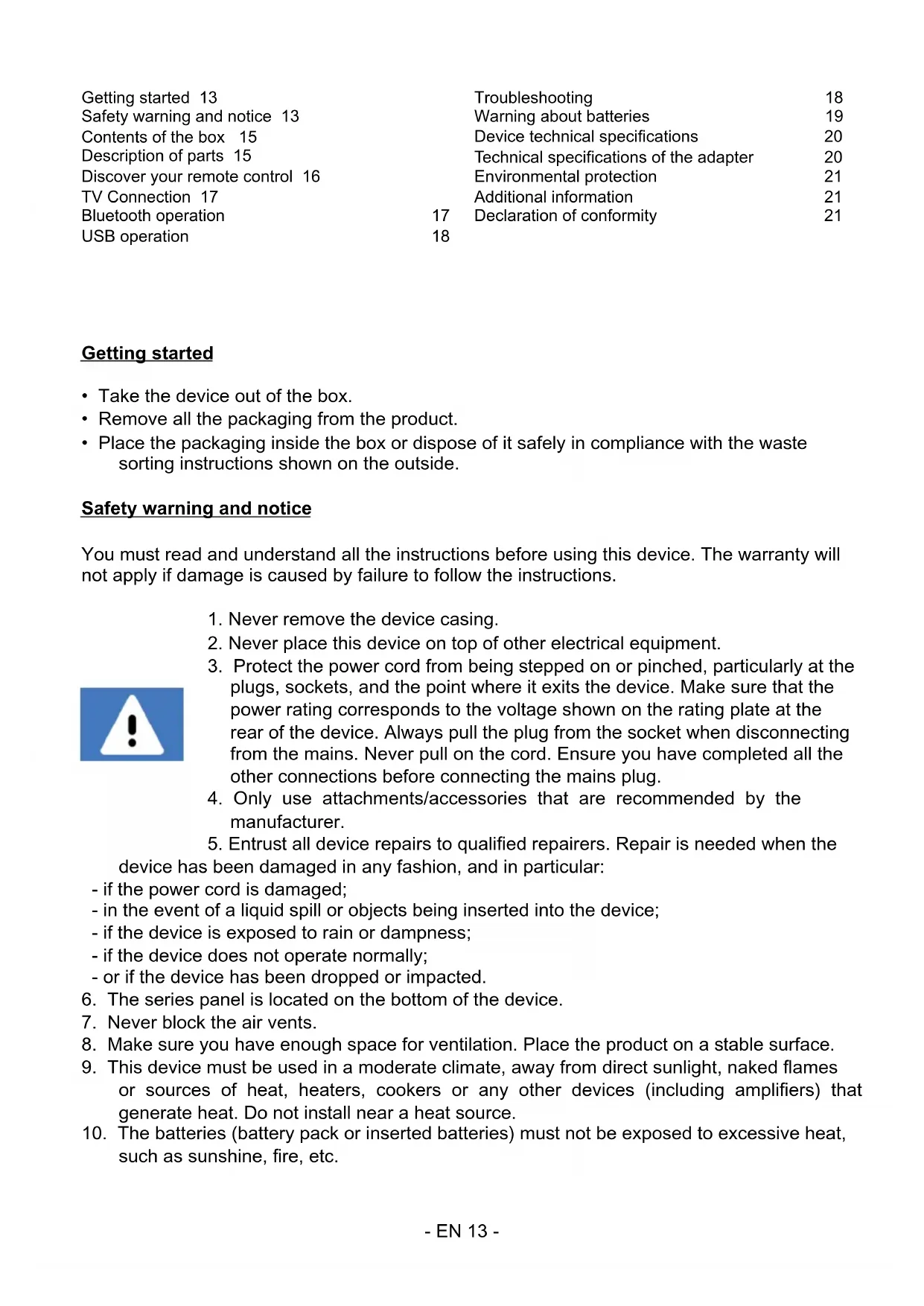

• Take the device out of the box.

• Remove all the packaging from the product.

• Place the packaging inside the box or dispose of it safely in compliance with the wa󰘵e sorting in󰘵ructions shown on the outside. Safety warning and notice You mu󰘵 read and under󰘵and all the in󰘵ructions before using this device. The warranty will not apply if damage is caused by failure to follow the in󰘵ructions.

1. Never remove the device casing.

2. Never place this device on top of other electrical equipment.

3. Protect the power cord from being 󰘵epped on or pinched, particularly at the

plugs, sockets, and the point where it exits the device. Make sure that the power rating corresponds to the voltage shown on the rating plate at the rear of the device. Always pull the plug from the socket when disconnecting from the mains. Never pull on the cord. Ensure you have completed all the other connections before connecting the mains plug.

4. Only use attachments/accessories that are recommended by the

5. Entru󰘵 all device repairs to quali󰘰ed repairers. Repair is needed when the

device has been damaged in any fashion, and in particular: - if the power cord is damaged; - in the event of a liquid spill or objects being inserted into the device; - if the device is exposed to rain or dampness; - if the device does not operate normally; - or if the device has been dropped or impacted.

6. The series panel is located on the bottom of the device.

7. Never block the air vents.

8. Make sure you have enough space for ventilation. Place the product on a 󰘵able surface.

9. This device mu󰘵 be used in a moderate climate, away from direct sunlight, naked 󰘱ames

or sources of heat, heaters, cookers or any other devices (including ampli󰘰ers) that generate heat. Do not in󰘵all near a heat source.

10. The batteries (battery pack or inserted batteries) mu󰘵 not be exposed to excessive heat,

such as sunshine, 󰘰re, etc. Getting started 13 Safety warning and notice 13 Contents of the box 15 Description of parts 15 Discover your remote control 16 TV Connection 17 Bluetooth operation 17 USB operation 18 Troubleshooting 18 Warning about batteries 19 Device technical specications 20 Technical specications of the adapter 20 Environmental protection 21 Additional information 21 Declaration of conformity 21- EN 14 -

11. Always unplug the device before cleaning it. Never lubricate any part of this device. Clean

it with a soft cloth. Do not use abrasive products or harsh cleaners.

12. Ensure that you always have easy access to the power cord, plug or adapter to disconnect

this device from the mains if necessary.

13. Do not use this device near water. It mu󰘵 not be dripped on or splashed. Do not use this

device in a damp or wet environment.

14. Disconnect this device in the event of a 󰘵orm, or if you intend not to use it for a long

15. This device can be used by children aged 8 and over, and by persons with a physical or

sensory disability, learning di󰘲culties or a lack of experience and knowledge, provided they are supervised or have received in󰘵ructions on the safe use of the device, and they under󰘵and the risks involved. Children mu󰘵 not play with the device or the power cord (risk of 󰘵rangulation). Children mu󰘵 not clean or maintain the device without supervision.

16. This device mu󰘵 only be supplied with very low safety voltage as indicated on the device.

17. The battery should be removed from the device before disposal. The device mu󰘵 be

disconnected from the power supply when removing the battery.

18. When in operation, the device mu󰘵 be at a minimum di󰘵ance of 20 cm from the human

19. This device is for household use only; do not use outdoors.

The lightning bolt symbol within an equilateral triangle alerts users to the presence of dangerous uninsulated voltages, inside the device, that may present a risk of electric shock. The exclamation mark inside a triangle indicates the presence of important operating and maintenance (repair) in󰘵ructions in the literature accompanying the device.- EN 15 - Direct current Class II material Alternating current For indoor use only Contents of the box

• 3.5 mm to 3.5 mm audio cable

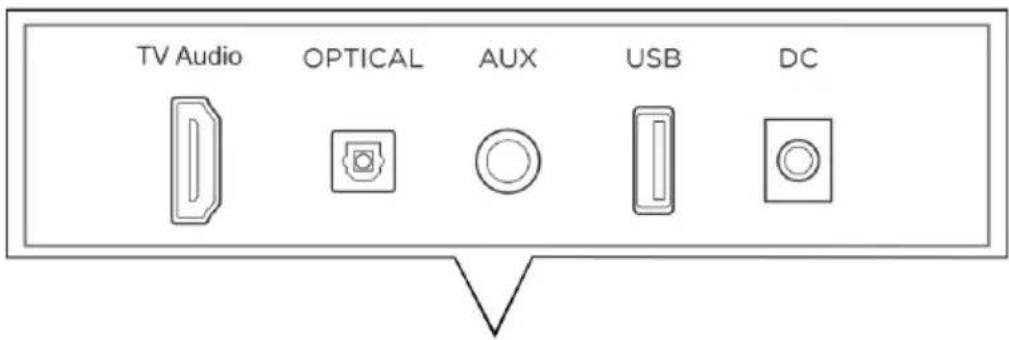

• Screws and wall mounting hooks Description of parts TV Audio TV Input – Connects to the digital TV port of your television screen Optical Digital Audio In (optical) - Connects to the digital (optical) output of an external device. AUX AUX (3.5mm) - Connects to the analogue output of an external device. USB USB Connects to a USB drive to play audio 󰘰les directly through the soundbar. DC Mains Input (Power Input) - Connects to the AC adapter- EN 16 -

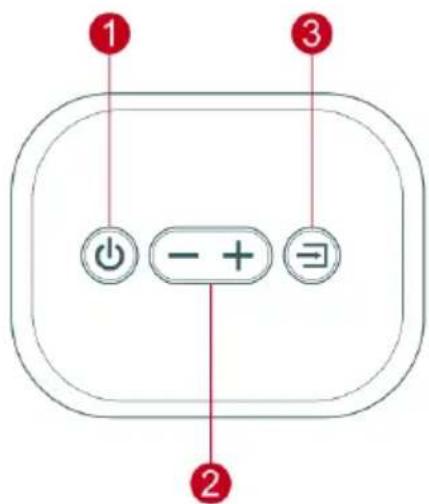

1. Power button to switch on and o󰘯.

2. Press to go to the previous/next track; press and hold to turn the volume up/down.

3. Select the audio input mode (Bluetooth -> Optical -> TV Audio -> AUX -> USB);

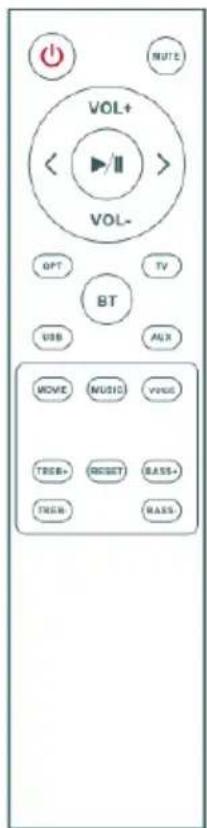

Discover your remote control Power button Increase volume Previous track Play/Pause TV Audio mode USB mode Movie mode Voice mode Increase or decrease bass Enable/Disable sound Reduce the volume Next track Optical mode Bluetooth mode Auxiliary mode Music mode Increase or Decrease treble Restore factory settings- EN 17 - TV Connection AUX input

1. Press the Mode button or on the remote control to select the AUX input. The light will turn

2. Use the correct AUX cable to connect an audio source to the soundbar.

3. Play music from your connected device and adju󰘵 the volume directly on your device or

by using the volume buttons on the remote control. TV Audio input

1. Connect the soundbar's high-speed TV cable to the audio port of the television screen.

2. Select the green LED light by pressing the TV button on the remote control, or by pressing

3. Set the TV's audio output to “PCM”. (More information on the PCM page)

2. Use the correct optical cable to connect an audio source to the soundbar.

3. Play music from your connected device and adju󰘵 the volume directly on your device or

by using the volume buttons on the remote control. Setting the “PCM” on your TV If no sound comes from the television or the soundbar when all cables are connected properly, and if the LED light is showing the right colour (optical or TV audio connection), adju󰘵 the settings of your television as follows:

1. Press the Menu button on the TV remote control.

2. Select “Audio Settings”.

3. Select "Advanced audio" - some TVs do not have an “Advanced Audio” menu and may

5. Select “PCM” as the audio output mode.

6. Press “OK” to save the settings

Digital audio output settings may di󰓐er by brand, so please check your TV's user manual. Bluetooth operation

1. Switch on the soundbar and switch into Bluetooth mode by pressing the Mode button or

BT on the remote control, the light will turn blue.

2. Use the "Settings" function of your device (mobile phone, tablet, etc.) and search for

nearby Bluetooth devices: You will 󰘰nd "SB402BT" in the li󰘵.

3. Pair your device with "SB402BT".- EN 18 -

4. Play the audio tracks on your device and adju󰘵 the volume according to preference.

5. Double-tap quickly to disconnect Bluetooth.

1. Insert a USB 󰘵ick into the USB A port at the rear.

2. Press the USB button on the remote control or press the Mode button (3) on the device.

The purple light will come on.

3. The maximum size of the USB media for MP3 playback mu󰘵 not exceed 32 GB.

Troubleshooting Problem Solution No sound Check that the power indicator is ON. Try increasing the volume by using the volume buttons. Make sure that the audio cables are securely connected and the input is properly set to the soundbar. Check if there is an output signal from the audio source. Unable to connect via Bluetooth Make sure that the soundbar is set to Bluetooth input; in another audio input mode, Bluetooth cannot be paired or connected. Disconnect any Bluetooth device by pressing and holding the volume button in Bluetooth mode, then try again. The SB402BT soundbar does not turn on. The e󰘯ective Bluetooth transmission range is 10 metres; remember not to exceed this range. Try connecting another Bluetooth device. Check that the unit is properly connected to the mains and the mains socket is switched on.- EN 19 - Warning about batteries This product contains one or more batteries.

• Use batteries correctly to prevent any injury or 󰘰re caused by a leak, overheating, explosion, erosion or other damage.

• Keep new and used batteries out of the reach of children or any vulnerable person. Stop using the device if the battery compartment does not close properly.

• If the liquid from an alkaline battery comes into contact with skin or eyes, rinse immediately with fresh water and consult a physician.

• If an alkaline battery leaks, clean the liquid with a cloth and replace the battery with a new one.

• Do not swallow batteries. If swallowed, a battery can cause severe internal burns in 2 hours and can cause death. If batteries are swallowed, contact a poison centre immediately and consult a physician.

• Use AA Ni-MH, alkaline or lithium batteries.

• Do not charge these batteries. Charging non-rechargeable batteries generates gas or heat emissions that can cause explosions or 󰘰res.

• Do not use di󰘯erent types of batteries or a mixture of new and old batteries.

• Insert the batteries according to the correct polarity (+ and -).

• Do not allow the same battery poles to be in contact.

• Remove spent batteries quickly. There is a risk of the battery exploding if it is not replaced or if the device is unused for a long period of time.

• Replace the battery with an identical or equivalent model.

• The batteries (or battery pack) mu󰘵 not be exposed to excessive heat, such as sunlight, 󰘰re, etc.

• Do not heat batteries or dispose of them in a 󰘰re or in water.

• Do not use metal pliers or metal objects such as the point of a pen or tweezers to remove batteries. Avoid deforming, crushing or piercing batteries.

• Do not disassemble the batteries.

• Cover the ends of the batteries with tape to prevent explosions and combu󰘵ion when these are scrapped.

• Scrap batteries and an environmentally friendly way.

• Do not dispose of batteries in ordinary household wa󰘵e.

• Be sure to comply with the local regulations in force when scrapping batteries. BATTERY WARNING

KEEP OUT OF REACH OF CHILDREN

Swallowing can lead to chemical burns, perforation of soft tissue, and death. Severe burns can occur within 2 hours of ingestion. Seek medical attention imme- diately.- EN 20 - Device technical specifications Type Speci󰄈cations Type Speci󰄈cations Broadband loudspeaker 3”(12.5W)*4 Wireless frequency 2,402-2,480 MHz Peak power 60W EIRP -2.85dBm RMS power 50 W Bluetooth version 5.0 S/B ratio ≥80 dB Di󰘵ortion <1% Power consumption 60W Transmission range 10 m Power supply DC 24 V,1.5 A Speaker frequency 45 Hz - 20K Hz Speaker impedance 6Ω Input Bluetooth, AUX, Audio TV, Optical, USB Output AUX out, Sub out Dimensions 858x87x112.5 mm Bluetooth pairing name SB402BT Technical specifications of the adapter

• Average e󰘲ciency in active mode: __89.03%

• Low-load e󰘲ciency (10%): _85.27_%

• No-load power consumption: _0.09____W

• The batteries (or battery pack or battery) mu󰘵 not be exposed to heat Note: the maximum connection di󰘵ance is approximately 10 metres. Place your Bluetooth speaker as close as possible to the device to avoid any interference with the connection. The device may turn o󰓐 in an environment with electro󰄋atic discharge. The user mu󰄋 then recharge the battery and reset the device.- EN 21 - Environmental protection Your product has been designed and manufactured using high-quality materials and components that can be recycled and reused. Attention should be drawn to the environmental aspects of battery disposal. When the crossed-out wheelie bin symbol appears on a product, it means that the product is covered by European Directive 2002/96/EC. Please 󰘰nd out about the local sorting and collection sy󰘵em for electrical and electronic products. Please act according to local rules and do not dispose of your old products in your household wa󰘵e. By ensuring this product is disposed of correctly, you are helping to prevent potentially negative consequences for the environment and human health. Additional information

• When the device does not transmit audio output for a certain amount of time, it will automatically go into 󰘵andby mode to save energy. It can then be switched back on using the power selector

• If an incoming call is received while the SB402BT sy󰘵em is connected to your mobile phone during music playback, the music will immediately pause when you answer the call and 󰘵art again once the call is 󰘰nished. Depending on the mobile phone, playback may sometimes 󰘵ay paused after the end of the call.

• The word Bluetooth® as well as the brand and logo are regi󰘵ered trademarks owned by Bluetooth SIG, Inc., and any use of such marks by Bigben Interactive is under licence. All other brands and trade names are the property of their respective owners.

• THOMSON is a trademark of Talisman Brands, Inc. used under licence by Bigben Interactive.

• This product is manufactured and sold under the responsibility of Bigben Interactive.

• THOMSON and the THOMSON logo are trademarks operated under licence by Bigben Interactive – for more information: www.thomson-brand.com.

• All other products, services, corporate names, trademarks, trade names, and logos referenced herein are the property of their respective owners. Declaration of conformity

• Bigben Interactive hereby declares that the SB402BT radio-electrical equipment is compliant with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.bigben.fr/support- EN 22 - Warranty This product is guaranteed by Bigben for a period of 2 years from the date of purchase, except in countries of the European Economic Area, which o󰘯er a longer warranty period. We recommend that you keep your receipt for any claims. The warranty covers breakdowns due to defective material, a missing element or manufacturing defect. In this case, contact our technical support. For any problem with a defective product, contact your point of purchase with your receipt. The warranty does not cover problems of improper use. Support www.bigben-interactive.co.uk/support [e-mail] Made in China Manufactured by BIGBEN INTERACTIVE SA 396, Rue de la Voyette CRT2 – FRETIN CS 90414 59814 LESQUIN Cedex - France www.bigben.eu

This product can be recycled TO DROP

A RECYCLING CENTERSB402BT
