USER MANUAL LB7650E EGO

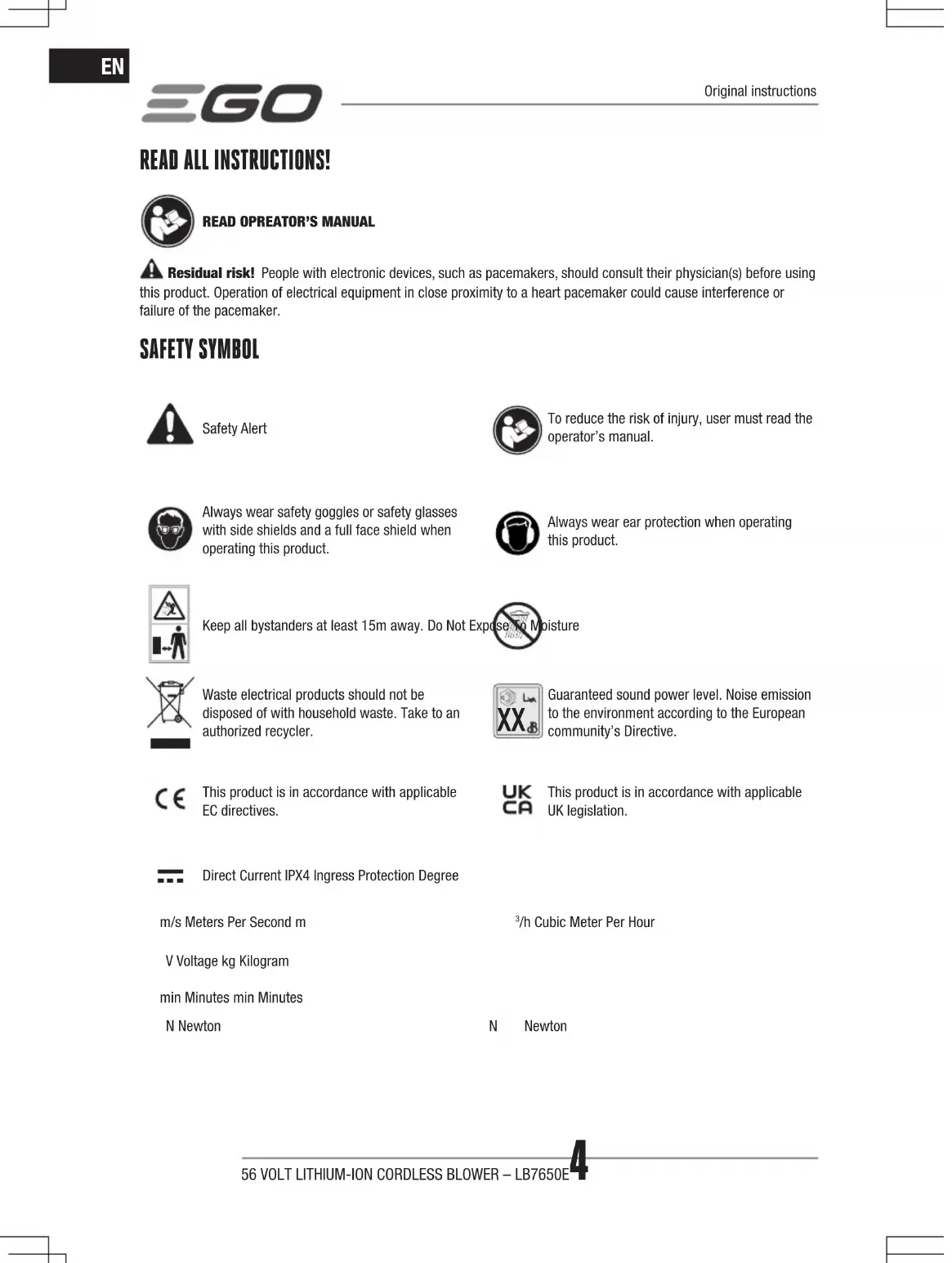

Residual risk! People with electronic devices, such as pacemakers, should consult their physician(s) before using this product. Operation of electrical equipment in close proximity to a heart pacemaker could cause interference or failure of the pacemaker. SAFETY SYMBOL Safety AlertTo reduce the risk of injury, user must read the operator’s manual.Always wear safety goggles or safety glasses with side shields and a full face shield when operating this product.Always wear ear protection when operating this product.Keep all bystanders at least 15m away. Do Not Expose To MoistureWaste electrical products should not be disposed of with household waste. Take to an authorized recycler.

Guaranteed sound power level. Noise emission to the environment according to the European community’s Directive.This product is in accordance with applicable EC directives.This product is in accordance with applicable UK legislation.Direct Current IPX4 Ingress Protection Degreem/s Meters Per Second m /h Cubic Meter Per HourV Voltage kg Kilogrammin Minutes min MinutesN Newton N NewtonOriginal instructions56 VOLT LITHIUM-ION CORDLESS BLOWER – LB7650E 5

Maximum air velocity74 m/s (without tapered nozzle)87 m/s (with tapered nozzle)Maximum blowing force 26 NApproximate run time (with EGO BA2800T 56V Battery 5.0Ah)150 min (Low speed)25 min (High speed)15 min (Boost mode)Recommended Operating Temperature-15°C - 40°CRecommended Storage Temperature-20°C - 70°CWeight (without battery pack) 2.1 kgMeasured sound power level L

(measured according to 2000/14/EC)99 dB(A)Valuation of vibration a

◾ The declared vibration total value has been measured in accordance with a standard test method and may be used for comparing one tool with another; ◾ The declared vibration total value may also be used in a preliminary assessment of exposure. NOTICE: The vibration emission during actual use of the power tool can differ from the declared value in which the tool is used; In order to protect the operator, user should wear gloves and ear protectors in the actual conditions of use. DESCRIPTION KNOW YOUR BLOWER (FIG. A1) 1. Speed/Lock-On Dial2. Boost Button3. Air-Speed Trigger4. Battery-Release Button5. Latch6. Electric Contacts7. Ejection Mechanism8. Air Intake9. Base10. Tube-Release Button11. Blower Tube12. Tapered Nozzle13. Spread Nozzle PACKING LIST (FIG. A1) RECOMMENDED ACCESSORIES PART NAME MODEL NUMBERGutter Cleaning Attachment AGC1000Shoulder Strap AP1500 ASSEMBLY APPLICATION You may use this product for the purposes listed below: ◾ Clearing hard surfaces such as driveways and walkways. ◾ Keeping decks and driveways free from leaves and pine needles. NOTICE: The tool is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse.

ASSEMBLING/REMOVING THE BLOWER TUBE

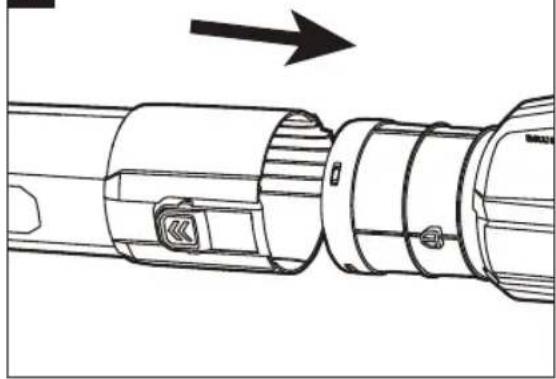

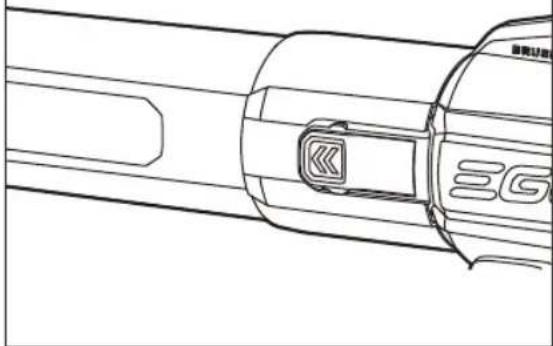

◾ To Assemble (Fig. B1 & B2 ) Align the groove and push the tube onto the blower housing until you hear a “click”. ◾ To Remove (Fig. B3) Press the tube-release button and remove the tube.

ASSEMBLING/REMOVING THE BLOWER TAPERED/

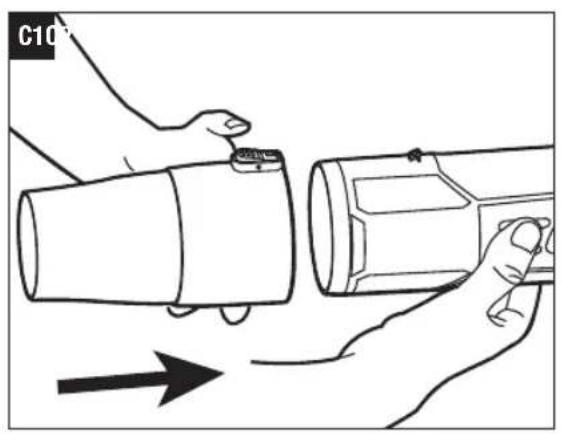

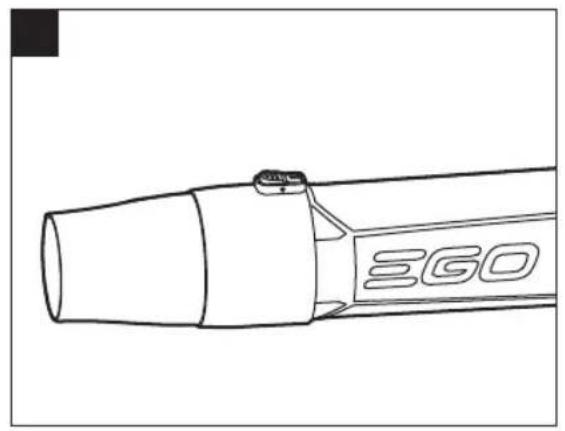

SPREAD NOZZLE ◾ To Assemble (Fig. C1 & C2) Align the groove in the tapered nozzle with the tube knob and push the nozzle onto the tube until it snaps into place.56 VOLT LITHIUM-ION CORDLESS BLOWER – LB7650E6

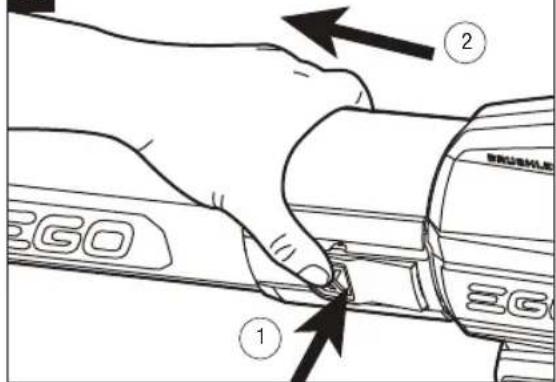

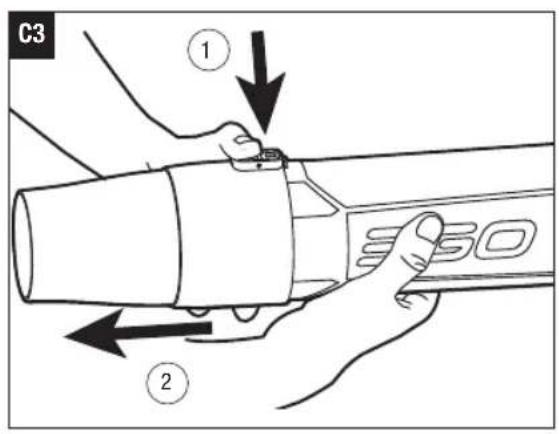

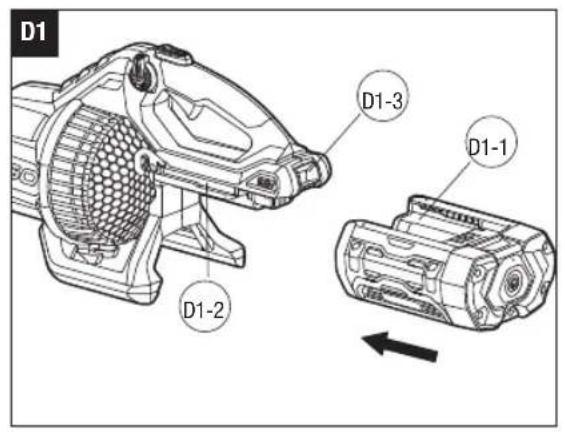

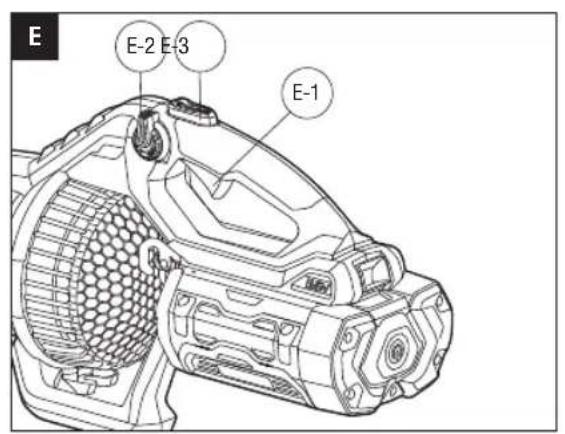

◾ To Remove (Fig. C3) Press and hold the nozzle-release button to disengage the latch, then pull the nozzle straight from the blower tube.Follow the same sequence to assemble or remove the spread nozzle. OPERATION WARNING: Before each use, inspect the entire product for damaged, missing, or loose parts, such as screws, nuts, bolts, caps, etc. Tighten securely all fasteners and caps and do not operate this product until all missing or damaged parts are replaced.ATTACHING/DETACHING THE BATTERY PACKUse only with EGO’s battery packs and chargers listed in Fig. A2.FULLY CHARGE BEFORE FIRST USETo attachAlign the battery ribs with the mounting slots and press the battery pack down until you hear a “click” (Fig. D1).D1-1 Battery Rib D1-2 Mounting SlotD1-3 Battery-release buttonTo detachDepress the battery-release button and pull the battery pack out (Fig. D2).STARTING/STOPPING THE BLOWER (Fig. E)Air-speed trigger only1. Depress the air-speed trigger to turn on the blower.2. The air speed of the blower is controlled with the variable speed trigger. More pressure on the trigger results in higher blowing speeds; less pressure on the trigger results in lower blowing speeds. Adjust the speed to suit the task at hand.3. Release the air-speed trigger to turn off the blower.Speed/Lock-on dial onlyThe blower can be locked at any speed with the speed lock-on dial.1. Turn the speed/lock-on dial clockwise to start the blower. The air speed will increase as the dial is rotated clockwise.2. To decrease the air speed, turn the speed/lock-on dial counterclockwise.3. Keep turning the speed/lock-on dial counterclockwise to the off position to stop the blower.NOTICE: If the speed/lock-on dial is not turned back to the off position before the battery is removed, the blower will not start when a fully charged battery is installed. This is a protection feature to help prevent accidental startup. Depress the air-speed trigger to deactivate the protection and start the blower.Boost modePress the boost button while working to temporarily increase the air speed to the maximum level. The blower will resume the previous speed when the boost button is released.E-1 Air-speed Trigger E-2 Speed/Lock-on DialE-3 Boost ButtonTIPS FOR USING THE BLOWER ◾ To keep from scattering debris, blow around the outer edges of a debris pile. Never blow directly into the center of a pile. ◾ To reduce sound levels, limit the number of pieces of power equipment used at any one time. ◾ Use rakes and brooms to loosen debris before blowing. In dusty conditions, slightly dampen surfaces if water is available. ◾ Conserve water by using power blowers instead of hoses for many lawn and garden applications, including areas such as gutters, screens, patios, grills, porches, and gardens. ◾ The edge of the tapered nozzle helps with removing wet leaves and clean out gaps in the sidewalk. ◾ Watch out for children, pets, open windows, or freshly washed cars, and blow debris safely away. ◾ After using blowers or other equipment, clean up! Dispose of debris properly. MAINTENANCE GENERAL MAINTENANCEAvoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. Use of a piece of clean cloth to remove dirt, dust, oil, grease, etc.56 VOLT LITHIUM-ION CORDLESS BLOWER – LB7650E 7

WARNING: Do not at any time let brake fluids,

gasoline, petroleum-based products, penetrating oils, etc. come in contact with plastic parts. Chemicals can damage, weaken or destroy plastic which may result in serious personal injury. STORAGE ◾ Remove the battery pack from the blower. ◾ Clean all foreign material from the air intakes of the blower. ◾ Store the blower indoors in a place that is inaccessible to children. Keep it away from corrosive agents, such as garden chemicals and de-icing salts. Protecting the environment Do not dispose of electrical equipment, used battery and charger into household waste! Take this product to an authorized recycler and make it available for separate collection. Electric tools must be returned to an environmentally compatible recycling facility.56 VOLT LITHIUM-ION CORDLESS BLOWER – LB7650E8

TROUBLESHOOTING PROBLEM CAUSE SOLUTIONBlower doesn’t work. ◾ The battery pack is not attached to the blower. ◾ Attach the battery pack to the blower. ◾ No electrical contact between the blower and battery pack. ◾ Remove battery, check contacts and reinstall the battery pack. ◾ The battery pack is depleted. ◾ Charge the battery pack. ◾ The battery pack or blower is too hot. ◾ Cool the battery pack and blower until the temperature drops below 67°C. ◾ The speed/lock-on dial was not turned back to the off position before the battery was removed. ◾ Depress the air-speed trigger to deactivate the protection and start the blower.The air velocity decreases significantly. ◾ Excessive wearing of motor fan. ◾ Contact EGO service center for repair. ◾ The air inlet is blocked by debris. ◾ Remove the battery pack, clear the debris. WARRANTY

Please visit the website egopowerplus.com for full terms and conditions of the EGO Warranty policy.9KABELLOSER LAUBBLÄSER (56-VOLT) — LB7650E
