USER MANUAL ATKS 800 Alpha Tools

Exterior view of a mechanical device with a cylindrical component and mounting bracket (no visible text or symbols)

ATKS 800

① Achtung: Vor Inbetriebnahme Bedienungsanweisung und Sicherheitshinweise lesen und beachten!
Important: Read and note the operating instructions and safety regulations before using!
Attention: Lisez et sulvez le mode d'emploi et les consignes de sécurité avant la mise en service!
⑤ Atenclón: Antes de la puesta en funcionamiento sirvase a leer el manual de instrucciones y las advertencias de seguridad que deberán ser observadas.
⑤ Observera: Läs bruksanvisningen och säkerhetsanvisningarna före driftstart och följ dem under drift!
Huomio: Ennen käyttöönottoa on luettava käyttöohje ja turvallisuusmääräykset huolella ja noudatettava niltä!
® Vigtigt: Læs betjeningsvejledningen og sikkerhedshenvisningerne inden lbrugtagningen og overhold disse!
① Attenzione: prima della messa in funzione leggere ed osservare le istruzioni d'uso e le avvertenze sulla sicurezza.
© Pozor: Před uvedením do provozu si prosím přečtěte návod k obsluze a bezpečnostní pokyny a dodržujte je!
Pozor! Pred montažo in začetkom dela pazljivo preberite navodila za uporabo in varno delo.
Pažnja! Prije upotrebe pročitajte i uvažite naputak za uporabu i sigur nosne upute!
Dikkat: Çalıştırmadan önce lütfen kullanma talimatı ve güvenlik uyarlarını dikkatlice okuyun!

⑭ Bitte Seite 2-5 ausklappen
GB Please pull out pages 2-5
© Veuillez ouvrir les pages 2 à 5
E Por favor desdoble las paginas de 2 a 5
⑤ Var vänlig öppna sidorna 2-5
© Käännä sivut 2-5 auki
DK Fold ut 2-5
① Aprire le pagine dalle 2 alla 5
© Prosím nalistujte stranu 2-5
⑤ Prosimo, da strani 2 - 5 razgrnete.
© Molimo da radirite stranice 2-5
TF Lütfen sayfa 2-5'i açın

© Seite 6 - 11
GB Page 12 - 17
© Page 18 - 23
© Página 24 - 29
⑤ sidan 30 - 35
Sivu 36 - 41
①k Side 42 - 47
① Pagina 48 - 53
© Strana 54 - 59
③0 Strani 60 - 65
HR stranice 66 - 71
TF Sayfa 72 - 77

Labeled diagram of a machine tool with numbered parts for identification

2 20 19 20

4 ② ⑱ ③ ④ ⑥ ⑤

3 22 31 30 21 4

3

5 ⑤ ②4

6 3.5mm

Mechanical assembly diagram showing a bracket with labeled parts (7 and 25), no readable text or symbols beyond labels

8 ① ② ⑥ ⑯ ⑫ ⑦ ⑮ ⑲

9 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150

Mechanical device with labeled component (15) and numbered marker (10), no readable text or symbols beyond labels

11 ⑦ ⑤ 0 ③

12 ②⑤ ③ ①

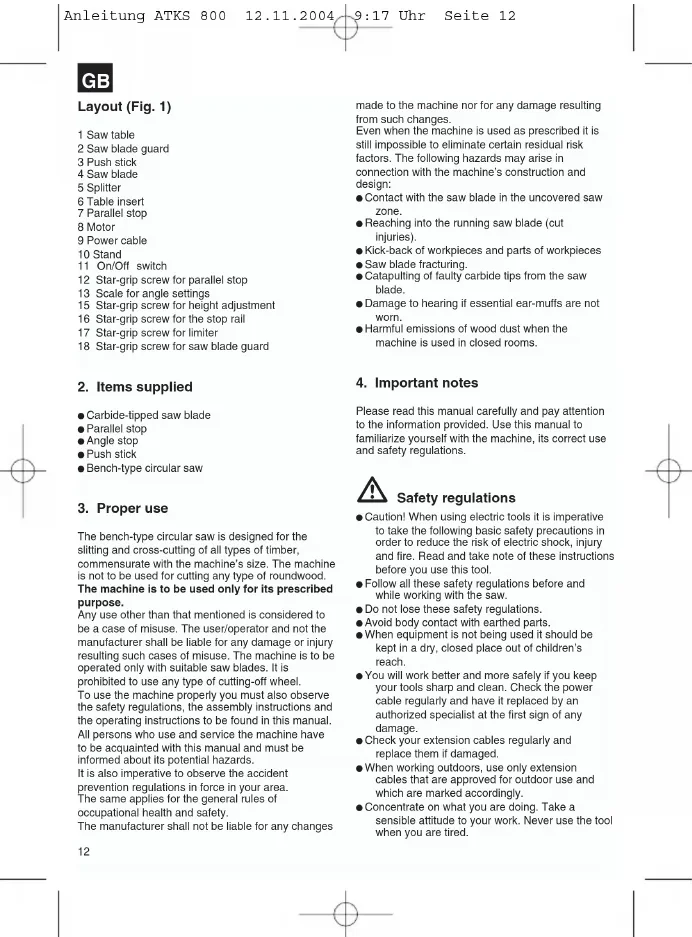

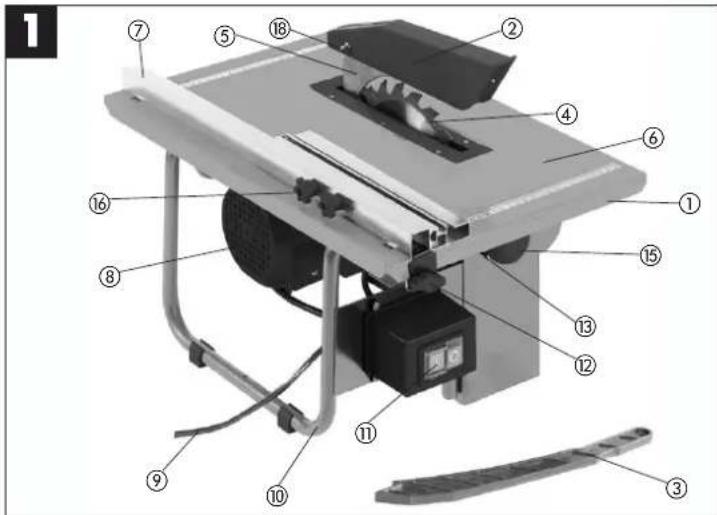

D

1 Saw table
2 Saw blade guard
3 Push stick
4 Saw blade
5 Splitter
6 Table insert
7 Parallel stop
8 Motor
9 Power cable
10 Stand
11 On/Off switch

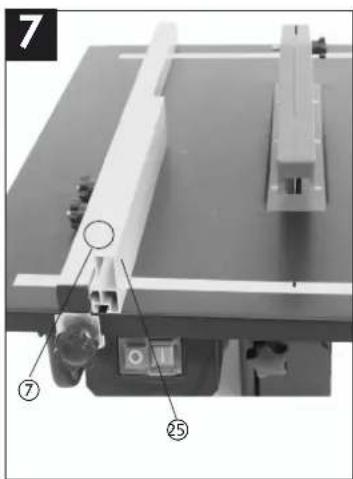

12 Star-grip screw for parallel stop
13 Scale for angle settings

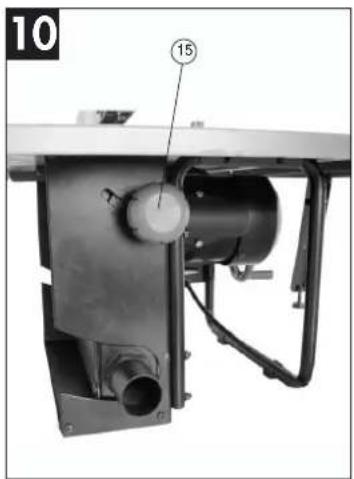

15 Star-grip screw for height adjustment

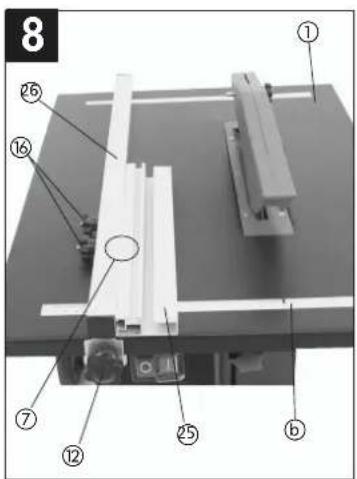

16 Star-grip screw for the stop rail
17 Star-grip screw for limiter
18 Star-grip screw for saw blade guard

2. Items supplied

● Carbide-tipped saw blade
- Parallel stop
● Angle stop
- Push stick
● Bench-type circular saw

3. Proper use

The bench-type circular saw is designed for the slitting and cross-cutting of all types of timber, commensurate with the machine's size. The machine is not to be used for cutting any type of roundwood.

The machine is to be used only for its prescribed purpose.

Any use other than that mentioned is considered to be a case of misuse. The user/operator and not the manufacturer shall be liable for any damage or injury resulting such cases of misuse. The machine is to be operated only with suitable saw blades. It is
prohibited to use any type of cutting-off wheel. To use the machine properly you must also observe the safety regulations, the assembly instructions and the operating instructions to be found in this manual. All persons who use and service the machine have to be acquainted with this manual and must be informed about its potential hazards.
It is also imperative to observe the accident prevention regulations in force in your area. The same applies for the general rules of occupational health and safety.
The manufacturer shall not be liable for any changes

made to the machine nor for any damage resulting from such changes.

Even when the machine is used as prescribed it is still impossible to eliminate certain residual risk factors. The following hazards may arise in connection with the machine's construction and design:

• Contact with the saw blade in the uncovered saw zone.
  ● Reaching into the running saw blade (cut injuries).
  ● Kick-back of workpieces and parts of workpieces
  ● Saw blade fracturing.
• Catapulting of faulty carbide tips from the saw blade.
  ● Damage to hearing if essential ear-muffs are not worn.
  ● Harmful emissions of wood dust when the machine is used in closed rooms.

4. Important notes

Please read this manual carefully and pay attention to the information provided. Use this manual to familiarize yourself with the machine, its correct use and safety regulations.

Safety regulations

• Caution! When using electric tools it is imperative to take the following basic safety precautions in order to reduce the risk of electric shock, injury and fire. Read and take note of these instructions before you use this tool.
  ● Follow all these safety regulations before and while working with the saw.
• Do not lose these safety regulations.
  ● Avoid body contact with earthed parts.
• When equipment is not being used it should be kept in a dry, closed place out of children's reach.
• You will work better and more safely if you keep your tools sharp and clean. Check the power cable regularly and have it replaced by an authorized specialist at the first sign of any damage.
• Check your extension cables regularly and replace them if damaged.
• When working outdoors, use only extension cables that are approved for outdoor use and which are marked accordingly.
• Concentrate on what you are doing. Take a sensible attitude to your work. Never use the tool when you are tired.

GB

● Never use a tool with a switch that cannot be turned on and off.
● Caution! The use of plug-in tools and accessories other than those intended may put you at risk of injury.
● Always pull the plug out of the power socket before adjusting or servicing the machine.
● Give these safety regulations to all persons who work on the machine.
● Do not use this saw to cut fire wood.
- Do not use this saw to cross-cut roundwood.
● Caution! Hands and fingers may be injured on the rotating saw blade.
● The machine is equipped with a safety circuit-breaker (11) to prevent it starting up again after a voltage drop.
● Before you use the machine for the first time, check that the voltage marked on the rating plate is the same as your mains voltage.
- If you need to use an extension cable, make sure its conductor cross-section is big enough for the saw's power consumption. Minimum cross-section: 1mm^2 .
- If you use a cable reel, the complete cable has to be pulled off the reel.
● Do not carry the tool by its cable.
- Check the power cable. Never use a faulty or damaged power cable.
- Do not use the cable to remove the plug from the socket-outlet. Protect the cable from heat, oil and sharp edges.
- Do not leave the saw in the rain and never use it in damp or wet conditions.
● Provide good lighting
● Non-slip shoes are recommended when working outdoors.
● Do not saw near flammable liquids or gases.
● Wear suitable work clothes! Loose garments or jewelry may become caught up in the rotating saw blade.
● We recommend wearing non-slip shoes when working outdoors.
● Wear a hair net if you have long hair.
● Avoid abnormal working postures
● Operators have to be at least 18 years of age. Trainees of at least 16 years of age are allowed to use the machine under supervision.
● An untidy work area invites accidents.
- Do not allow other persons, especially children, to touch the tool or cable. Keep them out of your work area.
- Keep children away from the machine when it is connected to the power supply.
- Keep your workplace clean of wood scrap and any unnecessary objects.
● Persons working on the machine should not be

distracted

● Note the direction of rotation of the motor and saw blade.

● After you have switched off the motor, never slow down the saw blade (4) by applying pressure to its side.

● Fit only blades (4) which are well sharpened and have no cracks or deformations.

- Do not use circular saw blades (4) made of high-alloy high-speed steel (HSS).

- Never dismantle the machine's safety devices (2, 5) or put them out of operation.

- Only use EN 847-1-conform saw blades recommended by the manufacturer which bear a warning that care should be taken when changing the blade to check that the cutting width is not less than and the thickest part of the blade is not thicker than the thickness of the splitting wedge.

● Faulty saw blades (4) have to be replaced immediately.

● Never use saw blades which do not comply with the data specified in this manual.

- It is imperative to make sure that all devices (2, 15) which cover the saw blade are in good working order.

- Replace worn bench inserts

● Caution! It is prohibited to use this saw to make plunge cuts.

● Damaged or faulty safety devices have to be replaced immediately.

- The splitter (5) is an important safety device. Not only does it guide the workpiece, it also prevents the kerf closing behind the blade so that there is no kickback from the workpiece. Note the thickness of the splitter. The splitter should never be thinner than the saw blade body or thicker than the width of its kerf.

● The guard hood (2) has to be lowered over the workpiece for each cut.

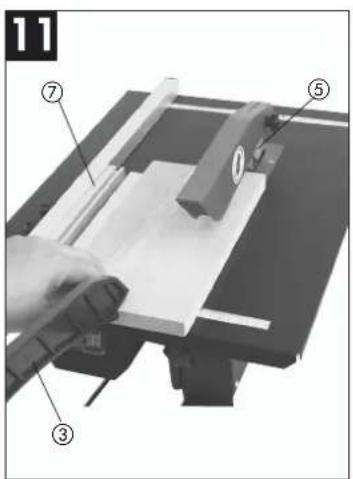

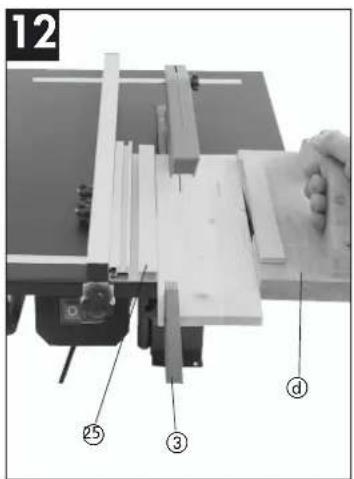

- Be sure to use a push stick (3) when slitting narrow workpieces (smaller than 120 mm in width). The push stick, or handle, for a push block should always be kept on the machine when not in use.

● Never cut workpieces which are too small to hold securely in your hand.

- It is imperative for the parallel stop to be clamped on the right-hand side of the blade whenever you cut narrow workpieces to size.

● Always stand to the side of the saw blade when working with the saw.

● Never load the machine so much that it cuts out.

● Always press the workpiece firmly against the saw table (1).

● Make sure that off-cuts do not catch on the saw

GB

blade crown. Risk of catapulting!

● All guards and safety devices have to be refitted immediately after completion of any repairs or maintenance.
- It is imperative to observe the manufacturer's safety, operating and maintenance instructions as well as the dimensions quoted in the technical data.
- It is imperative to observe the accident prevention regulations in force in your area as well as all other generally recognized rules of safety.
● Note the information published by your professional associations (VBG 7j).
- Switch on the dust extraction system each time you use the machine. The operator must be informed about the conditions which influence the release of dust, e.g. the type of material being worked (how it is held and source), the importance of local separation and the correct positioning of hoods/guidance plates/guidance arrangements.
● Use the saw only with a suitable vacuum extraction system or a standard industrial vacuum cleaner.
● Never use the cable for any purpose other than that for which it is intended!
● Never remove loose splinters, chips or jammed pieces of wood when the saw blade is running
● To rectify faults or remove jammed pieces of wood, always switch off the machine first. - Pull out the power plug! -
- If the sawing gap is worn, replace the table insert (6). - Pull out the power plug! -
● The bench-type saw has to be connected to a 230 V socket-outlet with earthing contact and minimum fusing of 10 A.
● Never use tools or attachments with insufficient power for the job in hand.
● Never use tools on jobs for which they were not intended!
● Make sure you stand squarely and keep your balance at all times.
- Check the tool for possible damage!
● Each time before re-using the tool, carefully check that the guards or any slightly damaged parts are working as intended.
- Check that the moving parts are in good working order, that they do not jam, and that no parts are damaged. Make sure that all parts are fitted correctly and that all other operating conditions are properly fulfilled.
● Unless otherwise stated in the operating instructions, damaged guards and parts have to be repaired or replaced by an authorized service center.
● Have damaged switches replaced by a customer service workshop.

● This electric tool complies with the pertinent safety regulations. Repairs are to be carried out only by a qualified electrician using original replacement parts or the user may suffer an accident.
- Wear suitable protective equipment and clothing if necessary. This may include the following: -Wear ear-muffs to protect your hearing. -Wear a breathing mask for protection against breathing in hazardous dust. -Wear gloves when handling saw blades and materials with rough surfaces. Always carry saw blades in a holder whenever practicable.

Caution! Risk of injury! Do not reach into the running saw blade.

Wear goggles

Wear ear-muffs

Wear a breathing mask

Noise emission values

- The saw's noise is measured in accordance with DIN EN ISO 3744; 11/95, E DIN EN 31201; 6/93, ISO 7960 Annex A; 2/95. The machine may exceed 85dB(A) at the workplace. In this case, noise protection measures need to be introduced for the user (ear-muffs).

Cutting Idling

Sound pressure level LPA 86.8 dB(A) 76.0 dB(A)

Sound power level LWA 99.8 dB(A) 89.0 dB(A)

„The quoted values are emission values and not necessarily reliable workplace values. Although there is a correlation between emission and immission levels it is impossible to draw any certain conclusions

as to the need for additional precautions. Factors with a potential influence on the actual immission level at the workplace include the duration of impact, the type of room, and other sources of noise etc., e.g. the number of machines and other neighboring operations. Reliable workplace values may also vary from country to country. With this information the user should at least be able to make a better assessment of the dangers and risks involved."

5. Technical data

Asynchronous motor 230 V 50 Hz

Power rating 800 W S2 30 min

Idle speed n_0 2950 rpm

Carbide saw blade 200 x 16 x 2.4 mm

Number of teeth 20

Table size 500 x 335 mm

Cutting height max.90" 35 mm

Cutting height max.45° 35 mm

Connector for dust extractor dia. 35 mm

Size, complete 500 x 335 x 240 mm

Weight 14 kg

- Load factor:

A load factor of S2 30 min (intermittent periodic duty) means that you may operate the motor continuously at its nominal power level (800 W) for no longer than the time stipulated on the specifications label (30 minutes ON period). If you fail to observe this time limit the motor will overheat. During the OFF period the motor will cool again to its starting temperature.

6. Before putting the machine into operation

● The machine has to be set up where it can stand firmly, e.g. on a work bench, or it must be bolted to a strong stand.
● All the covers and safety devices have to be properly fitted before the machine is switched on.
- It must be possible for the saw blade to run freely.
- When working with wood that has been processed before, watch out for foreign bodies such as nails or screws etc.
● Before you actuate the On/Off switch, make sure that the saw blade is correctly fitted and that the

machine's moving parts run smoothly.

● Before you connect the machine to the power supply, make sure the data on the rating plate is the same as that for your mains.

7. Assembly

Always pull out the power plug before carrying out any maintenance or conversion work.

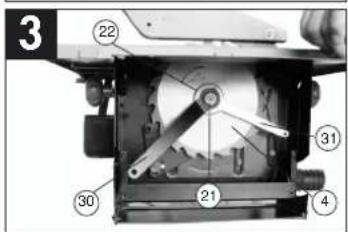

7.1 Fitting the saw blade (Fig. 2/3)

● Caution! Pull out the power plug.
- Slacken the chip bin cover (19) by undoing the fixing screws (20) and swing it up.
- Undo the nut (21) with a ring wrench (30) on the nut (21) and a face wrench (31) on the outer flange (22) to apply counter-pressure.
● Caution! Turn the nut in the direction of rotation of the saw blade (4).
● Take off the outer flange (22) and pull the old saw blade (4) off the inner flange by dropping the blade at an angle.
● Clean the mounting flange.
● Fit the new saw blade in reverse order.
- Caution! Note the direction of rotation (see arrow on the saw blade).

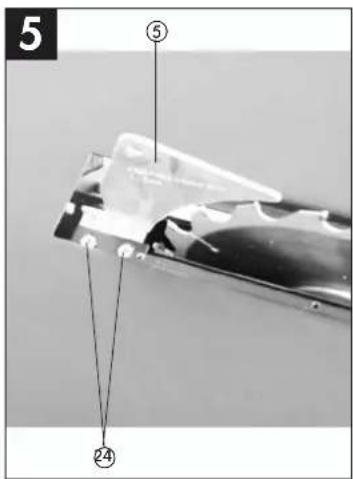

7.2 Adjusting the splitter (Fig. 4-6)

• Remove the saw blade guard (2) (see 7.3).
  ● Take out the table insert (6) (see 7.4).
• Slacken the two hexagon socket-head screws (24).
• Adjust the splitter (5) so that the gap between the saw blade (4) and the splitter (5) equals 3 - 5 mm (see Fig. 6)
  ● The splitter (5) has to be in line with the saw blade (4) in longitudinal direction.
  ● Retighten the two screws (24).
  ● The setting of the splitter has to be checked each time after changing the saw blade.

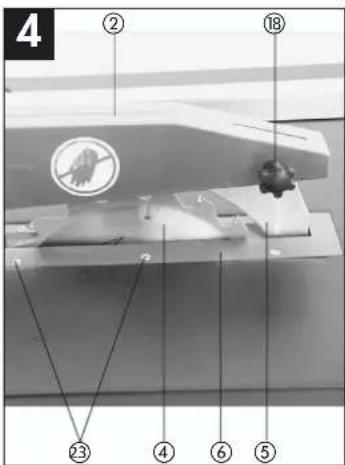

7.3 Fitting the saw blade guard (Fig. 4)

● Mount the saw blade guard (2) on the splitter (5) and align.
- Insert the knurled screw (18) through the hole in the saw blade guard (2) and in the splitter (5) and secure it with the nut.
● To remove the saw blade guard, proceed in reverse order.

GB

7.4 Replacing the table insert (Fig. 4)

● Caution! Pull out the power plug.
- Remove the 6 screws (23).
● Take off the saw blade guard (2) (see 7.3).
● Lift the worn table insert (6) up and out
● Fit a new table insert in reverse order.

8.0 Using the saw

8.1 On/Off switch (Fig. 1)

● The saw can be switched on by pressing the green pushbutton A.
● The red pushbutton Å has to be pressed to switch off the saw.

8.2 Parallel stop

8.2.1 Stop height (Fig. 7/8)

● The parallel stop (7) supplied with the bench-type circular saw has two different guide fac
● For thick material you must use the stop rail (25) as shown in Fig. 7, for thin material you must use the stop rail as shown in Fig. 8.
● To change the height of the stop, slacken the two knurled screws (16) and pull the stop rail off the carrier rail.
- Turn the stop rail (25) 90^ to the left or the right, depending on the required height of the stop, and plug in back on the carrier rail (26).
● Re-tighten the knurled screws (16).

8.2.2. Stop length (Fig. 7/8)

● To prevent the workpiece becoming jammed, always slide the stop rail (25) to the front edge of the table (1) and fix it in place with the two knurled screws (16) (see 8.2.1).

8.2.3 Cutting width (Fig. 8)

● The parallel stop (7) has to be used when making longitudinal cuts in wooden workpieces.
- Slide the parallel stop (7) to the right or left side of the saw table (1).
● The parallel stop (7) can be set to the required dimension with the help of the scale (b) engraved on the saw table (1).
● Tighten the two thumb screws (12) in order to fix the parallel stop (7).

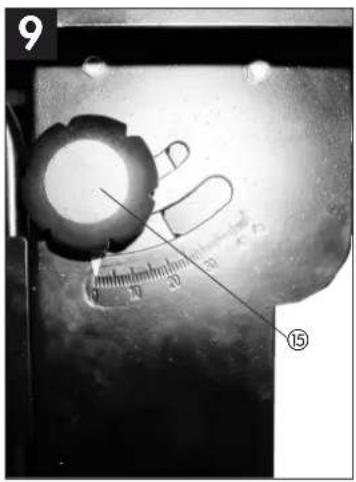

8.3 Adjusting the angle (Fig. 9/10)

● Slacken the star-grip screws (15).
- You can now adjust the blade (4) to the required angle (see scale (13)) by sliding the two star-grip screws (16).
● Re-tighten the star-grip screws (15).

9. Sawing operations

After each new adjustment it is advisable to carry out a trial cut in order to check the set dimensions.

After switching on the saw, wait for the blade to reach its maximum speed of rotation before commencing with the cut.

Secure long workpieces against falling off at the end of the cut (e.g. with a roller stand etc.) Take extra care when starting the cut!

9.1 Cutting narrow workpieces (width less than 120 mm) (Fig. 11)

• Adjust the parallel stop (7) to the width of workpiece you require.
• Feed in the workpiece with two hands. Always use the push stick (3) in the area of the saw blade (4).
  (A push stick is supplied with the saw!)
  ● Always push the workpiece through to the end of the splitter (5).
  ● Caution! With short workpieces, use the push stick from the beginning.

9.2 Cutting extremely narrow workpieces (width less than 30 mm) (Fig. 12)

• Adjust the parallel stop (7) to the width of workpiece you require.
• Use the push block (d) to press the workpiece against the stop rail (25) and push the workpiece with the push stick (3) through to the end of the splitter (5).
  There is no push block supplied with the saw! (Available from your specialist dealer)

9.3 45°-cuts on small workpieces (Fig. 13)

• You must always use the parallel stop (7) and the angle stop (14) when making 45^ cuts.
• Insert the angle stop (14) in the stop rail (25) of the parallel stop (7).
• Adjust the parallel stop (7) to the required length of the workpiece and clamp securely.

• Insert the workpiece in the angle stop (14).

• Switch on the saw and slide the angle stop (14) together with the workpiece along the stop rail (25) into the blade (4).

• Switch off the saw when the cut is completed.

9.4 Making cross cuts (Fig. 14)

Always use the parallel stop (7) and the angle stop (14) when making cross cuts.
Workpieces must not exceed a maximum length of 160 mm between the parallel stop (7) and the blade (4), and a maximum width of 70 mm.

• Slide the angle stop (14) into the stop rail (25) of the parallel stop (7).
• Adjust the parallel stop (7) to the required length of the workpiece and clamp in place.
  ● Place the workpiece in front of the angle stop (14).
• Switch on the saw and, with the help of the push stick (3), push the angle stop (14) together with the workpiece along the stop rail (25) into the blade (4).
• Switch off the saw when you have finished the cut.

10. Maintenance

• Remove dust and dirt regularly from the machine. Cleaning is best done with compressed air or a rag.
  ● Never use caustic agents to clean plastic parts.

11. Orders for replacement parts

Please quote the following information on all orders for replacement parts:

● Type of product

● Article number of the product

● ID number of the product

● Replacement part number of the part required

F

LWA: 99.8 dB (A) 89 dB (A)

The product described in these instructions comes with a 5 year warranty warning defects. That 5 years warranty warning claims will be required at risk as

(2) Using (check), This system is currently possible to be the product of risk of when the customer receives the product.

For warranty claims to be accepted, the product has to receive the correct maintenance and be put to the proper use as described in the operating

intrinsic basis and be put to the proper use as described in this optional instructions.

Your statutory rights of warranty are naturally unaffected during these 5 years.

This warranty applies in Germany, or in the respective country of the

regulations. Please note the details for contacting the customer service center

responsible for your region or the service address listed below.

© CERTIFICADO DE GARANTIA

Eschenstraße 6 - D-94405 Landau'Isar (Germany)

Info-Tel. [phone] • Telefax 0180-5 835 830

Technical changes subject to change

Unit 5 Morpeth Wharf

Twelve Quays

Birkenhead, Wirral

CH 41 1NG

Tel. [phone], Fax [phone]

④ ABC EN CIEL ELECTRONIQUE

ZA BP 10

F-89000 ST GEORGES/Baulche

Resp. SAV: Oliver DEMEAUX

Pibos détachéns: Michel RODIER

Tel. [phone]; Fax [phone]

mail: [e-mail]

NL Einheit Berelux

Veldsteen 44

NL-4815 PK Breda

Tel. [phone], Fax [phone]

E Commercial Einbell, S.A.

Travesia Villa Estar, 9

Poigano Industrial El Nogal

E-28119 Algete-Madrid

P Einheit Portugal Lda.

Apartado 2106

Technical & Commercial Company

1. Papastratou & Asklipicu Str

GB 18545 Pirăue

Tel [phone]. Fax [phone]

Bermas, Moscow

Altuhvevskoe shosse. 2 ^A

BUS-127273 Moscow

Tel. [phone] (central office)

Tel. [phone] (Repair center Moscow)

Tel. [phone] (Repair center St. Petersburg)

L1 Dirbita

fetalio str. 25

LT-02190 Vilnius

Tel [phone]. Fax [phone]

ESI AS Balloil

Rou ale

Haaslova valid

EE-62102 Tartu

Tel [phone]. Fax [phone]

Halai Trading Co. LLC

POB 9282, Nekheel Rd. Delhi, Shop No. 15

UAE-Dubal

Tel. [phone], Fax [phone]

IR Alborz Abzar Co. Ltd.

No. 111, Bastan Passage, Imam Khomeini Ave

IR-11146 Teheran

Tel [phone], Fax [phone]

Finball BiH d.o

Poslovni Center 96

BA-72250 Vitez

Tel [phone]. Fax [phone]

②A Eurasia Industrial and Automotive Supply

1. Bossenner

Duncanville

ZA-Vereeniging 1939

Tel [phone], Fax [phone]

by Svyaz Prominvest Ltd

The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of ISC GmbH.
