Product type	Cordless impact drill/driver
Brand	Alpha Tools
Model	ASE 20 4
Nominal voltage	20,4 V
Speed at no load (1st speed)	0 – 500 rpm
Speed at no load (2nd speed)	0 – 1400 rpm
Number of torque levels	17
Chuck capacity	2 – 13 mm
Battery type	Nickel-Cadmium (Ni-Cd) replaceable
Charging voltage	20,4 V
Charging current	2 A
Mains voltage of charger	230 V – 50 Hz
Sound pressure level (LPA)	72 dB(A)
Sound power level (LWA)	82 dB(A)
Vibration (aw)	< 2,5 m/s²
Weight	2.3 kg
Rotation direction	Right and left
Functions	Drilling, screwing, hammering
Warranty	3 years
Delivery contents	Drill/driver, battery, charger, case

Frequently Asked Questions - ASE 20 4 Alpha Tools

How to charge the battery?

Before first use, charge the battery with the supplied charger. Plug the charger into a 230 V – 50 Hz socket, insert the battery and let it charge completely. Full charge is achieved after approximately 5 discharge/charge cycles. Do not let the battery discharge completely.

How to adjust the torque?

Use the adjustment wheel (fig. 1) to select one of the 17 torque levels. Turn the wheel to the desired number according to the screw size and material hardness. A clicking sound indicates that the torque has been reached.

How to change the speed?

The drill has two speeds. Use the speed selector (fig. 2) to switch from speed 1 (0-500 rpm) to speed 2 (0-1400 rpm). Only switch when stopped to avoid damaging the gear.

How to reverse the rotation direction?

Use the rotation direction switch (fig. 3) located above the On/Off switch. Push it to the left for left rotation, to the right for right rotation. The center position locks the On/Off switch. Only switch when stopped.

What to do if the battery does not charge?

Check that the power outlet is live and that the charger contacts are clean. If the problem persists, send the charger and battery to the after-sales service. Do not attempt to repair yourself.

Which drill bits and screwdriver bits to use?

Use only sharp drill bits and screwdriver bits in good condition, suitable for the 2-13 mm chuck. For screwing, prefer self-centering screws (Torx, cross-head) for added safety.

How to maintain the device?

Protect the drill and charger from moisture and rain. Clean the contacts with a dry cloth. In case of contact with battery acid, wash skin with soap and water; for eyes, rinse for 10 minutes with clean water and consult a doctor.

What is the warranty?

The warranty is 3 years from the date of purchase. It covers material and manufacturing defects. Parts and labor are free during this period. Subsequent damages are not covered.

Can I drill into concrete?

Yes, this impact drill/driver is suitable for drilling into concrete. Use appropriate hammer drill bits. Set the torque adjustment wheel to the last level (drill symbol) to get maximum torque and disable the slipping clutch.

How to avoid short circuits?

Avoid contact of battery terminals with metal objects such as nails or screws. Do not throw batteries into fire (risk of explosion). Dispose of used batteries at a collection station.

USER MANUAL ASE 20 4 Alpha Tools

GB Operating Instructions Electronic cordless drill/screwdriver with Adjustable Torque

White and black electric drill putter with visible model number 20.4V (no text or symbols on the device body)

GB Important: Read and note the operating instructions and safety regulations before using!

Illustration of stacked open book pages (no text or symbols visible)

GBPlease pull out pages 2-5

Open plastic medical device case with internal components and wiring (no visible text or symbols)

1 cordless drill/screwdriver
1 removable battery
1 battery charger
1 storage case

© Volumen de entrega:

Figure 1: Torque adjustment facility

Figure 2: Changing over from 1st gear to 2nd gear

Figure 3: Forward / Reverse selector switch

Figure 4: On/Off switch

Figure 5: Removable battery pack; press both clips to take out the battery pack

Important notes:

It is imperative to read these notes before putting your battery-powered drill/screwdriver into operation:

1. The removable Ni-Cd battery pack supplied with your battery-powered drill/screwdriver has to be charged before you use the tool for the first time.
2. Use the supplied battery charger to charge the battery pack. It takes a maximum of 1 hour to charge an empty battery. Do not use the supplied battery charger to charge any other tools or appliances.
3. The battery pack reaches its maximum capacity after approx. five discharge/charge cycles.

4. Ni-Cd batteries will also discharge when they are not in use. It is recommended, therefore, to charge the batteries regularly.

5. Please note the data quoted on the rating plate of the battery charger. Operate the charger only from the same mains voltage as that quoted on the rating plate.

6. In periods of heavy duty the battery pack will grow warm. Allow the battery pack to cool to room temperature before starting to charge it.

Safety regulations:

1. Protect your battery-powered drill/screwdriver and charger from the damp and rain.
2. Keep the charger and battery-powered drill/screwdriver safe from children.
3. Use only sharp drill bits and undamaged, properly fitting screwdriver bits.
4. Wear suitable working clothes and safety goggles.
5. Never use the battery-powered drill/screwdriver and charger in the vicinity of vapours and combustible liquids.
6. Look for concealed electric cables, gas pipes and water pipes before drilling and screwdriving in walls.
7. Never throw old batteries into an open fire. Risk of explosion!
8. Avoid contact with leaky batteries. Should contact arise

nevertheless, wash the affected area of skin immediately with soap and water. If battery acid gets in your eye, rinse the eye with clear water for at least 10 minutes and consult a doctor immediately.

1. Protect the charger and its cable from damage and sharp edges. Damaged cables are to be replaced immediately by an electrician.
2. Examine your tool for any signs of damage. Have repairs carried out only by an electrician.
3. Make sure that the contacts of the Ni-Cd battery pack do not touch other metallic objects, e.g. nails and screws. Risk of short-circuiting!

Putting into operation:

Loading the Ni-Cd battery pack

1. Check that your mains voltage is the same as that quoted on the rating plate. Insert the charger in a socket-outlet.
2. Pull the battery pack out of the handle (Figure 5) by depressing the clips on the side.
3. nsert the battery pack in the charger. The red light comes as a sign that the battery pack is being charged. The green LED comes on to signal that the charging is completed. It

takes 1 hour to charge an empty battery. The temperature of the battery may rise slightly during the charging operation. This is normal.

If the battery pack fails to become charged, please check

●whether there is voltage at the socket-outlet
●whether there is proper contact at the charging contacts on the charger.

If the battery still fails to become charged, please return

●the charger

●the battery pack to our Customer Service Department.

Timely recharging of the Ni-Cd battery pack is recommended in the interest of long battery life.

Recharging is always necessary when you notice that the power of the battery-powered drill/screwdriver is decreasing.

Never allow the battery pack to discharge completely. This will result in damage to the Ni-Cd battery pack!

Adjusting the torque (Figure 1)

The Alpha-tools battery-powered drill/screwdriver is equipped with a 17-step mechanical torque adjustment facility. The torque for a specific size of screw is selected with

GB

the set-collar (Figure 1). The correct torque depends on several factors:

●on the type and hardness of material in question
●on the type and length screws used
●on the requirements needing to be met by the screwed joint.

The clutch disengages with a gra- ting sound to indicate when the set torque is reached.

Drilling

For drilling purposes, move the set-collar to the last step „Drill“ (Figure 1). In this setting the slip clutch is inactive. The maximum torque is available in drilling mode.

Changing over from 1st gear to 2nd gear (Figure 2)

You can work at a higher or lower speed depending on the position of the selector switch. To avoid damaging the gear unit you should only change over gears when the tool has stopped.

Forward/Reverse switch (Figure 3)

With the slide switch above the On/Off switch you can select the direction of rotation of the battery-

powered drill/screwdriver and secure it against being switched on accidentally. You can choose between clockwise and anticlockwise rotation. To avoid causing damage to the gearing it is advisable to change the direction of rotation only when the tool is at a standstill. The On/Off switch is blocked when the slide switch is in centre position.

On/Off switch (Figure 4)

Infinitely variable speed control is possible with the On/Off switch. The further you press the switch, the higher the speed of the battery-powered drill/screwdriver.

Screwdriving

We recommend using self-centering screws (e.g. Torx screws, recessed head screws) designed for reliable working. Be sure to use a bit that matches the screw in shape and size. Set the torque, as described elsewhere in these operating instructions, to suit the size of screw.

Technical data

Voltage supply 20,4 V =

Speed 0-500 / 0-1400 rpm

Torque 17 levels

Forward and reverse rotation yes

Chuck clamping width 2 - 13 mm

Battery charging voltage 20,4 V =

Battery charging current 2 A

Mains voltage for charger 230 V ~ 50 Hz

Sound pressure level LPA: 72 dB(A)

Sound power level LWA: 82 dB(A)

Vibration a_W < 2,5 m/s ^2

Weigth: 2,3 kg


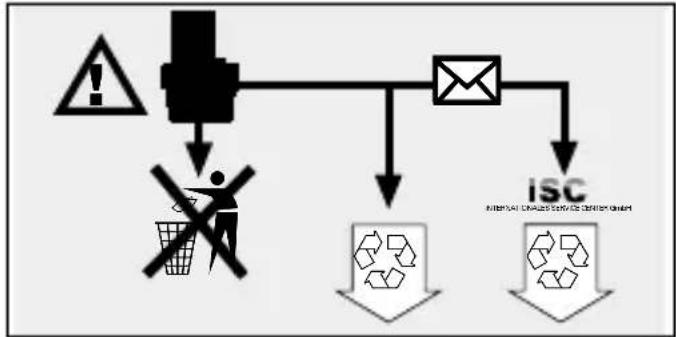

Old and defective batteries do not belong in the refuse bin. Think of the environment! Cadmium is toxic. For correct disposal, return old and defective batteries postage-paid to ISC or take them to your local old battery depot. Ask at your town hall for details of the old battery depots in your area.

F

Istrošene i neispravne akumulatore ne bacajte u obi no sme e. Mislite na zaštitu okoliša, kadmij je otrovan. Astrošene i neispravne akumulatore se radi urednog uklanjanja mogu besplatno poslati f ir mi ISC ili predati u odgovaraju a sabirališta. Ako Vam nije poznato gdje se nala - zi sabiralište, raspitajte se kod op inske uprave.

D	GB	F	E	S	I
EG KonformitätserklärungDer Unterzeichnende erklärt im Namen der Firma	EC Declaration of ConformityThe Undersigned declares, on behalf of	Déclaration de Conformité CELe soussigné déclare, au nom de	Declaracion_CE de ConformidadPor la presente, el abajo firmante declara en nombre de la empresa	EC KonformitetsförklaringUndertecknad förklarar ifirmans	Dichiarazione di conformita CEIl sottoscritto dichiara in nome della ditta
ISC GmbH · Eschenstraße 6 · D-94405 Landau/Isar
daß die	that the	que	que el/la	namn, att	che la
Maschine/Produkt	Machine / Product	la machine / le produit	máquina/producto	maskinen/produkten	macchina/prodotto
Elektronik-Akku-Bohrschrauber mit Drehmomenteinstellung	Electronic cordless drill/screwdriver with Adjustable Torque	Perceuse-visseuse électronique à per cussion avec réglage du couple de rotation	Taladro percutor electrónico de bateria con ajuste de par	Elektronikstyrd batteridriven borr-skruvdra gare med vridmomentsinställning	Trapano avvitatore elettronico a batte riatore con regolazione coppia di rotazione
Marke	produced by:	du fabricant	marca	märke	marca
ALPHA-TOOLS
Typ	Type	Type	tipo	typ	tipo
ASE 20,4
– Seriennummer auf dem Produkt – der☒EG Niederspannungs-richtlinie 73/23 EWG☒EG Richtlinie Elektromagnetische Verträglichkeit 89/336 EWG mit Änderungen entspricht.	– Serial number specified on the product - is in accordance with the☒EC Directive regarding low-voltage equipment 73/23 EEC;☒EC Directive regarding electromagnetic compatibility 89/336 EEC, as amended.	– no. série indiqué sur le produit - correspond(ent) à la☒Directive CE relative aux basses tensions 73/23 CEE;☒Directive CE relative à la compatibilité électromagnétique 89/336 CEE avec les modifications y apportées.	– No. de serie en el producto: satisface las disposiciones pertinentes siguientes:☒Disposición de baja tensión de la CE 73/23 CEE☒Disposición de la compatibilidad electro-magnética de la CE 89/336 CEE con modificaciones.	– serienummer på produkten - motsvarar☒EU riktlinje för lågspänning 73/23 EWG☒EU riktlinje för elektromagnetisk kompatibilitet 89/336 med ändringar	– numero di serie sul prodotto - corrisponde☒alla Direttiva CE sulla bassa tensione 73/23 CEE☒alla Direttiva CE sulla compatibilità elettromagnetica 89/336 CEE con modifiche
EN 60335-1; DIN VDE 0700-207; prEN 50260-1; prEN 50260-2-1; prEN 50260-2-2; EN 55014-1; EN 55014-2; EN 61000-3-2; EN 61000-3-3
Landau/Isar, den25.03.2001	Landau/Isar, (date)25.03.2001	Landau/Isar, (date)25.03.2001	Landau/Isar25.03.2001	Landau/Isar, den25.03.2001	Landau/Isar,!”25.03.2001
PflaumProdukt-Management	PflaumProdukt-Management	PflaumProdukt-Management	PflaumProdukt-Management	PflaumProdukt-Management	PflaumProdukt-Management
DK	PL	TR	CZ	SLO	H
EC Overensstemmelses-erklæringUndertegnede erklærer på vegne af firmaet	Oświadczenie o zgodności z normami EuropejskiejWspólnotyNíżej podpisany oświadcza w imieniu firmy	AT Uygunluk DeklarasyonuAşağıda imzası olan kişiFirma	EU prohlásení o konformitěPodpisující prohlašuje ménom firmy	EU Izjava o skladnostiPodpisnik v imenu pocjesja	EU KonformkijelentésAz alářó kjelent a következő cég nevében
ISC GmbH · Eschenstraße 6 · D-94405 Landau/Isar
at	że	adina	że	Izjavlja	hogy a
maskine/produkt	maszyna/produkt	Makine / Mamul	stroj/výrobok	da stroj/izdock	góp / gyármány
Elektronisk akku-slagboremaskine med drejemomentindstilling	Akumulatorowa, elektroniczna wiert ko-wkr tarka udarowa z regulowanym momentem obrotowym	Elektronik Akülü Darbeli Matkap mat kap/tornavida	Elektronický akumulátorový přiklepový vrtaci śroubovák s nastavenim točivého momentu	Elktronski baterijski udarni vrani izijač z nastavljanjem vrtlnega momenta	Elektronikus-Akku-ütvefúró-csavarhúzó Fordulatazám szabályzóval
mærke	wyprodukowana przez		značka:	znamke	márka
ALPHA-TOOLS
type	typ		typ	tip	tipus
ASE 20,4
– Serienummer på produktet - opfylder☒EU-lavspændingsdirektiv 73/23/E∅F☒EU-direktiv vedr. elektromagnetisk stoj (EMC) 89/336/E∅F med ændringer.	- numer seryjny na produkcie - odpowiada☒wytycznym EW dotyczącym niskiego napięcia 73/23 EWG☒wytycznym EW dotyczącym zgodności elektro-magnetycznej 89/336 EWG ze zmianami.	- Seri No☒AT’nin düşük voltaj hakkındaki 73/23 nolu ile☒AT’nin elektromanyetik uygunluk hakkında direktiflerine ve değişikliklerine uygun olduğunu beyan eder.	očipovídá☒EU směrnici o nízkém napětí 73/23 EWG☒EU směrnici o elektromagnotická snášenitosti 89/336 EWG se změnami.	ustreza☒EU Smernici o nizki napetosii 73/23 EGS☒EU Smernici o elektromagnonii skladnosti 89/336 EGS z dopolnitvami.	az☒EU 73/23 EWG - i kisfoszültségi irányitóvonalának☒EU 89/336 EWG - i elektromágneses elviselhetőségi irányitóvonalának változásokkal megfelel.
EN 60335-1; DIN VDE 0700-207; prEN 50260-1; prEN 50260-2-1; prEN 50260-2-2; EN 55014-1; EN 55014-2; EN 61000-3-2; EN 61000-3-3
Landau/Isar, den25.03.2001PflaumProdukt-Management	Landau/Isar dnia25.03.2001PflaumProdukt-Management	Landau/Isar, (tarih)25.03.2001PflaumProdukt-Management	Landau/Isar, dne25.03.2001PflaumProdukt-Management	Landau/Isar, dne25.03.2001PflaumProdukt-Management	Landau/Isar25.03.2001PflaumProdukt-Management

Eschenstraße 6 · D-94405 Landau/Isar (Germany)

The guarantee period begins on the sales date and is valid for 3 years.

Responsibility is assumed for faulty con- struction or material or functional defects.

Any necessary replacement parts an necessary repair work are free of charge.

We do not assume responsibility for consequential damage.
