Product type	Hammer drill
Brand	Alpha Tools
Model	SBM 650 E
Power consumption	650 W
Supply voltage	230 V ~ 50 Hz
Drilling capacity (concrete)	13 mm
Drilling capacity (steel)	10 mm
Drilling capacity (wood)	20 mm
No-load speed (max)	0 - 2600 min⁻¹
Weight	1.8 kg
Chuck type	Quick-release drill chuck (2-13 mm)
Functions	Simple drilling, hammer drilling, forward/reverse, variable speed, continuous operation lock
Auxiliary handle	Yes (with depth stop)
Sound pressure level LPA	93.3 dB(A)
Sound power level LWA	106.3 dB(A)
Vibration (handle)	14.9 m/s²
Warranty	5 years (according to conditions in the manual)
Maintenance	Clean with a dry cloth, do not use corrosive products, keep ventilation slots clear, check carbon brushes if excessive sparking
Safety	Use the auxiliary handle, wear safety goggles and a dust mask, disconnect before maintenance, do not use near flammable liquids
Included accessories	Drill chuck, auxiliary handle with depth stop

Frequently Asked Questions - SBM 650 E Alpha Tools

How to change the drill bit on the Alpha Tools SBM 650 E hammer drill?

To change the drill bit, ensure the device is unplugged. Open the quick-release drill chuck by turning the ring counterclockwise. Insert the new drill bit and tighten firmly by turning clockwise. Make sure to use sharp drill bits suitable for the material.

How to activate the hammer mode?

The hammer mode is activated using the switch (mark 4 in the manual). Turn it to the 'hammer drilling' position (hammer symbol). Only switch when the drill is completely stopped. For drilling into tiles or slabs, use the simple drilling mode (position 'drilling').

How to adjust the rotation speed?

The speed is adjusted progressively by pressing the trigger more or less. You can also preselect a maximum speed by turning the knurled screw located in the trigger. The speed range is from 0 to 2600 min⁻¹.

How to reverse the rotation direction?

The rotation direction is reversed using the reversing switch (mark 5). For screwing, set it to the forward position (arrow pointing right); for unscrewing, set it to the reverse position (arrow pointing left). Only switch when stopped.

What to do if the drill produces excessive sparks?

Excessive sparks may indicate worn carbon brushes. Check the brushes and replace them if necessary. Have this operation performed by a specialist. Also keep the ventilation slots clear to prevent overheating.

What safety precautions should be taken?

Always wear safety goggles and a dust mask when working in dusty conditions. Use the auxiliary handle for better stability. Do not drill near electrical cables without checking their absence. Unplug the drill before any adjustment or cleaning.

What type of drill bits to use with the SBM 650 E?

Use cylindrical shank drill bits with a diameter between 2 and 13 mm (chuck capacity). For concrete, use hammer drill bits; for steel, HSS bits; for wood, well-sharpened wood bits. Ensure the bits are compatible with the maximum speed of 2600 min⁻¹.

How to maintain the drill?

Keep the drill clean by wiping surfaces with a dry cloth. Do not use corrosive products. Keep ventilation slots clear. In case of sparks, check carbon brushes. Store the device in a dry place out of reach of children.

Is the warranty valid outside Germany?

The 5-year warranty is valid throughout the Federal Republic of Germany as well as in the countries of the main trading partners, in addition to local legal requirements. For any service, contact your dealer or the after-sales service indicated in the manual.

How to use the depth stop?

The depth stop is located on the auxiliary handle. Adjust the stop rod to the desired depth by loosening the knob, then sliding it. Tighten the knob to secure it. This allows drilling to a constant depth without damaging the material.

USER MANUAL SBM 650 E Alpha Tools

White aluminum toolbox toy with black handle and grip (no visible text or symbols)

SBM 650E

⑥ Bitte vor Montage und Inbetriebnahme die Betriebsanleitung aufmerksam lesen
Please read the operating instructions carefully before assembling and using
⑤ Veuillez lire attentivement ce mode d'emploi avant de procéder au montage et à la mise en service
E Sirvase a leer atentamente estas instrucciones antes del montaje y de la puesta en servicio
© Læs driftsveljledningen grundigt Inden montage og idrifttagning
⑤ Var god läs bruksanvisningen noggrant före montering och driftstart
Pyydämme Teltä lukemaan käytöohjeen tarkkaavaisesti ennen asennusta ja käyttöönottoa
① Si prega, prima di assemblare ed avvi- are il trapano, di leggere attentamente le Istruzioni sul funzionamento
©2 Pred montáži a uvedenim do provozu si prosím pozorně přečtěte návod k obsluze
③ Proslmo, da pred montažo in prvim zagonom pazljivo preberete navodila za upor abo.
④ Molimo da prije montaže i upotrebe pažljivo pročitate naputak za uporabu

3

D

Lieferumfang

SBM 650 E

White ALPHA TOOLS power tool with labeled parts A and B (no additional text or symbols visible)

White electric drill bit with black handle and ventilation slots (no text or symbols visible)

Close-up of a white and black electric drill bit with no visible text or symbols

Scope of delivery package

SBM 650 E,

Quick-change drill chuck 2 -13 mm,

Additional grip with bit stop

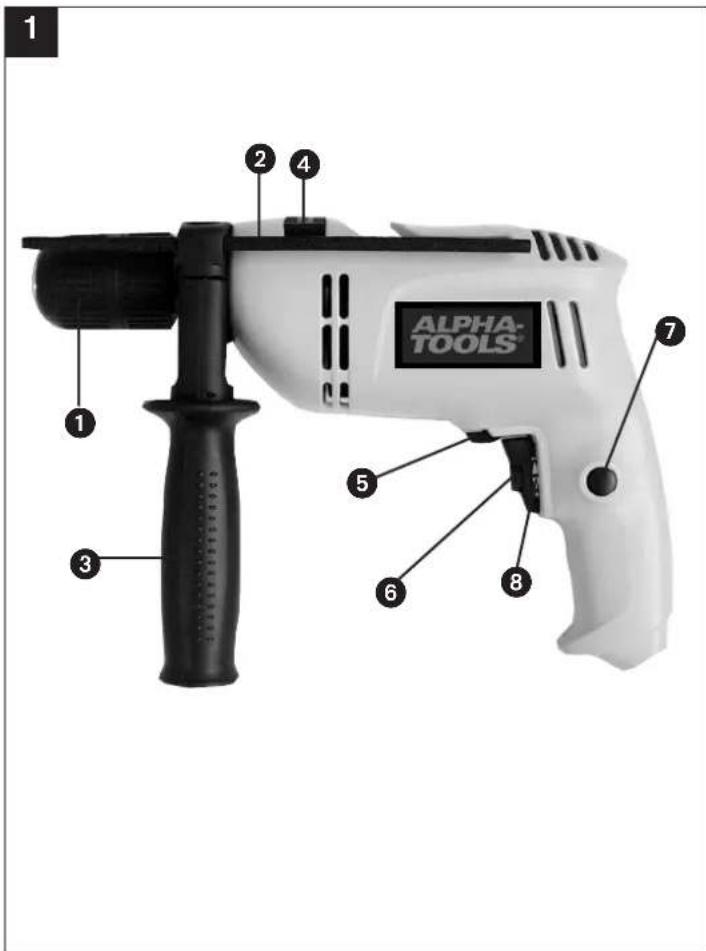

Description

1 Quick-change drill chuck
2 Depth stop
3 Additional handle
4 Selector button: drill/hammer
5 Selector button:
clockwise/anticlockwise
6 Speed control
7 Locking button
8 On/Off switch

Technical data

Voltage: 230 V \~ 50 Hz

Power rating: 650 W

Drilling capacity Concrete 13 mm

Steel 10 mm

Wood 20 mm

No Load Speed 0 - 2600 min

Number of blows 0 - 26.500 min

Safety insulated II / ☐

Sound pressure

level LPA 93,3 dB(A)

Sound power

level LWA 106,3 dB(A)

Vibration a_w 14,9 m/s ^2

Weight 1,8 kg

Caution

● The SBM 650 E is not designed for the operating of auxiliary devices.
- Do not use near steams or inflammable liquids.
- Only use sharp bits and suitable screwing bits.
- Remove the plug from the socket for all adjusting and cleaning work.
- Protect the mains cable against any damage. Oil and acids can damage the cable.
- Do not carry the device by the mains cable.

GB

• Do not remove the plug from the socket by pulling the mains cable.
  ● Make sure before inserting the plug that the operating switch is not locked.
• When using a cable drum uncoil the cable completely. Cross-section of wire at least 1.5 mm ^2 .
• Do not overload machine.
• Secure all workpieces to be processed sufficiently.
• Do not allow children to have access.
  ● Make sure you have a secure stance on ladders or scaffolding when using the drill free-hand.
• Localise lines with a line detector in walls where power, water or gas lines are laid invisibly.
  ● Wear protection goggles and use a dust mask for dust-producing work.
  ● Always arrange for a qualified electrician to carry out repairs
  ● Use only original replacement parts

● The level of noise at the workplace may exceed 85 dB(A). In this case you will need to introduce noise protection measures for the user. The noise generated by this electric tool was measured in accordance with EN 50114-1.
● Vibration measured on the handle acc. to EN 50144-1.

Maintenance

● Always keep the drill clean.
- Do not use corroding agents for cleaning plastic.
- Check carbon brushes in the case of excessive sparking.
- Keep ventilation channels free.

GB

White Alpha-TOOLS tool with labeled parts A and B (no additional text or symbols visible)

On/Off switch:

To switch on: Press switch A.

Continuous operation: Lock switch A with locking button B

To switch off: Press switch A briefly

The speed is varied by applying more or less pressure on switch A. You can preselect the speed by turning the knurled screw in switch A.

Close-up of a white electric drill bit with black adjustment knobs and a flat blade (no text or symbols visible)

Rotary switch set for hammer mode. Wait for the drill to stop before changing!

Please note: This switch should be in 'drill' position when drilling holes in tiles.

Close-up of a white and black electric drill bit with no visible text or symbols

Rotary switch set for drilling mode. Wait for the drill to stop before changing!

F

percussion 0 - 26.500 min

A double isolation II / ☐

White Alpha TOOLS tool with labeled parts A and B (no additional text or symbols visible)

Close-up of a white electric drill bit with black adjustment knobs and a flat blade (no text or symbols visible)

Close-up of a white and black electric drill bit with no visible text or symbols

White Alpha TOOLS tool with labeled parts A and B (no additional text or symbols visible)

Conectar/Desconectar:

Conectar:

puisar el interruptor A

White electric drill bit with black adjustment knobs and a flat blade (no text or symbols visible)

Close-up of a white electric drill bit with black adjustment knobs and ventilation slots (no visible text or symbols)

White dialysis tool with black handle and labeled parts A and B (no text or symbols beyond labels)

Stromafbryder:

Top-down view of a white and black handheld device with ventilation slots (no visible text or symbols)

White and black electric shaver with ventilation slots (no text or symbols visible)

Close-up of a white electric drill bit with black adjustment knobs and ventilation slots (no text or symbols visible)

Close-up of a white and black electric shaver with visible blades and handle (no text or symbols)

White dialysis tool with black handle and labeled parts A and B (no text or symbols beyond labels)

Pols-/päällekytkin

Close-up of a white electric drill bit with black adjustment knobs and ventilation slots (no text or symbols visible)

LIUKUKATKAISIN ASENNOSSA ISKUPOR- AUS. VAIHDA KYTKIMEN ASENTOA VAIN KONEEN OLLESSA PYSÄHDYKSISSÄI

Close-up of a white electric drill bit with black adjustment knobs and a flat blade (no text or symbols visible)

LIUKUKATKAISIN ASENNOSSA PORAAMI- NEN. VAIHDA KYTKIMEN ASENTOA VAIN KONEEN OLLESSA PYSÄHDYKSISSÄ!

Close-up of a white and black handheld device with ventilation slots and a handle (no visible text or symbols)

Close-up of a white and black electric drill bit with no visible text or symbols

White dialysis tool with black handle and labeled parts A and B (no text or symbols beyond labels)

Close-up of a white and black electric drill bit with no visible text or symbols

Close-up of a white and black electric drill bit with no visible text or symbols

White electric drill bit with black adjustment knobs and a flat blade (no text or symbols visible)

Top-down view of a white and black electric drill bit with ventilation slots (no text or symbols visible)

Vrilo sikelo v pložaju za vlarje. Preklapljajte
le, ko je stroj ugasnjen!

HR

Opseg isporuke

SBM 650 E

Brzopodesiva stezna glava 2 - 13 mm,

Dodatna ručka s graničnikom dubi- ne

Upotreba

Bušilica je konstruirana za bušenje rupa u drvo, željezo, obojene metale i kamen, uz upotrebu odgovarajućeg alata za bušenje.

Opis

1 Brzopodesiva stezna glava
2 Graničnik dubine bušenja
3 Dodatna ručka
4 Sklopka bušenje/bušenje s čekićem
5 Sklopka desni hod/lijevi hod
6 Regulacija broja okretaja
7 Gumb za blokiranje
8 Prekidač

Tehnički podaci

Napon 230 V \~ 50 Hz

Primljena snaga 650 W

Bušenje beton 13 mm

čelik 10 mm

drvo 20 mm

Broj okretaja u

White and black electric drill bit with visible blades and control buttons (no text or symbols)

Top-down view of a white handheld device with black handle and ventilation slots (no visible text or symbols)

Eschenstraße 6 · D-94405 Landau/Isar (Germany)

Info-Tel. [phone] • Telefax 0180-5 835 830

The product described in these instructions comes with a 5-year warranty covering defects. This 5-year warranty period begins with the passing of risk or when the customer receives the product.

For warranty claims to be accepted, the product has to receive the correct maintenance and be put to the proper use as described in the operating instructions.

Your statutory rights of warranty are naturally unaffected during these 5 years.

This warranty applies in Germany, or in the respective country of the manufacturer's main regional sales partner, as a supplement to local regulations. Please note the details for contacting the customer service center responsible for your region or the service address listed below.
