Product Type	Cordless Screwdriver (multi-purpose use)
Brand	Alpha Tools
Model	ASE 18/2 GA
Battery Voltage	18 V
Battery Capacity	1200 mAh (NiCd)
Idle Speed (Gear I)	0-350 min⁻¹
Idle Speed (Gear II)	0-900 min⁻¹
Torque Settings	20 steps
Chuck Type	Quick chuck
Rotation Direction	Right/Left turn
Speed Control	Electronic speed control
Charger Type	1 hour charger
Charging Current	2500 mA
Charging Time	1 hour
Weight	4.25 kg
Packing Dimensions	265 x 355 x 90 mm
Included Accessories	2 NiCd batteries (18 V), 1 hour charger, transport and storage case
Spare Part Available	Spare power pack (Art.-No.: 45.115.80)
Ergonomic Design	Yes, for fatigue-free working
Maintenance	Keep clean, store in dry place, charge before storage
Safety Features	Use only with original battery, avoid moisture, disconnect after use

Frequently Asked Questions - ASE 18/2 GA Alpha Tools

What is the voltage of the Alpha Tools ASE 18/2 GA?

The screwdriver operates on 18 V with NiCd batteries.

How long does it take to fully charge the battery?

The included 1-hour charger fully charges a battery in 1 hour (charging current 2500 mA).

How many torque settings does this screwdriver have?

It features 20 torque settings for precise screwdriving.

What type of chuck does the ASE 18/2 GA use?

It uses a quick chuck for fast bit changes.

Can I adjust the speed on this drill?

Yes, it has electronic speed control and two gear modes: 0-350 min⁻¹ and 0-900 min⁻¹.

Does the tool come with two batteries?

Yes, the package includes two NiCd batteries (18 V, 1200 mAh).

What is the weight of the screwdriver?

The weight is 4.25 kg (including batteries?).

How should I store the screwdriver and batteries?

Store in a dry place, ideally in the included transport case. Keep batteries charged for long storage.

Is there a spare battery available for purchase?

Yes, the spare power pack (Art.-No.: 45.115.80) is available as a special accessory.

Can I use this screwdriver for drilling?

It is designed as a cordless screwdriver for multi-purpose use; drilling capability is not specified.

USER MANUAL ASE 18/2 GA Alpha Tools

Cordless Screwdriver ASE 18/2 GA

Art.-No.: 45.131.12

Bar-Code: 4006825513295

Sales Unit: 5 pcs

Cordless Screwdriver for multi-purpose use. Smooth running, electronic speed control and an ergonomic design allows fatigue-free working.

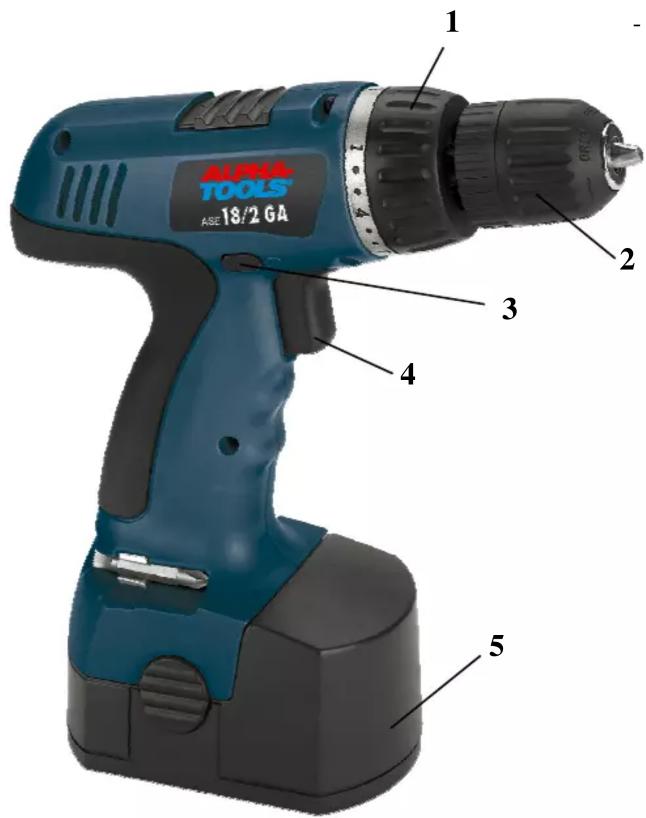

Features:

• 20 step torque settings (1)
• Quick chuck (2)
• Right/left turn (3)
• Electronic speed control (4)
• 1 NiCd changeable accu 18 volts (5)

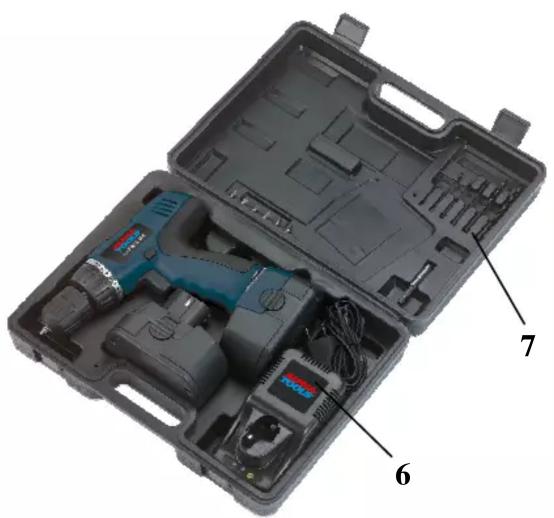

Standard accessory:

• 1 hour charger (6)
• Transport- and storage case (7)
• 1 additional NiCd changeable accu 18 V (8)

Technical data screw driver:

• Battery voltage: 18 volts
• Battery capacity: 1200 mAh
• Idle speed: I: 0-350 min ^-1 II: 0-900 min ^-1
• Torque setting: 20 steps
• Weight: 4.25 kg
• Packing dimension: 265 x 355 x 90 mm

Technical data charger:

• Charging time: 1 hour
• Charging current: 2500 mA

As special accessory available:

Spare power pack

Art.-No.: 45.115.80

Bar Code: 4006825513646
