| Product type | Cordless screwdriver |
| Brand | Toolson |
| Model | PRO-AS 3 6 Li |
| Motor power supply | 3.6 V DC |
| Battery type | Lithium-ion (Li-ion) |
| Battery capacity | 1.5 Ah |
| Charging voltage | 6 V DC |
| Charger mains voltage | 230-240 V ~ 50 Hz |
| Charging current | 550 mA |
| Charging time | 3 hours |
| No-load speed | 200 rpm |
| Weight | 0.4 kg |
| Main functions | Screwing and unscrewing, forward/reverse, torque adjustment on 2 angular positions |
| LED lamp | Automatic work area lighting |
| Charge indicator | 3 LEDs (green, yellow, red) for battery status |
| Care | Clean with a damp cloth and mild soap; do not use harsh chemicals |
| Maintenance | No internal parts requiring maintenance |
| Safety | Hearing and eye protection recommended; use in dry places; protection against deep discharge |
| Spare parts | Bits, chuck (wear) |
| Storage temperature | 5 to 30 °C, dry and dark place |
| Warranty | 60 months (excluding professional use) |
Frequently Asked Questions - PRO-AS 3 6 Li Toolson
User questions about PRO-AS 3 6 Li Toolson
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Screwdriver in PDF format for free! Find your manual PRO-AS 3 6 Li - Toolson and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. PRO-AS 3 6 Li by Toolson.
USER MANUAL PRO-AS 3 6 Li Toolson


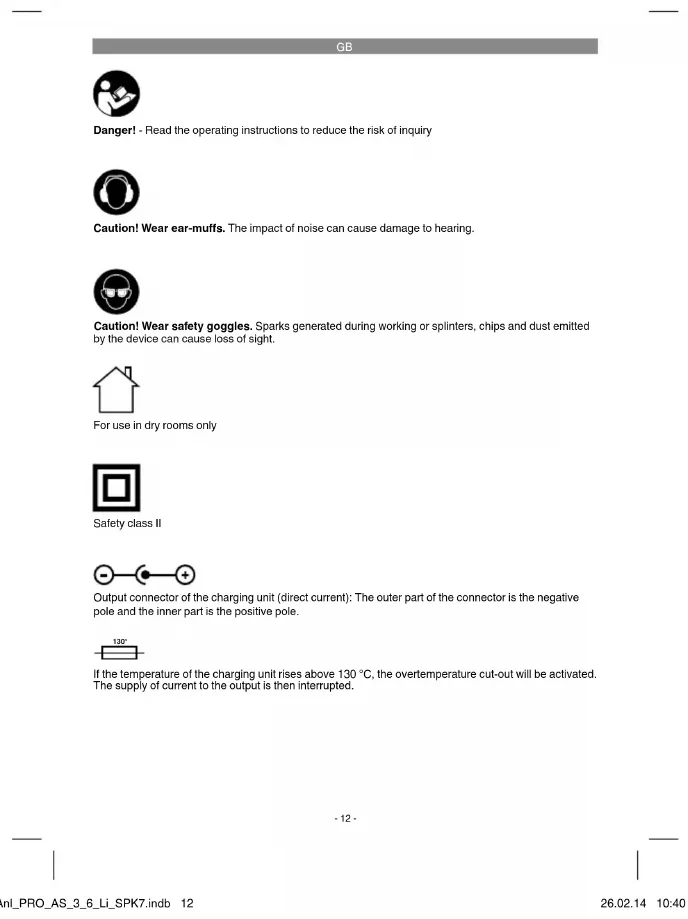

DE
Danger! - Read the operating instructions to reduce the risk of inquiry
Caution! Wear ear-muffs. The impact of noise can cause damage to hearing
Caution! Wear safety goggles. Sparks generated during working or splinters, chips and dust emitted by the device can cause loss of sight.
For use in dry rooms only
Safety class II
Output connector of the charging unit (direct current): The outer part of the connector is the negative pole and the inner part is the positive pole.
If the temperature of the charging unit rises above 130 °C, the overtemperature cut-out will be activated. The supply of current to the output is then interrupted.
-12-
GB
Danger!
When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.
1. Safety regulations
The corresponding safety information can be found in the enclosed booklet.
Danger!
Read all safety regulations and instructions. Any errors made in following the safety regulations and instructions may result in an electric shock, fi re and/or serious injury.
Keep all safety regulations and instructions in a safe place for future use.
2. Layout and items supplied
2.1 Layout (Fig. 1/4)
-
Bit chuck
-
Lamp
-
Torque selector
-
Magnetic screw holder
-
Battery capacity indicator
-
Switch for battery capacity indicator
-
Locking button
-
Charging connection
-
On/Off switch
-
Clockwise/Counter-clockwise selector switch
-
Charging unit
-
Charging cable
-
Locking sleeve
2.2 Items supplied
Please check that the article is complete as specified in the scope of delivery. If parts are missing, please contact our service center or the sales outlet where you made your purchase at the latest within 5 working days after purchasing the product and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the service information at the end of the operating instructions.
- Open the packaging and take out the equipment with care.
- Remove the packaging material and any packaging and/or transportation braces (if available).
- Check to see if all items are supplied.
- Inspect the equipment and accessories for transport damage.
- If possible, please keep the packaging until the end of the guarantee period.
Danger!
The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suffocating!
• Cordless screwdriver
- Charging unit
• Original operating instructions
• Safety information
3. Proper use
The cordless screwdriver is designed for tightening and undoing screws.
The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.
Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.
4. Technical data
Motor power supply: 3.6 V d.c. Idling speed: 200 min ^1
Clockwise/counter-clockwise: ....Yes
Battery charge voltage: 6 V d.c.
Battery charge current: 550 mA
Charging unit supply voltage: ...230-240V\~ 50 Hz
Charging time: 3 hours
Battery capacity 1.5 Ah
Battery type: Lithium-ion
Weight: 0.4 kg
GB
Danger!
Sound and vibration
Sound and vibration values were measured in accordance with EN 60745.
L_pA sound pressure level ..... 57 dB(A)
K_pA uncertainty 3 dB
L_vH sound power level 68 dB(A)
K_m uncertainty 3 dB
Wear ear-muff s.
The impact of noise can cause damage to hearing.
Total vibration values (vector sum of three directions) determined in accordance with EN 60745.
Screwing without hammer action
Vibration emission value a_b ≤ 2.5 m/s^2
K uncertainty = 1.5 m/s ^2
The specified vibration value was established in accordance with a standardized testing method. It may change according to how the electric equipment is used and may exceed the specified value in exceptional circumstances.
The specified vibration value can be used to compare the equipment with other electric power tools.
The specified vibration value can be used for initial assessment of a harmful effect.
Keep the noise emissions and vibrations to a minimum.
• Only use appliances which are in perfect working order.
• Service and clean the appliance regularly.
• Adapt your working style to suit the appliance.
• Do not overload the appliance.
- Have the appliance serviced whenever necessary.
• Switch the appliance off when it is not in use.
• Wear protective gloves.
Caution!
Residual risks
Even if you use this electric power tool in accordance with instructions, certain residual risks cannot be rules out. The following hazards may arise in connection with the equipment's construction and layout:
- Lung damage if no suitable protective dust
mask is used.
- Damage to hearing if no suitable ear protection is used.
- Health damage caused by hand-arm vibrations if the equipment is used over a prolonged period or is not properly guided and maintained.
5. Before starting the equipment
Danger!
Be sure to read the following information before you put the cordless screwdriver into operation:
- Charge the battery only with the charging unit supplied.
- Only ever use screwdriver bits which are suitable for the purpose and in faultless condition.
- Before you begin to screw in walls and masonry, check for concealed electric wiring, gas pipes and water pipes.
6. Operation

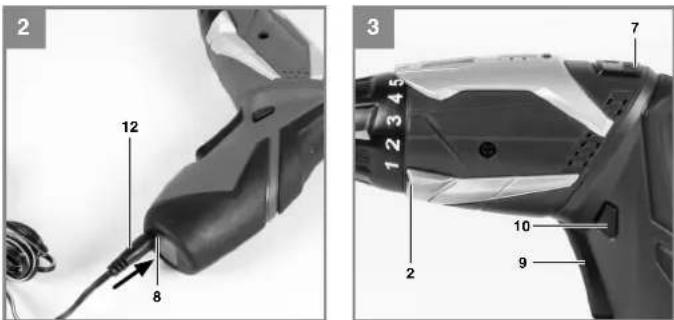

6.1 Charging the battery (Fig. 2)
The battery is protected from exhaustive discharge. An integrated protective circuit automatically switches off the equipment when the battery is fl at. In this case the bit chuck will cease to turn.
Notice! Do not press the On/Off switch any more if the protective circuit has tripped. This may damage the battery.
Check that your mains voltage is the same as that marked on the rating plate of the battery charger. Plug the battery charger in the plug socket and connect the charging cable to the charging connection. The charging process starts as soon as the charging cable is connected to the charging adapter.
The red LED on the battery capacity indicator (5) indicates that the battery is being charged. When the charging has fi nished, the red LED will go out and the green LED will begin to shine.
Notice! The handle may become a little warm during the charging process. This is normal.
If the battery fails to charge, please check whether there is voltage at the socket outlet
GB
• whether there is good contact at the charging contacts of the charging unit
If the battery still fails to charge, send
• the charging unit • and the screwdriv
to our customer service center. Timely recharging of the battery will help it serve you well for a long time. You must recharge the battery when you notice that the power of the cordless screwdriver drops.
6.2 Changeover switch (Fig. 3/Item 10)
The slide switch above the On/Off switch is for setting the direction of rotation of the cordless screwdriver and for preventing the cordless screwdriver from being switched on inadvertently. You can select between clockwise and counterclockwise rotation. Change the direction of rotation only when the equipment is at a standstill. If you fail to observe this point, the gearing may become damaged. When the slide switch is in the middle position, the On/Off switch is blocked.
6.3 On/Off switch (Fig. 3 / Item 9)
Press the On/Off switch to switch the cordless screwdriver on. Release the On/Off switch again to switch it off.
6.4 LED lamp (Fig. 3/Item 2)
The LED lamp (2) can be used to additionally illuminate the area where you want to drill or screw. The LED lamp (2) will be lit automatically as soon as you press the On/Off switch (9).
6.5 Angle setting (Fig. 3+4/Item 7)
The screwdriver can be locked into 2 different angle settings. To do so, press and hold the locking button (7) and move the screwdriver into the desired position. Then release the locking button (7) again.
Caution! Before you switch on the screwdriver, make sure that it is correctly locked in the angle position in question.
6.6 Battery capacity indicator (Fig. 5/Item 5)
Remove the cordless screwdriver from the charging unit/charging station.
Press the button for the battery capacity indicator (6). The battery capacity indicator (5) indicates the charge state of the battery on 3 colored LEDs.
All the LEDs are lit:
The battery is fully charged.
The yellow and red LEDs are lit:
The battery has an adequate remaining charge.
Red LED:
The battery is empty, recharge the battery.
6.7 Torque setting (Fig. 5 / Item 3)
The torque for a particular screw size is set with the setting ring (3). The torque is dependent on a number of factors:
- On the type and hardness of the material involved
• On the type and length of the screws used
- On the requirements that the screw connection has to satisfy
The grating disengagement of the coupling indicates that the selected torque level has been reached.
Notice! Only ever adjust the setting ring when the equipment is at a standstill.
6.8 Magnetic screw holder (Fig. 5/Item 4)
Screws can be placed on the magnetic screw holder for easy reach during operation.
6.9 Changing the bit (Fig. 6)
Warning! Set the changeover switch to its center position whenever you carry out any work (for example changing the bit, maintenance, etc.) on the cordless screwdriver.
• Pull back and hold the locking sleeve (13).
- Insert the bit (a) in the bit chuck (1) and let go of the locking sleeve (13).
- Check that the bit is locked in placed by pulling on it.
6.10 Screws
It is advisable to use self-centering screws (e.g. Torx, cross recessed head) as these will enable you to work safely and reliably. Always make sure that the bit used is of the same size and shape as the screw.
GB
7. Cleaning, maintenance and ordering of spare parts
Danger!
Always pull out the mains power plug before starting any cleaning work.
7.1 Cleaning
- Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.
• We recommend that you clean the device immediately each time you have finished using it. - Clean the equipment regularly with a moist cloth and some soft soap. Do not use cleaning agents or solvents; these could attack the plastic parts of the equipment. Ensure that no water can seep into the device. The ingress of water into an electric tool increases the risk of an electric shock.
7.2 Maintenance
There are no parts inside the equipment which require additional maintenance.
7.3 Ordering replacement parts:
Please quote the following data when ordering replacement parts:
• Type of machine
• Article number of the machine
• Identification number of the machine
- Replacement part number of the part required For our latest prices and information please go to www.isc-gmbh.info
8. Disposal and recycling
The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Never place defective equipment in your household refuse. The equipment should be taken to a suitable collection center for proper disposal. If you do not know the whereabouts of such a collection point, you should ask in your local council offices.
-16-
9. Storage
Store the equipment and accessories in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30 °C. Store the electric tool in its original packaging.
GB
For EU countries only
Never place any electric power tools in your household refuse.
To comply with European Directive 2012/19/EC concerning old electric and electronic equipment and its implementation in national laws, old electric power tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot.
Recycling alternative to the return request:
As an alternative to returning the equipment to the manufacturer, the owner of the electrical equipment must make sure that the equipment is properly disposed of if he no longer wants to keep the equipment. The old equipment can be returned to a suitable collection point that will dispose of the equipment in accordance with the national recycling and waste disposal regulations. This does not apply to any accessories or aids without electrical components supplied with the old equipment.
The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the iSC GmbH.
Subject to technical changes
-17-
GB
Service information
We have competent service partners in all countries named on the guarantee certificate whose contact details can also be found on the guarantee certificate. These partners will help you with all service requests such as repairs, spare and wearing part orders or the purchase of consumables.
Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables.
| Category Example | |
| Wear parts* Drill chuck | |
| Consumables* Bit inserts/drill bits | |
| Missing parts |
* Not necessarily included in the scope of delivery!
In the effect of defects or faults, please register the problem on the internet at www.isc-gmbh.info. Please ensure that you provide a precise description of the problem and answer the following questions in all cases:
• Did the equipment work at all or was it defective from the beginning?
• Did you notice anything (symptom or defect) prior to the failure?
- What malfunction does the equipment have in your opinion (main symptom)? Describe this malfunction.
GB
Warranty certifi cate
Dear Customer,
All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card or the sales outlet from where you bought the device. Please note the following terms under which guarantee claims can be made:
- These guarantee conditions regulate additional guarantee services. Your statutory guarantee claims are not affected by this guarantee. Our guarantee is free of charge to you.
- Our guarantee only covers defects suffered by the device which have been verifiably caused by a material or manufacturing fault and is limited to the rectification of such defects or the replacement of the device at our discretion. Please note that our devices are not designed for use in commercial, trade or professional applications. A guarantee contract will not be created if the device has been used by commercial, trade or industrial business or has been exposed to similar stresses during the guarantee period.
- The following are not covered by our guarantee:
- Damage to the device caused by a failure to follow the assembly instructions or due to incorrect installation, a failure to follow the operating instructions (for example connecting it to an incorrect mains voltage or current type) or a failure to follow the maintenance and safety instructions or by exposing the device to abnormal environmental conditions or by lack of care and maintenance.
- Damage to the device caused by abuse or incorrect use (for example overloading the device or the use or unapproved tools or accessories), ingress of foreign bodies into the device (such as sand, stones or dust, transport damage), the use of force or damage caused by external forces (for example by dropping it).
- Damage to the device or parts of the device caused by normal or natural wear or tear or by normal use of the device.
- The guarantee is valid for a period of 60 months starting from the purchase date of the device. Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies if an on-site service is used.
- Please report the defective device on the following internet address to register your guarantee claim: www.isc-gmbh.info. If the defect is covered by our guarantee, then the item in question will either be repaired immediately and returned to you or we will send you a new replacement device.
Also refer to the restrictions of this warranty concerning wear parts, consumables and missing parts as set out in the service information in these operating instructions.
-19-
FR
Negotovost K_n 3 dB
Nivo zvočne moči L _u 68 dB (A)
Negotovost K _wa 3 dB
6.10 Kruvide keeramine:
□90/396/EC_2009/142/EC
□89/686/EC_96/58/EC
x2011/65/EC
2006/42/EC
Annex IV Notili ed Body: Notili ed Body No.: Reg. No.:
□2000/14/EC_2005/88/EC
- Annex V - Annex VI Noise: measured L_n = dB (A) ; guaranteed L_n = dB (A) P = KW; L/∅ = cm Nolifi nd Poliv:
2004/26/EC Emission No.:
Standard references: EN 60745-1; EN 60745-2-2; EN 55014-1; EN 55014-2; EN 61000-3-2; EN 61000-3-3; EN 60335-1; EN 60335-2-29; EN 62233
Nylol Yang Yeng Product Management With the partner General Manager
First CE: 11 Art.-No.: 45.134.96 I.-No.: 11014
subject to change without notice
Archive-File/Record: NAPR010161 Documents registrar: Georg Riedel Wiesenweg 22, D-94405 LandauIsar
