PRO-HM 4 - Hammer Toolson - Free user manual and instructions

Product Type	Hammer (Rotary Hammer)
Brand	Toolson
Model	PRO-HM 4
Power Supply	Mains: 230-240 V ~ 50 Hz
Power Input	900 W
Idle Speed	0 - 1,000 min
Impact Rate	0 - 4,500 min
Impact Energy	2.6 J
Drilling Capacity (Concrete)	26 mm
Chuck Type	SDS-Plus
Modes	Drilling, Hammer Drilling, Chiseling with/without fixation
Rotation Direction	Right/Left rotation
Speed Control	Electronic (variable)
Safety Clutch	Overload safety clutch
Gear Head Material	Sturdy aluminium
Soft Grip	Yes
Operating Status Indicator	Yes
Additional Handle	Included (Side handle)
Depth Gauge	Metal, included
Cable Length	4 m
Product Weight	4.5 kg
Net Weight (with accessories)	6.0 kg
Packing Dimensions	421 x 352 x 122 mm
Storage	Transport and storage case included
Accessories (Optional)	SDS drill and chisel set (12 pcs with alu case), SDS-Plus drill bit set (5 pcs)

Frequently Asked Questions - PRO-HM 4 Toolson

What is the power source for the Toolson PRO-HM 4?

The Toolson PRO-HM 4 is mains-powered, requiring 230-240 V ~ 50 Hz.

What types of drilling modes does this hammer support?

It supports drilling, hammer drilling, and chiseling (with or without chisel fixation). Use the selector switch to choose.

How do I change the SDS-Plus bit?

Pull back the SDS chuck sleeve, insert the bit until it clicks, then release the sleeve to lock. Ensure the bit is securely in place.

Can I use this hammer for chiseling?

Yes, set the mode to chiseling with or without chisel fixation. The chisel can be rotated to different positions.

How to adjust the speed?

The electronic speed control allows variable speed. Depress the trigger partially for lower speeds; fully for maximum speed.

What is the maximum drilling capacity in concrete?

The maximum drilling capacity in concrete is 26 mm.

Does the tool have a safety feature to prevent kickback?

Yes, it features an overload safety clutch that disengages the drive if the bit jams.

How should I maintain the Toolson PRO-HM 4?

Regularly clean the ventilation slots, check the carbon brushes (if accessible), and keep the SDS chuck clean. Refer to the manual for detailed maintenance.

What accessories are included in the box?

The standard accessories include an additional handle, metal depth gauge, and a transport/storage case.

Where can I find spare parts or optional accessories?

Optional accessories like the SDS drill and chisel set (12 pcs with alu case, Art.-No. 42.580.90) and SDS-Plus drill bit set (5 pcs, Art.-No. 42.580.95) are available from Toolson.

USER MANUAL PRO-HM 4 Toolson

4 Functions Rotary Hammer

Art.-No. 42.582.55

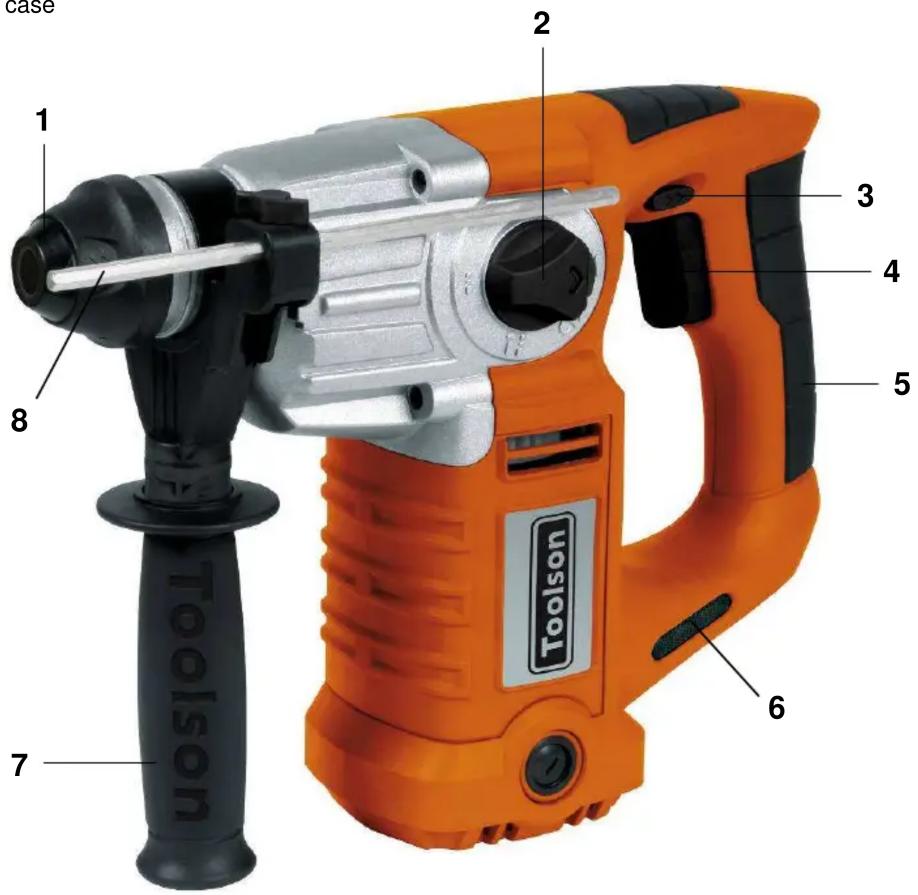

Features

■ Sturdy aluminium gear head
■ Overload safety clutch
■ SDS-Plus adapter (1)
- Selector switch (2)
- Drilling
- Hammer drilling
- Chiseling with chisel fixation
- Chiseling without chisel fixation
■ Right/ left rotation (3)
■ Electronic speed control (4)
■ Soft grip (5)
■ Operating status indicator (6)

Standard accessories

■ Additional handle (7)
■ Metal depth gauge (8)
■ Transport and storage case

Technical Data

■ Mains: 230 – 240 V \~ 50 Hz
Power: 900 W
■ Idle speed: 0 - 1,000 min ^-1
■ No. of impacts / Impact power: 0 – 4,500 min ^-1 / 2.6 J
■ Drilling capacity (concrete): 26 mm
Kabellänge: 4 m
■ Product weight: 4.5 kg

Logistic Data

■ Net weight: 6.0 kg
■ Gross weight: 6.3 kg
■ Packing dimensions: 421 x 352 x 122 mm
■ Bar code: 4006825 579031
■ Sales unit: 2 pcs

As special accessories available:

SDS drill and chisel set

12 pcs with alu case

Art.-No.: 42.580.90

Bar code: 4006825 538885

SDS-Plus drill bit set

5 pcs

Art.-No.: 42.580.95

Bar code: 4006825 569612
