DS 405/2 E - Saw Herkules - Free user manual and instructions
Find the device manual for free DS 405/2 E Herkules in PDF.
| Product type | Jigsaw |
| Brand | Herkules |
| Model | DS 405/2 E |
| Mains voltage | 230 V ~ 50 Hz |
| Power consumption (S2 20min) | 80 W |
| Power consumption (S6 30%) | 120 W |
| No-load speed | 400-1600 rpm |
| Stroke | 21 mm |
| Table dimensions | 410 x 253 mm |
| Footprint | 440 x 280 mm |
| Table tilt | 0° to 45° to the left |
| Max. cutting height at 90° | 57 mm |
| Max. cutting height at 45° | 27 mm |
| Blade length | 127 mm |
| Distance from spindle axis to frame | 406 mm |
| Weight | 13 kg |
| Protection type | IP 20 |
| Sound pressure level (under load) | 80.2 dB(A) |
| Sound power level (under load) | 88.4 dB(A) |
| Main functions | Cutting wood or similar materials, interior cuts, speed adjustment |
| Care and cleaning | Cleaning with damp cloth and soap, greasing bearings every 25-30 h |
| Safety | Protective cover, safety switch anti-restart, contact protection |
| Spare parts and repairability | Saw blades, carbon brushes replaceable by an electrician |
Frequently Asked Questions - DS 405/2 E Herkules
User questions about DS 405/2 E Herkules
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Saw in PDF format for free! Find your manual DS 405/2 E - Herkules and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. DS 405/2 E by Herkules.
USER MANUAL DS 405/2 E Herkules
GB Original operating instructions Fretsaw
-4-
Anleitung_DS_405_2_E_SPK7.indb 4
11.10.11 14:46
DE

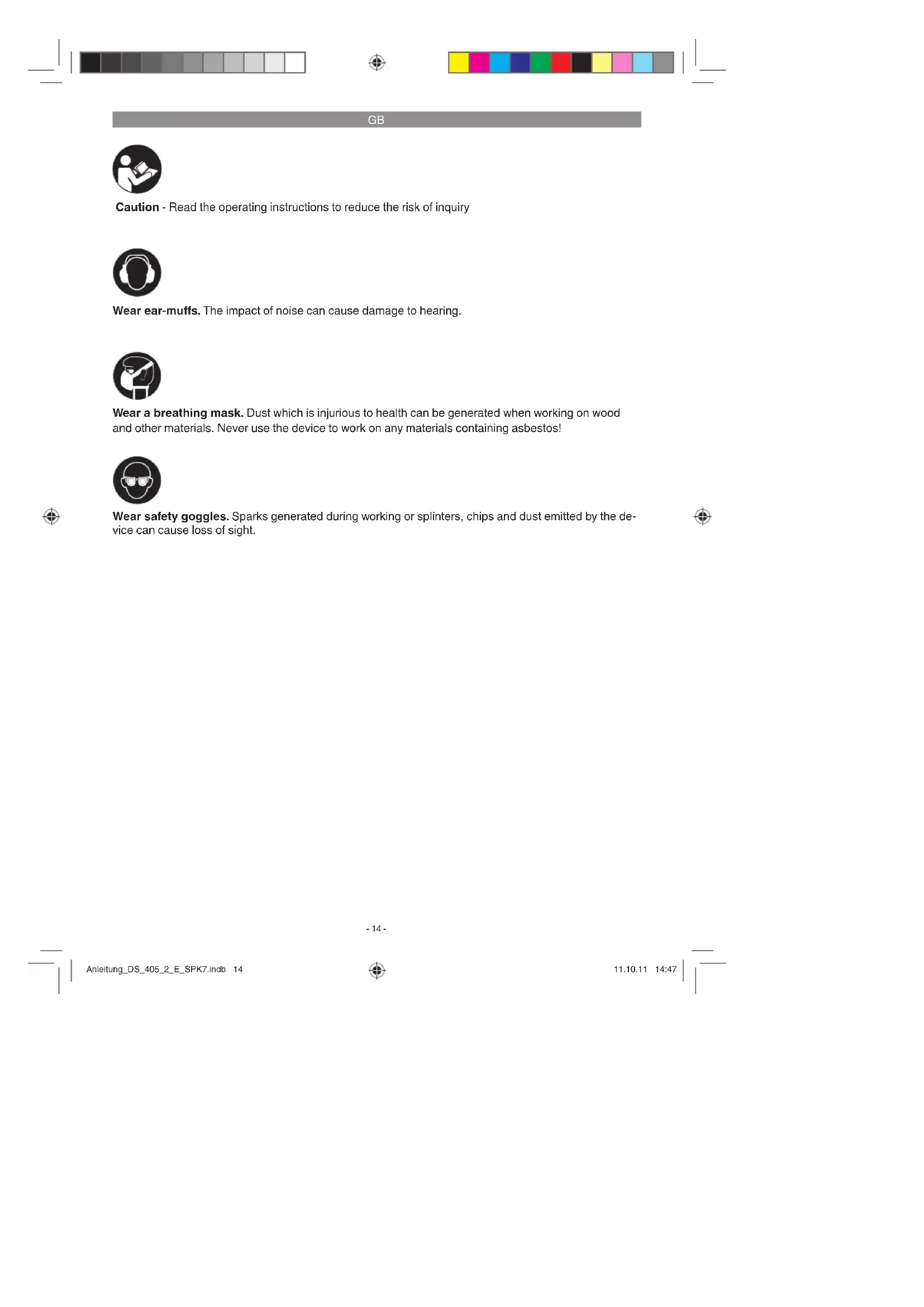

Caution - Read the operating instructions to reduce the risk of inquiry
Wear ear-muffs. The impact of noise can cause damage to hearing.
Wear a breathing mask. Dust which is injurious to health can be generated when working on wood and other materials. Never use the device to work on any materials containing asbestos!
Wear safety goggles. Sparks generated during working or splinters, chips and dust emitted by the device can cause loss of sight.
-14-
GB
⚠️ Important!
When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.
1. Safety regulations
The corresponding safety information can be found in the enclosed booklet.
Caution!
Read all safety regulations and instructions.
Any errors made in following the safety regulations and instructions may result in an electric shock, fire and/or serious injury.
Keep all safety regulations and instructions in a safe place for future use.
2. Layout and items supplied
2.1 Layout (Fig. 1/3)
1 Dust extraction adapter
2 On/Off switch
3 Blade speed regulator
4 Cover, left
5 Locking screw
6 Dial scale
7 Saw table
8 Blade holder, bottom
9 Retention bolt
10 Blade guard
11 Clamping screw
12 Holder
13 Blade holder, top
14 Clamping screw
15 Blade
16 Blow-off device
2.2 Items supplied
- Open the packaging and take out the equipment with care.
- Remove the packaging material and any packaging and/or transportation braces (if available).
- Check to see if all items are supplied.
- Inspect the equipment and accessories for transport damage.
- If possible, please keep the packaging until the end of the guarantee period.
Important!
The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suffocating!
- Fretsaw
- Blade guard
• Sawdust blower facility
3. Proper use
The fretsaw is intended for cutting square-edged timber or wood-like workpieces. Round materials may only be cut with suitable holding devices.
The machine is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.
Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.
The equipment is to be operated only with suitable saw blades. It is prohibited to use any type of cutting-off wheel. To use the equipment properly you must also observe the safety regulations, the assembly instructions and the operating instructions to be found in this manual.
All persons who use and service the equipment have to be acquainted with this manual and must be informed about the machine's potential hazards.
It is also imperative to observe the accident prevention regulations in force in your area.
The same applies for the general rules of health
GB
and safety at work.
The manufacturer will not be liable for any changes made to the machine nor for any damage resulting from such changes.
Even when the equipment is used as prescribed it is still impossible to eliminate certain residual risk factors. The following hazards may arise in connection with the machine's construction and design:
- Harmful emissions of wood dust when used in closed rooms.
- Contact with the blade in the uncovered cutting zone.
• Injuries (cuts) when changing the blade. - Crushed fingers.
- Kickback.
- Tilting of the workpiece due to inadequate support.
- Touching the blade.
4. Technical data
Mains voltage: 230 V \~ 50Hz
Power consumption: 80 W
Operating mode: S2 20 min
Power consumption: 120 W
Operating mode: S6 30%
Idle speed n_0 : 400-1600 min ^-1
Protection type: IP 20
Stroke: 21 mm
Base area: 440 x 280 mm
Tilting range of table: 0° to 45° to the left
Table size: 410 x 253 mm
Saw blade length: 127 mm
Throat: 406 mm
Max. cutting height at 90°: 57 mm
Max. cutting height at 45°: 27 mm
Weight: 13 kg
Load factor:
A load factor of S2 20 min (intermittent periodic duty) means that you may operate the motor continuously at its nominal power level (80 W) for no longer than the time stipulated on the specifications label (20 min). If you fail to observe this time limit the motor will overheat. During the OFF period the motor will cool again to its starting temperature.
Operating mode S6 30%: Continuous operation with idling (cycle time 10 minutes). To ensure that the motor does not become excessively hot, it may only be operated for 30% of the cycle at the specified rating and must then be allowed to idle for 70% of the cycle.
Sound and vibration
Sound and vibration values were measured in accordance with EN 61029.
Operation Idle speed
L_out sound pressure level: 80.2 dB 65.1 dB
L_WA^MA sound power level: 88.4 dB 74.8 dB
Wear ear-muff s.
The impact of noise can cause damage to hearing.
Keep the noise emissions and vibrations to a minimum.
- Only use appliances which are in perfect working order.
• Service and clean the appliance regularly.
• Adapt your working style to suit the appliance.
• Do not overload the appliance. - Have the appliance serviced whenever necessary.
- Switch the appliance off when it is not in use.
• Wear protective gloves.
Residual risks
Even if you use this electric power tool in accordance with instructions, certain residual risks cannot be rules out. The following hazards may arise in connection with the equipment's construction and layout:
- Lung damage if no suitable protective dust mask is used.
- Damage to hearing if no suitable ear protection is used.
GB
5. Before starting the equipment
5.1 General information
- All covers and safety devices have to be properly fitted before the machine is switched on.
• It must be possible for the blade to run freely. - When working with wood that has been processed before, watch out for foreign bodies such as nails or screws etc.
Before you actuate the On/Off switch, make sure that the saw blade is correctly fitted and that the machine's moving parts run smoothly. - Before you connect the machine to the power supply, make sure the data on the rating plate is the same as that for your mains.
5.2 Mounting the saw on a workbench (Fig. 2)
- It is better to mount the saw on a solid wood workbench rather than on a weak plywood stand where vibrations and noise are certain to be a nuisance.
- The tools and hardware needed to mount the saw on a work bench are not supplied with the saw. Be sure to use equipment of at least the following size:
Item
Quantity
Hex screws M8 4
Gaskets ∅ 8 mm 4
Washers ∅ 8 mm 4
Hex nuts M8 8
- A sound-absorbing foam rubber mat is not supplied with the saw. It is strongly recommended to use such a mat, however, in order to minimize vibrations and noise.
Description:
Soft foam rubber mat: 450 x 250 x 13 mm
Do not overtighten the screws. Leave enough scope for the foam rubber mat to develop a good absorbing effect.
Mounting the saw on a workbench, see the Figure (2) List of components in the illustration:
A: Saw body
B: Foam rubber support
C: Worktable
D: Flat gasket
E: Washer
F: Hex nut
G: Blocking nut
H: Hex screw
5.3 Assembly
Caution! Pull out the power plug before carrying out any maintenance and conversion work on your fretsaw.
5.3.1 Mounting the saw blade guard and the sawdust blower facility (Fig. 4/5/6)
- Put the retention bolt (9) on the radial arm (19).
- Slide the saw blade guard (10) onto the retention bolt (9).
- Insert the screw (20) through the bore hole of the retention bolt (9) and the saw blade guard (10).
• Use the nut (21) to secure the screw from falling out. - The saw blade guard can be fixed at various heights with the clamping screw (11).
- Mount the blow-off device (16) as shown in Fig. 6.
5.3.2 Changing the blade (Fig. 1/3/7)
• Turn the clamping screw (14) clockwise in order to take the tension off the blade (15).
• Unscrew the left cover (4).
- First take the blade out of the top blade holder (13), pressing down the upper pendulum arm as you do so.
- Then take the blade out of the bottom blade holder (8).
- Pull the blade up and out through the table insert (18).
• Install the new blade in reverse order.
Caution: Always insert the blade so that the teeth point toward the saw table.
The blade can be inserted in slot a or b; Slot a: For cuts along the axis of the radial arm. Slot b: For cuts across the axis of the radial arm.
Tension the blade by turning the clamping screw (14) anticlockwise (right-hand thread).
5.3.3 Tilting the saw table (Fig. 8)
• Undo the locking screw (5).
- Tilt the table (7) to the left until the indicator (17) points to the required angle value on the scale (6).
Important: For precision work you should first carry out a trial cut and then re-adjust the tilt angle as required.
-17-
GB
6. Operation
6.1 Please note:
- Your saw does not cut wood automatically. For cutting to occur, you have to guide the wood against the blade.
- The teeth cut only on the down stroke of the blade.
• You have to guide the wood slowly against the blade because the teeth are very small. - Every new user needs a certain training period. You are certain to break a number of blades at the beginning.
- When cutting thick timber, be particularly careful not to bend or twist the blade. This will help to prolong blade life.
6.2 On/Off switch (Fig. 3 / Item 2)
- Press the green button to switch the saw on.
- Press the red button to switch the machine off.
- Please note: The machine is equipped with a safety switch to prevent it being switched on again accidentally after a power failure.
6.3 Blade speed regulator (3)
The blade speed regulator allows you to set the blade speed appropriate to the material to be cut.
6.4 Carrying out internal cuts
- A feature of this fretsaw is that it allows you to carry out internal cuts in a panel without damaging it on the outside or circumference.
Warning! To avoid injury from accidental starting: Before you remove or change the blade, always set the switch to „0“ position and pull the power plug out of the socket.
- To carry out internal cuts in a panel: Remove the blade as described in Section 5.3.2
- Drill a hole in the panel in question.
- Place the panel on the saw table with the drilled hole above the access hole.
- Install the blade through the hole in the panel and adjust the blade tension.
- When you have completed the internal cuts, remove the blade from the blade holders (as described in Section 5.3.2) and take the panel off the table.
6.5 Adapter for jigsaw blades (Fig. 8/9)
- Remove the saw blade as described in 5.3.2.
- Now insert the fretsaw blade (a) in the adapter.
• First remove the table insert (18). - Then hook both adapters (22) on the two saw blade holders (8/13).
• Insert the saw blade as described in 5.3.2.
7. Cleaning, maintenance and ordering of spare parts
Always pull out the mains power plug before starting any cleaning work.
7.1 Cleaning
- Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.
• We recommend that you clean the device immediately each time you have finished using it. - Clean the equipment regularly with a moist cloth and some soft soap. Do not use cleaning agents or solvents; these could attack the plastic parts of the equipment. Ensure that no water can seep into the device.
7.2 Bearings
Lubricate the bearings of the guide rollers periodically with high-grade machine grease, but at least after every 25-30 hours in operation.
7.3 Carbon brushes
In case of excessive sparking, have the carbon brushes checked only by a qualified electrician. Important! The carbon brushes should not be replaced by anyone but a qualified electrician.
7.4 Maintenance
There are no parts inside the equipment which require additional maintenance.
GB
7.5 Ordering replacement parts:
Please quote the following data when ordering
replacement parts:
• Type of machine
• Article number of the machine
• Identification number of the machine
• Replacement part number of the part required
For our latest prices and information please go to www.isc-gmbh.info
8. Disposal and recycling
The unit is supplied in packaging to prevent its being damaged in transit. This packaging is raw material and can therefore be reused or can be returned to the raw material system.
The unit and its accessories are made of various types of material, such as metal and plastic. Defective components must be disposed of as special waste. Ask your dealer or your local council.
9. Storage
Store the equipment and accessories out of children's reach in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30 °C. Store the electric tool in its original packaging.
-19-
GB
For EU countries only
Never place any electric power tools in your household refuse.
To comply with European Directive 2002/96/EC concerning old electric and electronic equipment and its implementation in national laws, old electric power tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot.
Recycling alternative to the return request:
As an alternative to returning the equipment to the manufacturer, the owner of the electrical equipment must make sure that the equipment is properly disposed of if he no longer wants to keep the equipment. The old equipment can be returned to a suitable collection point that will dispose of the equipment in accordance with the national recycling and waste disposal regulations. This does not apply to any accessories or aids without electrical components supplied with the old equipment.
The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the iSC GmbH.
Subject to technical changes
-20-
GB
Warranty certifi cate
Dear Customer,
In the unlikely event that your device develops a fault, we are truly sorry for this, and suggest that you please contact our service department at the address shown on this guarantee card, or contact the nearest authorised DIY store. Please note the following terms, under which guarantee claims can be made:
- These guarantee terms cover additional guarantee rights and do not affect your statutory warranty rights. We do not charge you for this guarantee.
- Our guarantee only covers problems caused by material or manufacturing defects, and it is restricted to the rectification of these defects or replacement of the device. Please note that our devices have not been designed for use in commercial, trade or industrial applications. Consequently, the guarantee is invalidated if the equipment is used in commercial, trade or industrial applications or for other equivalent activities. The following are also excluded from our guarantee: compensation for transport damage, damage caused by failure to comply with the installation/assembly instructions or damage caused by unprofessional installation, failure to comply with the operating instructions (e.g. connection to the wrong mains voltage or current type), misuse or inappropriate use (such as overloading of the device or use of non-approved tools or accessories), failure to comply with the maintenance and safety regulations, ingress of foreign bodies into the device (e.g. sand, stones or dust), effects of force or external influences (e.g. damage caused by the device being dropped) and normal wear resulting from proper operation of the device. This applies in particular to rechargeable batteries for which we nevertheless issue a guarantee period of 12 months. The guarantee is rendered null and void if any attempt is made to tamper with the device.
- The guarantee is valid for a period of 5 years starting from the purchase date of the device. Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies when an on-site service is used.
- In order to assert your guarantee claim, please send your defective device postage-free to the address shown below. Please enclose either the original or a copy of your sales receipt or another dated proof of purchase. Please keep your sales receipt in a safe place, as it is your proof of purchase. It would help us if you could describe the nature of the problem in as much detail as possible. If the defect is covered by our guarantee then your device will either be repaired immediately and returned to you, or we will send you a new device.
-21-
FR
6.2 Interruptor ON/OFF (3; Fig. 2)
GB explains the following conformity according to EU directives and norms for the following product
Noise measured: LWA = dB (A); guaranteed LWA = dB (A)
P = KW; L/∅ = cm
Notified Body:
2006/28/EC
Emission No.:
Standard references: EN 61029-1; EN 55014-1; EN 55014-2; EN 61000-3-2; EN 61000-3-3
Subject to change without notice
Archive-File/Record: NAPR004581
Documents registrar: Rolder
Wiesenweg 22, D-94405 Landau/Isar
- 165 -
Anleitung_DS_405_2_E_SPK7.indb 165
11.10.11 14:56
-166-
Anleitung_DS_405_2_E_SPK7.indb 166
11.10.11 14:56
-167-
Anleitung_DS_405_2_E_SPK7.indb 167
11.10.11 14:56
EH 10/2011 (01)
