Product Type	Stone Cutting Machine with Laser
Brand	Herkules
Model	STR 920 L
Power Supply	230 V ~ 50 Hz, 2200 W S2 20 min
Rotation Speed	3000 min⁻¹
Max Cutting Depth (90°)	70 mm
Max Cutting Depth (45°)	55 mm
Max Cutting Length	920 mm
Bevel Cutting Range	0° - 45°
Diamond Disc	∅ 300 mm, bore ∅ 25.4 mm
Protection Class	IP 54
Work Table Size	920 x 550 mm
Net Weight	65.1 kg
Gross Weight	71.6 kg
Dimensions (Packing)	1450 x 705 x 490 mm
Included Features	Diamond cutting disc, removable laser, RCD-plug, 4-way ball-bearing motor guide, infinitely swiveling motor guide 0-45°, adjustable angle stop, sturdy handle, rubber mat table, aluminium stops, steel cutting wheel guard, water trough with integrated pump, rugged legs
Special Accessory	Diamond cutting disc ∅ 300 mm (Art. No. 43.011.78)
Safety	RCD-plug for protection against electric shock
Maintenance	Clean water trough regularly; check coolant pump; ensure laser unit is clean
Application	Cutting concrete slabs, cobblestones, marble, granite, bricks, tiles

Frequently Asked Questions - STR 920 L Herkules

What is the maximum cutting length of the Herkules STR 920 L?

The maximum cutting length is 920 mm.

Can the laser be used separately from the machine?

Yes, the laser unit is removable and can be used as a laser leveler for flooring or other tasks. It is attached via a magnetic adapter and includes two spirit levels.

What is the purpose of the RCD-plug?

The RCD (Residual Current Device) plug provides enhanced electrical safety by cutting off power in case of a ground fault, protecting the user from electric shock.

How do I adjust the bevel angle?

The motor guide can be infinitely swiveled from 0° to 45° using the handle. An adjustable angle stop ensures precise angle cuts.

What materials can be cut with this machine?

It is designed for stone materials such as concrete slabs, cobblestones, marble, granite, bricks, and tiles.

Does the machine come with a diamond disc?

Yes, a diamond cutting disc ∅ 300 mm is included. Additional discs can be purchased as accessories (Art. No. 43.011.78).

What does the 'S2 20 min' rating mean for the motor?

S2 20 min means the motor is rated for intermittent duty: it can operate at full power for a maximum of 20 minutes, then must be allowed to cool before resuming.

How do I maintain the water trough and pump?

After use, drain the water via the drain plug. Clean the trough and pump to prevent debris buildup. Ensure the pump is submerged during operation for proper cooling.

What is the weight of the STR 920 L?

The net weight is 65.1 kg and the gross weight including packaging is 71.6 kg.

Is this machine suitable for professional use?

Yes, it is a rugged, versatile tool designed for professional applications, with a sturdy frame, large work table, and precise cutting capabilities.

USER MANUAL STR 920 L Herkules

With four standard legs which are quick and easy to fit, the rugged stone cutting machine is ideally suited for both stationary and mobile work. It offers a wide range of possibilities and is therefore a highly versatile tool for professional applications. The stone cutting machine can be used for the precise cutting of all kinds of concrete slabs, cobblestones, marble and granite slabs, and bricks and tiles, in a diversity of shapes and sizes. Only a few movements are required to perform both mitre and double mitre cuts and jolly cuts with a length up to 920 mm. An integrated coolant pump ensures that the diamond cutting wheel is perfectly cooled at all times while enabling you to work without interference from dust.

The stone cutting machine is equipped with a laser which shows the exact cutting line on the material to be cut. In addition, the laser unit, which is fastened to the machine by a magnetic adapter, can also be removed from the machine and used as a laser leveler when laying flooring materials or similar. The laser unit is therefore equipped with two spirit levels for the purpose.

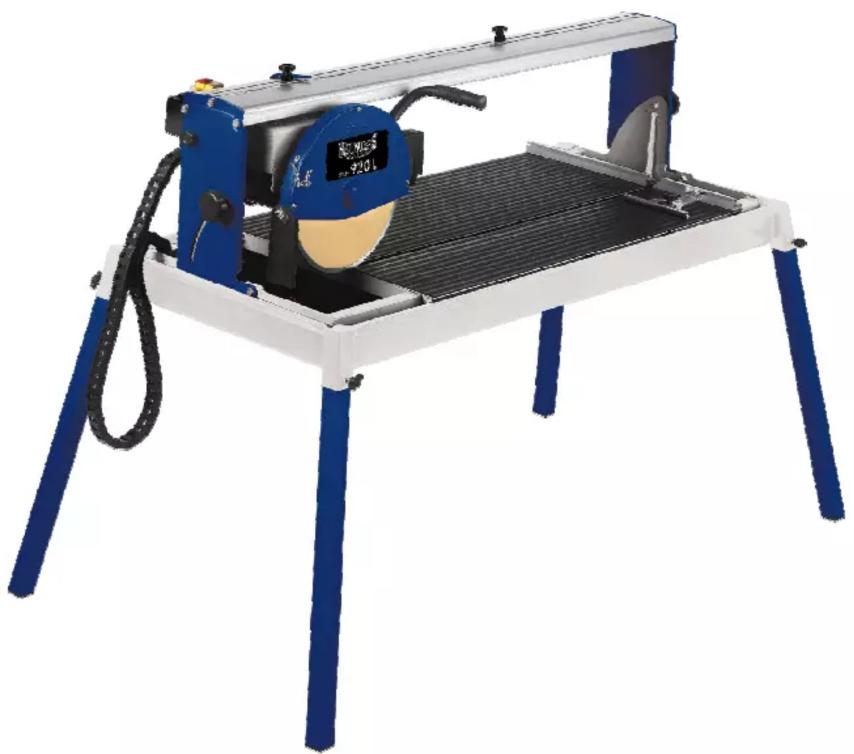

Industrial machine with blue and white frame, mounted on a metal platform (no visible text or symbols)

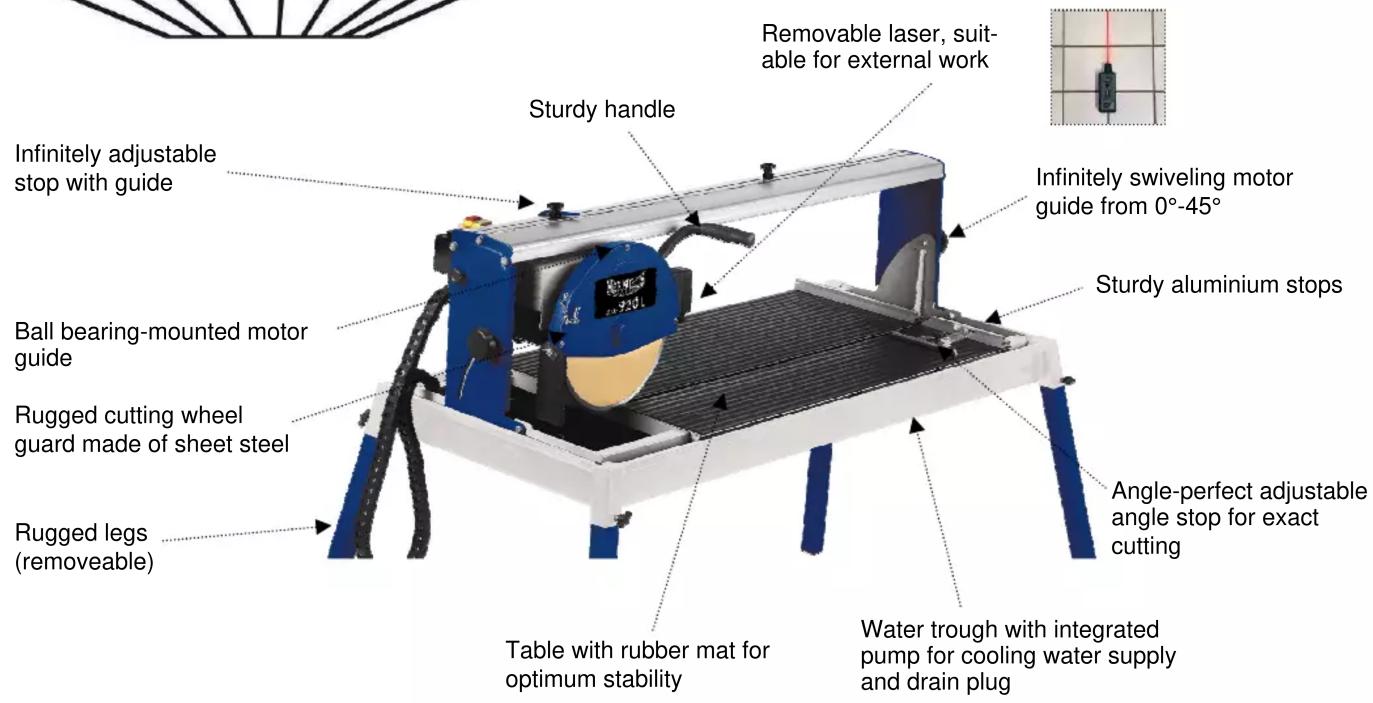

Features

Close-up of a mechanical device with a yellow component and blue blade, no visible text or symbols

Close-up of a Laser printer with a blue and gold component, placed on a textured surface (no visible text or symbols)

Close-up of an industrial machine with visible components and wiring (no text or symbols)

Close-up of a mechanical device with a blue and gold-colored disc mounted on a black tray, no visible text or symbols.

■ Diamond cutting disc included
■ Removable laser, suitable for external work
■ RCD-plug for machine safety
■ 4-way ball bearing-mounted motor guide
■ Infinitely swiveling motor guide from 0° to 45°
■ Angle-perfect adjustable angle stop
Sturdy handle
■ Large work table with rubber mat and aluminium stops
■ Solid cutting wheel guard made of sheet steel
■ Water trough with integrated pump for cooling water supply and drain plug
Rugged legs

HERKULES®

STR 920 L

Stone Cutting Machine with Laser

Close-up of a mechanical device with a yellow component and blue tool, no visible text or symbols

Infinitely swivelling motor guide from 0°-45°

Close-up of a mechanical device with a blue circular component and a patterned surface, no visible text or symbols.

Angle-perfect adjustable angle stop for exact cutting

Close-up of an electronic device with a metallic casing and attached cable, no visible text or symbols

Water trough with inte- grated pump for cooling water supply and drain plug

Black handheld electrical connector with a button and cable (no visible text or symbols)

RCD-plug for machine safety

CE

As special accessory available:

Diamond cutting disc ∅ 300 mm: 43.011.78

Art.No.:

Logistic Information
Technical Data
Type: STR 920 L

Art.-No.:	43.014.33
Ident-No.:	01018
Bar code:	4006825 556759
Packing:	1,450 x 705 x 490 mm

Sales unit: 1 pc

20":	48 pcs
40":	96 pcs
40” HC:	--- pcs

Net weight: 65.1 kg

Gross weight:

71.6 kg

■ Alternating current motor: 230 V \~ 50 Hz
■ Power: 2,200 W S2 20 min
■ Rotation speed n _0 : 3,000 min
■ Cutting depth 90°: max. 70 mm
■ Cutting depth 45°: max. 55 mm
■ Cutting length: max. 920 mm
■ Bevel cuts: 0° - 45°
■ Diamond disc: ∅ 300 x ∅ 25.4 mm
■ Protection class: IP 54
■ Work table: 920 x 550 mm
