UR10DL - Radio HiKOKI - Free user manual and instructions

Product type	Jobsite wireless radio
Brand	HiKOKI
Model	UR10DL
Frequency bands	FM: 87.5 – 108 MHz AM: 522 – 1620 kHz
FM antenna	Telescopic rod 280 mm
AM antenna	Built-in ferrite 50 mm
Speaker	40 mm (8 Ω) × 1
Power supply	Rechargeable lithium-ion battery 10.8 V / 12 V max (model BCL1015, 1.5 Ah, 3 cells) – sold separately
Battery life (radio)	Approx. 20 hours (maximum volume)
Battery life (light)	Approx. 50 hours
Dimensions (without battery)	146.5 mm × 95 mm × 48.5 mm
Weight (without battery)	0.2 kg
Main features	AM/FM radio, LED light, AM/FM selector, power/volume button, frequency selector, battery lock
LED lighting	Yes – switchable via independent button
Care and cleaning	Clean with a soft dry or slightly damp cloth (soapy water). Do not use solvents, petrol, or thinner.
Storage	Turn off, remove battery if unused for long periods. Avoid humidity, dust, temperatures >50°C, temperature variations, smoke, or vapors.
Spare parts and repairability	Repairs only by an authorized HiKOKI after-sales service. Spare parts list available.
Safety	Use only the specified battery, do not disassemble or modify, do not expose to water or rain, do not touch the antenna during a thunderstorm, retract the antenna during transport.
Warranty	Complies with statutory regulations. Does not cover damage due to misuse or normal wear and tear.

Frequently Asked Questions - UR10DL HiKOKI

Which battery should I use with the HiKOKI UR10DL radio?

Use only the lithium-ion battery BCL1015 (10.8 V / 12 V max, 1.5 Ah). Modified batteries are prohibited.

How do I turn on the radio and adjust the volume?

Turn the Power / Volume selector knob clockwise to turn on the radio and increase the volume.

How do I select the AM or FM band?

Slide the AM/FM selector (mark 10) to choose the desired mode.

How can I improve radio reception?

For FM, extend and orient the telescopic antenna. For AM, move the radio to find the best position. Keep away from electrical appliances and mobile phones.

How do I use the LED light?

Press the light switch (mark 6) to turn the LED on or off. Do not look directly at the illuminated LED.

What is the battery life of the radio?

When using the radio at maximum volume: approximately 20 hours. When using the light only: approximately 50 hours.

What should I do if the radio emits smoke or an abnormal smell?

Immediately set the Power/Volume knob to OFF and remove the battery. Contact an authorized HiKOKI after-sales service.

How do I clean the radio?

Use a soft dry cloth or one slightly dampened with soapy water. Never use solvents, petrol, or thinner.

Where should I store the radio when not in use?

Store it turned off, battery removed, in a dry place away from dust, high temperatures (max 50°C), and temperature variations. Keep away from sources of smoke or steam.

Can I repair the radio myself?

No. All repairs, modifications, or inspections must be carried out by an authorized HiKOKI after-sales service. Use the spare parts list if necessary.

USER MANUAL UR10DL HiKOKI

Line drawing of a handheld electronic device with control knobs and buttons (no text or symbols)

UR 10DL

Read through carefully and understand these instructions before use.

	SymbolsWARNINGThe following show symbols used for the machine. Be sure that you understand their meaning before use.
	Read all safety warnings and all instructions.Failure to follow the warnings and instructions may result in electric shock, fi re and/or serious injury.
	Only for EU countriesDo not dispose of electric tools together with household waste material!In observance of European Directive 2002/96/EC on waste electrical and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility.

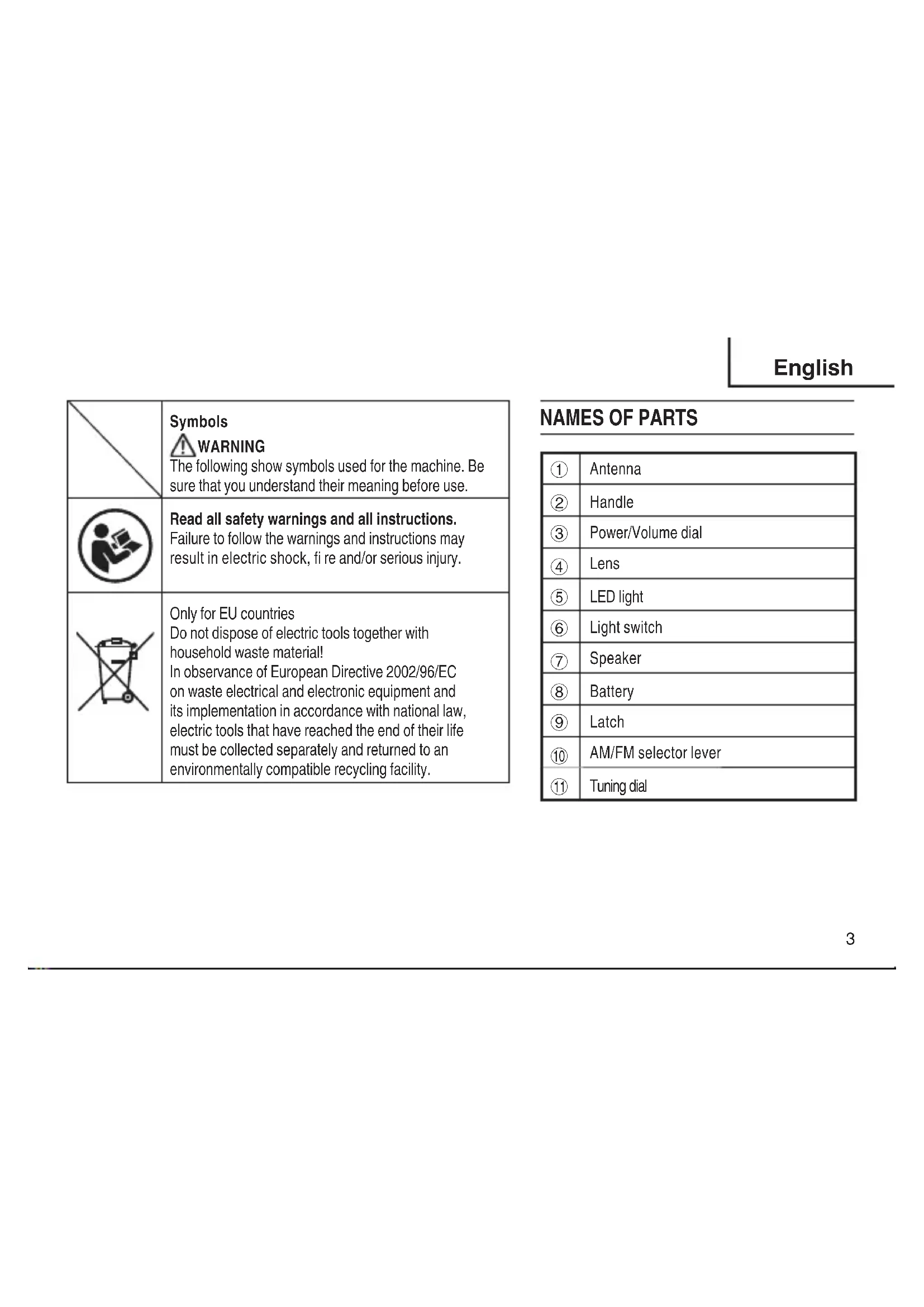

NAMES OF PARTS

1	Antenna
2	Handle
3	Power/Volume dial
4	Lens
5	LED light
6	Light switch
7	Speaker
8	Battery
9	Latch
10	AM/FM selector lever
11	Tuning dial

CORDLESS RADIO SAFETY WARNINGS

WARNING

Read all safety warnings and all instructions.

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

1. Use only the specified battery.

- Do not use a modified battery (including a battery that has been disassembled and the cell or other internal parts changed). Doing so may result in malfunction or cause smoke or flames to be emitted.

1. When not in use, remove the battery from the radio.

- Failure to do so may result in electric shock or fire.

1. Do not use the radio in the bathroom or shower.

- Do not use the radio in wet or damp places or in the rain.

Doing so may result in electric shock smoke or malfunction. 12

1. Do not touch the antenna during thunderstorms.

- Doing so may result in electric shock.

1. Do not subject the radio to strong impact, disassemble or otherwise modify the device.

- Doing so may result in electric shock or fire. Inspections and repairs should be performed by the store where purchased or by a HiKOKI power tool service center.

1. Do not let any foreign objects or water get inside the radio body.

- If any metal or fl ammable object or water gets inside the radio body, it may lead to electric shock or fire.

1. Do not place the radio on an unstable surface or in a high place.

- The radio may fall and cause injury or malfunction.

1. Do not leave the radio where it will be exposed to high temperature (50°C or over) such as inside a sun-heated vehicle.

- Doing so may result in malfunction.

1. Fold away the antenna when carrying the radio.

Tighten the screw at the mounting part when it has come loose.

- Failure to do so may result in injury.

1. Carry the radio carefully and do not wave it around.

- The battery may fall out, causing damage or injury.

1. Do not look directly into the LED light when it is on.

• Donigs so may damage your eyes.

1. Keep the radio away from gasoline or thinner.

- Such substances may cause deformation or melt the plastic components.

SPECIFICATIONS

Model UR10DL
Frequency band		FM: 87.5 to 108 MHzAM: 522 to 1620 KHz
Antenna		FM: Rod antenna 280 mmAM: Ferrite bar antenna (built-in) 50 mm
Speaker		40 mm (8 Ω) × 1
Rechargeable battery (sold separately)		BCL1015: Li-ion DC 10.8 V / 12 V Peak (1.5 Ah 3 cells)
Continuous operating time*	When using radio Approx. 20 hours
	When using fl ashlight Approx. 50 hours
Maximum exterior dimensions		146.5 mm × 95 mm × 48.5 mm (without battery)
Weight		0.2 kg (without battery)

* The continuous operating time varies depending on the conditions of use. The radio operating time is the number of hours with the radio at maximum volume.

English

1. Insert the battery (Fig. 2)
   Insert the battery in the direction of the arrow until it clicks.
   To remove the battery, press the latch and remove the battery.
2. Turn on the power (Fig. 3)
   Rotate the power/volume dial clockwise power.
3. Select the mode (Fig. 4)
   Slide the AM/FM selector lever to select AM or FM mode.
4. Select a station (Fig. 5)
   Rotate the tuning dial to select the desired station.

● For Better Reception

FM (Fig. 6)

Adjust the length, direction and angle of the antenna to ensure the best reception.

AM (Fig. 7)

The radio has a built-in antenna. Turn the radio around to find the direction with the best reception.

Location

- Reception may be poor when the radio is used inside a building or vehicle.

Place the radio near the window to ensure better reception.

○ Noise may occur if the radio is placed near a device that generates noise.
Move the radio away from the source of the noise.
○ Noise may occur if a mobile phone is placed near the radio.
A mobile phone emits radio waves both during calls and in standby mode.
If possible, keep mobile phones away from the radio.

e to turn on the

TURNING ON THE LED LIGHT

☐ The LED light turns on and off each time the light switch is pressed.
○ The LED light can be turned on while listening to the radio.
If the lens is dirty, wipe it gently with a soft cloth.

NOTE

IF THERE ARE SMOKE OR ODORS

WARNING

If the radio emits smoke or an abnormal smell, rotate the power/volume dial to OFF and remove the battery. Continued use of the radio may result in fire or electric shock.

Contact the shop where the radio was purchased.

English

MAINTENANCE AND INSPECTION

WARNING

When not in use or during inspection and maintenance, be sure to remove the battery.

● Cleaning on the outside

When the radio is stained, wipe with a soft dry cloth or a cloth moistened with soapy water.

Do not use solvents containing chlorine, gasoline or paint thinner as they may melt plastic.

● Storing the Radio

• After use, turn off the power and store the radio.
- If the radio will not be used for a long period, remove the battery.
- Do not store the radio in the following places.

○ Within reach of or easily accessible to children
○ In humid or dusty places
○ In high temperature such as inside a car or exposed to direct sunlight
○ Where the temperature changes drastically
○ Where it is exposed to smoke or steam such as near a cooking appliance or humidifier

● Service parts list

CAUTION

Repair, modification and inspection of HiKOKI Power Tools must be carried out by a HiKOKI Authorized Service Center.

This Parts List will be helpful if presented with the tool to the HiKOKI Authorized Service Center when requesting repair or other maintenance.

In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed.

MODIFICATIONS

HiKOKI Power Tools are constantly being improved and modified to incorporate the latest technological advancements.

Accordingly, some parts may be changed without prior notice.

GUARANTEE

We guarantee HiKOKI Power Tools in accordance with statutory/country specific regulation. This guarantee does not cover defects or damage due to misuse, abuse, or normal wear and tear. In case of complaint, please send the Power Tool, undismantled, with the GUARANTEE CERTIFICATE found at the end of this Handling instruction, to a HiKOKI Authorized Service Center.

English

NOTE

Due to HiKOKI's continuing program of research and development, the specifications herein are subject to change without prior notice.
